Basta Boatlifts Over-Center 18k59 User manual

READ complete manual CAREFULLY
BEFORE attempting assembly or operation
tm

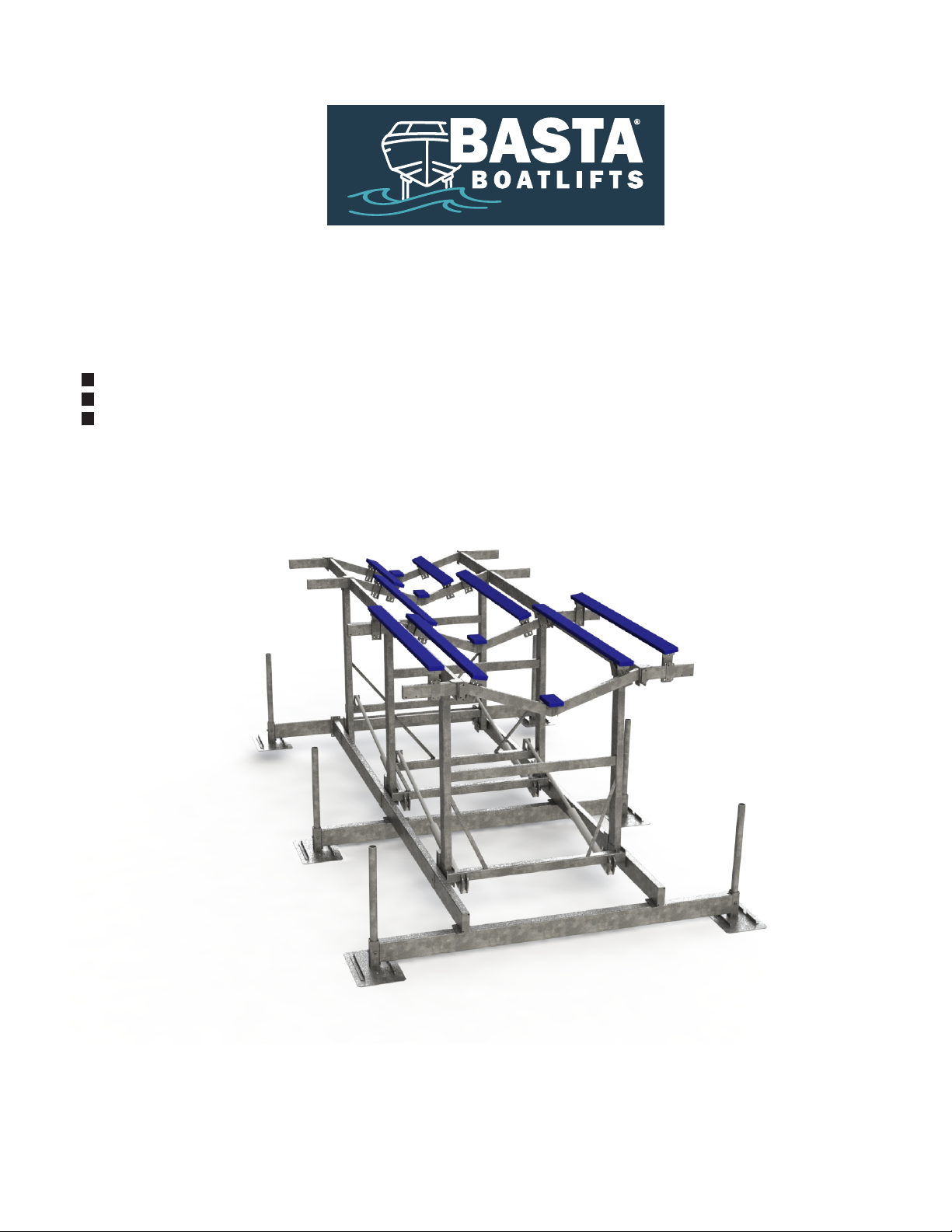

Over-Center Hydraulic Steel Lift
18,000 lbs Capacity Models # 18k59 &18k71
ASSEMBLY
INSTALLATION
REPLACEMENT PARTS
18k59/71
5/23
L392-0106, REV B
Copyright 2023 Basta Inc.
©
866-GO-BASTA
www.gobasta.com
Basta Inc. Seatac WA 98198 USA

Assembly Instructions ..........................................................................Pages 6 - 15
First Use / Adjustments
..……………...........................................................Page 18
Centering Device Assembly ....……………..........................……….....Page 16 - 17
Parts Assembly Diagram .........................................................................Page 4 - 5
Maintenance/Battery Information .…..................................................Page 19 - 20
INDEX
Warning ..……………………..........................................................................Page 2 - 3
Warranty .............................…...........................................................................Page 23
NOTE:Your boat lift is a very heavy piece of equipment. Improper use could result in
serious injury or death. For the safety of people and property please review the safety
guidelines below for your new boat lift.
Passengers should stand clear of the lift and not
be aboard when the lift is in operation.
Do not play on or near the lift.
Leave your automatic bilge pump turned on the
automatic setting to prevent the accumulation of
rain water.
Service your lift regularly.
Do not service the unit with the boat on the lift.
Use a mooring line for additional security.
Only use Basta Marine approved oil in lift.
Special biodegradable non-toxic hydraulic fluid
Visually inspect all parts and assemblies for
defects and damage prior to assembling the
lift.
Do not install the lift alone.
Install the lift on firm and level ground.
Verify the lower frame of the lift is level
before each use.
Turn the power off during periods of non- use.
This hoist is a heavy piece of equipment please
use with care.
The lift should not be used for any other
purpose besides the lifting of boats & watercraft.
WARNING
part # Y354-0001
page 2
Do not exceed the maximum weight capacity
specified for the lift. SEE PAGE 18.
MAXIMUM CAPACITY
DANGER
18,000 LBS
8,200 KG
Troubleshooting / FAQ .…...........................................................................Page 21
For a full list of patents, go to:
bastaboatlifts.com/patents

INSPECT
the lift monthly
for frayed hoses, loose
fasteners and corrosion
Before Using:
Read this manual
completely!
!
!
!
lift unattended
OIL INJECTED INTO THE SKIN FROM HIGH PRESSURE
LEAKS IN HYDRAULIC SYSTEMS CAN CAUSE SEVERE
INJURY. MOST DAMAGE OCCURS DURING THE FIRST
FEW HOURS. SEEK MEDICAL ATTENTION IMMEDIATELY.
SURGICAL REMOVAL OF OIL MAY BE NECESSARY.
USE ONLY BASTA BIODEGRADABLE HYDRAULIC FLUID
page 3
After the lift is assembled and installed, all fasteners should
be checked for proper tightness and reinspected
periodically.
!WARNING

13
14
6
5
2
1
2
4
7
10
9
16
ITEM PART # DESCRIPTION
1base crossmember weldment, forwardW110-0007
QTY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
base crossmember weldment, aft
side rail weldment, left
side rail weldment, right
H-frame assembly, forward
H-frame assembly, center
H-frame assembly, aft
bunk chevron weldment
bunk board assembly, forward
bunk board assembly, aft
bunk stanchion, 9”
bolt plate, 6”
foot weldment
leg
bunk rail assembly
hydraulic cylinder
bunk stanchion, 12”
bolt plate, 8”
keel block
centering device bracket, left
centering device bracket, right
centering device stanchion tube
centering device buffer tube
W110-0008
W104-0035
W104-0034
A431-0053
A431-0052
A431-0051
W113-0037
A428-0034
A428-0033
K204-0116
K204-0160
W116-0003
K200-0064
A427-0025
see page 15
K204-0118
K200-0199
W410-0081
W108-0030
W108-0029
W108-0003
K204-1013
2
1
1
1
1
1
4
2
6
12
12
6
6
2
4
4
4
4
x
x
x
x
3
15
15
10
10
page 4
In the following pages various symbols are used:
indicates an illustration for a procedure.
indicates a major part shown and described above.
indicates a hardware item shown and described on page 5.
12
1
C3
8
I T E M S 2 0 - 2 4
ARE SHOWN ON
PAGES 16 & 17
ITEM PART # DESCRIPTION
1base crossmember weldment, forwardW110-0007
QTY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
base crossmember weldment, aft
side rail weldment, left
side rail weldment, right
H-frame assembly, forward
H-frame assembly, center
H-frame assembly, aft
bunk chevron weldment
bunk board assembly, forward
bunk board assembly, aft
bunk stanchion
bolt plate, bunk
foot weldment
leg
bunk rail assembly
hydraulic cylinder
bunk stanchion, 12”
bolt plate, 8”
keel block
centering device bracket, left
centering device bracket, right
centering device stanchion tube
centering device buffer tube
W110-0008
W104-0035
W104-0034
A431-0054
A431-0055
A431-0056
W113-0037
A428-0034
A428-0033
K204-0116
K204-0160
W116-0003
K200-0064
A427-0025
see page 15
K204-0118
K200-0199
W410-0081
W108-0030
W108-0029
W108-0003
K204-1013
2
1
1
1
1
1
4
2
6
12
12
6
6
2
4
4
4
4
x
x
x
x
MODEL 18k71
MODEL 18k59
18
19
19
11
12
18
11
16
16
17
17
18
17
24 centering device buffer tube capK204-1014 x24 centering device buffer tube capK204-1014 x

ITEM PART # DESCRIPTION
A1 5/8” x 1-1/2” hex head set screw, SSS103-0807
QTY
24
B1
B2
B3
C1
C2
C3
D1
D2
D3
E1
E2
F1
F2
F3
G1
G2
G3
H1
H2
H3
I1
I2
I3
J2
J3
K1
K2
K3
L1
1/2” x 1-1/2” hex head cap screw, SS
1/2” flat washer, SS
1/2” nylon insert lock nut, SS
1” x 9” hex head cap screw, SS
1” flat washer, SS
1” nylon insert lock nut, SS
3/4” x 5” hex head cap screw, SS
3/4” flat washer, SS
3/4” nylon insert lock nut, SS
ring type cotter pin, SS
3/4” x 3-1/2” clevis pin, SS
1/2” x 4” hex head cap screw, SS
1/2” flat washer, SS
1/2” nylon insert lock nut, SS
1/2” x 3-1/2” hex hd. cap screw, SS
5/16” flat washer, galvanized
1/2” flat washer
5/16” lock washer, galvanized
1/2” flat washer, SS
1/2” nylon insert lock nut, SS
5/16” hex nut, galvanized
3/8” - 16 nylon insert lock nut, SS
1/2” x 1-1/4” sq head set screw, SS
1/2” x 1-1/2” hex head cap screw, SS
1/2” flat washer, SS
1/2” nylon insert lock nut, SS
U bolt, 7/16 x 4.125 x 3
7/16” flat washer
7/16” - 14 nylon insert lock nut, SS
3/8” x 3-1/4” hex head cap screw, SS
S103-0707
S313-0010
S362-0010
S103-1020
S313-4015
S362-0014
S103-0912
S313-0013
S362-0012
S522-0801
S503-0013
S103-0717
S313-0010
S362-0010
S103-0715
S313-0010
S321-0007
S313-0008
S362-0010
S341-0007
S362-0008
S163-6711
S103-0707
S313-0010
S362-0010
S170-6601
S313-0009
S362-0009
S312-0007
S103-0514
24
48
24
6
6
6
6
6
6
8
8
16
32
16
16
32
16
16
32
16
24
48
48
16
16
x
16
x
x
x
page 5
A
B
F
C
E
D
H
J
ITEMS K1 THROUGH L1 ARE
SHOWN ON PAGES 16 & 17
I
H
GFI
A
B
B
B
C
D
E
J
J1
G

ASSEMBLY INSTRUCTIONS
1
1
1
3
2
2
3
Foot and Leg Sockets
1
QTY SIZE TYPE
24 hex head set screws5/8 x 1-1/2
REF
A1
apply a small
amount of grease
to bolt threads
HARDWARE
1
1
2
2
tighten leg set screws
alternately to push the
leg securely into the
corner of the leg socket
A1
A1
A1
1
page 6
step
13
A1
14
1 or 2
?parts identified
on page 4
?parts identified
on page 4

Aft and Center Crossmembers Forward Crossmember
2
3
QTY QTYSIZE SIZETYPE TYPE
8 16
16 32
8 16
bolts3/8 x 1-1/4 3/8 x 1-1/4
3/83/8 3/83/8
REF REF
B3B3
B2B2
B1B1 bolts
flat washersflat washers
lock nutslock nuts
apply a small
amount of grease
to bolt threads
apply a small
amount of grease
to bolt threads
HARDWARE
HARDWARE
do not tighten these bolts
completely until the H-frames
and bunks have been
installed & squared up
do not tighten these bolts
completely until the H-frames
and bunks have been
installed & squared up
B2
B3
B1
B3
B2
B3
B1
B3
page 7
step
step
1
3 or 4
3 or 4
2
?parts identified
on page 4
?parts identified
on page 4

ASSEMBLY INSTRUCTIONS
page 8
Forward H-Frame
QTY SIZE TYPE
2bolts1 x 9
REF
C1
2 2
flat washers
lock nuts
1 1
C2 C3
4apply a small
amount of grease
to bolt threads
HARDWARE
4
5
6
remove the plastic ties
that secure the bushings
before installing the H-frame
C1
C3
C2
step
FORWARD CENTER AFT
REMOVE
5
?parts identified
on page 4

C3 C2
C1
Center H-Frame Aft H-Frame
remove the plastic ties
that secure the bushings
before installing the H-frame
QTY QTYSIZE SIZETYPE TYPEREF REF
6
5
apply a small
amount of grease
to bolt threads
apply a small
amount of grease
to bolt threads
HARDWARE
HARDWARE
C2 C3
C1
2 2bolts bolts1 x 9 1 x 9C1 C1 2 2 2 2
flat washers flat washers
lock nuts lock nuts
1 1 1 1
C2 C2 C3 C3
remove the plastic ties
that secure the bushings
before installing the H-frame
page 9
step
step
FORWARD
FORWARD
CENTER
CENTER
AFT
AFT
REMOVE
REMOVE
7
6
?parts identified
on page 4
?parts identified
on page 4

ASSEMBLY INSTRUCTIONS
Bunk Rails
QTY SIZE TYPE
6bolts3/4 x 5
REF
D1
6 6
flat washers
lock nuts
3/4 3/4
D2 D3
7apply a small
amount of grease
to bolt threads
HARDWARE
tighten these nuts only
“finger tight” until the
cylinders are installed
7
7
7
7
7
8
8
9
9
7
D3
D1
D2
page 10
step
15
15
LONGER
SHORTER
?parts identified
on page 4

Forward Hydraulic Cylinders Aft Hydraulic Cyinders
QTY QTYSIZE SIZETYPE TYPE
44 44
ring type cotter pinsring type cotter pins
clevis pinsclevis pins
3/32 x 23/32 x 2
3/4 X 53/4 X 5
REF REF
E2E2 E1E1
8
9HARDWARE
HARDWARE
E1 E2
E2 E1
install the clevis pins
“E2” with their heads
toward the inside of the lift
page 11
step
step
INSIDE
INSIDE
NOTICE
tighten the bunk rail nuts and
crossmember bolts after
all the cylinders are installed
16
16
16
16
?parts identified
on page 4
?parts identified
on page 4

Bunk Chevrons (4 total)
QTY SIZE TYPE
16 bolts1/2 x 3-1/2
REF
F1
32 16
flat washers
lock nuts
1/2 1/2
F2 F3
10 apply a small
amount of grease
to bolt threads
HARDWARE
leave bolts loose
until bunk boards
are installed
10
page 12
step
10
?parts identified
on page 4
¾”
50¾” 92” 92”
approximate starting locations
129cm 234cm 234cm
F3
F2
F1
F2
8
8
8
11a
11a
11b
10
12
12
11b
10
all inner
bunk boards

Bunks (8 total)Keel Board
QTY QTYSIZE SIZETYPE TYPE
16 32 16 16
64 64 16
galvanized flat washers U-bolts
galvanized lock washers
galvanized nuts
flat wash.
lock nuts
bolts
5/16 7/16x4.125x3 5/16 5/16
7/16 7/16
1/2x1.5
REF REF
J1 J2 J3
I2 I3
H1
I1
12
11
apply a small
amount of grease
to bolt threads
apply a small
amount of grease
to bolt threads
HARDWARE
HARDWARE
the bunks may have to be adjusted
several times for the best fit -
page 13
step
step
remember to tighten all the
bolts installed in Step 10
NOTICE ?parts identified
on page 4
?parts identified
on page 4
WITHOUT BOAT ON LIFT!
A
B
QTY SIZE TYPE
16 32 16
bolts
flat wash.
1/2
REF
G2 G3
G1
32 flat wash.1/2 H2
11
H3
H2
H1
10
H3
H2
H1
17
9x2
10 x4
x2
19
J2
J1
J3
8
11
8
I2
I3
12
I1
9
10
8
G2
G3
G2 G1
1/2 1/2 lock nuts
flat wash.
19 x3

NO GAP!
4
5
5. Test the lift on dry ground using the Up/Down Switch
( # 9) and the Key Fob Transmitters. Inspect the
system for leaks.
1. The Hydraulic Pump will arrive fully assembled. Make
s u re all the connections are snug to prevent leaks or
loss of power to the unit.
2. Install two AGM Marine Grade Batteries as shown
a b ove. Confirm that the POWER switch on the Control
Panel (#8) is OFF. Connect solar panel to the
solar controller (see page 15).
Connect the Black Link Cable (#19) between the two negative
terminals of the batteries. Connect the Red Link Cable (#21)
between the two positive terminals of the batteries. Connect
the Red Battery Cables (#13) to the positive terminals and the
Black Battery Cables (#12) to the negative terminals of the
battery bank as shown.
NOTE: Ensure battery cables are correctly connected
and their terminals are very tight (otherwise there is
a risk of overheating).
4. Slide the Hydraulic Cylinder Hoses through the
a c cess holes in the side of the White Fiberglass Box
(#10) and attach them to their corresponding
Quick Couplers (#4, #5).
Ensure each Quick Coupler is
completely seated and tight with
no gap at the connection joint.
Connection must be tight to open internal
check valve and allow fluid to flow. USE PLIERS
one
inch
hydraulic fluid level with
lift in DOWN position
only add fluid with lift
in DOWN position
Hydraulic Power Unit
13 page 14
step
OIL INJECTED INTO THE SKIN FROM HIGH PRESSURE
LEAKS IN HYDRAULIC SYSTEMS CAN CAUSE SEVERE
INJURY. MOST DAMAGE OCCURS DURING THE FIRST
FEW HOURS. SEEK MEDICAL ATTENTION IMMEDIATELY.
SURGICAL REMOVAL OF OIL MAY BE NECESSARY.
Keep inside dry
Tighten nuts on
batteries very tight.
Otherwise, cables
may overheat during
lift operation.
NOTICE
NOTE: pump
appearance
may vary 12
Battery
AMG
deep cycle
Battery
AGM
deep cycle
13
1921
6
8
9
Connect solar controller plugs to solar panel plugs.
Connect solar controller “+” and “--” connections to pump
connections.
3.
NOTE: Disconnect the
solar controller from
the solar panel when
batteries are not
hooked up.

page 15
28
# R811-0011
Remote Control Receiver
Remote Key Fobs
POWER UNIT
ASSEMBLY
# H603-0016
Please order replacement parts by PART NO. and DESCRIPTION
pre-wired
with wiring
harness
Hydraulic Fluid (quart)
BATTERY SAFETY IS IMPORTANT
Follow all battery manufacturer’s warnings
and safety information.
Padlock
not included
SOLAR PANEL ASSEMBLY
# R281-0012
ENCLOSURE
# C243-0005
# R812-0012
# Y354-0001
POWER SYSTEM COMPONENTS
# R283-0005
Solar Controller
NOTE:
REMOVE SHIPPING PLUG IN
RESERVOIR AND REPLACE
WITH BREATHER PLUG
BEFORE START-UP
NOTE:
REMOVE SHIPPING PLUG IN
RESERVOIR AND REPLACE
WITH BREATHER PLUG
BEFORE START-UP
CONTROL PANEL
ASSEMBLY
# R815-0012
NOTE: pump
appearance
may vary
pre-charged with
hydraulic fluid
Hydraulic Cylinder Assembly
#H310-0018 (X2)
Hose Assemblies
#H111-0005 (4X)
Hydraulic
Fitting Kit
#H791-0006
Hose Assembly
#H123-0042
Cylinder
#H402-5305
(2X)

page 16
Centering Device Brackets
SIZE TYPE
12 bolts3/8 x 3-1/4
REF
K1
24 12
flat washers
lock nuts
3/8 3/8
K2 K3
14 apply a small
amount of grease
to bolt threads
HARDWARE
step
?parts identified
on page 4
up to four centering
devices per side
can be installed
14
position
as desired
14
position
as desired
15
14
position
as desired
14
position
as desired
K2 K1
K3
K2
20
QTY
quantities shown
are for three pairs
of centering devices
CENTERING DEVICE ASSEMBLY INSTRUCTIONS

Centering Device Stanchions
QTY SIZE TYPE
12 square head set screws1/2 x 1-1/4
REF
L1
15 apply a small
amount of grease
to bolt threads
HARDWARE
step
?parts identified
on page 4
L1
quantities shown
are for three pairs
of centering devices
L1
19
20
19
20

page 18
FIRST USE AND ADJUSTMENTS
Follow this “first use section” during your first loading of a boat onto the boat lift.
These are required adjustments to make the lift work correctly.
1. Place the boat over the lift to the following specifications:
a. If your boat is an outboard, inboard/outboard, or V-drive, the transom should be 2 inches off of the ends of the bunk boards.
b. If your boat is a mid-engine or shaft-drive, the transom should be 12 to 24 inches off of the ends of the bunk boards.
Disembark and raise the boat. If more than two inches of settling occurs, STOP, carefully lower the lift to remove the
boat and re-level the lift. Continue repeating this step until the boatlift can be raised into the full Over - Center position
without settling.
tm
3. Remove the boat. Verify that the lift frame is level. Re-level the framework if necessary.
NOTE: If you purchase a new boat, be sure it is within the weight capacity limits of the lift. Also remember that
these adjustments will have to be done again to accommodate the new boat.
First test lift on dry ground for oil leaks, remote control function and correct operation.
2.
IMPORTANT: After installation, the legs MUST be adjusted so that the lift frame is level.
Lift must move into Over-Center position when fully raised.
!
!
!
lift unattended
104”
[92”]
72”
[63”]
33”
24”
Where measurements differ, those for
the 18k59 are shown in [brackets].
Do not exceed the maximum weight capacity
specified for the lift. SEE PAGE 18.
MAXIMUM CAPACITY
DANGER
612cm
264cm
[234cm]
182cm
[160cm]
61cm 84cm
592cm
373cm
18,000 LBS
8,200 KG
147”
115”
292cm

page 19
MAINTENANCE
Occasionally wipe the solar panel with a clean, damp cloth to preserve its charging performance.
INSPECT THE LIFT PERIODICALLY
After the lift is assembled and installed, all fasteners should
be checked for proper tightness and reinspected
periodically.
!WARNING
one
inch
hydraulic fluid level with
lift in DOWN position
add fluid ONLY with lift
in LOWERED position
one
inch
hydraulic fluid level with
lift in UP position
NOTICE
USE ONLY BASTA BIODEGRADABLE HYDRAULIC FLUID
We recommend Chevron Clarity® AW ISO 32 or CITGO Aquamarine® 46 hydraulic oils.
DO NOT add fluid with
lift in RAISED position
!
Once a month:
Inspect the hoses, cylinders and fittings for leaks and wear.
Check the wire terminals for snugness and corrosion.
Check the hydraulic fluid level.
At least every 6 months:
Check the battery levels.
The battery electrolyte should be slightly
above the indicator ring in each cell. Carefully
add DISTILLED water if necessary
Do not over-fill.

page 20
A fully automatic battery charger or
trickle charger may be used.
Do NOT use a high power manual or boost charger
unless the battery is disconnected!
The remote control electronics may be damaged.
1.This lift uses two 12V Group 31 marine deep-cycle batteries. When looking
for a replacement, note that the figure for Reserve Capacity is the most
important feature. Heavier batteries usually have more reserve capacity.
2.The batteries should not be allowed to remain in a substantially discharged
state. It may result in permanent loss of capacity. Do not deeply discharge
batteries more often than absolutely necessary; it may reduce the life of the
batteries.
3.The following graph shows the approximate numbers of complete lift
cycles that may be expected during the day over the course of the seasons
while keeping the battery adequately charged. This data is only very
approximate and is influenced greatly by weather, temperature, solar panel
placement and cleanliness.
2
4
6
8
10
12
14
WINTER SPRING SUMMER AUTUMN
CYCLES PER DAY
Seattle-ish Miami-ish
WARNING
BATTERY INFORMATION
