Baumatic BCE620SS User manual

1 y
BCE620SS/W 60 cm
Twin cavity electric
slot-in cooker

User Manual for your Baumatic
BCE620SS/W
60 cm Twin cavity electric slot-in
cooker with ceramic top
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 18/08/10
2

3
Contents
Environmental note 4
Important safety information 5 – 9
Specifications 9 – 12
Dimensions 9
Product specifications 9 – 10
Standardaccessories 10
Electricaldetails 10
Controlpanel 11
Oventimer 12
Setting and using the oven programmer/timer 12 - 14
Setting the time of day 12
Before first use 13
Setting the minute minder function 13 - 14
Selecting a cooking function and temperature 14 - 17
Usingthemainoven 14
Usingthegrill 15
Temperatureindicatorlights 16
Cooking guidelines 16
Warnings 16-17
Usingthehobtop 17 - 19
Before first use 17
Using the hob top zones 17
Residualheatindicator 18
Hobguidelines 18-19
Cleaning and maintenance 19 - 22
Cleaning the ceramic hob top 20
Aftereachuse 20
Cleaning table 20
Replacing the oven bulb 21
Removing the oven door for cleaning 21 - 22
Installation 22 - 27
Positioning 23-24
Safety chain anchors 24 - 25
Securing the safety chains 25 - 26
Electricalconnection 26
Connecting the main supply cable 26 - 27
My appliance isn’t working correctly 27 - 29
Contact details 30

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Advice Line.
General Information
oThis appliance is designed for domestic household use and for
the cooking of domestic foodstuffs.
oIMPORTANT: The adjacent furniture and all materials used in
the installation must be able to withstand a minimum
temperature of 85°C above the ambient temperature of the
room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 25 mm to the appliance, will be
the liability of the owner.
oIMPORTANT: Baumatic Ltd. DO NOT recommend that this
appliance is installed on any type of marine vessel.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oRepairs may only be carried out by Baumatic service
engineers or their authorised service agents.
5

6
Warning and safety instructions
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time. During and after use, all
surfaces will become hot.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
Make sure that you understand the controls before using the
appliance.
Check that all of the controls on the appliance are turned off
after use.
Always stand back when opening the oven door, this will allow
heat to disperse.
Take care when removing items from the oven, as the contents
may be hot.
Always keep the oven doors closed when the oven is not in use.
Always follow the basic principles of food handling and hygiene;
this will prevent the possibility of bacterial growth.
Always keep ventilation slots clear of obstructions.
Keep fingers away from the hinge areas when closing the door,
otherwise you may trap them.
Oven gloves should be used when placing food in the oven cavity
and when removing it. Care should be taken to avoid direct
contact with any of the elements in the appliance.
oDO NOT LEAVE THE APPLIANCE UNATTENDED WHILST IN
USE.

7
oDo not place heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
door hinges. Nobody should be allowed to sit or stand on any
part of the cooker.
oDo not store chemicals, food stuffs, pressurised containers in or
on the cooker or in cabinets immediately above or next to the
cooker.
oDo not heat up unopened food containers, as pressure can build
up which may cause the container to burst.
oDo not place flammable or plastic items on or near the hob
burners, these types of materials should also not be placed in
the oven or the compartment below the oven.
oDo not leave heated oil or fat unattended, as this is a fire risk.
You should not fill a deep fat frying pan more than one third full
of fat or oil; you should also not use a lid.
oDo not allow fat or oil to build up in the oven trays, grill pan or
oven base.
oDo not place pans or baking trays directly on the base of the
oven cavity, or line it with aluminium foil.
oDo not grill food containing fat without using the grill trivet. The
grill trivet should never be covered with aluminium foil.
oDo not place hot enamel parts in water, leave them to cool first.
oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato
juice or any liquid with high sugar content to remain in contact
with the enamel parts of the appliance. Spillages should be
wiped up immediately.
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in or to
dry clothing. No clothing should be placed over or near to the
hob burners or oven door.
oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to the appliance
or result in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
oIMPORTANT: Care must be taken when cleaning between
the door glasses, and inside the inner frame as some of
the edges maybe sharp due to the manufacturing process.
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions. Please see
the specific section of this booklet that refers to
installation.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23/EEC regarding “low voltage”
-89/336/EEC regarding “electromagnetic disturbances”
-89/109/EEC regarding “materials in contact with food”.
8

oThe above directives comply with 93/68/EEC regarding CE
marking.
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
Specifications
Product dimensions:
Height: 900 - 920 mm
Width: 600 mm
Depth: 600 mm
Product specifications:
o4 zone ceramic hob:
o2 x 1.20 kW radiant zone (diameter 145 mm)
o2 x 1.80 kW radiant zone (diameter 180 mm)
o4 Individual residual heat indicators
oFan oven cavity
oGrill oven cavity
oOven energy efficiency class: A
oMain oven gross / net capacity: 65 / 58 litres
9

10
oSecondary grill gross / net capacity: 30 / 27 litres
oLED minute minder
oThermostatically controlled grill
oDouble-glazed removable door
oAdjustable feet
Standard accessories:
o2 x Oven wire shelves
o2 x Enamelled baking tray with handle
o1 x Trivet
Electrical details
Rated Voltage: 220 - 240 Vac 50 Hz
Supply Connection: 40 A (double pole switched fused
outlet with 3mm contact gap)
Max Rated Inputs: 10.00 kW
Mains Supply Lead: 3 core x 6 mm² (not supplied)
Oven Light Bulb: E14 15 W/300°C screw type pygmy
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The main rating plate for your oven can
be located at the back of the cooker. A smaller rating plate which
quotes the serial and model numbers can be found on the inner cavity
of the oven or grill door.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

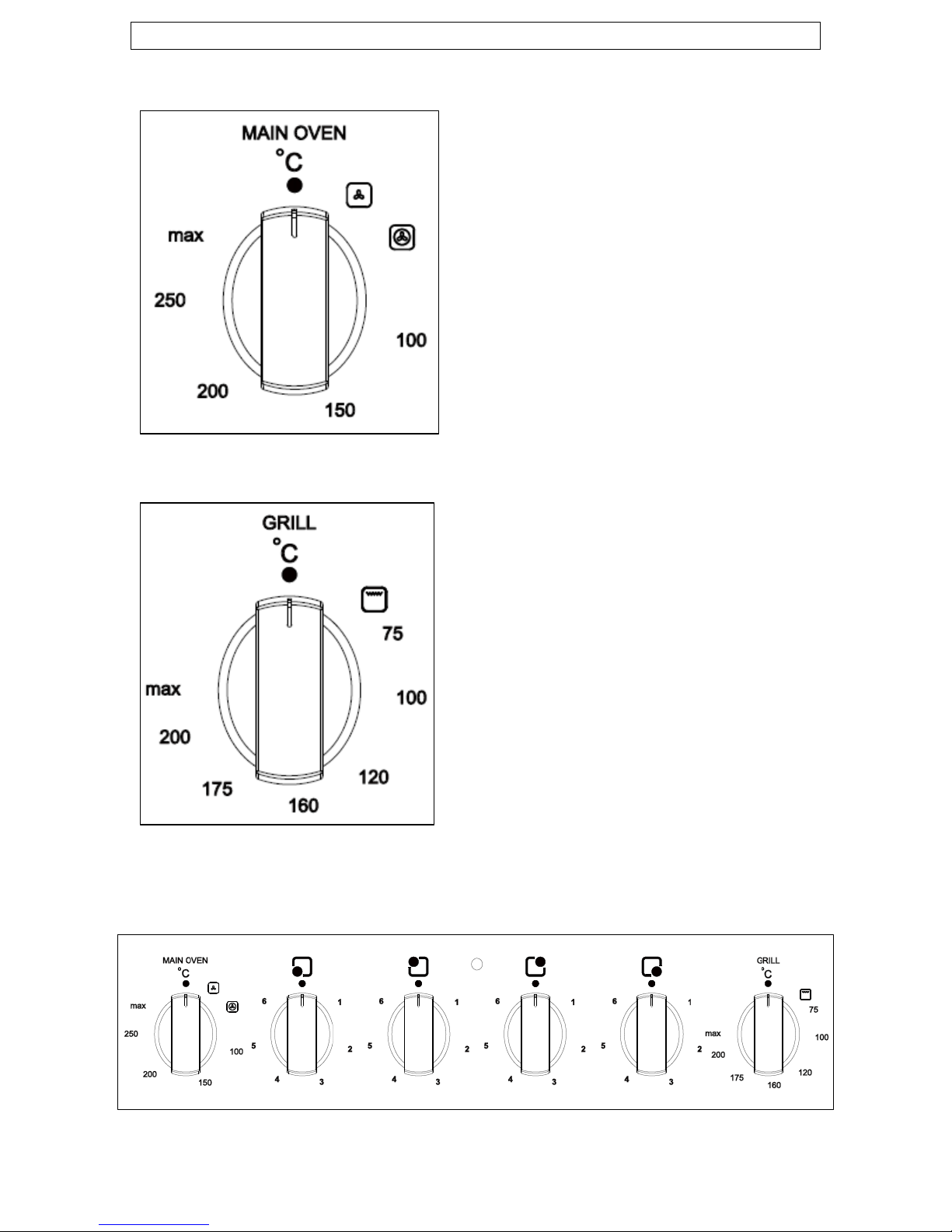

Control Panel
Thermostat control knob (oven)
oUse this control knob to control
the temperature in the oven.
oIf you position the dial on the
first icon clockwise, you will
select the defrost function.
Thermostat control knob (grill)
oUse this control knob to select
the temperature for the grill in
the top oven.
Control panel
11

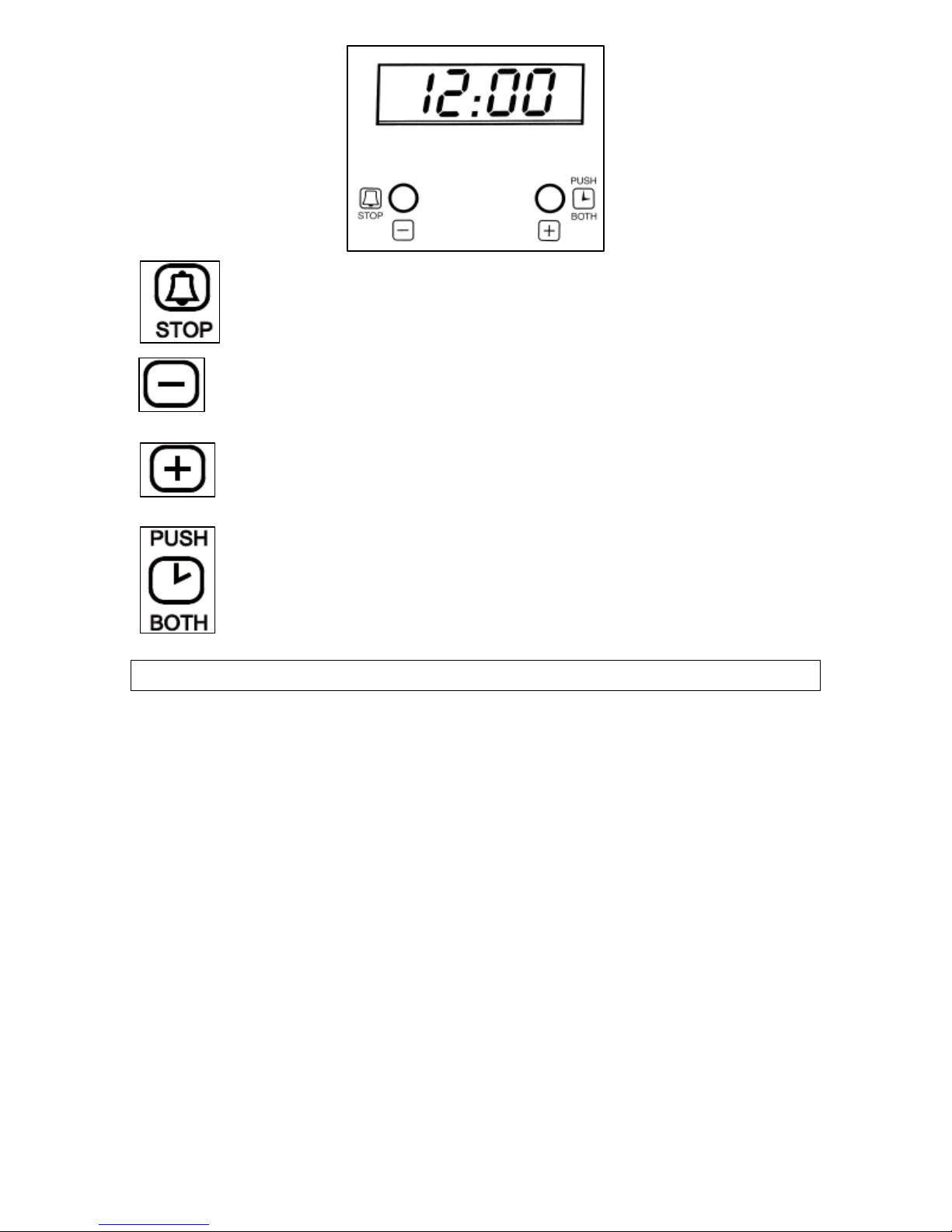

Oven timer
1) Alarm stop icon (press minus button to stop alarm).
2) Timer minus button.
3) Timer plus button.
4) Time-setting mode indicator (press plus and minus
buttons together to enter this mode).
Setting and using the oven programmer/timer
Setting the time of day
Before using the oven for the first time you should set the time
of day.
oPress the plus (3) and minus (2) buttons simultaneously to
enter the time-setting mode. The display will automatically show
“12.00”.
oUse the plus (3) and minus (2) buttons to adjust the time to the
correct hour. Release all buttons and after a few seconds the
time will be set.
12

13
Before first use
oTo remove any residue from the oven that may have been left
from the manufacturing process, you should select the
conventional oven function and turn the thermostat dial to its
maximum temperature setting. For the grill cavity you should
select the maximum temperature setting.
oIt is perfectly normal for a smell to be produced during this
process.
oYou should make sure that any windows in the room are left
open during this process.
oIt is advisable for you not to remain in the room whilst the
burning off process is taking place.
oYou should leave each oven on maximum setting for 30 – 40
minutes.
oIMPORTANT: You should not burn off both ovens
simultaneously.
oAfter both cavities have cooled, they should then be cleaned with
warm soapy water, using either a sponge or soft cloth. No
abrasive cleaners should be used.
oOuter parts of the oven should be cleaned with warm soapy
water, using either a sponge or soft cloth. No abrasive cleaners
should be used.
oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance (BCE620SS only).
Setting the minute minder function (both cavities)
You are able to set the minute minder at any time, regardless
of whether an oven function has been selected. You can set a
period of time using the minute minder function and an alarm
will sound when this period of time has elapsed.
oPress the plus button (3) to enter the alarm setting mode. Set
the period of time that you wish the minute minder to
countdown for by using the minus (2) and plus (3) buttons.
oOnce the display has got to your desired countdown time, let go
of the minus and plus buttons. After five seconds the countdown
will begin.

oAn alarm will sound when the countdown time has elapsed. The
alarm can be silenced by pressing the minus button (2).
oImportant: The oven will continue to heat once the alarm has
been silenced. If you have finished cooking, then you should turn
the oven function selector and thermostat control knob to 0.
Selecting a cooking function and temperature
After your appliance is connected to your mains supply for the
first time, the numbers on the timer display will flash. Before
you select a cooking function you should set the time of day
(see above section for how to do this).
Using the main oven
The oven temperature control should
be turned clockwise and used to
select the particular mode of cooking
that you require. If you turn the dial
clockwise and select the first symbol,
this will start the defrost function. If
you continue turning the dial and set
the oven to a temperature, then the
fan oven setting is selected.
There are two cooking functions available on your appliance:
DEFROST MODE: The fan runs without heat to reduce the
defrosting time of frozen foods. The time required to defrost
the food will depend on the room temperature, the quantity
and type of food. Always check food packaging for the
defrosting instructions.
FAN OVEN: This method of cooking uses the circular
element while the heat is distributed by the fan. This results
in a faster and more economical cooking process. The fan
oven allows food to be cooked simultaneously on different shelves,
preventing the transmission of smells and tastes from one dish onto
another.
14

Using the grill
The grill control should be turned
clockwise and used to select the grill
temperature that you require. We
recommend that you preheat the grill
for five minutes before putting food
into the grill.
IMPORTANT: The grill door must be
closed when using the grill function.
FULL GRILL: This method of cooking utilises the inner and
outer parts of the top element, which directs heat
downwards onto the food. This function is suitable for
grilling medium or large portions of sausages, bacon,
steaks, fish etc. Ideally the thermostat control knob should be set to
200°C
IMPORTANT: When fitting the handle to the enamelled baking
tray, hook the handle over the edge of the tray and through the
wire rack at a central point, along the tray edge. Lower the
handle fully down to secure it.
15

Temperature indicator lights
These lights will come on to indicate that the heating elements are in
operation. The relevant light will switch off when the temperature set
on the thermostat control knob has been reached. It will cycle on and
off throughout the cooking time.
You should not place food inside the cavity, until the correct
cooking temperature has been reached.
Cooking guidelines
oPlease refer to the information given on food packaging for
guidance on cooking temperatures and times. Once familiar with
the performance of your appliance, temperatures and times can
be varied to suit personal preference.
oMake sure that frozen foods are thoroughly thawed before
cooking, unless the instructions on the food packaging advise
that you can “cook from frozen”.
oYou should pre-heat the oven and not place food inside of it until
the oven is properly heated. You can choose not to pre-heat
when using the fan oven; however you should extend the
cooking time given on the food packaging by approximately ten
minutes.
oBefore cooking, check that any unused accessories are removed
from the oven.
oPlace cooking trays in the centre of the oven and leave gaps
between the trays to allow air to circulate.
oTry to open the door as little as possible to view the dishes.
oThe oven light will remain on during cooking.
Warnings
oDo not use aluminium foil to cover the enamelled baking tray or
heat items wrapped in aluminium foil under the grill. The high
reflectivity of the foil could potentially damage the grill element.
oYou should never line the base of your oven with aluminium foil.
oDuring cooking, never place pans or cookware directly onto the
bottom of the oven. They should always be placed on the shelves
provided.
16

oThe grill heating element becomes extremely hot during
operation, avoid touching it inadvertently when handling the
food which you are grilling.
oImportant: Be careful when opening the door, to avoid contact
with hot parts and steam.
oIMPORTANT: In case of fire, switch off the electricity supply to
the appliance. NEVER pour water onto burning oil.
Using the hob top
Before first use
IMPORTANT: You should clean the hob surface (see
“Cleaning and maintenance” section).
oYou should switch on one cooking zone at a time, for 5 minutes
at the maximum setting. This will help to eliminate any new
smell that exists and evaporate any humidity that has formed on
the heating elements during transit.
oDo not burn off more than one zone at once.
oYou must place a saucepan filled half full with cold water on
each zone as you burn it off.
Using the hob top zones

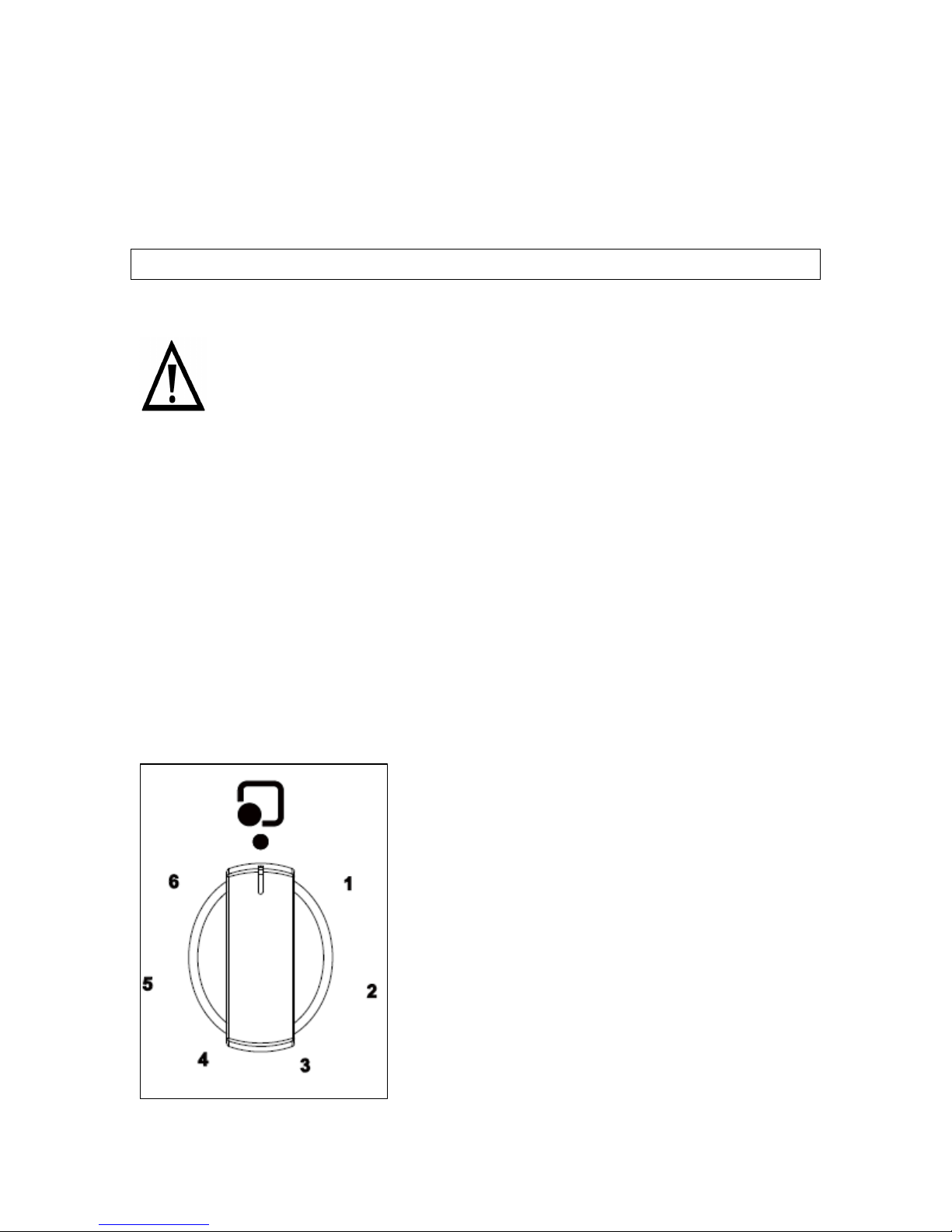

oEach zone on the ceramic hob top is controlled by a control
knob.
oTo activate a zone, position the
control knob between 1 – 6.
oYou should select a control knob
position that is suitable for the
particular cooking that you are
carrying out. 6 is the highest
temperature setting and 0 is off.
oWhen you have finished cooking on a
particular zone, it is important to
make sure that the control knob is
turned back to 0 (the off position).
17

Residual heat indicator
oAfter a zone is switched off, the corresponding
cooking zone indicator will show a flashing letter
“H”. This means that the temperature of the zone
is over 60°C and is therefore high enough to cause
injury.
oIMPORTANT: The residual heat indicator will disappear if your
mains supply is cut.
Hob guidelines
oThe first few times the hob top is used, it may give off an acrid,
burning smell. This smell will disappear completely with repeated
use.
oThe worktop is fitted with cooking areas of different diameter
and power.
oThe positions where the heat will radiate from are clearly marked
on the hob top. The saucepans must be positioned exactly on
these zones for efficient heating to occur. Pans should have the
same diameter as the cooking zone that they are being used on.
oYou should not use saucepans with rough bottoms, as this can
scratch the surface.
oBefore use, make sure that the bottoms of the saucepans are
clean and dry.
oWhen cold, the bottom of the pans should be slightly concave, as
they expand when hot and lie flat on the surface of the hob. This
will allow the heat to transfer more easily.
oThe best thickness for the bottom of the pans is 2 – 3 mm of
enameled steel and 4 – 6 mm for stainless steel with sandwich
type bottoms.
oIf these rules are not followed, then there will be a great loss of
heat and energy. Heat not absorbed by the saucepan, will spread
to the hob, frame and surrounding cabinets.
oPreferably cover pans with a lid to permit cooking at a lower
heat.
oAlways cook vegetables and potatoes, etc. in as little water as
possible to reduce cooking times.
18

oFor a faster heat up of a zone, you can turn the control knob to
6. Then when the contents of the saucepan are boiling, you may
turn the control knob to a lower setting.
oFood or liquid that has a high sugar content may damage the
hob top if it comes into contact with the hob surface. Any
spillages should be wiped up immediately, however this may not
prevent the hob surface from becoming damaged.
oIMPORTANT: The hob surface is tough; however it is not
unbreakable and can be damaged. Especially if pointed or hard
objects are allowed to fall on it with some force.
oDO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN
OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC
SERVICE DEPARTMENT IMMEDIATELY.
Cleaning and maintenance
Cleaning operations must only be carried out
when the oven is cool.
The appliance should be disconnected from your
mains supply before commencing any cleaning
process.
oThe oven should be thoroughly cleaned before it is operated for
the first time and after each use. This will avoid residual food
stuffs becoming baked on the oven cavity. After residues have
been baked on several times, they are far more difficult to
remove.
oNever clean the oven surfaces by steam cleaning.
oThe oven cavity should only be cleaned with warm soapy water,
using either a sponge or soft cloth. No abrasive cleaners should
be used.
oAny stains that may appear on the bottom of the oven will have
originated from food splashes or spilt food, these splashes occur
during the cooking process. These could possibly be a result of
the food being cooked at an excessively high temperature or
being placed in cookware that is too small.
oYou should select a cooking temperature that is appropriate for
the food that you are cooking. You should also ensure that the
food is placed in an adequately sized dish and that you use the
enamelled baking tray where appropriate.
19

oOuter parts of the oven should only be cleaned with warm soapy
water, using either a sponge or soft cloth. No abrasive cleaners
should be used.
oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance (BCE620SS only).
oIf you use any form of oven cleaner on your appliance, then you
must check with the manufacturer of the cleaner that it is
suitable for use on your appliance.
oAny damage that is caused to the appliance by a cleaning
product will not be fixed by Baumatic free of charge, even
if the appliance is within the guarantee period.
Cleaning the ceramic hob top
Any residues that are left on the hob top surface from cleaning
agents will damage it. You should remove any residues with
water and a little washing up liquid.
Abrasive cleaners or sharp objects will damage the hob surface;
you should clean it using water and a little washing up liquid.
Although it is easier to clean some deposits whilst the hob
surface is still warm. You should take care not to burn yourself if
cleaning the hob surface when it is still warm.
After each use
oWipe the appliance over with a damp cloth and a little washing
up liquid.
oDry the appliance by rubbing the surface with a clean cloth.
Cleaning table
Type of deposit Remove
immediately?
Remove when
the appliance
has cooled
down?
What should I use
to remove the
deposit?
Sugar or food/liquid
containing sugar
Yes No Ceramic hob scraper
Tin foil or plastic Yes No Ceramic hob scraper
Fat splashes No Yes Ceramic hob cleaner
Metallic
discolourations
No Yes Ceramic hob cleaner
Water splashes or
water rings
No Yes Ceramic hob cleaner
20
