BDI CIRRUS 8158 User manual

B - 4mm Hex Driver
A - Phillips Screwdriver
E - Cam Fastener
x 4
F- Leg Assembly
x 2
I - Assembled Cabinet
x 1
N - Center Wheel Block
x 1
J - Washer x 8
Q - Adjustable
Center Shelf x 1
K - 1/4-20 x 55mm
Machine Screw x 8
M - 1/4-20 x 38mm
Machine Screw x 4
P - Back Panel
x 2
R - Adjustable Shelf
x 4
G - Rear Rail x 1
H - Front Rail x 1
C - Dowel Pin x 8
D - Cam Bolt x 4
O - Sliding Door x 2
L - 1/4-20 x 90mm
Machine Screw x 2
CIRRUS
Designed by Matthew Weatherly
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws.
BDI are trademarks of Becker Designed, Inc.
All Rights reserved. © 2010 BDI
Made in China. 8158 Revision: 021210
Component List
8158
ASSEMBLY INSTRUCTIONS
1
BDIUSA.COM [e-mail]
Cirrus is engineered for easy assembly. Carefully follow this procedure to
prevent any damage.
Placement and Maintenance
Cirrus is designed for indoor use on level floors. Clean glass with glass
cleaner, and steel parts and wood veneer with a moist cloth.
Step 1
Unpack and Identify
Unpack and identify the components at left. Note that some components
are shipped inside the cabinet. The assembly workspace should be a
nonmarring surface such as carpet. For missing hardware pieces, please
contact BDI Customer Service at [e-mail]. For all
other concerns, please contact your BDI Retailer.

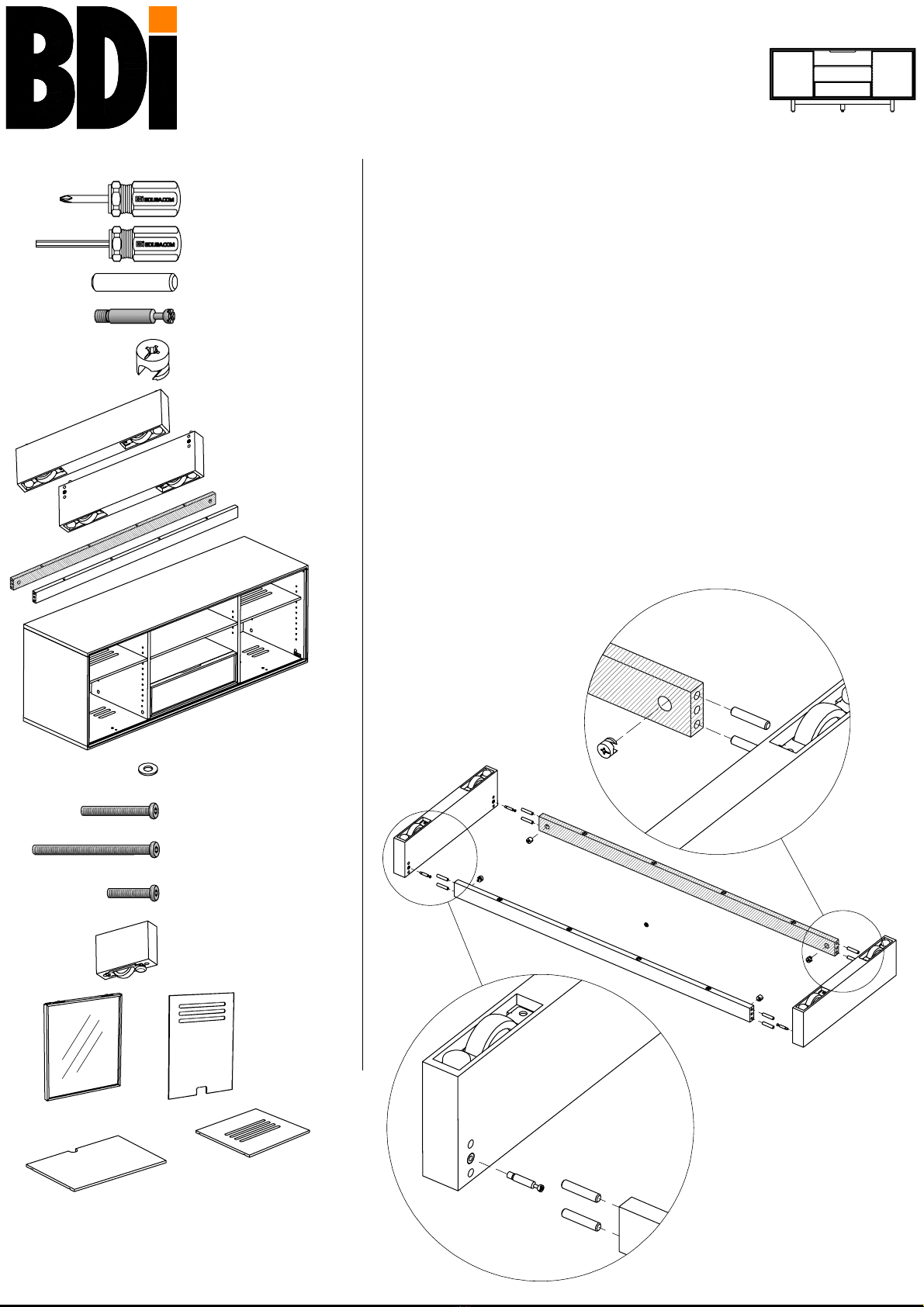

Step 2
Build Base Assembly
Install Cam Bolts (D) near front and rear edge of each Leg Assembly (F)
using provided Phillips Screwdriver (A). Next, insert Dowel Pins (C) into
holes at ends of Front Rail (H) and Rear Rail (G). Then join both Rails
and Leg Assemblies together, aligning holes for all Cam Bolts and Dowel
Pins.
Once all Cam Bolts and Dowel Pins are fully inserted to the respective
holes, fasten together by inserting Cam Fastener (E) and turning about
one-half turn clockwise using Phillips Screwdriver (A).
E
C
G
F
C
F
D
F
F
G
H
H

CIRRUS
8158 ASSEMBLY INSTRUCTIONS
2 BDIUSA.COM CUSTOMERSERVIC[email protected]OM
Step 3
Attach Base Assembly
Attach Base Assembly to Assembled
Cabinet (I) with Front Rail (H) oriented
towards cabinet front (see drawing).
Fasten into place using Washers (J) and
Screws (K) at Front Rail (H) and Rear
Rail (G) and tighten with Hex Driver (B).
Step 5
Attach Center Wheel Block
Attach Center Wheel Block (N) to cabinet’s
bottom panel using Screws (L) and tighten
with Hex Driver (B).
Rear Rail (G)
is painted Black
Cabinet upside down
on carpeted floor to
protect finish.
NOTE:
Levelers are present at
the front and rear
underside of each Leg
Assembly. Each Leveler is
manually adjustable by
hand-turning to extend or
retract to the desired position.
Such adjustment will help
offset uneven flooring
and/or will prevent the
cabinet from rolling.
Front Rail (H)
is wood veneered
Assembled Cabinet (I)
Front
K
J
M
M
Step 4
Install Screws into Leg Assembly
Install Screws (M) into Leg Assembly (F)
and tighten with Hex Driver (B).
Center Wheel Block (N)
Leveler towards front
Screws (L)
Cabinet upside down
on carpeted floor to
protect finish.
Leg Assembly (F)
Leg Assembly
(F)
Assembled Cabinet (I)
Front

CIRRUS
8158 ASSEMBLY INSTRUCTIONS 3 BDIUSA.COM CUSTOMERSERVIC[email protected]OM
Optional Step
Adjust Height of Doors
In case door is not aligned properly, fixed wheel rollers on the bottom
of each door are height-adjustable. Loosen two (2) inner screws using
Phillips Screwdriver (A), raise or lower wheel cartridge slightly,
then re-tighten screws.
Step 6
Install Sliding Doors
With cabinet remaining upside down on a carpeted floor, install
Sliding Doors (O) by inserting top edge of door (with brass plate)
into upper track, pushing downward, then tipping bottom edge into
lower track. NOTE: Brass Plates on top of doors align with Ball
Catches at sides of cabinet.
Upper Track
Cabinet upside down
on carpeted floor to
protect finish.
Lower Track
Brass
Plate
on Top
of Door
Ball Catch in Top of Cabinet
Upper Track
Top Edge of Door
Ball Catch in Top of Cabinet
Top Edge
with Brass Plate
and Spring-Loaded
Wheels
A
Brass Plate
on top edge
faces sides
of Cabinet
Sliding Door (O)
Top Edge
Bottom Edge
without Brass Plate
Sliding Door (O)
Back View

VIEW 42
CIRRUS
8158 ASSEMBLY INSTRUCTIONS
4 BDIUSA.COM CUSTOMERSERVIC[email protected]OM
Optional Flat Panel TV Mount
This BDI cabinet is compatible with
BDI’s Flat Panel TV Mount Arena 9972
(sold separately), with the following features:
●accommodates most TVs up to 60"
●swivel allows for rotating for optimal viewing
●allows adjustable TV mounting height
●accepts and route cables to and from the TV
For more information, visit www.bdiusa.com
Step 7
Turn Cabinet Over and Install Back Panels
With the help of another person, position the
cabinet right side up. Install Back Panels (P) to
the back side of the cabinet by inserting top edge
in upper channel, then tipping bottom edge
forward and into lower channel. NOTE: Velcro
straps are included as wire management for your
convenience.
Back Panel (P)
Step 8
Install Adjustable Shelves
Adjustable shelf pins may be repositioned
depending on the height of your component,
allowing you to raise or lower the Adjustable
Shelves (Q) and (R) to the desired level.
Adjustable Center Shelf (Q)
Adjustable Shelf (R)
behind doors
Recommended
2-person Step
