BDI Corridor 8175 User manual

1
B1 - Hex Wrench
x 1
B2 - Hex Wrench
x 1
Product Registration
Registering your product allows us to send you important updates,
service information and helpful hints. Register today, and you will
be entered to win a free Bink mobile media table from BDI.
www.bdiusa.com/product-registration/
Placement and Maintenance
Corridor is designed for indoor use on level floors. Clean wood
veneer with a moist cloth. Clean glass with glass cleaner.
Corridor is engineered for easy assembly. Carefully follow this
procedure to prevent any damage.
Step 1
Unpack and Identify
Unpack and identify the components at left. Note that some
components are shipped inside the cabinet. The assembly
workspace should be a non-marring surface such as clean carpet.
For missing hardware pieces, please contact BDI Customer Service
at [email protected]. For all other concerns, please
contact your BDI Retailer.
Component List
Designed by Matthew Weatherly.
BDI and Corridor are trademarks of Becker Designed, Inc. All Rights
reserved. ©2015, BDI
Made in China. 8175REV110515v1
A - Phillips Screwdriver
x 1
I - Door Pull
x 2
J - Rubber Bumper
x 7
corridor
8175
cabinet
assembly instructions
bdiusa.com [email protected]
G - 1/4-20 x 60 mm
Machine Screw
x 4
H - M4 x 35 mm
Machine Screw
x 4
D - 1/4-20 x 10 mm
Machine Screw
x 16
C - Cabinet
x 1
E - Metal Leg
x 2
F - Metal Rail
x 2
K - Glass Top
x 1
L - Adjustable Shelf
x 2
M - Back Panel
x 1

2assembly instructions
bdiusa.com [email protected]
corridor
8175 cabinet
Step 1
Build Base Assembly
Slide Metal Leg (E) into Metal Rail (F) and attach by using Hex
Wrench (B1) and Screw (D).
Step 2
Carefully lay Cabinet (C) on its back. Using Hex Wrench (B1),
attach the base assembly to the bottom of the Cabinet (C) with
Screw (D) and Screw (G). *Note: Each of the metal legs has
levelers that can be adjusted using the Hex Wrench (B2).
DD
DD
EE
F
F
Æ Æ
Æ Æ
D x 8
D
D
D
G
G
G
C
G x 4
D x 8

3assembly instructions
bdiusa.com [email protected]
corridor
8175 cabinet
K
C
Step 4
Install Glass
Place Glass Top (K) on top of Cabinet (C). Position glass flush with
cabinet front doors.
Step 3
Install Door Pulls and Rubber Bumpers
Position the cabinet upright and install Door Pulls (I) using Screw (H) and
Screwdriver (A). Adhere Rubber Bumper (J) at least one (1) inch from
edges of the cabinet and one centered as shown below.
J
J
J
J
J
JJ
HH
I
J x 7

4assembly instructions
bdiusa.com [email protected]
corridor
8175 cabinet
Adjustable Shelves
If desired, lift Adjustable Shelf (L) away, loosen & remove
related Shelf Support Pins, reinstall the Shelf Support Pins
at desired height, then reinstall Adjustable Shelf.
Step 5
Install Back Panel (M) to the backside of the cabinet by inserting top edge in
upper channel then tipping bottom edge forward and into lower channel.
NOTE: Velcro straps are included for your convenience to facilitate wire
management.
L
L
M
1
2

5assembly instructions
bdiusa.com [email protected]
corridor
8175 cabinet
Step 6 - Install TV Safety Strap Kit
1. Unravel the strap as shown
2. From the hardware bag (bundled
with the safety strap) find the two
(2) screws that will thread into
the holes on your TV.
3. Attach the two (2) brackets to
the TV as shown using a Phillips
screw driver.
4. To lengthen the straps, loosen
the buckle and slide the buckle
away from the center hub.
To shorten the straps, move the
buckle towards the center hub.
Make sure the two (2) top straps
are both the same length and
both tight.
1. Do NOT press down on open door(s).
2. Secure TV to cabinet using factory-installed
Safety Strap.
3. Using Screws provided in hardware kit with
Safety Strap, fasten upper straps to back of TV
at threaded insert locations.
4. Tighten tension of strap via buckles.
5. Refer to Assembly Instructions for details.

6assembly instructions
bdiusa.com [email protected]
corridor
8175 cabinet
Fine tuning your new BDI Corridor Media Furniture
These steps are to be followed after you have unpacked and completed the simple assembly instructions
for your Corridor AV cabinet. Due to jostling in freight or perhaps an uneven floor, the doors on your Corridor
cabinet may not appear to be in perfect alignment. Making a few minor adjustments can rectify this situation.
Be aware that depending on your situation, patience and a bit of trial and error are required. The high-quality
European hinge hardware is infinitely adjustable, but changing one element can cause the need for further
adjustments. Through a little adjustment, you can modify the orientation of the cabinet doors to make sure that
they are sitting perfectly on your Corridor unit.
STEP 1 - Level your Corridor unit
Levelers are integrated into each leg assembly and are accessed at the bottom of each cabinet leg using Hex
Wrench (B2). If your floor is uneven, you may extend one or more levelers to attain a level, stable cabinet
placement. Turning the leveler clockwise will extend the leveler; turning it counter-clockwise will retract it.

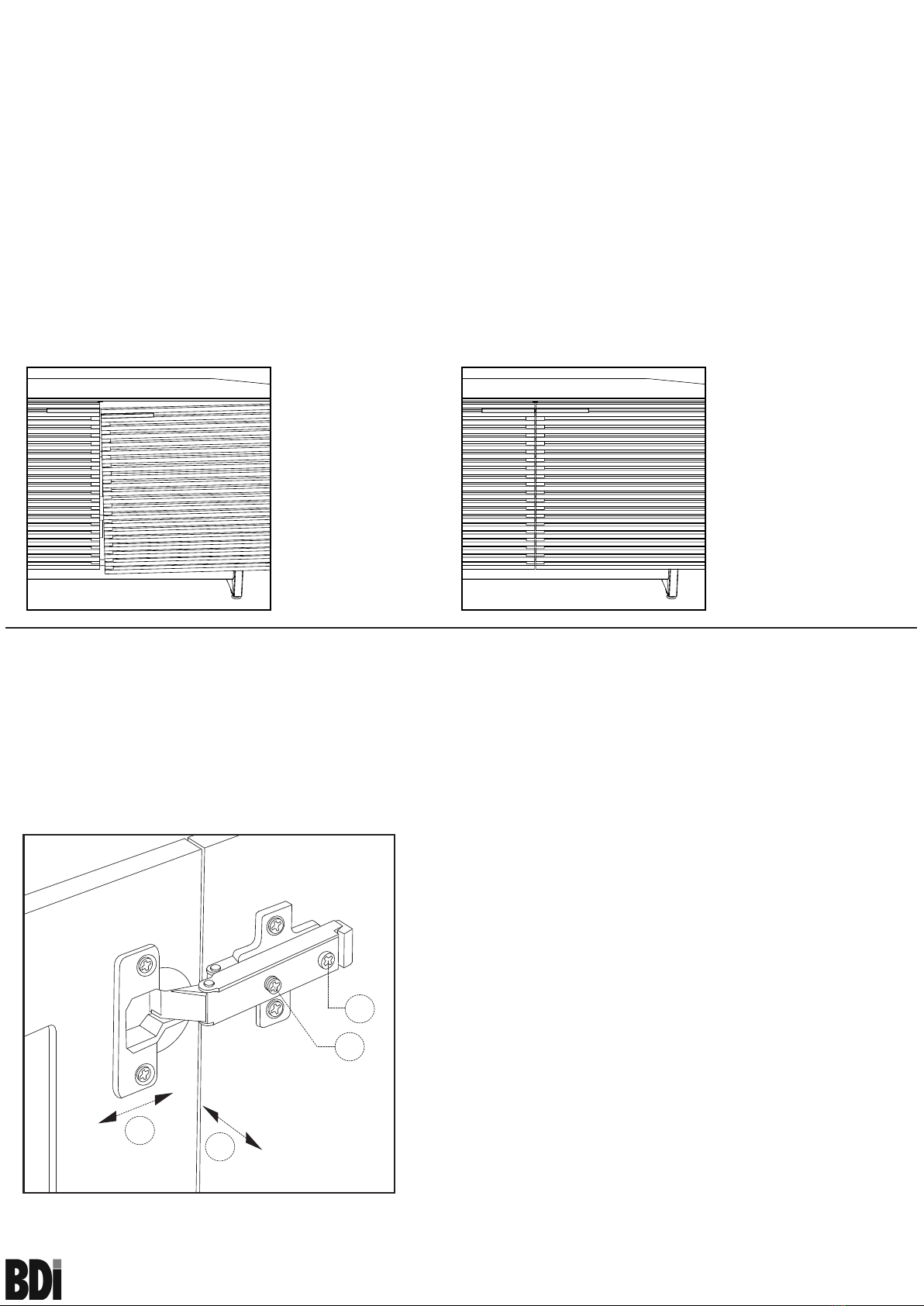

CORRECT! Door is
sitting squarely and
evenly spaced at top and
sides.
INCORRECT! Door is
out of alignment.
STEP 2 - Adjust Door Hinges (if needed)
The doors on your cabinet should be evenly spaced and the doors should open and close freely without rubbing
against the cabinet.
If the doors appear out of alignment, this condition can be corrected with minor adjustment to the European
hinges on each door.
Because these hinges are infinitely adjustable, adjusting one hinge element can sometimes cause the need for
adjustments to other elements. But with a few adjustments, you can modify the orientation of the cabinet doors
to make sure that they hang perfectly within your cabinet.
Use the Phillips Screwdriver (A) supplied to adjust Corridor's
door hinges:
• By adjusting Screw 1, the door will move LEFT or
RIGHT within the frame. Make minor adjustments
at both top and bottom hinges for best results.
• By adjusting Screw 2 the entire door will move IN or
OUT, opening or closing the gap between the door
frame and cabinet. (This screw rarely needs adjustment.)
1.
2.
2.
1.
