BE Power Equipment P1815EN User manual

Operation Manual
ELECTRIC
PRESSURE WASHER
P1815EN
93501-DM

2 3

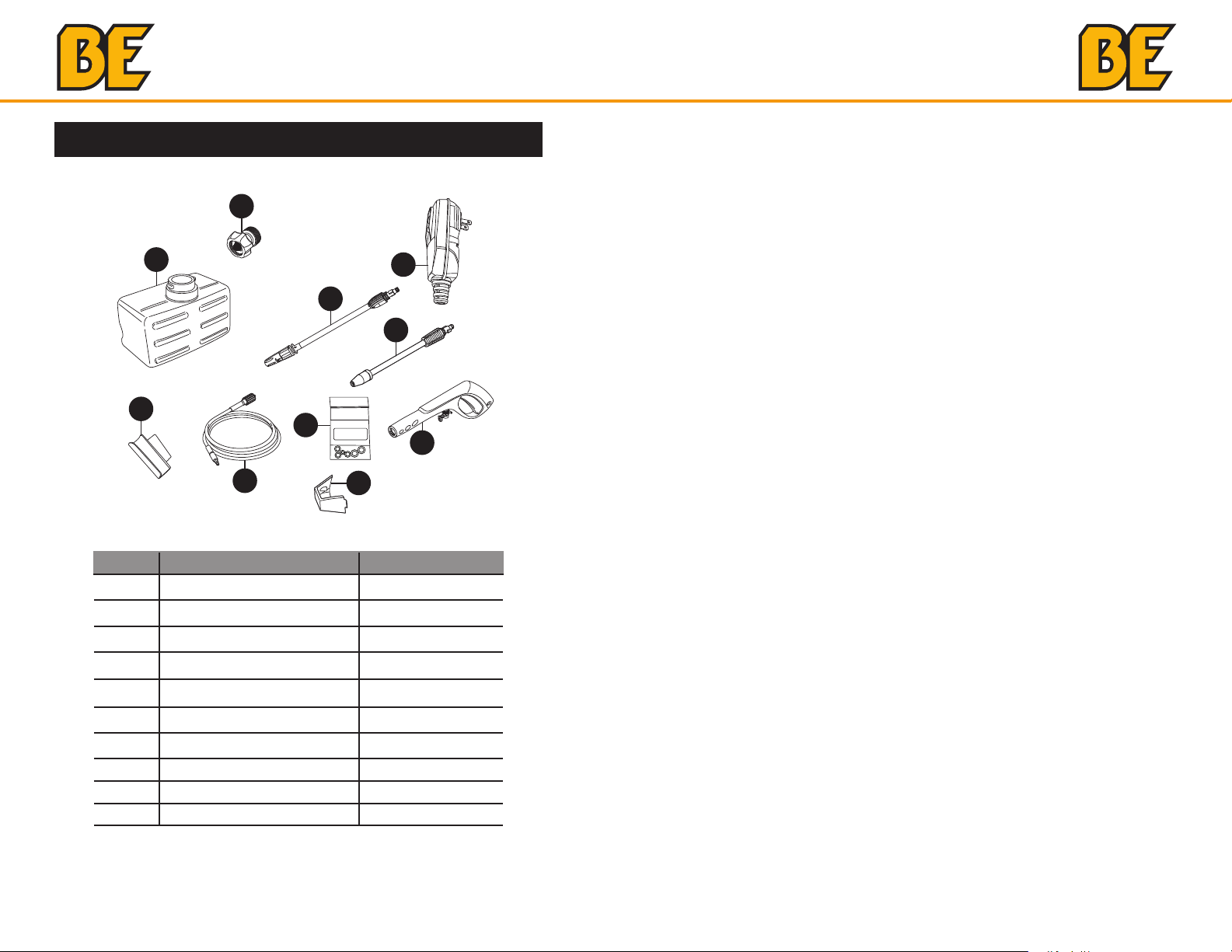

PACKAGE CONTENTSPACKAGE CONTENTS
HARDWARE CONTENTS
PART DESCRIPTION QTY
GHigh/Low Nozzle
Lance
1
H Turbo Nozzle Lance 1
I Spray Gun Trigger Lock 1
J Spray Gun 1
AA Screw 1
PART DESCRIPTION QTY
A Power Washer Unit 1
B Soft PVC High Pres-
sure Hose 1
CNozzle Cleaning Wire 1
D Spray Gun Holster 1
E Nozzle Tray 1
F Garden Hose Adapt-
er 1
AA
Screw
Qty. 1
AA
Screw
Qty. 1
Note: Screw is located in
package with manual
ON/I
OFF/O
E
H
J
C
F
D
G
A
I
B
(Hose reel for
storage only)
K
AA
PW909383S
SPECIFICATIONS
Model Max PSI (lbs/sq.
in.)
Max GPM
(Gal/per
min)
Cold
Water Volts Amps Weight (lbs.)
P1815EN 1800 1.3 ü120 13 26
PRODUCT SPECIFICATIONS
Product Specifications............................................................................. 2
Package Contents...................................................................................... 3
Hardware Contents ................................................................................... 3
Safety Information..................................................................................... 4
Assembly Instructions.............................................................................. 7
Operating Instructions .............................................................................10

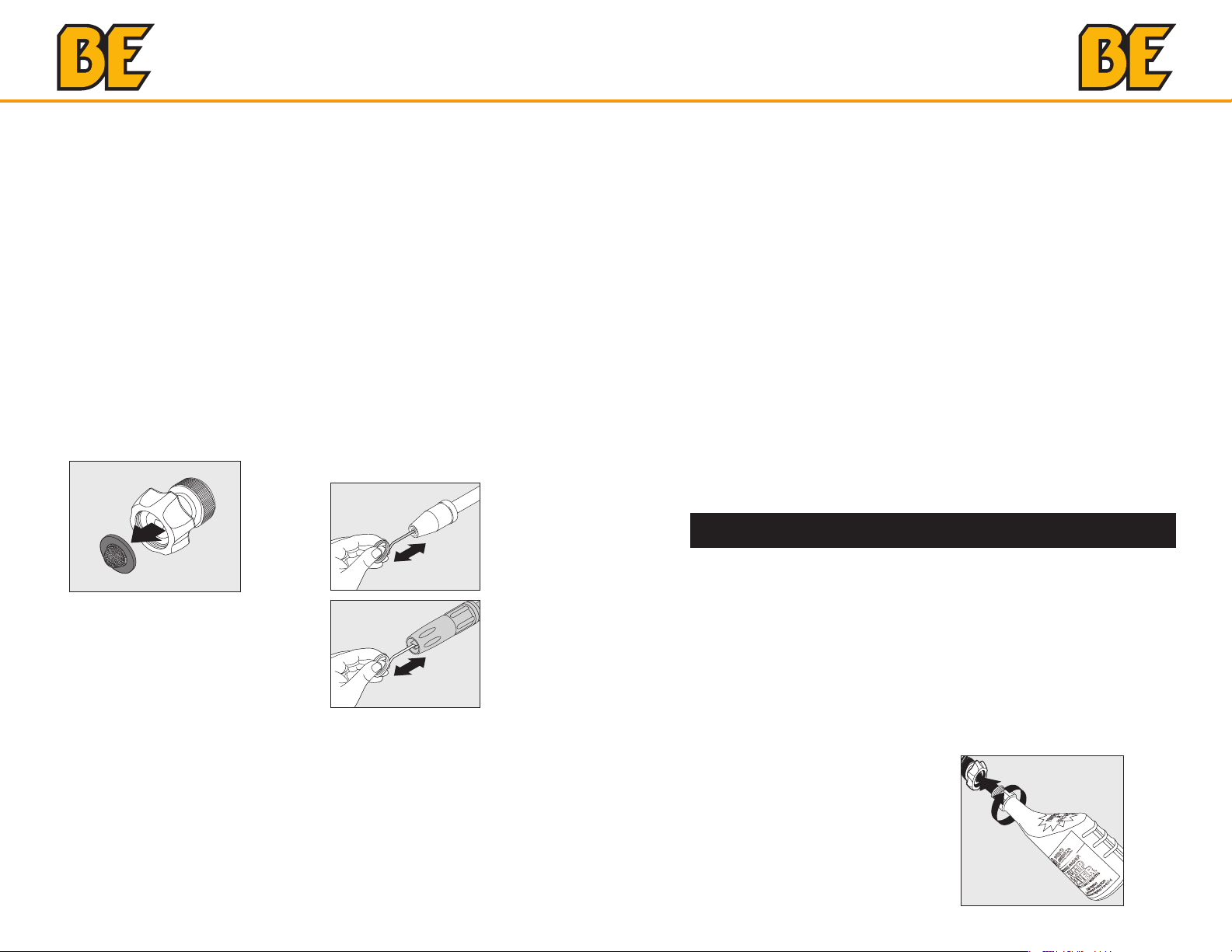

Care and Maintenance............................................................................. 13
Pump Saver ................................................................................................. 15
Troubleshooting......................................................................................... 16
Limited Warranty ...................................................................................... 17
Replacement Parts List........................................................................... 18
TABLE OF CONTENTS
This product can expose you to chemicals
including lead, which is known to the State
of California to cause cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.
Wash hands after handling.
!

4 5
SAFETY INFORMATION
SAFETY INFORMATION SAFETY INFORMATION SAFETY INFORMATION
Please read and understand this entire
manual before attempting to assemble,
operate, or install the product.
This manual contains information that
relates to PROTECTING PERSONAL
SAFETY and PREVENTING EQUIPMENT
PROBLEMS. It is very important to read
this manual carefully and understand it
thoroughly before using the product. The
symbols listed below are used to indicate
this information.
DANGER
Potential hazard that will result in
serious injury or loss of life.
WARNING
Hazard that could result in serious
injury or loss of life.
CAUTION
Potential hazard that may result
in moderate injury or damage to
equipment.
Note: The word “Note” is used to inform
the reader of something the operator
needs to know about the tool.
WARNING
To reduce the risk of injury, the user must
read and understand the instructions
before using this product.
1. Warning – When using this product
basic, precautions should always be
followed, including the following
2. Read all the instructions before using
the product
3. Know how to stop the product and
bleed pressures quickly. Be thoroughly
familiar with the controls.
4. Keep operating area clear of persons
5. Do not overreach or stand on unstable
support. Keep good footing and
balance at all times.
6. Follow the maintenance instructions as
specified in the manual
7. To avoid personal injury and/or
damage to property and to maximize
your power washing experience,
carefully follow all of the safety tips,
instructions, warnings and safeguards
and become familiar with all of the
controls.
8. This power washer conforms to
CSA and other safety and consumer
standards. DO NOT modify or rebuild
any part of your power washer.
9. DO NOT use your power washer when
you are under the influence of alcohol
or drugs. Use this power tool carefully
and only when you are alert.
10. Watch your balance and footing while
using your power washer. Surfaces
become slippery when wet and are
extra slippery when using a detergent
or cleaner.
11. NEVER operate the power washer in
bare feet, sandals, or open-toed shoes.
12. When using the power washer near
children, make sure they are closely
supervised by an adult to avoid injury.
NEVER let a child use the power
washer.
13. Keep fingers, hands, feet and any
part of your body clear of the stream
of high pressure water. The powerful
spray can cause blindness or blast
holes in the skin. It can break a window
if you are too close when you pull the
trigger on the spray gun.
14. ALWAYS wear eye protection to
prevent injury to eyes when operating
the power washer.
15. To avoid mishaps or injury, ALWAYS
use the trigger safety lock when not
using the power washer even if the
spraying stops for a moment.
16. The power washer is equipped with a
Ground Fault Circuit Interrupter (GFCI)
which greatly reduces the chance of
electric shock while the unit is in use.
If replacement of the plug or cord is
needed, use only identical replacement
parts.
17. Point the spray gun in a safe direction
when beginning a power washing
session.
18. NEVER spray directly at a person,
animal, electrical device or the unit
itself.
19. When first using the spray gun, hold
the spray gun and lance with two
hands when pulling the trigger (one
hand to pull the trigger and the other
to stabilize the gun assembly) until you
get used to the “kickback” from the
spray gun.
20. When you press the power switch
to turn o the power washer, water
pressure may remain in the system.
To discharge the pressure, point the
spray gun in a safe direction and pull
the trigger.
21. NEVER spray flammable liquids.
22. NEVER use the power washer in areas
that contain combustible dust, liquids
or vapors.
23. Avoid contact of the pressure hose
with sharp objects and examine the
hose regularly. Replace if damaged.
Due to the high pressure involved, it
cannot be repaired if cut or damaged.
24. Only use detergent specifically
formulated for power washers and
follow instructions on the detergent’s
label.
25. Protect eyes, lungs, and skin from
exposure to detergent. Dish or laundry
soap is too thick and will clog the
nozzle of your detergent bottle.
IMPORTANT: Store the power washer
indoors to prevent the water in the
unit from expanding under freezing
conditions. When the water freezes and
expands, your power washer will be
damaged and become inoperable. Or, if
storing outdoors, it is recommended you
use pump saver (not included) to protect
pumps.
26. NEVER use hot water with your power
washer. It will overheat and damage
the high pressure pump.
27. NEVER leave the power washer
unattended while it is powered “ON”.
28. ALWAYS turn the water supply “ON

6 7
1
D
A
2
A
E
AA
before turning the power washer
power to “ON”. Running the pump
dry will cause damage to the internal
components.
29. NEVER use a water supply to your
power washer that exceeds 150 PSI
maximum.
30. NEVER disconnect the high pressure
hose from the power washer while the
system is pressurized.
31. NEVER permanently engage the trigger
mechanisms on the spray gun.
32. NEVER operate the power washer
unless all components are properly and
securely connected.
33. NEVER allow the power washer pump
to run for more than one minute after
you have turned o the water supply.
This can cause the motor and pump to
overheat and fail.
34. NEVER use lances or other parts that
are not compatible for this specific AR
Blue Clean unit.
35. NEVER use an extension power cord
since it defeats the eectiveness of
the GFCI and increases the chance of
electrocuting the operator.
36. NEVER spray any electrical outlet with
your power washer.
37. Inspect the power cord before using.
DO NOT use it if it is damaged.
SAFETY INFORMATION
5
Double Insolated Product
SAFETY INFORMATIONSAFETY INFORMATION
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
detergent. Dish or laundry soap is too thick and will clog
the nozzle of your detergent bottle.
IMPORTANT: Store the power washer indoors to prevent
the water in the unit from expanding under freezing
conditions. When the water freezes and expands, your
power washer will be damaged and become inoperable.
Or, if storing outdoors, it is recommended you use pump
saver (not included) to protect pumps.
26. NEVER use hot water with your power washer. It will
overheat and damage the high pressure pump.
27. NEVER leave the power washer unattended while it
is powered “ON”.
28. ALWAYS turn the water supply “ON ” before turning
the power washer power to “ON”. Running the pump
dry will cause damage to the internal components.
29. NEVER use a water supply to your power washer
that exceeds 150 PSI maximum.
30. NEVER disconnect the high pressure hose from the
power washer while the system is pressurized.
31. NEVER permanently engage the trigger mechanisms
on the spray gun.
32. NEVER operate the power washer unless all
components are properly and securely connected.
33. NEVER allow the power washer pump to run for
more than one minute after you have turned off the
water supply. This can cause the motor and pump to
overheat and fail.
34. NEVER use lances or other parts that are not
compatible for this specic AR Blue Clean unit.
35. NEVER use an extension power cord since it defeats
the effectiveness of the GFCI and increases the
chance of electrocuting the operator.
36. NEVER spray any electrical outlet with your power
washer.
37. Inspect the power cord before using. DO NOT use it if
it is damaged.
Servicing of a Double-Insulated Appliance
Ground Fault Circuit Interrupter Protection:
This pressure washer is provided with a ground-fault
circuit-interrupter (GFCI) built into the plugs of the
power-supply cord. This device provides additional
protection from the risk of electric shock. Should
replacement of the plug or cord become necessary,
use only identical replacement parts that include GFCI
protection.
In a double-insulated product, two systems of insulation
are provided instead of grounding. Grounding means
are not provided for a double insulated product, nor
should grounding means be added to the product.
Servicing a double-insulated product requires extreme
care and knowledge of the system, and should only be
done by qualied service personnel.
Replacement parts for a double-insulated product must
be identical to the original parts.
A double-insulated product is marked with the words
“Double Insulation” or “Double Insulated”. Product may
also be marked with symbol shown here.
15ANR009 AR112S_1500PSI ENG-FR-SP.indd 5 16/12/17 下午12:38
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Servicing of a Double-Insulated
Appliance
Ground Fault Circuit Interrupter
Protection:
This pressure washer is provided
with a ground-fault circuit-
interrupter (GFCI) built into the
plugs of the power-supply cord.
This device provides additional
protection from the risk of electric
shock. Should replacement of the
plug or cord become necessary, use
only identical replacement parts
that include GFCI protection.
In a double-insulated product,
two systems of insulation are
provided instead of grounding.
Grounding means are not provided
for a double insulated product, nor
should grounding means be added
to the product.
Servicing a double-insulated
product requires extreme care
and knowledge of the system, and
should only be done by qualified
service personnel.
Replacement parts for a double-
insulated product must be identical
to the original parts.
A double-insulated product is
marked with the words “Double
Insulation” or “Double Insulated”.
Product may also be marked with
symbol shown here.
Power Unit Assembly
Slide the spray gun holster (D) onto
left side, when facing the unit, of
power washer unit (A).
Note: When placing the gun with the
lance attached, the nozzle will rest in
this tray.
Screw x 1
AA
AA
Screw
Qty. 2
Slip tab into slot and screw the
nozzle tray (E) on bottom left, when
facing the unit, of power washer
unit (A).
Secure with screw (AA).
Note: DO NOT use a power screw-
driver. When the screw is completely
tight, give a small final clockwise
twist of the screwdriver.
DO NOT overtighten.
Hardware Used:
PREPARATION
Before beginning assembly of
product, make sure all parts
are present. Compare parts
with package contents list and
hardware contents list. If any
part is missing or damaged, DO
NOT attempt to assemble the
product.
Estimated Assembly Time: 5
minutes
Tools Required for Assembly
(not included): Phillips
screwdriver
6
ASSEMBLY INSTRUCTIONS
Power Unit Assembly
Install handle (B) to power washer unit (C).
Secure with screws (AA).
Note: DO NOT use a power screwdriver. When the
screw is completely tight, give a small nal clockwise
twist of the screwdriver. DO NOT overtighten.
1
C
B
AA
Screw x 2
AA
AA
Screw
Qty. 2
OFF/O
ON/I
2
C
A
Slide spray gun holster (A) onto left side,when facing unit,
of power washer unit (C) as shown.
Note: This step does not require any screws.
Hardware Used:
PREPARATION
Before beginning assembly of product, make sure all
parts are present. Compare parts with package contents
list and hardware contents list. If any part is missing or
damaged, DO NOT attempt to assemble the product.
Estimated Assembly Time: 5 minutes
Tools Required for Assembly (not included): Phillips
screwdriver
PREPARATION
15ANR009 AR112S_1500PSI ENG-FR-SP.indd 6 16/12/17 下午12:38
ASSEMBLY INSTRUCTIONS

8 9
Unlock
Lock
1
1
2
2
6
J
J
I
Locking Spray Gun (before Lance
installation)
To lock the trigger of the spray gun
(J), aim the gun away from you and
push the lock button from right
to left. After doing so, squeeze or
pull the trigger to make sure it is
locked and will not move. Always
leave lock button in locked position
when not in use. This ensures the
gun is in “safe” mode until it is
ready for use.
High/Low Nozzle Lance and Turbo
Nozzle Lance Installation
While the spray gun (J) is in the
locked position, insert the high/low
nozzle lance (G) or turbo nozzle
1
2
7
H
HG
J
8
A
F
Garden Hose Adapter Installation
Attach collar of garden hose adapter
(F) directly to power washer water
inlet (A). Hand tighten.
1
9
F
3
A
B
4
B
J
Connect the other end of Soft PVC
high pressure hose (B) to spray gun
(J) by inserting the brass metal tip
of high pressure hose into the fitting
just ahead of trigger guard. It will
lock into spray gun with a “click”.
Confirm hose is locked into spray gun
by slightly pulling on them. The hose
is now securely attached to spray
gun.
Note: DO NOT press button on un-
derside of gun when connecting hose
to gun.
Soft PVC High Pressure Hose
Assembly
Screw Soft PVC high pressure
hose (B) clockwise onto bottom
left, when facing the unit, front of
power washer unit (A). Pull back
collar and insert o-ring post into
water outlet far enough so collar
can thread onto outlet threads until
hand tight. If it takes fewer than
six turns you have not properly
tightened the Soft PVC high
pressure hose fitting. It is easier
to position the power washer in
front of you to ensure that the
threads are started correctly.
Failure to properly tighten Soft
PVC high pressure hose will result
in the hose slipping or popping o
immediately upon turning unit on.
Do not worry about damage if this
occurs–just reinstall and take extra
care when screwing on the high
Soft PVC pressure hose fitting.
Note: DO NOT use pliers or locking
pliers to tighten.
2
1
5
B
J
To release hose (B) from spray gun
(J), press button on underside of gun
toward trigger guard. The hose will
slide out from connection.
lance (H) into the end of the spray
gun, by inserting and pushing together
turning clockwise simultaneously.
To remove, push together and turn
counterclockwise.
Note: Always push the safety lock
button to lock the trigger when
changing lances to ensure that they do
not accidentally eject with force during
removal.
Note: When using the turbo lance,
make sure the turbo nozzle is screwed
on tight at the end of the lance each
time you use it.
Note: Turbo nozzle is not adjustable.
