BEC 6300VNL User manual

Last revised: Sept, 2015
BEC 6300VNL
GigaConnect®
4G/LTE VoIP Wireless Broadband Router
User Manual
Version release: v1.09

TABLE OF CONTENTS
CHAPTER 1: INTRODUCTION .........................1
INTRODUCTION TO YOUR ROUTER .............................................................. 1
FEATURES &SPECIFICATIONS.................................................................... 1
HARDWARE SPECIFICATIONS..................................................................... 1
APPLICATION DIAGRAMS ......................................................................... 1
CHAPTER 2: PRODUCT OVERVIEW...............2
IMPORTANT NOTE FOR USING THIS ROUTER ................................................ 2
DEVICE DESCRIPTION .............................................................................. 3
Front Panel LEDs................................................................................................3
Rear Panel Connectors ......................................................................................5

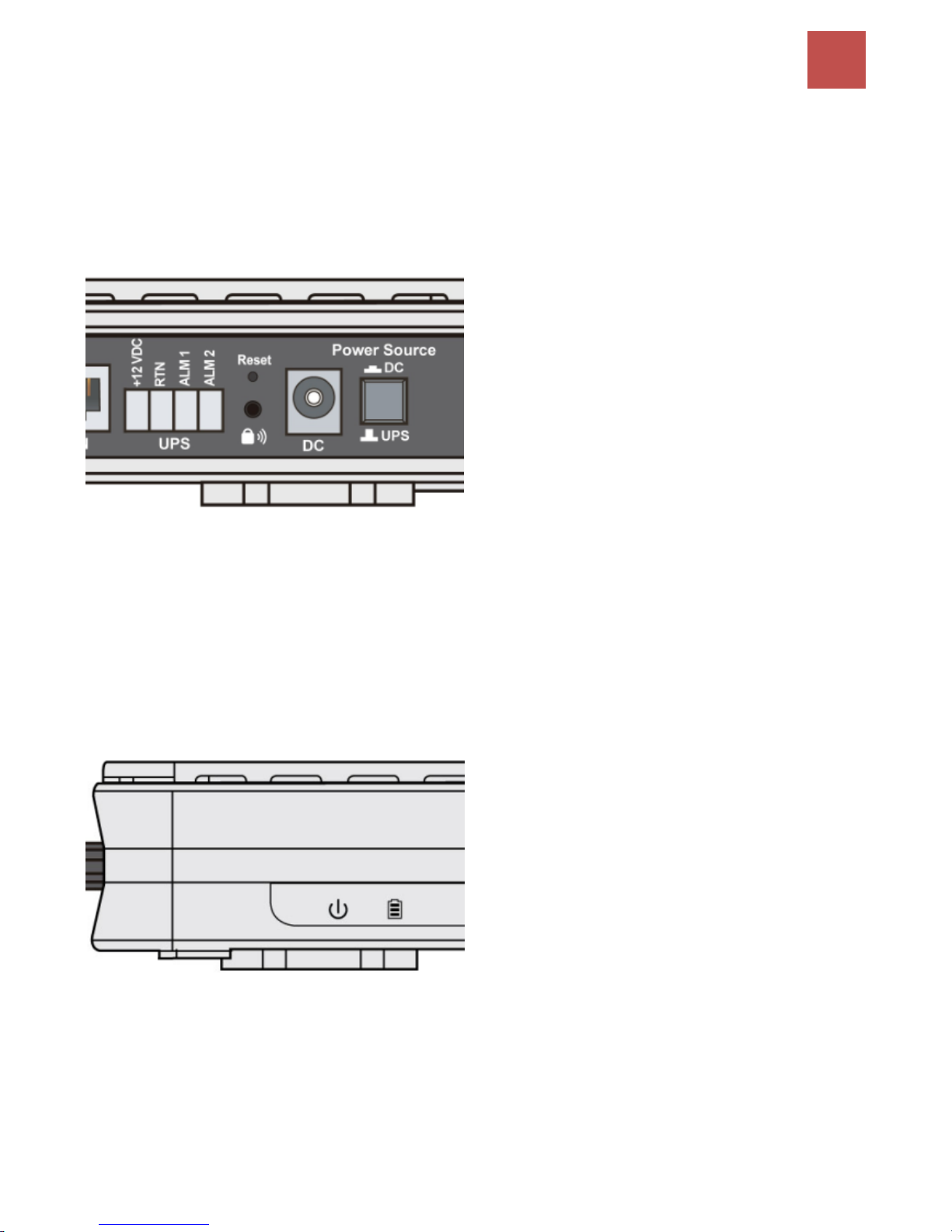

POWER SOURCE .................................................................................... 6
SYSTEM RECOVERY PROCEDURES............................................................... 8
CABLING .............................................................................................. 9
CHAPTER 3: BASIC INSTALLATION .............10
NETWORK CONFIGURATION –IPV4 ......................................................... 11
Configuring PC in Windows 10 (IPv4) ..............................................................11
Configuring PC in Windows 7/8 (IPv4).............................................................13
Configuring PC in Windows Vista (IPv4) ..........................................................15
Configuring PC in Windows XP (IPv4) ..............................................................17
NETWORK CONFIGURATION –IPV6 ......................................................... 18
Configuring PC in Windows 10 (IPv6) ..............................................................18
Configuring PC in Windows 7/8 (IPv6).............................................................20
Configuring PC in Windows Vista (IPv6) ..........................................................22
Configuring PC in Windows XP (IPv6) ..............................................................24
DEFAULT SETTINGS............................................................................... 25
INFORMATION FROM YOUR ISP .............................................................. 26

CHAPTER 4: DEVICE CONFIGURATION.......27
LOGIN TO YOUR DEVICE......................................................................... 27
STATUS.............................................................................................. 29
Device Info ......................................................................................................30
System Status ..................................................................................................32
System Log ......................................................................................................32
3G/4G-LTE Status.............................................................................................33
Statistics ..........................................................................................................34
DHCP Table......................................................................................................39
Disk Status.......................................................................................................39
VoIP Status ......................................................................................................40
QUICK START ...................................................................................... 41
CONFIGURATION.................................................................................. 44
Interface Setup................................................................................................44
Internet ........................................................................................................................ 45
LAN............................................................................................................................... 54
Wireless........................................................................................................................ 58
Wireless MAC Filter ...................................................................................................... 69
Advanced Setup ..............................................................................................70
Firewall......................................................................................................................... 70
Routing......................................................................................................................... 71
NAT............................................................................................................................... 72
Static DNS..................................................................................................................... 77
QoS............................................................................................................................... 78
Interface Grouping ....................................................................................................... 79
Time Schedule .............................................................................................................. 81
VoIP.................................................................................................................82
Basic............................................................................................................................. 82
Media........................................................................................................................... 84
Advanced...................................................................................................................... 85
Speed Dial .................................................................................................................... 86
Dial Plan....................................................................................................................... 87
Call Features................................................................................................................. 90
NAT Traversal for VoIP .................................................................................................. 93
Access Management .......................................................................................95
Device Management .................................................................................................... 95
SNMP ........................................................................................................................... 96
Remote Syslog .............................................................................................................. 97
Universal Plug & Play ................................................................................................... 97

Dynamic DNS................................................................................................................ 98
Access Control ............................................................................................................ 100
Packet Filter................................................................................................................ 102
CWMP (TR-069).......................................................................................................... 105
Parental Control ......................................................................................................... 107
SAMBA & FTP Server .................................................................................................. 108
Maintenance .................................................................................................111
User Management ..................................................................................................... 111
Time Zone................................................................................................................... 115
Firmware & Configuration.......................................................................................... 116
System Restart............................................................................................................ 117
Diagnostics Tool.......................................................................................................... 118
CHAPTER 5: TROUBLESHOOTING ............120
Problems with the Router .............................................................................120
Problem with LAN Interface ..........................................................................120
Recovery Procedures.....................................................................................121
APPENDIX: PRODUCT SUPPORT & CONTACT
.......................................................................122

Introduction
1
BEC 6300VNL User Manual
CHAPTER 1: INTRODUCTION
Introduction to your Router
Congratulations on your purchase of the BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router).
This router is a compact and advanced broadband router that offers flexible and multiple Internet
connection options, EWAN and embedded 4G/LTE interfaces, for home, SOHO, and office users to
enjoy high-speed, high-level security Internet connection via cellular wireless and/or Ethernet WAN.
With an integrated 802.11n wireless access point and 4-port Gigabit Ethernet LAN, this router enables
faster wireless speed of up to 300Mbps and LAN connection 10 times faster than regular 10/100Mbps
Ethernet LAN. BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) provides a unique
Management Center enabling users to monitor 4G/LTE signal strength, bandwidth, download speed,
and many more. Users can choose the most economical rate of VoIP calls provided by different
providers. The device integrates two FXS ports which allows for simultaneous VoIP calls.
Cost Saving
Making VoIP calls is extremely simple; just connect the router with your existing analog telephones.
BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) complies with the most popularly
adopted VoIP standard and SIP protocol to ensure interoperability with SIP devices and major VoIP
Gateways. This router also supports a wider range of telephony features, such as Call Waiting,
Conference, Speed Dial, Return Call, Redial, etc.
4G/LTE Mobility
With 4G/LTE-based Internet connection (4G/LTE embedded module, requires an additional SIM card),
you can access to the Internet through 4G/LTE whether you are seated at your desk or taking a cross-
country trip.
Wireless Mobility and Security
With an integrated 802.11n Wireless Access Point, this router delivers up to 3 times the wireless
coverage of a 802.11b/g network device, so that wireless access is available everywhere in the house
or office. If your network requires wider coverage, the built-in Wireless Distribution System (WDS)
allows you to expand your wireless network without additional wires or cables. BEC 6300VNL (4G/LTE
VoIP Wireless Broadband Router) also supports the Wi-Fi Protected Setup (WPS) standard and
allows users to establish a secure wireless network just by pressing a button. Multiple SSIDs allow
users to access different networks through a single access point. Network managers can assign
different policies and functions for each SSID, increasing the flexibility and efficiency of the network
infrastructure.
4G/LTE Management Center
BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) Mobile Management Center visually
displays its current 4G/LTE signal status also calculates the total amount of hours or data traffic used
per month, allowing you to manage your 4G/LTE monthly subscriptions.

Introduction
2
BEC 6300VNL User Manual
IPv6 Supported
Internet Protocol version 6 (IPv6) is a version of the Internet Protocol that is designed to succeed IPv4.
IPv6 has a vastly larger address space than IPv4. The router is already supporting IPv6, you can use
it in IPv6 environment no need to change device. The dual-stack protocol implementation in an
operating system is a fundamental IPv4-to-IPv6 transition technology. It implements IPv4 and IPv6
protocol stacks either independently or in a hybrid form. The hybrid form is commonly implemented in
modern operating systems supporting IPv6.
Quick Start Wizard
Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you
connected to the Internet immediately.
Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.

Introduction
Features & Specifications
1
BEC 6300VNL User Manual
Features & Specifications
• 4G/LTE for high speed mobile broadband connectivity
•Gigabit Ethernet WAN (GbE WAN) for Cable/Fiber/xDSL high WAN throughput
• Gigabit Ethernet LAN
• IPv6 ready (IPv4/IPv6 dual stack)
•Multiple wireless SSIDs with wireless guest access and client isolation
• IEEE 802.11 b/g/n compliant Wireless Access Point with Wi-Fi Protected Setup (WPS)
• Wi-Fi Protected Access (WPA-PSK/ WPA2-PSK) and Wired Equivalent Privacy (WEP)
• SOHO Firewall Security with DoS Preventing and Packet Filtering
• Quality of Service Control for traffic prioritization management
• Universal Plug and Play (UPnP) Compliance
•Voice over IP compliant with SIP standard
•Two FXS ports for connecting to regular analog telephones
•Call Waiting, Conference Call
•Speed Dial, Return Call, Redial
•Don’t Disturb
• Ease of Use with Quick Installation Wizard
• One USB port for NAS (FTP/ SAMBA server)
•Ideal for SOHO, office, and home users
Network Protocols and Features
• IPv4, IPv6 or IPv4 / IPv6 Dual Stack
• NAT, static (v4/v6) routing and RIP-1 / 2
• DHCPv4 / v6
• Universal Plug and Play (UPnP) Compliant
• Dynamic Domain Name System (DDNS)
• Virtual Server and DMZ
• SNTP, DNS proxy
• IGMP snooping and IGMP proxy
• MLD snooping and MLD proxy

Introduction
Features & Specifications
2
BEC 6300VNL User Manual
Firewall
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• DoS attack prevention including Land Attack, Ping of Death, etc.
•Access control
• IP&MAC filter, URL Content Filter
• Password protection for system management
•VPN pass-through
Quality of Service Control
•Traffic prioritization management based-on Protocol, Port Number and IP Address (IPv4/ IPv6)
Wireless LAN
• Compliant with IEEE 802.11 b/ g/ nstandards
• 2.4 GHz - 2.484GHz radio band for wireless
• Up to 300 Mbps wireless operation rate
• 64 / 128 bits WEP supported for encryption
• WPS (Wi-Fi Protected Setup) for easy setup
• Wireless Security with WPA-PSK / WPA2-PSK support
• WDS repeater function support
USB Application Server
• Storage/NAS: SAMBA Server, FTP Server
• 3G/4G LTE Mobile Internet Connection
VoIP
• Compliant with SIP standard (RFC3261)
• Codec: G.729, G.726, G.711 A-Law, G.711 u-Law
• DTMF Method: Inband, RFC 2833, SIP Info
• Caller ID Generation: DTMF, FSK
• Silence Suppression (VAD), Echo Cancellation
• Call Waiting, Conference Call
• Speed Dial, Return Call, Redial
• Don't Disturb

Introduction
Features & Specifications
3
BEC 6300VNL User Manual
• FAX Relay: T.38
• Call Detailed Records (CDR)
Management
•Quick Installation wizard
• Web-based GUI for remote and local management (IPv4/IPv6)
• Firmware upgrades and configuration data upload and download via web-based GUI
• Supports DHCP server / client / relay
• Supports SNMP v1, v2, v3, MIB-I and MIB-II
• TR-069 supports remote management

Introduction
Hardware
Specifications
1
BEC 6300VNL User Manual
Hardware Specifications
Physical interface
• 4G LTE antenna: 2 external antennas
• SIM card slot: Mini SIM card (2FF) slot for mobile broadband connectivity
• VoIP phone port: 2 RJ-11 FXS phone ports to connect with 2 regular analog phones.
• USB: USB 2.0 port for storage service
• Ethernet: 4-port 10 /100 / 1000Mbps auto-crossover (MDI / MDI-X) Switch
• EWAN: RJ-45 Gigabit Ethernet port for connecting to Cable/Fiber/xDSL modem for Broadband
connectivity.
• Factory default reset button
• Wireless on/off and WPS push button
• DC Power jack
• UPS Power with 4-pin connectors
• Power switch to switch between DC power and UPS power.
Physical Specifications
• Dimensions (W*H*D): 9.04" x 6.10" x 1.27"(229.5mm x 155mm x 32.24mm)

Introduction
Application Diagrams
1
BEC 6300VNL User Manual
Application Diagrams
BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) is an all-in-one router, supporting 2
connection options (4/LTE and EWAN) to connect to the Internet.
4G/LTE router mode
With an embedded 4G/LTE module, the router can be used to connect to high speed mobile fixed
wireless connection.
Broadband Router Mode
This router also has a Gigabits Ethernet WAN port (EWAN) to connect with your Fiber / Cable/ xDSL
modem.

Product Overview
2
BEC 6300VNL User Manual
CHAPTER 2: PRODUCT OVERVIEW
Important Note for Using This Router
Place the router on a stable surface.
Only use the power adapter that comes with the package.
Using a different voltage rating power adaptor may damage the
router.
Attention
Do not use the router in high humidity or high temperature.
Do not use the same power source for the BEC 6300VNL on
other equipment.
Do not open or repair the case yourself. If the device becomes
too hot, turn off the power immediately and have it repaired at
a qualified service center.
Avoid using this product and all accessories outdoors.
Warning

Product Overview
Device Description / Front Panel LEDs
3
BEC 6300VNL User Manual
Device Description
Front Panel LEDs

Product Overview
Device Description / Front Panel LEDs
4
BEC 6300VNL User Manual
LED
STATUS
DESCRIPTION
Power
Green
System is up and ready
Red
Boot failure
Battery
Green
UPS is functional properly
Orange
UPS battery failure. Need a new battery replacement
Orange blinking
UPS AC power failure and battery functional properly
Off
Device powered by the DC power adaptor
EWAN
Lit up
BEC 6300VNL is successfully connected with a broadband connection
device.
Green
Transmission speed is at Gigabit speed (1000Mbps)
Orange
Transmission speed is at 10/100Mbps
Blinking
Data being transmitted/received
Ethernet Port
LAN 1 ~ 3
Green
Transmission speed is at Gigabit speed (1000Mbps)
Orange
Transmission speed is at 10/100Mbps
Blinking
Data being transmitted/received
USB 2.0
Green
Connecting to a USB dongle or a hard drive.
Wireless/WPS
Green
Wireless connection established
Green blinking
Data being transmitted / received
Orange
WPS configuration is in progress
Phone
Green
Successfully registered and ready to be used.
Orange
Phone is off-hook, in-use
LTE
(Received Signal
Strength
Indicator)
Green
RSSI greater than -69 dBm. Excellent signal condition
Green
Flashing quickly
RSSI from -81 to -69 dBm. Good signal condition
Orange
Flashing quickly
RSSI from -99 to -81 dBm. Fair signal condition.
Orange
Flashing slowly
RSSI less than -99 dBm. Poor signal condition.
Orange
No signal and the 4G_LTE module is in service
Off
No LTE module or LTE module fails
Internet
Green
IP connected and traffic is passing thru the device.
Red
IP request failed.
Off
BEC 6300VNL is either in bridged mode or WAN connection not ready.

Product Overview
Device Description / Rear Panel Connectors
5
BEC 6300VNL User Manual
Rear Panel Connectors
PORT
MEANING
1
LTE Antenna
Screw the supplied LTE antennas onto the antenna connectors on both sides.
2
SIM Card Slot
Insert the mini SIM card (2FF) with the gold contact facing down.
Push the mini SIM card (2FF) inwards to eject it
3
Phone (1X-2X)
Connect your analog phone to this port with a RJ-11 cable.
4
USB
The USB can either setup for 3G/4G LTE internet access or storage/file sharing.
(1) For File Sharing: Connect an external USB dongle / hard drive for storage,
network sharing, etc.
(2) For 3G/4G LTE Internet Connection: Connect with an external USB 3G/4G LTE
modem or dongle with an activate data plan (Internet access).
5
Gigabit
LAN Ethernet
(1~3)
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when
connecting to a PC or an office/home network of 10Mbps /100Mbps /1000Mbps
6
Gigabit EWAN
Connect to Fiber/ Cable/ xDSL Modem with a RJ-45 cable
7
UPS Jack
The 4-pin connectors are used to power the device with an external UPS battery
backup.
8
Reset
After the device is powered on, press it 6 seconds or above: to restore to factory
default settings (this is used when you cannot login to the router, e.g. forgot your
password)
9
WPS &
Wireless On/Off
By controlling the pressing time, users can achieve two different effects:
(1) WPS*: Press &hold the button for less than 6 seconds to trigger WPS function.
(2) Wireless ON/OFF button: Press & hold the button for more than 6 seconds to
On/Off the wireless.
* Please refer to the WPS section in the User Manual.
10
Power Jack (DC)
Connect the supplied Power Adapter to this jack.
11
Power Source
Power ON/OFF switch
(1) with Power Switch ON: power up by the supplied DC power adaptor
(2) with Power Switch OFF: power up by the UPS battery unit
1
2
8
9
1
1
1
1
0
3
5
7
4
6

Product Overview
Power Source
6
BEC 6300VNL User Manual
Power Source
BEC 6300VNL offers two kinds of power input, namely, DC power Adapter and DC UPS (or BBU).
BEC 6300VNL can take the advantage of UPS (Uninterruptible Power Supply) to keep working even
if the power outage hit your router when the router in working in DC UPS mode.
(A picture of the rear focusing on the power source)
UPS Port Assignment:
+12VDC: VCC (DC + 12V) Power supply
RTN: GND (Ground)
ALM 1: Active high – replace battery
ALM 2: Active high – on battery
(A shot from the front panel, with second icon being identified as the Battery LED)
How to switch between the two (2) power sources, DC power adaptor and external UPS
battery
Pressed "Power Source" button, the button is visually being pressed down. The power source is
from the DC power adapter supplied in the package.

Product Overview
Power Source
7
BEC 6300VNL User Manual
"Power Source" button in the un-pressed state, the power source is from the UPS. The router can
continue to operate for a period of time after AC power failure, due to uninterrupted power system
features of UPS.
UPS LED:
A Battery LED indicates if a DC UPS is in-use or not. When the router is operating via the DC power
adapter this LED will be off.
Battery LED Definition:
Green LED: UPS AC power is working; UPS battery is also working well
Orange LED Only UPS AC power is working. Battery failure- need a new battery replacement
Orange LED: UPS AC power failure; UPS battery is working

Product Overview
System Recovery Procedures
8
BEC 6300VNL User Manual
System Recovery Procedures
The purpose is to allow users to restore the MX-1000 to its initial stage when the device is outage,
upgraded to a wrong / broken firmware, cannot access to the GUI with wrong username and/or
password, etc.
Step 1 – Configure your PC Network IP Address
Before performing the system recovery, assign this IP address and Netmask to your PC,
192.168.1.100 and 255.255.255.0 respectively.
Step 2 – Reset your 6300VNL Device
2.1 Power off your 6300VNL
2.2 Power on the 6300VNL while pushing the RESET button with a small pointed object (such as
paper clip, needle, toothpick, and etc.).
2.3 When the POWER LED turns RED, keep holding and pushing the RESET button until the
INTERNET LED flashes in GREEN
Step 3 – Restore your 6300VNL Device
With INTERNET light flashes green, 6300VNL is in recovery mode and ready for a new Firmware.
3.1 Open a web browser and type the IP address, 192.168.1.1, to access to the recovery page.
NOTE: In the recovery mode, 6300VNL will not respond to any PING or other requests.
3.2 Browse to the new Firmware image file then click Upload to start the upgrade process.
3.3 INTERNET LED turns red means the Firmware upgrade is in process.
DO NOT power off or reboot the device, it would permanently damage your 6300VNL.
3.4 INTERNET LED turns green after the Firmware upgrade completed
3.5 Power cycle on & off to regain access to the 6300VNL.

Product Overview
Cabling
9
BEC 6300VNL User Manual
Cabling
One of the most common causes of problems is bad cabling. Make sure that all connected devices
are turned on. On the front panel of the product is a bank of LEDs. Verify that the LAN Link and LEDs
are lit. If they are not, verify that you are using the proper cables.
Make sure that all other devices (e.g. telephones, fax machines, analogue modems) connected to the
same telephone line as your BEC router have a line filter connected between them and the wall socket
(unless you are using a Central Splitter or Central Filter installed by a qualified and licensed electrician),
and that all line filters are correctly installed in a right way. If the line filter is not correctly installed and
connected, it may cause problems to your connection or may result in frequent disconnections.

Basic Installation
10
BEC 6300VNL User Manual
CHAPTER 3: BASIC INSTALLATION
The router can be configured with your web browser. A web browser is included as a standard
application in the following operating systems: Windows XP / 7 / 8 / Vista, Linux, Mac OS, etc. The
product provides an easy and user-friendly interface for configuration.
PCs must have an Ethernet interface installed properly and be connected to the router either directly
or through an external repeater hub, and have TCP/IP installed or configured to obtain an IP address
through a DHCP server or a fixed IP address that must be in the same subnet as the router. The
default IP address of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any
attached PC must be in the same subnet, and have an IP address in the range of 192.168.1.1 to
192.168.1.253). The best and easiest way is to configure the PC to get an IP address automatically
from the router using DHCP. If you encounter any problems accessing the router’s web interface it
may also be advisable to uninstall any kind of software firewall on your PCs, as they can cause
problems accessing the 192.168.1.254 IP address of the router. Users should make their own
decisions on how to best protect their network.
Please follow the steps below for your PC’s network environment installation. First of all, please check
your PC’s network components. The TCP/IP protocol stack and Ethernet network adapter must be
installed. If not, please refer to your Windows-related or other operating system manuals.
Any TCP/IP capable workstation can be used to communicate with or
through the BEC 6300VNL
. To configure other types of workstations,
please consult the manufacturer’s documentation.
