BEC BEC 6900 R21 User manual

Last revised: September 2019
Version release: v1.2
User Manual
BEC 6900 R21 /
RidgeWave 6900
4G/LTE Outdoor Router

Last revised: September 2019
Version release: v1.2
Copyright Notice
Copyright@ 2019 BEC Technologies Inc. All rights reserved.
BEC Technologies reserves the right to change and make improvement to this manual at any time
without prior notice.
No part of this document may be reproduced, copied, transmitted in any form or by any means
without prior written permission from BEC Technologies, Inc.
Support Contact Information
Contact Support: http://bectechnologies.net/support/.
Telephone: [phone]

TABLE OF CONTENTS
COPYRIGHT NOTICE .......................................1
SUPPORT CONTACT INFORMATION..............1
CHAPTER 1: INTRODUCTION .........................1
I NTRODUCTION TO YOUR R OUTER .............................................................. 1
F EATURES & S PECIFICATIONS .................................................................... 3
H ARDWARE S PECIFICATIONS ..................................................................... 5
A PPLICATION D IAGRAM ........................................................................... 5
CHAPTER 2: PRODUCT OVERVIEW...............6
I MPORTANT N OTE FOR U SING T HIS R OUTER ................................................. 6
P ACKAGE C ONTENTS ............................................................................... 6
D EVICE D ESCRIPTION .............................................................................. 7
M OUNTING K IT I NSTALLATION – U SING LP2S M OUNTING K IT .........................
M OUNTING K IT I NSTALLATION – U SING RT4R M OUNTING K IT ...................... 12
R OUTER I NSTALLATION I NSTRUCTIONS ...................................................... 1
S YSTEM R ECOVERY P ROCEDURES ............................................................. 22
CHAPTER 3: BASIC INSTALLATION .............23
N ETWORK C ONFIGURATION – IP V 4 .......................................................... 24
Configuring PC in Windows 10 (IPv4) .............................................................. 24
Configuring PC in Windows 7/8 (IPv4) ............................................................. 26
Configuring PC in Windows Vista (IPv4) ........................................................... 28
N ETWORK C ONFIGURATION – IP V 6 .......................................................... 30
Configuring PC in Windows 10 (IPv6) .............................................................. 30
Configuring PC in Windows 7/8 (IPv6) ............................................................. 32
Configuring PC in Windows Vista (IPv6) ........................................................... 34
D EFAULT S ETTINGS ............................................................................... 36

CHAPTER 4: DEVICE CONFIGURATION.......37
L OGIN TO YOUR D EVICE ......................................................................... 37
S TATUS .............................................................................................. 3
evice Info ...................................................................................................... 39
System Status .................................................................................................. 40
System Log ...................................................................................................... 41
4G/LTE Status .................................................................................................. 42
Statistics .......................................................................................................... 44
HCP Table ...................................................................................................... 46
ARP Table ........................................................................................................ 46
VRRP Status ..................................................................................................... 46
Q UICK S TART ...................................................................................... 47
C ONFIGURATION .................................................................................. 4
Interface Setup ................................................................................................ 49
Internet ......................................................................................................................... 49
LAN ............................................................................................................................... 52
Loopback ...................................................................................................................... 56
Advanced Setup .............................................................................................. 57
Firewall ......................................................................................................................... 57
Routing ......................................................................................................................... 58
D namic Routing .......................................................................................................... 59
NAT ............................................................................................................................... 61
VRRP ............................................................................................................................. 66
Static DNS ..................................................................................................................... 67
QoS ............................................................................................................................... 68
Time Schedule ............................................................................................................... 70
Mail Alert ..................................................................................................................... 71
Access Management ....................................................................................... 72
Device Management ..................................................................................................... 72
SNMP............................................................................................................................ 73
S slog ........................................................................................................................... 75
Universal Plug & Pla .................................................................................................... 76
D namic DNS (DDNS) .................................................................................................... 77
Access Control .............................................................................................................. 79
Packet Filter .................................................................................................................. 81
CWMP (TR-069) ............................................................................................................ 85
Parental Control ........................................................................................................... 87
BECentral Management................................................................................................ 88
Maintenance ................................................................................................... 89

User Management ........................................................................................................ 89
Time Zone ..................................................................................................................... 91
Firmware & Configuration ............................................................................................ 92
S stem Restart .............................................................................................................. 93
Auto Reboot .................................................................................................................. 94
Diagnostics Tool ............................................................................................................ 95
CHAPTER 5: TROUBLESHOOTING ..............97
Problems with the Router ............................................................................... 97
Problem with LAN Interface ............................................................................ 97
Recovery Procedures ....................................................................................... 98
APPENDIX: PRODUCT SUPPORT & CONTACT
.........................................................................99
FCC S TATEMENT ................................................................................ 100
P ROFESSIONAL I NSTALLATION I NSTRUCTIONS (BEC 6 00 R21) .................... 101

Introduction
Features & Specifications
1
BEC 6900 R21 / RidgeWave 6900 User Manual
C HAPTER 1: I NTRODUCTION
Introduction to your Router

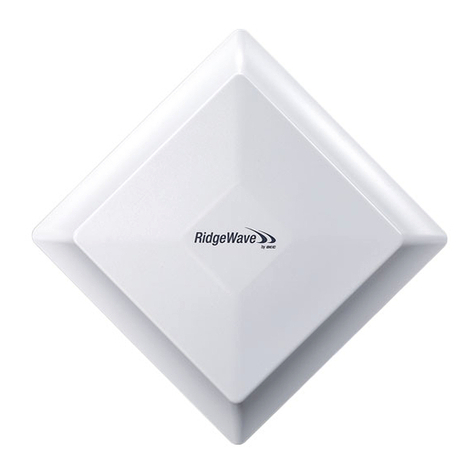

Congratulations on your purchase of the BEC 6900 R21 / RidgeWave 6900 (Outdoor 4G/LTE
Router) known as BEC 4G/LTE ODU.
This unit is a lightweight, an industrial-grade outdoor fixed wireless router with an IP68 rated
enclosure to withstand extreme weather conditions and harsh rugged deployments. With integrated
IEEE802.3at power over Ethernet (PoE) support, the BEC 4G/LTE ODU provides an easy
installation from eliminating the need for a separate power and data cable.
In addition to outdoor, it can be installed in environments such as: manufacturing plants, industrial
automation, stadiums, convention halls, stadium facilities, school campuses or virtually any venue
requiring a robust wireless solution. The BEC 4G/LTE ODU integrates a high-performance device
with an embedded LTE module and advanced IP networking features enabling support of multiple
high bandwidth applications.
Lightweight, Compact and unobtrusive Design
With multiple mounting options and a lightweight, it is easily to install the BEC 4G/LTE ODU by single
person. The BEC 4G/LTE ODU also has a built-in passive Gigabit Power of Ethernet (GPoE) so both
data and power can be sent from the unit.
Designed for Challenging / Rugged Deployments
The BEC 4G/LTE ODU is designed for the toughest industrial environments. With IP68 hardened
enclosure with industrial-grade components, the BEC 4G/LTE ODU can be installed in manufacturing
plants, industrial automation, stadiums, convention halls, stadium facilities, school campuses, etc.
4G/LTE Mobility
With 4G/LTE-based Internet connection (4G/LTE embedded module, requires an additional SIM card),
you can access to the Internet through 4G/LTE whether you are seated at your desk or taking a cross-
country trip.
4G/LTE Management Center
BEC 4G/LTE ODU (4G/LTE Outdoor Router) Mobile Management Center visually displays its current
4G/LTE signal status also calculates the total amount of hours or data traffic used per month, allowing
you to manage your 4G/LTE monthly subscriptions.
IPv6 Supported
Internet Protocol version 6 (IPv6) is a version of the Internet Protocol that is designed to succeed IPv4.
IPv6 has a vastly larger address space than IPv4. The router is already supporting IPv6, you can use
it in IPv6 environment no need to change device. The dual-stack protocol implementation in an
operating system is a fundamental IPv4-to-IPv6 transition technology. It implements IPv4 and IPv6
protocol stacks either independently or in a hybrid form. The hybrid form is commonly implemented in
modern operating systems supporting IPv6.

Introduction
Features & Specifications
2
BEC 6900 R21 / RidgeWave 6900 User Manual
Quick Start Wizard
Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you
connected to the Internet immediately.
Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.

Introduction
Features & Specifications
3
BEC 6900 R21 / RidgeWave 6900 User Manual
Features & Specifications
• Outdoor 4G for high speed mobile connectivity
• 4G embedded with a built-in SIM card slot
• 4G Management Center for connection monitoring
• Firewall security with DoS prevention and SPI
• Quality of Service control
• Syslog monitoring
• Ease of Use with Quick Installation Wizard
• Ideal for homes, businesses, rural areas and the underserved
Operational Mode
• Bridge or Routed mode
Network Protocols and Features
• IPv4, IPv6 or IPv4 / IPv6 Dual Stack
• NAT, static (v4/v6) routing and RIP-1 / 2
• DHCPv4 / v6
• Universal Plug and Play (UPnP) Compliant
• Dynamic Domain Name System (DDNS)
• Virtual Server and DMZ
• SNTP, DNS proxy
• IGMP snooping and IGMP proxy
• MLD snooping and MLD proxy
Firewall
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• DoS attack prevention including Land Attack, Ping of Death, etc.
• Access control
• IP&MAC filter, URL Content Filter
• Password protection for system management
• VPN pass-through

Introduction
Features & Specifications
4
BEC 6900 R21 / RidgeWave 6900 User Manual
Quality of Service Control
•Traffic prioritization management based-on Protocol, Port Number and IP Address (IPv4/ IPv6)
Management
• Quick Installation wizard
• Web-based GUI for remote and local management (IPv4/IPv6)
• Firmware upgrades and configuration data upload and download via web-based GUI
• Supports DHCP server / client / relay
• Supports SNMP v1, v2, v3, MIB-I and MIB-II
• TR-069 supports remote management
• BECentral
®
Cloud-base Management Platform

Introduction
Hardware Specifications & Application Diagram
5
BEC 6900 R21 / RidgeWave 6900 User Manual
Hardware Specifications
Physical Interface
• 10/100/1000 Gigabit Ethernet LAN with IEEE802.3at compliant Gigabit PoE PD
• SIM slot: (for the SIM card from Telco / ISP)
• LED Indicators: Power, LAN (PoE), LTE, and Internet
Physical Specifications
• Dimensions (W*H*D): 12.6" x 12.6" x 2.91" (320mm x 320mm x 74mm)
• Weight: < 1.5kg
• IP-68 Grade Enclosure
Application Diagram

Product Overview 6
BEC 6900 R21 / RidgeWave 6900 User Manual
C HAPTER 2: P RODUCT O VERVIEW
Important Note for Using This Router
Package Contents
 The 4G/LTE Outdoor Router
 M25 Cable Gland
 Quick Start Guide
 Gigabit Power-over-Ethernet (PoE) Injector
 Mounting Kit (#LP2S or #RT4R)

Do not remove, open or repair the case yourself. Contact with
your Internet Service Provider or have it repaired at a qualified
service center.
Use the supplied PoE (Power-over-Ethernet) injector for indoor
only or with any 802.3at capable PoE injectors to connect with
the RidgeWave 6900
It is mandatory to earth ground the BEC 4G/LTE ODU.
Improper grounding not only could damage the unit but also all
equipment connected to it.
Attention

Product Overview
Device Description
7
BEC 6900 R21 / RidgeWave 6900 User Manual
Device Description
CONNECTORS DESCRIPTION
SIM / LED / Reset Insert the SIM card into the SIM slot.
Press the reset button to reset device or restore to factory default settings
Gigabit LAN(PoE) Connect it to the supplied PoE injector, 802.3at compliant, using an Ethernet cable.
LED STATUS DESCRIPTION
1. Power
Orange System is either in initial startup phase or has boot failure
Green System is up and ready
Off No input power
2. LAN(PoE)
Orange Transmission speed is at 10/100Mbps
Green Transmission speed is at Gigabit speed (1000Mbps)
Blinking Data being transmitted/received
Off No device is being connected
3. Internet
Orange IP request failed or System is in initial booting phase
Green IP connected and traffic is passing thru the device
4. 3G/4G-LTE Green RSSI greater than -69 dBm. Excellent signal condition
1
2
3
4

Product Overview
Device Description
8
BEC 6900 R21 / RidgeWave 6900 User Manual
(Received
Signal
Strength
Indicator)
Green
Flashing quickly
RSSI from -81 to -69 dBm. Good signal condition
Orange
Flashing quickly
RSSI from -99 to -81 dBm. Fair signal condition
Orange
Flashing slowly
RSSI less than -99 dBm. Poor signal condition
Orange No signal. 4G/LTE module is still in connected mode
Off No 4G/LTE module or 4G/LTE module fails

Product Overview
Mounting Kit Installation – Using LP2S Kit
9
BEC 69 R21 / RidgeWave 69 User Manual
Mounting Kit Installation – Using LP2S Mounting Kit
Mounting Kit includes:
1. Stainless Steel Bracket x 1
2. Hose Clamp x 2
3. M6x15 Screw x 4
4. M6 Washer x 4
5. Spring Washer x 4
1. Attach the Stainless-Steel Bracket to the Enclosure
Attach the stainless-steel bracket to the back of the BEC 4G/LTE ODU enclosure then use
the supplied M6 Washer, Spring Washer, and M6x15 screws in the mounting kit to screw
the bracket tightly.
Tool
A
dvice:
Use #10 HEX. Wrench to
tighten or loosen the
bolt(s).
Stainless Steel
Bracket x 1
M6 Washer
M6 Spring
Washer
M6x15 Screw
Stainless-steel
Bracket
M6 Washer x 4
Spring Washer x 4
M6x15 Screw x 4
Hose clamp 1” ~3” x 2
Assembled

Product Overview
Mounting Kit Installation – Using LP2S Kit
10
BEC 69 R21 / RidgeWave 69 User Manual
2. Pole Mounting for Pole 1” ~ 3” (25.4 ~ 76.2mm)
The BEC 4G/LTE ODU must be directed towards the nearest base station.
Fix the
stainless
-
steel
b
racket to the pole by
using the supplied stainless hose clamps (1” ~
3”). Use a flat-head screwdriver to turn the head
of the screw clockwise to tighten it.
Use
1
~
3
” hose clamp
s
through
the stainless-steel bracket.
Co
mpleted

Product Overview
Mounting Kit Installation – Using LP2S Kit
11
BEC 6900 R21 / RidgeWave 6900 User Manual
3. Proper Grounding to Complete the Installation
Attach the grounding wire to the BEC 4G/LTE ODU and tighten the screw.

Product Overview
Mounting Kit Installation – Using RT4R Kit
12
BEC 69 R21 / RidgeWave 69 User Manual
Mounting Kit Installation – Using RT4R Mounting Kit
Mounting Kit includes:
1. rticulation Pole x 1
2. T-formed Bracket x 1
3. M8x40 Screw Bolt x 1
4. M8 Nut x 1
5. M8 Washer x 1
6. M6 Washer x 4
7. M8 Spring Washer x 1
8. M6 Spring Washer x 4
9. M6x16 Screw x 4
For
Wall Mount Installation
, you’ll
need:
10. Wood Screw x 4
11. Wood / Gyprock x 4
For
Pole Mount
Installation
, you’ll
need:
12. W-Bar x 1
13. Stainless Hose Clamp x 2
14. M6x60 Screw Bolt x 2
15. M6 Washer x 2
16. M6 Spring Washer x 2
T-form Bracket x 1
Articulation Pole x 1
Wood Screw x 4
Wood / Gyprock Plug x 4
M6 x16 Screw x 4
M8 Nut x 1
M8 Spring Washer x
1
M6
Spring
Washer x
M8 Washer x 1
M6 Washer x 4
M6 Spring Washer x
2
M6 Washer x 2
M6 x 60 Screw Bolt x 2
W-Bar x 1
Stainless Hose Clamp 1”-3” x 2
M8x40 Screw Bolt x 1

Product Overview
Mounting Kit Installation – Using RT4R Kit
13
BEC 69 R21 / RidgeWave 69 User Manual
1.
Attach the Articulation Pole to the Enclosure
Attach the articulation pole to the back of the BEC 4G/LTE ODU enclosure using the
supplied M6 screws, M6 spring washers and M6x16 screws which are included in the
mounting kit.
Tool Advice:
Use #10 HEX. Wrench to
tighten or loosen the
bolt(s).
M6 Washer
M6 Spring Washer
M6x16 Screw
1
2
3

Product Overview
Mounting Kit Installation – Using RT4R Kit
14
BEC 6900 R21 / RidgeWave 6900 User Manual

Product Overview
Mounting Kit Installation – Using RT4R Kit
15
BEC 69 R21 / RidgeWave 69 User Manual
Note: The flexible mounting kit can be adjusted in multiple angles to align with the base station
for higher efficiency.
45∘
45∘
45∘
45∘
