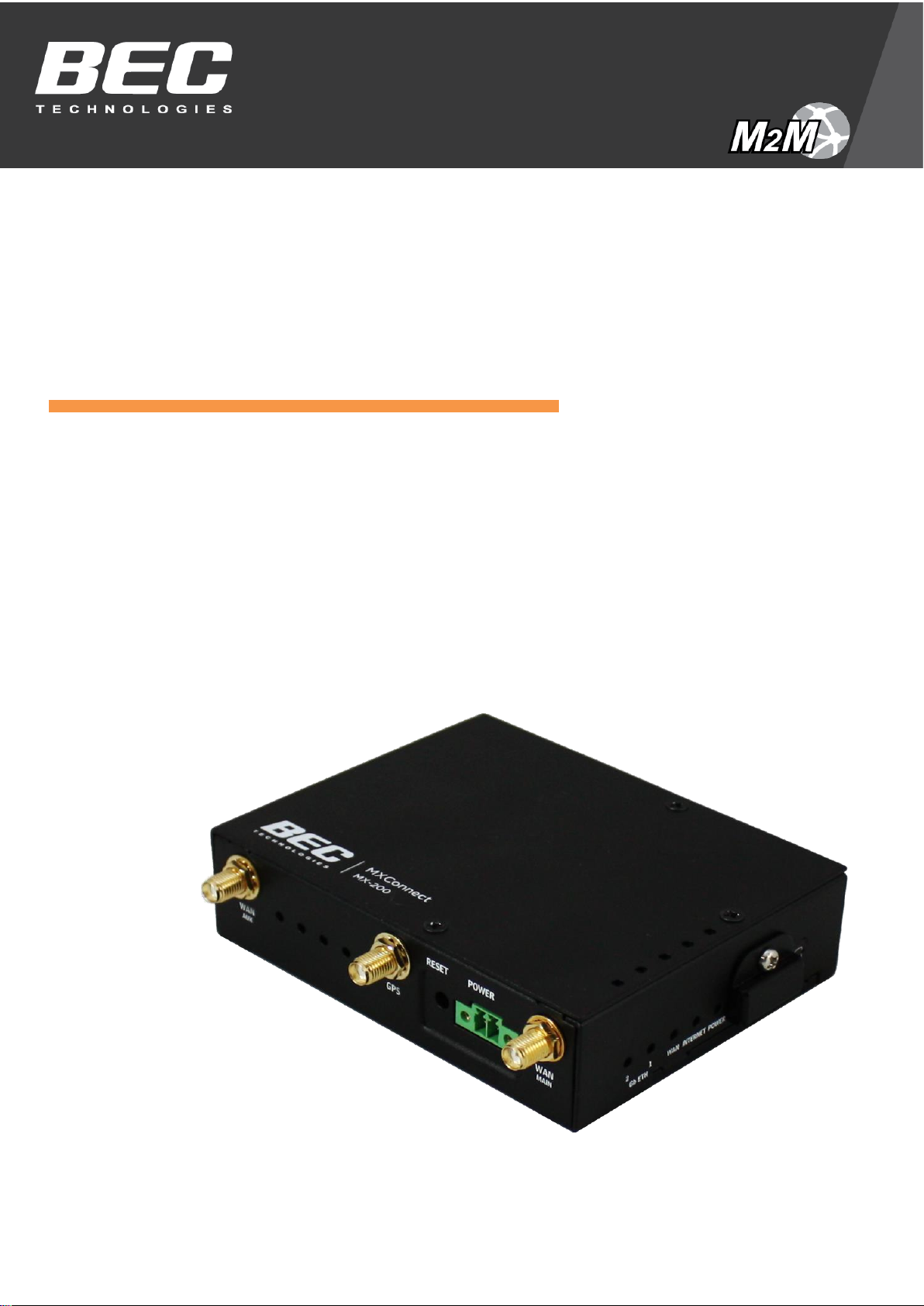

BEC M2M MX-200Ae User manual

Last revised: September, 2020
Version release: v3.2
User Manual
BEC MX-200Ae
WWAN Failover Manager

Copyright Notice
Copyright@ 2020 BEC Technologies Inc. All rights reserved.
BEC Technologies reserves the right to change and make improvement to this manual at any time
without prior notice.
No part of this document may be reproduced, copied, transmitted in any form or by any means without
prior written permission from BEC Technologies, Inc.
Support Contact Information
Contact Support: http://bectechnologies.net/support/.
Telephone: +1 972 422 0877

TABLE OF CONTENTS
COPYRIGHT NOTICE .......................................1
SUPPORT CONTACT INFORMATION .............1
CHAPTER 1: INTRODUCTION .........................1
INTRODUCTION TO YOUR ROUTER ..............................................................1
FEATURES &SPECIFICATIONS ....................................................................3
HARDWARE SPECIFICATIONS.....................................................................5
APPLICATION DIAGRAMS .........................................................................6
CHAPTER 2: PRODUCT OVERVIEW...............7
IMPORTANT NOTE FOR USING THIS ROUTER.................................................7
PACKAGE CONTENTS...............................................................................7
DEVICE DESCRIPTION ..............................................................................8
SYSTEM RECOVERY PROCEDURES............................................................. 11
CABLING ............................................................................................ 11
CHAPTER 3: BASIC INSTALLATION ............12
NETWORK CONFIGURATION –IPV4.......................................................... 13
Configuring PC in Windows 10 (IPv4) ..............................................................13
Configuring PC in Windows 7/8 (IPv4).............................................................15
Configuring PC in Windows Vista (IPv4)...........................................................17
NETWORK CONFIGURATION –IPV6.......................................................... 19
Configuring PC in Windows 10 (IPv6) ..............................................................19
Configuring PC in Windows 7/8 (IPv6).............................................................21
Configuring PC in Windows Vista (IPv6)...........................................................23
DEFAULT SETTINGS............................................................................... 25
CHAPTER 4: DEVICE CONFIGURATION ......26

LOGIN TO YOUR DEVICE ......................................................................... 26
STATUS.............................................................................................. 28
Device Info ......................................................................................................28
System Status ..................................................................................................29
System Log ......................................................................................................29
4G/LTE Status ..................................................................................................30
Statistics ..........................................................................................................32
DHCP Table......................................................................................................35
ARP Table ........................................................................................................36
VRRP Status.....................................................................................................36
QUICK START ...................................................................................... 37
DEVICE CONFIGURATION........................................................................ 40
Interface Setup................................................................................................40
Internet......................................................................................................................... 40
LAN............................................................................................................................... 48
Loopback ...................................................................................................................... 52
Dual WAN........................................................................................................53
General Setting............................................................................................................. 53
Outbound Load Balance ............................................................................................... 57
Protocol Binding ........................................................................................................... 58
Advanced Setup ..............................................................................................60
Firewall......................................................................................................................... 60
Routing......................................................................................................................... 61
NAT............................................................................................................................... 62
VRRP............................................................................................................................. 67
Static DNS..................................................................................................................... 68
QoS............................................................................................................................... 69
Time Schedule............................................................................................................... 71
Mail Alert ..................................................................................................................... 72
Serial (RS-232 Console Port).......................................................................................... 73
Access Management .......................................................................................76
Device Management..................................................................................................... 76
SNMP............................................................................................................................ 77
Syslog ........................................................................................................................... 79
Universal Plug & Play.................................................................................................... 80
Dynamic DNS (DDNS).................................................................................................... 81
Access Control .............................................................................................................. 83
Packet Filter.................................................................................................................. 85
CWMP (TR-069)............................................................................................................ 89

Parental Control ........................................................................................................... 91
BECentral Management................................................................................................ 92
Maintenance ...................................................................................................93
User Management........................................................................................................ 93
Certificate Management............................................................................................... 95
Time Zone..................................................................................................................... 97
Firmware & Configuration ............................................................................................ 98
System Restart.............................................................................................................. 99
Auto Reboot................................................................................................................ 100
Diagnostics Tool.......................................................................................................... 101
CHAPTER 5: TROUBLESHOOTING ............103
Problems with the Router .............................................................................103
Problem with LAN Interface ..........................................................................103
Recovery Procedures.....................................................................................104
APPENDIX: PRODUCT SUPPORT & CONTACT
.......................................................................105
FCC STATEMNET................................................................................ 106
IC REGULATIONS..........................................ERROR!BOOKMARK NOT DEFINED.

Introduction
1
BEC MX-200Ae User Manual
CHAPTER 1: INTRODUCTION
Introduction to your Router
The BEC MX-200Ae WWAN Failover Manager is a high performance fixed wireless platform enabling
real-time 4G Cellular data connectivity for your existing serial devices and Ethernet network. The
MX-200Ae provides a reliable and cost-effective alternative solution for business continuity. The
platform can serve as the primary connection or backup connection when wired connections fail are
unavailable or non-existent.
The MX-200Ae features two Gigabit Ethernet interfaces and a RS-232 Serial interface enabling
wireless data connectivity for a broad range of applications and vertical machine-to-machine (M2M)
market segments. Intelligent software supports configurable LAN/WAN options, embedded LTE
module and enterprise level functionality such as: advanced security mechanisms, Quality of Service
(QoS), SPI firewall, auto failover for unparalleled uptime and network redundancy, and cloud-based
management to extend visibility and control of devices remotely.
4G/LTE Mobility
Offer an advanced network solution that meets the growing demands of M2M services, MX-200Ae
exclusively features dual WAN - load balance or auto-failover/failback to provide extraordinary,
always-on internet connectivity.
Ultra-Compact and Lightweight Design
Designed for continuous operation in harsh environments, the MX-200Ae supports an extended
operating temperature range from -4 to 140º F (–20 to 60º C) and a flexible input voltage range of
9-56V DC making it suitable for diverse environments and applications. To enable simple, reliable, and
efficient integration the ultra-compact, lightweight, and low-profile design incorporates highly flexible
mounting options to ensure that the device and can be easily mounted discretely anywhere.
IPv6 Supported
Internet Protocol version 6 (IPv6) is a version of the Internet Protocol that is designed to succeed IPv4.
IPv6 has a vastly larger address space than IPv4. The router is already supporting IPv6, you can use it
in IPv6 environment no need to change device. The dual-stack protocol implementation in an
operating system is a fundamental IPv4-to-IPv6 transition technology. It implements IPv4 and IPv6
protocol stacks either independently or in a hybrid form. The hybrid form is commonly implemented in
modern operating systems supporting IPv6.
Quick Start Wizard
Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you
connected to the Internet immediately.

Introduction
2
BEC MX-200Ae User Manual
Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.

Introduction
Features & Specifications
3
BEC MX-200Ae User Manual
Features & Specifications
•4G/LTE and/or Ethernet IP broadband connectivity
• High performance SX antenna for increased coverage, signal reception and efficiency
• Gigabit Ethernet WAN (GbE WAN) for Cable/Fiber/xDSL high WAN throughput
• Gigabit Ethernet LAN
• IPv6 ready (IPv4/IPv6 dual stack)
• Firewall Security with DoS Preventing and Packet Filtering
• Quality of Service Control for traffic prioritization management
• Universal Plug and Play (UPnP) Compliance
• Ease of Use with Quick Installation Wizard
• Small form factor with multiple mounting options, easily installed by a single person
• Hardened enclosure with Industrial-graded components
• Designed to withstand hypothermia, heat, and protect from shock, vibration, etc.
Availability and Resilience
•Dual-WAN Interfaces
• Auto fail-over and failback
• High performance external antennas
Network Protocols and Features
• IPv4, IPv6, IPv4 / IPv6 dual stack
• IP Tunnel IPv6 in IPv4 (6RD)
• IP Tunnel IPv4 in IPv6 (DS-Lite)
• NAT, static routing, and RIP-1/2
• Universal Plug and Play (UPnP) compliant
• Dynamic Domain Name System (DDNS)
• Virtual server and DMZ
• SNTP, DNS relay
• IGMP proxy and IGMP snooping
• MLD proxy and MLD snooping
• Supports port-based Virtual LAN (VLAN)

Introduction
Features & Specifications
4
BEC MX-200Ae User Manual
Firewall
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• DoS attack prevention including Land Attack, Ping of Death, etc.
•Access control
• IP&MAC filter, URL Content Filter
• Password protection for system management
•VPN pass-through
Quality of Service Control
•Traffic prioritization management based-on Protocol, Port Number, and IPAddress (IPv4/ IPv6)
Management
•Quick Installation wizard
• Web-based GUI for remote and local management (IPv4/IPv6)
• Firmware upgrades and configuration data upload and download via web-based GUI
• Supports DHCP server / client / relay
• Supports SNMP
• TR-069 supports remote management
• BECentral Cloud Management

Introduction
Hardware Specifications & Approves
5
BEC MX-200Ae User Manual
Hardware Specifications
Physical interface
• 4G/LTE: Two(2) detachable antennas
• GPS: 1 detachable GPS antenna (optional)
• WAN: Cellular 4G/LTE (and/or ETH WAN Optional)
• RS-232 (DCE, DB-9): one (1) port
• Ethernet LAN: 2-port 10/100/1000Mbps, auto-crossover (MDI/ MDI-X) switch
• SIM Card: One (1) slot
• Reset Button
• Power Connector: 4-pin connectors
• LED Indicators: Power / Internet / LTE / Ethernet
Physical Specifications
• Dimensions (W*H*D): 4.29" x 1.17" x 3.43" (109mm x 29.7mm x 87mm)

Introduction
Application Diagrams
6
BEC MX-200Ae User Manual

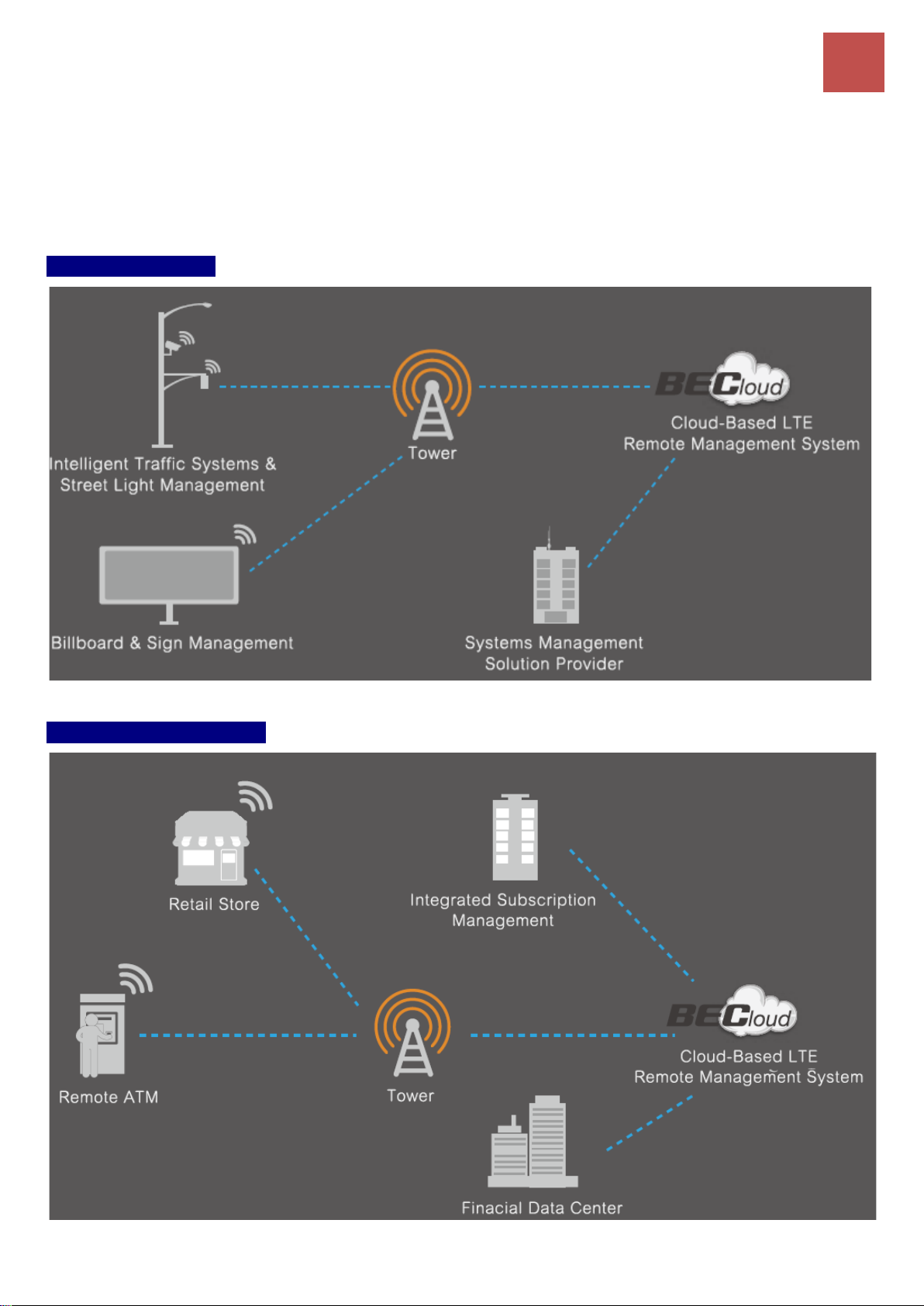

Application Diagrams
The MX-200Ae Advanced Industrial 4G/LTE Router is ideal the ideal solution for Digital signage,
Remote surveillance, Vending Machines, Retail Point-of-Sales (PoS), Remote patient
care/maintenance services, SCADA, Metering applications and much more.
Industrial Industry:
Power / Energy Industry:

Product Overview
7
BEC MX-200Ae User Manual
CHAPTER 2: PRODUCT OVERVIEW
Important Note for Using This Router
Package Contents
✓BEC MX-200Ae M2M Router * 1
✓Quick Installation Guide * 1
✓DIN Rail Mounting Kit * 1
✓Power Terminal Block 2-pin 3.5mm * 1
✓Power Converter with 2-pin Terminal Block * 1
✓DC Power Adapter, 12V 1.2A* 1
✓Ethernet (RJ-45) Cable * 1
(Optional Accessories)
✓4G/LTE Antennas
✓Active GPS Antenna
✓Do not use the router in high humidity or high temperature.
✓Do not use the same power source for the MX-200Ae on other
equipment.
✓Do not open or repair the case yourself. If the device becomes
too hot, turn off the power immediately and have it repaired at
a qualified service center.
✓Avoid using this product and all accessories outdoors.
Warning
✓Place the router on a stable surface.
✓Only use the power adapter that comes with the package. Using
a different voltage rating power adaptor may damage the router.
Attention

Product Overview
Device Description
8
BEC MX-200Ae User Manual
Device Description
INTERFACE
MEANING
1
Gigabit Ethernet
(LAN 1 ~ 2)
ETH1 is a LAN / WAN configurable port for broadband connectivity
Connect PCs, Laptops, or any other office/home LAN devices with the supplied RJ-45
Ethernet cable (Cat-5 or Cat-5e) to any of those two LAN ports.
2
SERIAL
RS-232 serial port for machine connection and data collection
Connect the male end of RS-232 serial data cable to the MX-200Ae and the other end to a
machine or PC.
2
1
1

Product Overview
Device Description
9
BEC MX-200Ae User Manual
INTERFACE
MEANING
1
WAN (MAIN/AUX)
4G/LTE Antenna
Connectors
SMA female connectors.
Manually screw the 4G/LTE antennas tight to the female connectors
* 4G/LTE antenna(s) sold separately
2
GPS Antenna
Connector
SMA female connectors.
Manually screw the GPS antenna tight to the connector
* GPS antenna sold separately
3
RESET
After the device is powered on, press it 6 seconds or above: to restore to factory default
settings (this is used when you cannot login to the router, e.g. forgot your password)
4
POWER
Attach the power terminal block, 2-pin 3.5mm, or the power converter with 2-pin terminal
block here.
VCC (Left Connector): Power - Red Wire to connect to the Positive (+) terminal of the power
supply.
GND (Right Connector): Ground –Black Wire to connect to the ground of the power supply
1
1
1
1
2
1
3
1
4
1

Product Overview
Device Description
10
BEC MX-200Ae User Manual
LEDS / INTERFACE
MEANING
1
Gb ETH (1 & 2)
(Gigabit Ethernet)
ETH #1 Can be configured to be WAN port for broadband connectivity
Green
Ethernet LAN: Connected to a Gigabit (1000Mbps) Ethernet
device
Ethernet WAN (ETH1 Only): Successfully connected with a
broadband connection device
Red
Transmission speed is at 10/100Mbps
Blinking
Data being transmitted/received
Off
No device is connected to the Ethernet port
2
LTE
(Received Signal
Strength Indicator)
Green
RSSI greater than -69 dBm. Excellent signal condition
Green / Fast Flashing
RSSI from -81 to -69 dBm. Good signal condition
Red / Fast Flashing
RSSI from -99 to -81 dBm. Fair signal condition
Red / Slow Flashing
RSSI less than -99 dBm. Poor signal condition
Red
No signal and the 4G LTE module is in service
Off
No LTE module or LTE module fails
3
Internet
Green
IP connected and traffic is passing through the device
Red
IP request failed
Off
Either in bridged mode or WAN connection is not present
4
Power
Green
System ready
Red
Boot failure
5
SIM Card Slot
N/A
Insert mini SIM card (2FF) with the gold contact facing down.
Push mini SIM card (2FF) inwards to eject it
* Power off the MX-200Ae before inserting or removing the SIM card
1
0
1
2
3
1
4
1
5
1

Product Overview
System Recovery Procedure & Cabling
11
BEC MX-200Ae User Manual
System Recovery Procedures
The purpose is to allow users to restore the MX-200Ae to its initial stage when the device is outage,
upgraded to a wrong / broken firmware, cannot access to the GUI with wrong username and/or
password, etc.
Step 1 –Configure your PC Network IP Address
Before performing the system recovery, assign this IP address and Netmask to your PC,
192.168.1.100 and 255.255.255.0 respectively.
Step 2 –Reset your MX-200Ae Device
2.1 Power off your MX-200Ae
2.2 Power on the MX-200Ae while pushing the RESET button with a small pointed object (such as
paper clip, needle, toothpick, and etc.).
2.3 When the POWER LED turns RED, keep holding and pushing the RESET button until the
INTERNET LED flashes in GREEN
Step 3 –Restore your MX-200Ae Device
With INTERNET light flashes green, MX-200Ae is in recovery mode and ready for a new Firmware.
3.1 Open a web browser and type the IP address, 192.168.1.1, to access to the recovery page.
NOTE: In the recovery mode, MX-200Ae will not respond to any PING or other requests.
3.2 Browse to the new Firmware image file then click Upload to start the upgrade process.
3.3 INTERNET LED turns red means the Firmware upgrade is in process.
DO NOT power off or reboot the device, it would permanently damage your MX-200Ae.
3.4 INTERNET LED turns green after the Firmware upgrade completed
3.5 Power cycle on & off to regain access to the MX-200Ae.
Cabling
One of the most common causes of problems is bad cabling. Make sure that all connected devices are
turned on. On the front panel of the product is a bank of LEDs. Verify that the LAN Link and LEDs are
lit. If they are not, verify that you are using the proper cables.

Basic Installation
12
BEC MX-200Ae User Manual
CHAPTER 3: BASIC INSTALLATION
The router can be configured with your web browser. A web browser is included as a standard
application in the following operating systems: Windows Vista / 7 / 8, Linux, Mac OS, etc. The product
provides an easy and user-friendly interface for configuration.
PCs must have an Ethernet interface installedproperly and be connected to the router eitherdirectly or
through an external repeater hub, and have TCP/IP installed or configured to obtain an IP address
through a DHCP server or a fixed IP address that must be in the same subnet as the router. The
default IP address of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any
attached PC must be in the same subnet and have an IP address in the range of 192.168.1.1 to
192.168.1.253). The best and easiest way is to configure the PC to get an IP address automatically
from the router using DHCP. If you encounter any problems accessing the router’s web interface it may
also be advisable to uninstall any kind of software firewall on your PCs, as they can cause problems
accessing the 192.168.1.254 IP address of the router. Users should make their own decisions on how
to best protect their network.
Please follow the steps below for your PC’s network environment installation. First of all, please check
your PC’s network components. The TCP/IP protocol stack and Ethernet network adapter must be
installed. If not, please refer to your Windows-related or other operating system manuals.
Any TCP/IP capable workstation can be used to communicate with
or through the MX-200Ae. To configure other types of workstations,
please consult the manufacturer’s documentation.
Attention

Basic Installation
Network Configuration –Windows 10 (IPv4)
13
BEC MX-200Ae User Manual
Network Configuration –IPv4
Configuring PC in Windows 10 (IPv4)
1. Click .
2. Click
3. Then click on Network and Internet.
4. Under Related settings, select
Network and Sharing Center
5. When the Network and Sharing
Center window pops up, select, and
click on Change adapter settings on
the left window panel.
6. Select the Local Area Connection,
and right click the icon to select
Properties.

Basic Installation
Network Configuration –Windows 10 (IPv4)
14
BEC MX-200Ae User Manual
7. Select Internet Protocol Version 4
(TCP/IPv4) then click Properties.
8. In the TCP/IPv4 properties window,
select the Obtain an IP address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
9. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.

Basic Installation
Network Configuration –Windows 7/8 (IPv4)
15
BEC MX-200Ae User Manual
Configuring PC in Windows 7/8 (IPv4)
1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.
3. When the Network and Sharing
Center window pops up, select, and
click on Change adapter settings on
the left window panel.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
Table of contents
Other BEC Wireless Router manuals

BEC
BEC 6200WZL Operating instructions

BEC
BEC 6200WZL User manual

BEC
BEC VG2600 User manual

BEC
BEC BiPAC 6300VNPOZ User manual

BEC
BEC RidgeWave BEC 7000 R25 User manual

BEC
BEC MX-241NP User manual

BEC
BEC MX-210NP User manual

BEC
BEC MX-200A ODU User manual

BEC
BEC RidgeWave 6900 User manual

BEC
BEC BEC 6500 Series User manual
Popular Wireless Router manuals by other brands

Linksys
Linksys WRT55AG - Wireless A+G Broadband Router Quick installation

SMC Networks
SMC Networks BARRICADETM SMCWGBR14-N2 user guide

ZyXEL Communications
ZyXEL Communications NBG5615 quick start guide

Planex
Planex MZK-RP150N user manual

Teltonica
Teltonica RUT100 quick start guide

Ebyte
Ebyte E103-W20 user manual
