BEC BiPAC 6300VNPOZ User manual

Last revised:July 4, 2014
BiPAC 6300VNP(O)Z
4G/LTE VoIP Wireless-N (VPN)
Broadband Router
User Manual
Version release: v1.00

Last revised:July 4, 2014
Table of Contents
Chapter1:Introduction ........................................................................................................................................ 1
IntroductiontoyourRouter ............................................................................................................................. 1
Features&Specifications ................................................................................................................................. 3
HardwareSpecifications................................................................................................................................... 6
ApplicationDiagram ......................................................................................................................................... 7
Chapter2:ProductOverview................................................................................................................................ 8
ImportantNoteforUsingThisRouter.............................................................................................................. 8
DeviceDescription............................................................................................................................................ 9
FrontPanelLEDs ........................................................................................................................................... 9
RearPanelConnectors ............................................................................................................................... 11
PowerSource.................................................................................................................................................. 12
Cabling ............................................................................................................................................................ 13
Chapter3:BasicInstallation............................................................................................................................... 14
NetworkConfiguration–IPv4 ........................................................................................................................ 15

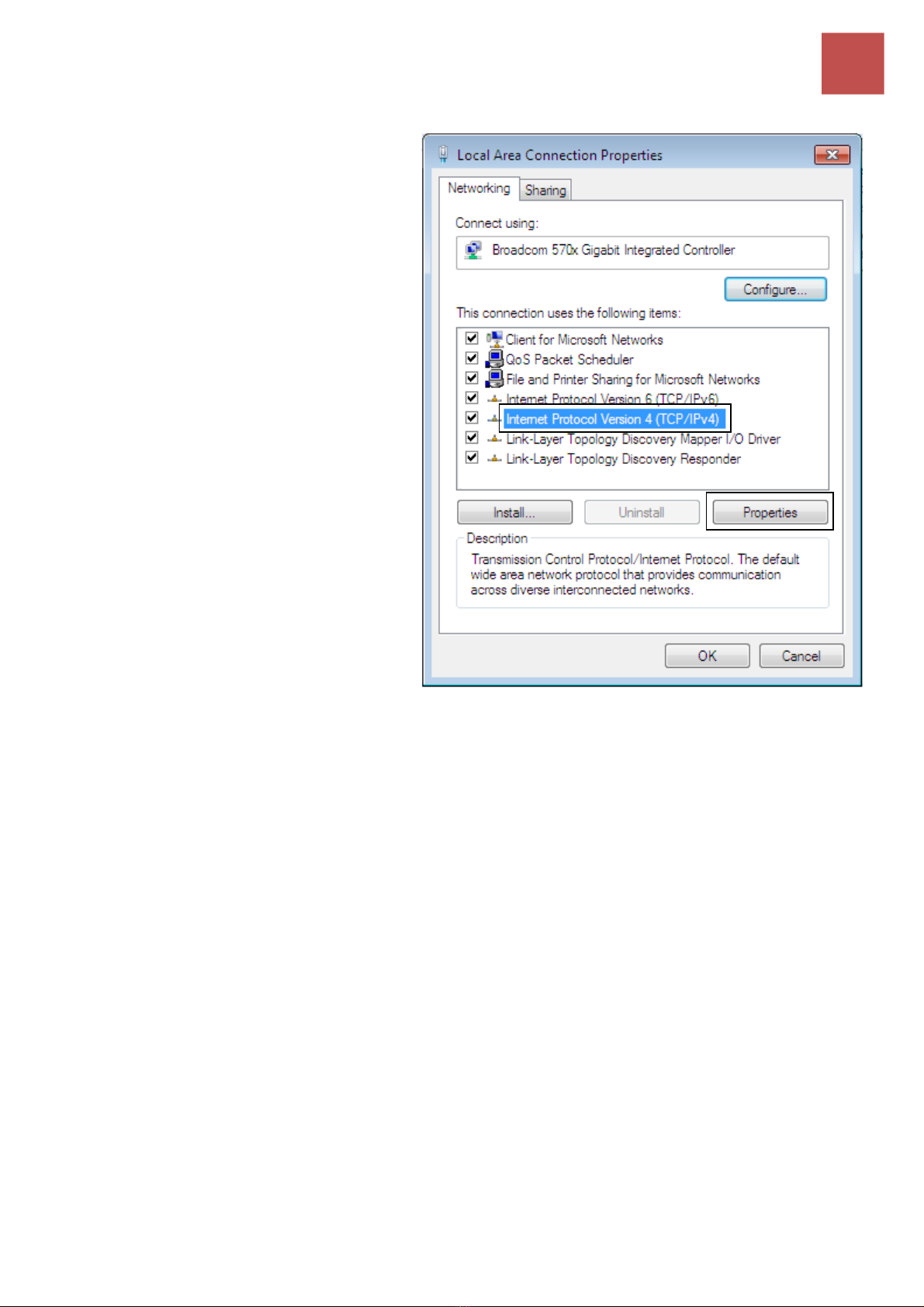

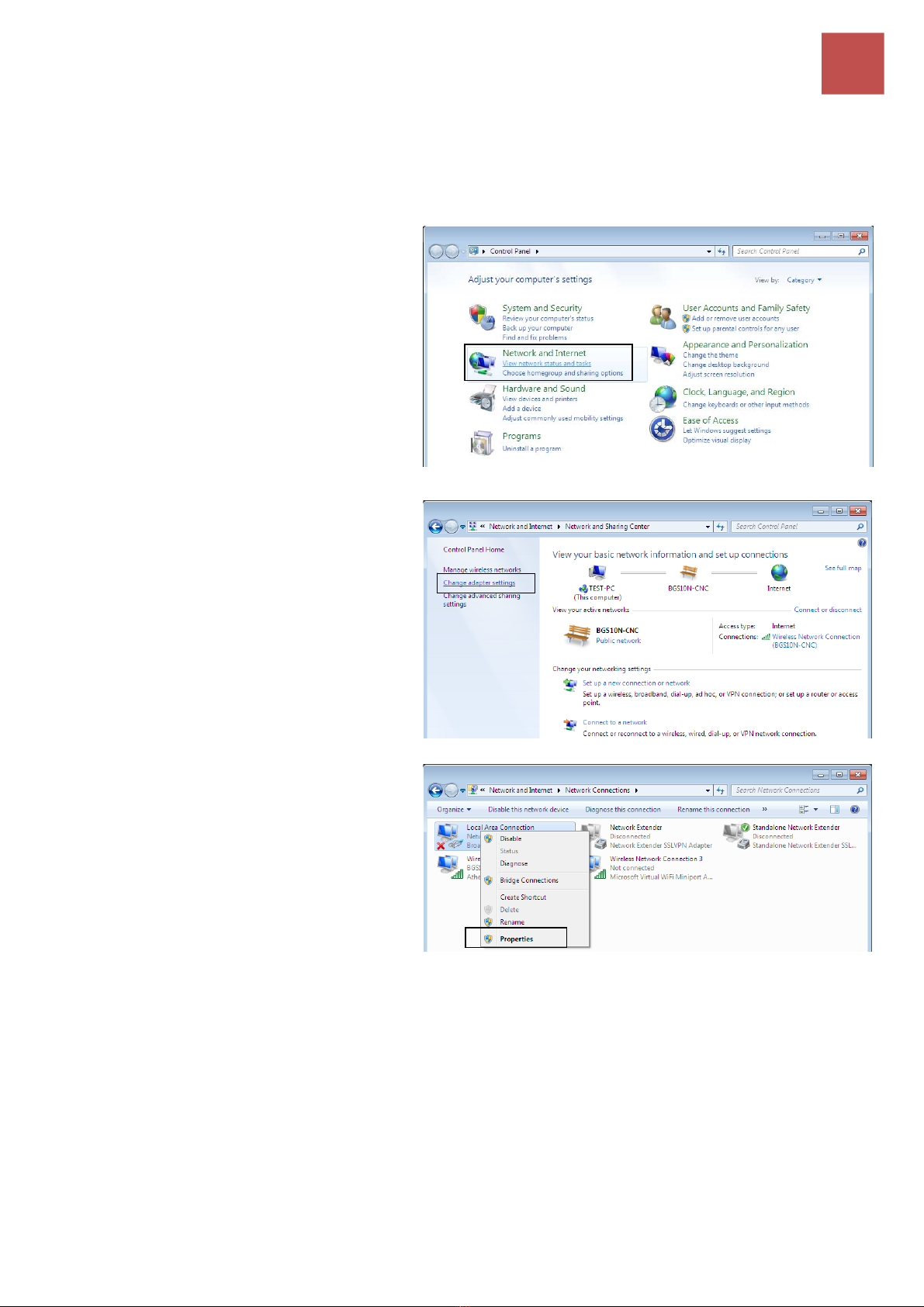

ConfiguringPCinWindows7/8(IPv4)........................................................................................................ 15
ConfiguringPCinWindowsVista(IPv4) ..................................................................................................... 18
ConfiguringPCinWindowsXP(IPv4) ......................................................................................................... 20
ConfiguringPCinWindows2000(IPv4) ..................................................................................................... 22
ConfiguringPCinWindows98/ME ............................................................................................................ 23
ConfiguringPCinWindowsNT4.0.............................................................................................................. 24
NetworkConfiguration–IPv6 ........................................................................................................................ 25
ConfiguringPCinWindows7/8(IPv6)........................................................................................................ 25
ConfiguringPCinWindowsVista(IPv6) ..................................................................................................... 27
ConfiguringPCinWindowsXP(IPv6) ......................................................................................................... 29
DefaultSettings .............................................................................................................................................. 30
InformationfromYourISP.............................................................................................................................. 31
Chapter4:DeviceConfiguration......................................................................................................................... 32
LogintoyourDevice ....................................................................................................................................... 32
Status .............................................................................................................................................................. 34
DeviceInfo .................................................................................................................................................. 35
SystemLog.................................................................................................................................................. 37
3G/4G‐LTEStatus........................................................................................................................................ 38
Statistics...................................................................................................................................................... 40
DHCPTable ................................................................................................................................................. 45
IPSECStatus(6300VNOZonly).................................................................................................................... 46
PPTPStatus(6300VNOZonly) .................................................................................................................... 47
L2TPStatus(6300VNOZonly)...................................................................................................................... 48
DiskStatus .................................................................................................................................................. 49
VoIPStatus.................................................................................................................................................. 49

QuickStart ...................................................................................................................................................... 50
Configuration .................................................................................................................................................. 54
InterfaceSetup ........................................................................................................................................... 54
Internet................................................................................................................................................... 55
LAN.......................................................................................................................................................... 64
Wireless .................................................................................................................................................. 68
WirelessMACFilter ................................................................................................................................ 78
AdvancedSetup.......................................................................................................................................... 79
Firewall................................................................................................................................................... 80
Routing.................................................................................................................................................... 81
NAT ......................................................................................................................................................... 82
StaticDNS ............................................................................................................................................... 87
QoS.......................................................................................................................................................... 88
IPSECSetting(6300VNOZonly) .............................................................................................................. 89
PPTPServer(6300VNOZonly) .............................................................................................................. 100
PPTPClient(6300VNOZonly) ............................................................................................................... 102
L2TP(6300VNOZonly).......................................................................................................................... 114
InterfaceGrouping(6300VNPZonly) ................................................................................................... 124
PortIsolation ........................................................................................................................................ 127
TimeSchedule....................................................................................................................................... 128
VoIP........................................................................................................................................................... 129
Basic...................................................................................................................................................... 129
Media.................................................................................................................................................... 131
Advanced .............................................................................................................................................. 132
SpeedDial ............................................................................................................................................. 133
CallFeatures ......................................................................................................................................... 135
AccessManagement................................................................................................................................. 138
DeviceManagement............................................................................................................................. 138
SNMP .................................................................................................................................................... 139
UniversalPlug&Play............................................................................................................................140
DynamicDNS ........................................................................................................................................ 141
AccessControl ...................................................................................................................................... 143
PacketFilter .......................................................................................................................................... 145
CWMP(TR‐069) .................................................................................................................................... 149
ParentalControl.................................................................................................................................... 151
SAMBA&FTPServer ............................................................................................................................ 152
Maintenance............................................................................................................................................. 156
UserManagement................................................................................................................................ 156
TimeZone ............................................................................................................................................. 160
Firmware&Configuration.................................................................................................................... 161
SystemRestart...................................................................................................................................... 163
DiagnosticsTool.................................................................................................................................... 164
Chapter5:Troubleshooting .............................................................................................................................. 167
ProblemswiththeRouter ........................................................................................................................ 167
ProblemwithLANInterface ..................................................................................................................... 167
RecoveryProcedures................................................................................................................................ 168
Appendix:ProductSupport&Contact.............................................................................................................. 169



Introduction 1

BiPAC 6300VNP(O)Z User Manual
Chapter 1: Introduction
Introduction to your Router
Congratulations on your purchase of the BiPAC 6300VNP(O)Z (4G/LTE VoIP Wireless (VPN)
Broadband Router). This router is a compact and advanced broadband router that offers flexible and
multiple Internet connection options, EWAN and embedded 4G/LTE interfaces, for home, SOHO, and
office users to enjoy high-speed, high-level security Internet connection via cellular wireless and/or
Ethernet WAN. With an integrated 802.11n wireless access point and 4-port Gigabit Ethernet LAN, this
router enables faster wireless speed of up to 300Mbps and LAN connection 10 times faster than
regular 10/100Mbps Ethernet LAN. BiPAC 6300VNP(O)Z provides a unique Management Center
enabling users to monitor 4G/LTE signal strength, bandwidth, download speed, and many more.
Users can choose the most economical rate of VoIP calls provided by different providers. The device
integrates two FXS ports which allows for simultaneous VoIP calls.
Cost Saving
Making VoIP calls is extremely simple; just connect the router with your existing analog telephones.
BiPAC 6300VNP(O)Z complies with the most popularly adopted VoIP standard and SIP protocol to
ensure interoperability with SIP devices and major VoIP Gateways. This router also supports a wider
range of telephony features, such as Call Waiting, Conference, Speed Dial, Return Call, Redial, etc.
4G/LTE Mobility
With 4G/LTE-based Internet connection (4G/LTE embedded module, requires an additional SIM card),
you can access to the Internet through 4G/LTE whether you are seated at your desk or taking a
cross-country trip.
Wireless Mobility and Security
With an integrated 802.11n Wireless Access Point, this router delivers up to 3 times the wireless
coverage of a 802.11b/g network device, so that wireless access is available everywhere in the house
or office. If your network requires wider coverage, the built-in Wireless Distribution System (WDS)
allows you to expand your wireless network without additional wires or cables. BiPAC 6300VNP(O)Z
also supports the Wi-Fi Protected Setup (WPS) standard and allows users to establish a secure
wireless network just by pressing a button. Multiple SSIDs allow users to access different networks
through a single access point. Network managers can assign different policies and functions for each
SSID, increasing the flexibility and efficiency of the network infrastructure.
4G/LTE Management Center
BiPAC 6300VNP(O)Z Mobile Management Center visually displays its current 4G/LTE signal status
also calculates the total amount of hours or data traffic used per month, allowing you to manage your
4G/LTE monthly subscriptions.

Introduction 2

BiPAC 6300VNP(O)Z User Manual
Secure VPN Connections (BiPAC 6300VNOZ only)
The BiPAC 6300VNOZ supports comprehensive and robust IPSec VPN (Virtual Private Network)
protocols for business users to establish private encrypted tunnels over the public Internet to secure
data transmission between headquarters and branch offices. It also supports VPN dial in from smart
phones for secure remote Internet connection via your home broadband. With a built-in DES/3DES
VPN accelerator, the router enhances IPSec VPN performance significantly.
IPv6 Supported
Internet Protocol version 6 (IPv6) is a version of the Internet Protocol that is designed to succeed IPv4.
IPv6 has a vastly larger address space than IPv4. The router is already supporting IPv6, you can use
it in IPv6 environment no need to change device. The dual-stack protocol implementation in an
operating system is a fundamental IPv4-to-IPv6 transition technology. It implements IPv4 and IPv6
protocol stacks either independently or in a hybrid form. The hybrid form is commonly implemented in
modern operating systems supporting IPv6.
Quick Start Wizard
Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you
connected to the Internet immediately.
Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.

Introduction 3

BiPAC 6300VNP(O)Z User Manual
Features & Specifications
• 4G/LTE for high speed mobile broadband connectivity
• Gigabit Ethernet WAN (GbE WAN) for Cable/Fiber/xDSL high WAN throughput
• Gigabit Ethernet LAN
• IPv6 ready (IPv4/IPv6 dual stack)
• Multiple wireless SSIDs with wireless guest access and client isolation
• IEEE 802.11 b/g/n compliant Wireless Access Point with Wi-Fi Protected Setup (WPS)
• Wi-Fi Protected Access (WPA-PSK/ WPA2-PSK) and Wired Equivalent Privacy (WEP)
• Secured IPSec VPN with powerful DES/ 3DES/ AES (BiPAC 6300VNOZ only)
• PPTP VPN with Pap/ Chap/ MPPE authentication (BiPAC 6300VNOZ only)
• L2TP VPN with Pap/Chap authentication (BiPAC 6300VNOZ only)
• 24 VPN tunnels (BiPAC 6300VNOZ only)
• SOHO Firewall Security with DoS Preventing and Packet Filtering
• Quality of Service Control for traffic prioritization management
• Universal Plug and Play (UPnP) Compliance
• Voice over IP compliant with SIP standard
• Two FXS ports for connecting to regular analog telephones
• Call Waiting, Conference Call
• Speed Dial, Return Call, Redial
• Don’t Disturb
• Ease of Use with Quick Installation Wizard
• One USB port for NAS (FTP/ SAMBA server)
• Ideal for SOHO, office, and home users
Network Protocols and Features
• IPv4, IPv6 or IPv4 / IPv6 Dual Stack
• NAT, static (v4/v6) routing and RIP-1 / 2
• DHCPv4 / v6
• Universal Plug and Play (UPnP) Compliant
• Dynamic Domain Name System (DDNS)
• Virtual Server and DMZ
• SNTP, DNS proxy
• IGMP snooping and IGMP proxy

Introduction 4

BiPAC 6300VNP(O)Z User Manual
• MLD snooping and MLD proxy
Firewall
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• DoS attack prevention including Land Attack, Ping of Death, etc
• Access control
• IP&MAC filter, URL Content Filter
• Password protection for system management
• VPN pass-through
Quality of Service Control
•Traffic prioritization management based-on Protocol, Port Number and IP Address (IPv4/ IPv6)
IPTV Applications*2
• IGMP proxy and IGMP snooping
• MLD proxy and MLD snooping
• Interface Grouping (VLAN)
• Quality of Service (QoS)
Wireless LAN
• Compliant with IEEE 802.11 b/ g/ n standards
• 2.4 GHz - 2.484GHz radio band for wireless
• Up to 300 Mbps wireless operation rate
• 64 / 128 bits WEP supported for encryption
• WPS (Wi-Fi Protected Setup) for easy setup
• Wireless Security with WPA-PSK / WPA2-PSK support
• WDS repeater function support
USB Application Server
• Storage/NAS: SAMBA Server, FTP Server
• 3G/4G LTE Mobile Internet Connection

Introduction 5

BiPAC 6300VNP(O)Z User Manual
VoIP
• Compliant with SIP standard (RFC3261)
• Codec: G.729, G.726, G.711 A-Law, G.711 u-Law
• DTMF Method: Inband, RFC 2833, SIP Info
• Caller ID Generation: DTMF, FSK
• Silence Suppression (VAD), Echo Cancellation
• Call Waiting, Conference Call
• Speed Dial, Return Call, Redial
• Don't Disturb
• FAX Relay: T.38
• Call Detailed Records (CDR)
Virtual Private Network (VPN) (BiPAC 6300VNOZ only)
• 8 IPSec VPN Tunnels
• 8 PPTP VPN Tunnels (Dial-in:4, Dial-out:4)
• 8 L2TP VPN Tunnels (Dial-in:4, Dial-out:4)
Management
• Quick Installation wizard
• Web-based GUI for remote and local management (IPv4/IPv6)
• Firmware upgrades and configuration data upload and download via web-based GUI
• Supports DHCP server / client / relay
• Supports SNMP v1, v2, v3, MIB-I and MIB-II
• TR-069*1 supports remote management
1. On request for Telco / ISP projects
2. IPTV application may require subscription to IPTV services from a Telco / ISP.
3. Specifications on this datasheet are subject to change without prior notice.

Introduction 6

BiPAC 6300VNP(O)Z User Manual
Hardware Specifications
Physical interface
• 4G LTE antenna: 2 external antennas
• WLAN: 2 internal PIFA antennas
• SIM card slot: SIM card slot (for the SIM card from Telco / ISP) for mobile broadband connectivity
• VoIP phone port: 2 RJ-11 FXS phone ports to connect with 2 regular analog phones.
• USB: USB 2.0 port for storage service and 3G/4G LTE USB dongle
• Ethernet: 4-port 10 / 100 / 1000Mbps auto-crossover (MDI / MDI-X) Switch
• EWAN: RJ-45 Gigabit Ethernet port for connecting to Cable/Fiber/xDSL modem for Broadband
connectivity.
• Factory default reset button
• Wireless on/off and WPS push button
• DC Power jack
• UPS (BBU) socket for UPS power supply
• Power switch to switch between DC power and UPS power.
Physical Specifications
• Dimensions (W*H*D): 9.04" x 6.10" x 1.27"(229.5mm x 155mm x 32.24mm)

Introduction 7

BiPAC 6300VNP(O)Z User Manual
Application Diagram
BiPAC 6300VNP(O)Z is an all-in-one router, supporting 2 connection options (4/LTE and EWAN) to
connect to the Internet.
4G/LTE router mode
With an embedded 4G/LTE module, the router can be used to connect to high speed mobile fixed
wireless connection.
Broadband Router Mode
This router also has a Gigabits Ethernet WAN port (EWAN) to connect with your Fiber / Cable/ xDSL
modem.

Product Overview 8

BiPAC 6300VNP(O)Z User Manual
Chapter 2: Product Overview
Important Note for Using This Router
Place the router on a stable surface.
Only use the power adapter that comes with the package. Using
a different voltage rating power adaptor may damage the router.
Attention
Do not use the router in high humidity or high temperature.
Do not use the same power source for the BiPAC
6300VNP(O)Z on other equipment.
Do not open or repair the case yourself. If the device becomes
too hot, turn off the power immediately and have it repaired at
a qualified service center.
Avoid using this product and all accessories outdoors.
Warning

Product Overview 9

BiPAC 6300VNP(O)Z User Manual
Device Description
Front Panel LEDs
LED STATUS DESCRIPTION
Green System is up and ready
Power Red Boot failure
Green UPS is functional properly
Orange UPS battery failure. Need to recharge or replace a new battery
Orange blinking UPS AC power failure and battery functional properly
Battery
Off Device powered by the DC power adaptor
Lit up BiPAC 6300VNP(O)Z is successfully connected with a broadband connection
device.
Green Transmission speed is at Gigabit speed (1000Mbps)
Orange Transmission speed is at 10/100Mbps
EWAN
Blinking Data being transmitted/received
Green Transmission speed is at Gigabit speed (1000Mbps)
Orange Transmission speed is at 10/100Mbps
Ethernet Port
LAN 1 ~ 3 Blinking Data being transmitted/received
USB Green Connecting to a USB dongle or a hard drive.
Green Wireless connection established
Green blinking Data being transmitted / received
Wireless/WPS
Orange WPS configuration is in progress
Green Successfully registered and ready to be used.
Phone
Orange Phone is off-hook, in-use
Green RSSI greater than -69 dBm. Excellent signal condition
Green
Flashing quickly RSSI from -81 to -69 dBm. Good signal condition
Orange
Flashing quickly RSSI from -99 to -81 dBm. Fair signal condition.
Orange
Flashing slowly RSSI less than -99 dBm. Poor signal condition.
Orange No signal and the 4G_LTE module is in service
LTE
(Received Signal
Strength Indicator)
Off No LTE module or LTE module fails

Product Overview 10

BiPAC 6300VNP(O)Z User Manual
Green IP connected and traffic is passing through the device.
Red IP request failed.
Internet
Off BiPAC 6300VNP(O)Z is either in bridged mode or WAN connection not present.

Product Overview 11

BiPAC 6300VNP(O)Z User Manual
Rear Panel Connectors
* Note: 1. For WPS configuration, please refer to the WPS section in the User Manual.
PORT MEANING
1 Antenna Screw the supplied Wi-Fi antennas onto the antenna connectors on both sides.
2
SIM Card Slot Insert the mini SIM card (2FF) with the gold contact facing down.
Push the mini SIM card (2FF) inwards to eject it
3 Phone (1X-2X)
Connect your analog phone to this port with a RJ-11 cable.
4 USB
The USB can either setup for 3G/4G LTE internet access or storage/file sharing.
(1) For File Sharing: Connect an external USB dongle / hard drive for storage,
network sharing, etc
(2) For 3G/4G LTE Internet Connection: Connect with an external USB 3G/4G LTE
modem or dongle with an activate data plan (internet access).
5 Gigabit LAN Ethernet
(1~3)
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when
connecting to a PC or an office/home network of 10Mbps /100Mbps /1000Mbps
6 Gigabit EWAN Connect to Fiber/ Cable/ xDSL Modem with a RJ-45 cable
7 UPS Jack The 4-pin connectors are used to power the device with an external UPS battery
backup.
8 Reset
After the device is powered on, press it 6 seconds or above: to restore to factory
default settings (this is used when you cannot login to the router, e.g. forgot your
password)
9
WPS &
Wireless On/Off
By controlling the pressing time, users can achieve two different effects:
(1) WPS*1: Press &hold the button for less than 6 seconds to trigger WPS function.
(2) Wireless ON/OFF button:Press & hold the button for more than 6 seconds to
On/Off the wireless.
10 Power Jack (DC) Connect the supplied Power Adapter to this jack.
11 Power Source
Power ON/OFF switch
(1) with Power Switch ON: power up by the supplied DC power adaptor
(2) with Power Switch OFF: power up by the UPS battery unit
1
2
8
9
1
11
10
3 5 7
4 6

Product Overview 12

BiPAC 6300VNP(O)Z User Manual
Power Source
BIPAC 6300VNP(O)Z offers two kinds of power input, namely, DC power Adapter and DC UPS (or
BBU).
BIPAC 6300VNP(O)Z can take the advantage of UPS (Uninterruptible Power Supply) to keep working
even if the power outage hit your router when the router in working in DC UPS mode.
(A picture of the rear focusing on the power source)
(A shot from the front panel, with second icon being identified as the Battery LED)
How to switch between the two (2) power sources, DC power adaptor and external UPS battery
Pressed "Power Source" button, the button is visually being pressed down. The power source is from
the DC power adapter supplied in the package.
"Power Source" button in the un-pressed state, the power source is from the UPS. The router can
continue to operate for a period of time after AC power failure, due to uninterrupted power system
features of UPS.
UPS LED:
A Battery LED indicates if a DC UPS is in-use or not. When the router is operating via the DC power
adapter this LED will be off.

Product Overview 13

BiPAC 6300VNP(O)Z User Manual
Battery LED Definition:
Green LED: UPS AC power is working; UPS battery is also working well
Orange LED Only UPS AC power is working. Battery failure- need to change or recharge
battery
Orange LED: UPS AC power failure; UPS battery is working
Cabling
One of the most common causes of problems is bad cabling. Make sure that all connected devices are
turned on. On the front panel of the product is a bank of LEDs. Verify that the LAN Link and LEDs are
lit. If they are not, verify that you are using the proper cables.
Make sure that all other devices (e.g. telephones, fax machines, analogue modems) connected to the
same telephone line as your router have a line filter connected between them and the wall socket
(unless you are using a Central Splitter or Central Filter installed by a qualified and licensed
electrician), and that all line filters are correctly installed in a right way. If the line filter is not correctly
installed and connected, it may cause problems to your connection or may result in frequent
disconnections.

Basic Installation 14

BiPAC 6300VNP(O)Z User Manual
Chapter 3: Basic Installation
The router can be configured with your web browser. A web browser is included as a standard
application in the following operating systems: Windows 98 / NT /2000 / XP / ME / 7 / Vista, Linux, Mac
OS, etc. The product provides an easy and user-friendly interface for configuration.
PCs must have an Ethernet interface installed properly and be connected to the router either directly
or through an external repeater hub, and have TCP/IP installed and configured to obtain an IP address
through a DHCP server or a fixed IP address that must be in the same subnet as the router. The
default IP address of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any
attached PC must be in the same subnet, and have an IP address in the range of 192.168.1.1 to
192.168.1.253). The best and easiest way is to configure the PC to get an IP address automatically
from the router using DHCP. If you encounter any problems accessing the router’s web interface it
may also be advisable to uninstall any kind of software firewall on your PCs, as they can cause
problems accessing the 192.168.1.254 IP address of the router. Users should make their own
decisions on how to best protect their network.
Please follow the steps below for your PC’s network environment installation. First of all, please check
your PC’s network components. The TCP/IP protocol stack and Ethernet network adapter must be
installed. If not, please refer to your Windows-related or other operating system manuals.
Any TCP/IP capable workstation can be used to communicate with or
through the BiPAC 6300VNP(O)Z. To configure other types of
workstations, please consult the manufacturer’s documentation.

Basic Installation 15

BiPAC 6300VNP(O)Z User Manual
Network Configuration – IPv4
Configuring PC in Windows 7/8 (IPv4)
1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.
3. When the Network and Sharing
Center window pops up, select and
click on Change adapter settings on
the left window panel.
4. Select the Local Area Connection,
and right click the icon to select
Properties.

Basic Installation 16

BiPAC 6300VNP(O)Z User Manual
5. Select Internet Protocol Version 4
(TCP/IPv4) then click Properties.

Basic Installation 17

BiPAC 6300VNP(O)Z User Manual
6. In the TCP/IPv4 properties window,
select the Obtain an IP address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
