PN 4237296CA 1-1
1
1CLEANING PROCEDURES
1.1 WHAT THIS CHAPTER EXPLAINS
This chapter explains how to clean the:
r Air filters (weekly) after the shutdown procedure
r Sheath fluid container (monthly) and cleaning agent container (every 60 days)
r VACuum TRAP (VAC TRAP) on the Power Supply (as needed).
For daily cleaning procedures, see the Shutdown chapter in the Operator's Guide.

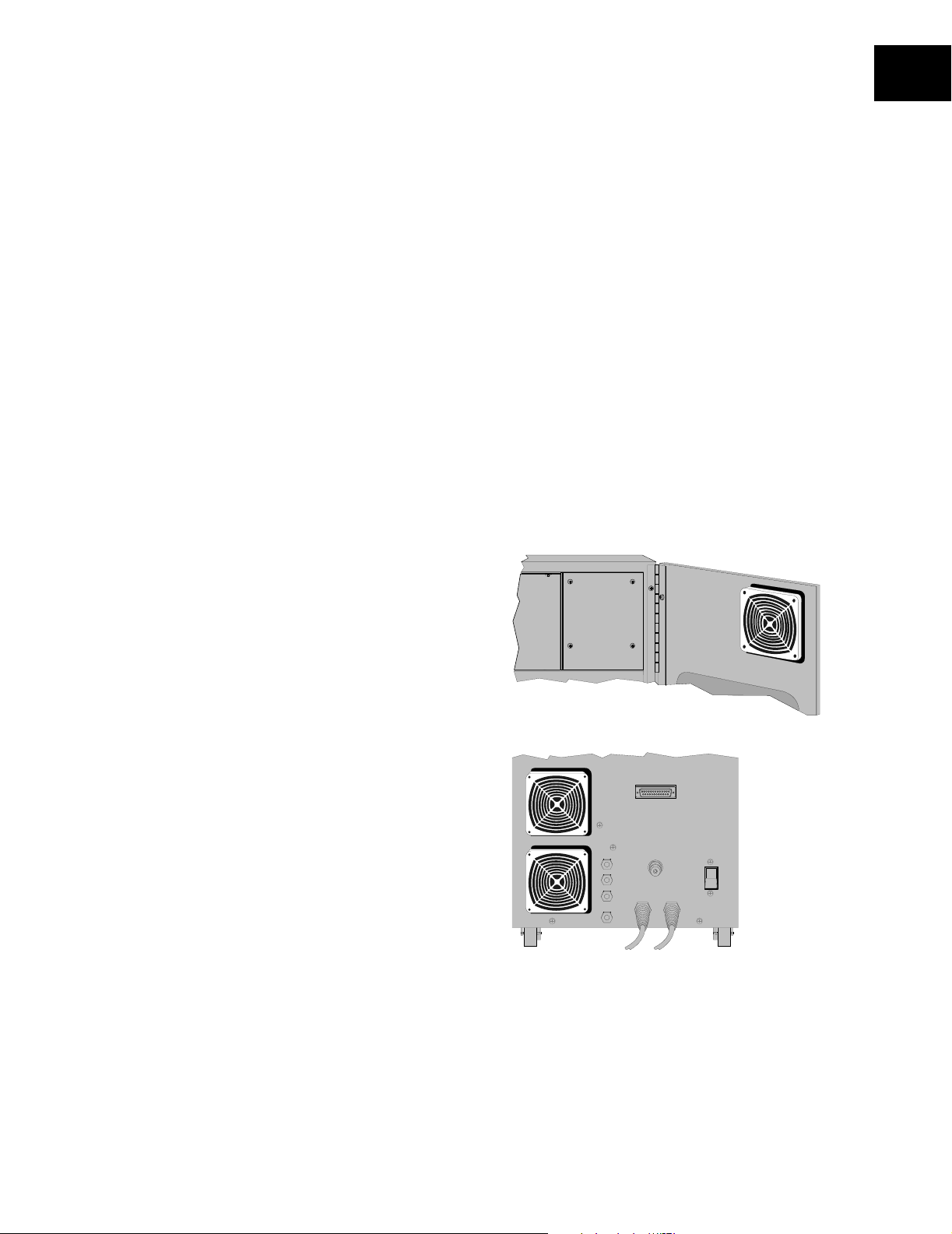

1.2 CLEANING THE AIR FILTERS
The instrument has five air filters. They
are located on the:
r Cytometer Back Panel
r Power Supply, Inside Front Door
r Power Supply, Back Panel
7027015C
7027016C

PN 4237296CA
1-2
CLEANING PROCEDURES
CLEANING THE AIR FILTERS
Prepare to Clean the Air Filters
1.
Turn off the system at the computer.

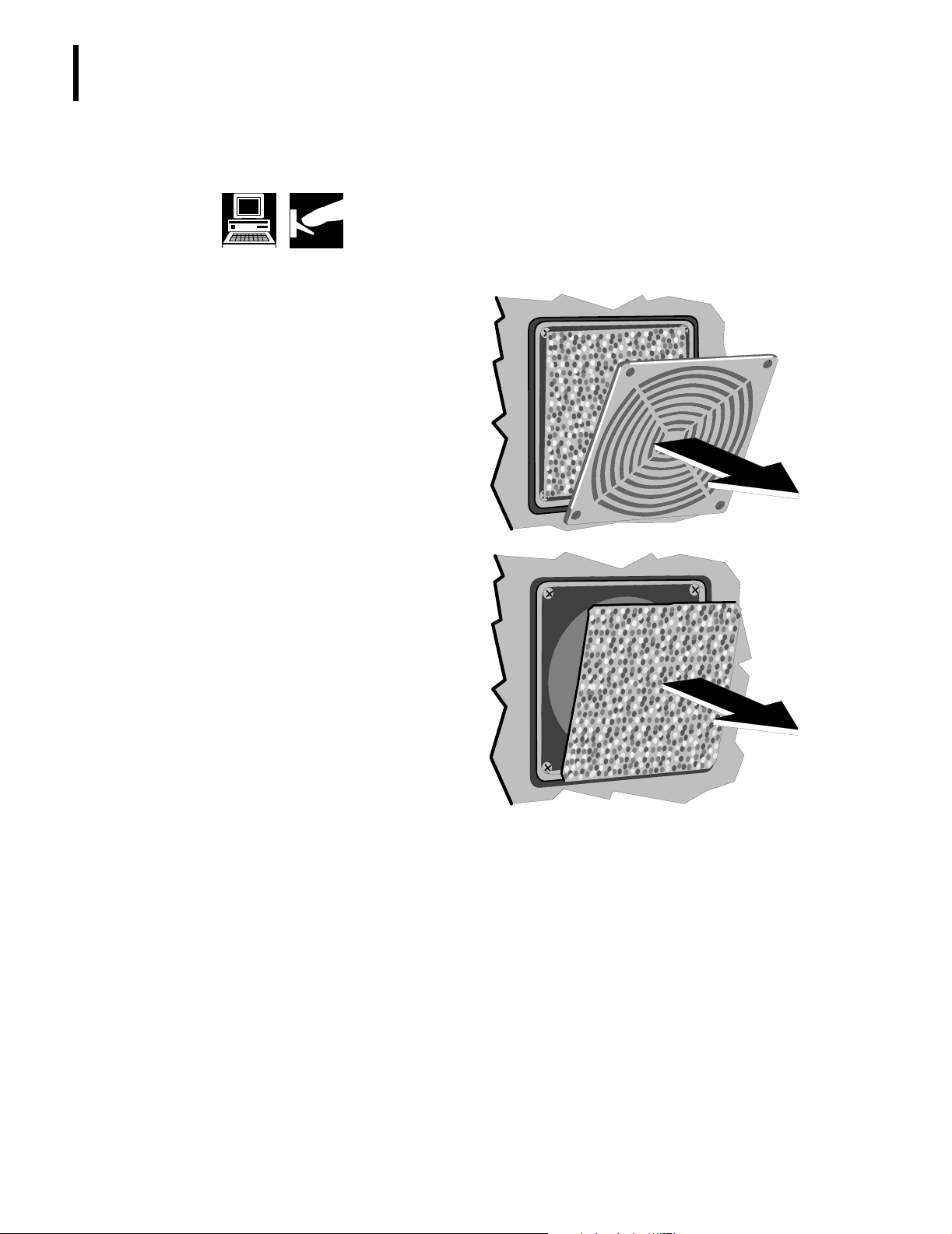

2. Pull off each filter cover. Even
though the covers look like they are
screwed in, they are not.
Thefiltercoversaremadeofflexible
plastic; they snap out when you pull
them. Grab a segment of the grille
between your thumb and index
finger and then pull.
3. Pinch and pull out each filter.
Handle them gently to avoid
damaging them.
7027020C
7027024C

PN 4237296CA 1-3
CLEANING PROCEDURES
CLEANING THE AIR FILTERS 1
Rinse and Return the Air Filters

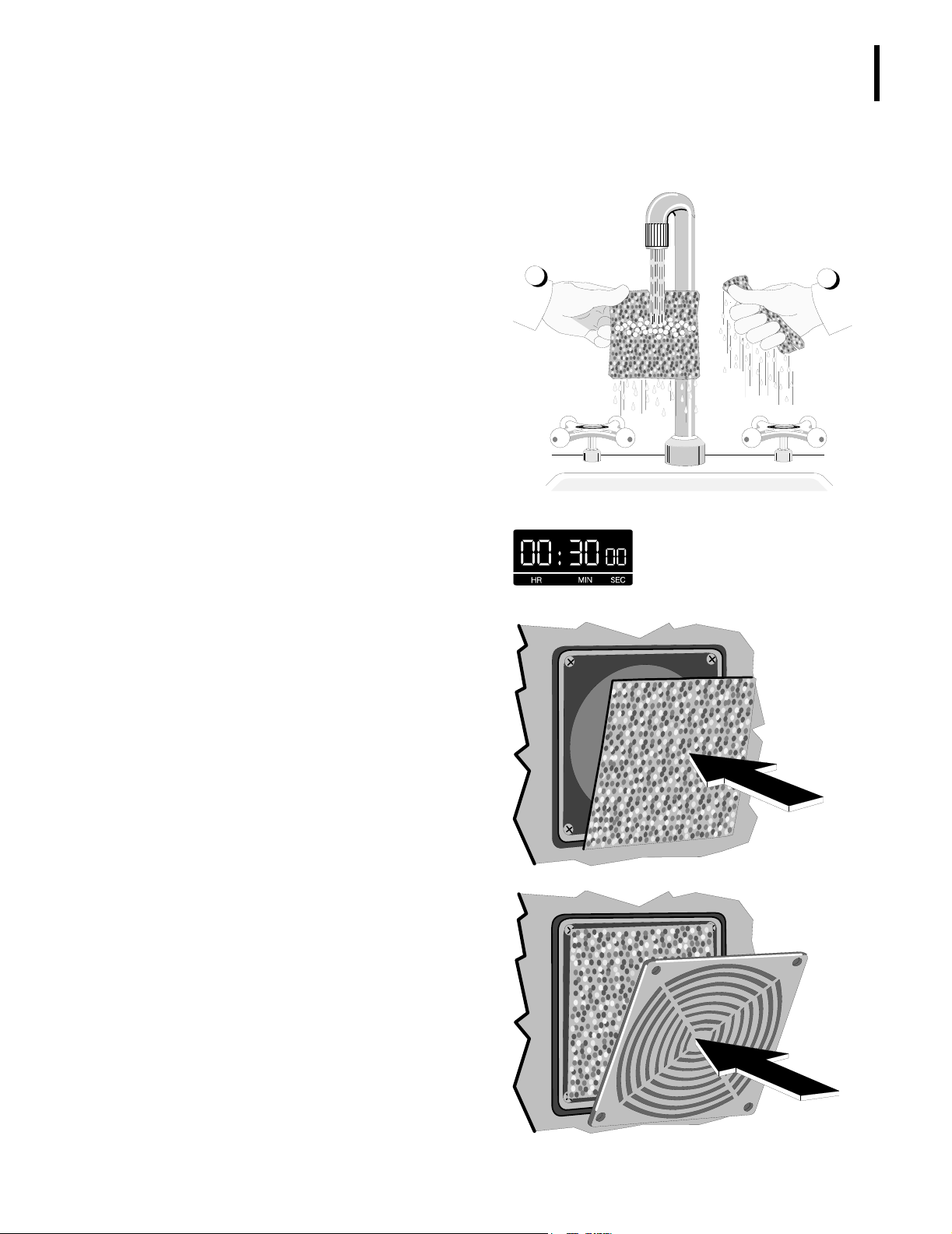

1. Rinse each filter in water b, and
then wring it out c.
2. Set each filter aside and let it dry
out for about 30 minutes. Use paper
towels to check that each filter is
completely dry.
3. Return each filter to its holder;
replace any torn ones.
4. Put each filter cover back on.
2
1
7027029C
7027025C
7027027C

PN 4237296CA
1-4
CLEANING PROCEDURES
IDLE MODE
1.3 IDLE MODE
5.
Turn on the system at the computer.
6. Record that the air filters were
cleaned on the QC Maintenance
screen. See Appendix B for
instructions.
7. Do you want to use the
instrument?
Yes No
Dothestartupprocedure
in the Operator’s Guide. You are done.
To clean or fill the reagent containers
you need to put the Cytometer in the
Idle mode.
To put the Cytometer in the Idle mode,
press the RUN button.
You cannot open the reagent drawer
unless the Cytometer is in the Idle mode;
that is, when:
r A level sense indicator is glowing
(not flashing) red, or
r The indicator in the Cytometer
RUN button is flashing green.
The reagent drawer sits in a self-locking
track. Pull open the drawer until it stops.
7027031C

PN 4237296CA 1-5
CLEANING PROCEDURES
REMOVING THE REAGENT CONTAINERS 1
1.4 REMOVING THE REAGENT CONTAINERS
Remove and clean the sheath fluid container once a month.
Remove and clean the cleaning agent container every 60 days.
Clean the reagent containers when the instrument indicates that the sheath fluid or cleaning
agent is low, before you refill them.
If you replace a reagent container, clean it before using it.
To remove either reagent container:
1.
2. Remove the Cytometer center front
panel.
3. Pull open the reagent drawer.
Is the instrument in the Idle
mode?
Yes No
Go to
step 2. Press the RUN button. The indicator in the
button flashes green.
Wait about 10 seconds for
the Cytometer to
depressurize.
TM

PN 4237296CA
1-6
CLEANING PROCEDURES
REMOVING THE REAGENT CONTAINERS

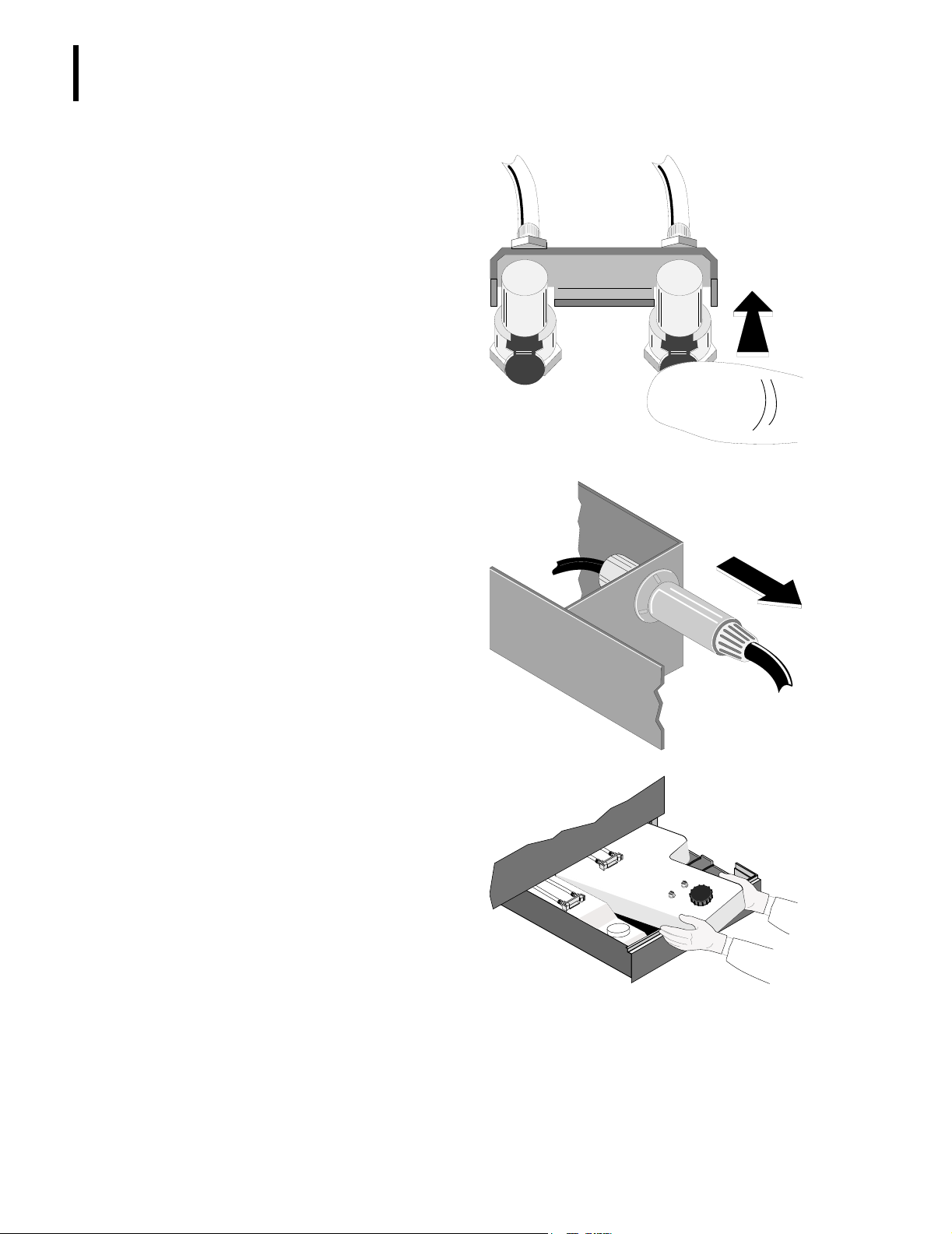

4. Disconnect the tubing on the top of
the container by pushing in on the
metal clips on the connectors.
5. Pull open the reagent drawer all the
way so you can disconnect the
sensor at the back of the drawer by
sliding its sleeve out.
The sensor for the sheath container
(shown here) is on the right; for the
cleaning agent container, on the left.
6. Remove the container from the
drawer, unscrew the cap and empty
the container as completely as
possible (sheath container is
shown).
7. Clean up any spills or debris in the
drawer.
7027095C
7027093C
7027096C

PN 4237296CA 1-7
CLEANING PROCEDURES
CLEANING THE SHEATH CONTAINER 1
1.5 CLEANING THE SHEATH CONTAINER
IMPORTANT Misleading results could occur if you contaminate the sheath fluid container. Be careful not to
contaminate the sheath fluid container. Do not let your fingers, paper towels, or other objects touch the
inside of the container or the inside of its cap.
Remove and clean the sheath fluid
container once a month.
Follow the steps in Heading 1.4,
Removing the Reagent Containers, and
then:
1. Fill the sheath container with 100
to 200 mL of fresh IsoFlow™
sheath fluid. (Do not use any other
type of sheath fluid.)
2. Screw the cap back on and then
swirl the sheath fluid in the
container, rinsing all surfaces.
7027100C
7027101C

PN 4237296CA
1-8
CLEANING PROCEDURES
CLEANING THE SHEATH CONTAINER
3. Empty the container as completely
as possible.
4. Replace the sheath container as
instructed in Heading 1.7,
Replacing the Reagent Containers.
5. Record that the sheath fluid
container was cleaned on the QC
Maintenance screen. See Appendix
B for instructions.
7027110C
