Service Manual
SERVICE PARTS & DIAGRAMS
This guide is a troubleshooting reference used for maintaining and
servicing your Bend Pak product. It provides comprehensive information
on identifying serviceable parts and components and assists in
troubleshooting problems and performing assembly /disassembly
procedures.
BENDPAK
XPR-10AS-168-LP
PRODUCT SKU
5175402
DRAWING Nº
5260559
CATEGORY
Two Post Li
REV
Version Z
DATE
10.06.2021

DIMENSIONS ARE IN MM
☺
6
5
1
3
2
4
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5245044 XPR-10AS LIFT SUPERSTRUCTURE 1 M
2 5250087 XPR-10AS EXTENDED PARTS BOX 1 F
3 5215278 XPR-10AS-LP LONG ARM ASSEMBLY, R.H. 1 L
4 5215277 XPR-10AS-LP LONG ARM ASSEMBLY, L.H. 1 L
5 5215276 XPR-10AS-LP SHORT ARM ASSEMBLY 2 L
6 5210269 XPR-10 POST EXTENSION WELDMENT 2 E
- 5905109 WARNING ALI/WL 101 1 -
- 5905131 2 POST DECAL KIT, LESS ALI 1 E
- 5905403 MAX CAPACITY 10K DANGER LABEL, ENGLISH-FRENCH 1 -
- 5905465 MANUFACTURER LABEL 1 -
- 5905940 PRODUCT DATA LABEL 1 -
- 5905951 SERIAL TAG B 1 -
- 5905653 LABEL; ALI-ALCTV-2017 GOLD LABEL, US; MET LABS 1 -
- 5905414 GP/XPR LOCK-RELEASE LABEL 1 -
- 5905285 SERIALTAG EXTERIOR PEEL OFF INVENTORY LABEL 1 -
- 5905655 MAX CAPACITY NTRL 10K LABEL, ENGLISH-FRENCH 1 -
- 5905377 NOTICE LABEL, ALI/WLSIA01 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
X UPDATED BOM REVISION 11/03/2020 TM 01226
Y UPDATED BOM REVISION 03/29/2021 TM 01291
Z UPDATED BOM REVISION 06/23/2021 TM 01310
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Z
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260559
XPR-10AS-168-LP
PRODUCTION LIFT VER F
12/14/2015
DO NOT SCALE DRAWING
1:35
SCALE:
THIRD ANGLE PROJECTION
OR 07/07/2021

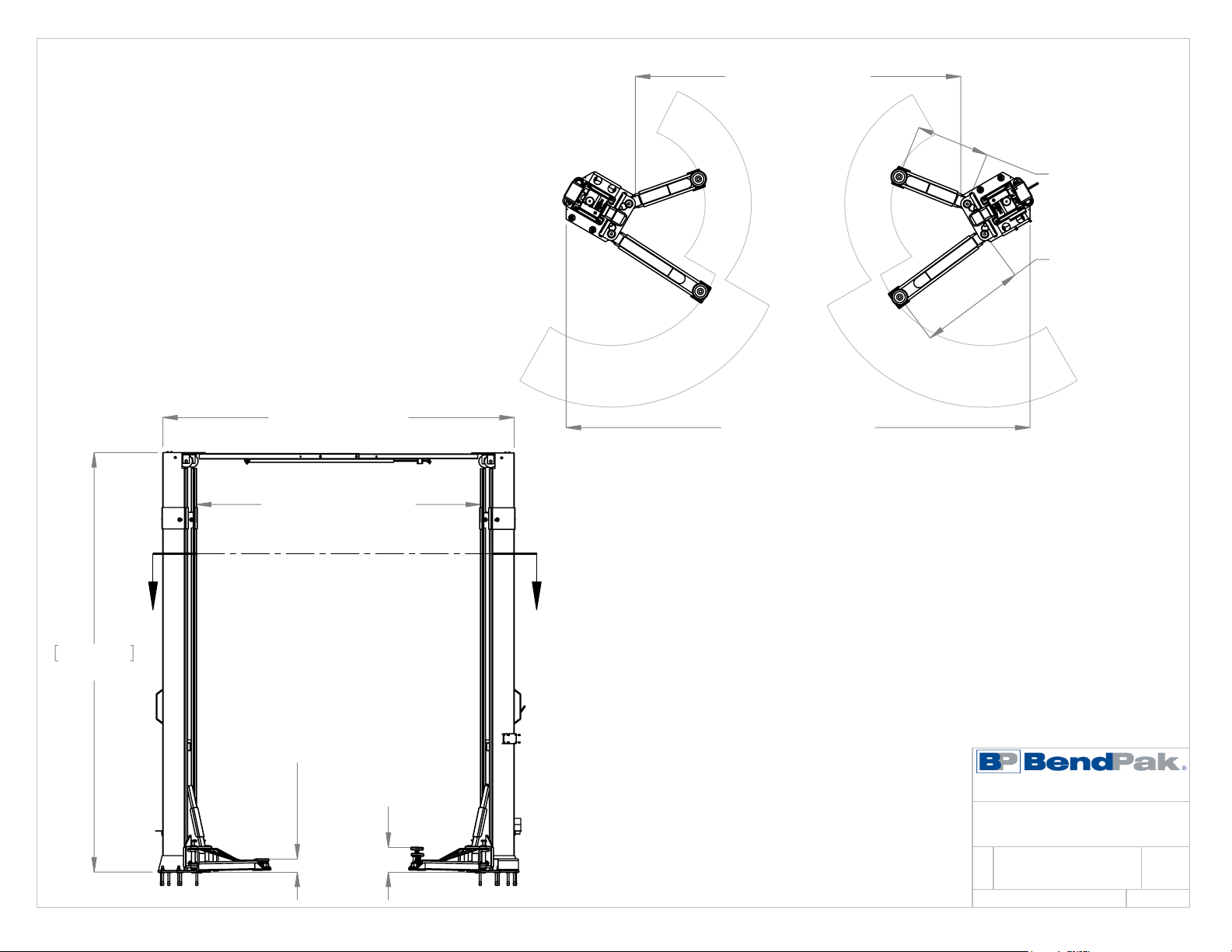

REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.

2700.0- 2903 mm
[106.299-114.280in]
4284.0mm
168.661in
[5.295-80.295in]
134.5-2039.5mm
[9.941-84.941in]
252.6-2157.5mm
WITH 63mm [2.5in] ADAPTER
AND MAX ADJUSTMENT
[133.307-141.343in]
3386.0-3590.1mm
A A
2382.0- 2585.0 mm
DRIVE THRU
[93.780-101.772in]
3480.0- 3683.9 mm
[137.008-145.035in]
[23.835-38.315in]
605.4-973.2mm
[34.882-54.134in]
886-1375mm
SECTION A-A
SCALE 1 : 35
SHEET 2 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
Z
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5260559
XPR-10AS-168-LP
PRODUCTION LIFT VER F
1:45
SCALE:

DIMENSIONS ARE IN MM
☺
3
1
2
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5260559
5260560
5260561
5260562
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5215388 XPR-10 POWER SIDE POST ASSEMBLY 1 Y
2 5215389 XPR-10 OFF SIDE POST ASSEMBLY 1 Y
3 5210211 XPR-10A TOP TROUGH ASSEMBLY 1 D
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
K UPDATED BOM REVISION 02/21/2020 TM 01107
L UPDATED BOM REVISION 11/03/2020 TM 01226
M UPDATED BOM REVISION 03/29/2021 TM 01291
WHERE USED
XPR-10AS
XPR-10AS-168
XPR-10AS-LP
XPR-10AS-168-LP
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
M
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5245044
XPR-10AS LIFT
SUPERSTRUCTURE
10/07/2014
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
OR
03/31/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
C
1
2
3
8
10
11
12
DETAIL C
SCALE 1 : 4
6
5
4
7
9
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5245044
5245227
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600386 XPR-10 POWER SIDE POST WELDMENT 1 L
2 5575111 XPR-9S/10 SHEAVE ASSEMBLY 1 G
3 5620141 XPR-9/10 CABLE SHEAVE PIN WELDMENT 1 F
4 5575112 D2/GP/PCL/0XPR/PL-7000 SAFETY SHEAVE 1 C
5 5565350
D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE
SPACER
1 C
6 5535357 NUT M6 x 1.0 NL 1 -
7 5530756 HHB M6 x 1 x 25 1 -
8 5530030 HHB M6 x 1 x 8 1 -
9 5520001 RUBBER GROMMET, 3/4 I.D. 1 -
10 5215387 XPR-10 LIFT HEAD ASSEMBLY 1 Q
11 5502300 CYLINDER ASSEMBLY Ø2.0 x 69 1 H
12 5701242 CYLINDER CLAMP ASSY 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
W UPDATED BOM REVISION 05/14/2019 TS 01086
X UPDATED BOM REVISION 02/21/2020 TM 01107
Y UPDATED BOM REVISION 11/03/2020 TM 01226
WHERE USED
XPR-10S SERIES
XPR-10AS SERIES
XPR-10TS SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Y
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM

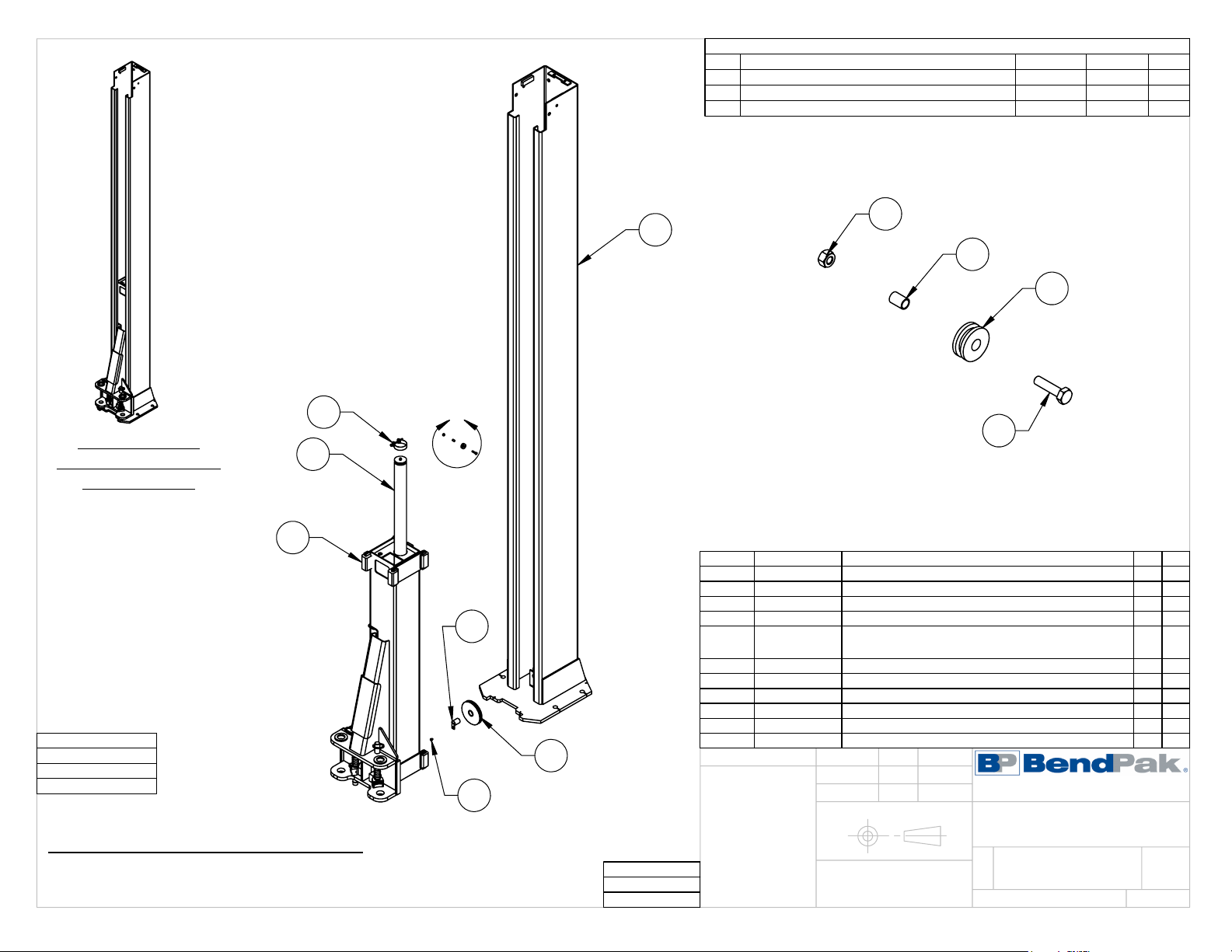

5215388
XPR-10 POWER SIDE
POST ASSEMBLY
08/30/2010
DO NOT SCALE DRAWING
1:22
SCALE:
THIRD ANGLE PROJECTION
OR 11/04/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
C
1
2
3
8
9
10
11
DETAIL C
SCALE 1 : 3
6
5
4
7
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600387 XPR-10 OFF SIDE POST WELDMENT 1 K
2 5575111 XPR-9S/10 SHEAVE ASSEMBLY 1 G
3 5620141 XPR-9/10 CABLE SHEAVE PIN WELDMENT 1 F
4 5575112 D2/GP/PCL/0XPR/PL-7000 SAFETY SHEAVE 1 C
5 5565350
D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE
SPACER
1 C
6 5535357 NUT M6 x 1.0 NL 1 -
7 5530756 HHB M6 x 1 x 25 1 -
8 5530030 HHB M6 x 1 x 8 1 -
9 5215387 XPR-10 LIFT HEAD ASSEMBLY 1 Q
10 5502300 CYLINDER ASSEMBLY Ø2.0 x 69 1 H
11 5701242 CYLINDER CLAMP ASSY 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
W UPDATD BOM REVISION 05/13/2019 TS 01086
X UPDATED BOM REVISION 02/21/2020 TM 01107
Y UPDATED BOM REVISION 11/03/2020 TM 01226
NEXT ASSEMBLY
5245044
5245227
WHERE USED
XPR-10S SERIES
XPR-10AS SERIES
XPR-10TS SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Y
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215389
XPR-10 OFF SIDE POST
ASSEMBLY
08/30/2010
DO NOT SCALE DRAWING
1:22
SCALE:
THIRD ANGLE PROJECTION
OR
11/05/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
A
2
12
15
18
13
6
11
4
1
5
3
8
17
19
7
DETAIL A
SCALE 1 : 6
9
16
10
14
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
ITEM
NO
PART NUMBER DESCRIPTION QTY REV
1 5600926 XPR-10A INNER TOP TROUGH WELDMENT 1 C
2 5600925 XPR-10A OUTER TOP TROUGH WELDMENT 1 C
3 5565350 D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE SPACER 2 C
4 5575112 D2/GP/PCL/0XPR/PL-7000 SAFETY SHEAVE 2 C
5 5575111 D2-8F, XPR-9/10 SHEAVE ASSEMBLY 4 G
6 5620141 XPR-9/10 CABLE SHEAVE PIN WELDMENT 4 F
7 5530030 HHB M6 x 1 x 8 4 -
8 5530756 HHB M6 x 1 x 25 2 -
9 5530738 HHB M10 x 1.5 x 25 6 -
10 5535013 NUT M10 x 1.5 NL 2 -
11 5535357 NUT M6 x 1.0 NL 2 -
12 5545341 WASHER M10 x Ø20 FLAT 6 -
13 5580211 STEEL HOLE PLUG 1 1/4" 1 -
14 5620445 XPR TRIP STOP BAR SLIDER WELDMENT 1 C
15 5300815 10AP/D2/XPR STOP BAR CUSHION 1 D
16 5530055 SSS M6x1x10 2 -
17 5545200 WASHER M10 x Ø18 SL 4 -
18 5535998 NUT M10 x 1.5 4 -
19 5600501 XPR-10/10A MICROSWITCH STOP BAR WELDMENT 1 B
NEXT ASSEMBLY
5245044
5245045
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B
UPDATED TITLE TO REFLECT MARKETING,
UPDATED BOM REVISION
11/23/2015 TM 00738
C UPDATED BOM REVISION 11/02/2017 TM 00900
D UPDATED BOM REVISION 03/29/2021 TM 01291
WHERE USED
XPR-10A
SERIES
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5210211
XPR-10A TOP TROUGH
ASSEMBLY
10/07/2014
DO NOT SCALE DRAWING
1:18
SCALE:
THIRD ANGLE PROJECTION
OR 03/31/2021
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

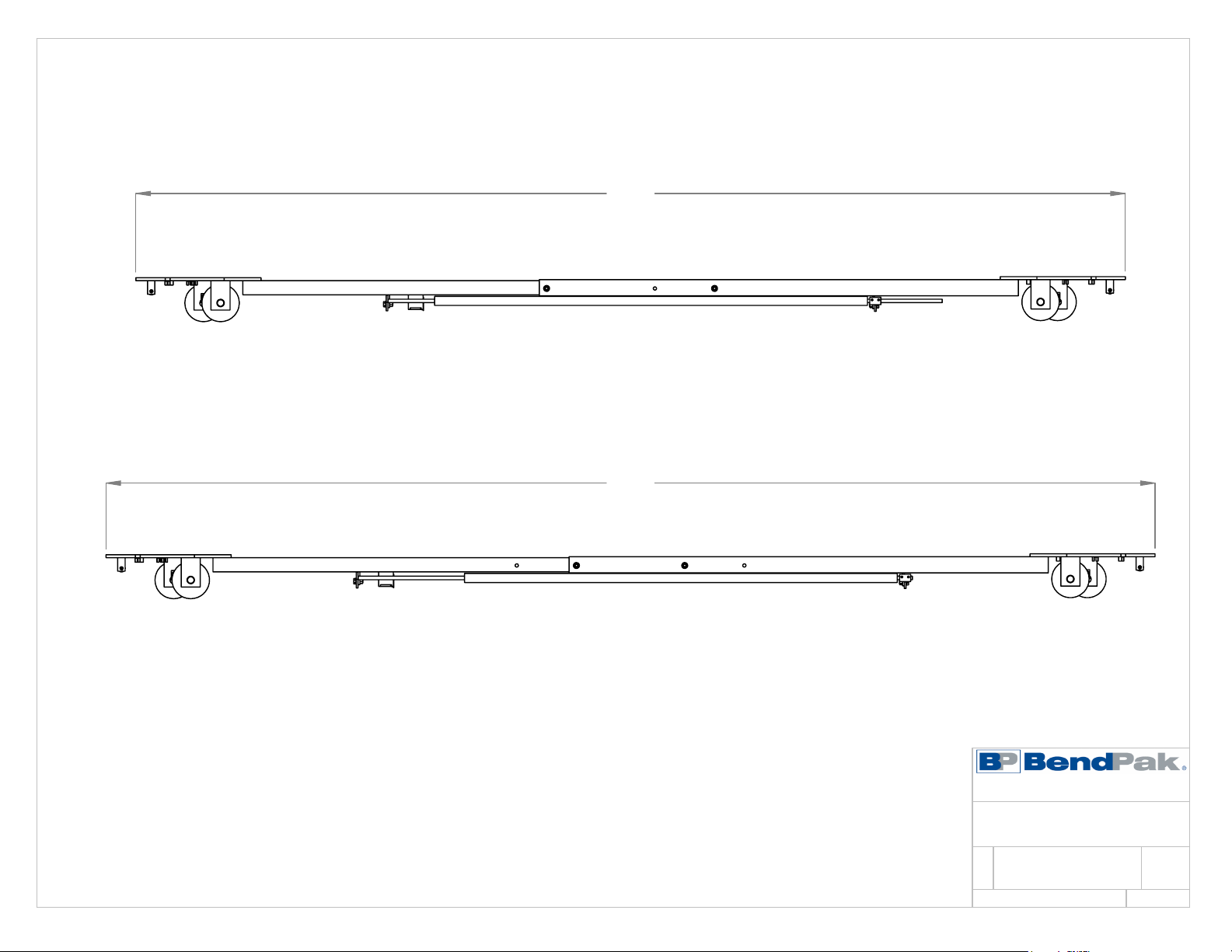

3368
3571
EXTENDED
COLLAPSED
SHEET 2 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5210211
XPR-10A TOP
TROUGH ASSEMBLY
1:15
SCALE:

DIMENSIONS ARE IN MM
☺
2
1
7
6
4
8
3
5
9
100.0
NEXT ASSEMBLY
5215388
5215389
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600503 XPR-10 LIFT HEAD WELDMENT 1 L
2 5716001 2 POST GUIDE BLOCK 8 G
3 5746098 GP/XPR-9/10 Ø25mm GEAR SHAFT 2 F
4 5701052 GP/XPR ARM INTERNAL GEAR STOP 2 F
5 5540133 GP-7, XPR-9/10 LIFT HEAD SPRING 2 D
6 5505106 SPRING PIN M6 x 50 2 -
7 5540006 SNAP RING TRUARC 5103-100 2 -
8 5580219 KEYRING 56mm x 3mm 2 -
9 5930183 XPR-9/10 LIFT HEAD GUSSET COVER 1 E
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
N UPDATED BOM REVISIONS 03/06/2018 CA 00929
P UPDATED BOM REVISION 05/14/2019 TS 01086
Q UPDATED BOM REVISION 02/20/2020 TM 01107
WHERE USED
XPR-10S SERIES
XPR-10AS SERIES
XPR-10TS SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Q
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215387
XPR-10 LIFT HEAD
ASSEMBLY
08/30/2010
DO NOT SCALE DRAWING
1:12
SCALE:
THIRD ANGLE PROJECTION
OR 04/15/2020
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

DIMENSIONS ARE IN MM
☺
1
2
3
4
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600989 XPR-10S-LP SHORT ARM WELDMENT 1 L
2 5545341 WASHER M10 x Ø20 FLAT 3 -
3 5545200 WASHER M10 x Ø18 SL 3 -
4 5530302 HHB M10 x 1.5 x 40 FULLY THREAD 3 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
J UPDATED BOM REVISION 04/02/2018 TM 00930
K UPDATED BOM REVISION 05/30/2018 TM 00953
L UPDATED BOM REVISION 02/20/2020 TM 01107
NEXT ASSEMBLY
5260444
5260445
5260559
5260560
WHERE USED
XPR-10AS-168-LP
XPR-10AS-LP
XPR-10AXLS-181-LP
XPR-10AXLS-LP
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
L
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
JM
5215276

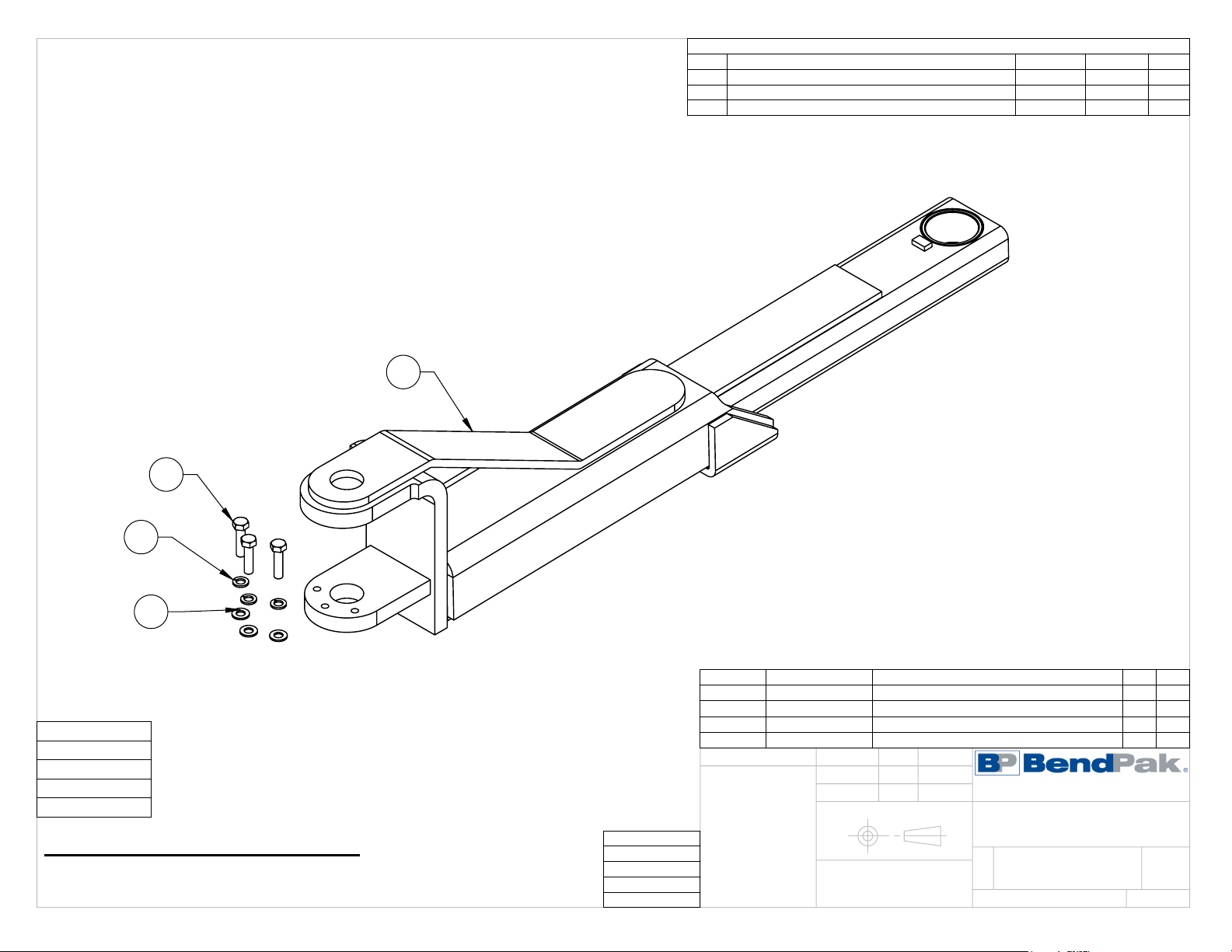

XPR-10AS-LP SHORT
ARM ASSEMBLY
06/22/2015
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
OR 04/15/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
1
2
3
4
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600981 XPR-10AS-LP LONG ARM WELDMENT, L.H. 1 L
2 5545341 WASHER M10 x Ø20 FLAT 3 -
3 5545200 WASHER M10 x Ø18 SL 3 -
4 5530302 HHB M10 x 1.5 x 40 FULLY THREAD 3 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
J UPDATED BOM REVISION 03/30/2018 TM 00930
K UPDATED BOM REVISION 05/30/2018 TM 00953
L UPDATED BOM REVISION 02/20/2020 TM 01107
NEXT ASSEMBLY
5260244
5260245
5260559
5260560
WHERE USED
XPR-10AS-168-LP
XPR-10AS-LP
XPR-10AXLS-181-LP
XPR-10AXLS-LP
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
L
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
JM
5215277

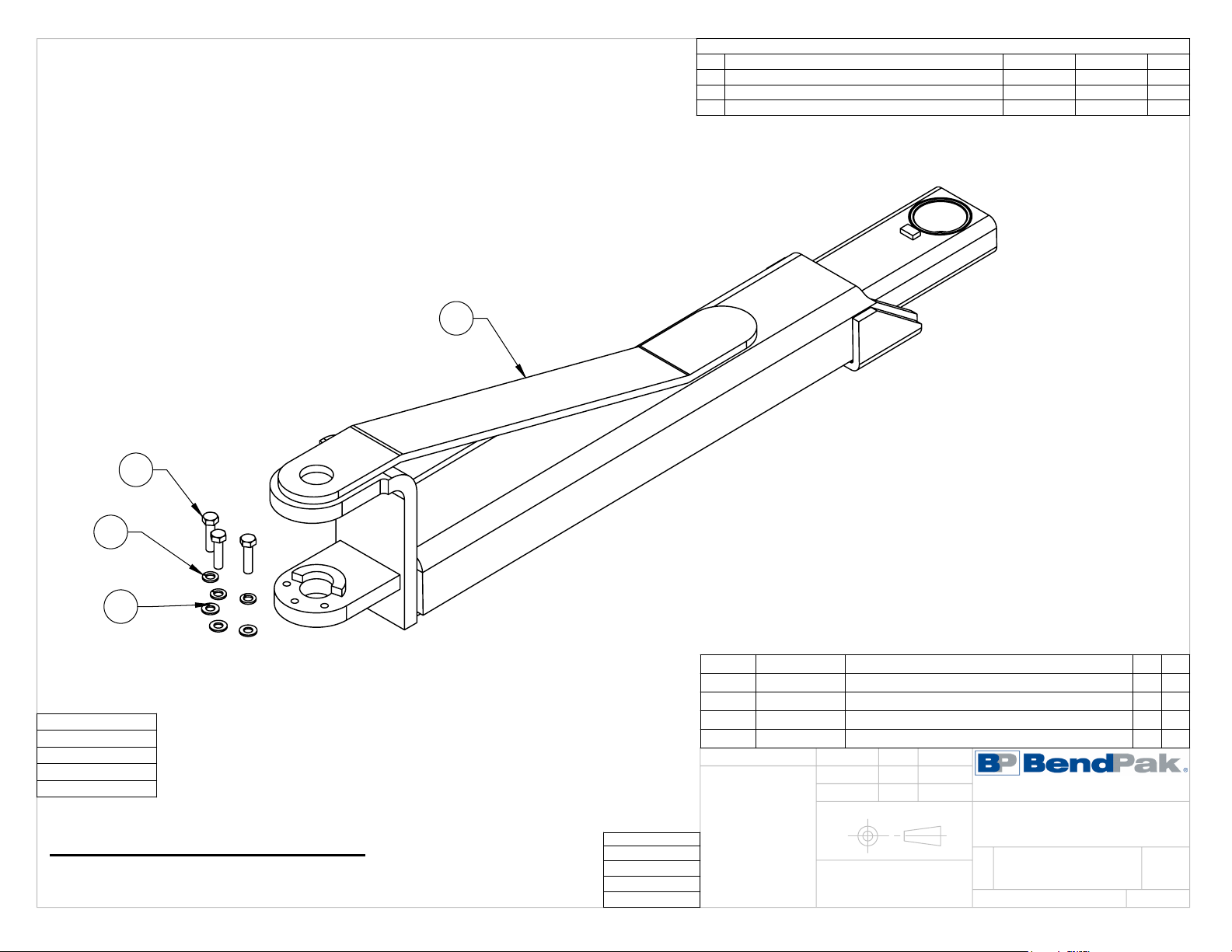

XPR-10AS-LP LONG ARM
ASSEMBLY, L.H.
06/22/2015
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
OR 04/15/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
1
2
3
4
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600990 XPR-10AS-LP LONG ARM WELDMENT, R.H. 1 L
2 5545341 WASHER M10 x Ø20 FLAT 3 -
3 5545200 WASHER M10 x Ø18 SL 3 -
4 5530302 HHB M10 x 1.5 x 40 FULLY THREAD 3 -
NEXT ASSEMBLY
5260244
5260245
5260559
5260560
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
J UPDATED BOM REVISION 04/02/2018 TM 00930
K UPDATED BOM REVISION 05/30/2018 TM 00953
L UPDATED BOM REVISION 02/20/2020 TM 01107
WHERE USED
XPR-10AS-168-LP
XPR-10AS-LP
XPR-10AXLS-181-LP
XPR-10AXLS-LP
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
L
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
JM
5215278
XPR-10AS-LP LONG ARM
ASSEMBLY, R.H.
06/22/2015
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
OR
04/15/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
NEXT ASSEMBLY
5260559
5260561
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5174218 XPR CLEARFLOOR EXTENDED PARTS BAG 1 N
2 5505116 D2-8F, XPR-9/10 LIFT HEAD PIN WELDMENT 4 D
3 5595837
CABLE ASSEMBLY Ø10 x 11219mm DBST
1 D
4 5595923
CABLE ASSEMBLY Ø10 x 11335mm DBST
1 D
5 5570065
HYDRAULIC HOSE ASSEMBLY Ø6.35 x 203mm DS
1 D
6 5570832 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 2299mm SB 1 F
7 5570017 HYDRAULIC HOSE ASSEMBLY Ø10 x 1219mm SB 1 D
8 5595104
XPR-10/10A EXTENDED Ø2.4 X 8839 SAFETY CABLE
1 E
9 5570059 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 9308 SB 1 C
10 5210196 D2/XPR POWER SIDE INCLINED SAFETY ASSEMBLY 1 C
11 5210010 D2/XPR OFF SIDE SAFETY WELDMENT 1 F
12 5715003 POWER UNIT VIBRATION DAMPENER 1 B
13 5215704 ROUND ADJUSTABLE LIFT PAD ASSEMBLY 4 H
14 5701631 XPR-10 POST ASSEMBLY LIFT HEAD FOOT GUARD 2 B
15 5736604
TWO POST LIGHT DUTY BOLT ON ARM RESTRAINT GEAR
4 E
16 5716173
D2-8/12/15, GP/XPR POWER SIDE PLASTIC SAFETY COVER
1 B
17 5716174
D2-8/12/15, GP/XPR OFF SIDE PLASTIC SAFETY
COVER
1 B
18 5746192 ARM ADAPTER, MEDIUM 4 E
19 5540281 C RING Ø38mm OD 5103-150 4 --
20 5746167 DOUBLE THREADED ROD M10 x 1.5 x 275 2 B
21 5716634 D2/10AP/XPR MICROSWITCH COVER, PLASTIC 1 B
22 5550095 FTG NPL -04 JIC x -04 JIC 1 --
23 5530337 AB 3/4" x 6.3" 12 --
24 5900951 XPR-10S SERIES INSTALLATION MANUAL 1 --
25 5525150 SPDT MICRO SWITCH;25A@125VAC 1 --
26 5525112 MICRO SWITCH COVER-5PA2 1 --
27 5520116 14-4 SJO UL 62 CABLE 300vac 4275mm* --
28 5701660 10AP/D2-12/15/XPR HEIGHT ADAPTER HOLDER 2 B
WHERE USED
XPR-10AS-168
XPR-10AS-168-LP
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D
ADDED 5701660, REMOVED 5535358 AND
5545342, UPDATED BOM REVISION
02/25/2020 TM 01107
E UPDATED BOM REVISION 10/02/2020 TM 01215
F UPDATED BOM REVISION 06/22/2021 TM 01310
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5250087
XPR-10AS EXTENDED
PARTS BOX
10/12/2018
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
OR 07/01/2021
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
HOSES AND CABLES IN REPRESENTATIONAL FORM 2.
FOR 5220116 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 3.
(*)5520116 QTY FOR REFERENCE ONLY
NOTE: UNLESS OTHERWISE SPECIFIED .

117 11
13
3
8
6
7
9
15
2
12
10
4
20 21
5
22
19
23
24
25 26
27
18
16
14
28
SHEET 2 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5250087
XPR-10AS EXTENDED
PARTS BOX
1:25
SCALE:

DIMENSIONS ARE IN MM
☺
12
13
14
22 17
20
25
26
15
16
18
23
10
8
24
19
4
2
21
7
1
11
27
9
3
6
28
31
30
29
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
L REMOVED 5520001, UPDATED NEXT ASSEMBLIES 10/12/2018 TM 01011
M
ADDED 5535357, 5530093, 5545005, AND
5580012, REPLACED 5530750 WITH 5530799
02/20/2020 TM 01107
N
REPLACED 5505001 WITH 5505113, REMOVED
(2) 5540075
10/02/2020 TM 01215
NEXT ASSEMBLY
5250087
5250089
5250236
5250252
5250264
5250267
5250269

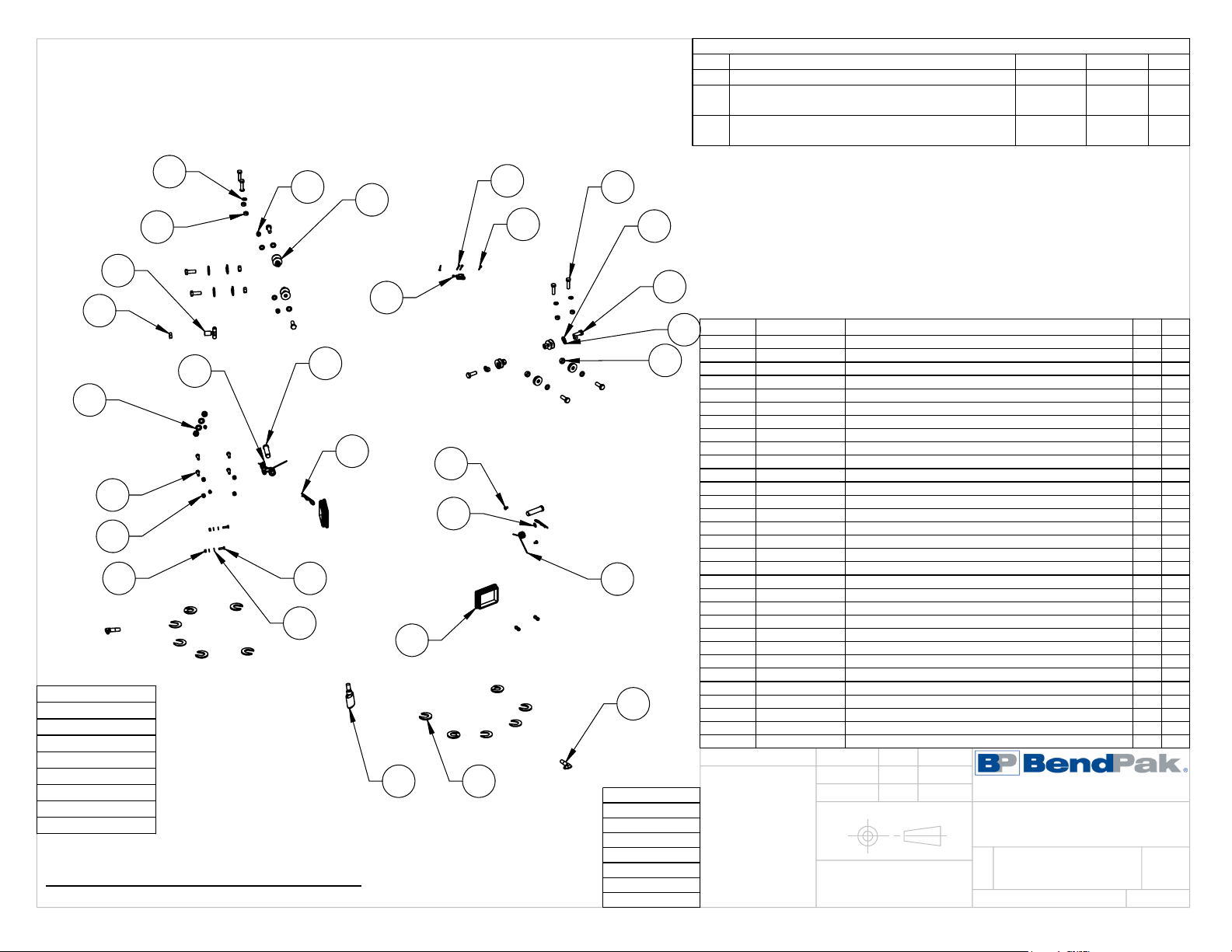

ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5505113 2 POST SAFETY CLEVIS PIN 2 H
2 5715196 D2/XPR POLYETHYLENE COVER BLOCK 105 x 80 2 D
3 5535022 NUT 9/16"-18 JN 1 -
4 5550113 FTG ELB -04 NPT L x -04 JIC 2 -
5 5550183 FTG ELB -06 JIC -06L ORB 1 -
6 5550003 FTG TEE -04JIC -04JIC -06JIC 1 -
7 5505350 MODEL#211 HAIR PIN/ LARGE 2 -
8 5530261 PHPS M6 x 1 x 10 4 -
9 5545347 WASHER, M12 FLAT WASHER 2 -
10 5535354 NUT M12 x1.75 10 -
11 5535001 NUT M8 x 1.25 NL 4 -
12 5530010 HHB M8 x 1.25 x 25 4 -
13 5545200 WASHER M10 x Ø18 SL 4 -
14 5535998 NUT M10 x 1.5 4 -
15 5530760 HHB M10 x 1.5 x 38 4 -
16 5545201 WASHER, M12 SPRING LOCK 8 -
17 5545027 WASHER M12 x Ø37 x 3mm 16 -
18 5530076 HHB M12 x 1.75 x 35mm 8 -
19 5540075 R.H., 2.5 WIRE DIA., Ø20.5 x 75 LG 2 B
20 5530799 HSDS M4.2 x 1.41 x 20 2 -
21 5545535 C WASHER SHIM FOR LIFTS 20 -
22 5535013 NUT M10 x 1.5 NL 4 -
23 5545341 WASHER M10 x Ø20 FLAT 4 -
24 5505031 ROTOR CLIP 12mm SS 1 -
25 5530115 BHS 6-32 x 1.25 2 -
26 5535190 HN 6-32 2 -
27 5520140 ROMEX CONNECTOR 3/8 #6623 2 -
28 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
29 5530093 HHB M6 x 1 x 20 4 -
30 5545005 M6 FLAT WASHER 8 -
31 5535357 NUT M6 x 1.0 NL 4 -
WHERE USED
XPR-10AXLS-181
XPR-10AS-168
XPR-10S-168
XPR-10XLS-181
XPR-12CL-192
XPR-12CL-LTA-192
XPR- 15CL-192
XPR-18CL-192
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
N
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5174218
XPR CLEARFLOOR
EXTENDED PARTS BAG
01/26/2010
DO NOT SCALE DRAWING
1:18
SCALE:
THIRD ANGLE PROJECTION
OR 10/15/2020
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.

DIMENSIONS ARE IN MM
☺
3
4
1
6
2
5
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
F UPDATED BOM REVISION 09/21/2016 DB 00780
G
G-001
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLY
02/05/2018
05/14/2018
TS
TM
00922
00946
H
H-001
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLIES
05/30/2018
06/25/2018
TM
TM
00953
00964
WHERE USED
10AP SERIES
XPR-9 SERIES
XPR-10 SERIES
ITEM NO. PART NUMBER DESCRIPTION QTY REV
1 5715017
ROUND LIFT PAD ADAPTER POLYURETHANE
PAD
1 E
2 5540025 S RING Ø35mm 1 --
3 5746692 INNER SCREW 1 C
4 5540026 S RING Ø45mm 2 --
5 5746693 ROUND LIFT PAD SCREW ADAPTOR 1 D
6 5601001 ROUND LIFT PAD ADAPTOR WELDMENT 1 D
NEXT ASSEMBLY
5250037
5250083
5250084
5250087
5250088
5250089
5250203
5250236
5250252
5250296
5250299
5250312
5250313
5250329
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
H
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
CHY
5215704
ROUND ADJUSTABLE LIFT
PAD ASSEMBLY
06/14/2015
DO NOT SCALE DRAWING
1:3
SCALE:
THIRD ANGLE PROJECTION
CA 06/29/2018
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.

1219
13 2
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B
UPDATED TITLE TO REFLECT WHERE USED,
UPDATED NEXT ASSEMBLIES
01/12/2012 TM 00490
C
C-001
C-002
C-003
UPDATED TITLE TO REFLECT WHERE USED,
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLY
06/21/2013
10/16/2014
11/24/2015
06/25/2018
TM
TM
TM
TM
00605
00663
00738
00964
D
UPDATED TITLE TO REFLECT STANDARDS,
UPDATED NEXT ASSEMBLY
01/15/2020 TM 01107
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570116 Ø10 ID HYDRAULIC HOSE 1144mm* -
2 5550337 FTG ELB -06 CRIMP x -06 JIC 1 -
3 5550336 FTG NPL -06 CRIMP x -06 JIC 1 -
NEXT ASSEMBLY
5250084 5250314
5250087 5250315
5250088
5250089
5250254
5250264
5250266
5250267
5250268
5250269
5250296
5250297
5250298
5250299
WHERE USED
10AP
10AP-168
D2-10/12/15 SERIES
XPR CLEARFLOOR
SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5570017
HYDRAULIC HOSE ASSEMBLY
Ø10 x 1219mm SB
08/27/2009
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 04/17/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED .
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
ITEM 1 QTY FOR REFERENCE ONLY 2.

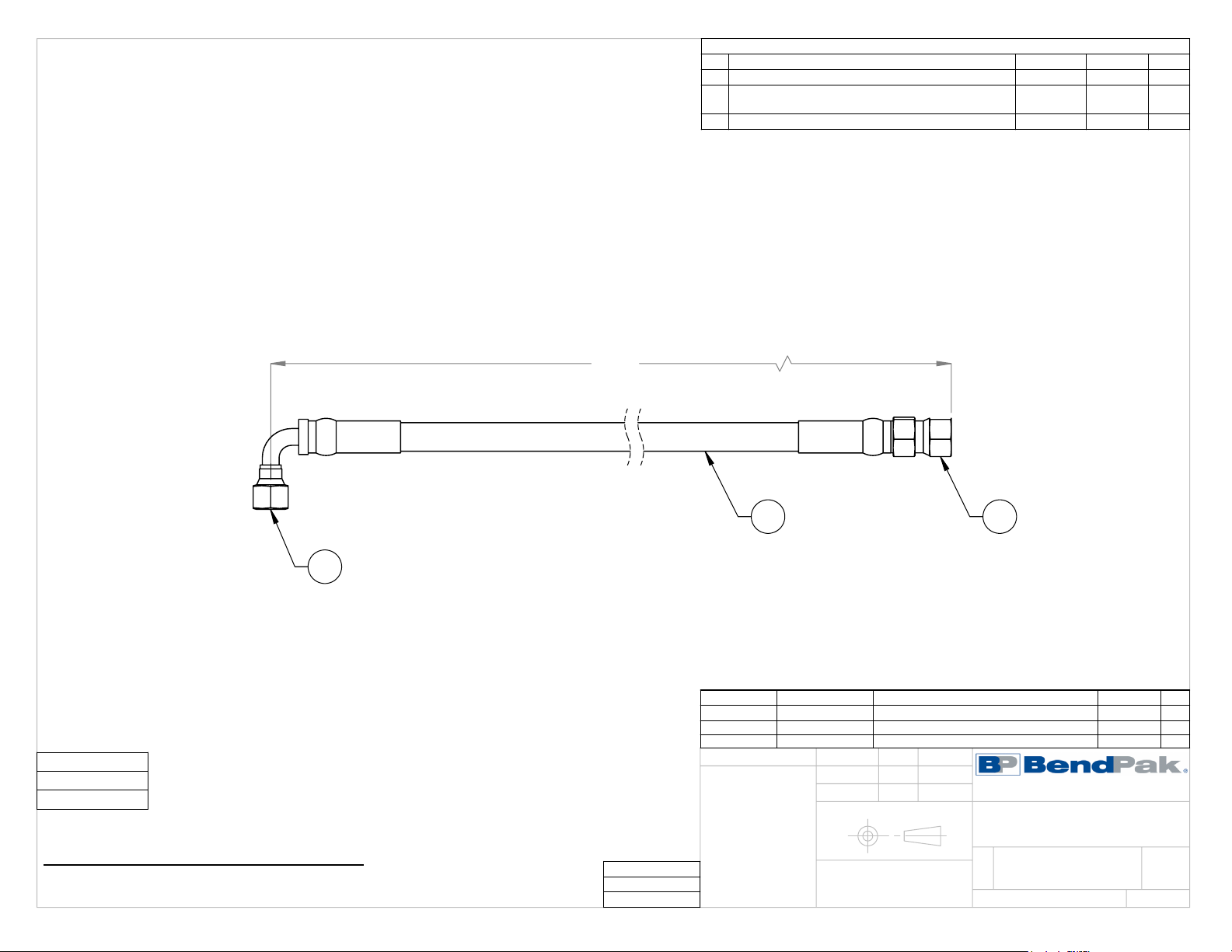

9308
2
3
1
NEXT ASSEMBLY
5240806
5250087
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 9258mm* --
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 1 --
3 5550345 FTG ELB Ø1/4 CRIMP x -04 JIC 1 --
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5570005 11/28/2014 TM 00673
B
UPDATED TITLE TO REFLECT MARKETING,
UPDATED NEXT ASSEMBLY
11/24/2015 TM 00738
C UPDATED TITLE TO REFLECT STANDARD 02/25/2020 TM 01107
WHERE USED
XPR-10AS-168
XPR-10AS-168-LP
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5570059
HYDRAULIC HOSE ASSEMBLY
Ø6.35 x 9308 SB
11/28/2014
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 04/10/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

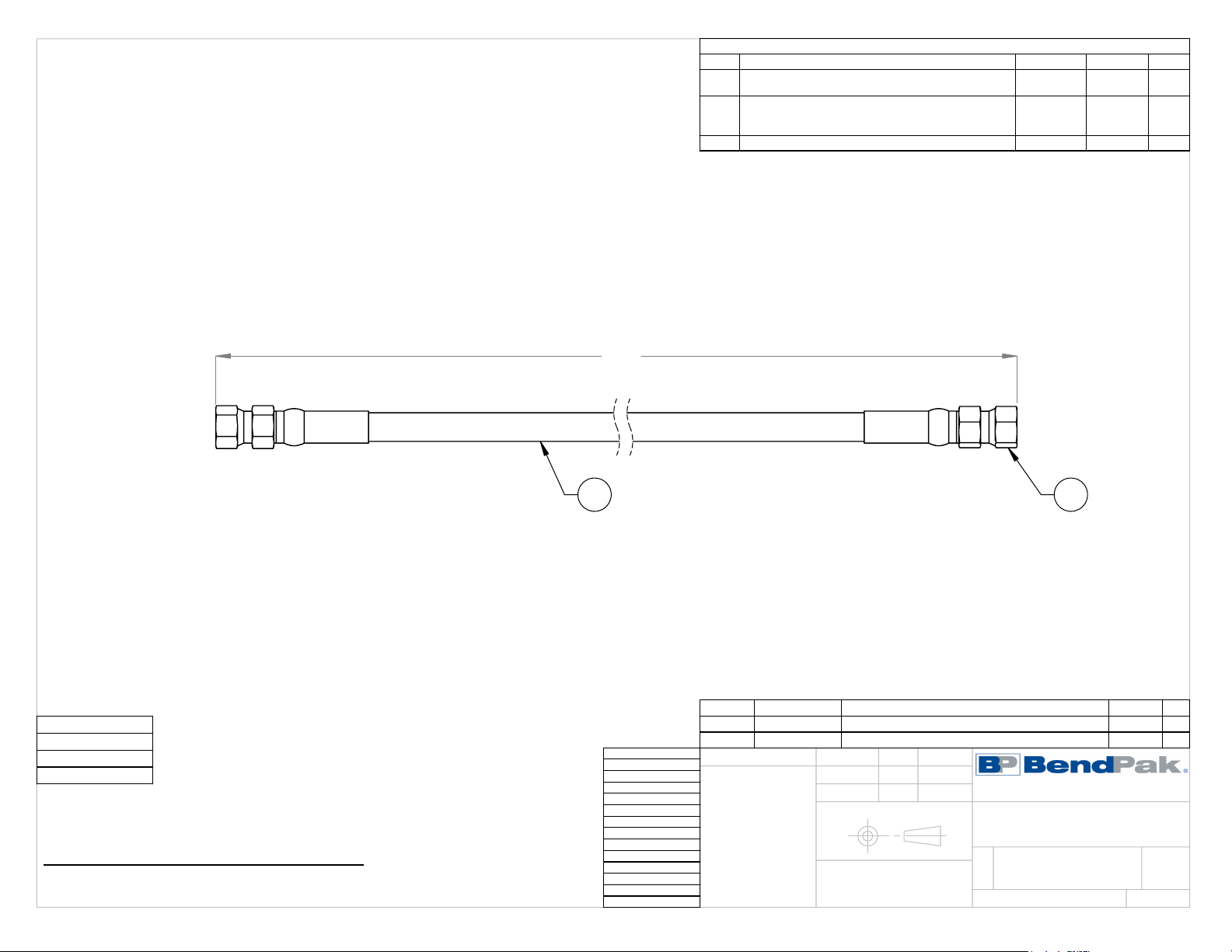

203
1 2
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 137mm* --
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 2 --
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
B
REPLACED 5570110 WITH 5570129 TO REFLECT
INVENTORY
11/21/2014 TM 00673
C
C-001
UPDATED TITLE TO REFLECT MARKETING,
UPDATED NEXT ASSEMBLIES
UPDATED NEXT ASSEMBLIES
11/25/2015
06/25/2018
TM
TM
00738
00964
D UPDATED TITLE TO REFLECT STANDARD 03/03/2020 TM 01148
NEXT ASSEMBLY
5240020
5240021
5240052
5240806
5250083
5250084
5250087
5250236
5250277
5250296
5250299
5250312
5250313
WHERE USED
10AP SERIS
A6W SERIES
XPR-10A SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5570065
HYDRAULIC HOSE ASSEMBLY
Ø6.35 x 203mm DS
10/07/2014
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 03/11/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

PART SPECIFICATION FORM
ACP
BENDPAK Number:
5570129
MRP Description:
¼” HYDRAULIC HOSE 31 CL-0400X
Date:
05/24/2018
ECO :
00950
1. Engineering Specification
Application:
¼” HYDRAULIC HOSE
Detailed Description:
ONE or TWO BRAID STEEL WIRE HYDRAULIC HOSE
SIZE: 1/4” / 6mm I.D. MIN
0.53” / 13.4mm O.D. MAX
SPECS: 5700PSI OR 393 BAR WORKING PRESSURE MINIMUM
17100PSI OR 1179 BAR MINIMUM BURST PRESSURE MINIMUM
3” / 80mm MIN BEND RADIUS
COLOR: BLACK
ADDITIONAL CONTACT INFORMATION:
Xin Yurong
Shandong Ningjin High Energy Hose Co., Ltd.
Tel: [phone]
No. 7, Taishan Rd., Industrial Park, Ningjin County, Shandong, China
Approved Vendor
Vendor Part #
Contact #
AUTHORIZED
COMPONENT PROVIDER
1) Ningjin Hydraulic Hose
Co.
5570129
[phone]
X
2)
OR BENDPAK ENGINEERING APPROVED EQUIVALENT
2. Vendor Information (Or for Reference)
