Upright SL-26 User manual

Operator Manual
Guide de l’opérateur
Betriebsanleitung
SL26/30SL
SERIAL NO. 13772 to Current
WARNING
All personnel shall carefully read, understand and follow all safety rules,
operating instructions, and National Safety Instructions/Requirements
before operating or performing maintenance on any UpRight Aerial Work
Platform.
The first section of this Operator Manual is the English language version.
AVERTISSEMENT
Tout le personnel doit lire attentivement, bien comprendre et suivre toutes
les règles de sécurité, le mode d’emploi et les règles nationales de
sécurité avant d’entretenir ou d’utiliser une plate-forme élévatrice
UpRight.
La deuxième section du guide de l’opérateur est la version française.
WARNUNG
Alle Bediener müssen die Sicherheitsregeln, Betriebsanleitungen sowie
geltenden Sicherheitsanweisungen/-anforderungen gründlich durchlesen,
verstehen und befolgen, bevor sie an irgendeiner UpRight-
Hocharbeitsbühne Wartungsarbeiten ausführen oder diese in Betrieb
nehmen.
Der dritte Abschnitt dieser Betriebsanleitung ist deutschsprachig.
P/N 060588-026

ENGLISH
When contacting UpRight for service or parts information, be sure to include the MODEL and SERIAL NUMBERS from the
equipment nameplate. Should the nameplate be missing, the SERIAL NUMBER is also stamped on top of the chassis
above the front axle pivot.
FRENCH
Lors des communications avec UpRight pour des informations au sujet de l’entretien ou des pièces, ne pas oublier d’inclure
les NUMÉROS DE MODÈLE et DE SÉRIE inscrits sur la plaque signalétique. Si la plaque signalétique manque, le
NUMÉRO DE SÉRIE est également estampé sur le dessus du châssis, au-dessus de l’axe pivot avant.
GERMAN
Stellen Sie sicher, dass Sie die MODELL- und SERIENNUMMERN auf dem Gerätetypenschild angeben, wenn Sie sich mit
UpRight bezüglich Wartungs- oder Ersatzteilinformationen in Verbindung setzten. Sollte das Typenschild fehlen, finden Sie
die SERIENNUMMER auch auf dem Fahrwerk über der vorderen Schwenkachse.
Call Toll Free in U.S.A.
1-800-926-LIFT
UpRight, Inc.
1775 Park Street
Selma, California 93662
TEL: [phone]
FAX: [phone]
PARTS: 1-888-UR-PARTS
PARTS FAX: [phone]
UpRight International
Support Centre
61-63 Hong Kong Straat
3047 BR Rotterdam
Netherlands
TEL: [phone]
FAX: [phone]
Parts Tel: [phone]
Parts Fax: [phone]

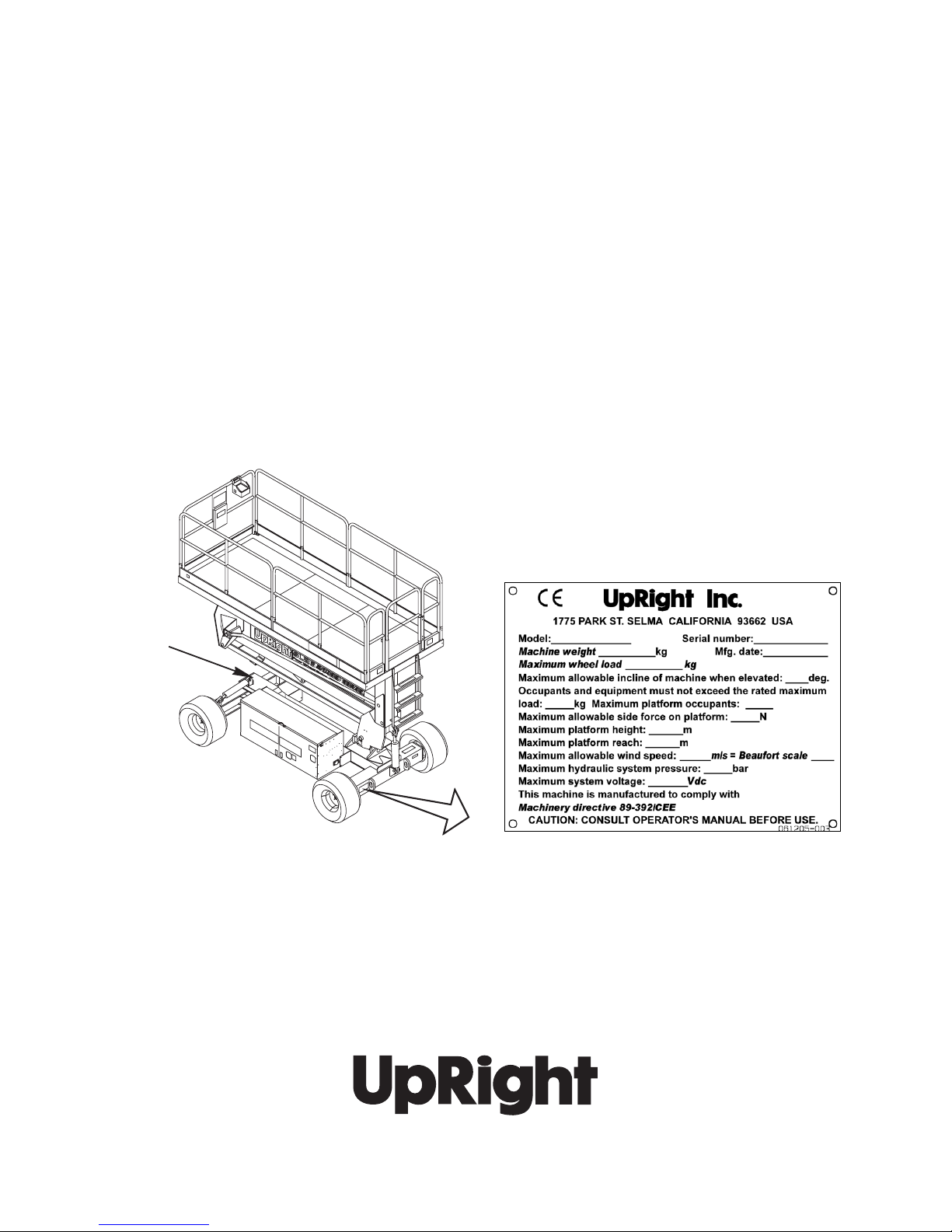

SL26/30SL
Serial Numbers 13772 – Current
Stamped Serial
Number
Estampille de
numéro de série
Eingestanzte
Seriennummer

Page 1
OPERATOR MANUAL
WARNING
All personnel shall carefully read, understand and follow all safety rules and operating instructions
before operating or performing maintenance on any UpRight aerial work platform.
Safety Rules
USE OF THE AERIAL WORK PLATFORM: This aerial work platform is intended to lift persons and his tools as well as the material used
for the job. It is designed for repair and assembly jobs and assignments at overhead workplaces (ceilings, cranes, roof structures, build-
ings etc.). All other uses of the aerial work platform are prohibited!
THIS AERIAL WORK PLATFORM IS NOT INSULATED! For this reason it is imperative to keep a safe distance from live parts of electri-
cal equipment!
Exceeding the specified permissible maximum load is prohibited! See “Special Limitations” on page 4 for details.
The use and operation of the aerial work platform as a lifting tool or a crane (lifting of loads from below upwards or from up high on down)
is prohibited!
NEVER exceed the manual force allowed for this machine. See “Special Limitations” on page 4 for details.
DISTRIBUTE all platform loads evenly on the platform.
NEVER operate the machine without first surveying the work area for surface hazards such as holes, drop-offs, bumps, curbs, or debris;
and avoiding them.
OPERATE machine only on surfaces capable of supporting wheel loads.
NEVER operate the machine when wind speeds exceed this machine’s wind rating. See “Beaufort Scale” on page 4 for details.
IN CASE OF EMERGENCY push EMERGENCY STOP switch to deactivate all powered functions.
Climbing up the railing of the platform, standing on or stepping from the platform onto buildings, steel or prefab concrete structures, etc.,
is prohibited!
IF ALARM SOUNDS while platform is elevated, STOP, carefully lower platform. Move machine to a firm, level surface.
To bypass any safety equipment is prohibited and presents a danger for the persons on the aerial work platform and in its working range.
Dismantling the entry gate or other railing components is prohibited! Always make certain that the entry gate is closed and securely
locked!
It is prohibited to keep the entry gate in an open position (held open with tie-straps) when the platform is raised!
To extend the height or the range by placing of ladders, scaffolds or similar devices on the platform is prohibited!
NEVER perform service on machine while platform is elevated without blocking elevating assembly.
INSPECT the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks, loose wire connections, and damaged
cables or hoses before using.
VERIFY that all labels are in place and legible before using.
NEVER use a machine that is damaged, not functioning properly, or has damaged or missing labels.
NEVER charge batteries near sparks or open flame. Charging batteries emit explosive hydrogen gas.
Modifications to the aerial work platform are prohibited or permissible only at the approval by UpRight.
AFTER USE, secure the work platform from unauthorized use by turning the keyswitches off and removing key.

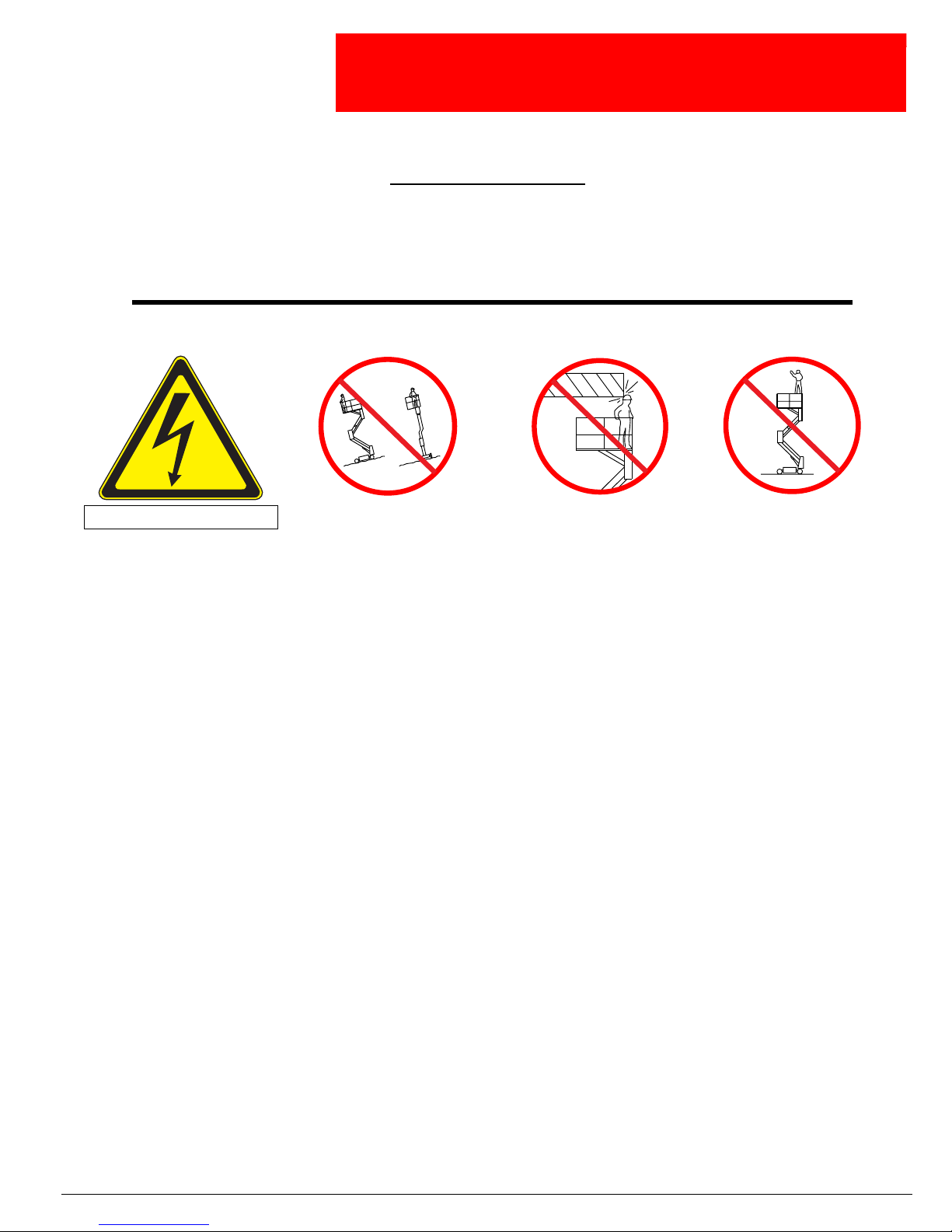

NEVER elevate the platform or drive
the machine while elevated unless the
machine is on a firm, level surface.
NEVER climb, stand or sit on
platform guardrails or midrail.
NEVER position the platform
without first checking for overhead
obstructions or other hazards.
Electrocution Hazard Tip Over Hazard Collision Hazard Fall Hazard
This machine is not insulated.

Page 2 Operator Manual
060588-026 SL26/30SL
C
ONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Special Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
All Models: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Platform Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Manual Force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Beaufort Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Lift Overload Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pre-Operation & Safety Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Engine Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
System Function Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Travel with Platform Lowered. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Levelling Platform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Raising and Lowering the Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Travel with Work Platform Elevated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

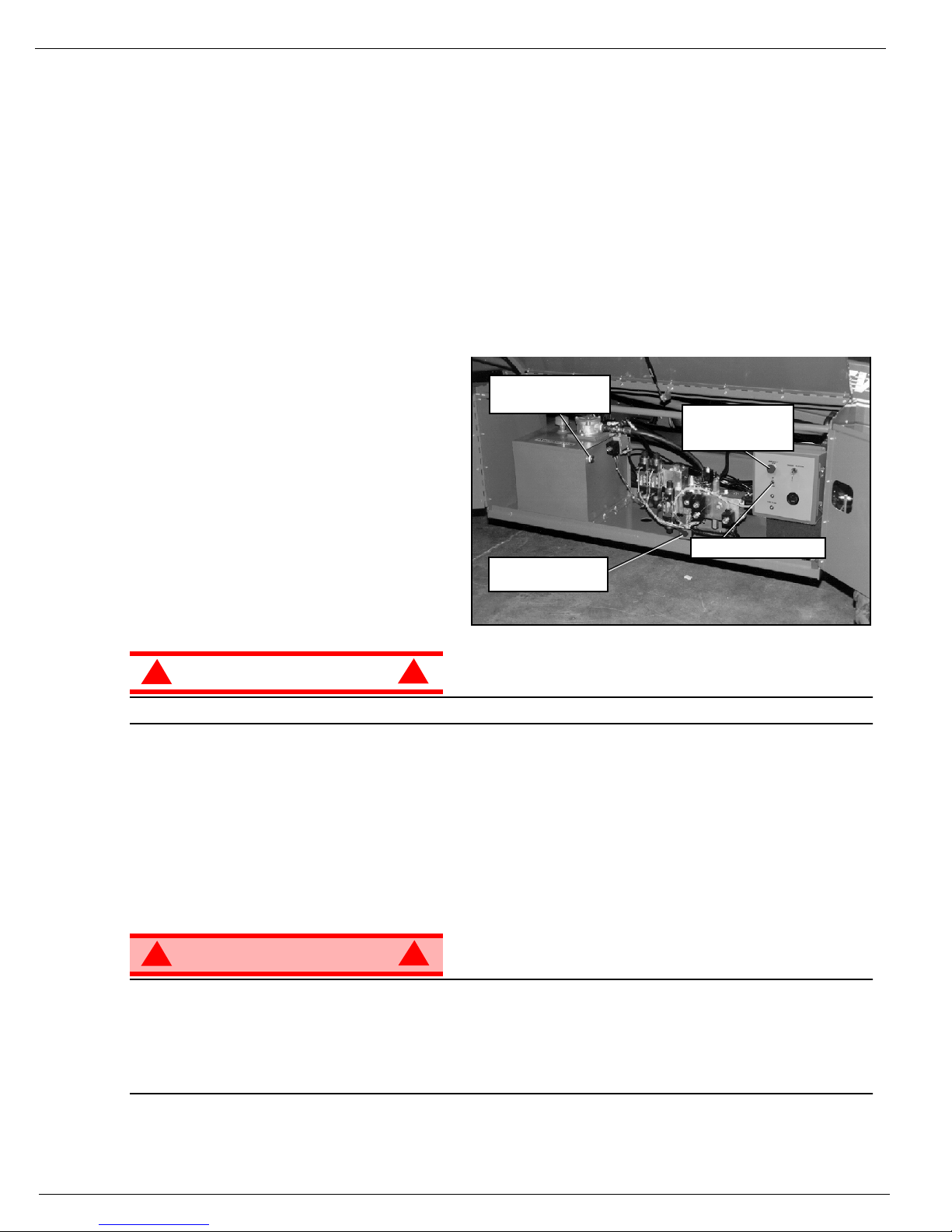

Emergency Lowering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Towing or Winching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

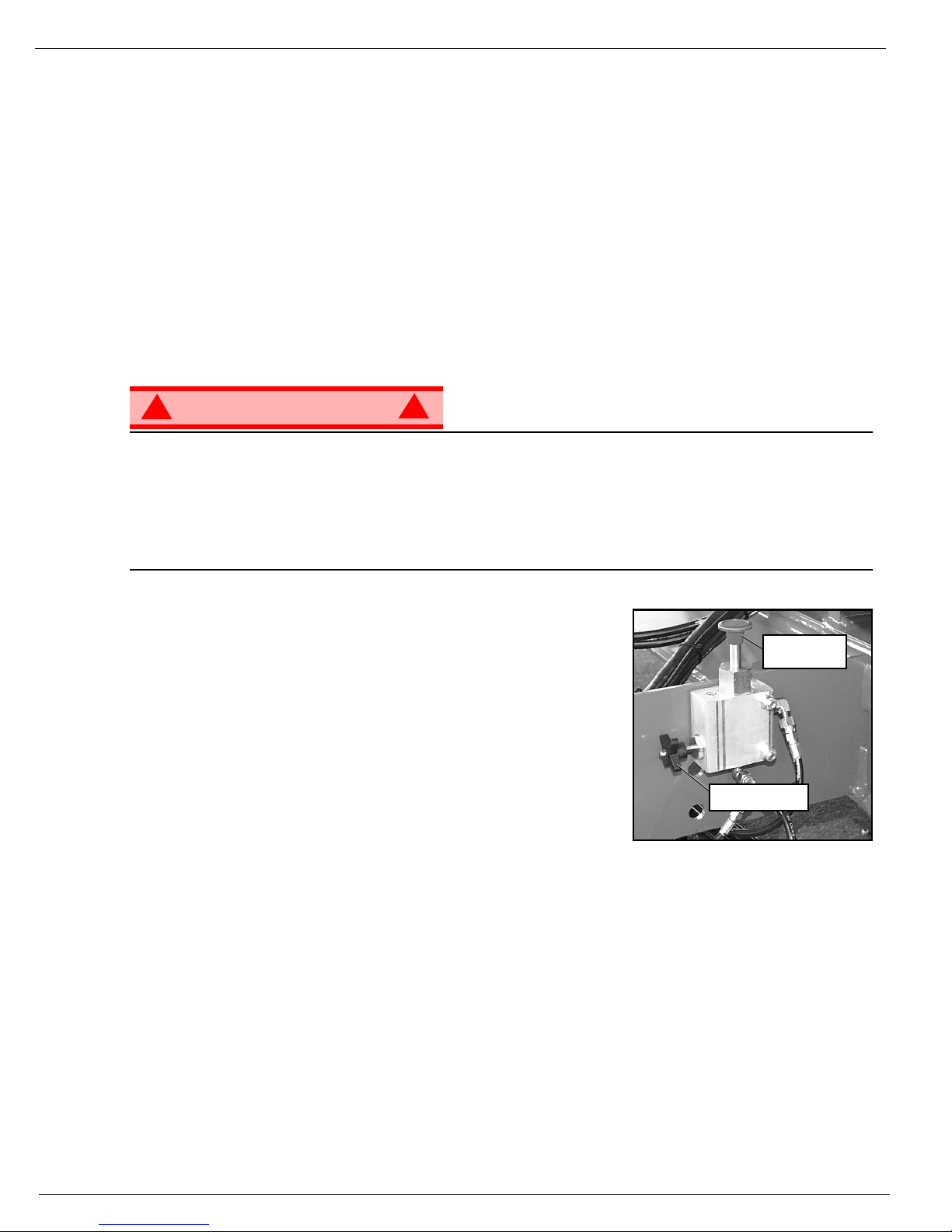

Parking Brake Release (Figure 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
After Use Each Day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fold Down Guardrails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fold Down Procedure (Figure 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Erection Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Transporting the Work Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Preparation for Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Lifting by Forklift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Lifting By Crane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Driving or Winching onto a Truck or Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Battery Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

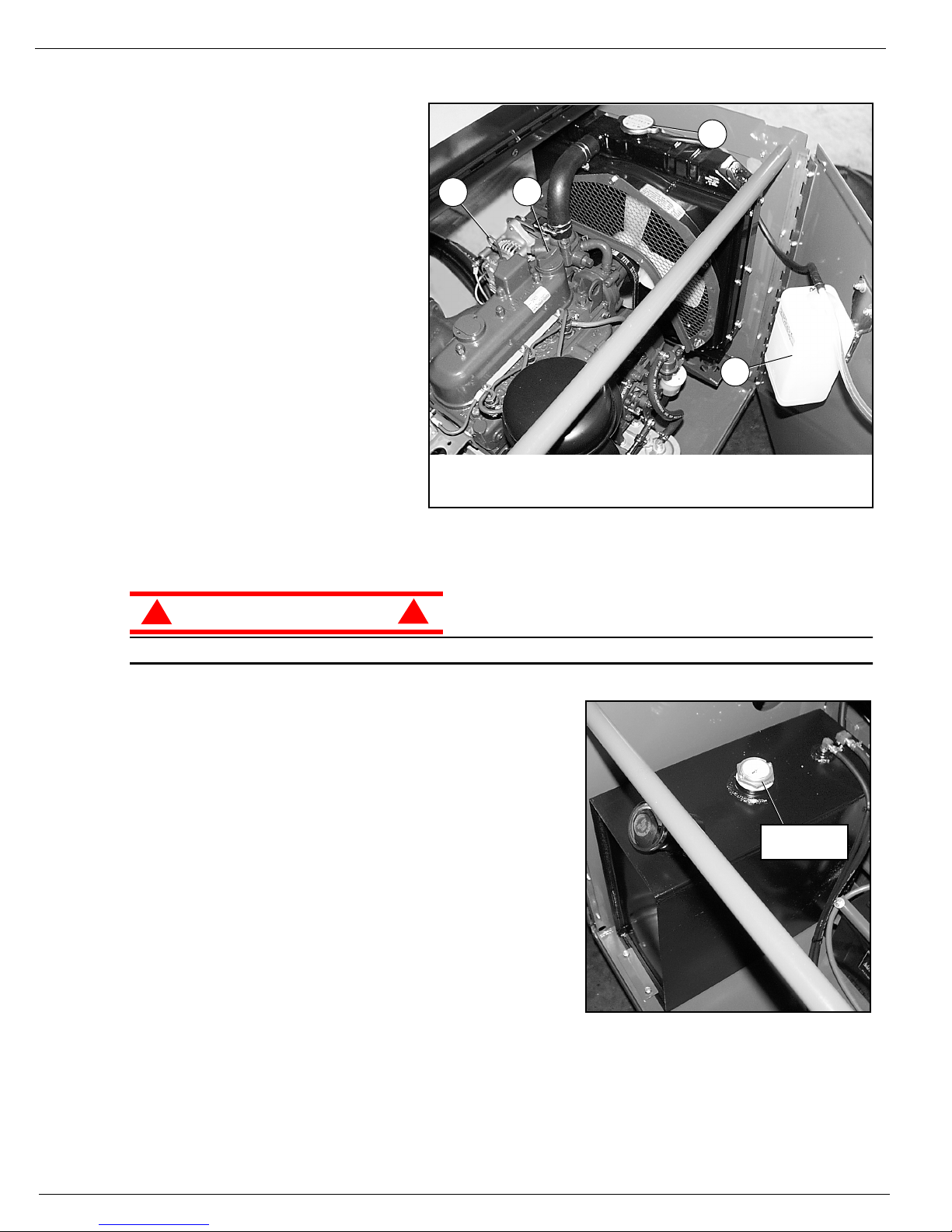

Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Inspection and Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Daily Preventative Maintenance Check List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

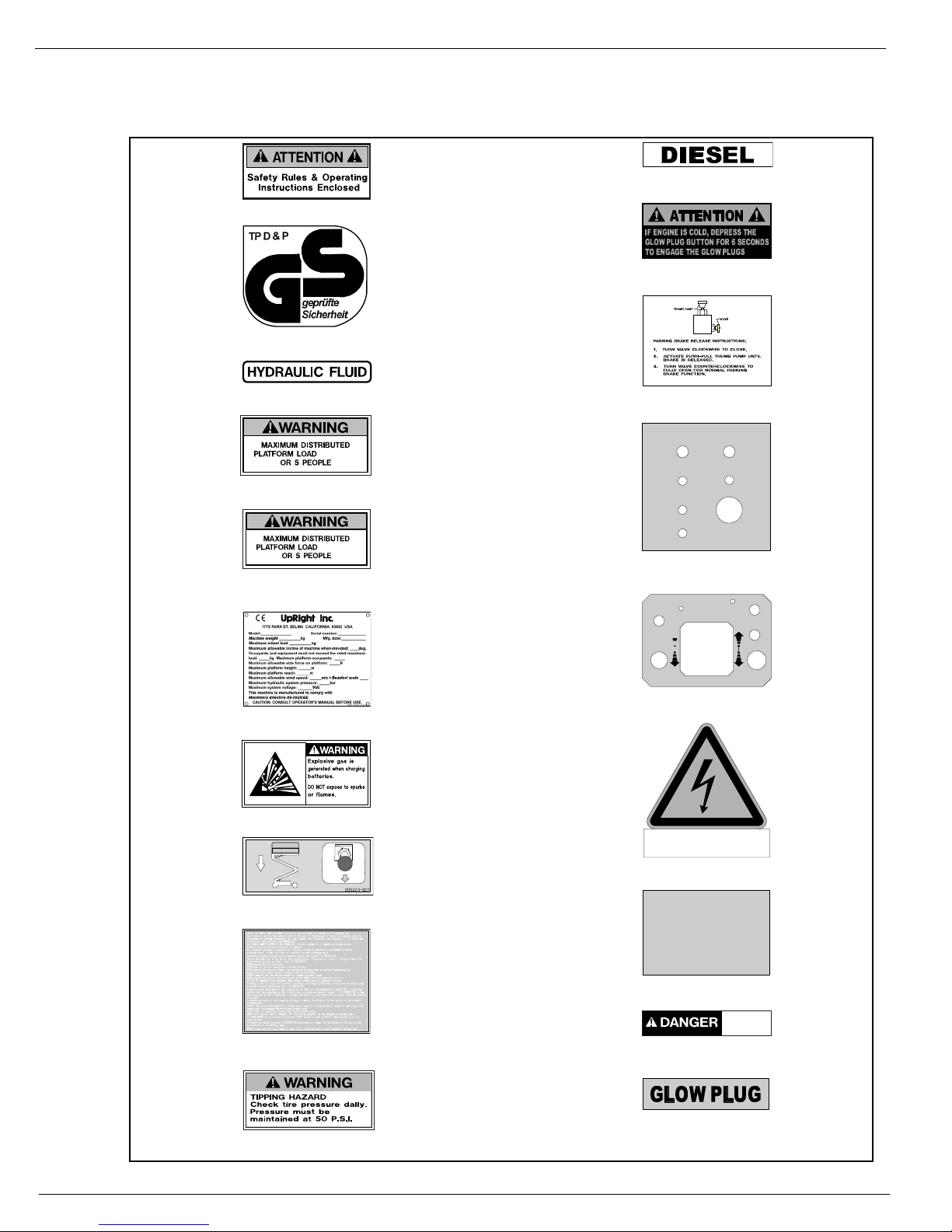

Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Introduction 060588-026 SL26/30SL
Operator Manual Page 3
I
NTRODUCTION
This manual covers SL26/30 Speed Level Work Platforms. This manual must be stored on the machine
at all times.
G
ENERAL
D
ESCRIPTION

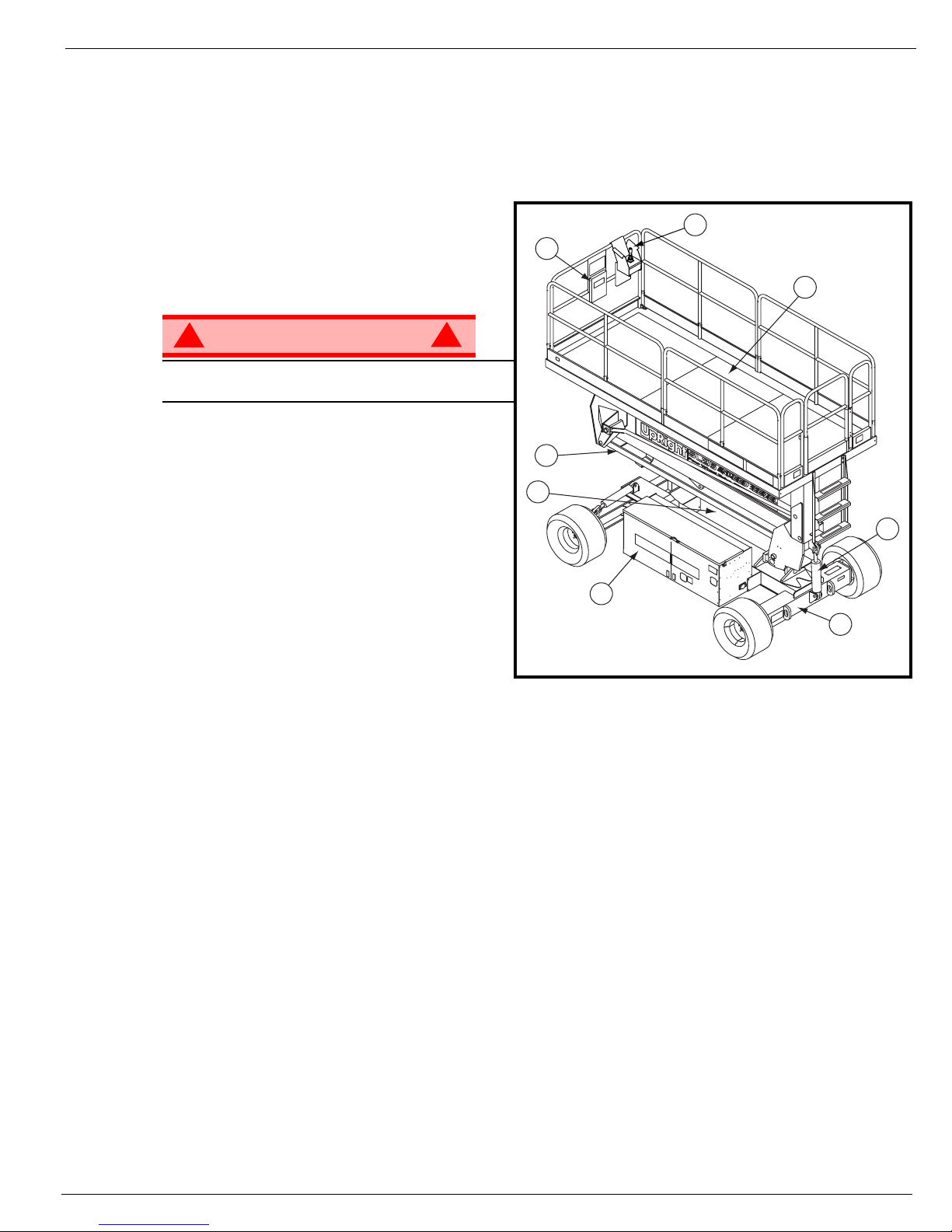

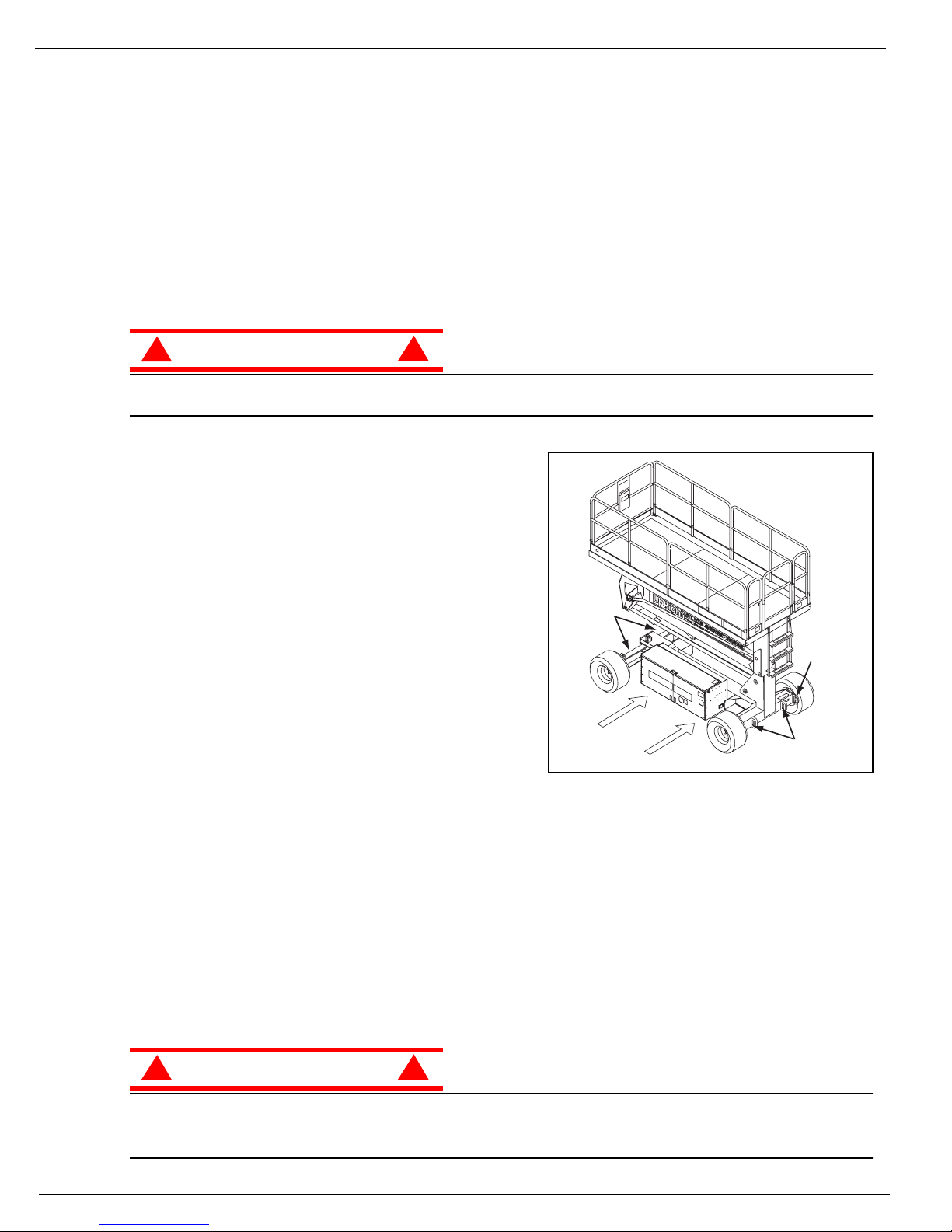

Figure 1:
Work Platform
1. Platform Controls
2. Manual Case
WARNING
!!
DO NOT use the maintenance platform without
guardrails properly assembled and in place
3. Platform
4. Elevating Assembly
5. Power Module
6. Control Module
7. Chassis
8. Leveling Cylinder
1
2
4
5
6
7
3
8

Page 4 Operator Manual
060588-026 SL26/30SL Special Limitations
S
PECIAL
L
IMITATIONS
A LL M ODELS :
Travel with the platform raised is limited to a creep speed range.
Elevating of the Work Platform is limited to firm, level surfaces only.
Travel while elevated is limited to flat surface only. Machine must be level and Front and Rear Axles must
be parallel.
DANGER
! !
The elevating function shall ONLY be used when the work platform is level and on a firm surface.
The work platform is NOT intended to be driven over uneven, rough or soft terrain.
P LATFORM C APACITY
The maximum platform capacity for the SL26SL is 680 kg (1500 lbs.). Five people may occupy the plat-
form when in use indoors or outdoors.
The maximum platform capacity for the SL30SL is 590 kg (1300 lbs.). Five people may occupy the plat-
form when in use indoors or outdoors.
DANGER
! !
DO NOT exceed the maximum platform capacity or the platform occupancy limits for this machine.
M ANUAL F ORCE
Manual force is the force applied by the occupants to objects such as walls or other structures outside the
work platform.
The maximum allowable manual force is limited to 200 N (45 lbs.) of force per occupant, with a maximum
of 400 N (90 lbs.) for two or more occupants.
DANGER
! !
DO NOT exceed the maximum amount of manual force for this machine.
B EAUFORT S CALE
Never operate the machine when wind speeds exceed 45 km/h (28 mph) [Beaufort scale 6].
L IFT O VERLOAD A LARM
All models include a feature that alerts the operator when the rated platform load is exceeded. If the alarm
sounds during the lift function, lower the platform and reduce the platform load.
WARNING
!!
Never operate the machine with a platform load greater than the rated capacity (see Specifications).
BEAUFORT
RATING WIND SPEED GROUND CONDITIONS
m/s km/h ft/s mph
3 3,4~5,4 12,25~19,4 11.5~17.75 7.5~12.0 Papers and thin branches move, flags wave.
4 5,4~8,0 19,4~28,8 17.75~26.25 12.0~18 Dust is raised, paper whirls up, and small branches sway.
5 8,0~10,8 28,8~38,9 26.25~35.5 18~24.25 Shrubs with leaves start swaying. Wave crests are apparent in ponds or swamps.
6 10,8~13,9 38,9~50,0 35.5~45.5 24.5~31 Tree branches move. Power lines whistle. It is difficult to open an umbrella.
7 13,9~17,2 50,0~61,9 45.5~56.5 31.~38.5 Whole trees sway. It is difficult to walk against the wind.

Controls and Indicators 060588-026 SL26/30SL
Operator Manual Page 5
C
ONTROLS AND
I
NDICATORS

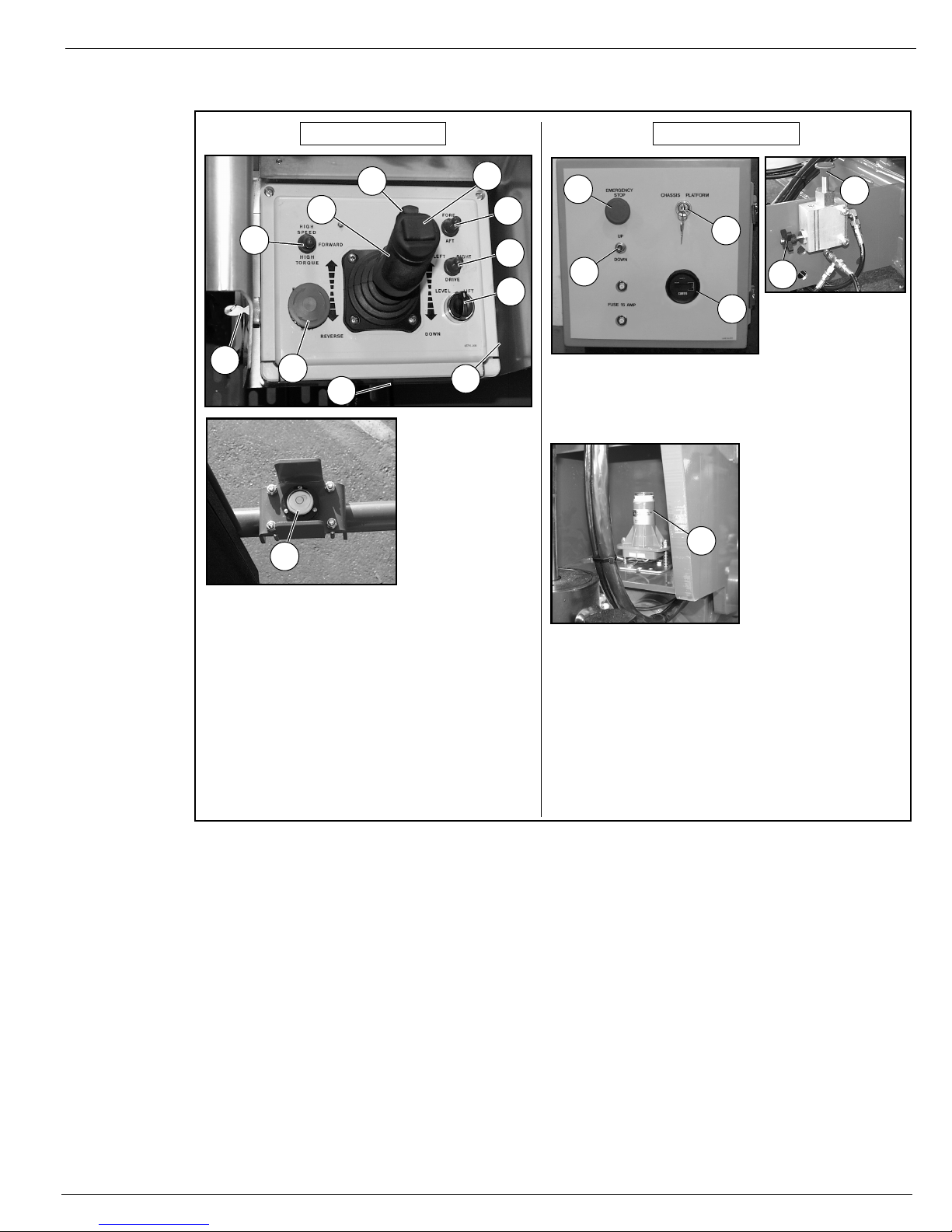

Figure 2:
Controls and Indicators
Platform Controls
1
1 Interlock Lever Switch
2. Control Handle
3. Drive Speed/Torque Selector Switch
4. Key Switch
5. Emergency Stop Switch
6. Steering Switch
7. Fore/Aft Leveling Switch
8. Side/Side Leveling Switch
9. Level/Drive/Lift Switch
10. Glow Plug Switch
11. Operator Horn
12. Bubble Level
5
1 Hour Meter
2. Emergency
Stop Switch
3. Lift Switch
4. Key Switch
5. Level Sensor
6. Brake Release
Pump
7. Needle Valve
1
2
3
4
Chassis Controls
2
8
9
7
3
10
12
6
7
6
5
4
11

Page 6 Operator Manual
060588-026 SL26/30SL Pre-Operation & Safety Inspection
P
RE
-O
PERATION
& S
AFETY
I
NSPECTION
NOTE: Carefully read, understand and follow all safety rules, operating instructions, labels and National Safety
Instructions/Requirements. Perform the following steps each day before use.
1. Remove module covers and inspect for damage, fluid leaks or missing parts.
2. Check the level of the hydraulic fluid with the platform fully lowered. Fluid should be visible in the sight
gauge. Add hydraulic fluid, if necessary (
see Specifications).
3. Check that the fluid level in the battery is correct ( see Battery Maintenance, page 13).
4. Carefully inspect the entire work platform for damage such as cracked welds or structural members,
loose or missing parts, fluid leaks, damaged cables or hoses, loose connections and tyre damage.
5. Check that all guardrails are securely in place with all fasteners properly torqued (
see Specifications ).
6. Pull chassis emergency stop button out to ON position.
Figure 3:
Control Module, Chassis left side
CAUTION
!!
DO NOT check coolant when engine or radiator is hot; hot coolant can cause severe burns.
E NGINE I NSPECTION
1. Check fuel supply.
2. Check engine oil level with dipstick.
3. While the engine is cool, check the radiator coolant level. DO NOT check coolant when the engine or
radiator is hot.
S
YSTEM
F
UNCTION
I
NSPECTION
WARNING
!!
STAND CLEAR of the work platform while performing the following checks.
Before operating the work platform, survey the work area for surface hazards such as holes, drop-offs,
bumps and debris.
Check in ALL directions, including above the work platform, for obstructions and electrical conductors.
Protect control console cable from possible damage while performing checks.
Hydraulic Tank
Sight Gauge
Emergency
Lowering Valve
Chassis
Emergency Stop
Switch
Chassis Lift Switch

System Function Inspection 060588-026 SL26/30SL
Operator Manual Page 7
1. Unhook Controller from front guardrail. Firmly grasp Controller hanger in such a manner that the Inter-
lock Lever can be depressed, while performing the following checks from the ground.
2. Pull Controller Emergency Stop Button out to ON position.
3. Turn Controller Key Switch fully clockwise to start the engine, releasing the key once the engine starts.
NOTE: On Diesel Models, if the engine is cold, depress and hold the glow plug button for 6 seconds prior to starting to
engage the glow plugs.
NOTE: If the engine does not start on the first try, the Key Switch must be returned to the OFF position before it can be
engaged to start the engine again.
4. Place Drive/Level/Lift Switch in DRIVE position.
5. With the Speed Range Switch first in HIGH TORQUE and then in HIGH SPEED,actuate the Interlock
Lever and slowly push the Control Handle to FORWARD then REVERSE positions to check for speed
and directional control. The farther you push or pull the Control Handle from center the faster the
machine will travel.
6. Push Steering Switch RIGHT then LEFT to check for steering control.
7. Place Drive/Level/Lift Switch to LEVEL. While depressing Interlock Lever actuate the Fore/Aft and
Side/Side Switches to verify they function properly. Use the Side/Side Switch and tilt the platform to one
side.
8. Rehook Controller on front guardrail.
9. Push Chassis Lift Switch to UP position and elevate platform. The platform should only elevate to the
interlock height, about 2,44 m (8 ft.) above the ground, and the Tilt Alarm should sound. If the platform
continues to elevate and/or there is no alarm STOP and remove the machine from service until repaired.
10. Lower the platform with the Chassis Lift Switch.
11. Enter the platform. Using the bubble level as a guide level the platform with the Side/Side and Fore/Aft
Switches. Dismount platform.
12. Fully elevate platform using Chassis Lift Switch.
13. Visually inspect the elevating assembly, lift cylinder, cables and hoses for damage or erratic operation.
Check for missing or loose parts.
14. Lower the platform partially by pushing Chassis Lift Switch to DOWN, and check operation of the audible
lowering alarm.
15. Open the Emergency Lowering Valve by pulling and holding the knob to check for proper operation.
Once the platform is fully lowered, release the knob.
16. Push the Chassis Emergency Stop Button.
17. With only one Emergency Stop Button pushed down, in the OFF position, operate a control to verify that
the Emergency Stop Switch is functioning. Repeat the test with only the other Emergency Stop Switch
Button OFF. If any function operates with either Emergency Stop Switch in the OFF position, STOP and
remove the machine from service until it is repaired.
18. Close and secure module covers.
19. Turn the Controller Key Switch counterclockwise to OFF.

Page 8 Operator Manual
060588-026 SL26/30SL Operation
O
PERATION
NOTE: Before operating the work platform, ensure that the pre-operation and safety inspection has been completed,
any deficiencies have been corrected, and the operator has been thoroughly trained on this machine.
WARNING
!!
Never operate the work platform with the parking brakes released. Serious injury or damage could
result.
T RAVEL WITH P LATFORM L OWERED
1. Verify Chassis Emergency Stop Switch is in the ON position, pull the button out.
2. After mounting platform, close and latch gate. Check that guardrails are in position and properly assem-
bled with fasteners properly torqued (see Specifications).
3. Check that route is clear of persons, obstructions, holes and drop-offs and is capable of supporting the
wheel loads.
4. Check clearances above, below and to the sides of the platform.
5. Pull Controller Emergency Stop Button out to ON position.
6. Turn Controller Key Switch fully clockwise to start the engine, releasing the key once the engine starts.
NOTE: On Diesel Models, if the engine is cold, depress and hold the glow plug button for six seconds prior to starting
to engage the glow plugs.
NOTE: If the engine does not start on the first try, the Key Switch must be returned to the OFF position before it can be
engaged to start the engine again.
7. Set the Drive/Lift Speed Range Switch to HIGH TORQUE.
8. Grasp the Control Handle so the Interlock Lever is depressed (releasing the Interlock Lever cuts power
to Controller). Slowly push or pull the Control Handle to FORWARD or REVERSE to travel in the
desired direction. The farther you push or pull the Control Handle from center the faster the machine
will travel.
9. While moving, push the Drive/Lift Speed Range Switch to HIGH SPEED for travel on level surfaces or to
HIGH TORQUE for climbing grades or traveling in confined areas.
S TEERING
Push the Steering Switch RIGHT or LEFT to turn the wheels. Observe the tyres while maneuvering to
insure proper direction.
NOTE: Steering is not self-centering. Wheels must be returned to the straight ahead position by operating the Steering
Switch.
L EVELLING P LATFORM
With Drive/Level/Lift Switch in LEVEL hold the Control Handle so the Interlock Lever is depressed. Center
bubble in bubble level using Fore/Aft and Left/Right Switches. To level the platform forward it may be nec-
essary to elevate the platform slightly.
R AISING AND L OWERING THE P LATFORM
1. Position the Drive/Level/Lift Switch to LIFT.
2. While holding the Control Handle so the Interlock Lever is depressed, push the Control Lever slowly to
UP to raise the platform. Pushing the Control Lever farther increases the lift speed. If the platform does
not elevate above the interlock height, about 2,44 m (8 ft.), fully lower platform and re-level.
3. When the work task is completed, position the Drive/Level/Lift Switch to LIFT and lower the platform by
pulling back on the Control Handle until the platform is fully lowered.

Operation 060588-026 SL26/30SL
Operator Manual Page 9
T RAVEL WITH W ORK P LATFORM E LEVATED
Travel with the platform elevated ONLY on firm and level surfaces.
NOTE: The work platform will travel at reduced speed when in the elevated position.
1. Check that the route is clear of persons, obstructions, holes and drop-offs, is level and capable of sup-
porting the wheel loads.
2. Check clearances above, below and to the sides of the platform.
3. Position the Drive/Level/Lift switch to the DRIVE position.
4. Push the control lever to FORWARD or REVERSE for the desired direction of travel.
If the machine quits driving and the tilt alarm sounds, immediately lower the platform and move the
machine to a level location before re-elevating the platform.
E MERGENCY L OWERING
The Emergency Lowering Switch is located on the left hand side of the chassis through the cutout in the
Control Module cover.
1. Open the Emergency Lowering Valve by pulling and holding the knob.
2. Once the platform is fully lowered, release the knob. The platform will not elevate if the Emergency Low-
ering Valve is open.

Page 10 Operator Manual
060588-026 SL26/30SL Towing or Winching
T
OWING OR
W
INCHING
Perform the following only when the machine will not operate under its own power and it is necessary to
move the machine or when winching onto a transport vehicle (see “Transporting the Work Platform” on
page 12).
P ARKING B RAKE R ELEASE (F IGURE 4)
Perform the following only when the machine will not operate under its own power and it is necessary to
move the machine or when towing the machine up a grade or wenching onto a trailer to transport.
1. Close the needle valve by turning the knob clockwise.
2. Pump the Brake Release Pump until the Parking Brakes release and the wheels can be turned.
3. The machine will now roll when pushed or pulled.
4. Be sure to open the needle valve and verify that the Parking Brakes have engaged before the machine
is operated.
WARNING
!!
Never operate the work platform with the parking brakes inoperative. Serious injury or damage could
result.
Never release the brakes if the machine is on a slope.
Chock the wheels before releasing the parking brakes.
Hook the machine to a towing vehicle before releasing the parking brakes.
Never tow faster than 0,3 m/sec (1ft./sec.)
Figure 4:
Brake Release Pump
A
FTER
U
SE
E
ACH
D
AY
1. Ensure that the platform is fully lowered.
2. Park the machine on level ground, preferably under cover, secure against vandals, children or unautho-
rized operation.
Turn the key switch to OFF and remove the key to prevent unauthorized operation.
Brake
Release
Needle Valve

Fold Down Guardrails 060588-026 SL26/30SL
Operator Manual Page 11
F
OLD
D
OWN
G
UARDRAILS
This procedure is only for passing through doorways. Guardrails must be returned to proper position
before using the machine.
F OLD D OWN P ROCEDURE (F IGURE 5)
NOTE: When performing the following procedures retain all fasteners.
1. Place controller on platform.
2. Starting at the front of the platform, remove nuts, bolts and washers from the top of the front guardrail.
Fold the front guardrail down onto the platform.
3. Close and latch the gate.
4. Remove nuts, bolts and washers from the top of the rear guardrail. Fold the rear guardrail down onto the
platform being careful to keep gate latched at all times.
5. Remove nuts, bolts and washers from the top of the side guardrails and from the slideout deck midrail.
Lift up and fold one side guardrail in so it rests on the deck. Repeat with other side guardrails.
E RECTION P ROCEDURE
1. Raise side guardrails making sure each is pushed down to secure the guardrail in the vertical position.
2. Install bolts, washers and nuts between the side guardrails, tighten securely.
3. Raise rear guardrail assembly, aligning holes and install bolts, washers and nuts. Tighten securely.
4. Raise front guardrail, aligning holes and install bolts, washers and nuts. Tighten securely.
5. Hang controller from front guardrail.
6. Before operating work platform check that all fasteners are in place and properly torqued (See Specifica-
tions).
WARNING
!!
Before entering the work platform, guardrails must be securely fastened in their proper position.
Figure 5:
Fold down guardrails

Page 12 Operator Manual
060588-026 SL26/30SL Transporting the Work Platform
T
RANSPORTING THE
W
ORK
P
LATFORM
P REPARATION FOR S HIPMENT
1. Fully lower the platform.
2. Disconnect the battery negative (-) lead from the battery terminal.
3. Band the controller to the front guardrail.
4. Band the elevating linkage to the frame.
L IFTING BY F ORKLIFT
NOTE: Forklifting is for transporting only.
CAUTION
!!
See specifications for weight of work platform and be certain that forklift is of adequate capacity to lift
platform.
Figure 6:
Transporting Work Platform
L IFTING B Y C RANE
1. Secure straps to chassis tie down/lifting lugs only.
2. Place the platform onto the transport vehicle in trans-
port position.
3. Chock the wheels.
4. Secure the work platform to the transport vehicle with
chains or straps of adequate load capacity attached to
the chassis tie down/lifting lugs.
D RIVING OR W INCHING ONTO A
T
RUCK OR T RAILER
NOTE: Do not winch faster than 0,3 m/s (1 ft./sec.).
1. Move the machine onto the truck or trailer;
A. To
Drive the machine onto the transport vehicle:
a. Move the work platform up the ramp and into transport position.
b. Set the wheels straight and turn off the machine.
c. Chock the wheels.
B. To
Winch the machine onto the transport vehicle:
a. Move the work platform up to the ramp.
b. Attach the winch cable to the tie down/lifting lugs.
c. Release the parking brakes (refer to “Towing or Winching” on page 10).
d. Winch the platform into transport position
e. Chock the wheels.
2. Secure the work platform to the transport vehicle with chains or straps of adequate load capacity
attached to the chassis tie down/lifting lugs.
CAUTION
!!
Tie down lugs are not to be used to lift work platform.
Overtightening of chains or straps through tie down/lifting lugs may result in damage to the work
platform.
Rear
Lifting Lug
(typical)
Rear Tie
Downs
Forklift
Front Tie
Downs/
Lifting Lugs

Maintenance 060588-026 SL26/30SL
Operator Manual Page 13
M
AINTENANCE
DANGER
! !
Never perform service on the work platform while the platform is elevated.
NOTE: No normal (routine) maintenance on the SL26/30SL should require the platform to be raised.
B ATTERY M AINTENANCE
Figure 7:
Battery Location
WARNING
!!
Hazard of explosive gas mixture. Keep sparks, flame, and
smoking material away from battery.
Always wear safety glasses when working with batteries.
Battery fluid is highly corrosive. Thoroughly rinse away any
spilled fluid with clean water.
Check battery fluid level weekly, especially if the work plat-
form is being used in a warm, dry climate.
If the electrolyte level is lower than 10 mm (3/8 in.) above plates, add distilled water ONLY. Do not use tap
water with high mineral content; it will shorten battery life.
The battery and cables should be inspected regularly for signs of cracks in the case, electrolyte leakage
and corrosion of the terminals. Inspect the cables for worn spots or breaks in the insulation and for broken
cable terminals.
Refer to the Service Manual to extend battery life and for complete service instructions.

Page 14 Operator Manual
060588-026 SL26/30SL Maintenance
E NGINE
Figure 8:
Engine
C
OOLANT
The coolant recovery tank is located
on the inside of the door of the power
module.
1. Remove the cap on the coolant
recovery tank.
2. Add coolant to the “FULL” mark.
NOTE: Never remove the radiator cap when
the engine is hot.
O
IL
The engine
must not be running
when you check and replenish the
engine oil. Refer to the Service Manual
to change the oil filter.
1. Remove the oil dipstick and check
the level indicator marks.
2. If the level is low, remove the oil filler
cap.
3. Replenish with the proper engine oil (refer to the engine service manual that came with the machine).
CAUTION
!!
DO NOT check coolant when engine or radiator is hot; hot coolant can cause severe burns.
Figure 9:
Fuel Supply
F
UEL
The fuel tank is located in the power module. Check the fuel
level at the gauge on top of the fuel tank.
3
4
1
2
1 Radiator Cap
2. Coolant Recovery Tank
3. Oil Filler Cap
4. Oil Dipstick
Fuel Level
Gauge

Inspection and Maintenance Schedule 060588-026 SL26/30SL
Operator Manual Page 15
I
NSPECTION AND
M
AINTENANCE
S
CHEDULE
The complete inspection consists of periodic visual and operational checks, along with periodic minor
adjustments to assure proper performance. Daily inspection will prevent abnormal wear and prolong the
life of all systems. The inspection and maintenance schedule is to be performed at regular intervals.
Inspection and maintenance shall be performed by personnel who are trained and familiar with mechanical
and electrical procedures.
WARNING
!!
Before performing preventative maintenance, familiarize yourself with the operation of the machine.
Always block the elevating assembly whenever it is necessary perform maintenance while the platform
is elevated.
The daily preventative maintenance table has been designed for machine service and maintenance repair.
Please photocopy the Daily Preventative Maintenance Checklist and use the table as a checklist when
inspecting the machine.
D AILY P REVENTATIVE M AINTENANCE C HECK L IST
\
MAINTENANCE TABLE KEY
Y = Yes/Acceptable
N = No/Not Acceptable
R = Repaired/Acceptable
MAINTENANCE REPORT
Date: _______________________________________
Owner: _____________________________________
Model No: ___________________________________
Serial No: ___________________________________
Serviced By: _________________________________
COMPONENT INSPECTION OR SERVICES Y N R
Battery Check electrolyte level
Check battery cable condition
Engine Oil and Filter Check level and condition
Check for leaks
Engine Fuel System
Check fuel level
Check for leaks
Check air cleaner
Engine
Coolant Check coolant level (with engine cold)
Hydraulic Fluid Check fluid level
(See Specifications)
Hydraulic System Check for leaks
Emergency
Lowering System
Operate the emergency lowering valve and check
for serviceability
Controls Check operation of all controls
Control Cable Check the exterior of the cable for pinching, bind-
ing or wear
Platform Deck and
Rails
Check fasteners for proper torque (See Specifica-
tions)
Check welds for cracks
Check condition of platform and rails
Check condition of anchorage points
Check condition of operator manual
Tires & Wheels Check for damage
Drive Motors Check for operation and leaks
Hydraulic Pump Check hoses,fittings, and valve block for leaks
Torque Hubs Check for leaks
Check for missing/loose retainers
Elevating Assembly Inspect for structural cracks
Check members for deformation
Chassis Check hoses for pinch or rubbing points
Check welds for cracks
Bubble Level Check bubble and target ring for damage
Entire Unit Check for and repair collision damage
Labels Check for peeling, missing, or unreadable labels &
replace
COMPONENT INSPECTION OR SERVICES Y N R

Page 16 Operator Manual
060588-026 SL26/30SL Labels
L
ABELS
These labels shall be present and in good condition before operating the work platform. Be sure to read,
understand and follow these labels when operating the work platform.
15) 067195-001
8) 060197-000
29) 064414-002
28) 063423-000
14) 005223-907
33) 100102-000
23) 067822-001
19) 066562-000
9) SL26SL 066557-057
21) 027898-001
40) 067822-000
9) SL30SL 066557-055
10) 061205-003
38) 064374-000
Never elevate unless the
platform is level. Center
bubble in level on platform
before elevating.
TIPPING HAZARD
39) 066551-004
HIGH
SPEED
HIGH
TORQUE
FORWARD
REVERSE
STOP
EMERGENCY
FORE
AFT
LEFT RIGHT
DRIVE
LIFT
LEVEL
DOWN
UP
31) 065791-000
11) 066552-000
6) 030768-002
680 KG.
590 KG.
EMERGENCY
STOP
UP
DOWN
FUSE 15 AMP
CHASSIS PLATFORM
THE AERIAL WORK PLATFORM
IS NOT ELECTRICALLY INSULATED
TO LEVEL FORWARD
LIFT PLATFORM SLIGHTLY.
IF PLATFORM WILL NOT
ELEVATE ABOVE INTERLOCK
HEIGHT, LOWER
COMPLETELY AND RELEVEL
PLATFORM.
3) 010076-001

Labels 060588-026 SL26/30SL
Operator Manual Page 17
Figure 10:
Safety Labels Locations
15
3
30
8
29
28
14
23
33
38
39
31
40
23
19
9
10
6
30
11
21

Page 18 Operator Manual
060588-026 SL26/30SL Specifications
S
PECIFICATIONS
Specifications subject to change without notice. Refer to the Service Manual for service and repair infor-
mation. Refer to the Parts Manual for illustrated parts breakdown. Hot weather or heavy use may reduce
performance. Meets or exceeds all applicable national safety requirements
ITEM SL26SL SL30SL
Platform Size (Inside toeboards)
Standard 1,71 m x 3,59 m [67.5 in x 141.5 in.] 1,71 m x 4,22 m [67.5 in x 166.25 in.]
Slide-out Deck Extended 1,71 m x 4,61 m [67.5 in. x 181.5 in.]N/A
Max. Platform Capacity
Standard 680 kg [1500 lbs.] 590 kg [1300 lbs.]
With Extension 680 kg [1500 lbs.]N/A
on Extension 227 kg [500 lbs.]N/A
Max. No. of occupants
Standard 5 people 5 people
on Extension 2 people N/A
Height
Working Height 9,93 m [32 ft. 6 in.] 11,14 m [36 ft. 6 in.]
Max. Platform Height 7,93 m [26 ft.] 9,14 m [30 ft.]
Min. Platform Height 1,5 m [59 in.] 1,5 m [59 in.]
Max. Drivable Height 7,93 m [26 ft.] 9,14 m [30 ft.]
Dimensions
Weight 2,853 kg [6,290 lbs.] 2,967 kg [6,541 lbs.]
Overall Width, Standard 2,13 m [84 in.] 2,13 m [84 in.]
Overall Height 2,60 m [102.5 in.]2,60m[102.5 in.]
Overall Length, Standard 3,79 m [149 in.]4,39m[173 in.]
Surface Speed
Platform Lowered 0 to 5,0 km/h [0 to 3.1 mph] 0 to 5,0 km/h [0 to 3.1 mph]
Platform Raised 0 to 0,8 km/h [0 to 0.5 mph] 0 to 0,8 km/h [0 to 0.5 mph]
System Voltage 12 Volt DC 12 Volt DC
Hydraulic Tank Capacity 45,5 liters [12 US Gallons] 45,5 liters [12 US Gallons]
Maximum Hydraulic System Pressure 193 bar [2800 psi] 193 bar [2800 psi]
Hydraulic Fluid
Normal Temp. above 0° C [32° F]ISO #46 ISO #46
Low Temp. below 0° C [32° F] ISO #32 ISO #32
Below -17°C [0° F] ISO #15 ISO #15
Lift System One Single Stage Lift Cylinder One Single Stage Lift Cylinder
Lift Speed Raise: 21 sec. Lower: 32 sec. Raise: 24 sec. Lower: 36 sec.
Platform Leveling 13° side/side, 9° fore/aft 13° side/side, 9° fore/aft
Power Source Diesel 20 HP Kubota, 3 Cylinder, Water
Cooled
Diesel 20 HP Kubota, 3 Cylinder, Water
Cooled
Fuel Tank Capacity 47,5 liters [12.5 US gallons] 47,5 liters [12.5 US gallons]
Drive Control Proportional Proportional
Control System Joystick controller with interlock lever
and thumb rocker steering, selector and
emergency stop switches; Leveling
control, two toggle switches and bubble
level (inoperable above interlock height)
Joystick controller with interlock lever
and thumb rocker steering, selector and
emergency stop switches; Leveling
control, two toggle switches and bubble
level (inoperable above interlock height)
Horizontal Drive 4 Wheel, Hyd. Motors 4 Wheel, Hyd. Motors
Tires 26 x 12.00 - 12NHS Super Terra-grip,
foam filled
26 x 12.00 - 12NHS Super Terra-grip,
foam filled
Parking Brakes Dual Disc, Spring Applied Dual Disc, Spring Applied
Turning Radius (inside) 3,96 m [13 ft.] 3,96 m [13 ft.]
Maximum Gradeability: 19° [35%]19°[35%]
Wheel Base 2,54 m [100 in.]2,54m[100 in.]
Ground Clearance 0,24 m [9.5 in.] 0,24 m [9.5 in.]
Guardrails 1,1 m [43.5 in.] high, fold down with
gate.
1,1 m [43.5 in.] high, fold down with
gate.
Guardrail
Bolt Torque 31Nm [23 ft. lb.]31Nm[23 ft. lb.]
Noise Level
