Beok Controls TGR-86 User manual

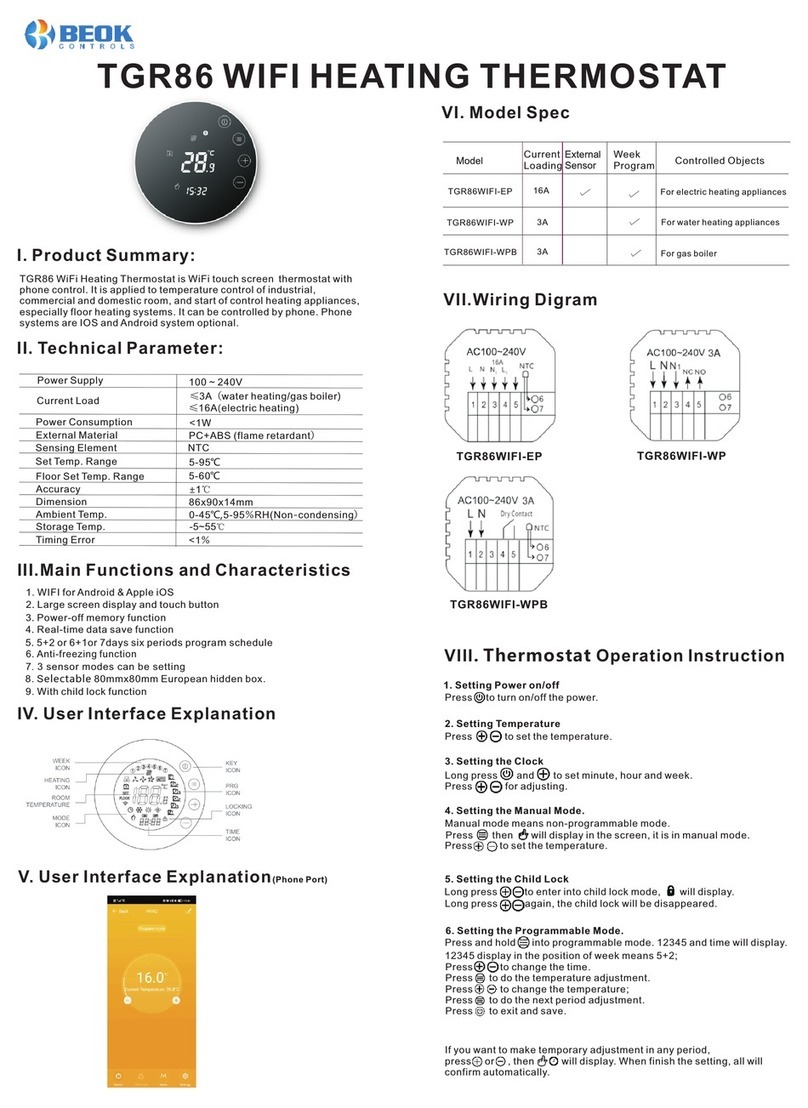

TGR-86 WIFI THERMOSTAT USER GUIDE
THIS THERMOSTAT IS SUITABLE FOR WATER HEATING,
ELECTRIC HEATING AND GAS BOILER

TGR-86 WIFI THERMOSTAT USER GUIDE
1
Welcome
Thank you for your trust and support. By adopting higher-end technology and
more perfect technology, your new thermostat will provide you with the right
temperature environment every day in the future, making your life more
comfortable and your living environment more stylish and beautiful. For detailed
instructions on the installation and use of this thermostat, please read this manual
carefully. Please contact a professional to install the thermostat for you and install
and use the product to the extent permitted by law
Application
Intelligent digital temperature controller is a floor heating system suitable for
room temperature control and household temperature control. It controls the
operating state of the floor heating equipment by comparing the ambient
temperature with the set temperature, which improves comfort and achieves
energy saving. This digital temperature controller adopts microcomputer control
technology and is equipped with full-screen display touch buttons, which is
elegant in design and easy to use. The thermostat has manual automatic,
programmable and state memory functions.

TGR-86 WIFI THERMOSTAT USER GUIDE
2
Product Model
WP Plumbing 3A
EP Electric Heating 16A
WPB linkage, gas boiler 3A
Product packaging
Thermostat host-----------------1 PC
Qualification certificate------- 1 PC
Sensing line (optional)-------- 1 PC
1 PC
2PCS
Screw-------------------
Manual-----------------

TGR-86 WIFI THERMOSTAT USER GUIDE
3
User Notes
1. Please read this manual carefully. Improper operation may damage the product
or cause dangerous conditions.
2. The installation personnel must be well-trained and experienced service
technicians.
3. After installation, please read this manual carefully and operate the product
according to the instructions.
Caution: Risk of electric shock or equipment damage.
Wiring Diagram
Note: WP for water heating; EP for electric heating; WPB for gas boiler

TGR-86 WIFI THERMOSTAT USER GUIDE
4
Installation procedure
This product is installed with a standard 86 control switch (in compliance with
European regulations)
2. Remove the mounting plate in this direction
1. Slide the mounting plate upward in this
direction
4. After installation, buckle the product in
this direction
3.Fix mounting plate to cassette with
screw

TGR-86 WIFI THERMOSTAT USER GUIDE
5
Description of display & Icon

TGR-86 WIFI THERMOSTAT USER GUIDE
6
Operating Instruction
1. Power on/off: press to turn on/off the thermostat.
2. Press the key to switch between manual and automatic modes.
3. In the automatic mode, press or to adjust the temperature to enter the
automatic temporary mode. This mode runs for only one session.
4. Long press key and key to enter the clock setting, press key to switch Settings
Item, press and keys to adjust the value of each parameter. Note: the time of
WIFI model will be Automatically gets Internet time
5. Press and for 5 seconds to add or cancel the child lock.
6. WIFI link: When the thermostat is on, long press button for 5 seconds and the
thermostat display will come out Now the WIFI icon flashes, at this time the
thermostat into the state of code.

TGR-86 WIFI THERMOSTAT USER GUIDE
7
Time programming instructions
Press and hold the key to enter the programming setting, short press the key to
switch the option, press the key or key to adjust each option parameter, and press
the key to exit and save.
KEY
OPTION
ICON
TIME
ADJUST
DEFAULT
ADJUST
1
06:00
20℃
2
08:00
15℃
workday
3
11:30
15℃
4
12:30
15℃
5
17:00
22℃
6
22:00
15℃
Holiday
1
08:00
22℃
2
23:00
15℃

TGR-86 WIFI THERMOSTAT USER GUIDE
8
Advanced options
When POWER OFF, press the key and the key for 5 seconds to enter the
advanced option setting.
Press to enter the next option, press and to adjust, and press to exit the
height Level option.
1
Temperature compensation
The default value of the calibration room temperature is -2 ℃. Press the up and down keys
to adjust. The adjustable range is 9.9 °C to -9.9 ℃.
2
Sensor selection
The temperature sensor is selected as IN by default. Press the up and down keys to adjust as
IN respectively, indicating that the internal.
3
Modify the temperature limit
The default temperature limit value is 35 ℃. Press the up and down keys to adjust the range
from 5 ℃to 60 ℃.
4
Temperature difference start
The default temperature difference is set to 1 ℃. Press the up and down keys to adjust the
range to 1-10 degrees.
5
Antifreeze fundion
Set the default anti-freeze function to OFF, display OFF, press the up key to tum on
anti-freeze and display ON
6
Holiday option and turn off weekly
programming
Set tfie default rest day as double OFF. Press the up and down keys to adjust It to double
OFF (1-5), single OFF (1-6), no OFF (1 -7) and tum off week programming (OFF).
7
Primary and secondary reverse
selection
Set the default main and auxiliary reversal to 0. Press the up and down keys to adjust 0 to
tum off the main and auxiliary reversal. 01 means auxiliary reverse, 02 means auxiliary
reverse, 03 means main and auxiliary reverse, shutdown and antifreeze is not on, stop
output
8
Passive linkage output delay time
Set the default passive linkage delay time to 0. Press the up and down keys to adjust the
range of 0-5 minutes.
9
Set upper temperature limit
The default value of the set temperature upper limit i$ 60 'C, and the adjustment range Is
35-95 ℃by pressing the up and down keys.
10
Restore Fartory Defaults
Set to restore the factory default setting to display “-”, Press the up button to adjust tfie
display "---”, press the enter button to restore the factory settings

TGR-86 WIFI THERMOSTAT USER GUIDE
9
About WIFI connection
Before using the WIFI thermostat for the first time, you should set the WIFI signal and
configuration through your smart phone or tablet to allow communication between your
connected devices.
1. Download the APP
Search for "Tuya" in App market or scan below QR Code to download

TGR-86 WIFI THERMOSTAT USER GUIDE
10
2.Register Account If you don't have an APP account yet, you can choose to register or
log in via SMS verification code. Click "Create a new account", you will enter the Tuya
Smart Platform Privacy Policy page. After you click Agree, you will officially enter the
mobile phone registration page.

TGR-86 WIFI THERMOSTAT USER GUIDE
11
The system automatically determines the current country/region. You can also select the
country/region manually. After entering your mobile phone number or email address,
click "get verification code" . Enter the received verification code, then enter the
password, and click "finish" to register successfully.

TGR-86 WIFI THERMOSTAT USER GUIDE
12
3. Add device Click "add device" or"+" on the top right of the APP homepage
to enter the "add device" page. Currently, there are two ways to manually add
device and search device.

TGR-86 WIFI THERMOSTAT USER GUIDE
13
Find the thermostat product (WIFI model) in the device list. In the specified
network mode, the indicator flashes (slowly flashes) and then click the
confirm button on the page. Select the device's work area to connect to the
WIFI of the Internet and enter the WIFI password. Click "ok" to enter the
matching network process.

TGR-86 WIFI THERMOSTAT USER GUIDE
14
If the default mode distribution network is selected, the distribution process
APP is shown in figure 1 below, and the distribution network successfully
displays the interface shown in figure 2. The name of the device can be
changed or the location of the room can be selected.

TGR-86 WIFI THERMOSTAT USER GUIDE
15
If the distribution network fails, the APP will display the page shown in the
figure below. You can choose to add or view the help again. Note: if the
connection fails, please confirm whether the temperature control device has
entered the code matching state, refer to item 6 of the operation manual.

TGR-86 WIFI THERMOSTAT USER GUIDE
16
4. Display of temperature controller APP interface
