Beok Controls TOL63R User manual

VIII. Operation Instruction
I. Product Summary:
II. Technical Parameter:
IV. User Interface Explanation
1.Square LCD
3 Fan speed+auto speed.
7.Selectable
8.Can be remote controlled by controller.
screen display.
2.Blue or White backlight for choose;
3.2 pipe or 4 pipe for choose.
4.
5.Timer on/off function for daily or week.
6.Room temp calibration function.
80mmx80mm hidden box.
TOL63R-AC Series thermostats are designed to control the fans and valves
in air conditioner applications via comparison of the room temperature and
setting temperature as reaching the aim of comfort and saving energy.
V. Model Definition
2. Setting Temperature
Press to set the temperature.
3. Setting the Clock
Press to set minute, hour and week.
Press for adjusting.
TOL63R LCD SCREEN R/C THERMOSTAT
III. Main Functions and Characteristics
VI. Model Spec
Accuracy
Sensing Element
Power Consumption
Power Supply
Current Load
External Material
Dimension
Ambient Temp.
Storage Temp.
±1℃
NTC
<0.5W
AC200~240V, 50/60HZ
3A~5A
PC+ABS (flame retardant)
86x86x13.3mm
0-45℃,5-95%RH(Non-condensing)
-5~55℃
Set Temp. Range 10℃ - 40℃
Installation Box 80x80mm
AC 2: Two pipe, for air conditioning
AC 4: Four pipe, for air conditioning
For example: TOL63R-AC2
TOL43-AC2
TOL43-AC4
Spec
2 Pipe
4 Pipe
Fan Speed
3 Fan speed+Auto
3 Fan speed+Auto
Timer Switch
optional
optional
√
√
Remote
controller
VII.Wiring Digram
123456789
LNHi
Mid
Low
NO NC
Val 1
2 pipe
123456789
LNHi
Mid
Low
NO NC
Val 1
4 pipe
NO NC
Val 2
AC230V 50/60HZ AC230V 50/60HZ
1. Setting Power on/off
Press to turn on/off the power.
4. Setting the System Mode
Then go into day programmable setting.
Press , 1 (for example) will flash in the position of 1234567.
5. Setting the Fan Speed
Press to select the fan speed.
In auto mode, the fan will run according to the comparison of room
temperature and set temperature.
Press , mm will flash in the position of hh: mm.
Press to adjust the minute.
6. Setting the Day Program Schedules.
Press to adjust the hour.
Press , period 1 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press , period 2 and hh will flash.
Press to select heating, cooling or ventilation.
is Low speed(Factory default);
is Mid speed;
is High speed;
is Auto speed.
Press and hold for 3 sec., hh will flash in the position of hh: mm.
Press to adjust the hour.
The above is the steps to set real time.
Press to adjust the week.
Press , period 1 and hh will flash.
Press to adjust the hour.
Press , period 2 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press , period 3 and hh will flash.
Press to adjust the hour.
Press , period 3 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press , period 4 and hh will flash.
Press to adjust the hour.
Press , period 4 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press , loop will display in the screen.
One day programmable setting is finished.
0:00 22℃
SET TEMP
1 2 3 4 5 6 7
28
℃
Power on/off
Mode Fan Up Down
Set Temp
Week
ROOM
TEMP
Room Temp
Heating
Cooling
Valve on
Timer on setting 1
Timer off setting 1 Timer on setting 2
Timer off setting 2
LCD Screen Thermostat
X. ATT:
Thank you for buying this product!
Please read this manual for complete instructions on installing and
operating your thermostat. If you require further assistance, please
feel free to contact us.
In the box you will find:
Thermostat
External sensor
User Manual
Screws
Our Service:
We offer the warranty of 24 months from the sales day.
During the warranty, if it is belong to the quality issue, we will fix or
replace them for you by free after test them.
If it is not quality problem or beyond the warranty time, we will
charge for the after-sales service.
TOL63R-AC
TOL63R-AC2
√
√
√
√
Model
PS: if you need remote controller,
you can order it seperately.
English version is available
BEOK
6. Setting the Regular Boot
Press for more than 3 seconds, after setting the time, press
until and “hh” twinkling. press to adjust the hours.
After the adjustment of hours, press until the “mm” twinkling, press
to adjust the minutes. After the completion of all adjustments ,press
to confirm, then does not twinkle, Regular boot setup is complete.
The operation of canceling Regular boot is the same, press to the
state of Regular boot, then pressing ,the is twinkling, Regular boot
has been canceled.
7. Setting the Off Timer
After the setting of Regular boot, press again, until and “hh” twinkling,
press to adjust the hours. After the adjustment of hours is complete,
press until the “mm” twinkling, press to adjust the minutes.
After the completion of all adjustment, press to confirm, then does
not twinkling, Off timer setup is complete.
The operation of canceling Off timer is the same, press to the state of
Off timer, then pressing , the is twinkling, Off timer has been canceled.
The setting of the third period and forth period are same with the first and
second period, the icons are (on, off/into the room, out of the house)
8. Setting the Circulation of Timer Switch
After setting the time of timer switch, press the ,there will be “LooP",
then press ,week display area will displays the day of the week, or
the transformation of “12345" “123456",or “1234567".
If the screen only displays the day of the week, then the timer switch setting
is valid only for the day.
If it displays “12345",then the timer switch is valid from Monday to Friday,
and Saturday and Sunday will be invalid.
If it displays “123456",then the timer switch is valid from Monday to Saturday,
and Sunday will be invalid. If it displays “1234567",then the timer switch
is valid everyday.
9.Advanced Setting Mode
Temperature Adjustment
(Attn: Only when your room temperature is different with actual temperature, you do this operation.)
In power-on status, press about 7 seconds, then “XX X” will display
on the bottom of the screen. For Example: “26 5” means temp is 26.5℃
then you can press to modify the temperature.
It will confirm automatically after correct temp twinkling 7 seconds.
Fan Coil Controlling Mode Setting(Only for 2 pipe)
(You can select the fan coil In control & Out of control.)
In “F00” mode, when room temperature reaches to the setted temp, the fan coil stops working.
In power-on status, press about 7 seconds, “XX X” will display on the bottom
of the screen, then continue to press again, “F00” or “F01” will display.
Press to choose “F00” or “F01”
In “F01” mode, when room temperature reaches to the setted temp, the fan coil goes on working.
IX. Installation Instruction
This product is suitable for standard 80*80mm wall box and 60 mm
european round box.
1.Connect the line of power and valve into the terminals. Fix the wall plate
into the wall box by a screw drive.
2.Connect the lines with the LCD board.
3.Connect the LCD board into the wall plate.
NOTICE: The installation wire should be 1.5-2.5mm2.

Other Beok Controls Thermostat manuals

Beok Controls TDR89 User manual

Beok Controls

Beok Controls TDR89 User manual

Beok Controls TDS21 User manual

Beok Controls

Beok Controls TDS21 User manual

Beok Controls TOL62A Series User manual

Beok Controls

Beok Controls TOL62A Series User manual

Beok Controls TGR87WIFI-WP User manual

Beok Controls

Beok Controls TGR87WIFI-WP User manual

Beok Controls TOL-48 User manual

Beok Controls

Beok Controls TOL-48 User manual

Beok Controls BOT-313 User manual

Beok Controls

Beok Controls BOT-313 User manual

Beok Controls WIFI-AC2 User manual

Beok Controls

Beok Controls WIFI-AC2 User manual

Beok Controls TDS21-AC User manual

Beok Controls

Beok Controls TDS21-AC User manual

Beok Controls TGT70WIFI-AC2 User manual

Beok Controls

Beok Controls TGT70WIFI-AC2 User manual

Beok Controls TGW60 User manual

Beok Controls

Beok Controls TGW60 User manual

Beok Controls TGR-86 User manual

Beok Controls

Beok Controls TGR-86 User manual

Beok Controls TDS23M User manual

Beok Controls

Beok Controls TDS23M User manual

Beok Controls TGT70 Technical manual

Beok Controls

Beok Controls TGT70 Technical manual

Beok Controls TDS23 User manual

Beok Controls

Beok Controls TDS23 User manual

Beok Controls TGP51 User manual

Beok Controls

Beok Controls TGP51 User manual

Beok Controls TDS21WIFI-AC2 User manual

Beok Controls

Beok Controls TDS21WIFI-AC2 User manual

Beok Controls TGR87 Series User manual

Beok Controls

Beok Controls TGR87 Series User manual

Beok Controls BOT-R315 User manual

Beok Controls

Beok Controls BOT-R315 User manual

Beok Controls BOT-205 User manual

Beok Controls

Beok Controls BOT-205 User manual

Beok Controls TGW60 Series User manual

Beok Controls

Beok Controls TGW60 Series User manual

Beok Controls TDS75 User manual

Beok Controls

Beok Controls TDS75 User manual

Beok Controls TGR-86 User manual

Beok Controls

Beok Controls TGR-86 User manual

Beok Controls TOL47 Series User manual

Beok Controls

Beok Controls TOL47 Series User manual

Beok Controls TGR87 Series User manual

Beok Controls

Beok Controls TGR87 Series User manual

Popular Thermostat manuals by other brands

OJ Electronics ETN4-1999 manual

OJ Electronics

OJ Electronics ETN4-1999 manual

Nexans MILLITEMP CDFR-003 User's manual & installation instructions

Nexans

Nexans MILLITEMP CDFR-003 User's manual & installation instructions

Computime SALUS Controls AT10 user manual

Computime

Computime SALUS Controls AT10 user manual

Honeywell FocusPRO 6000 Series Competitive comparison

Honeywell

Honeywell FocusPRO 6000 Series Competitive comparison

DELTA DORE Tybox 5701FP quick start guide

DELTA DORE

DELTA DORE Tybox 5701FP quick start guide

LUX TX9600TS user manual

LUX

LUX TX9600TS user manual

domat UI090 manual

domat

domat UI090 manual

Honeywell Y87RF installation guide

Honeywell

Honeywell Y87RF installation guide

BASETech 1539300 operating instructions

BASETech

BASETech 1539300 operating instructions

Robertshaw 9620 user manual

Robertshaw

Robertshaw 9620 user manual

White Rodgers 1F79 installation instructions

White Rodgers

White Rodgers 1F79 installation instructions

England's Stove Works 55-SHP22 installation guide

England's Stove Works

England's Stove Works 55-SHP22 installation guide

Aprilaire 8400 series owner's manual

Aprilaire

Aprilaire 8400 series owner's manual

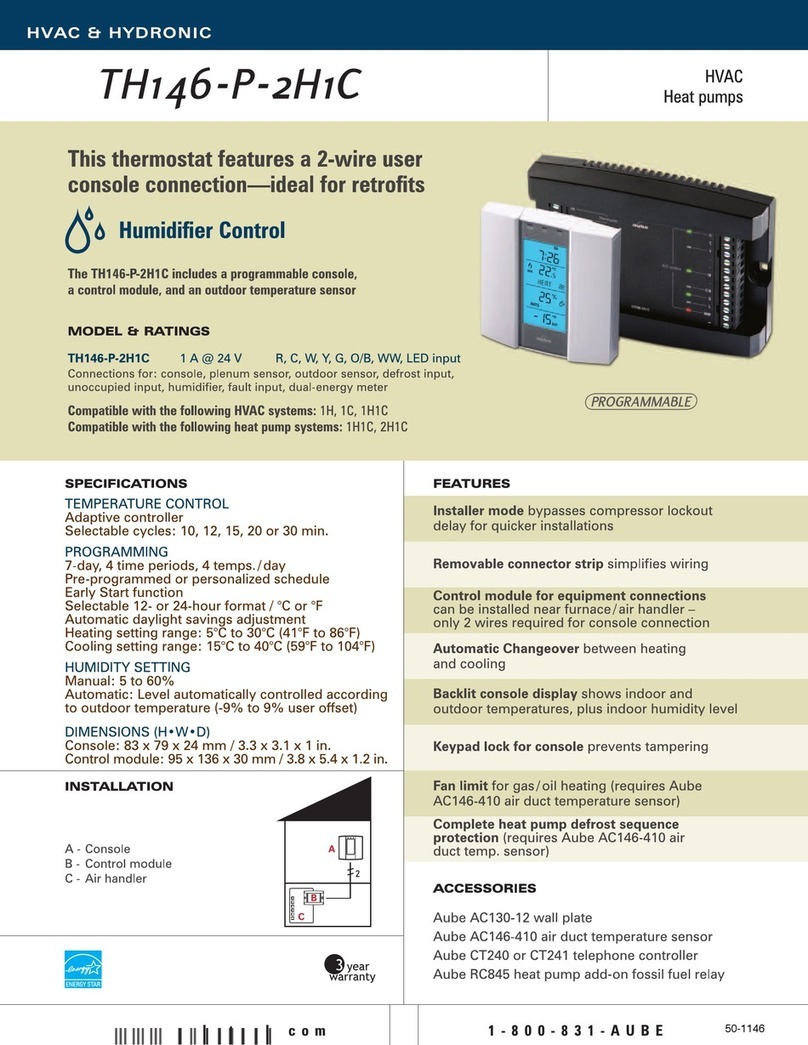

Aube Technologies TH146-P-2H1C specification

Aube Technologies

Aube Technologies TH146-P-2H1C specification

Gree WK-010PM owner's manual

Gree

Gree WK-010PM owner's manual

Honeywell RTH9590 user guide

Honeywell

Honeywell RTH9590 user guide

Desa GA3400T manual

Desa

Desa GA3400T manual

AirCycler g2-k Installation Testing Guide

AirCycler

AirCycler g2-k Installation Testing Guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
