Berkel 909AS User manual

Model 909AS
Combi Gravity Feed Slicer
Item #
Standard Features
➤Built-in, digital scale lets you slice/weigh to order; pound,
ounce or gram versions available
➤Side-mounted weight system uses an easy-to-read,
tower, vacuum florescent display
➤2-speed, 1/2 HP, totally enclosed and permanently
lubricated knife motor
➤Furnished in 115/60/1, 5.5/4.5 amp, AC, ETL listed; also
available in 1/3 HP, 230/60/1, 2.9 amp, AC, ETL listed
➤Low 12/5 VDC circuitry for added operator protection
➤Finish is stainless steel and sanitary burnished aluminum;
unit disassembles quickly without tools for easy cleaning
➤Nominal 12-1/2” (318 mm) diameter, hollow ground,
hardened and polished forged stainless steel knife
➤The carriage handles food up to 11” (280 mm) wide,
by 6” (152 mm) high or 8” (203 mm) diameter
➤Rear-mounted, stainless steel meat pusher extends over
the length of the product table
➤Precise slice adjustment to thickness of 27/32” (21 mm)
➤Ergonomic style handle for ease of use
➤Built-in, top-mounted, two stone knife sharpener with
single lever, dual-action system
➤Permanent, tapered knife ring guard covers non-slicing
portion of knife even when the sharpener and center
plate are removed
➤Center plate interlock prevents the slicer from running
when center plate is removed
➤No-Volt release prevents activation of the slicer in the
event of power interruption; operator must restart slicer
➤Gauge plate interlock prevents removal of the product
table until it is in the full forward or home position and the
gauge plate is fully closed; once table is removed, gauge
plate cannot be reopened
➤Built-in timer automatically shuts the slicer off after15
seconds of non-use
➤Q-P-Q nickel plated transport slide rod with reservoir
wick for reduced wear
➤On/off, 3-position, moisture protected switch
with power light
➤Attached 6-foot, flexible, 3-wire cord and plug for
grounded receptacle
Combi Gravity Feed Slicer Model 909AS
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX [phone] • www.berkel.com
Form #SPC09-0902N
Safety and Convenience Features
Berkel Model 909AS combi gravity feed slicer features a built-
in digital scale that lets you slice/weigh to order. available in
pound, ounce or gram versions. The side-mounted weight
system uses an easy-to-read, tower, vacuum florescent
display. Model 909AS includes Berkel’s time proven hollow
ground stainless steel knife, built-in, single lever, dual-action
sharpener and many safety features. The permanent, tapered
guard covers the non-slicing portion of the knife even when
the sharpener and center plate are removed. The gauge plate
interlock prevents the product table from being removed
unless it is in the full forward or home position and the gauge
plate is closed. Removing the product table locks the gauge
plate in the closed position. The center plate interlock prevents
the slicer from operating if the center plate is removed. A built-
in timer automatically shuts off the unit after 15 seconds of
non-use. Units are easy to clean and disassemble quickly
without tools.
Accessories
❏Stainless steel vegetable ❑ 4” Extension NSF
chute with pusher legs (set of 4)
❏Skewers with coring tool ❏SURE-LOCK LIFT™
❏Sharpening kit ❏Slaw tray
❏Receiving tray ❏Juice cup
❑ Product fence
Approved By:
Date
Options
❏1/3 HP, 230/60/1, 2.9 amp, AC, ETL listed
C

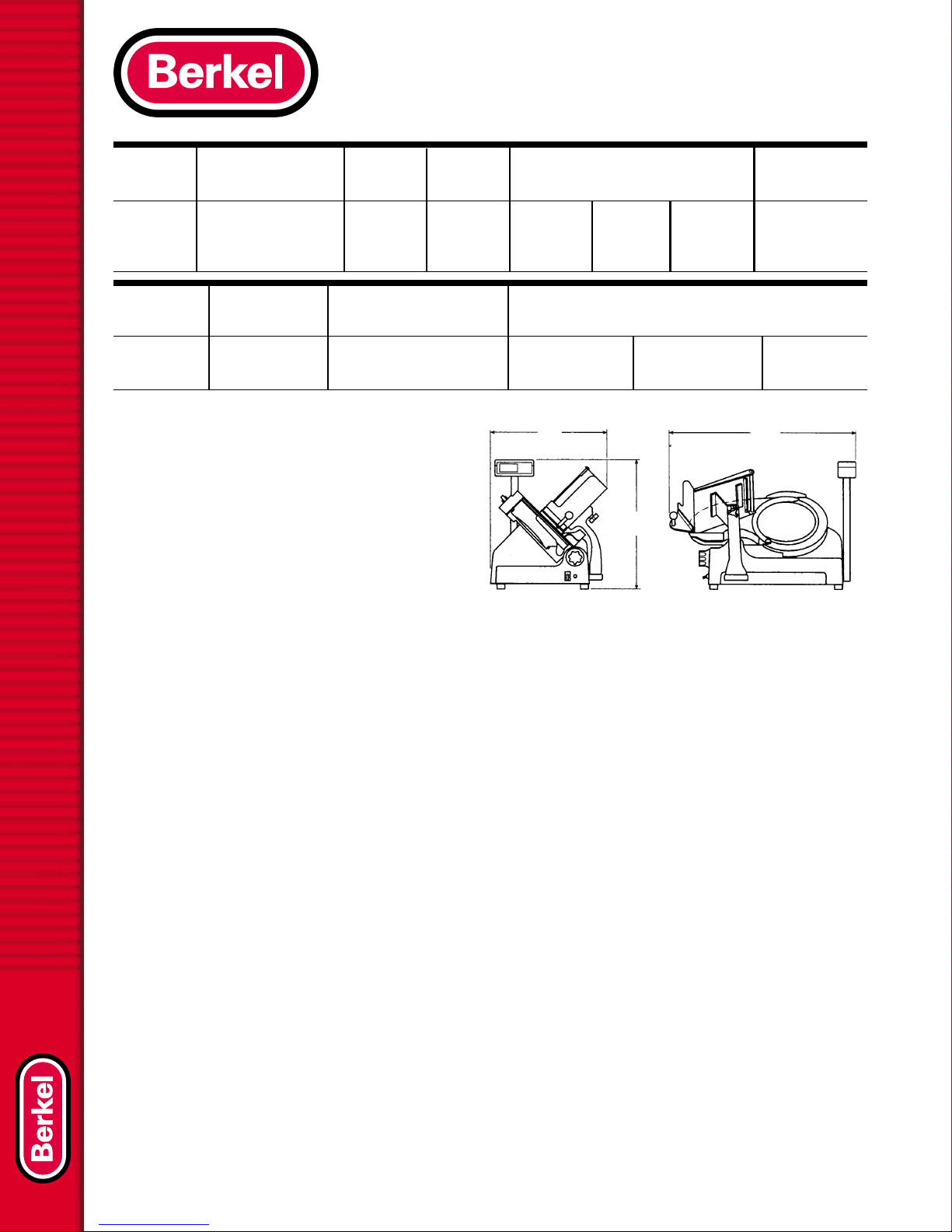

Model 909AS

Model No. Cutting Slice Knife Product Dimensions Scale
Capacity Thickness Diameter Width A Depth B Height C Capacity
909AS 11” (280 mm) wide to 27/32” 12-1/2” 19-3/4” 31” 21-1/2” 6 lb. x .01 lb.
6” (152 mm) high (21 mm) (318 mm) (502 mm) (787 mm) (546 mm) 96 oz. x .2 oz.
8” (203 mm) dia. 2,700 g. x 5 g.
Motor Electrical Weight Box Dimensions
Width Depth Height
2-speed 115/60/1 Net 94 lbs. (43 kg) 32” 30” 29-1/2”
1/2 HP Ship 130 lbs. (59 kg) (813 mm) (762 mm) (749 mm)
Form #SPC09-0902N Made in the U.S.A. © 2002 Berkel Company Litho in U.S.A.
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX [phone] • www.berkel.com
Combi Gravity Feed Slicer Model 909AS
Model 909AS
Combi Gravity Feed Slicer
Specifications
Digital weight system: Built-in, digital scale lets you
slice/weigh to order; capacity of 6 lb. x .01 lb., 96 oz. x
.2 oz. or 2,700 g. x 5 g. Side-mounted weight system
uses an easy-to-read, tower, vacuum florescent display.
Motor: 2 speed, 1/2 HP, totally enclosed, permanently
lubricated ball bearings, thermally protected.
Electrical: Furnished in 115/60/1, 5.5/4.5 amp, AC,
ETL listed. Also available in 1/3 HP, 230/60/1, 2.9 amp,
AC, ETL listed. Low 12/5 VDC circuitry for added
operator protection.
Finish/construction: All food contact areas are
stainless steel including the pusher, gauge plate,
product table, center plate and knife; sanitary burnished
aluminum ring guard and one-piece base with non-slip
feet. Slicer disassembles quickly without tools
for easy cleaning.
Knife: Nominal 12-1/2”(318 mm) diameter, hollow
ground, hardened and polished forged stainless steel.
Cutting Capacity: Carriage handles food up to
11”(280 mm) wide by 6”(152 mm) high or 8”
(203 mm) diameter.
Slice Thickness: Precision gear system with eccentric
gear to prevent backlash, provides infinite slice
adjustment and consistent cuts of hard or soft foods
from tissue thin to 27/32”(21 mm).
Full Gravity Feed: Full 45°angle feed requires less
mechanical pressure. Equipped with rear-mounted,
stainless steel meat pusher that covers the entire length
of the product table to hold product and minimize waste.
An optional screw-in weight is also available. Ergonomic
style handle for easy use.
Knife Sharpener: Built-in, top-mounted, two stone,
single lever, dual-action system for a lasting,
razor-sharp edge. Unit is removable and submersible
for easy cleaning.
Knife Ring Guard: Permanent, tapered guard covers non-
slicing portion of knife edge even when the sharpener and
center plate are removed.
Center Plate Interlock: Deactivates the slicer when center
plate is removed. Slicer will not run.
Gauge Plate Interlock: Prevents removal of table until
gauge plate is closed and the product table is in the full
forward or home position. Once product table is removed
the gauge plate is locked and cannot be opened.
No-Volt Release: Prevents activation of the slicer in the
event of power interruption; operator must restart slicer.
15 Second Timer: Built-in timer automatically shuts off the
slicer after 15 seconds on non-use.
On/Off Switch: Highly reliable, moisture resistant,
3-position switch activates the knife motor.
Q-P-Q Nickel Plated Transport Slide Rod with Reservoir
Wick: E-nickel plated rod undergoes Q-P-Q impregnation
increasing the lubricity of the stainless steel reducing wear
properties of the rod and bushings.
Cord and Plug: Attached 6-foot, flexible, 3-wire cord and
plug for grounded receptacle.
Warranty: All parts, service and travel coverage for one
year, excluding wear items.
As we continually strive to improve our products, specifications
are necessarily subject to change without notice.
C
AB
