Best WC23I User manual

Model WC23I
ENGLISH.....................................2
FRANÇAIS................................16
ESPAÑOL..................................30
In USA - BEST Hartford, Wisconsin
In CANADA - BEST Drummondville, QC, Canada
REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register
For additional Information visit www.BestRangeHoods.com

- 2 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have any questions,
contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch off power at service panel and lock panel to
prevent power from being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning device, such as a tag, to
the service panel.
3. Installation work and electrical wiring must be done by qualified person(s) in accordance
with all applicable codes and standards, including fire-rated construction.
4. Sufficient air is needed for power combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equip-
ment manufacturer’s guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or
filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will
result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher, and you already know how to
operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
!
INTENDED FOR DOMESTIC COOKING ONLY
!

- 3 -
!
CAUTION
1. For indoor use only.
2. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent
exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
3. Take care when using cleaning agents or detergents.
4. Avoid using food products that produce flames under the Range Hood.
5. For general ventilating use only. Do not use to exhaust hazardous or explosive materi-
als and vapors.
6. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall
spray, construction dust, etc. off power unit.
7. Your hood motor has a thermal overload which will automatically shut off the motor if it
becomes overheated. The motor will restart when it cools down. If the motor continues
to shut off and restart, have the hood serviced.
8. For best capture of cooking impurities, the bottom of the hood should be a minimum of
9-1/2" and a maximum of 15-1/2" above the cooking surface. See “Install Mounting
Bracket” section for mounting restrictions.
9. Two installers are recommended because of the large size and weight of this hood.
10. This product is equipped with a thermostat which may start blower automatically. To
reduce the risk of injury and to prevent power from being switched on accidentally,
switch power off at service panel and lock or tag service panel.
11. Please read specification label on product for further information and requirements.
12. Do not use the top of the hood as a shelf.

- 4 -
OPERATION
Controls
The hood is operated using the (5) push buttons located on the front edge of the
hood.
The Light Off/On switch turns the lights on to low intensity and turns them off.
The Light Dimmer switch alternates light intensity from low to high.
The Blower Off/Speed switch turns the blower off and changes blower speed to
four different speed settings: high, medium-high, medium-low and low speed.
Depress and hold the button for 2 seconds to turn the blower off.
The Blower On/Speed switch turns the blower on to four different speed settings:
Low, medium-low, medium-high and high speed.
The LED Display:
•Indicates blower speed selection from 1 (lowspeed) to 4 (high speed).
•Flashes the blower speed when the 10-minutes delay off has been
activated.
•After 30 hours of operation, the center segment of the display blinks and
remains lit, indicating that filters need to be cleaned.
The Time Delay switch activates a delay off feature. When pushed, the blower
will continue to operate at the current speed setting for 10-minutes before
automatically turning itself off.
The Filter Alarm Reset switch is used to reset the 30-hour filter timer. After filters
are cleaned or replaced, press this switch once to reset the filter clean alarm.
HEAT SENTRY™
Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a
device that will turn on or speed up the blower if it senses excessive heat above
the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original
setting.
WARNING
The HEAT SENTRY thermostat can start the blower even if the hood is turned
OFF. When this occurs, it is impossible to turn the blower OFF with its switch.
If you must stop the blower, do it from the main electrical panel.
Light Off/On
Light Dimmer
Blower Off/Speed
Blower On/Speed
LED Display
Time Delay/
Filter Alarm Reset

- 5 -
FUSE REPLACEMENT
IF LIGHTS FAIL TO OPERATE, DISCON-
NECT POWER AT THE SERVICE EN-
TRANCE. CHECK THE FUSE AND RE-
PLACE IF NECESSARY.
1. Pull out the glass door.
2. Locate the fuse holder. See Figure 2.
3. Unscrew the the fuse holder cap and re-
move the fuse. See Figure 2.
4. Replace the fuse with the same size and
amperage (5 x 20mm, 4 amp, 125 volt).
!
CAUTION: Use of a fuse greater than
4 amps may damage the transformer.
5. Reinstall the fuse cap and close glass
door.
6. Reconnect power at the service entrance.
FUSE
GLASS DOOR
HALOGEN BULBS
This range hood requires two halogen bulbs
(Type T3, 12V, 20Watt max, G-4 Base).
WARNING: Always switch off the elec-
trical supply before carrying out any op-
eration on the appliance.
To change bulbs:
1. Open the cover by prying from the proper
slots. See Fig. 1.
2. Remove the bulb by pulling sideways (DO
NOT ROTATE).
!
CAUTION: Bulb may be hot.
3. Replace with a T3, 12V, 20Watt max, G-4
base bulb. Do not touch replacement bulb
with bare hands!
!
CAUTION: Use of bulbs greater than
20 watts will cause fuse to open.
FIG. 1
FIG. 2

- 6 -
PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag (B080810699) containing:
1 - Mounting Bracket
1 - Discharge Collar
1 - Flue Mounting Bracket
8 - Mounting Screws (4.8 x 38mm Pan Head)
5 - Mounting Screws (3.9 x 9.5mm Pan Head)
4 - Mounting Screws (3.9 x 6mm Flat Head)
8 - Drywall Anchors
2 - Star Washers
1 - Mounting Screws (2.9 x 9.5mm Pan Head)
1 - Installation Instructions
1 - Warranty Card
MOUNTING
BRACKET
DISCHARGE
COLLAR
FLUE MOUNTING
BRACKET 8 MOUNTING SCREWS
(4.8 x 38mm Pan Head) 8 DRYWALL
ANCHORS
5 MOUNTING
SCREWS (3.9 x
9.5mm Pan Head)
DECORATIVE
FLUE
4 MOUNTING
SCREWS (3.9 x
6mm Flat Head)
2 STAR
WASHERS
MOUNTING
SCREW (2.9 x
9.5mm Pan Head)

- 7 -
ROOF CAP
6”
ROUND DUCT
DECORATIVE
FLUE
HOOD
WALL
CAP
6”
ROUND
ELBOW
INSTALL THE DUCTWORK
(DUCTEDHOODSONLY)
WARNIG: To reduce the risk of fire, use
only metal ductwork.
1. Decide where the ductwork will run
between the hood and the outside.
2. A straight, short duct run will allow the hood
to perform most efficiently.
3. Long duct runs, elbows, and transitions
will reduce the performance of the hood.
Use as few of them as possible. Larger
ducting may be required for best
performance with longer duct runs.
4. Install a roof or wall cap. Connect round
metal ductwork to cap and work back to-
wards hood location. Use duct tape to seal
the joints between ductwork sections.
6”
ADAPTER
FIG. 4
PLAN HOOD LOCATION
DUCTED and NON-DUCTED HOODS
CAUTION: Before installing the hood,
measure the height of the free standing
range or counter top back splash.
The bottom edge of the hood’s glass must
be mounted a minimum of 1/2” above the
top of the range or counter top
backsplash; and a minimum of 9-1/2”
above the cook top. Fig. 3.
FIG. 3
9-1/2” to 15-1/2”
ABOVE COOKING
SURFACE (SEE
“INSTALL
MOUNTING
BRACKET”
SECTION FOR
RESTRICTIONS
1/2” MINIMUM
BOTTOM EDGE OF
HOOD GLASS

- 8 -
33-1/2”
to
36-1/2”
INSTALL ELECTRICAL
DUCTED and NON-DUCTED HOODS
WARNING : Electrical wiring must be
done by a qualified person(s) in
accordance with all applicable codes and
standards. This range hood must be
properly grounded. Turn off electrical
power at service entrance before wiring.
1. Plan where the hood will be located above
the cooking surface and top of the range
or counter top back splash. Refer to the
“INSTALL MOUNTING BRACKET” and
“PLAN HOOD LOCATION” sections for
hood mounting heights.
2. Install a standard 2” x 4” wall outlet box
and 3-blade 125 volt, 15 amp grounded
receptacle. Figure 5.
3. Mount the outlet box 33-1/2” to 36-1/2”
above the bottom edge of the hoods glass.
4. Locate the box and the receptacle within
the boundary shown and off center of the
ductwork (to allow for power cord plug and
flue clearance).
FIG. 5
5-1/2”
11”
CENTER LINE
OF HOOD AND
DUCT

- 9 -
FRAMING BEHIND CROSS
SUPPORT
INSTALL MOUNTING
BRACKET
DUCTED and NON-DUCTED HOODS
1. Construct wood wall framing that is flush
with interior surface of wall studs.
Make sure:
a) the framing is centered over
installation location.
b) the height of the framing will allow the
mounting bracket to be secured to
the framing within the dimensions
shown.
2. After wall surface is finished, secure
mounting bracket to framing with (2) 4.8 x
38mm mounting screws. See chart below
for mounting bracket location.
WOOD CROSS
SUPPORT BEHIND
DRYWALL
HOOD DISTANCE ABOVE 36” HIGH COOK TOP (see note a)
15-1/2”
MOUNTING BRACKET LOCATION ABOVE 36” HIGH COOK TOP
44”
44”
CEILING HEIGHT
8-FOOT
9-FOOT
9-1/2” 10-1/2” 11-1/2” 12-1/2” 13-1/2” 14-1/2”
38” 39” 40” 41”
10- FOOT (see note b)
41”
39” 40” 41” 42” 43”
42” 43”
38”
Notes:
a. Distance above cook top must not be less than 9-1/2”.
A maximum of 15-1/2” is highly recommended for best capture of cooking
impurities.
Distances over 15-1/2” above the cook top are at the installers discretion-
providing that ceiling height and flue length permit.
b. Requires optional 10-foot flue extension, ducted model AEWC23SB or
AEWC23CB or non-ducted model AEWC23SBN or AEWC23CBN.
DRYWALL

- 10 -
INSTALL FLUE MOUNTING
BRACKET
DUCTED AND NON-DUCTED HOODS
1. Assemble the flue mounting bracket,
adjusting outside width as shown. Fig.6
2. At the ceiling, center the mounting-
bracket directly over the range hood.
3. Securethebracketassemblyto theceiling
using (2) 4.8x38mm mounting screws
and drywall anchors. Make sure the
bracket is pushed into the corner, tight
against the wall and centered over the
hood. Fig. 7.
FLUE MOUNTING
BRACKET
12-3/8”
FIG. 6
3.9 x 6 mm
FLAT HEAD
BRACKET SCREWS
FIG. 7
4.8x38mm
MOUNTING SCREWS
DRYWALL ANCHORS

- 11 -
DISCHARGE
COLLAR
FIG. 9
PREPARE THE HOOD
Note: On stainless steel hoods, carefully
remove the plastic protective film from all
exterior surfaces of the hood and
decorative flues, prior to final installation.
DUCTED HOODS ONLY
1. Remove the tape on the electrical system
plate. Mount the electrical system plate
attaching it with 3 mounting screws
(3.9x9.5mm) and 2 star washers (Fig. 8).
2. Install the discharge collar into the duct
connector of the range hood (Fig. 9).
DUCT
CONNECTOR
FIG. 8
ELECTRICAL
SYSTEM
PLATE
(3) 3.9 x 9.5
mm
MOUNTING
SCREWS
(2) STAR WASHERS

- 12 -
FIG.12
PLENUM
5” DUCT
5” to 6”
ADAPTER
BLOWER
COLLAR
PREPARE THE HOOD
NON - DUCTED HOODS ONLY
Note: The following materials must be purchased separately for non-ducted
recirculation installations.
•Non - Ducted Recirculation Kit, Model
ANKWC23.
FIG.10
ELECTRICAL
SYSTEM
PLATE
1. Remove the tape on the electrical system
plate. Mount the electrical system plate
attaching it with 3 mounting screws
(3.9x9.5mm) and 2 washers (Fig. 10).
2. Discard discharge collar/damper
supplied with the hood. Install the 5” to
6” adapter (supplied with the Non-Ducted
Recirculation Kit).
3. Secure the plenum to the flue mounting
bracket with (2) 3.9x6mm flat head
screws (the screws are supplied with the
Non-Ducted Recirculation Kit
“ANKWC23”). Fig. 11.
FIG.11
3.9x6mm
FLAT HEAD
SCREWS
PLENUM
FLUE MOUNTING
BRACKET

- 13 -
MOUNTING SCREWS
(4.8x38mm) FIG. 13
RECTANGULAR
CUTOUT
WALL FRAMING
MOUNTING
BRACKET
INSTALL THE HOOD
DUCTED AND NON-DUCTED HOODS
Note: at least two people will be required to mount the hood.
1. Raise the hood into its mounting position.
2. Align the rectangular opening on the back of the hood with the wall-mounting
bracket. Gently lower the hood until it securely engages the bracket. Fig. 13.
3. Secure the hood with (4) 4.8x38mm mounting screws. Use drywall anchors
provided if wall studs or framing are not available. Fig. 13.
4. On ducted hoods, attach 6” round metal duct between the hood’s blower collar
and duct that leads to the outside location.
5. On non-ducted hoods, attach 5” round metal expandable duct between the 5”-6”
adapter on the hood the connector on the plenum.
6. Tape all duct joints to make them secure and air tight.
7. Plug the power cord into the electric wall receptacle. Tuck excess cord behind
the flue.

- 14 -

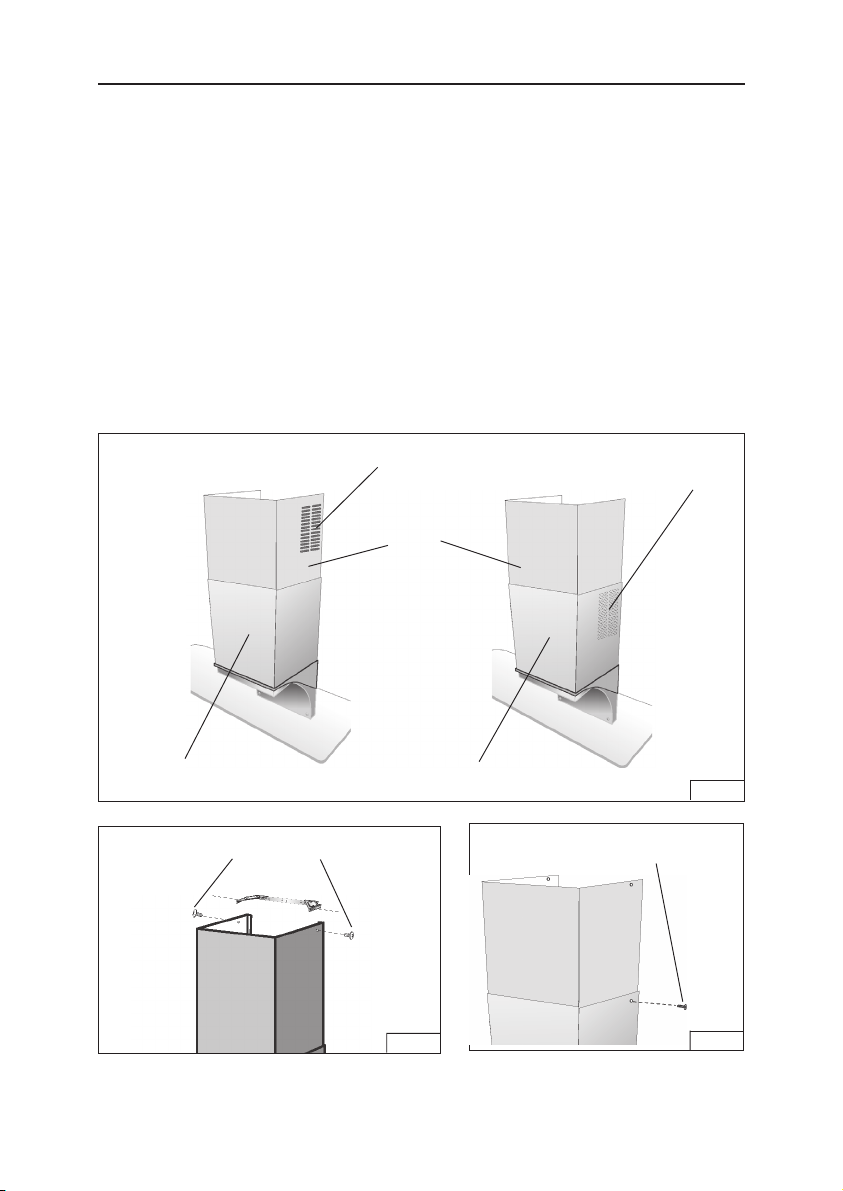

FIG.16
2.9x9.5mm
MOUNTING SCREW
LOWER
FLUE FIG. 14
UPPER
FLUE
UPPER FLUE
VENTS EXPOSED
INSTALL THE HOOD, cont’d
8. Carefully place the decorative flue on the hood. Fig. 14.
- On ducted installation in rooms with 8-foot ceilings, the air vents are
concealed. Install the flue with the air vents down.
- On non-ducted installations in rooms with 8-foot ceilings, the air vents are
exposed. Install the flue with the air vents up.
- On ducted and non-ducted installations in rooms with 9-foot ceilings, the
vents are exposed. Install the flue with air vents up.
ROOMS WITH 10-FOOT CEILINGS
Rooms with 10-foot ceilings require flue extension model AEWC23xB or non-
ducted model AEWC23xBN, available from your local dealer.
9. Discard the upper flue supplied with the product. Replace it with the flue
extension.
10. Raise the upper flue until its holes align with holes in the flue mounting bracket
(located on ceiling). Fig. 15.
11. Secure the flue with (2) 3.9x9.5mm mounting screws. Fig. 15.
12. Secure the lower flue to the upper flue with (1) 2.9x9.5mm mounting screw. Drill
the hole (1/16” Diameter) in the upper flue. Fig. 16.
LOWER
FLUE
UPPER FLUE
VENTS
CONCEALED
3.9x9.5mm
MOUNTING SCREWS
FIG.15

- 15 -
NON-DUCTED
RECIRCULATION
FILTER
GREASE
FILTER
FIG. 16
FIG. 15
INSTALL FILTERS
DUCTED and NON-DUCTED HOODS
1. To remove the GREASE filter, push in on
the metal latch tab. Tilt the filter
downward and remove. Fig. 15
2. To install the GREASE filter, align rear
filter tabs with slots in the hoods filter
frame. Push in the on the metal latch
tab, push filter into position and release.
Make sure the filter is securely engaged
after installation.
NON-DUCTED HOODS
Non-Ducted Recirculation Kit Model
ANKWC23 includes one charcoal filter.
Purchase additional non-ducted
recirculation filters (part number
SB03300501) from your local dealer.
1. To install the CHARCOAL FILTER,
position the edge against the springs
inside the filter frame channel. Pull filter
down and into position under the filter
frame on the opposite side. Fig. 16
2. To remove the CHARCOAL FILTER, pull
plastic tab down and pull filter out of filter
channel.
WARRANTY
ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will be free
from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found
to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT
BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does
not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence,
accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recom-
mended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not
allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S OPTION, SHALL BE THE PURCHASER'S
SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty
supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated below,
(b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of
requesting warranty service, you must present evidence of the original purchase date.
In USA - Best®, 926 W. State Street, Hartford, WI 53027 (800-558-1711)
In Canada - Best®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 (866-737-7770)
www.BestRangeHoods.com

- 16 -
LISEZ ET CONSERVEZ CES INSTRUCTIONS
AVERTISSEMENTS
POUR REDUIRE LES RISQUES D’INCENDIE, DE DECHARGES ELECTRIQUES OU
DE DOMMAGES AUX PERSONNES, OBSERVEZ LES INSTRUCTIONS SUIVANTES:
1. N’utilisezcet appareilque comme cela est indiqué par le constructeur. Sivous avezdes
problèmes,contactezlefabriquant àl’adresseouau numérodetéléphoneindiqués dans
lagarantie.
2. Avantde pourvoirà l’entretienou aunettoyage devotre appareil,éteignez-le autableau
descommandesoubloquezletableaudescommandesafind’éviterdelemettreenmarche
accidentellement.Sivous nepouvezpas bloquerlesystème permettantd’éteindrevotre
appareil,appliquezun avertissement extérieurd’unefaçon sure,commepar exemple un
panneau,sur le tableau des commandes.
3. L’assemblageet laconnexion électrique doivent être faits par des personnes qualifiées
enrespectant lesnormes etrèglements en vigueur, y compris les normes et règlements
concernantles possibilités d’incendie.
4. Ilestindispensablequ’ilyaitsuffisammentd’airpourquela combustion et l’évacuationdes
gaz à travers le tuyau du brûleur du combustible ait lieu sans retour de flamme. Suivez
lesindicationsdonnéesparlefabricantdubrûleurainsiquelesnormesdesécuritécomme
cellesquisontpubliéespar l’Association NationalepourlaProtectioncontreles Incendies
NationalFireProtectionAssociation(NFPA)etlaAmericanSocietyforHeating,Refrigeration
andAirConditioningEngineers(ASHRAE), et lesautoritéslocalesenmatière de normes.
5. Quandvous coupez ou percez destrous dansle mur ou le plafond, n’abîmez pasles fils
électriquesou autres.
6. Leventilateur canalisé doittoujours évacuer l’air vers l’extérieur.
7. N’utilisez pas cet appareil avec un appareil contrôlant la vitesse à état solide.
8. Afinde diminuer tout risque d’incendien’utilisez quedes conduits en métal.
9. Votre appareil doit être relié à la terre.
ATTENTION - POUR REDUIRE LES RISQUES D’INCENDIE DES MATIERES GRASSES
QUI SONT EN TRAIN DE CUIRE:
A. Ne laissez jamais ni vos éléments chauffants, ni vos casseroles ou poêles sur le feu
sans les contrôler si vous réglez l’apport de chaleur sur une position élevée. Si vos
casseroles ou poêles débordent cela provoque de la vapeur et des éclaboussures de
graisse qui peuvent prendre feu. Chauffez les huiles lentement à feu bas ou moyen.
B. Faites toujours fonctionner votre hotte quand vous cuisez à des températures élevées
ou quand vous cuisinez des plats flambés. (par ex. crêpes Suzette, Cerises “Jubilé”,
Steack au poivre flambé).
C. Nettoyez régulièrement les ailes de vos ventilateurs. Ne permettez pas que la graisse
s’accumule sur le ventilateur ou sur le filtre.
D. Utilisez des casseroles de taille appropriée. Utilisez toujours des ustensiles de cuisson
dont la taille est appropriée à la surface de votre élément de cuisson.
AVERTISSEMENTS
POURREDUIRELESRISQUES DE DOMMAGES AUX PERSONNES AUCASOÙVOTRE
CUISINIEREPRENDRAITFEU, OBSERVEZ LESINSTRUCTIONSSUIVANTES:*
1. ETEINDRE LES FLAMMES à l’aide d’un couvercle le plus hermétique possible, une
plaque à gâteaux, ou un plateau en métal, puis éteindre le brûleur. ATTENTION à NE
PAS VOUS BRÛLER. Si les flammes ne s’éteignent pas immédiatement, SORTEZ ET
APPELEZ LES POMPIERS.
2. NE PRENEZ JAMAIS EN MAIN UNE POÊLE OU UNE CASSEROLE QUI A PRIS FEU
- Vous pourriez vous brûler.
3. N’UTILISEZ PAS D’EAU, ni torchons ou serviettes mouillés - vous provoqueriez une
violente explosion de vapeur.
SEULEMENT POUR UTILISATION DOMESTIQUE
!!

- 17 -
4. Utilisez un extincteur SEULEMENT si:
A. Vous savez que vous avez un extincteur Classe ABC, et vous en connaissez déjà le
mode d’emploi.
B. Ce n’est pas un très gros incendie et qu’il se limite à l’endroi où il a explosé.
C. Vous êtes en train d’avertir les pompiers.
D. Vous avez la possibilité d’essayer d’éteindre l’incendie en ayant le dos tourné vers
une issue.
* D’après les “Suggestions concernant la Sécurité contre les incendies des cuisines”
publiées par NFPA.
ATTENTION
1. Pour usage intérieur seulement.
2. Pour réduire tout risque d’incendie et pour évacuer correctement l’air, assurez-vous de
prévoir un conduit de ventilation extérieur. Ne videz pas l’air dans les espaces limités
par des murs ou des plafonds, les combles, les passages étroits ou les garages.
3. Faites très attention quand vous utilisez des produits de nettoyage ou des détergents.
4. Évitez d’utiliser des aliments pouvant s’enflammer sous la Range Hood.
5. N’utilisez cet appareil que pour une ventilation générale. Ne l’utilisez pas pour évacuer
des matières ou des vapeurs dangereuses ou qui peuvent exploser.
6. Pour éviter de causer des dommages au moteur et de rendre les rotors bruyants et/ou
non équilibrés, évitez que les sprays pour murs secs, la poussière de construction
entrent en contact avec la partie électrique.
7. Le moteur de votre hotte a un thermostat qui éteindra automatiquement le moteur s’il est
surchauffé. Le moteur se remettra en marche lorsqu’il se sera refroidi. Si le moteur
continue à s’éteindre et à se remettre en marche, faites vérifier votre hotte.
8. Pour mieux capturer les impuretés de cuisine, le bas de votre hotte devrait être à une
distance minimum de 9-1/2” et à une distance maximum de 15-1/2” au-dessus du plan
de cuisson. Reportez-vous à la rubrique “Installation etrier d’assemblage” pour connaître
les restrictions concernant le montage.
9. Vu que cette hotte est grande et lourde, il est recommandé de confier l’installation de
cette hotte à deux personnes.
10. Ce produit est doté d’un thermostat qui active automatiquement le moteur. Pour réduire
le risque de dommages et éviter l’activation accidentelle, positionner l’interrupteur du
panneau de service sur la position OFF et bloquer le panneau de service ou mettre un
avertissement externe, par exemple une plaquette.
11. Nous vous recommandons de lire l’étiquette indiquant les caractéristiques de votre
hotte pour de plus amples informations et exigences.
12. N’employez pas le dessus du hotte comme étagère.
!

- 18 -
FONCTIONNEMENT
Commandes
La hotte fonctionne à l’aide de cinq (5) boutons-poussoirs situés sur le bord
antérieur de votre hotte.
L’interrupteur d’Éclairage Marche/Arrêt allume les lumières à la plus faible
intensité et les éteint.
Le Gradateur d’éclairage fait passer l’éclairage de faible à intense.
L’interrupteur de Ventilateur Arrêt/Régime arrête le ventilateur ou change sa
vitesse selon quatre régimes différents : élevé, moyen-élevé, moyen-faible et
faible régime. Si l’on maintient le bouton enfoncé pendant 2 secondes, le
ventilateur s’arrête.
L’interrupteur de Ventilateur Marche/Régime actionne le ventilateur ou change
sa vitesse selon quatre régimes différents : faible, moyen-faible, moyen-élevé et
élevé.
L’Indicateur DEL :
•Il indique la vitesse du ventilateur de 1 (régime faible) à 4 (régime élevé).
•Il indique en clignotant la vitesse du ventilateur lorsque la minuterie de
10 minutes est activée.
•Après 30 heures d’utilisation, le segment central de l’indicateur clignote
puis demeure allumé, indiquant que les filtres doivent être nettoyés.
L’Interrupteur de minuterie actionne un dispositif de minuterie qui se trouvait
désactivé. Lorsque l’on appui sur ce bouton, le ventilateur continue à fonctionner
pendant 10 minutes au régime réglé, puis s’arrête automatiquement.
Le bouton de Réamorçage de l’alerte de filtre remet le compteur de 30 heures
à zéro pour les filtres. Après avoir nettoyé ou remplacé les filtres, appuyez une
fois sur ce bouton pour remettre l’alerte à zéro.
HEAT SENTRYMC
Votre hotte est munie d’un thermostat HEAT SENTRYMC. Ce thermostat est un
dispositif qui actionnera ou augmentera la vitesse du ventilateur s’il détecte une
chaleur excessive au-dessus de la surface de cuisson.
1) Si le ventilateur n’est pas en marche - il actionnera le ventilateur en haute
vitesse.
2) Si le ventilateur fonctionne en basse vitesse - le ventilateur tournera en haute
vitesse.
Lorsque la température revient à la normale, le ventilateur retourne à sa vitesse
d’origine.
AVERTISSEMENT
Le thermostat HEAT SENTRYMC peu actionner la hotte même si la hotte est
arrêtée. Si tel est le cas, il est impossible de l’arrêter avec l’interrupteur. Si
vous devez arrêter le ventilateur, faites-le à partir du panneau électrique
principal.
Éclairage
Marche/ArrêtGradateur
d’éclairage
Ventilateur
Arrêt/Régime
Ventilateur
Marche/Régime
Indicateur DEL
Minuterie/
Réamorçage de
l’alerte de filtre

- 19 -
PORTE VITRÉE
AMPOULES HALOGENES
Ce modèle de hotte veut deux (2) ampoules
halogènes (Type T3, 12Volt, 20Watt max, G-
4 Base).
ATTENTION: avant de procéder à
quelconque opération, débranchez
l’appareil.
Pour changer les ampoules:
1. Ouvrez le couvercle en faisant levier grâce
aux fissures prévues à cet effet.
Voir Fig. 1.
2. Retirez l’ampoule en tirant latéralement.
(NE LA FAITES PAS TOURNER).
ATTENTION: l’ampoule peut être
chaude.
3. Remplacer par une ampoule ayant les
mêmes caractéristiques (T3, 12Volt,
20Watt max, G-4 base). Ne touchez pas
l’ampoule neuve de vos mains nues.
ATTENTION: L’utilisation d’ampoules
de plus de 20 watts provoquera
l’ouverture du fusible.
FUSIBLE
FIG. 1
REMPLACEMENT DE
FUSIBLE
SI LA LUMIÈRE NE FONCTIONNE PAS,
DÉCONNECTEZ LA PUISSANCE À
L’ENTRÉE DU BRANCHEMENT.
VÉRIFIEZ LE FUSIBLE ET REMPLACEZ-
LE SI NÉCESSAIRE.
1. Retirez la porte vitrée.
2. Repérez le porte-fusible. Voir Figure 2.
3. Dévissez la tête du porte-fusible et retirer
le fusible. Voir Figure 2.
4. Remplacez le fusible par un fusible de
même taille et de même intensité (5 x
20 mm, 4 amp, 125 volts).
!
ATTENTION : L’utilisation d’un
fusible de plus de 4 amps peut
endommager le transformateur.
5. Remettez la tête de fusible en place et
refermez la porte vitrée.
6. Reconnectez l’alimentation à l’entrée du
branchement.
FIG. 2

- 20 -
8 VIS D’ASSEMBLAGE
(4.8 x 38mm Tête ronde) 8 CHEVILLES
5 VIS
D’ASSEMBLAGE
(3.9 x 9.5mm
Tête ronde)
4 VIS
D’ASSEMBLAGE
(3.9 x 6mm Tête
plate)
2 RONDELLES
ÉVENTAILS
VIS
D’ASSEMBLAGE
(2.9 x 9.5mm Tête
ronde)
PREPAREZ LA HOTTE
Enlever la hotte dans l’emballage et controller le
contenu.
Vous devez recevoir :
1 - Hotte
1 - Conduit décoratif
1 - Sachet (B080810699) avec:
1 - Étrier d’assemblage
1 - Collier d’évacuation
1 - Étrier de support
8 - Vis d’assemblage (4,8 x 38mm Tête ronde)
5 - Vis d’assemblage (3,9 x 9,5mm Tête ronde)
4 - Vis d’assemblage (3,9 x 6 mm Tête plate)
8 - Chevilles
2 - Rondelles éventail
1 - Vis d’assemblage (2.9 x 9.5mm Tête ronde)
1 - Instructions pour l’installation
1 - Garantie
ETRIER
D’ASSEMBLAGE
COLLIER
D’EVACUATION
ETRIER DE SUPPORT
CONDUIT
DECORATIF
Table of contents
Languages:
Other Best Ventilation Hood manuals

Best
Best PKEX2238SS User manual

Best
Best KA 2000 User manual

Best
Best UCB3I Series User manual

Best
Best Best K273 User manual

Best
Best Best WPD28I User manual

Best
Best WBF4I User manual

Best
Best UP27M42SB User manual

Best
Best KB 700 XS 90 VB User manual

Best
Best P195ES52SB User manual

Best
Best KB 300 User manual

Best
Best WM24I User manual

Best
Best WM43I80 User manual

Best
Best K7788 User manual

Best
Best Pro-Style UP26 Series User manual

Best
Best K9388 User manual

Best
Best DDEX30SS User manual

Best
Best WTT32I3 User manual

Best
Best CP35I429SB User manual

Best
Best WTT32I Series User manual

Best
Best K3139 Series User manual
