INSTALLATION MANUAL
ENGLISH
SIGNAL INDICATIONS
Signal Heard Meaning
1 Short beep Indicates that a key has been pressed
1 Long beep Code entered correct/ memorisation on control unit
3 Short beeps Code incorrect/error
RED led xed after the correct code is entered Battery exhausted
1) GENERAL OUTLINE
The Q.BO TOUCH is a 10-channel transmitter. Each
channel is associated with a code to be typed on the
keyboard.
The transmitter is powered by batteries, therefore
no wired electrical connection is needed. The Q.BO
TOUCH is provided with touch keys; for any operation,
it must be activated by means of the ON key. It can
manage up to 100 dierent CODES (each CODE con-
sists of a sequence of min. 4 and max. 7 gures) and up
to 10 dierent activation CHANNELS, each CHANNEL
corresponding to a dierent control unit installed (e.g.
sliding gate opening with channel 1 and overhead
door opening with channel 2). The Q.BO TOUCH has a
sensor which, in case of poor light, activates keyboard
lighting to make it easier to enter the code.

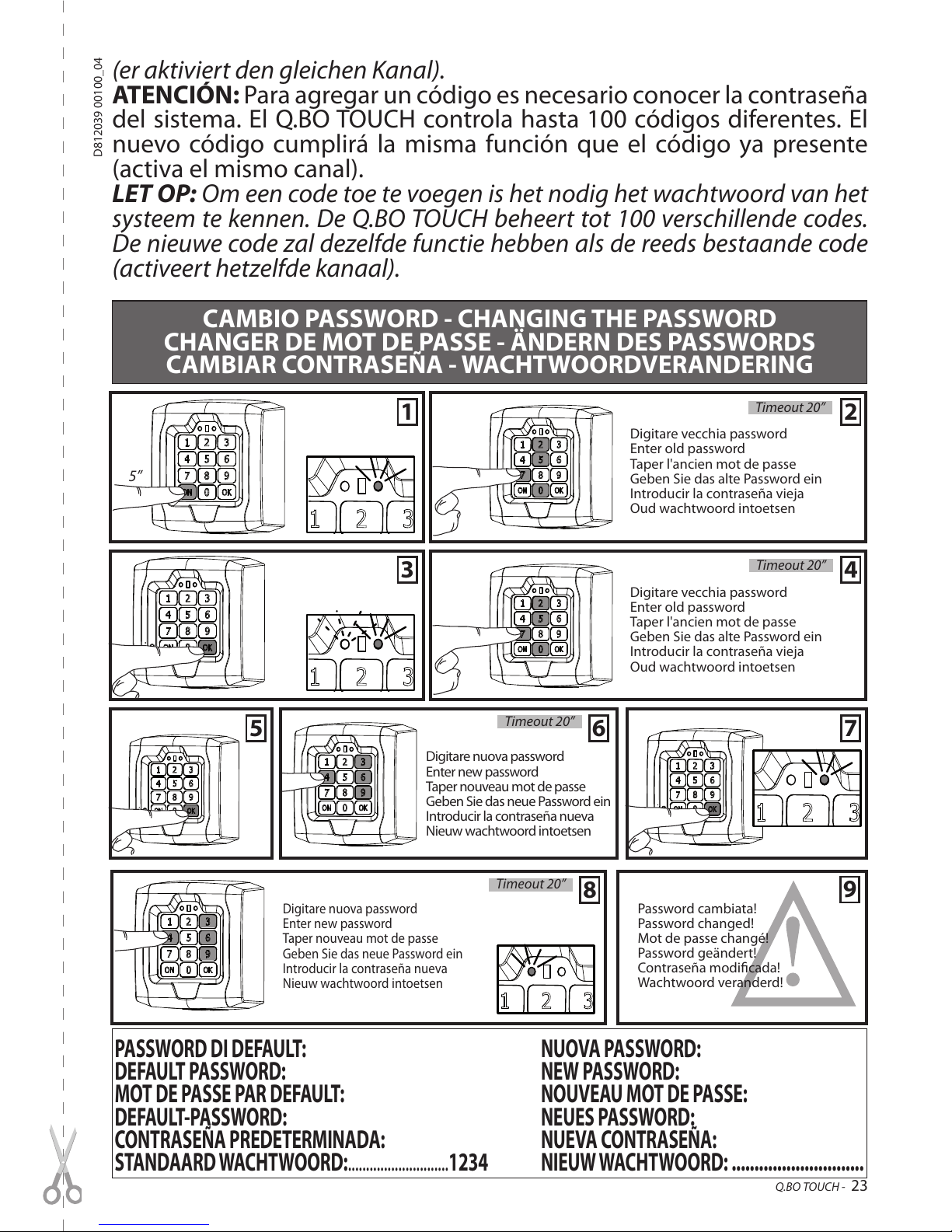

For reasons of system safety, in order to add an ena-
bled code, it is necessary to enter a password (default
1234). Such password can be changed and must be
remembered by the user.
WARNING: Keeptheanti-tamperAllenkeyprovided
in the kit.
2) TECHNICAL SPECIFICATIONS
Batteries 2X CR123A min.1400mAH
Working temperature:
-10 +55 °C
No. of channels: 10
Frequency: 433.92 MHz
Transmission: Rolling Code
Range:
100m
in open eld
(*)
Degree of protection:
IP55
Dimensions Fig. A
(*) The range can be aected by environmental and
installation conditions.
3) INSTALLATION (Fig.B points 1-6)
WARNING: think carefully about the installation site.
Structures made from ferrous material could have an
adverse eect on the Q.BO TOUCH’s operation.
-------------------------------------------------------------------
4) MEMORIZING ON CONTROL UNIT/RECEIVER
(Fig.C points 1-5).

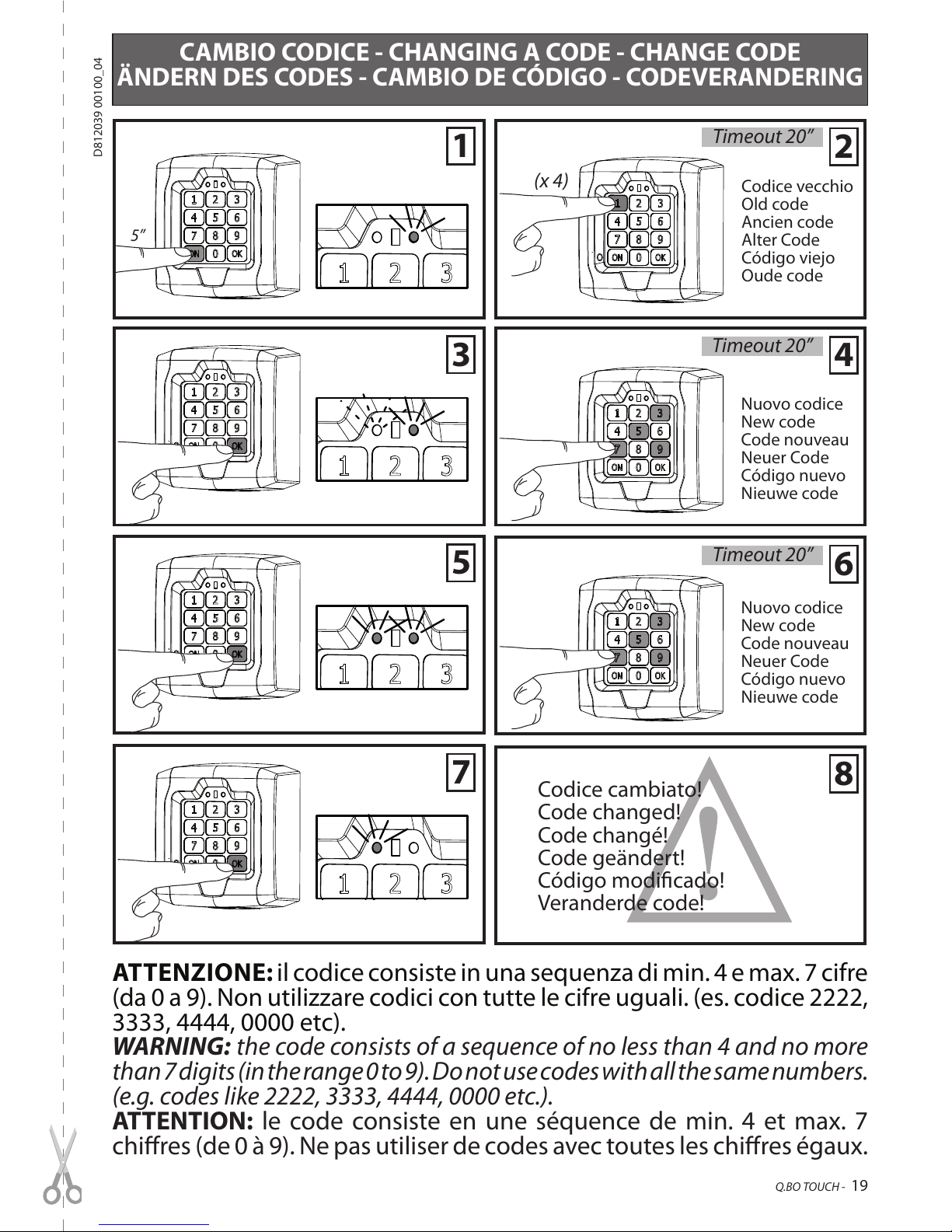

To control a number of control units separately, use a dif-
ferent channel for each, entering the default codes.
Once that is done, change the codes.
-Change 1111 to 56561
-Change 2222 to 56562
-Change 3333 to 56563
This makes it easier to remember the code as 5656 fol-
lowed by the function number (1 for sliding gate, 2 for
overhead door A, 3 for overhead door B), therefore:

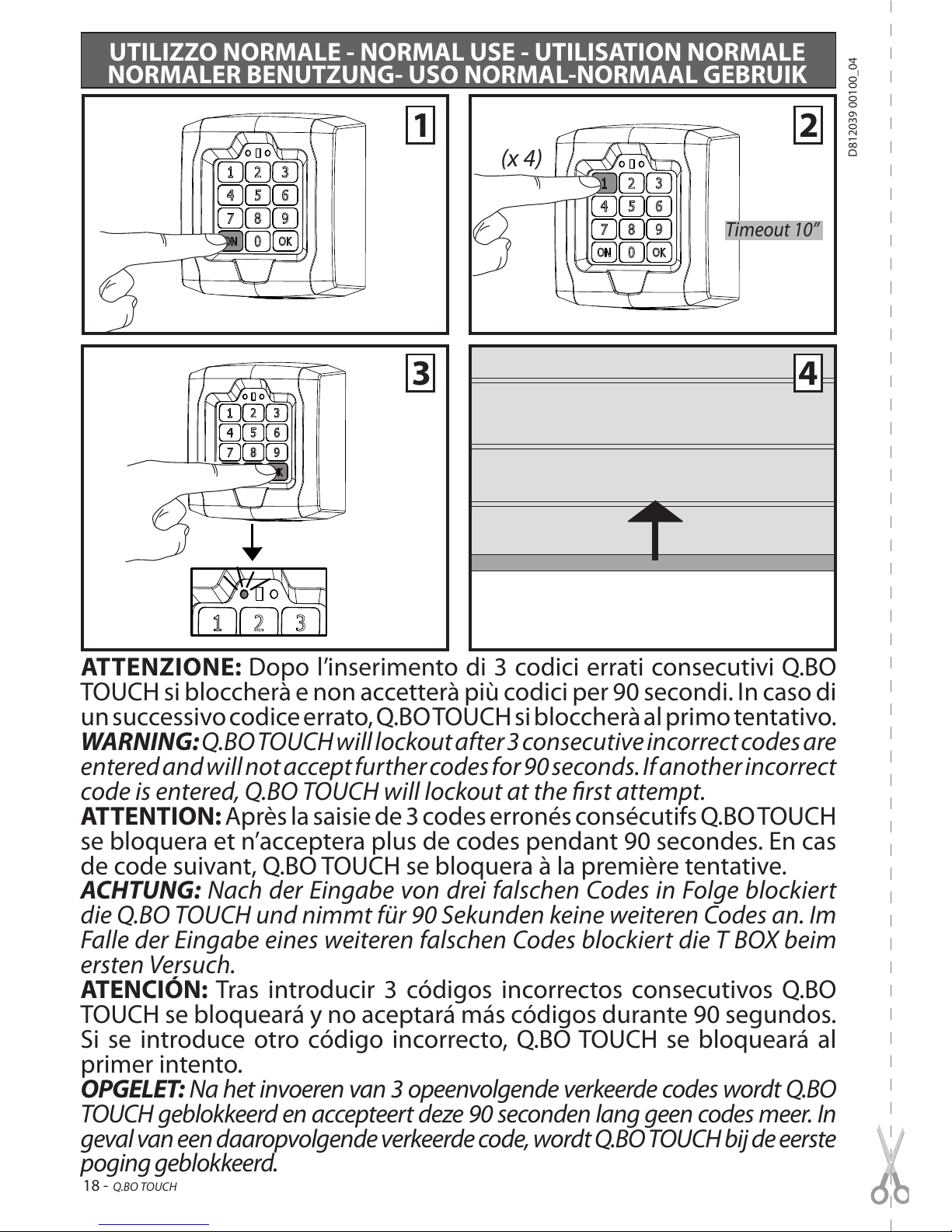

-ON -> 56561OK -> opens the sliding gate
-ON -> 56562OK -> opens overhead door A
-ON -> 56563OK -> opens overhead door B

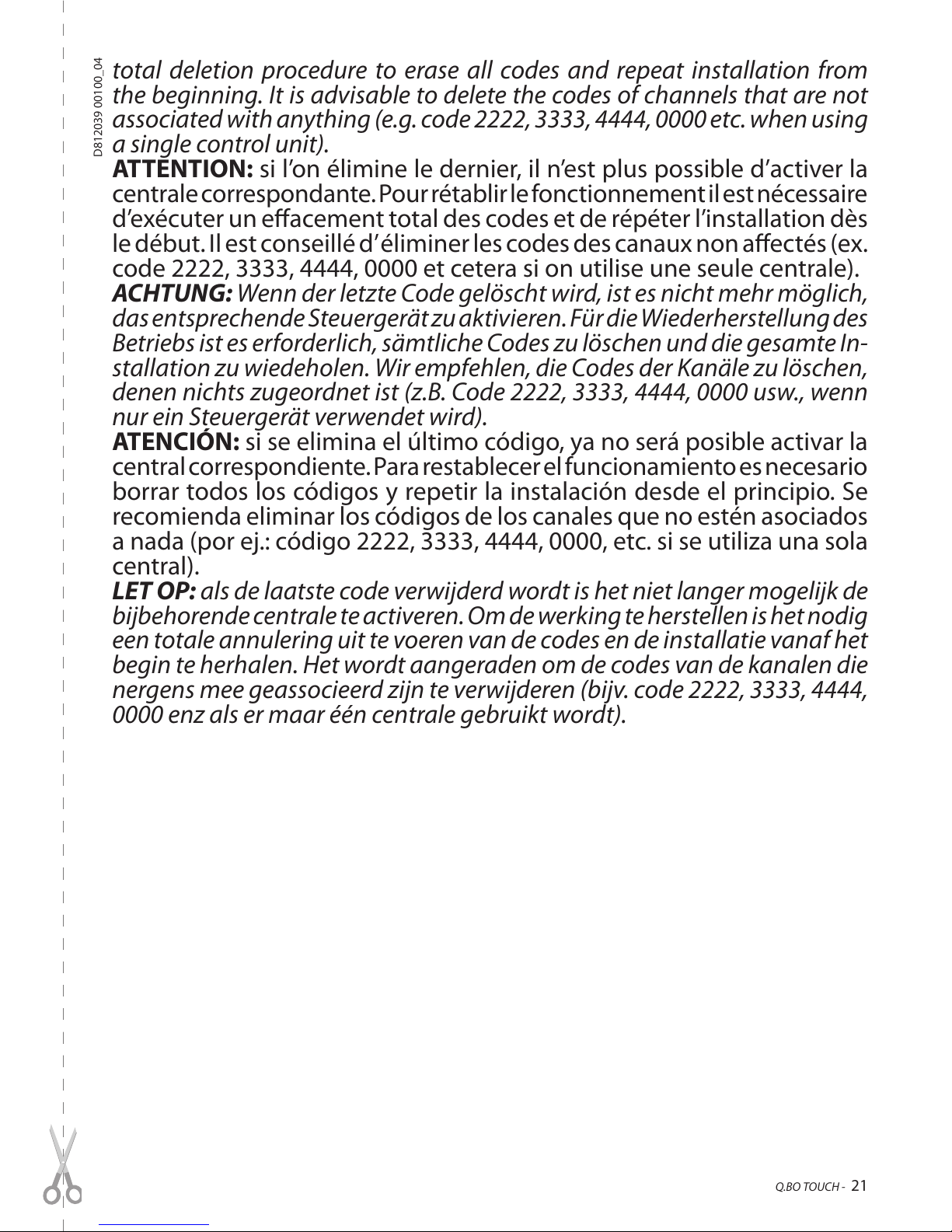

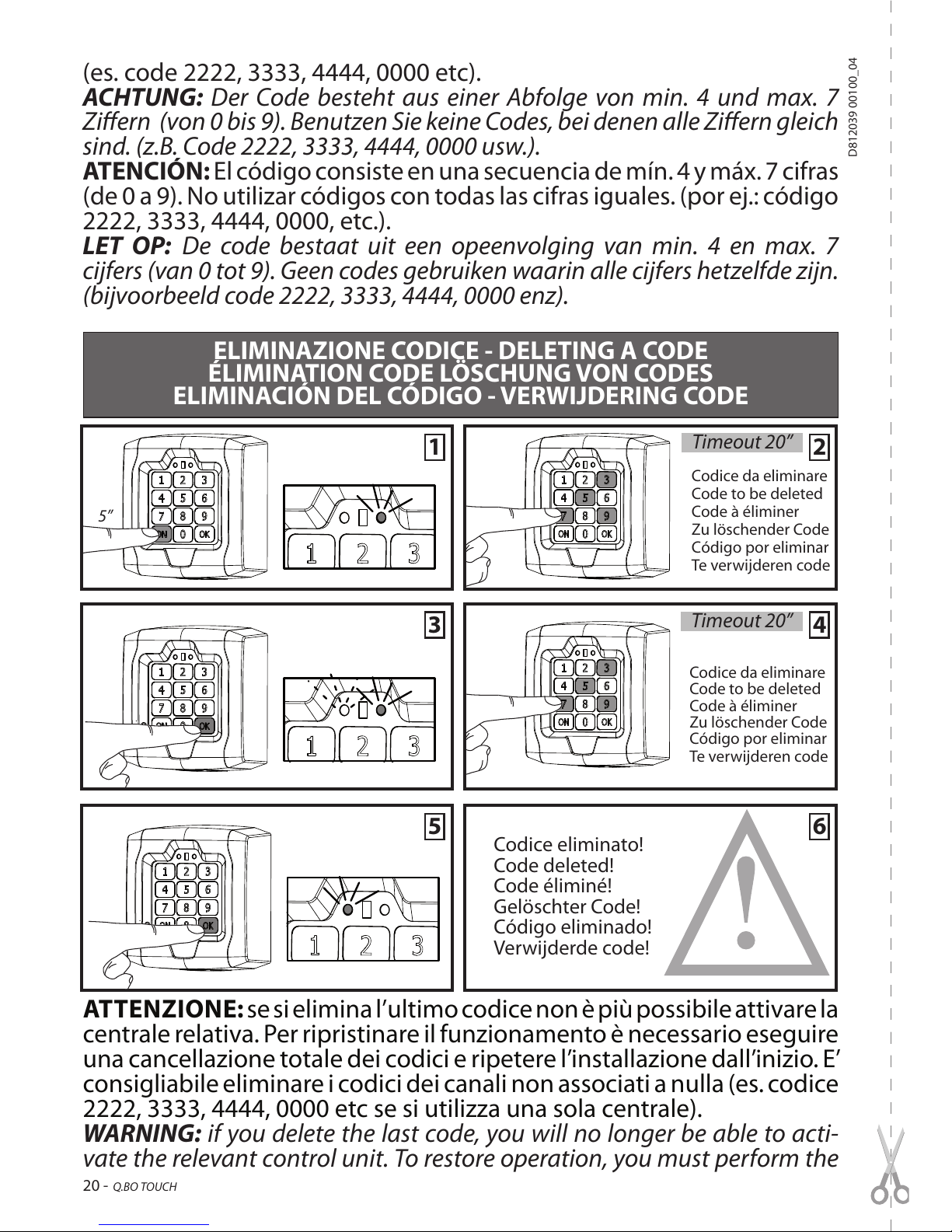

5) TOTAL DELETION OF CODES (Fig.D points 1-5)
Following the total deletion of all codes, Q.BOTOUCH will
need to be memorized again on the control unit.
RED indicator LED
Green indicator LED
ON and function key
Key to conrm operation
Numerical keypad
8 - Q.BO TOUCH
D812039 00100_04
