BFT Q.BO Touch User manual

INSTALLATION MANUAL
D812039 00100_02 03-12-13

 
Q.BO TOUCH
Q.BO TOUCH
Caution! Read “Warnings” inside carefully!
PROGRAMMABLE DIGITAL PUSHBUTTON PANEL

V2
6
OR Ø67x2
V1
1
A B
2
3
6
4
5
V1
4,8
32
V2
3,5
13
40
80
87,3
QUICK INSTALLATION INSTALLATION
2 - Q.BO TOUCH
D812039 00100_02

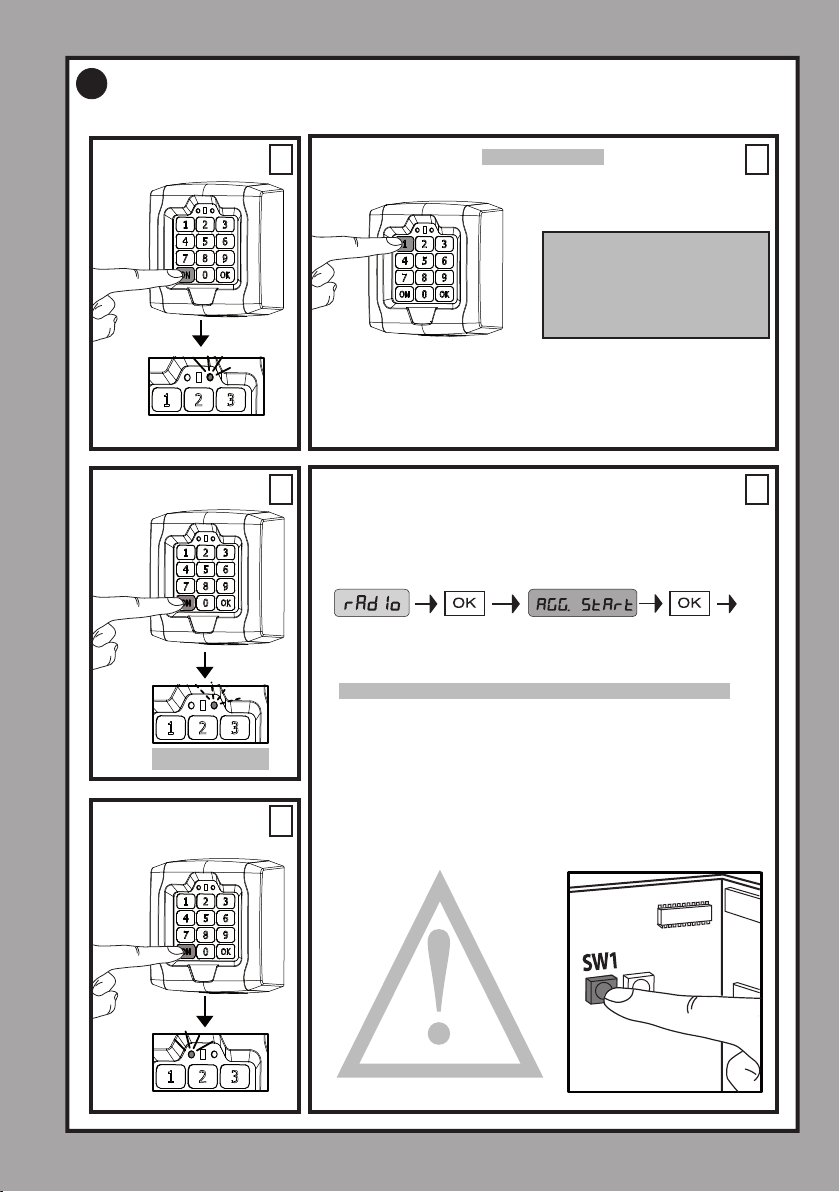

MEMORIZING ON CONTROL UNIT
C
(beep x 2)
(x 4)
---> 1111= CH 1
---> 2222= CH 2
---> 3333= CH 3
---> 4444= CH 4
---> 5555= CH 5
Control units with display
Receivers
Comply with the instructions relating to the
receiver/control unit used!
Timeout 20’’
Timeout 20’’
Timeout 5 min.
1 2
3
5
4
---> 6666= CH 6
---> 7777= CH 7
---> 8888= CH 8
---> 9999= CH 9
---> 0000= CH 0
Key in code: 1111, ........, 0000.
5’’
2 - Q.BO TOUCH Q.BO TOUCH - 3
D812039 00100_02

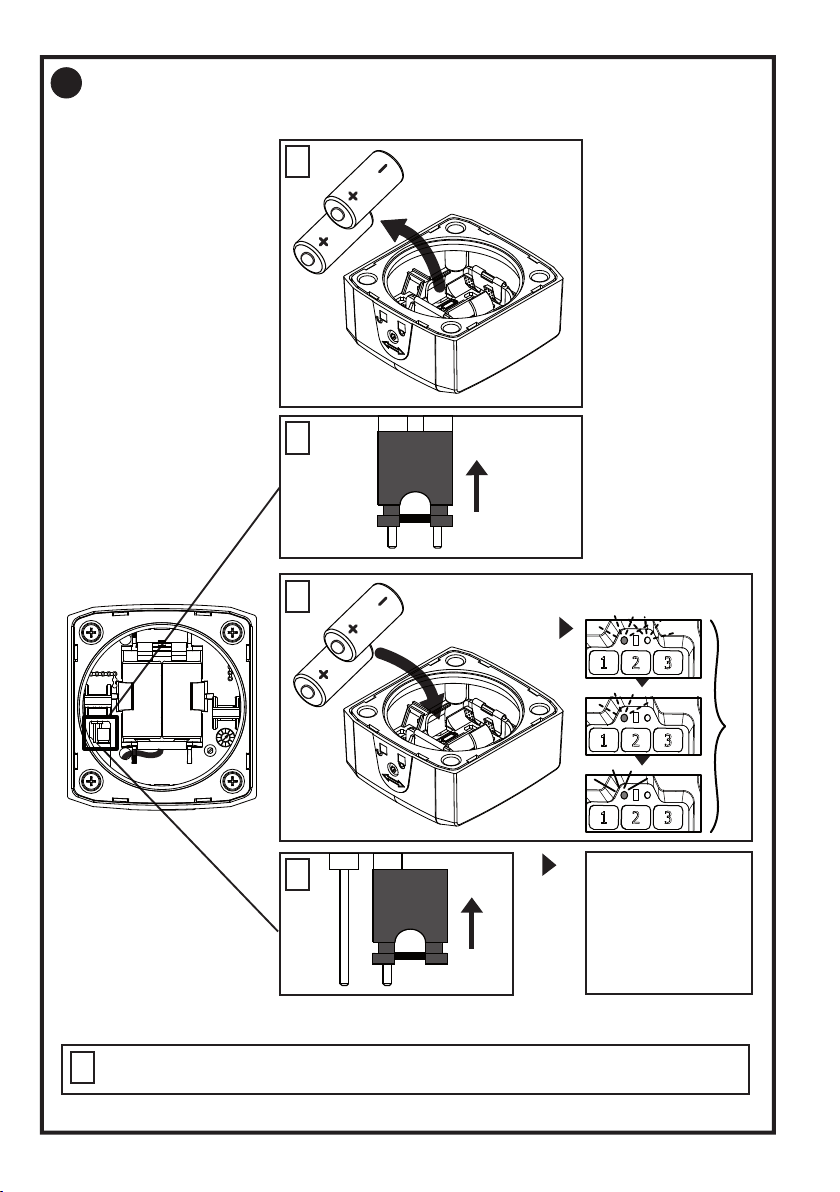

TOTAL CANCELLATION OF CODES
LED state: unlit.
10”
MEMORY CANCELLED
JP1
JP1
1
D
2
3
4
5
Series of beeps
4 - Q.BO TOUCH
D812039 00100_02

INSTALLER WARNINGS ENGLISH
GENERAL OUTLINE
Thank you for buying this product, our Company is sure
that you will be more than satised with the product’s
performance.Theproductissuppliedwitha“Warnings”
leaetandan“Instructionbooklet”.Theseshouldboth
bereadcarefullyasthey provideimportant information
about safety, installation, operation and maintenance.
This product complies with the recognised technical
standards and safety regulations. We declare that this
product is in conformity with the following European
Directives: 99/5/CEE (and subsequent amendments).
GENERAL SAFETY
WARNING! An incorrect installation or improper
use of the product can cause damage to persons,
animals or things.
• Scrappacking materials (plastic, cardboard, poly-
styrene etc) according to the provisions set out by
current standards. Keep nylon or polystyrene bags
out of children’s reach.
• Keep the instructions together with the technical
brochure for future reference.
• This product was exclusively designed and ma-
nufactured for the use specied in the present
documentation. Any other use not specied in this
documentation could damage the product and be
dangerous.
• The Company declines all responsibility for any
consequences resulting from improper use of the
product, or use which is dierent from that expected
and specied in the present documentation.
• Donotinstalltheproductinexplosiveatmosphere.
• Onlyuseoriginalpartsforanymaintenanceorrepair
operation.
• Instructtheproductuseraboutthecontrolsystems
provided and the manual opening operation in case
of emergency.
• Keepradiocontrolorothercontroldevicesoutof
children’s reach, in order to avoid unintentional
automation activation.
• Theusermustavoidanyattempttocarryoutworkor
repair on the automation system, and always request
the assistance of qualied personnel.
• Anythingwhichisnotexpresslyprovidedforinthe
present instructions, is not allowed.
• Ifspecialprecautionsarerequiredtoavoidhazards
duringdeviceoperations,installation,maintenance,
transportorstorage,thenecessaryinstructionsmust
be provided.
MAINTENANCE
System maintenance is to be regularly carried out
by qualied personnel.
When the Q.BO TOUCH unit’s Red LED ashes after en-
tering the correct code, it means the batteries are low.
Repeat the installation procedure in reverse and have
the batteries replaced.
WARNING! EXPLOSION HAZARD IF THE BAT-
TERY IS REPLACED WITH AN INCORRECT TYPE.
DISCARD BATTERIES ACCORDING TO CURRENT
REGULATIONS.
DISPOSAL
ATTENTION: disposal should only be carried out by
qualied personnel.
Materials must be disposed of in conformity with the
current regulations. In case of disposal, the system
componentsdonot entailanyparticular risks ordanger.
In case of recovered materials, these should be sorted
outby type (electricalcomponents,copper, aluminium,
plastic etc.)
The descriptions and illustrations contained in the
present manual are not binding. The Company
reserves the right to make any alterations deemed
appropriate for the technical, manufacturing and
commercial improvement of the product, while
leaving its essential features unchanged, at any
timeandwithoutundertakingtoupdatethepresent
publication.
6 - Q.BO TOUCH Q.BO TOUCH - 7
D812039 00100_02

INSTALLATION MANUAL
ENGLISH

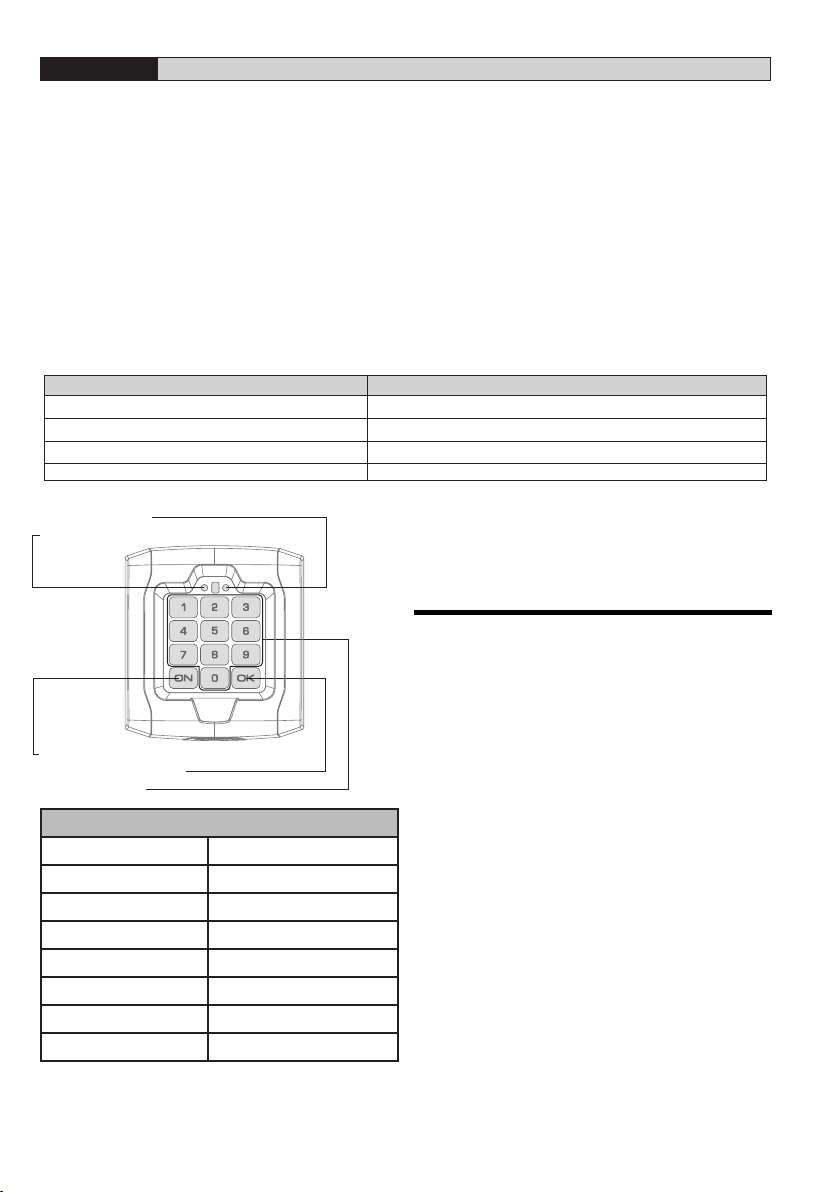

SIGNAL INDICATIONS
Signal Heard Meaning
1 Short beep Indicates that a key has been pressed
1 Long beep Code entered correct/ memorisation on control unit
3 Short beeps Code incorrect/error
RED led xed after the correct code is entered Battery exhausted
1) GENERAL OUTLINE
The Q.BO TOUCH is a 10-channel transmitter. Each
channel is associated with a code to be typed on the
keyboard.
The transmitter is powered by batteries, therefore
no wired electrical connection is needed. The Q.BO
TOUCH is provided with touch keys; for any operation,
it must be activated by means of the ON key. It can
manage up to 100 dierent CODES (each CODE con-
sists of a sequence of min. 4 and max. 7 gures) and up
to 10 dierent activation CHANNELS, each CHANNEL
corresponding to a dierent control unit installed (e.g.
sliding gate opening with channel 1 and overhead
door opening with channel 2). The Q.BO TOUCH has a
sensor which, in case of poor light, activates keyboard
lighting to make it easier to enter the code.
For reasons of system safety, in order to add an ena-
bled code, it is necessary to enter a password (default
1234). Such password can be changed and must be
remembered by the user.
WARNING:Keeptheanti-tamperAllenkeyprovided
in the kit.
RED indicator LED
Green indicator LED
ON and function key
Key to conrm operation
Numerical keypad
2) TECHNICAL SPECIFICATIONS
Batteries 2X CR123A min.1400mAH
Working temperature: -10 +55 °C
No. of channels: 10
Frequency: 433.92 MHz
Transmission: Rolling Code
Range: 100m in open eld (*)
Degree of protection: IP55
Dimensions Fig. A
(*) The range can be aected by environmental and
installation conditions.

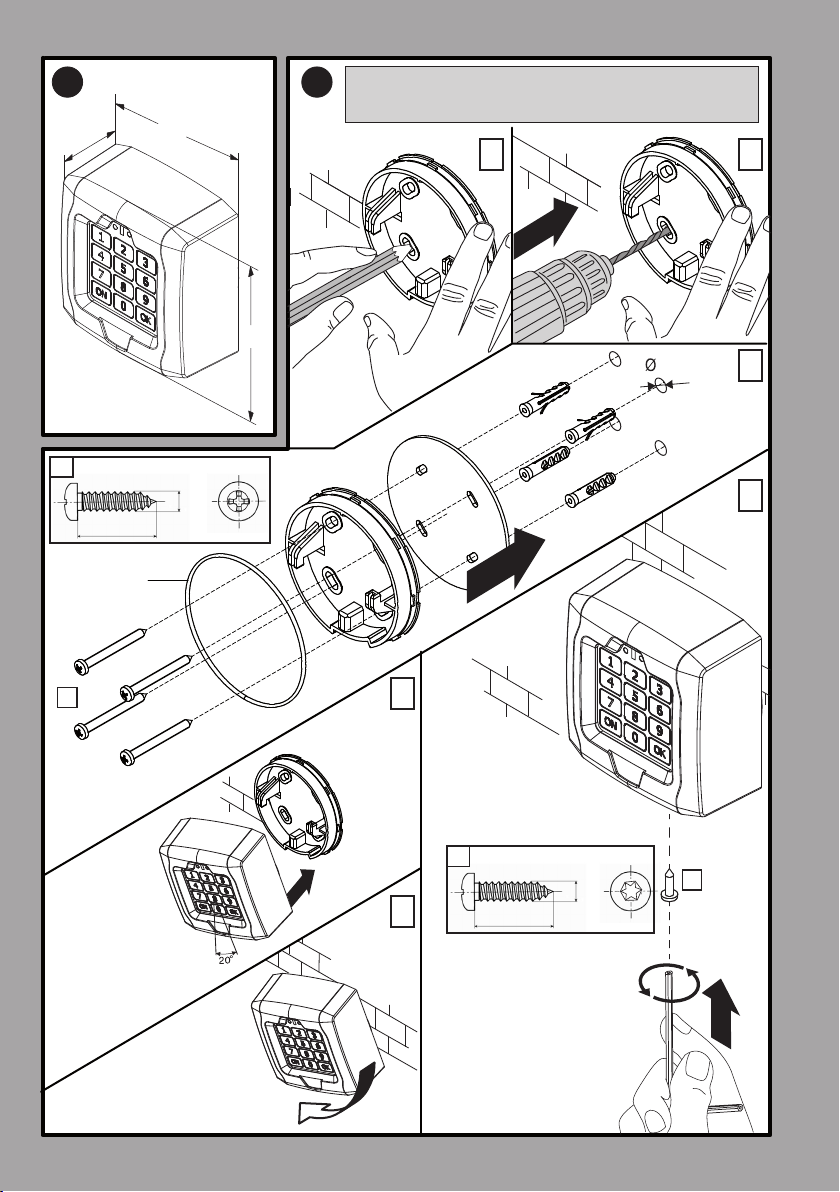

3) INSTALLATION (Fig.B points 1-6)
WARNING: think carefully about the installation site.
Structures made from ferrous material could have an
adverse eect on the Q.BO TOUCH’s operation.
-------------------------------------------------------------------
4) MEMORIZING ON CONTROL UNIT/RECEIVER
(Fig.C points 1-5).
To control a number of control units separately, use a dif-
ferent channel for each, entering the default codes.
Once that is done, change the codes.
-Change 1111 to 56561
-Change 2222 to 56562
-Change 3333 to 56563
This makes it easier to remember the code as 5656 fol-
lowed by the function number (1 for sliding gate, 2 for
overhead door A, 3 for overhead door B), therefore:
-ON -> 56561OK -> opens the sliding gate
-ON -> 56562OK -> opens overhead door A
-ON -> 56563OK -> opens overhead door B
5) TOTAL DELETION OF CODES (Fig.D points 1-5)
Following the total deletion of all codes, Q.BO TOUCH will
need to be memorized again on the control unit.
8 - Q.BO TOUCH
D812039 00100_02

USER’S MANUAL
NORMAL USE
Green indicator LED LED
RED indicator LED
Numerical keypad
Key to confirm operation
ON and Function key
WARNING: Q.BO TOUCH will lockout after 3 consecutive incorrect codes are entered and will not accept further
codes for 90 seconds. If another incorrect code is entered, Q.BO TOUCH will lockout at the first attempt.
2
43
1
(x 4)
Timeout 10’’
16 - Q.BO TOUCH Q.BO TOUCH - 17
D812039 00100_02

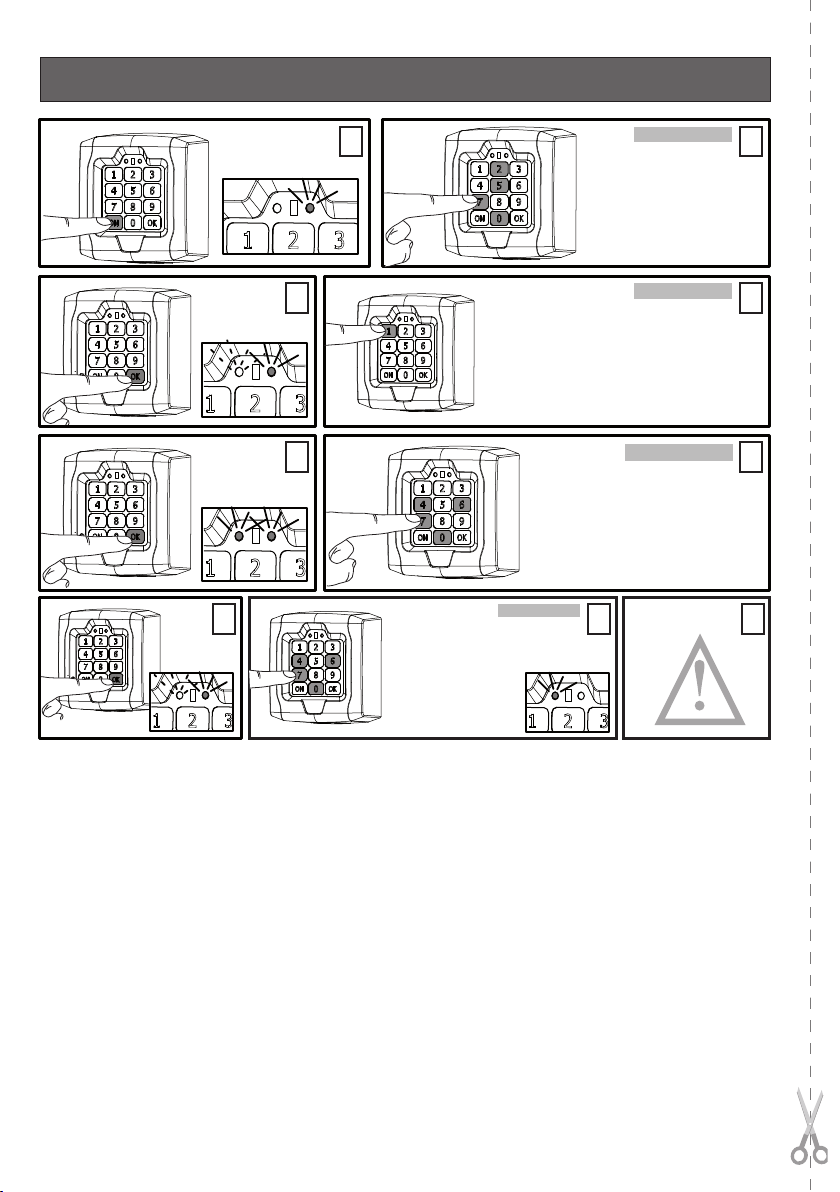

CHANGING A CODE
1
5”
(x 4)
Timeout 20’’ 2
34
Old code
Timeout 20’’
New code
Timeout 20’’
New code
Code changed!
6
8
5
7
WARNING: the code consists of a sequence of no less than 4 and no more than 7 digits (in the range 0 to 9). Do
not use codes with all the same numbers. (e.g. codes like 2222, 3333, 4444, 0000 etc.).
18 - Q.BO TOUCH
D812039 00100_02

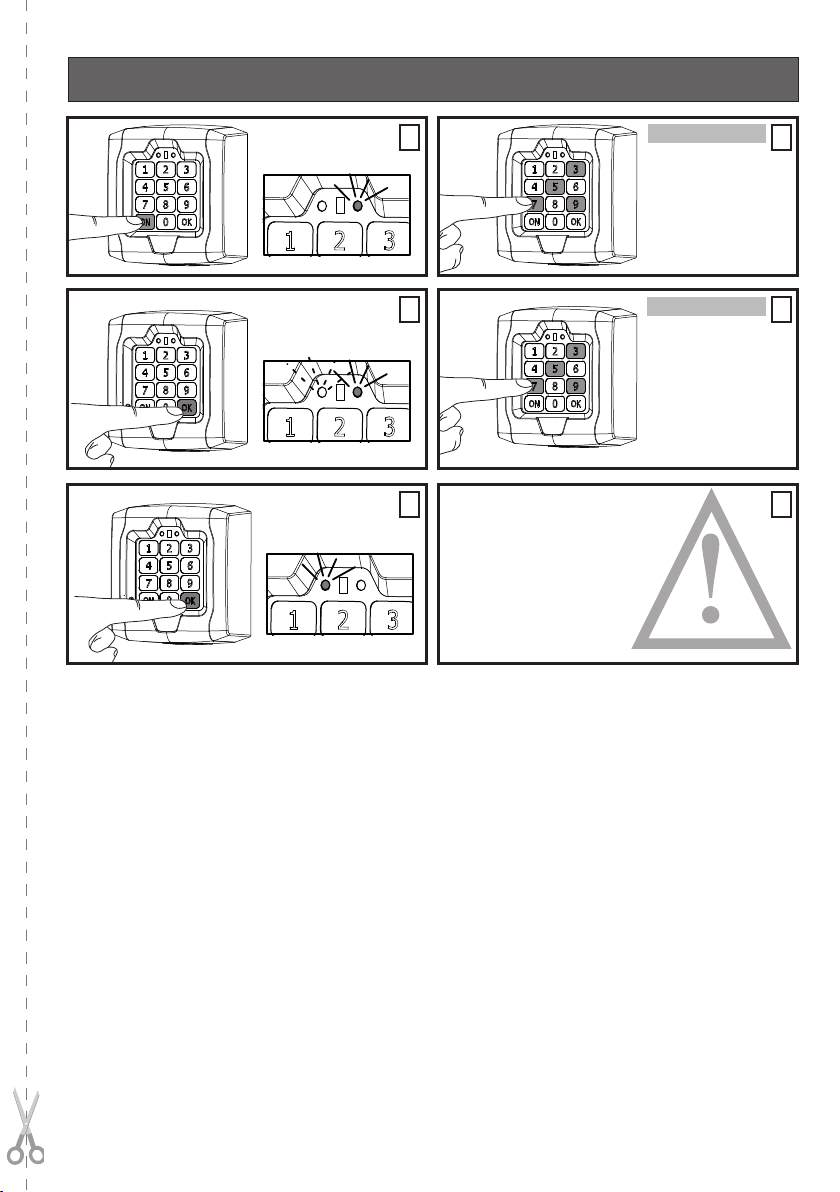

DELETING A CODE
WARNING: if you delete the last code, you will no longer be able to activate the relevant control unit. To restore
ope-ration, you must perform the total deletion procedure to erase all codes and repeat installation from the
beginning. It is advisable to delete the codes of channels that are not associated with anything (e.g. code 2222, 3333,
4444, 0000 etc. when using a single control unit).
1 2
Timeout 20’’
Code to be deleted
Code to be deleted
Timeout 20’’
Code deleted!
3 4
5 6
5”
18 - Q.BO TOUCH Q.BO TOUCH - 19
D812039 00100_02

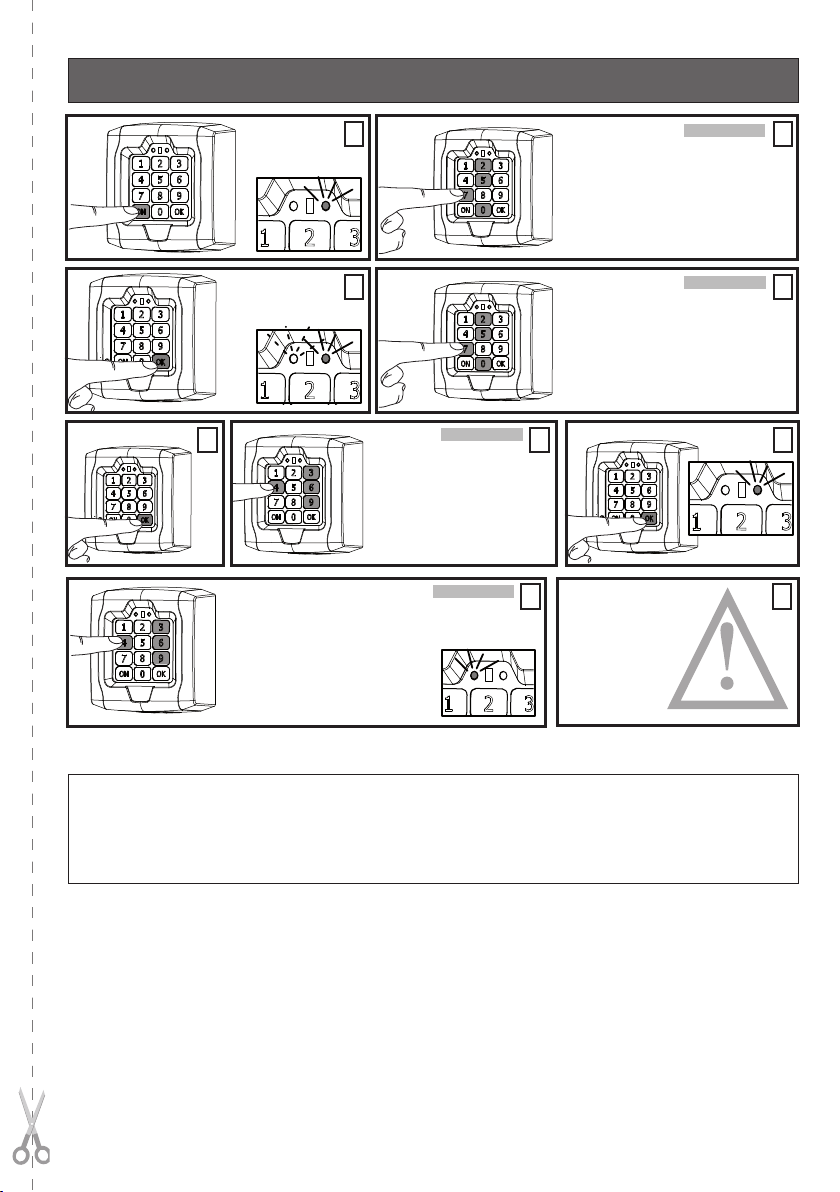

ADDING A CODE
1 2
Timeout 20’’
Enter password
Timeout 20’’
Enter new code
Code already exists in CH(1,2....9,0) to be activated.
Timeout 20’’
Enter new code
34
Timeout 20’’
5
7 8 9
6
Code added!
5”
(x4)
WARNING: To add a code, you need to know the system password. Q.BO TOUCH can handle up to 100 different
codes. The new code will serve the same purpose as the existing code (activates the same channel).
20 - Q.BO TOUCH
D812039 00100_02

Timeout 20’’ 2
Enter old password
Enter old password
Timeout 20’’
Timeout 20’’
Enter new password
Enter new password
Password changed!
Timeout 20’’ 89
1
43
6 75
5”
CHANGING THE PASSWORD
DEFAULT
PASSWORD:............................1234
NEW
PASSWORD:
......................................
20 - Q.BO TOUCH Q.BO TOUCH - 21
D812039 00100_02

22 - Q.BO TOUCH
D812039 00100_02

22 - Q.BO TOUCH Q.BO TOUCH - 23
D812039 00100_02
