Black Box AC1056-2 User manual

FEBRUARY 2005
AC1056-2
AC1056-4
AC1056-8
Compact Video Splitters
CUSTOMER SUPPORT INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]

1
FCC AND IC RFI STATEMENTS
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy,
and if not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference
when the equipment is operated in a commercial environment. Operation of
this equipment in a residential area is likely to cause interference, in which case
the user at his own expense will be required to take whatever measures may be
necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.

2
COMPACT VIDEO SPLITTERS
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más
allá a lo descrito en las instrucciones de operación. Todo otro servicio
deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama,
sofá, alfombra o superficie similar puede bloquea la ventilación, no se
debe colocar en libreros o gabinetes que impidan el flujo de aire por los
orificios de ventilación.

3
NOM STATEMENT
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no
sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del
aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en
su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

4
COMPACT VIDEO SPLITTERS
TRADEMARKS USED IN THIS MANUAL
Any trademarks mentioned in this manual are acknowledged
to be the property of the trademark owners.

5
CONTENTS
Contents
Chapter Page
1. Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Appendix. Troubleshooting. . . . . . . . . . . . . . . . . . . 14
A.1 Calling Black Box . . . . . . . . . . . . . . . . . . . . 14
A.2 Shipping and Packaging. . . . . . . . . . . . . . . 15

6
COMPACT VIDEO SPLITTERS
1. Specifications
Number of VGA Outputs: AC1056-2: (2); AC1056-4: (4);
AC1056-8: (8)
Signal Bandwidth: AC1056-2, AC1056-4: 350 MHz;
AC1056-8: 300 MHz
Signal Type: VGA, SVGA, Multi-sync
Cable Length: AC1056-2: (1) 10-ft. (3-m) input cable,
(1) 10-ft. (3-m) output cable;
AC1056-4: (1) 10-ft. (3-m) input cable, (3) 10-ft. (3-m)
output cables;
AC1056-8: (1) 10-ft. (3-m) input cable, (7) 10-ft. (3-m)
output cables;
Or, you can use up to 210 ft. (64 m) maximum
cable length for user-supplied output cable
Connectors: AC1056-2: Input: (1) HD15 female,
Output: (2) HD15 female;
AC1056-4: Input: (1) HD15 female,
Output: (4) HD15 female;
AC1056-8: Input: (1) HD15 female,
Output: (8) HD15 female

7
CHAPTER 1: Specifications
Indicators: (2) LEDs: (1) Power, (1) Active
Power: Input: 100–240 VAC, 50/60 Hz autosensing
inline power supply; Output: 5 VDC, 500 mA
Size: AC1056-2: 0.9"H x 3.3"W x 2.7"D
(2.3 x 8.4 x 6.9 cm);
AC1056-4: 1.6"H x 3.3"W x 2.7"D (4.1 x 8.4 x 6.9 cm);
AC1056-8: 4.2"H x 7.8"W x 3"D (10.7 x 19.8 x 7.6 cm)
Weight: AC1056-2: 0.4 lb. (0.2 kg);
AC1056-4: 0.6 lb. (0.3 kg);
AC1056-8: 1.3 lb. (0.6 kg)

8
COMPACT VIDEO SPLITTERS
2. Overview
The Compact Video Splitter (2-, 4-, or 8-port) broadcasts
and boosts one VGA signal source to 2, 4, or 8 VGA
monitors. Use it for presentations, exhibits,
demonstrations, trade shows, monitor testing, or
business meetings.
There’s no software or interface card to install. Simply
connect the cables, power on the splitter, and you’re
ready to transmit one VGA image to multiple monitors
with excellent quality. A high-bandwidth circuit enables
a high-resolution, 350-MHz VGA signal to display on 2
or 4 monitors, or a 300-MHz signal to display on 8
monitors.
The splitter’s 2, 4, or 8 output connections attach to one
input, one local output, and 1, 3, or 7 remote outputs.
Cables for the input and remote outputs are included;
you must supply the cable for the local output.
The maximum distance between the VGA input source
and the output can be up to 210 feet (64 m). (For
distances longer than 10 feet [3 m], you must supply the
output cables.) The splitter works with VGA, SVGA, and
multi-sync monitors to provide crisp, clear VGA images.

9
CHAPTER 2: Overview
Cascade splitters for more VGA outputs. (Call Tech
Support for details.) If the VGA input is lost, the splitter
automatically saves power.
What’s Included
Your package should contain the following items. If
anything is missing or damaged, contact Black Box at
724-746-5500.
AC1056-2:
• (1) Compact Video Splitter, 2-Port
• (1) 10-ft. (3-m) input cable
• (1) 10-ft. (3-m) output cable
• This user’s manual
AC1056-4:
• (1) Compact Video Splitter, 4-Port
• (1) 10-ft. (3-m) input cable
• (3) 10-ft. (3-m) output cables

10
COMPACT VIDEO SPLITTERS
• This user’s manual
AC1056-8:
• (1) Compact Video Splitter, 8-Port
• (1) 10-ft. (3-m) input cable
• (7) 10-ft. (3-m) output cables
• This user’s manual

11
CHAPTER 3: Installation
3. Installation
1. For the 2-port model (AC1056-2), you’ll need two
HD15 male-to-male output cables (one of these
cables is included) to connect each video splitter’s
output connector to each computer’s VGA output
connector. You’ll also need one input cable
(included).
For the 4-port model (AC1056-4), you’ll need four
output cables (three of these cables are included)
and one input cable (included).
For the 8-port model (AC1056-8), you’ll need
eight output cables (seven of these cables are
included) and one input cable (included).
Connect multiple monitors to the video splitter’s
output connectors as shown in Figure 3-1.

12
COMPACT VIDEO SPLITTERS

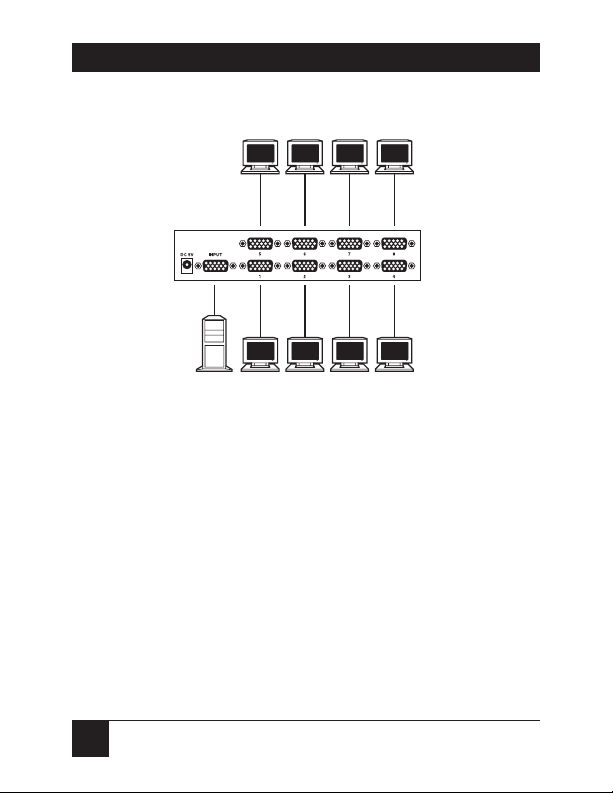

Figure 3-1. Compact Video Splitter, 8-Port (AC1056-8) connection.
2. You’ll also need to connect the Compact Video
Splitter’s input connector to the VGA source. Use
an HD15 male-to-male cable (included) for this
connection.
3. Connect the included power supply cord’s barrel
connector to the barrel connector receptacle on
the Compact Video Splitter. Then plug the other
end of the power cord into an AC outlet.
VGA outputs to computers
Compact Video Splitter,
8-Port (AC1056-8)
VGA input
VGA outputs to computers

13
CHAPTER 4: Operation
4. Operation
Once the Compact Video Splitter is installed, it operates
unattended. The splitter has two front-panel LEDs that
indicate its status at a glance.
• The Active LED lights when there is a VGA signal
at the input port.
• The Power LED lights when the Compact Video
Splitter is powered by the 5-VDC power adapter.

14
COMPACT VIDEO SPLITTERS
Appendix. Troubleshooting
A.1 Calling Black Box
If you determine that your Compact Video Splitter is
malfunctioning, do not attempt to alter or repair the
unit. It contains no user-serviceable parts. Contact Black
Box at 724-746-5500.
Before you do, make a record of the history of the
problem. We will be able to provide more efficient and
accurate assistance if you have a complete description,
including:
• the nature and duration of the problem.
• when the problem occurs.
• the components involved in the problem.
• any particular application that, when used,
appears to create the problem or make it worse.

15
APPENDIX: Troubleshooting
A.2 Shipping and Packaging
If you need to transport or ship your Compact Video
Splitter:
• Package it carefully. We recommend that you use
the original container.
• If you are shipping the Compact Video Splitter for
repair, make sure you include everything that
came in the original package. Before you ship,
contact Black Box to get a Return Authorization
(RA) number.

1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax [phone]
© Copyright 2005. Black Box Corporation. All rights reserved.
