Black Box CampusLIGHT LCL114A-FEMM User manual

CampusLIGHT
FAST ETHERNET FIBER EXTENDERS
LCL114A Fiber Extender
PowerLink
Rx
FEBRUARY 1999
LCL114A-FEMM
LCL114A-FESM
LCL114A-FESMC
Order toll-free in the U.S. 24 hours, 7A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: http://www.blackbox.com · E-mail: [email protected]
CUSTOMER
SUPPORT
INFORMATION

FAST ETHERNET FIBER EXTENDERS
2
FEDERAL COMMUNICATIONS COMMISSION
AND
CANADIAN DEPARTMENT OF COMMUNICATIONS
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio frequency energy and if
not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication. It
has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart J of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference
when the equipment is operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference, in which case the
user at his own expense will be required to take whatever measures may be
necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of the
Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par le ministère des
Communications du Canada.

FAST ETHERNET FIBER EXTENDERS
3
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más
allá a lo descrito en las instrucciones de operación. Todo otro servicio
deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe
colocar en libreros o gabinetes que impidan el flujo de aire por los orificios
de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.

FAST ETHERNET FIBER EXTENDERS
4
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no
sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

FAST ETHERNET FIBER EXTENDERS
5
CERTIFICATION NOTICE FOR
EQUIPMENT USED IN CANADA
The Canadian Department of Communications label identifies certified
equipment. This certification means that the equipment meets certain
telecommunications-network protective, operation, and safety requirements. The
Department does not guarantee the equipment will operate to the user’s
satisfaction.
Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The
equipment must also be installed using an acceptable method of connection. In
some cases, the company’s inside wiring associated with a single-line individual
service may be extended by means of a certified connector assembly (extension
cord). The customer should be aware that compliance with the above conditions
may not prevent degradation of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian
maintenance facility—in this case, your supplier. Any repairs or alterations made
by the user to this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the
equipment.
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines, and internal metallic water pipe
system, if present, are connected together. This precaution may be particularly
important in rural areas.
CAUTION:
Users should not attempt to make such connections themselves,
but should contact the appropriate electric inspection authority,
or electrician, as appropriate.
The LOAD NUMBER (LN) assigned to each terminal device denotes the
percentage of the total load to be connected to a telephone loop which is used by
the device, to prevent overloading. The termination on a loop may consist of any
combination of devices, subject only to the requirement that the total of the load
numbers of all the devices does not exceed 100.

FAST ETHERNET FIBER EXTENDERS
6
Contents
Chapter Page
1. Specifications.................................................................................................8
1.1 Specifications for LCL114A.......................................................................8
2. Introduction....................................................................................................9
2.1 Product Overview.....................................................................................9
2.2 Features................................................................................................. 10
2.2.1 Drive Distances................................................................................ 10
2.2.2 Ergonomics...................................................................................... 10
2.2.3 Power Supply................................................................................... 10
3. Connectors & Cables................................................................................... 11
3.1 100BaseTx RJ45 Connectors................................................................. 11
3.2 100BaseTx UTP Cable........................................................................... 11
3.3 Fiber Optic Connectors........................................................................... 11
3.4 Fiber Optic Cable ................................................................................... 12
4. Installation ................................................................................................... 13

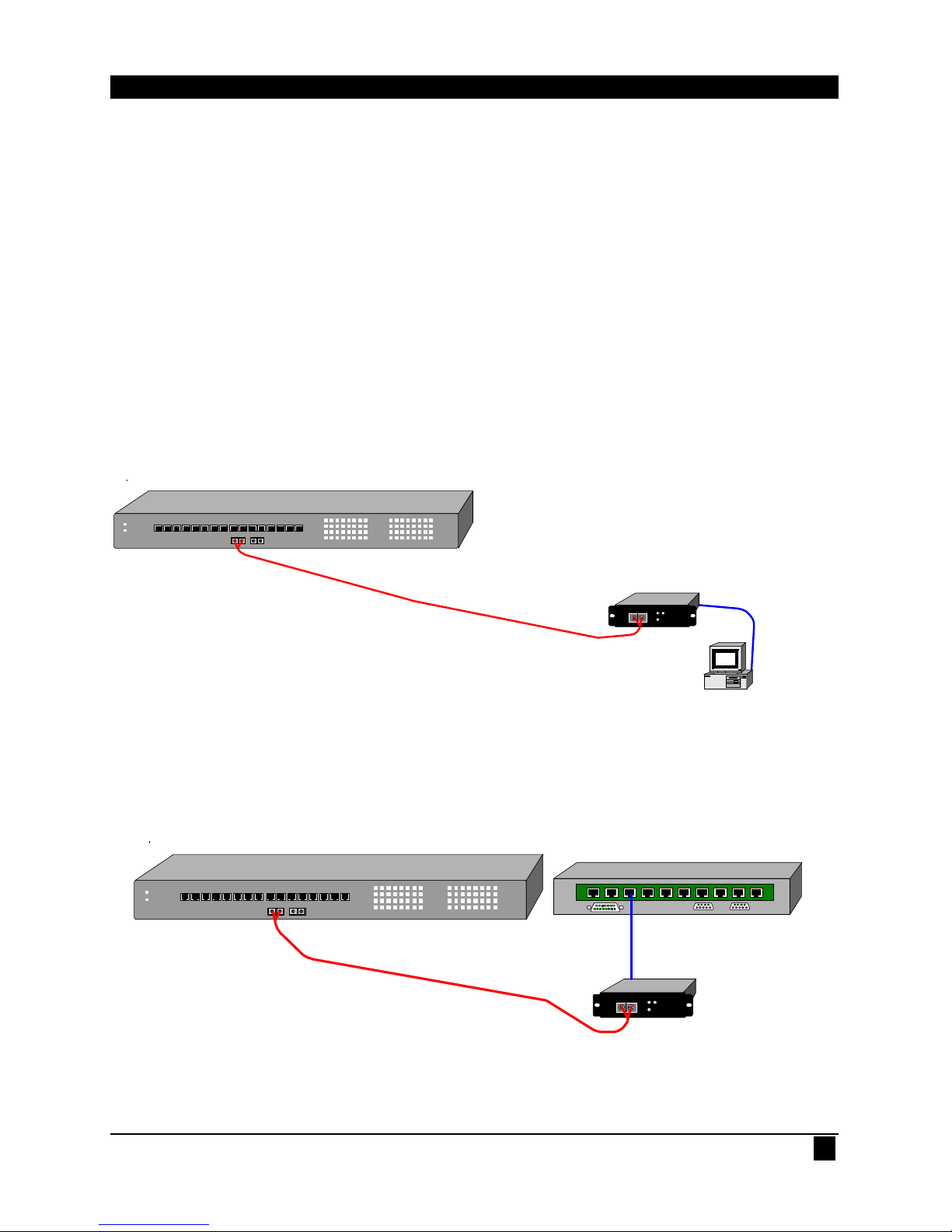

4.1 Making Network Connections ................................................................. 13
4.1.1 PC Station to Switch ........................................................................ 13
4.1.2 Hub to Switch................................................................................... 13
4.1.3 Switch to Switch............................................................................... 14
5. LED Indicators............................................................................................. 15
6. Accessories................................................................................................. 17

FAST ETHERNET FIBER EXTENDERS
7
Figures
Figure 1: LCL114A Fast Ethernet Extender.......................................................9
Figure 2: MDI/MDI-X Jack............................................................................... 11
Figure 3: Fiber Optic Connectors .................................................................... 12
Figure 4: Fiber Interface LEDs........................................................................ 15
Figure 5: Copper Interface LEDs..................................................................... 15
Figure 6: Rackmount Metalwork...................................................................... 17

FAST ETHERNET FIBER EXTENDERS
8
1. Specifications
1.1 Specifications for LCL114A
Interoperability 100BaseTx, 802.3u (hubs, repeaters, stations and switches)
Data Rate 100Mbps
Bit Error Rate 1 in 109(max.)
Drive Distance Fiber multimode
Fiber single-mode
Fiber single-mode
2km
40km (Standard Power option)
60km (High Power option)
Optical Interface
Launch Power
Power Budget
Connector
Multimode
-20dBm
11dB
ST
Multimode
-20dBm
11dB
SC
Single-mode
-13dBm
19dB
SC
Single-mode
(HP*)
-3dBm
30dB
SC
Copper Interface 1x Shielded RJ45 (Normal)
1x Shielded RJ45 (Crossover)
Optical Safety Class 1 AEL
LED Indicators Fiber Interface Link
Rx
Fiber Integrity
Receive Fiber
Copper Interface Rx
Link
Receive Data
Copper Integrity
Power Power
Environmental Temperature
Humidity
Operating 0°C to 40°C
Storage -10°C to 85°C
Maximum 95% non-condensing
Power Supply External 110V or 220V AC adapter with plug-in jack
+12V/800mA minimum
Case Dimensions 118mm x 75mm x 25mm (L x W x H)
Gross (Shipping) Weight 1.2kg
Compliance FCC, CE, (UL, CSA - PSU)
(*HP) denotes High Power Optics

FAST ETHERNET FIBER EXTENDERS
9
2. Introduction
2.1 Product Overview
The CampusLIGHTFast Ethernet Fiber Extender (LCL114A) is designed for
100BaseTx to multimode or single-mode fiber conversion. When used in point-
to-point full duplex connections, the LCL114A Fiber Extender extends the
distance of Fast Ethernet networks up to 2km using multimode fiber or up to
60km using single-mode fiber. It can be used for links between switches/routers,
stations and servers.
The LCL114A features RJ45 connectors, multimode SC and ST, and single-
mode SC connectors to provide the copper to fiber interfaces.
The LCL114A is rackmountable in the LCL100-RACK and RM510 rackmount
frames that support either 110/220V AC or 48V DC power supplies.
100BaseTx to 100BaseFx Transceiver
FE-Link
PowerLink
Rx
12V 800mA
Link
Rx
II X
Figure 1: LCL114A Fast Ethernet Extender

FAST ETHERNET FIBER EXTENDERS
10
2.2 Features
2.2.1 Drive Distances
Single-mode
A fiber optic link of up to 60km over single-mode fiber is achievable between
LCL114A Fast Ethernet Extenders using the High Power option SC optics which
provide 30dB optical budget. The Standard Power option provides 19dB optical
budget and will support 40km.
Multimode
A fiber optic link of up to 2km over multimode fiber is achievable using either ST
or SC optics which provide 11dB of optical budget.
See Specifications for details.
2.2.2 Ergonomics
The LCL114A is packaged in a small freestanding case (118mm x 75mm x
25mm, L x W x H) complete with rackmount ears. This configuration allows the
LCL114A to be rackmounted in a 19"rack using the LCL100-RACK and RM510
rackmount frames.
The LCL100-RACK supports up to 4 CampusLIGHTunits in a 1U high 19"
frame and the RM510 supports up to 16 units in a 3U high 19"frame. For wall
mounting a bracket that holds the LCL114A and its power supply is available,
order code LCL100-WALL.
2.2.3 Power Supply
The LCL114A can be powered either from a small external power supply or from
a 3U high rackmounting power supply capable of supporting 14 devices. Two
variants are available: 90-264V AC (PS500) and 48V DC (LCL100-PS48).
Note:
Units ordered for use with the rackmounting power supply will not contain a
separate power supply; this must be ordered separately.
