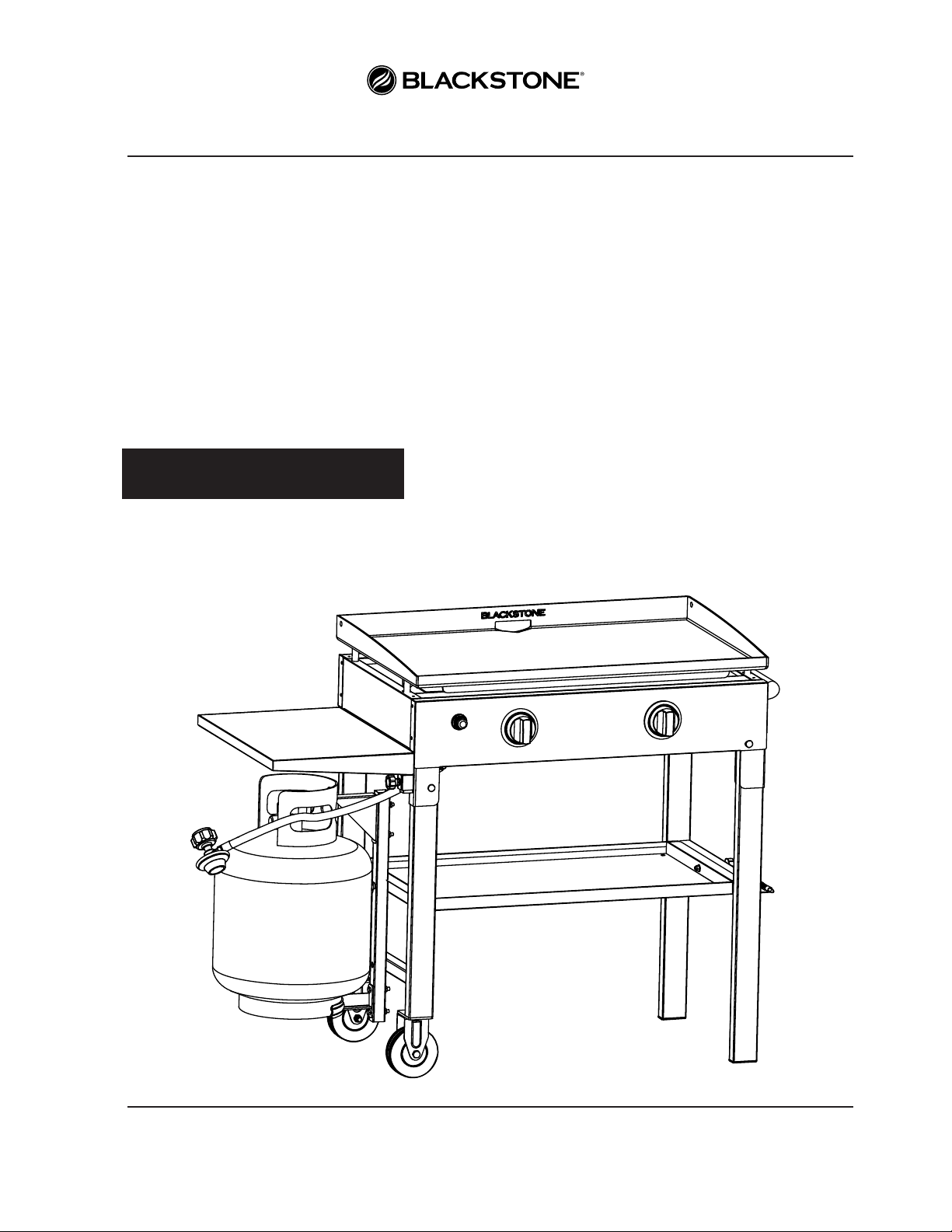

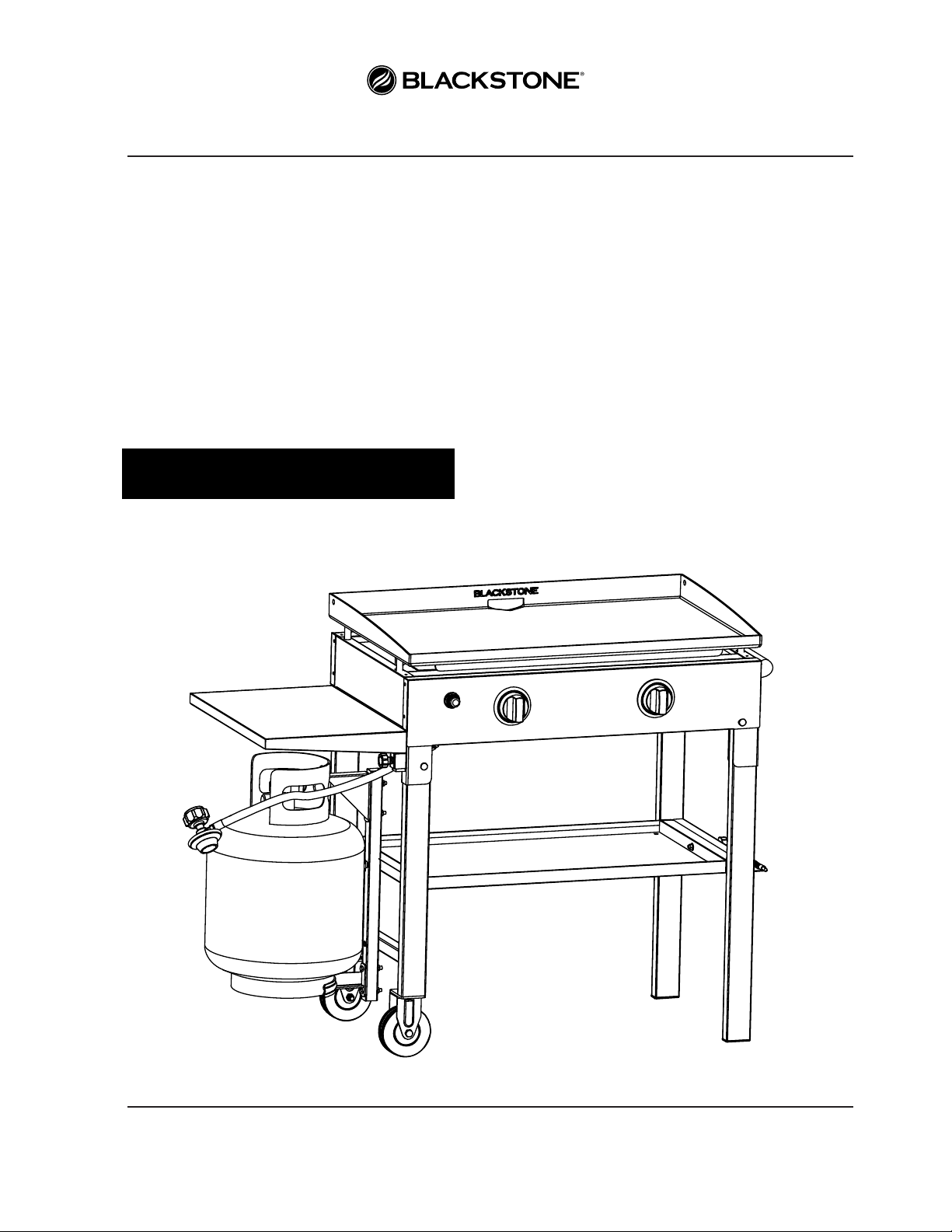

28" GRIDDLE
COOKING STATION
Parts & Assembly
MODEL 

Before proceeding, make certain
that you read and understand the
Owner’s Manual included with
your griddle.
Hazardous fire or explosion may
result if instructions are ignored.
It is the consumer’s responsibility
to see that the griddle is prop-
erly assembled, installed, and
maintained. Failure to follow the
instructions in this manual could
result in bodily injury and/or
property damage.
SAFETY ALERT KEY
Read and follow all of the notices
found throughout the manual.
INSTALLER/ASSEMBLER:
Leave these instructions with consumer.
CONSUMER:
Keep this manual for future reference.
TO REGISTER your Blackstone product please go to
www.blackstoneproducts.com/register-griddle
Model Number _____________________________
Serial Number______________________________
Date Purchased ____________________________
!DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
!WARNING
Indicates the possibility of serious
bodily injury if the instructions
are not followed.
!CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
28” Griddle Cooking Station | Parts & Assembly

PARTS & ASSEMBLY

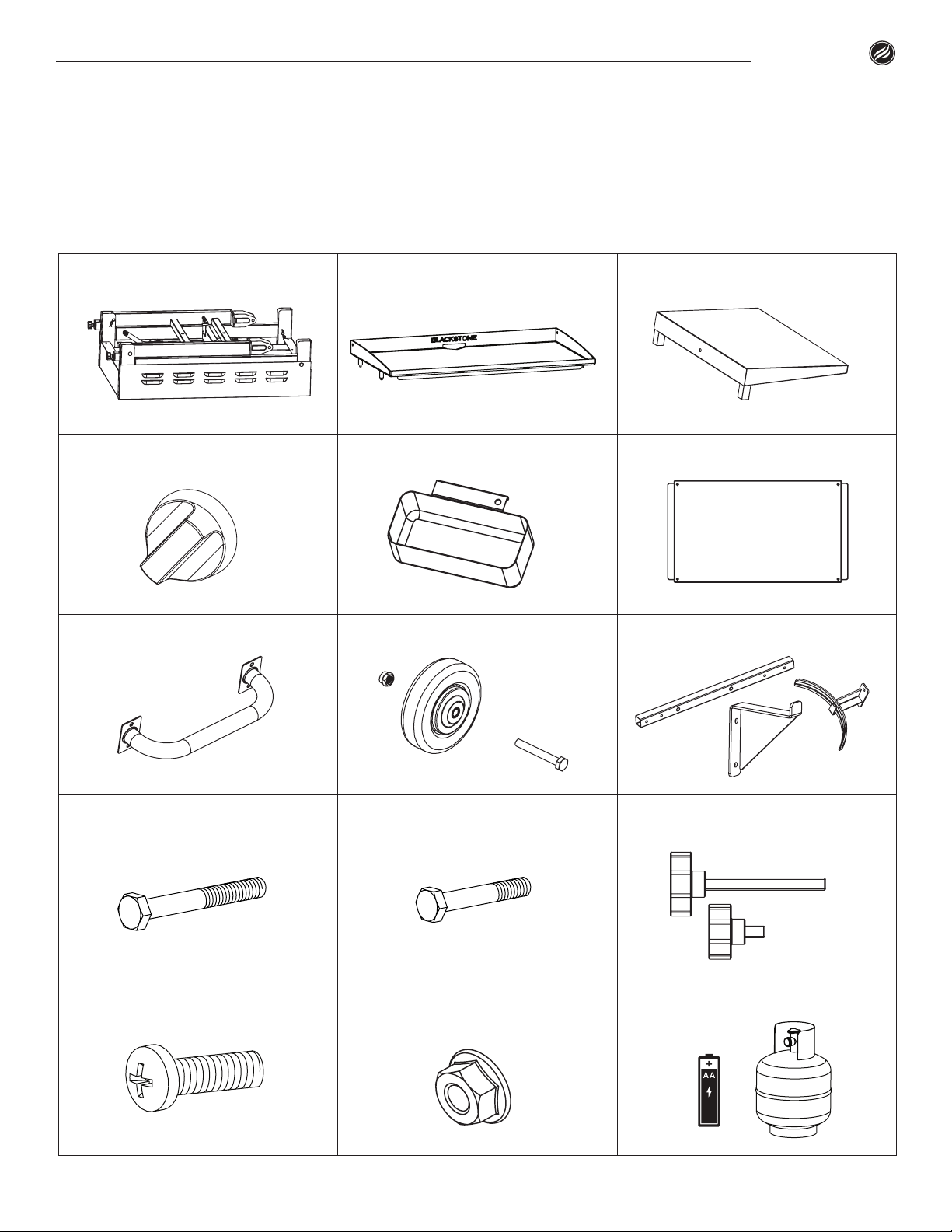

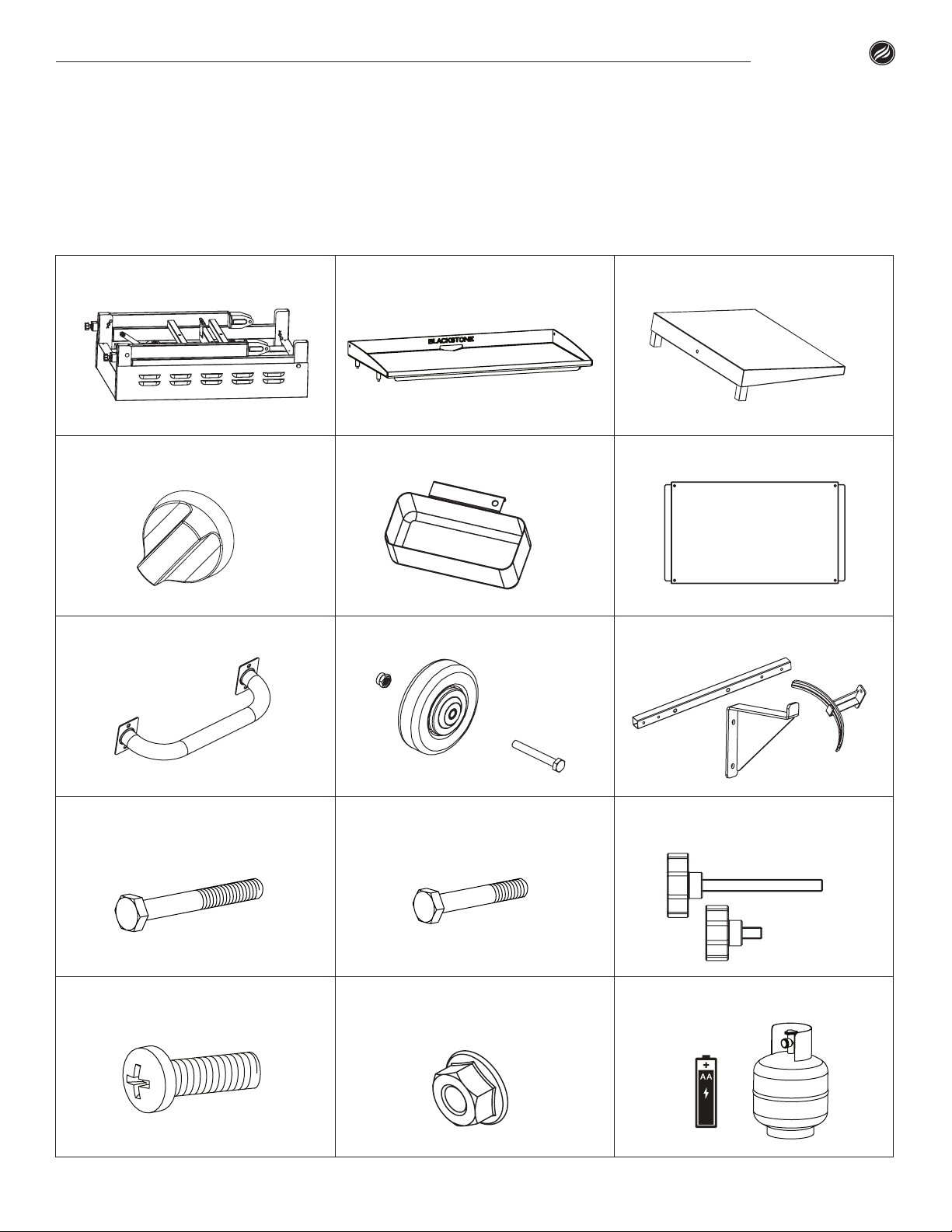

ILLUSTRATED PARTS LIST
01. Body (1 piece) 02. Griddle Top (1 piece) 03. Sides Self (1 pieces)
04. Knobs (2 pieces) 05. Grease Cup (1 piece) 06. Bottom Tray (1 piece)
07. Right Handle (1 pieces) 08. Wheels (2 pieces) 09. Propane Tank Hangers (3 pieces)
10. M6x60 Bolt (1 pieces) 11. M6x60 (4 pieces) 12. Large Thumbscrew (2 piece) &
Small Thumbscrew (2 piece)
13. M6x12 Bolts (4 Pieces) 14. Flange Nut (9 Pieces) NOT INCLUDED - 20lb LP Gas Tank
& AA Battery
28” Griddle Cooking Station | Parts & Assembly
01

ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
Griddle assembly involves large components; therefore, it is advised to have
two people assemble the unit.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench
STEP 01

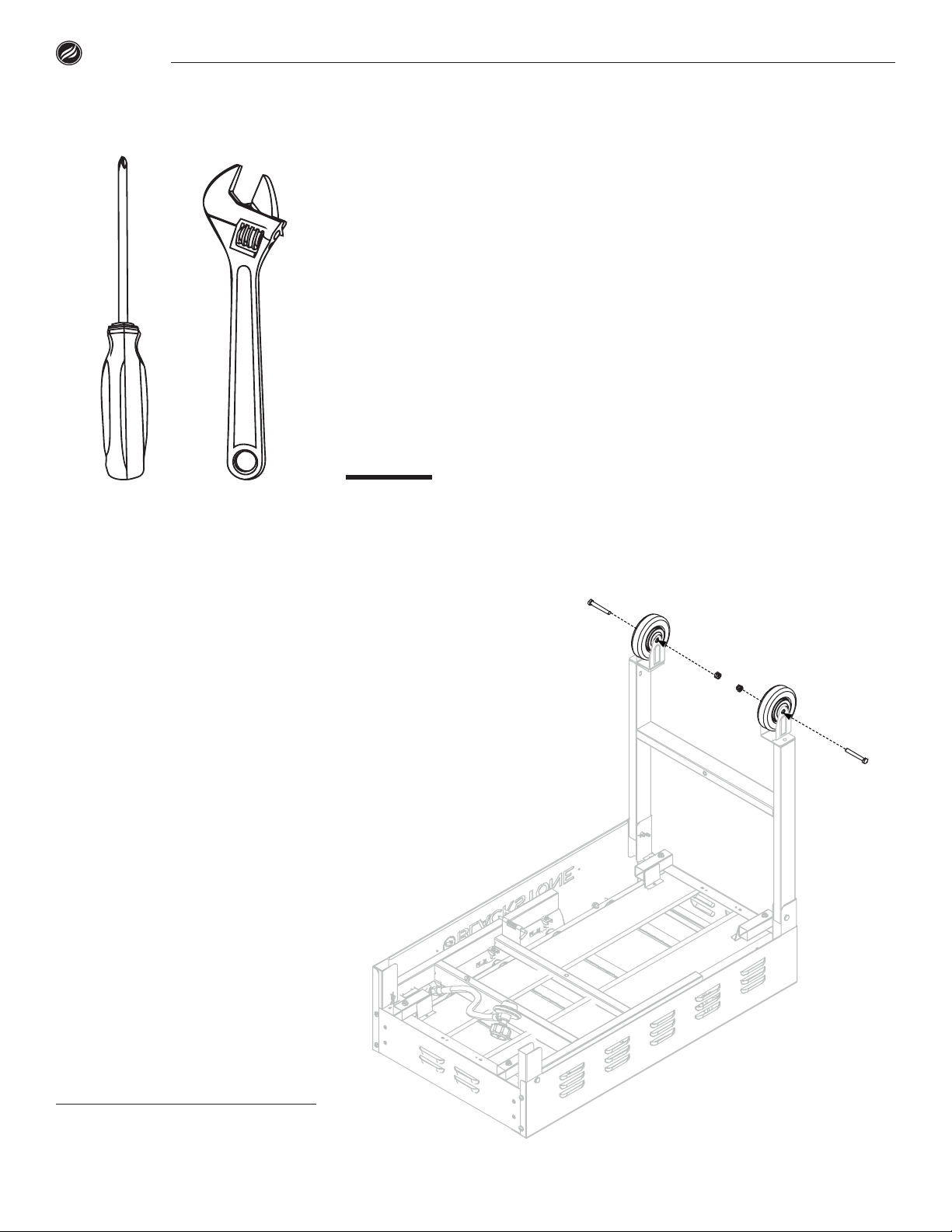

Remove the griddle body from the packaging and lay it upside down. Unfold
the legs and then use two (2) small thumbscrews to tighten the wheels onto
the legs.
28” Griddle Cooking Station | Parts & Assembly
02

!CAUTION
Two people are recommended for
the assembly of this product.
!WARNING
The manufacturer has made every
eort to eliminate any sharp
edges. However, you should
handle all components with care
to avoid accidental injury.
Some parts may contain sharp
edges, especially as noted
in these instructions. Wear
protective gloves if necessary.
!WARNING
The use of alcohol, prescription
or non-prescription drugs may
impair the consumer’s ability
to properly assemble or safely
operate the appliance.

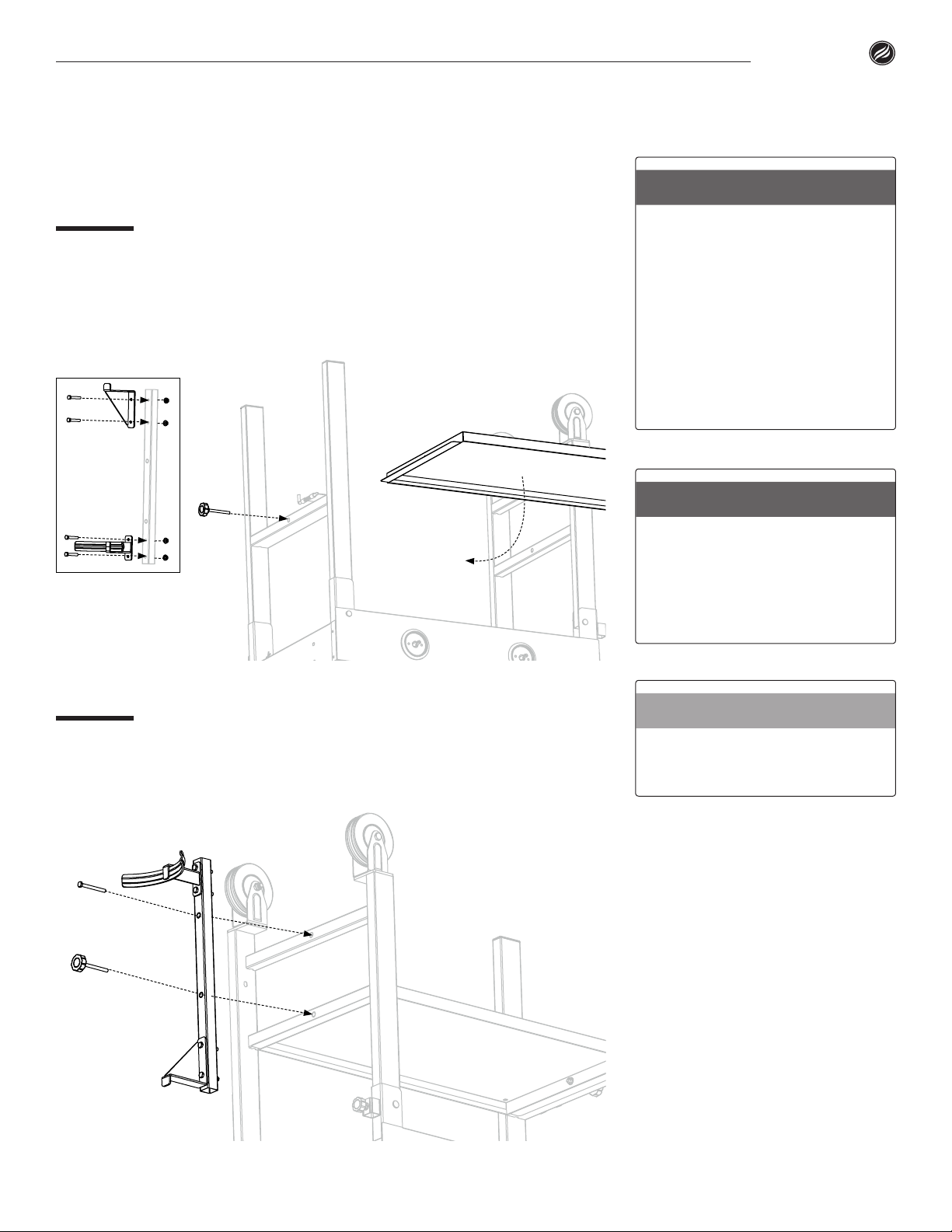

STEP 02
First, assemble the upper and lower tank hangers with four (4) M6x38 bolts
and four (4) ange nuts.
Place the bottom tray in between the griddle legs and use one (1) large thumb-
screw to tighten it on the le.
STEP 03
Use one (1) long thumbscrew to attach the assembled tank hanger and the
tray onto the unit. Then use on (1) M6x60 bolt and a ange nut to secure the
tank hanger.
28” Griddle Cooking Station | Parts & Assembly
03

STEP 04

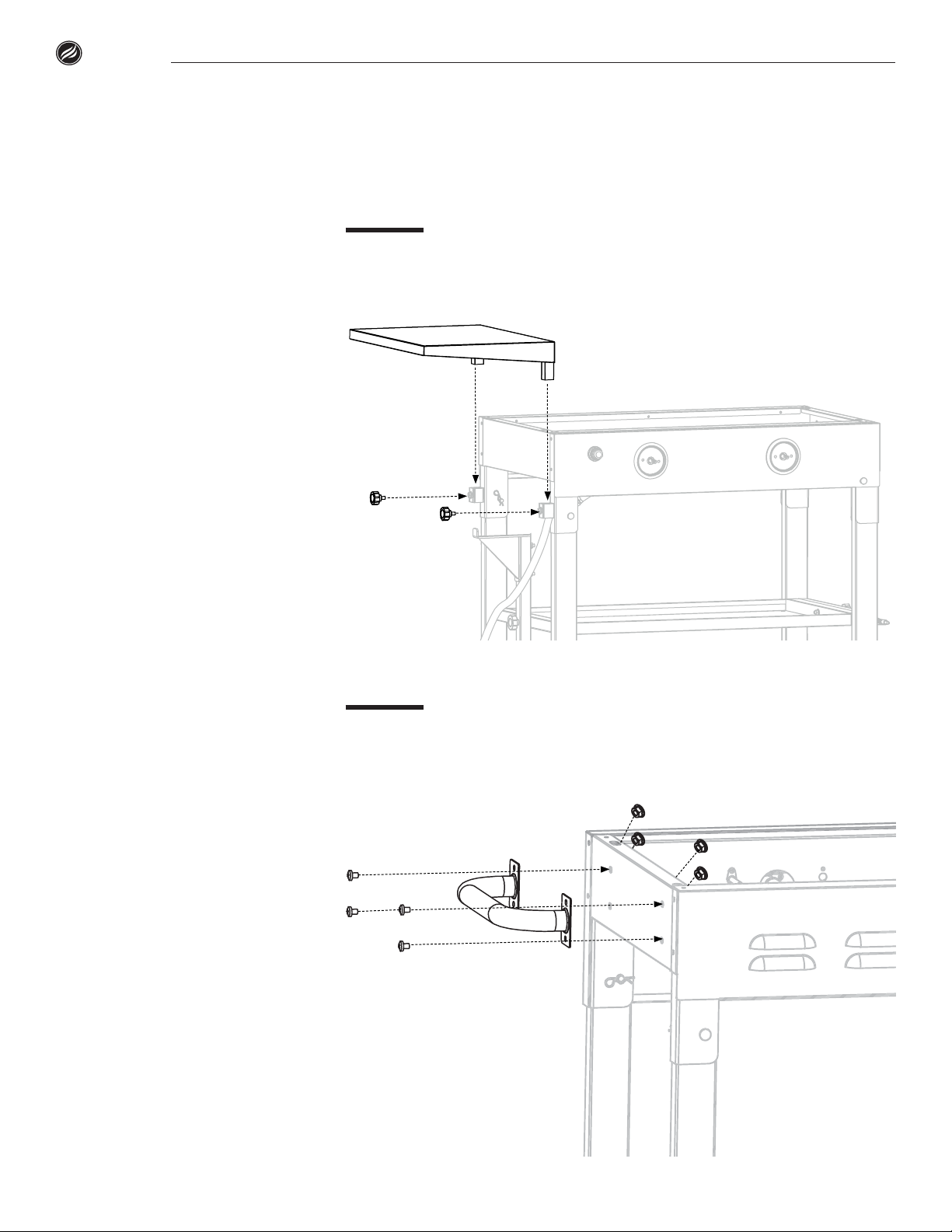

With the help of another person, place the griddle unit upright. Insert the
side shelf into the slots on the griddle body. Secure the shelf with two (2)
small thumbscrews.
STEP 05
Add handle to the right side of the griddle body by inserting four (4) M6 Bolts
from the outside of the body and then secure them with four (4) M6 Nuts
from the inside of the body. Use a screw driver and a wrench to tighten.
28” Griddle Cooking Station | Parts & Assembly
04

NEED HELP? Call Blackstone Information
Center for missing parts, assembly or and
operation questions: 435-252-3030
or email us at:
[e-mail]

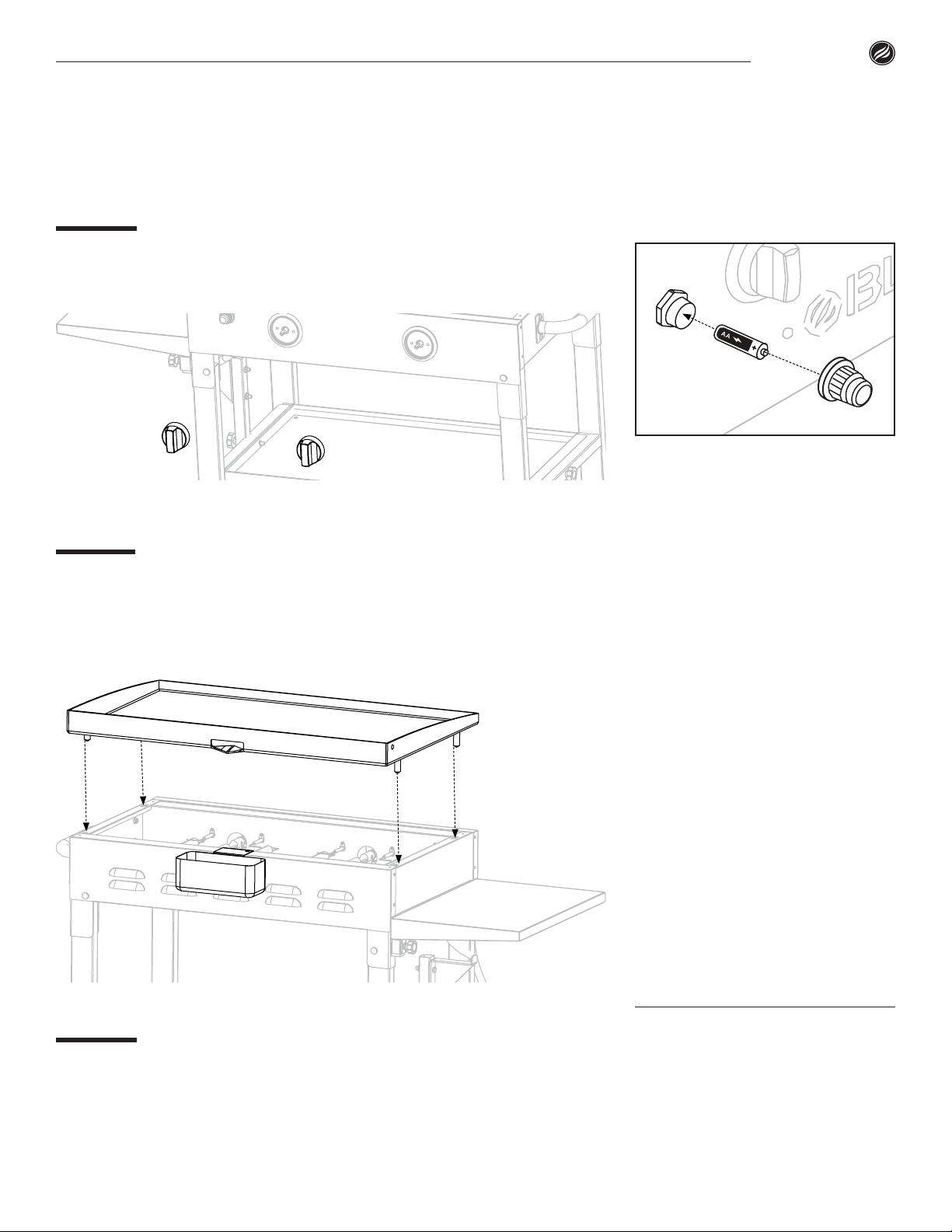

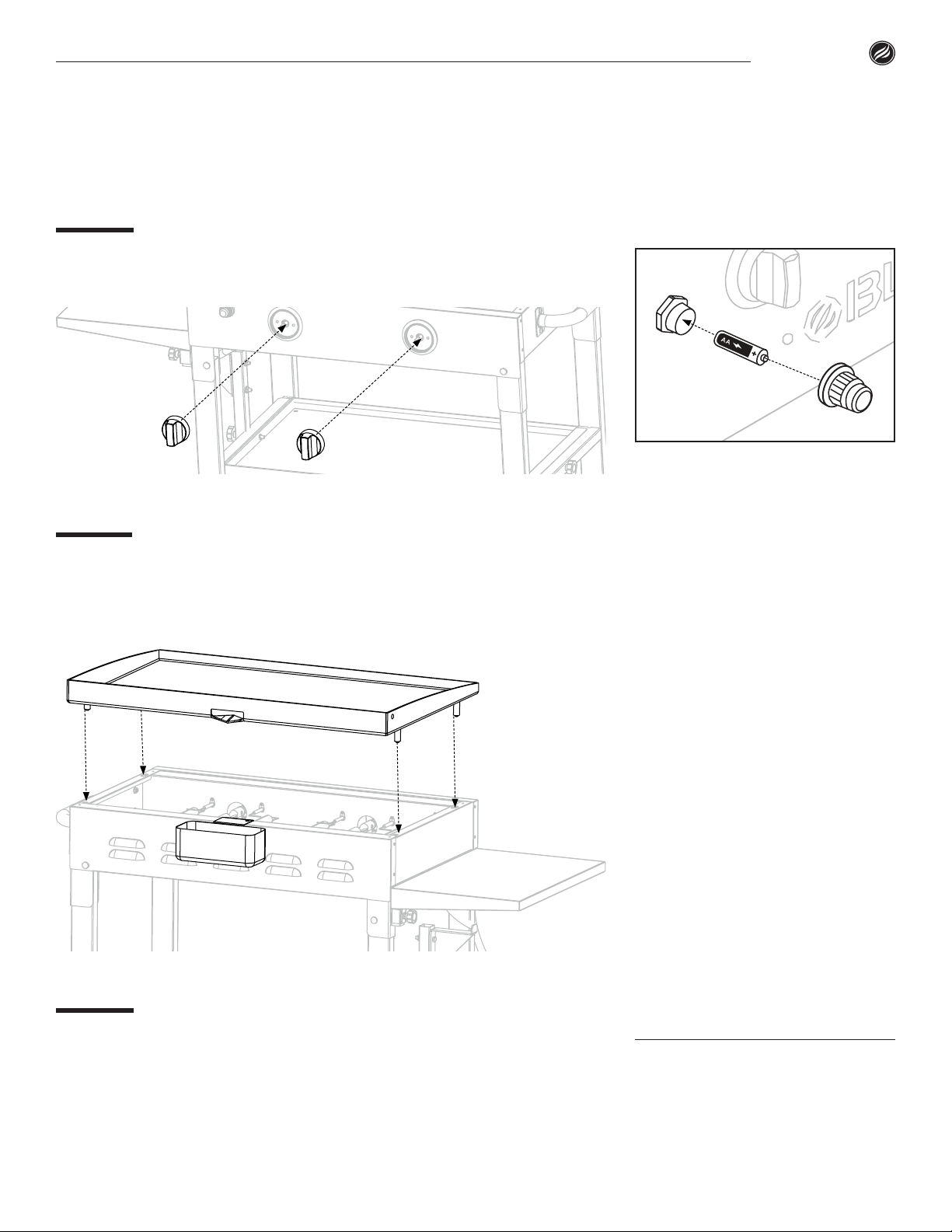

STEP 06
Install the control knobs by pushing them into place. Add a “AA” battery (not
included) into the slot and then tighten on the igniter button.
STEP 07
With the help of another person place the griddle top onto the griddle body by
aligning the four pins to the holes on top of the body. Make sure the pins are
fully seated in the holes. Place the grease cup on the back of the griddle body
in the center of the unit.
STEP 08
Proceed to seasoning instructions (pg 18) in the Owner’s Manual. Enjoy
cooking outdoors on your Blackstone 28” Cooking Station!
