Blaupunkt IVOD-1002 User manual

English
Español

1

2
TABLE OF CONTENTS
Overhead DVD System . . . . . . . . . . . . . 3
Infrared remote control overview . . . . . . . 5
Notes for the user . . . . . . . . . . . . . . . . . 7
Precautionary measures . . . . . . . . . . . . . 7
Safety Notices . . . . . . . . . . . . . . . . . 7
Supplied parts . . . . . . . . . . . . . . . . . . . . 8
Installing the unit . . . . . . . . . . . . . . . . . . . 9
Connections . . . . . . . . . . . . . . . . . . . . . 11
General Information . . . . . . . . . . . . . . . 13
Basic operation . . . . . . . . . . . . . . . . . . 15
Advanced operation . . . . . . . . . . . . . . . 20
Settings . . . . . . . . . . . . . . . . . . . . . . . . 23
Maintenance and care . . . . . . . . . . . . . 25
Troubleshooting . . . . . . . . . . . . . . . . . . 26
Glossary . . . . . . . . . . . . . . . . . . . . . . . 27
Specifications . . . . . . . . . . . . . . . . . . . . 29
Limited Warranty . . . . . . . . . . . . . . . . . 30
English

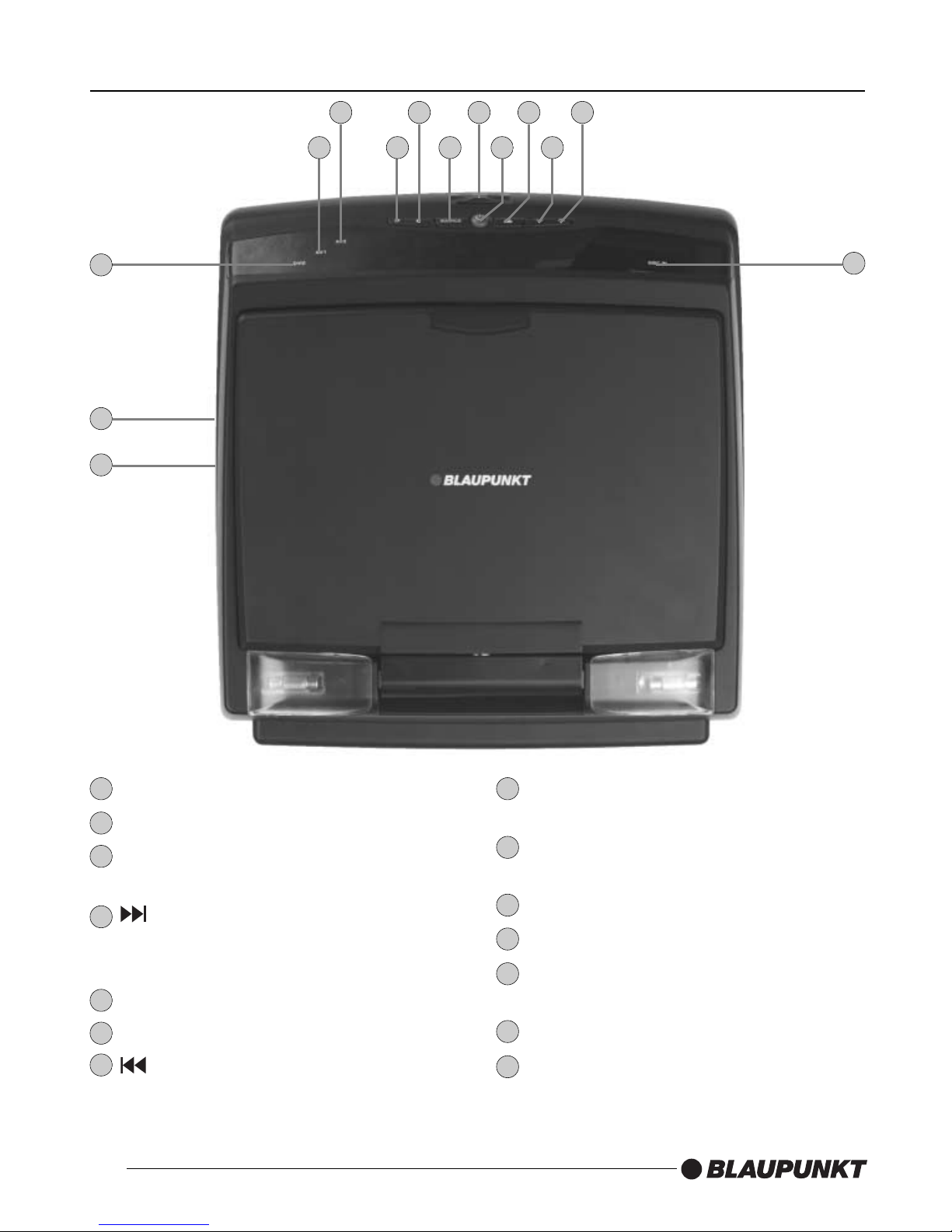

OVERHEAD DVD SYSTEM
Switch for interior lighting
Reset button (located on base)
Monitor auto power ON/OFF
(located on base)
DVD: next chapter;
VCD/CD/MP3: next track menu:
move cursor upwards
EJECT Eject disc
DISC IN A disc is inserted
DVD: previous chapter;
VCD/CD/MP3: previous track
menu: move cursor downward
PLAY/PAUSE Play the disc, pause
(freeze frame)
Source Select A/V source (DVD, AV1,
AV2)
AV2 AV 2 input selected
AV1 AV 1 input selected
DVD Displays the video signal from the
DVD player
POWER Turns system power on / off
STOP Stop playing disc
3
1 8
9
10
11
12
13
14
2
3
4
5
6
7
9811 13 7
1410 1 5 4
6
12
3
2

4
OVERHEAD DVD SYSTEM
Headphone jack 1
Volume control for headphone jack 1
10 inch TFT display
DVD player disc slot
Volume control for headphone jack 2
Headphone jack 2
English
1
2
3
4
5
6
5
6
3
2
1
4

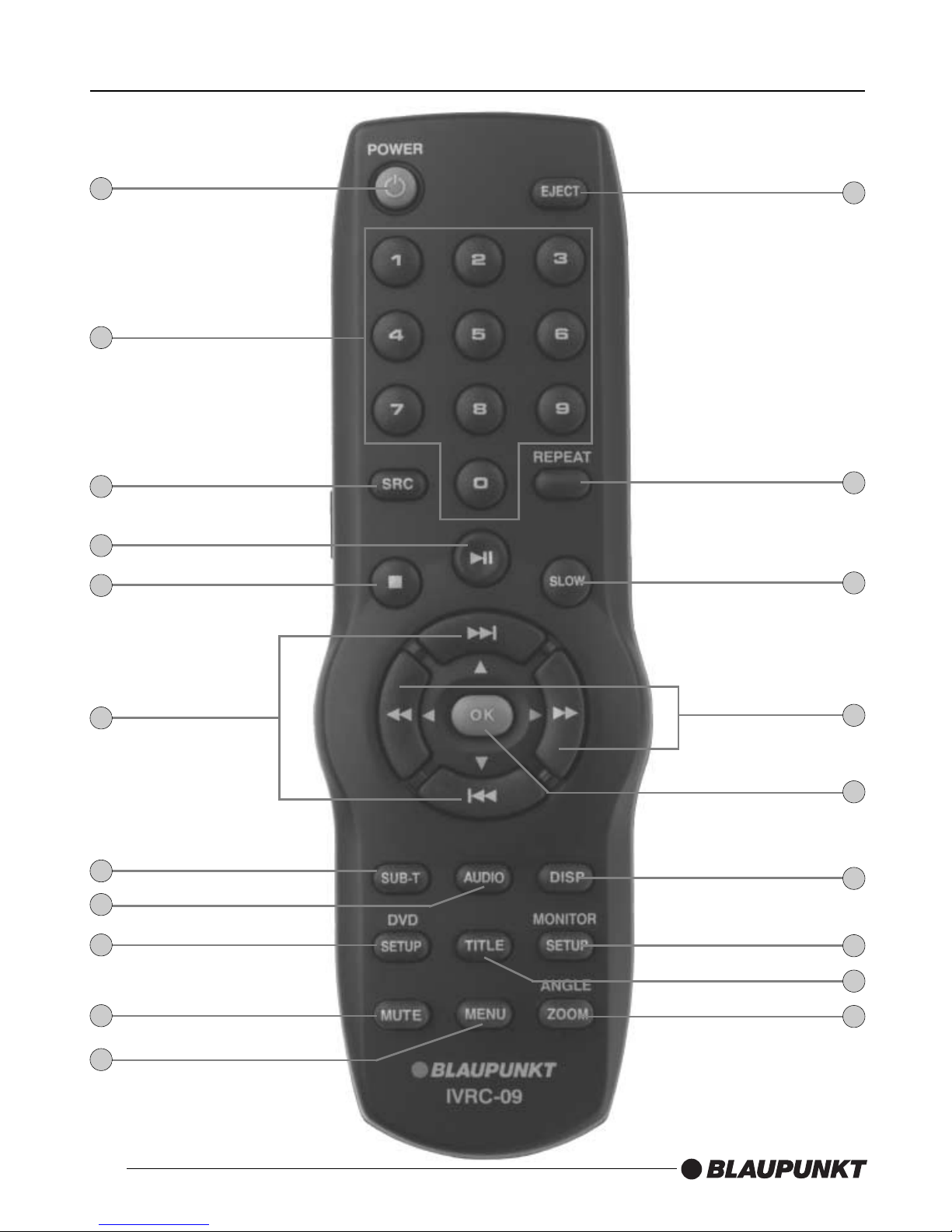

INFRARED REMOTE CONTROL OVERVIEW
5
1
2
9
4
3
5
6
8
7
11
10
12
13
14
15
16
17
18
19
20

6
INFRARED REMOTE CONTROL OVERVIEW
POWER Turn system power on / off
0 - 9 Numeric key buttons
PLAY/PAUSE
STOP
DVD: Next / previous chapter
VCD/CD/MP3: Next / previous track
MENU mode: Cursor up/down
Select the SUBTITLE language
(depending on the DVD disc)
AUDIO Select the audio soundtrack
(depending on the DVD disc)
SETUP Display the SETUP menu of
the DVD player
SOURCE Selects AV source
(DVD, AV1 or AV2)
MENU Displays the DVD root menu
MUTE Mutes the audio
EJECT Ejects the disc
REPEAT Selects repeat mode
SLOW Slow motion play
(only for DVD)
Fast forward / fast reverse
OK Confirms selection
DISP Display time information (during
playback)
SETUP Display the SETUP menu of
MONITOR Settings
(e.g. brightness, contrast, etc.)
TITLE Display the DVD title menu
(depending on the DVD disc)
ZOOM Set Zoom mode
ANGLE Select the viewing angle
(depending on the DVD disc)
English
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

NOTES FOR THE USER
Thank you for choosing a Blaupunkt
product. We hope you enjoy using this new
piece of equipment. Please read these
operating instructions before using the
equipment for the first time.
Precautionary measures
Please observe all the warning notices,
precautionary measures and maintenance
tips contained in these operating
instructions so as to extend the life of your
monitor.
Warning
Video products should never be in view of
the driver. Operation of Video within view of
the driver is illegal.
•Do not place the monitor in the following
positions:
1. Positions in which it could restrict the
driver’s view.
2. Positions in which it could become a
danger to safety (e.g. hand brake,
steering wheel, gearshift lever and
airbag).
•Only operate the device with the
recommended voltage supply of
12 V direct current.
•Do not attempt to open or dismantle the
monitor, since you could suffer an electric
shock as a result.
•Avoid using the monitor in environments
where it is subjected to dust, dirt or
moisture.
•Do not install the monitor in places where
it is subjected to direct sunlight.
Blaupunkt recommends having all your
video products installed by an authorized
dealer.
Safety notices
Please observe the following safety notices
during installation and while making the
connections.
- Disconnect the negative and positive
terminals of the battery.
- When doing so, please observe the safety
notices provided by the vehicle
manufacturer.
- Before drilling the holes necessary for
mounting the equipment and for laying
cables, please make sure that concealed
cables, the fuel tank and fuel lines cannot
be damaged in the process!
7

8
SUPPLIED PARTS
1Overhead DVD System
1Mounting Plate
1Trim Ring
1Remote Control
1Power supply cable (5 m) with fuses
5Rubber Caps
1User Manual
Mounting Hardware
Technical data, design and supplied parts
may vary slightly due to product updating
English

INSTALLING THE UNIT
Select a suitable location for
secure installation of the unit.
• The unit must not distract the driver or
restrict the driver’s view.
• The ability to enter and get out of the
vehicle must not be impeded.
• The unit must not be installed in such a
way that could prevent the other vehicle
components from functioning properly
(e.g. sliding sunroof).
• Make sure that the unit is installed in a
safe and secure position and that it cannot
become detached in the event of an
emergency stop.
• Do not attach the unit merely to the roof
liner.
• If you need to drill additional holes, make
sure you do not drill through the sheet
metal of the vehicle’s roof.
• Avoid using the unit over a long period of
time while the engine is off in order to
prevent the battery from becoming
discharged.
Before starting work, disconnect the ground
cable from the vehicle battery’s negative
terminal in order to prevent short circuits.
Note - follow the vehicle manufacturer’s
safety instructions (alarm system, air bag,
immobilizer, etc.).
The unit must be installed horizontally (within
-10º to +30º of horizontal). A more severe
angle may prevent the unit from functioning
correctly.
The DVD system is attached via a mounting
plate. Depending on the installation, the
mounting plate can be attached to the
vehicle with self-tapping screws through any
of the 10 small slots in the plate. The DVD
system is then attached to the mounting
plate using five machine screws. Depending
on the thickness of the headliner, longer
self-tapping screws may also be used.
Check the screw length required prior to
final installation.
9

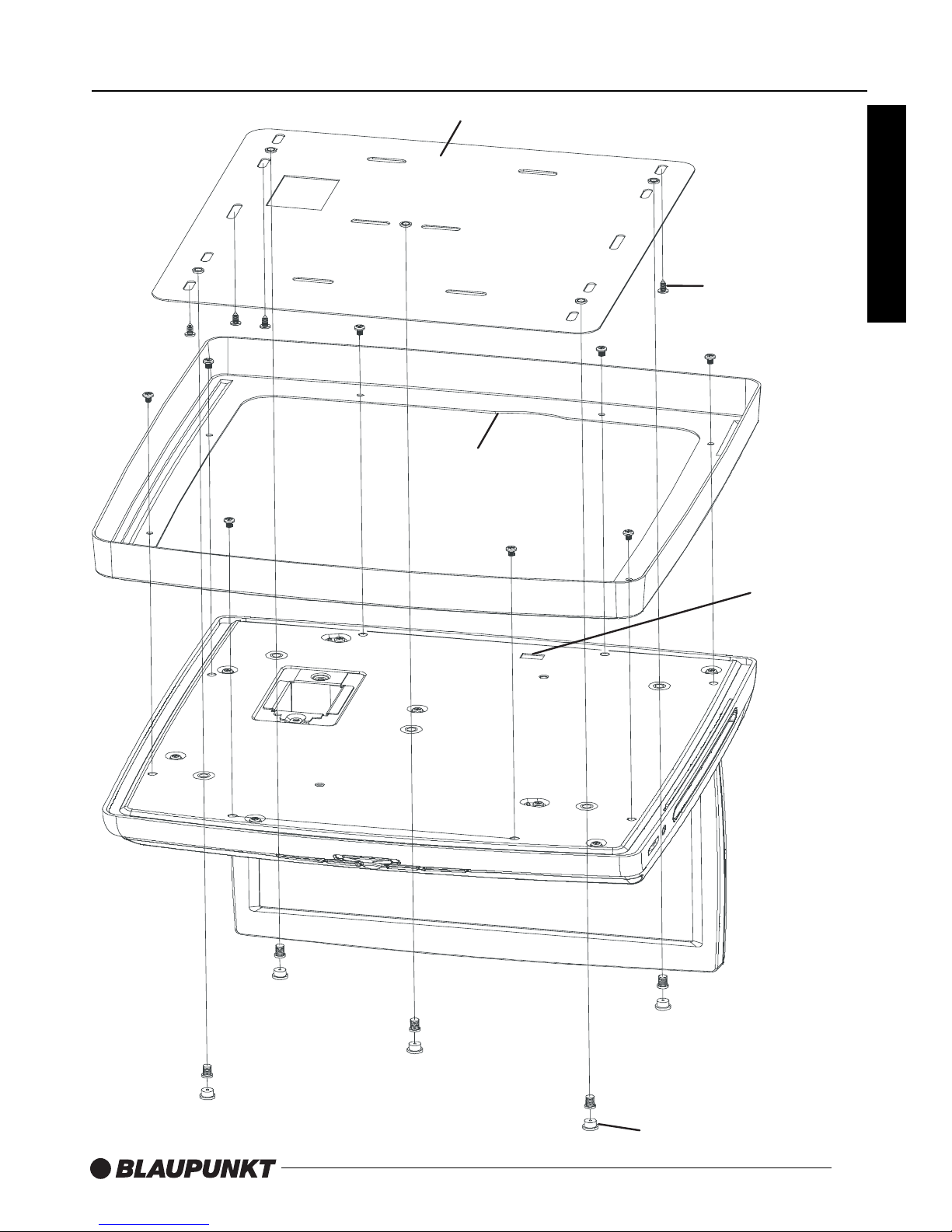

Trim Ring
Mounting Plate
Self-
Tapping
Screws
Dome Light
Trigger
Switch
Rubber
Caps
10
INSTALLATION
English

INSTALLATION
Marking the installation area.
1. Carefully pry the two transparent covers
of the interior lights off the unit from the
outside using a screwdriver. This allows
access to the two front mounting screw
holes.
2. Open the monitor display to access the
three rear mounting screw holes.
3. Hold the unit in the intended mounting
position and make five marks through the
screw holes.
4. Align the mounting plate with the five
mounting screw marks and trace suitable
drill hole marks through the small slots.
Attaching the unit.
1. Carefully drill the holes you traced
through the slots.
2. Screw the mounting plate into position
using the self-tapping screws provided.
3. Connect all the required leads to the unit.
4. Screw the unit to the mounting plate
using the five machine screws provided.
5. Cover the three rear screw holes with the
rubber caps provided.
6. Snap the two interior light covers back
into position.
Electrical connections.
Route all cables with care. Do not cut off
un-used cables, tape them up and secure
them to one side. They may be useful in the
future for additional functions.
Power supply connections
If the yellow +12v permanent positive lead is
lengthened and connected directly to the
battery, it must be protected by an additional
10 Amp fuse located near the battery
(max.10-15 cm).
+12 V permanent lead (yellow):
Connect the yellow lead to a suitable
connector with +12v permanent positive
voltage.
This connection should be rated for a
current of at least 3 amps.
+12 V switched lead (red):
Connect the red lead to a suitable +12v
circuit switched through the ignition.
Battery negative lead (black):
Connect the black lead to a suitable ground
(vehicle chassis).
11
Cable color Category Connection
Yellow input +12v permanent positive
(must be rated for at least 3
amps)
Red input +12v ignition positive
(switched plus)
Black input Battery negative (vehicle
chassis)
White input Door contact/interior lighting
(must be rated for at least 1
amp)

12
INSTALLATION
Interior lighting (white):
The IVOD1002 has two built-in lamps that
can be connected to the interior lighting
system of the vehicle. Connect the white
lead to the interior lighting circuit. Set the
dome light trigger switch to the correct
position for your application (see installation
diagram).
Audio/video inputs “AV 1 IN” and “AV 2 IN”
- Connect the RCA plug to the video
input “AV 1 IN” of the multimedia
system (in the recess on the top of unit).
Connect the 4-pin jack of the supplied
A/V cable to video input “AV 2 IN” on
the right side of the multimedia system.
Audio/video output “OUTPUT”
- Connect the yellow Cinch/RCA plug to
a suitable multimedia unit video input.
- Connect the white and red Cinch/RCA
plugs to the left and right Line or AUX
inputs of the vehicle audio system.
Prepare the remote control by
inserting the batteries.
Open the battery
compartment on the
back of the remote
control. Insert two
AAA Alkaline
batteries. Pay
attention to correct
polarity (marked
inside the battery
compartment).
Close the battery
compartment.
Initial operation
1. Reconnect the vehicle battery.
2. Restore complete function to the
electrical system (clock, on-board
computer, alarm system, air bag,
immobilizer, etc.).
3. Switch on the ignition.
4. Fold down the display screen of the
multimedia unit. Press the RESET button
(see page 16) using a paper clip or other
suitably thin object.
5. Insert a DVD/VCD/audio/MP3 or JPEG-
image CD into the DVD player.
6. Check that the audio and video functions
are working correctly in conjunction with
the any other components of the
multimedia system. See the Operation
section of this manual.
English

GENERAL INFORMATION
13
CAUTION: Any inappropriate use of
the device may expose the user to
visible/invisible laser rays which exceed the
limits for Class 1 laser products.
Do not open the unit and do not attempt to
repair it yourself. Refer servicing to qualified
personnel.
Copyright protection
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectual property rights owned by
Macro vision Corporation and other rights
owners. Use of this copyright protection
technology must be authorized by Macro
vision Corporation, and is intended for
home and other limited viewing uses only
unless otherwise authorized by Macro vision
Corporation. Reverse engineering or
disassembly is prohibited.
Region Code Information
This mobile DVD Player is designed and
manufactured to play DVD discs with
Region codes1 and 0.
Dolby Digital
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Confidential unpublished works.
1992-1997 Dolby Laboratories. All rights
reserved.
Disc formats
Supported formats
The following 8cm and 12 cm discs are
supported:
• DVD video 5 and 9
• DVD video 10 and 18
• Video CD
• Super Video CD
• CD Audio
• MP3 (CD-ROM)
• JPEG image CD
Formats which are not
supported
• DVD-ROM
• DVD-RW/DVD-RAM
• CDV
• CD-G
• DVDs with a Region code other than
1 and 0
• Kodak Photo CD (previously CDI format)
Note: As a Rule, Even self-burned CDs
are supported. However, depending on
the blank disc and burning program used,
playback difficulties may arise.

14
GENERAL INFORMATION
Handling and cleaning DVDs
and CDs
Avoid leaving fingerprints on the disc when
handling it.
Always store discs in their protective cases.
Always ensure that discs are clean and dry
before inserting.
Protect discs from heat and direct sunlight.
Dirt, dust, scratches and warped discs will
cause unit malfunction.
Do not put labels on discs.
Disc cleaning
Use a dry soft cloth to wipe the surface of a
disc. If the disc is especially dirty, use a soft
cloth slightly moistened with isopropyl
(rubbing) alcohol. Never use solvents such
as benzine, or conventional record cleaners
as they may mar the surface of the disc.
Preparing new discs with
rough spots
New discs may have some roughness
around the edge. The DVD Player may not
work properly or the video/sound
reproduction may skip if such discs are
used. Use a ballpoint pen, etc., to remove
roughness from the edge of the disc.
English

BASIC OPERATION
Switching on/off
To switch on the system:
- Switch on the ignition.
- Press the POWER button on the
system or the remote control.
To switch off the system:
- Press the POWER button on the
system or the remote control.
Or:
- Switch off the ignition.
Loading a disc
Carefully slide the disc with the printed side
facing upwards, into the player disc slot
until it is drawn in. The player starts
playback automatically.
Ejecting a disc
- Press the button on the system.
- The disc is ejected.
- Remove the disc.
Auxiliary lighting
Permanent on
- Set the auxiliary lighting switch to “ON”
Automatic lighting
- Set the auxiliary lighting switch to
“AUTO”
The auxiliary lighting for the system is
controlled by the vehicle interior lighting
system.
Lighting off
- Set the auxiliary lighting switch to “OFF”
TFT display
Opening the display
- Press the unlocking button for the
display and pull the screen carefully
downward.
Do not touch the display screen itself!
This can damage the LCD panel.
Closing the display
- Swivel the display to the straight
position. Push it carefully upwards until
it snaps into place.
Swivelling the display
- The display can be swivelled in either
direction by approx. 30º to achieve an
optimum viewing angle.
Selecting the AV source
• The DVD system allows the connection of
two external AV sources (see installation
instructions) for display on the system’s
display panel.
- Press the SRC button on the system or
the remote control to select AV sources;
DVD, AV1 or AV2.
- The selected AV source is then shown
on the display.
- The corresponding LED (DVD, AV1 or
AV2) illuminates on the front of the unit.
15

16
BASIC OPERATION
Display settings
- Press the Monitor Setup button once or
several times to call up the display
settings.
- Press the or buttons to
change the value of the setting. Press
OK button to exit the display mode.
Brightness
- Set the brightness to between 0 and 32
Color saturation- (AV1/AV2 only)
- Set the color saturation to between 0
and 32.
Contrast
- Set the contrast to between 0 and 32.
Color balance- TINT (AV1/AV2 only)
- Set the color balance to between
0 and 32.
Image sharpness- (AV1/AV2 only)
- Set the sharpness to between
0 and 32.
TV standard
- Set the TV standard appropriate to the
connected AV source. The options are:
AUTO, PAL and NTSC.
Display mode
- Set the display mode according to the
current video media. You can choose
between NORMAL (4:3). FULL (16:9)
and WIDE 1 (extended 16:9).
Installation position
- Set the installation position to CEILING
(overhead).
Note: The “Desktop” setting is not
supported by the DVD player.
User settings
This function allows the display settings,
brightness, contrast, color, tint and
sharpness to be saved for a specific user
and then subsequently restored.
- Set the desired values for the display
settings.
- Select SAVE by pressing the
button to save the values as user
settings.
- Select READ by pressing button to
restore the values as user settings.
Default settings
- Select DEFAULT and press the
and buttons to return the display to
its default settings.
Starting/stopping playback
Press the button to stop playback.
The player stores the current disc position.
Press the button to resume playback at
the stored position.
Press the button twice to stop the
playback and to go back to the initial
track/chapter of the inserted disc.
English

BASIC OPERATION
Video CDs with PBC (playback control)
Video CDs with PBC can be played with or
without a menu:
- Press the MENU button to select
between playback with or without PBC.
Pause (still picture)
- Press the button during playback.
- Press the button once again to
resume normal playback.
Fast forward/reverse
- Press the or button during
playback.
Each time the button is pressed, the speed
of fast forward/reverse changes as follows:
DVD:
Normal - >2x - >4x - >6x - >8x - >20x
VCD/CD/MP3:
Normal - >2x - >4x - >6x - >8x
Skipping chapters/tracks
- Press one of the buttons
during playback.
- Press the button to jump to the
next chapter (DVD) or track (VCD/CD).
- Press the button to jump to the
previous chapter (DVD) or track
(VCD/CD).
Note: For some VCD2.0 discs (PAC
playback control), the buttons may
not work.
Repeating chapters/tracks
- Press the REPEAT button once, or
more than once to select the REPEAT
mode as follows:
DVD:
• CHAPTER REPEAT ON:
The current chapter is repeated.
• TITLE REPEAT ON:
The current title is repeated.
• REPEAT OFF:
The repeat function is switched off.
VCD/CD:
• REP - ONE:
The current track is repeated.
• REP - ALL:
All tracks of the inserted disc are
repeated.
• REPEAT OFF:
The repeat function is switched off.
17

18
BASIC OPERATION
Time displays
Press the DISP button during playback to
display different time information on the
screen of the disc that is playing.
Example:
DVD:
- Press DISP once:
The following information is shown on
the screen:
- current title number and total number of
titles,
- current chapter number and total
number of chapters, and
- elapsed total time.
Press DISP again.
Press DISP for the third time:
Press DISP for the fourth time:
Press DISP for the fifth time:
The message on the screen will be cleared.
CD/VCD:
Each time the DISP button is pressed, the
time displayed changes in the following
order:
- SINGLE ELAPSED (track/chapter)
- SINGLE REMAIN (track/chapter)
- TOTAL ELAPSED (CD)*
- TOTAL REMAIN (CD)*
- OFF
* only when PBC is off
MP3:
Each time the DISP button is pressed, the
time displayed changes in the following
order:
- CHAPTER ELAPSED
- CHAPTER REMAIN
MENU function
MENU button
- Press the MENU button during
playback. The basic menu of the DVD is
displayed. If different menu options are
available, move the cursor to the
desired menu option with the cursor
buttons or .
- Confirm your selection by pressing the
ENTER button.
TITLE 02 / 05 CHAPTER 001 / 027
01 : 14 : 39
TITLE 02 / 05 CHAPTER 001 / 027
01 : 14 : 39
TITLE REMAIN
01 : 14 : 39
CHAPTER EL APSED
00 : 12 : 24
English

BASIC OPERATION
TITLE button
If the DVD has multiple titles recorded, you
can select the preferred title from the title
menu to start playback.
- Press the TITLE button during
playback.
- The title menu is displayed.
- Move the cursor to the desired title
with the cursor buttons or .
- Confirm your selection by pressing
the ENTER button.
Selecting audio language
DVD:
- Press the AUDIO button once or more
than once during playback to select the
desired audio soundtrack language.
Notes: The number of audio languages is
dependent on the inserted DVD. Some
DVDs only contain one audio language. If
the inserted DVD only contains one audio
language, the appears in the left top
corner of the screen when pressing the
AUDIO button.
VCD/CD:
- Press the AUDIO button once or more
than once during playback to select
between the following modes:
- Stereo (L & R),
- L only,
- R only
Selecting subtitle language
(DVD only)
- Press the SUB-T button once or several
times during playback to select the
required language for subtitles.
Notes: The number of subtitle languages is
dependent on the inserted DVD. Some
discs only contain one subtitle language. If
only one language is available on the disc,
the appears in the left top corner of
the screen when pressing the SUBTITLE
button.
Zoom (magnification)
- Press the ZOOM button once or
several times during playback to select
the required amount of zoom.
OFF - >1.5X - >2X - >3X - >OFF
Selecting the viewing angle
(DVD only)
When the ANGLE MARK (camera angle)
function is activated, the symbol is displayed
on the screen when a scene with alternative
camera angles is played from a DVD.
- Press the ANGLE button once or
several times while the symbol is
displayed to select the various camera
angles.
Notes: This function only works with discs
having scenes recorded at different angles.
The number of viewing angles depends on
the individual DVD.
To activate ANGLE MARK see General
settings.
MP3 disc playback
This player supports the following CD
formats for MP3 playback:
- Joliet
- Romeo
- ISO9660
19
