BLUEFIN Fitness CURV MiNI User manual

INSTRUCTION
MANUAL.
[ DE ] BEDIENUNGSANLEITUNG
[ ES ] MANUAL DE INSTRUCCIONES
[ FR ] GUIDE D’UTILISATION
[ IT ] MANUALE DELLE ISTRUZIONI
[ NL ] HANDLEIDING

[ EN ]
Please make sure that all persons
using the device have read &
understood the user manual.
WELCOME TO
BLUEFIN FITNESS
Dear Customer,
We are pleased that you have chosen a device from the BLUEFIN FITNESS
product range. BLUEFIN FITNESS offers you the highest quality & latest
technology that the industry has to offer.
To take full advantage of the device‘s performance and to ensure many years of
usage of your device, please read this manual carefully rst before its rst use.
Please only use the device according to the instructions laid out in this manual.
The operational safety and function of the device can only be guaranteed if the
general safety and accident prevention regulations of the legislator, as well as
the safety instructions in this user manual, are observed.
We assume no liability for damages caused by improper use or incorrect
operation.

[ EN ]
SAFETY
PRECAUTIONS
This general safety information must be observed when
using this product. Read all instructions before using the
product. Keep the user manual in a safe place to be able to
access it at any time if necessary.
Please keep this manual for future reference.
1. Before commencing assembly & use of your new equipment, carefully read
the instruction manual to understand the information provided. The correct
installation, maintenance & use of your equipment is important to ensure you get
the safest & most effectA11:A23ive tness workout.
2. Please ensure the equipment has been assembled according to the assembly
manual.
3. If you are over 45 years old, have health or medical problems and/or this is your
rst time exercising in over 12 months, please consult your local Doctor or Medical
Professional before use.
4. The maximum user weight is 100Kg & is for use from a seated position. Do not
stand up directly when using the product.
5. Should you experience any of the following symptoms including: headache, chest
tightness, irregular heartbeat, shortness of breath, dizziness, nausea or any sharp
muscle or joint pain, immediately stop training & consult your Doctor or Medical
Professional.
6. Ensure that young children & pets are kept away from the equipment to prevent
injury, the equipment is for adult use only.
7. The equipment should be placed on a hard, at surface & at least 0.6 meters away
from any obstacles.

[ EN ]
SAFETY
PRECAUTIONS
8. Before using the equipment, please check all nuts & bolts of the equipment are
tightened securely.
9. Care must be taken when lifting, moving or stowing the equipment so as not to
injure your back. Always use proper lifting techniques and/or seek assistance if
necessary.
10. It is strongly recommended you wear appropriate clothing & footwear when using
your equipment for your own personal comfort.
11. The equipment is not suitable for use as a medical device.
12. Do not ride the bike whilst standing up.
13. The braking system of the bike is speed dependent.
WARNING: Before beginning any exercise
program, consult your physician. This is
especially important for individuals over
the age of 45 or persons with pre-existing
health problems. Read all instructions
before using any tness equipment.
Weassume no responsibility for personal
injury or property damage sustained by
orthrough the use of this product.
Save these instructions!

[ EN ]
ASSEMBLY
INSTRUCTIONS
Before you start installation inspect &
prepare all parts & screws featured in this
manual. When you open the carton, you
will nd the following parts.
NB/ Some of the smaller components may
be pre-tted to larger components.
Hardware Packing List
A. B.
C.
Phillips Flat Head Self-
Tapping Screws (4x8)
x 12
Hex Key
Phillips Pan Head Self-
Tapping Screws (5x16)
x 4

[ EN ]
ASSEMBLY
INSTRUCTIONS
Main Parts List
Main Frame
Pedals x 2

[ EN ]
ASSEMBLY
INSTRUCTIONS
Step 1.
Install the left & right pedals onto the Main Frame.

[ EN ]
ASSEMBLY
INSTRUCTIONS

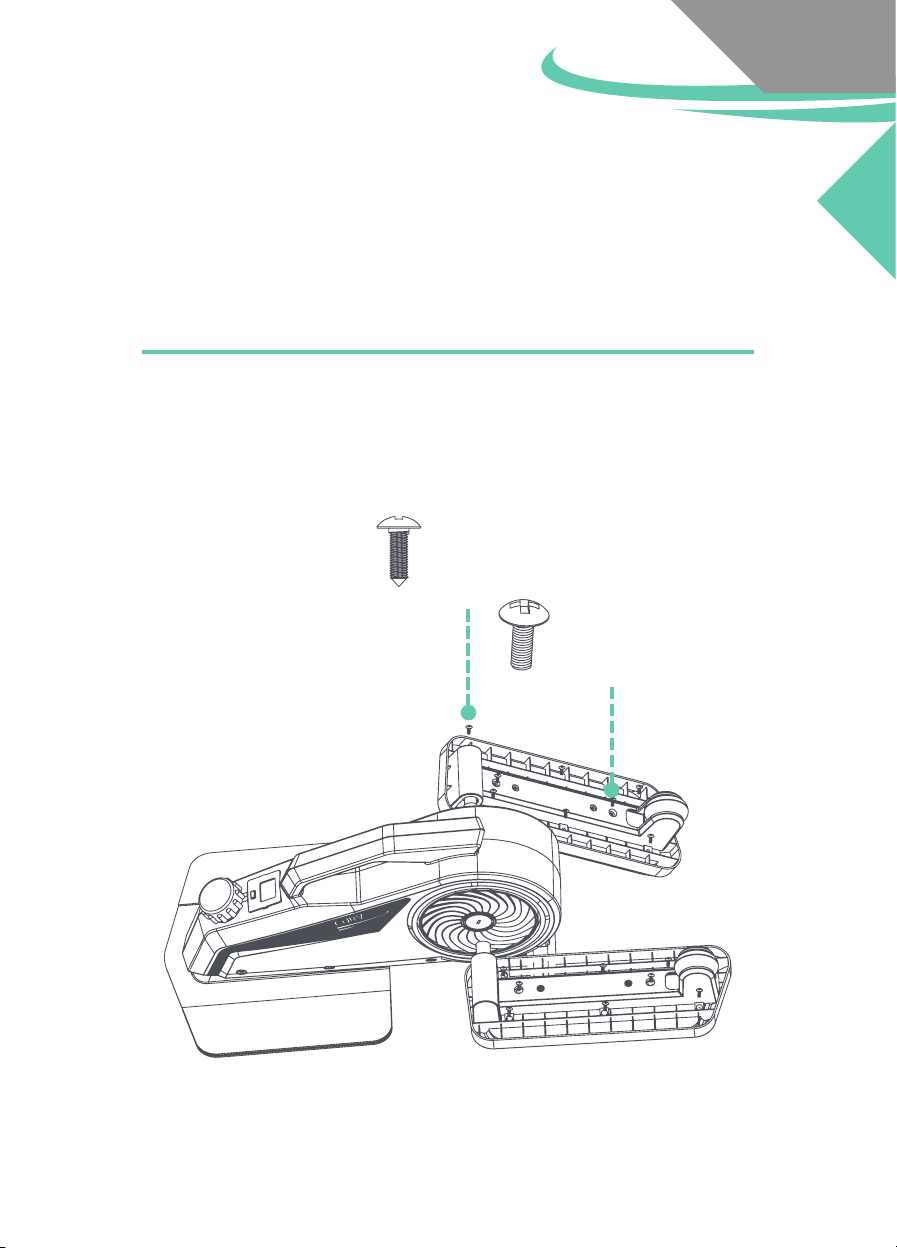

Step 2.
Turn the pedals over & securely attach the screws using the Hex Tool provided.
Use 2 x Pan Head Self-Tapping Screws (5x16) for the centre of each bracket.
Use 6 x Flat Self-Tapping Screws (4x8) for the outer of each pedal bracket.
Phillips Flat Head Self-
Tapping Screws (4x8)
x 12
Phillips Pan Head Self-
Tapping Screws (5x16)
x 4

[ EN ]
ASSEMBLY
INSTRUCTIONS
Step 3.
Unscrew the battery compartment on the underside of the device & install 2 x
AAA batteries safely. Securely tighten the screw to reattach the compartment.
Requires 2 x AAA
Batteries

[ EN ]
ASSEMBLY
INSTRUCTIONS
Step 4.
Turn the device the right way around & rest the pedals onto the support
plates. Place a mat underneath the device to protect your oor from any slight
damage if necessary.

[ EN ]
OPERATION
INSTRUCTIONS
You should begin your “Exercise Period”
at the resistance level & speed to suit your
needs. Remember to start out slow & work
your way up to the tness level that you
desire.
Tension Adjustment Knob
Increase & Decrease Tension
Increase tension by turning the knob clockwise (+). Decrease tension by
turning the knob anti-clockwise (-).

[ EN ]
OPERATION
INSTRUCTIONS
Battery Replacement: The Console Panel
uses 2 x AAA batteries. Replace the
batteries when the display begins to fade or
the values appear to be very inaccurate.
To replace the batteries, remove the battery
cover on the back of the Console Panel.
Ensure the polarity is correctly aligned &
reattach the battery cover.
NB/ Once the batteries are removed, all
data will be cleared to zero.
LCD Display
Your display will show the Total Count of steps at the top of the display with
each use.
Further counters are displayed at the bottom of the display. You can cycle
through ‘TIME’, ‘RPM’ and ‘CALORIES’ by pressing the Red Button at any point.
To reset the counter, press & hold the Red Button for 4 seconds.

[ EN ]
SMARTPHONE
FITNESS APP
Fit Show Fitness App
The device primarily connects to the Fit Show Fitness App.
• Download the Fit Show App from your device’s application store.
• Turn on Bluetooth on your smartphone.
• Install the application.
• Begin cycling to initiate your device.
• The app will recognise your device.
• Commence training to record data.

[ EN ]
SMARTPHONE
FITNESS APP
Kinomap Fitness App
The device also connects to Kinomap via Fit Show.
• Download the Kinomap App from your device’s application store.
• Turn on Bluetooth on your smartphone.
• Install the application.
• Add Equipment on the application.
• Select Elliptical Trainer.
• Select Fit Show from the list of brands.
• Begin cycling to initiate your device.
• Select ‘ZV-BEB53’.
• The app will recognise your device.
• Commence training to record data & choose from thousands of training
videos (subscription will be required after free trial period)

[ EN ]
WARM UP &
COOL DOWN!
To prevent injuries you should start with
warm-up, cool-down & stretching exercises
before & after each workout.
No matter how much you do sports, please
do some stretches to begin. The warm
muscles will extend more easily. This
reduces the risk of a spasm or muscle injury
during exercise. To warm up we suggest the
following stretching exercises as shown.
Please do not overstretch or pull your
muscles: “IF IT HURTS, STOP IT!”
Side Bends:
Pass your arm over your head & bend your
upper body in the same direction. Hold
this position for 10 to 15 seconds & slowly
straighten yourself up. Repeat this 3 times
for each side.
Toe Touch:
Slowly bend forward from your waist,
letting your back & shoulders relax as you
stretch towards your toes. Reach down as
far as you can & hold for 15 counts. Relax &
repeat 3 times

[ EN ]
WARM UP &
COOL DOWN!
Calf-Achilles Stretch:
Lean against a wall with your left leg in
front of the right & your arms forward.
Keep your right leg straight & the left foot
on the oor, then bend the left leg & lean
forward by moving your hips towards the
wall. Hold, then repeat on the other side
for 15 counts. Relax & repeat 3 times for
each leg.
Quadriceps Stretch:
With one hand against a wall for balance,
reach behind you & pull your right foot up.
Bring your heel close to your buttocks &
hold for 10-15 counts. Relax & repeat 3
times for each foot
Inner Thigh Stretch:
Sit with the soles of your feet together
with your knees pointing outward. Pull
your feet as close into your groin as
possible. Gently push your knees towards
the oor & hold for 15 counts. Relax &
repeat 3 times.

[ EN ]
MANUFACTURER
WARRANTY
The Bluen warranty covers any
technical faults with your item. If
you need to make a warranty claim
contact us via email at:
support@bluentrading.co.uk
Your warranty does not cover the following:
• General wear & marks from use.
• Water damage.
• Damage due to improper use.
• Chassis damage & scratching due to improper use or dropping.
• Electronic damage due to improper use or dropping.
Your warranty begins on receipt of delivery, technical faults are covered for
12months
If you have any questions regarding your warranty please email us at:
support@bluentrading.co.uk
William Vaughan, CEO
Bluen Trading Ltd.

[ EN ]
EU-DECLARATION
OF CONFORMITY
For the latest & up-to-date EU declaration of conformity for this product, please visit:
www.bluentness.com/manuals/tourXP_DoC.pdf
Importer Address:
Bluen Trading Ltd
Keelham Farm
Hebden Bridge
UK
HX7 8TG
www.bluentness.com
Waste Electrical & Electronic Equipment
Do not dispose of this device with domestic waste. The components
of the device must be separately recycled or disposed of according
to local regulations. The system operator may also return any waste
electrical & electronic equipment to the manufacturer at the end of
their lifetime. Charges incurred for transport to the manufacturer
will be at the expense of the owner of the waste electrical &
electronic equipment.
Battery Directive
Do not dispose of any batteries with domestic waste. Please recycle
or safely dispose of batteries in accordance with local regulations.
Any batteries supplied by the manufacturer or distributor can be
returned at the end of their lifetime for recycling & safe disposal.
Charges incurred for transport to the manufacturer or distributor
will be at the expense of the owner of the batteries.
Recycling of Packaging Materials
Do not dispose of packaging with domestic waste. All packaging
materials can be safely recycled according to local regulations.
