NordicTrack NTB58030 User manual

Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Model No. NTB58030
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
USER’S MANUAL

2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-
ning assembly.
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.
TABLE OF CONTENTS
The decal shown here has been placed on the
weight rack. If the decal is missing or illegible,
please call our Customer Service Department
toll-free at 1-888-825-2588, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time, to
order a free replacement decal. Apply the decal
in the location shown.
• Misuse of this
product may result in
serious injury.
WARNING
!
• Read user’s manual
and follow all warnings
and operating instruc-
tions prior to use.
• Replace label if
damaged, illegible,
or removed.
• Do not allow children
on or around machine.

1. Read all instructions in this manual before
using the weight rack. Use the weight rack
only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight rack are ade-
quately informed of all precautions.
3. The weight rack is intended for home use
only. Do not use the weight rack in any com-
mercial, rental, or institutional setting.
4. Use the weight rack only on a level surface.
Cover the floor beneath the weight rack to
protect the floor.
5. Make sure all parts are properly tightened
each time the weight rack is used. Replace
any worn parts immediately.
6. Keep children under 12 and pets away from
the weight rack at all times.
7. Keep hands and feet away from moving parts.
8. Make sure that the cable remains on the pul-
leys at all times. If the cable binds as you are
exercising, stop immediately and make sure
that the cable is on the pulleys.
9. Always wear athletic shoes for foot protec-
tion while exercising.
10. Always set both weight rests and both
weight spotters at the same height.
11. The weight rack is designed to support a
maximum total weight of 310 pounds, includ-
ing the barbell. Do not place more than 200
pounds on the weight carriage. Note: The
weight rack is designed to be used with an
Olympic barbell (not included).
12. Always place an equal amount of weight on
each side of the weight carriage or barbell.
13. Always secure the weights with the weight
clips when they are mounted on the weight
carriage.
14.
Always exercise with a partner. Your partner
should be ready to catch the barbell if you
cannot complete a repetition.
15. Always disconnect the lat bar from the cable
when performing an exercise that does not
require it.
16. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight rack.
IMPORTANT PRECAUTIONS
3

ASSEMBLED
DIMENSIONS:
Height: 84 in.
Width: 64 in.
Depth: 50 in.
4
Weight Carriage
Front Upright
Safety Spotter
Weight Rest
Storage Tube
Right Side Left Side
Note: The terms “right side” and “left
side” are determined relative to a per-
son facing away from the weight rack;
they do not correspond to right and
left on the drawings in the manual.
Foot Plate
Lat Bar
BEFORE YOU BEGIN
Thank you for selecting the versatile NordicTrack®
STRENGTH POWER SYSTEM weight rack. The
weight rack is designed to help you develop every
major muscle group of the body. Whether your goal is
a shapely figure, dramatic increase in muscle size and
strength, or a healthier cardiovascular system, the
weight rack will help you achieve the specific results
you want.
For your benefit, read this manual carefully before
using the weight rack. If you have additional ques-
tions, please call our Customer Service Department
toll-free at 1-888-825-2588, Monday through Friday,
6 a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number is NTB58030. The serial number can be found
on a decal attached to the weight rack (see the front
cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

1.
Attach the left side of the Bottom Crossbar (2) to
the Base (1) without the warning decal, with two
M10 x 94mm Bolts (34), a Large Joint Plate (14),
and two M10 Nylon Locknuts (32). Make sure
the Joint Plate is oriented as shown. Do not
tighten the Locknuts yet.
Note: The Base with the warning decal applied
to it should be attached on the right side of
the weight rack (see WARNING DECAL
PLACEMENT on page 2).
Attach the Bottom Crossbar (2) to the other
Base (not shown) in the same manner.
2. Press a 60mm Square Inner Cap (22) into the
back of the Lat Tower Base (3).
Attach the Lat Tower Base (3) to the Bottom
Crossbar (2) with two M10 x 68mm Bolts (38) and
two M10 Nylon Locknuts (32). Do not tighten the
Locknuts yet.
5
Before beginning assembly, carefully read the
following information and instructions:
•Assembly requires two people.
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
•As you assemble the weight rack, make sure all
parts are oriented as shown in the drawings.
•For help identifying small parts, use the PART
IDENTIFICATION CHART.
The following tools (not included) are required
for assembly:
•Two adjustable wrenches
•One rubber mallet
•One standard screwdriver
•One Phillips screwdriver
•Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight rack can be assembled success-
fully by anyone. However, it is important to real-
ize that the versatile weight rack has many parts
and that the assembly process will take time.
Most people find that by setting aside plenty of
time, assembly will go smoothly.
ASSEMBLY
Before beginning assembly, make sure you
understand the information in the box
above.
1
2
34
These holes
are closer
to this side
of the Plate.
34
21
14
32
32
3
2
22
38
32

6
3. Press a 60mm Square Inner Cap (22) into the Lat
Tower (8).
Orient the Weight Carriage (10) as shown and
slide it onto the Lat Tower (8). Orient the Carriage
Stop (21) as shown and slide it onto the Lat
Tower below the Weight Carriage.
Slide the Lat Tower (8) onto the Lat Tower Base
(3). Attach the Carriage Stop (21) at the indicated
hole with an M10 x 86mm Bolt (35) and an M10
Nylon Locknut (32).
attach the Lat Tower (8) to the Lat Tower Base (3)
with three M10 x 72mm Bolts (39), three M10
Washers (33), and three M10 Nylon Locknuts
(32). Do not tighten the Locknuts yet.
3
8Attach the
Carriage Stop
(52) here.
32
32
32
3
39
39
33
10
35
21
22
4. Attach the Top Crossbar (9) to the Left Rear
Upright (4) with two M10 x 94mm Bolts (34), two
M10 Washers (33), and two M10 Nylon Locknuts
(32). Do not tighten the Locknuts yet.
Attach the Top Crossbar (9) to the Right Rear
Upright (not shown) in the same manner.
4
32
33
34
34
9
4

7
5. Attach the bracket on the Top Crossbar (9) to the
Lat Tower Base (3) with two M10 x 78mm Bolts
(41) and two M10 Nylon Locknuts (32). Do not
tighten the Locknuts yet.
Attach the Left Rear Upright (4) to the Bottom
Crossbar (2) with two M10 x 94mm Bolts (34), a
Large Joint Plate (14), and two M10 Nylon
Locknuts (32). Do not tighten the Locknuts yet.
Attach the Right Rear Upright (not shown) to
the Bottom Crossbar (2) in the same manner.
5
4
32
14
2
34
32
9Bracket
3
41
6. Press a 51mm x 76mm Inner Cap (24) into the
top of a Front Upright (6). Attach an Upright
Cover (7) to the Front Upright with five M4 x
16mm Screws (42).
Attach the Front Upright (6) to a Base (1) with
four M10 x 94mm Bolts (34), two Small Joint
Plates (15), and four M10 Nylon Locknuts (32).
Do not tighten the Locknuts yet.
Repeat this step with the other Front Upright
(not shown) and the other Base (1).
624
7
6
42
42
42
42
42
15
34
34
1
1
32
32
15

8
7. Attach the Left Rear Upright (4) to the left Front
Upright (6) with four M10 x 94mm Bolts (34), two
Small Joint Plates (15), and four M10 Nylon
Locknuts (32). Do not tighten the Locknuts yet.
Repeat this step with the Right Rear Upright (not
shown).
8. Press two 48mm Round Inner Caps (23) into the
ends of the two Carriage Tubes (11). Screw the
Carriage Tubes onto the Weight Carriage (10) as
shown. Make sure the Carriage Tubes are fully
tightened.
7
8
34 15
6
15
4
23
23
11
11
10
32
9. Route the Cable (31) up through the Lat Tower
(8) and over an 89mm Pulley (26). Attach the
Pulley inside of the Lat Tower with an M10 x
75mm Bolt (40), two M10 Washers (33), two
Spacers (28), and an M10 Nylon Locknut (32).
Make sure the large ball on the Cable is in the
indicated position.
10. Wrap the Cable (31) over an 89mm Pulley (26).
Attach the Pulley and a Cable Trap (27) to the
bracket on the Lat Tower (8) with an M10 x 75mm
Bolt (40). Do not thread a Locknut onto the
Bolt yet. Make sure the Cable Trap is inside of
the bracket and oriented to hold the Cable in
the groove of the Pulley.
9
10
Large
Ball
31
40
8
32 28
33 26
33
28
31
26
27
40
8

9
11.Wrap the Cable (31) around an 89mm Pulley
(26). Attach the Pulley and a Cable Trap (27) to
the Weight Carriage (10) with an M10 x 45mm
Bolt (36) and an M10 Nylon Locknut (32). Make
sure the Cable Trap is outside of the bracket
and oriented to hold the Cable in the groove
of the Pulley.
12. Wrap the Cable (31) around an 89mm Pulley
(26). Attach the Pulley and a Cable Trap (27) to
the bracket on the Lat Tower (8) with the M10 x
75mm Bolt (40) used in step 10 and an M10
Nylon Locknut (32). Make sure the Cable Trap
is oriented to hold the Cable in the groove of
the Pulley.
12
11
31
26
32
27
40
31
10
36
27
32 26
8
13. Route the Cable (31) through the Lat Tower Base
(3) and around an 89mm Pulley (26). Attach the
Pulley to the bracket on the Lat Tower Base with
an M10 x 45mm Bolt (36) and an M10 Nylon
Locknut (32).
14. Route the Cable (31) under an 89mm Pulley (26)
and through the Foot Plate (13) as shown. Attach
the Pulley to the Foot Plate with an M10 x 45mm
Bolt (36) and an M10 Nylon Locknut (32).
Attach the Foot Plate (13) to the Lat Tower Base
(3) with two M10 x 19mm Bolts (37) and two M10
Nylon Locknuts (32). Do not tighten the
Locknuts yet.
Attach the Foot Plate (13) to the Bottom Crossbar
(2) with two M10 x 94mm Bolts (34), two M10
Washers (33), and two M10 Nylon Locknuts (32).
Tighten all of the M10 Nylon Locknuts (32)
used in steps 1–14.
13
14
32
31
3
32
33
32
32
32 32
3
34
13
31
37
26
2
33
26
36
36

10
15. Press two 48mm Round Inner Caps (23) into two
Storage Tubes (12). Screw the Storage Tubes
onto the Left Rear Upright (4). Make sure the
Storage Tubes are fully tightened.
Repeat this step with the other two Storage
Tubes (12) and the Right Rear Upright (not
shown).
16. Press two 32mm Round Inner Caps (25) into the
end of the Left Weight Rest (19) and the Left
Safety Spotter (17).
Insert the Left Weight Rest (19) and the Left
Safety Spotter (17) into holes in the left Front
Upright (6) and engage the locking pins around
the Upright.
Repeat this step with the Right Weight Rest
(not shown), the Right Safety Spotter (not
shown), and the right Front Upright (not
shown).
15
16
23
23
12
12
25
19
17
4
25 6
17. Wet the ends of the Lat Bar (43) and the Row Bar
(47) with soapy water. Slide four Handgrips (44)
onto the ends of the two Bars.
18. Make sure that all parts are properly tightened
before you use the weight rack. The use of all
remaining parts will be explained in ADJUST-
MENTS starting on the next page.
17
43
47
44
44
44 44

This section explains how to adjust the weight rack. See the EXERCISE GUIDELINES on page 13 for important
information about how to get the most benefit from your exercise program. Also, refer to the accompanying exer-
cise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time the weight rack is used. Replace any worn parts immediately.
The weight rack can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
11
ADJUSTMENTS
31
46
43
ATTACHING THE LAT BAR

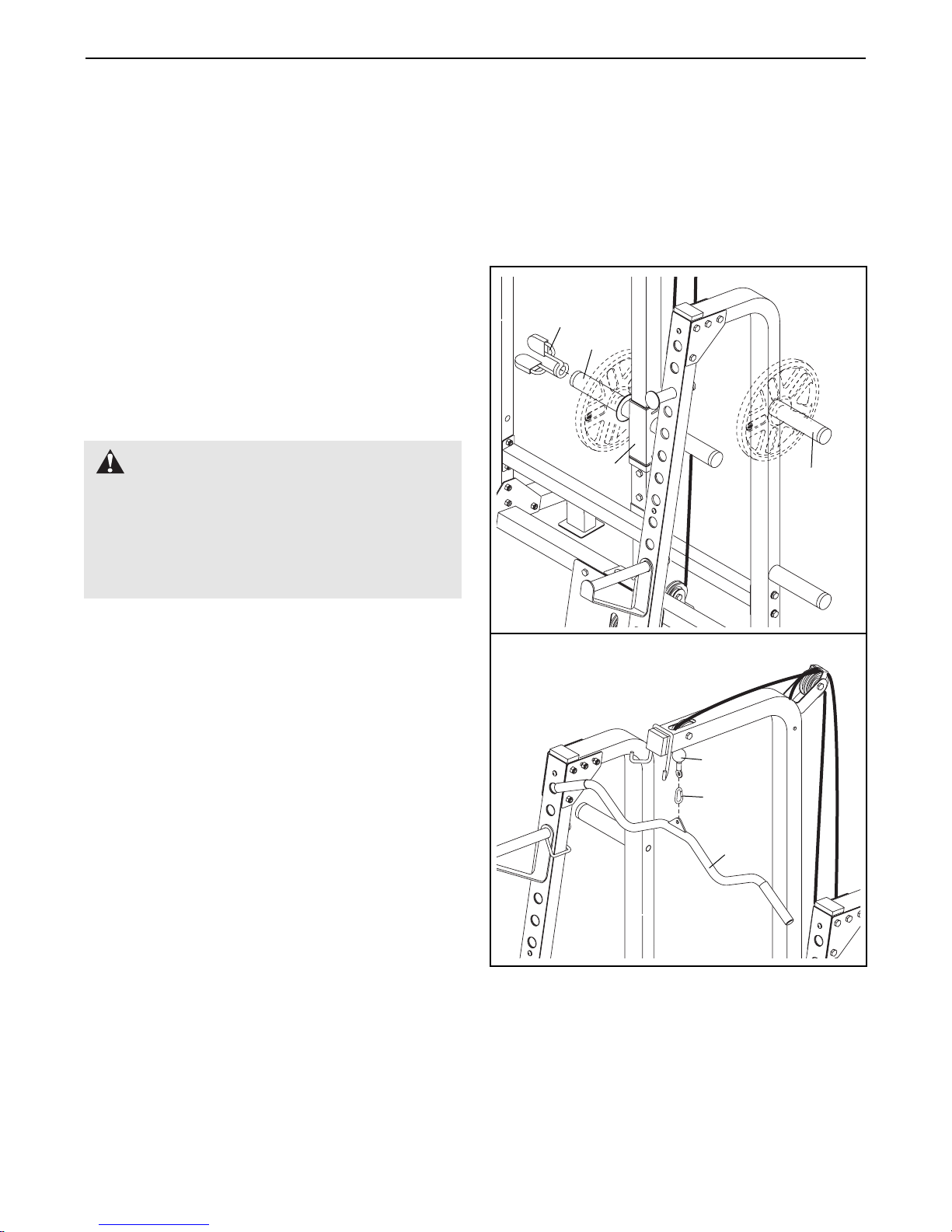

Attach the Lat Bar (43) to the Cable (31) with a Cable
Clip (46). For some exercises, it may be necessary to
attach the Chain (not shown) between the Cable and
the Lat Bar with two Cable Clips. Adjust the length
of the Chain between the Lat Bar and the Cable
so the Lat Bar is in the correct starting position
for the exercise to be performed.
The Ankle Strap (not shown) can be attached to the
Cable (31) in the same manner.
16
12
11
10
ADDING WEIGHT TO THE WEIGHT RACK
To use the Weight Carriage (10), slide the desired
amount of weight onto the Carriage Tubes (11).
Secure the weight with two Weight Clips (16).
Unused weights can be stored on the Storage Tubes
(12) on the weight rack.
WARNING:Always place the same
amount of weight on each Carriage Tube (11)
and secure the weight with the two Weight Clips
(16).
Always store an equal amount of weight on each
side of the weight rack.

12
17
6
1
2
3
4
4
5
WEIGHT RESTS AND SAFETY SPOTTERS
To use the barbell (not included) with the weight rack,
first move the Weight Rests (19, 20) and the Safety
Spotters (17, 18) to the correct heights for the exer-
cise to be performed. Engage the locking pins around
the Front Uprights (6).
19
Locking
Pin
WARNING:Always place both
Weight Rests (19, 20) and both Safety Spotters
(17, 18) at the same height. Make sure the lock-
ing pins are securely wrapped around the Front
Uprights (6) before setting the barbell (not
shown) on them.
CABLE DIAGRAM
The cable diagram shows the proper routing of the
Cable (31). Use the diagram to make sure that the
Cable and Cable Traps (27) have been assembled
correctly. If the Cable has not been correctly routed,
the weight bench will not function properly and dam-
age may occur. The numbers show the correct route
for the Cable.

13
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
MUSCLE BUILDING
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your mus-
cles will continually adapt and grow as you progres-
sively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of resistance used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
TONING
You can tone your muscles by pushing them to a mod-
erate percentage of their capacity. Select a moderate
amount of resistance and increase the number of rep-
etitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by com-
pleting more sets rather than by using high amounts of
resistance.
WEIGHT LOSS
To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
CROSS TRAINING
Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a bal-
anced program is:
• Plan strength training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical or
exercise bike, on Tuesday and Thursday.
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exer-
cise will reshape and strengthen your body, plus devel-
op your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdo-
ing it during the first few months of your exercise pro-
gram. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immedi-
ately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise pro-
gram.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and deliver-
ing more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercis-
es. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany-
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on the
next page to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.

14
Rest for a short period of time after each set. The
ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for a toning work-
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The
chart on page 15 of this manual can be photocopied
and used to schedule and record your workouts. List
the date, the exercises performed, the resistance
used, and the numbers of sets and repetitions com-
pleted. Record your weight and key body measure-
ments at the end of every month. Remember, the key
to achieving the greatest results is to make exercise a
regular and enjoyable part of your everyday life.
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus (upper back)
Q. Posterior Deltoid (shoulder)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)

15
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
AEROBIC EXERCISE
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.

M10 x 68mm Bolt (38)
M10 x 45mm Bolt (36)
M10 x 75mm Bolt (40)
M10 x 86mm Bolt (35)
M10 x 19mm Bolt (37)
M10 x 78mm Bolt (41)
M4 x 16mm Screw (63)
M10 Nylon Locknut (32)
M10 x 94mm Bolt (34)
M10 x 72mm Bolt (39)
51mm x 76mm Inner Cap (24)
60mm Square Inner Cap (22)
48mm Round Inner Cap (23)
32mm Round Inner Cap (25)
M10 Washer (74)
PART IDENTIFICATION CHART—Model No. NTB58030 R1103A

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
12Base
21Bottom Crossbar
31Lat Tower Base
41Left Rear Upright
51Right Rear Upright
62Front Upright
72Upright Cover
81Lat Tower
91Top Crossbar
10 1 Weight Carriage
11 2 Carriage Tube
12 4 Storage Tube
13 1 Foot Plate
14 2 Large Joint Plate
15 8 Small Joint Plate
16 2 Spring Clip
17 1 Left Safety Spotter
18 1 Right Safety Spotter
19 1 Left Weight Rest
20 1 Right Weight Rest
21 1 Carriage Stop
22 2 60mm Square Inner Cap
23 6 48mm Round Inner Cap
24 2 51mm x 76mm Inner Cap
25 4 32mm Round Inner Cap
26 6 89mm Pulley
27 3 Cable Trap
28 2 Spacer
29 1 Weight Stop Bushing
30 2 Carriage Bushing
31 1 Cable
32 45 M10 Nylon Locknut
33 11 M10 Washer
34 30 M10 x 94mm Bolt
35 1 M10 x 86mm Bolt
36 3 M10 x 45mm Bolt
37 2 M10 x 19mm Bolt
38 2 M10 x 68mm Bolt
39 3 M10 x 72mm Bolt
40 2 M10 x 75mm Bolt
41 2 M10 x 78mm Bolt
42 10 M4 x 16mm Screw
43 1 Lat Bar
44 4 Handgrip
45 1 Ankle Strap
46 2 Cable Clip
47 1 Row Bar
48 1 Chain
#1User’s Manual
#1Exercise Guide
PART LIST—Model No. NTB58030 R1103A

32
23
15
25
20
44 43
44
12
5
24
42
42
42
42
7
6
23
15 34
34
34
22
32
32
41
41
34
34
32 32
14
15
32
1
28
26
33
32
9
32
42
44 47
44
48
12
32
33
33
18 25
24
19 25
42
42
42
42
7
6
2
34
3434
13
31
34
32
26
36
37 34
34
25
17
32
15
15
45
46
16
16
32
32
33
32
33 12 23
1
34
34
32
33
33 32
38 32
32 32 36
22
26
32
3
12
23
35
21
32
32 30
34 15
34
34
34
34
411
23
11
10 36
27
26
32
30
32
32
39
33
33
39 33
8
31
33
40 40
32
27
27
26
14
15
15
23
29
42
EXPLODED DRAWING—Model No. NTB58030 R1103A

Part No. 205801 R1103A Printed in China © 2003 ICON Health & Fitness, Inc.
To order replacement parts, call our Customer Service Department toll-free at 1-888-825-2588, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give
the following information when calling:
• The MODEL NUMBER of the product (NTB58030)
• The NAME of the product (NordicTrack®STRENGTH POWER SYSTEM weight rack)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED
DRAWING in the center of this manual)
ORDERING REPLACEMENT PARTS
LIMITED WARRANTY
WHAT IS COVERED—The entire NordicTrack®STRENGTH POWER SYSTEM weight rack (“Product”) is warranted to be free of all
defects in material and workmanship.
WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED—ICON Health & Fitness, Inc. (“ICON”), warrants the product frame for five years after the date of pur-
chase. ICON warrants all other parts for one year after the date of purchase. Labor is covered for one year.
WHAT WE DO TO CORRECT COVERED DEFECTS—We will ship to you, without charge, any replacement part or component, pro-
viding the repairs are authorized by ICON first and are performed by an ICON trained and authorized service provider, or, at our
option, we will replace the Product.
WHAT IS NOT COVERED—Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper
assembly or installation, alterations, modifications without our written authorization or by failure on your part to use, operate, and
maintain as set out in your User’s Manual (“Manual”).
WHAT YOU MUSTDO—Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the Product as spec-
ified in the Manual; notify our Customer Service Department of any defect within 10 days after discovery of the defect; as instruct-
ed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER’S MANUAL—It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the
periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.
HOW TO GET PARTS AND SERVICE—Simply call our Customer Service Department at 1-888-825-2588 and tell them your name
and address and the serial number of your Product. They will tell you how to get a part replaced, or if necessary, arrange for serv-
ice where your Product is located or advise you how to ship the Product for service. Before shipping, always obtain a Return
Authorization Number (RA No.) from our Customer Service Department; securely pack your Product (save the original shipping car-
ton if possible); put the RA No. on the outside of the carton and insure the product. Include a letter explaining the product or prob-
lem and a copy of your proof of purchase if you believe the service is covered by warranty.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or per-
formance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoy-
ment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the
exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness
for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how
long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty. This warranty gives you specific legal rights and
you may have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
