CYBEX 750C Installation and operating instructions

Cybex 750C/750R Cycle
Total Access (TA) Addendum
Cardiovascular Systems
Part Number LT-22243-4 A
Cybex®and the Cybex logo are registered trademarks of Cybex International, Inc.
Polar®is a registered trademark of Polar Electro Inc.
iPOD®is a registered trademark of Apple Inc.
DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve
the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify
any person of such revisions or changes.
© 2009, Cybex International, Inc. All rights reserved. Printed in United States of America.
10 Trotter Drive Medway, MA 02053 • 888-462-9239 • 508-533-4300 • FAX [phone]
www.cybexinternational.com • [email protected] • LT-22243-4 A • May 2009

About This Addendum
This addendum is for Total Access (TA) units only. It describes the differences between the standard
cycles and the TA cycles.
For Total Access units, refer to this addendum and the 750C/750R Cycle Owner’s Manual, part number
LT-21613-4.

Assembly and Setup
Page 2–1
Cybex 750C/750R Total Access (TA) Addendum
2 - Assembly and Setup
Setup
NOTE: Setup mode is accessed using the keys on a standard membrane. The keys are different on the
TA membrane. See Figure 1. The standard keys are not visable but still active for setup mode. A
template is provided to locate the key locations of a standard membrane.
Weight
End
Cool Down
Programs
Quick Start Level
Fan Off
Time
Level
Fan Lo
Fan Hi
Speed
Time
Enter
Figure 1
750C/750R TA Membrane
750C/750R Standard Membrane

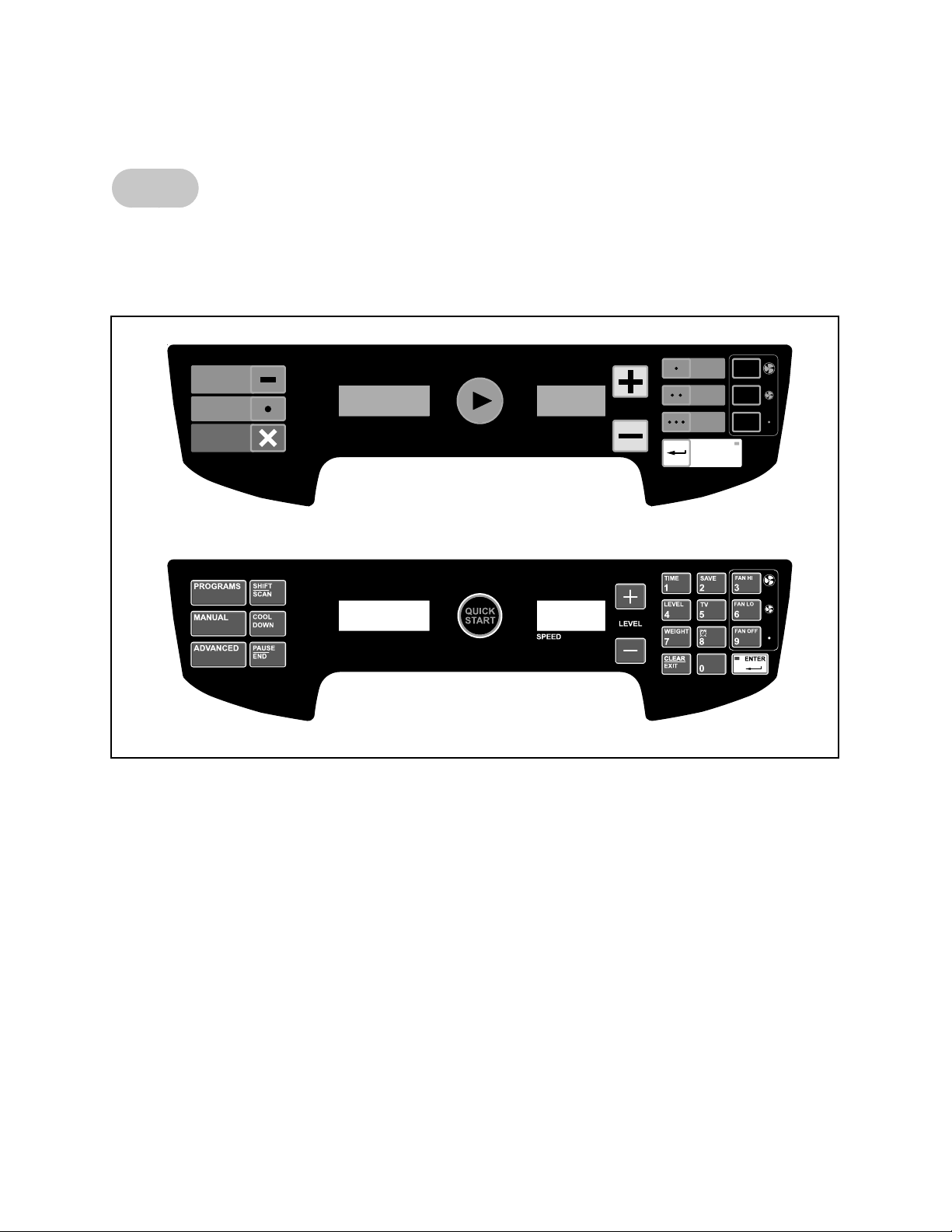

NOTE: Cut out the keypad template on the last page of this addendum. Use the template as a guide to
access setup settings.
Setup is a separate control screen that allows the user to define multiple aspects of the unit’s functions.
Setup can be accessed from Dormant mode, Count Down and the CSAFE ID Entry screens.
To access setup screen, enter key sequence “Clear-7-5-0” and press ENTER.
Press ENTER to enter setup feature, allow changes and return to main menu.
Pause/End can also be used to reset (TV off, Load to 0, unlatch battery) and exit to Dormant mode.
Press the LEVEL Control keys to scroll forward or backward in the setup menu.
Press CLEAR to reset back to default or previously stored value.
NOTE: All setup items which have a default factory setting can be reset back to their default settings by
holding the PAUSE/END key for 3 seconds.

Cybex 750C/750R Total Access (TA) Addendum
Assembly and Setup
Page 2–2
MENU SET UP Options
1-Language GERMAN FRENCH
SPANISH ENGLISH
JAPANESE SWEDISH
RUSSIAN DANISH
2-Units ENGLISH (LB/MPH)
METRIC (KG/KPH)
3-Clock Style 12 HR US DATE 24 HR EURO DATE
12 HR EURO DATE 24 HR US DATE
4-Current Time 12 HR US DATE ‘HH:MM X MM/DD/YYYY’
24 HR EURO DATE ‘HH:MM DD-MM-YYYY’
12 HR EURO DATE ‘HH:MM X DD-MM-YYYY’
24 HR US DATE ‘HH:MM MM/DD/YYYY’
(Use keypad to enter values or toggle the Load
Control key)
5-Default Time Initial displayed choice
for programs requiring a
time setting.
DEFLT TIME 10 DEFLT TIME 20
DEFLT TIME 30 (factory default) DEFLT TIME 60
DEFLT TIME 90
NOTE: Choices are limited to range of MAX time.
6- Review Summary of workout
session totals. Can be
seen as 1, 2 or 3 cycles.
SHORT – 1 LONG – 1
SHORT – 2 LONG – 2
SHORT – 3 LONG – 3
7-Max Time Limit user’s workout
time MAX TIME = OFF MAX TIME = 60 (default) MAX TIME = 20 MAX TIME = 90
MAX TIME = 30 MAX TIME = 120
MAX TIME = 40 MAX TIME = ZONED*
MAX TIME = 50
8-Default Level Mode Levels DEFAULT LVL 1 – 21 (LVL 1 is default)
9-Target RPM For Advanced Programs TARGET RPM 10 - 100 (RPM 60 is default.)
10-Sound TONE = ON (default)
TONE = OFF
11-Dormant Style Defines what is
displayed in Dormant
Mode
0 – DEFAULT (factory default)
1 – TEXT MSG
2 – OUT OF ORDER
3 – CLOCK
4 – PROFILES
12-Dormant Text ENTER allows editing
and viewing.DORMANT MSG 1 DORMANT MSG 2
DORMANT MSG BOTH
13-Active Mode Text
on/off
ENTER allows editing
and viewing.WORKOUT MSG ON (or OFF)
*MAX TIME ZONED If choice is ZONED, choose the actual time for each zone to start and maximum time
setting. NOTE: Current Time must be set for zones to work correctly.
HH:MM X is the actual time the zone starts, and YYY is the maximum time allowed during time zone.

Assembly and Setup
Page 2–3
Cybex 750C/750R Total Access (TA) Addendum
Example:
Format Factory Default
ZONE1 HH:MM X YYY ZONE1 05:01A 60
ZONE2 HH:MM X YYY ZONE2 09:01A OFF
ZONE3 HH:MM X YYY ZONE3 04:01P 60
ZONE4 HH:MM X YYY ZONE4 09:00A OFF

Cybex 750C/750R Total Access (TA) Addendum
Assembly and Setup
Page 2–4
This page intentionally left blank

Operation
Page 3–1
Cybex 750C/750R Total Access (TA) Addendum
Intended Use
The intended use of this exercise equipment is to aid or improve general physical fitness and exercise.
Terms Used
Active Mode – Any time unit is controlling resistance and accumulating workout data. Active Mode begins
after hitting Quick Start during the initial count-down screen, after completing the setup for a program
or by default if the initial count-down screen times out and enters Quick Start Manual mode.
Auto-Scan – Display automatically cycles through workout data.
Cool Down – A reduction of work load for a short duration allows user to gently reduce heart rate. Cool Down
occurs two minutes prior to completion of the program-controlled workout sessions.
Dormant Mode – Occurs only when a unit is plugged in using the optional AC adapter and is not in use.
Isokinetic Exercise – Accommodating resistance, where unit provides a corresponding amount of resistance
on the user to keep them at a fixed pedal speed. Such exercise is used to test and improve muscular
strength and endurance, especially after injury.
Manual Mode – The unit defaults to this mode if not in a program. Manual Mode allows user to adjust the
gear (1-21) and pedal at any speed, simulating a road bike. Time will count up in Quick Start, Manual
or Count Down to the chosen session time if user enters a Time or selects the Manual program and
completes setup.
Pause Mode – Occurs only if the Pause feature is enabled and user selects the End key from Active Mode.
Program Setup Mode – Begins after pressing Programs key. Upon entering a program, user is prompted to
adjust the appropriate settings.
Quick Start – By default, the unit will end up in Quick Start Manual Mode if the user begins pedalling and
allows the 5 second count-down to end. Also choose the Quick Start button to enter into Quick Start
Manual Mode, where the user controls the gear selection and time is counting up.
Workout Review – Review of the accumulated workout data and/or the results of the Fitness Test will happen
at the end of each workout session.
3 - Operation

Operation
Page 3–2
Cybex 750C/750R Total Access (TA) Addendum
Read and understand all warnings and cautions in Chapter 1 – Safety and all operation instructions
in this chapter before operating unit.
Mount and Dismount
WARNING: Wait until all moving parts come to a complete stop before mounting or
dismounting.
To mount unit safely:
1. Verify unit is in Dormant Mode and pedals are completely stopped.
2. Grasp handrail and step carefully onto pedals.
To dismount unit safely:
1. Wait until pedals come to a complete stop.
2. Grasp handrails for support and carefully step off unit.
Emergency Dismount
If experiencing pain, feeling faint or needing to stop unit in an emergency situation:
1. Grasp handrails for support.
2. Stop pedalling.
3. Continue holding the handrails while carefully stepping off the unit.

Operation
Page 3–3
Cybex 750C/750R Total Access (TA) Addendum
P-9 Heartrate ControlP-8 CardioP-7 StrengthP-6 IntervalP-5 RampsP-4 Pike’s PeakP-3 HillsP-2 Rolling HillsP-1 Weight Loss
Console Keys
Control keys on the display are usable during operation and may be pressed at any time to make
adjustments in level, data readouts and fan speed. See Figure 1.
Figure 1
Weight
End
Cool Down
Programs
Quick Start Level
Fan Off
Time
Level
Fan Lo
Fan Hi
Speed
Time
Enter
S RPMDistanceCal / Hr Calories Watts BPMMETs
peed
Bar Graph
Text Area
Data
Readouts
Programs
Time Speed, Gear
or Level
Heart Rate
Indicator

Operation
Page 3–4
Cybex 750C/750R Total Access (TA) Addendum
Console Keys Description
Programs Program Setup Mode Choose from twelve programs, Fitness Test or up to nine
custom programs
Cool Down Cool Down Mode Initiates the two minute cool-down sequence
End Stop Exit Active Mode and Review Mode is entered
Quick Start Quick Start Manual Mode Go directly to Quick Start Manual Mode
Level + - Adjust level Toggle (+ - ) for adjustment. Increase or decrease
gears (1-21) or watts (20-500)
Time Workout time Adjust workout time
Level Workout level Adjust workout level (1-21) or power
Weight User’s Weight Adjust users weight
Fan Hi High setting Set fan to high setting
Fan Lo Low setting Set fan to low setting
Fan Off Turn fan off Default
Enter Accept any setting Moves setup process forward
NOTE: If any key is pressed while unit is in Dormant Mode, “START Pedalling’” displays in text area for five seconds
before resetting to Dormant Mode.

Operation
Page 3–5
Cybex 750C/750R Total Access (TA) Addendum
Audio Visual (AV) Key Pad – Optional
Console Key Description
EPG If an Electronic Program Guide (EPG) is available, this will be displayed on
the TV. Use the CHANNEL ΛV and VOLUME < > keys to navigate in the
EPG, Enter to accept any selections.
CHANNEL Toggle down or up to change channel (beeping will occur).
VOLUME Press appropriate keys to increase or decrease volume. There is no display
interaction.
VIDEO SOURCE Press to toggle between video source Afor cable channels and video
source B for external inputs, such as iPod® video.
VIDEO PORT Video capable port allows personal entertainment device or other
composite video input.
USB PORT Universal Serial Bus (USB) allows different devices to be connected using a
single standardized interface port for charging only.
HEAD PHONE PORT Head phone port allows personal headphones.
Figure 2
1 – Video 3 – Left
2 – Ground 4 – Right

Operation
Page 3–6
Cybex 750C/750R Total Access (TA) Addendum
Program Selection
Choose from twelve programs, Fitness Test or up to nine custom programs.
For a complete description and profile of each program (P1-P8) see Appendix B.
Program Levels Settings
Manual NA Select time and weight.
P1 Weight Loss 21 Select time, level and weight.
P2 Rolling Hills 21 Select time, level and weight.
P3 Hills 21 Select time, level and weight.
P4 Pike’s Peak 21 Select time, level and weight.
P5 Ramps 21 Select time, level and weight.
P6 Interval 21 Select time, level and weight.
P7 Strength 21 Select time, level and weight.
P8 Cardio 21 Select time, level and weight.
P9 Heart rate Control (HRC) NA Select time, age, target heart rate and weight.
Navigation
The Level + - keys are active during the program setup to key in time, level and weight values. The
Level + - keys are also active to adjust the displayed program value (up or down). Hold down key to
accelerate rate of increments.
Press the Enter key after each step to accept values entered and to move forward in the setup process.
The Quick Start key may be pressed any time during this process to accept all program defaults. If no
activity is performed after a program is selected, the unit will default to the settings of the current program
selected.
Programs P1 – P9 Setup
1. Press Programs key to cycle through program choices. Each press of the key will choose the
next program in the list. Press Enter to select program.
2. Select desired workout time when TextArea prompts “SET PROGRAM TIME”.
3. Select desired workout level when TextArea prompts “SELECT LEVEL 1-21”

Operation
Page 3–7
Cybex 750C/750R Total Access (TA) Addendum
4. For P9 - HRC Program only:
• Using the Level + - keys, key in user’s accurate age when Text Area prompts ‘ENTER
YOUR AGE TO CALCULATE TARGET HEART RATE”. Valid age range values are
13 - 113.
• Adjust target heart rate when TextArea scrolls “75% = XXX BPM” and “TARGET BPM
AT 75% = XXX BPM”.
NOTE: Target Heart rate is calculated at 75% of Max, where Max Heart rate is calculated at 220 minus
the user’s age. Adjust the Target HR up or down from the default 75% value presented or accept
as is.
5. Using the Level + - keys, key in user’s accurate weight when Text Area prompts “ENTER
YOUR WEIGHT”. Valid weight range is 50 - 400 lbs (23-181 kgs).
Manual and Quick Start Programs Setup
NOTE: The Manual and Quick Start programs have no associated profile or level. Program and Level
selection are not available.
Select Manual by pressing the Programs key once, then press Enter. Enter desired workout time and
user’s accurate weight.
Select Quick Start key to directly enter Active Mode. The Quick Start version of Manual bypasses the
time entry, allowing the workout time to accumulate up to the Max Time allowed.
Advanced Programs A1 –A3 Setup
Press Programs key to cycle through program choices. Each press of the key will choose the next
program in the list. Press Enter to select program.
Program Settings
A1 Constant Power Select time, power and weight.
A2 Isokinetic Select time, target RPM and weight.
A3 Fitness Test Select age, weight and gender.
A1 – Constant Power Setup
1. Press Programs key.
2. Scroll to A1.
3. Press Enter to select program.
4. Enter desired workout time.
5. Select power level when TextArea scrolls “SELECT POWER 20 - 500 WATTS”. Valid range of
Watts is 20 - 500 in increments of five.
6. Enter user’s accurate weight.

Operation
Page 3–8
Cybex 750C/750R Total Access (TA) Addendum
A2 – Isokinetic Program Setup
1. Press Programs key.
2. Scroll to A2.
3. Press Enter to select program.
4. Select time.
5. Use Level + - keys to adjust Revolutions per Minute (RPM). Choices are 15 - 150 in
increments of five.
6. Enter user’s accurate weight.
A3 – Fitness Test Setup
1. Press Programs key.
2. Scroll to A3.
3. Press Enter to select program.
4. Using the number keypad, key in user’s accurate age when Text Area prompts “ENTER YOUR
AGE TO CALCULATE TARGET HEART RATE”. Valid age range is 13 – 113.
5. Enter user’s accurate weight.
6. When the TextArea prompts “CHOOSE MALE/FEMALE”, use the Level + - keys to choose
male or female. Default is set to male.
Before the Fitness Test can run, confirmation and display of a valid heart rate is required.
If no valid heart rate signal is present, the TextArea will scroll “ACQUIRING VALID HEART RATE
SIGNAL”. If no valid heart rate is acquired, a beep will sound and the unit will reset to Count Down.
If a valid heart rate is present, the unit will move forward to start the Fitness Test. If user’s heart rate is
above 100 BPM, the unit will display the message “THE FITNESS TEST IS ONLY VALID IF STARTING
FROM A STATE OF REST”.

Operation
Page 3–9
Cybex 750C/750R Total Access (TA) Addendum
Fitness Test Review
Once the Fitness Test completes, it calculates and displays a fitness review outcome based on
performance during the fitness testing period.
The bar graph displays “TEST” while the text area scrolls “FITNESS TEST PREDICTED VO2 MAX =
XXX”. See Figure 3.
Alternating with the above message is the standard review for Distance, Calories and acquired BPM.
Age 20-29 30-39 40-49 50-59 60-69
Elite 55+ 52+ 50+ 48+ 45+
Excellent 50-54 47-51 45-49 43-47 40-44
Good 45-49 42-46 40-44 38-42 35-39
Above Average 40-44 37-41 35-39 33-37 30-34
Average 36-39 33-36 31-34 29-32 26-29
Below Average 31-35 28-32 26-30 24-28 24-25
Poor 26-30 23-27 20-25 18-23 16-20
Very Poor <26 <23 <20 <18 <16
Age 20-29 30-39 40-49 50-59 60-69
Elite 49+ 46+ 44+ 42+ 40+
Excellent 44-48 41-45 39-43 37-41 35-39
Good 39-43 36-40 34-38 32-36 30-34
Above Average 34-38 31-35 29-33 27-31 25-29
Average 30-33 27-30 25-28 23-26 21-24
Below Average 25-29 22-26 20-24 18-22 16-20
Poor 20-24 17-21 15-19 13-17 15-Nov
Very Poor <20 <17 <15 <13 <11
Ratings for Women
Ratings for Men
Figure 3

Operation
Page 3–10
Cybex 750C/750R Total Access (TA) Addendum
Custom Programs
Custom Programs can be created and stored only by connecting a CSAFE compatible computer to the
unit’s CSAFE port and using a Cybex supplied software program. If stored, the custom programs appear
after Fitness Tests in the listing of available programs as P01 name, P02 name, etc. Custom programs
define the workout duration, power load and have no level associated with them.
Data Readouts
As the user exercises, the unit keeps track of and displays the following data:
Calories Per Hour – Calculation of present workloads energy exertion in Calories per Hour.
Distance – The total accumulated distance, in miles or kilometers, during workout. Depending on the
defaults chosen this measurement will show in English or Metric.
Rotation Per Minute (RPM) – User’s crank rotations per minute.
Calories – The total accumulated calories burned during workout.
WATTS – Present workload energy exertion.
Metabolic Equivalent (METs) – Displayed only if no BPM signal is present. A MET is the metabolic
equivalent to the energy expended by the human body at rest. Anything over one MET is considered
exertion. METs are calculated by the display and updated every 1 – 1.2 seconds.
METs = Cal/Hr X 2.2 / User Weight
Beats per Minute (BPM) – User’s current heart rate. Heart rate will appear when a signal is introduced.
Use either the hand grips for Contact Heart Rate or a Polar®compatible heart rate transmitter.
Heart Rate Indicator
Contact Heart Rate – Lightly hold the hand grips on the handlebar ensuring that hands are clean and
contact both the front and back sensors of each grip. A heart rate will display in typically 30 seconds or
less.
Factors that interfere with heart rate signal:
hand lotions• oils or body powder• excessive dirt• excessive movement• body composition• hydration• too loose grip• too tight grip• resting or leaning on the grips•
S RPMDistanceCal / Hr Calories Watts BPMMETs
peed

Operation
Page 3–11
Cybex 750C/750R Total Access (TA) Addendum
Wireless Heart Rate Display – To use this feature, a Polar®compatible heart rate transmitter belt (not
included) must be worn.
Once the actual heart rate is determined, the LED to the right of the Text Area is blinking
to the displayed BPM and the Heart LED lights up. The color of the light represents a
scale of low to high target heart rate.
White Valid BPM not yet available
Blue 0 –69 BPM
Green 70 – 93 BPM
Yellow 94 – 119 BPM (Fat Burn Zone)
Blood Orange 120 – 169 (Cardio Zone)
Magenta 170 and higher
Fan Control
The fan defaults at the “Off” setting. The user can change to “Lo” or “Hi” setting by pressing the
appropriate control key. NOTE: User must be pedalling for fan to operate.
Battery Sentry
Battery Sentry uses display feedback (speed signal, key presses and heart rate) to determine user
presence. If a user is not detected within 20 seconds, the display beeps and inquires
“ARE YOU THERE?”.
Resume pedalling, grab the contact heart rate grips or press any key within a pre-selected time to resume
workout.

Operation
Page 3–12
Cybex 750C/750R Total Access (TA) Addendum
This page intentionally left blank

Cybex 750C/750R Total Access (TA) Addendum
Exploded
Views
Page C-1
Appendix C - Exploded Views
ITEM QTY PART NO. DESCRIPTION
1 1 DE-21937-4 MASK, ENUNCIATOR, 750C 750R, ENG, IFI
2 1 SW-21894-4 MEMBRANE, 750C 750R, BTM, ENG, IFI
3 1 AX-22114 ASSY, HANDRAIL, 750C, IFI
4 2 SK-19018 SERVICE KIT, HR YELLOW GRIPS
5 1 AX-18138 PEDAL SET, X-WIDE, 9/16” THREAD
NS 1 HX-21527 PEDAL STRAP SET, TITAN II
Parts List Cybex 750C Cybex
2
1
4
3
5
NOTE: NS = Not Shown
