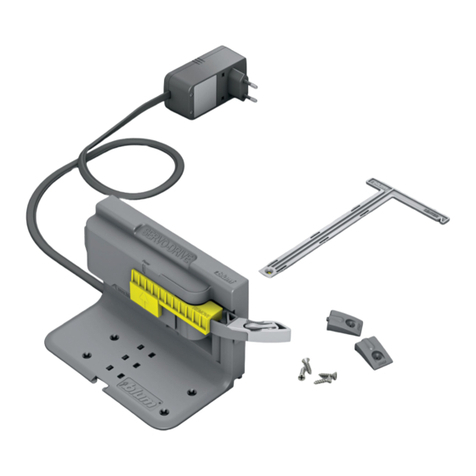

BLUM SERVO-DRIVE Manual

by Blumby Blum
www.blum.com
SERVO-DRIVE
Instruction leaflet
EN

2
Table of contents
About these instructions .......................................................................................................................... 2
Warning signs and danger symbols .......................................................................................................... 3
Safety ........................................................................................................................................................ 3
Disposal................................................................................................................................................... 12
Orientation diagram: SERVO-DRIVE for AVENTOS/SERVO-DRIVE uno for AVENTOS...................... 14
Orientation diagram: SERVO-DRIVE for LEGRABOX/TANDEMBOX/MOVENTO/TANDEM ............... 14
Orientation diagram: SERVO-DRIVE flex for refrigerators, freezers and dishwashers......................... 15
How to operate: SERVO-DRIVE for AVENTOS/SERVO-DRIVE uno for AVENTOS............................. 16
How to operate: SERVO-DRIVE for LEGRABOX/TANDEMBOX/MOVENTO/TANDEM ...................... 20
How to operate: SERVO-DRIVE flex for refrigerators, freezers and dishwashers ............................... 22
Troubleshooting: SERVO-DRIVE for AVENTOS/SERVO-DRIVE uno for AVENTOS ........................... 24
Troubleshooting: SERVO-DRIVE for LEGRABOX/TANDEMBOX/MOVENTO/TANDEM ..................... 25
Troubleshooting: SERVO-DRIVE flex.................................................................................................... 26
Technical data........................................................................................................................................ 28
Simplified EU Declaration of Conformity – Julius Blum GmbH............................................................. 32
Spare parts form .................................................................................................................................... 33
About these instructions
Thank you for your purchase. SERVO-DRIVE, the electrical motion support system by Julius Blum
GmbH, is a high-quality product that simplifies everyday kitchen tasks.
To safely enjoy the comfort of SERVO-DRIVE, please note the following:
➢Carefully read the instruction leaflet before use.
➢Please retain the instruction leaflet for the service life of SERVO-DRIVE.
➢Please pass on this instruction leaflet to each subsequent owner or user of SERVO-DRIVE.
➢Instructions are also available on our website. Please search on www.blum.com for
"SERVO-DRIVE instruction leaflet" and download it as a PDF file.
Validity and target group
This instruction leaflet is intended for all users of SERVO-DRIVE. Assembly, adjustment, initial
operation, maintenance and removal may only be carried out by qualified personnel according to the
separate installation instructions.

3
EN
Warning signs and danger symbols
WARNING indicates a danger that could lead to death or serious
injury if not heeded.
NOTE indicates information that should be followed.
WARNING
NOTE
Intended use
SERVO-DRIVE supports the opening and closing of lift systems, the
opening of drawers and/or refrigerators and freezers or dishwashers,
and may only be used under the following conditions:
• In dry, enclosed rooms.
• In combination with AVENTOS lift systems and/or pull-out systems
from Julius Blum GmbH within permitted
technical specifications.
• In combination with a Blum transformer.
• The furniture must be firmly secured to the wall so that it cannot
topple over.
Technical data specifications can be found in the Blum sales
documentation. For more information, please see your distributor.
Julius Blum GmbH is not liable for any other use.
To identify an appliance intended only for indoor use.
To identify terminals that must not be connected to the mains
voltage.

4
Safety
Principle
SERVO-DRIVE complies with current safety standards. Nevertheless,
there will still be certain residual risks if the information contained in
this instruction leaflet is not observed. Please be aware that Julius
Blum GmbH is not responsible for incidental or
consequential damages that may arise due to non-compliance with
this instruction leaflet.
Safety information
• The mains plug and the Blum transformer must be easily accessible.
• Neither the Blum transformer nor any cabling should come into con-
tact with moving parts.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children must not play
with the appliance. Cleaning and user maintenance must not be
carried out by children without supervision.
• Reaching into the area around the lift system lever during the open-
ing and closing motion can cause injury.
• The overall length of the cable for the 12-Watt Blum transformer
(Z10NE0300) must not exceed 2 m.
• The 24-Watt Blum transformer (Z10NE030) must be connected to an
outlet with an earth connection.
• The 24-Watt Blum transformer (Z10NE030) incorporates an earth
connection for functional purposes only.

5
EN
Structural changes and spare parts
Structural changes and replacement parts not approved by the manu-
facturer affect the safety and functionality of SERVO-DRIVE and are,
therefore, not allowed.
• Only use original spare parts from Julius Blum GmbH.
• Blum components are the only devices that should be connected to
the Blum transformer.
• Only qualified persons may install or replace Blum components,
modify the position of the Blum transformer or modify the cabling.
• Please make sure that the Blum distance bumper is attached to the
front.
To ensure that lift systems, drawers, refrigerators or freezers and
dishwashers cannot be activated unintentionally, we recommend
connecting the Blum transformer to a switched outlet. For more infor-
mation, please consult an electronics retailer.
NOTE

6
Children
Opening and closing lift systems may pose a risk of injury to
children.
Persons, especially children, who are sitting or standing on work
surfaces may be pushed from work surfaces or injured when opening
and closing a lift system.
May pose a choking hazard to children when playing with the
SERVO-DRIVE switch.
Children could choke on the SERVO-DRIVE switch battery.
➢Make sure that children do not open the SERVO-DRIVE switch as
they could choke on parts or the battery from the SERVO-DRIVE
switch if they swallow them.
Opening drawers may pose a risk of injury to children!
➢Children should be properly supervised when in the room so that
they do not play with the lift system.
➢To ensure that SERVO-DRIVE is not triggered unintentionally, the
switched outlet should be turned off.
WARNING

7
EN
Danger of injury if the lever springs upward!
There is a danger of injury from the lever springing up-
wards during improper removal of the front including
fittings.
➢Never remove the front for cleaning.
➢Front removal may only be carried out by qualified
personnel according to the separate installation instruc-
tions.
WARNING
Cabinet care and cleaning
Danger of death from electric shock!
There is a danger of electric shock if
fluids penetrate the Blum transformer.
➢Before cleaning the front, turn off the switched outlet to which the
Blum transformer is connected.
➢Before cleaning the drive unit and/or Blum transformer, disconnect
the Blum transformer from the power.
➢Make sure that no water or aggressive cleaning materials come
into contact with the drive unit, the Blum transformer or the
SERVO-DRIVE switch while cleaning the cabinet –
use a moist cloth.
➢Never open a Blum transformer, drive unit or SERVO-DRIVE
switch.
➢Any cabling damage should be immediately repaired by a qualified
specialist.
➢Do not cover the Blum transformer with cloths or other items –
danger of overheating.
➢Examine the appliance frequently for signs of wear or damage. If
there are such signs or if the appliance has been misused or does
not work, contact the supplier for further information
WARNING

8

9
EN

10

11
EN

12
Disposing of electrical and electronic appliances
Electrical and electronic appliances must not be disposed of with household waste at the end of their
service life. Ask your local authority for information on how to proceed. Blum electrical and electronic
appliances meet the requirements of the WEEE Directive
2012/19/EU. Electrical and electronic appliances are collected separately, which enables old appli-
ances to be reused or recycled, and their materials to be reused. This is intended to prevent any haz-
ardous materials that may be contained in the appliances from damaging the environment and health
during disposal. In most cases, the entire appliance does not need to be disposed of according to the
WEEE guidelines, but only the part that is equipped with electrical components. Please refer to the
disassembly instructions for information on this. There are free collection points for returning electrical
and electronic appliances in your area. You will find further information on this under the following link:
www.blum.com/recycling
Disposing of batteries
Batteries must not be disposed of with household waste at the end of their service life. Ask your local
authority for information on how to proceed. Batteries used at Blum meet the requirements of the
Battery Directive 2006/66/EC. Batteries are collected separately, which enables the batteries or their
materials to be recycled. This is intended to prevent any hazardous materials that may be contained in
the appliances from damaging the environment and health during disposal. Please refer to the disas-
sembly instructions for information on removing batteries. There are free collection points for returning
batteries in your area. Please avoid shorting the contact surfaces when disposing of batteries.

13
EN

1
2
3a 3b
4
5
6
7
1
2
3
4
14
Lift mechanism, drive unit and
cover cap
Lever
Blum transformer, 24 Watts
Blum plug-in transformer, 12 Watts
SERVO-DRIVE switch
Blum distance bumper
Cabinet
Front/Lift system
Orientation diagram
SERVO-DRIVE for AVENTOS supports the opening and closing of lift systems in furniture.
Drive unit
Eject lever
Blum transformer
Blum distance bumper
Orientation diagram
SERVO-DRIVE supports the opening of drawers.
SERVO-DRIVE for AVENTOS/SERVO-DRIVE uno for AVENTOS
SERVO-DRIVE for LEGRABOX/TANDEMBOX/MOVENTO/
TANDEM
1
2
3a
3b
4
5
6
7
1
2
3
4

1
2
3
4
58
6
7
1
2
3
4
6
7
5
15
EN
Drive unit
Catch plate
Mounting plate
Front fixing
Blum distance bumper
Assembly jig
Front cover
Chipboard screws
Drive unit
Catch plate
Mounting plate
Front fixing
Assembly jig
Front cover
Chipboard screws
Orientation diagram
SERVO-DRIVE flex for refrigerators and freezers
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
Orientation diagram
SERVO-DRIVE flex for dishwashers
SERVO-DRIVE flex allows handle-less refrigerators and freezers to be opened electromechanically by
pressing the front.
SERVO-DRIVE flex allows handle-less dishwashers to be opened electromechanically by pressing
the front.

16
Press on the front
➢The lift system opens automatically
Press on the SERVO-DRIVE switch
➢The lift system closes automatically
The SERVO-DRIVE switch triggers the automatic opening and closing action of SERVO-DRIVE
for AVENTOS.
Electrical motion support system
SERVO-DRIVE for AVENTOS/SERVO-DRIVE uno for AVENTOS

17
EN
The opening and closing action is inter-
rupted automatically via the integrated
collision detection feature when the front
hits a body part or other object.
Collision detection
Lean protection feature
➢Manual closing of the lift system by
moving it downwards
➢Manual opening of the lift system by
moving it upwards
The lift system can be opened or closed manually at any time without damaging SERVO-DRIVE
for AVENTOS.
Manual operation
SERVO-DRIVE for AVENTOS is only trig-
gered by a brief touch. Leaning on the lift
system will not open it.

1
1
2
18
A
B
Power failure
If the power supply is interrupted during the opening or closing process, the SERVO-DRIVE for
AVENTOS lift system will remain in that position. The front can be closed manually, or when power is
restored; simply touch the switch to re-activate SERVO-DRIVE function.
The following parameters must be observed to ensure the error-free functioning of SERVO-DRIVE for
AVENTOS:
• Blum distance bumpers must be attached to the front to maintain the required distance between the
lift system and the cabinet.
• No items should be placed between the front and the cabinet.
➢Improper use may cause SERVO-DRIVE for AVENTOS to wear prematurely!
➢Do not press or pull with force against the movement direction when opening or closing the lift
system.
➢Never remove the front. Front removal may only be carried out by qualified personnel. See also
the safety section at the first pages of this leaflet.
Battery display (LED)
Battery display (LED)
Connect (LED)
SERVO-DRIVE switch
The SERVO-DRIVE switch is battery-operated (CR2032).
Only use batteries from reputable manufacturers.
NOTE
1
1
2

–
–
1
2
3
4
1
2
12
3
4
19
A
B
EN
Replacing the battery
When the battery power begins to weaken, the battery display (LED) will begin to flash red.
Open the SERVO-DRIVE switch and
remove the battery holder
Remove the battery
Insert new battery (type CR2032), ob-
serving the correct pole connections
Close battery holder
Open the SERVO-DRIVE switch and
remove the battery holder
Remove the battery
Insert new battery (type CR2032), ob-
serving the correct pole connections
Close battery holder
The SERVO-DRIVE switch battery must not be recharged or discarded into fire.
If the battery is inserted incorrectly, the SERVO-DRIVE switch battery display will flash red.
NOTE
1
1
2
2
3
3
4
4

20
Electrical motion support system
When the front and/or handle of the drawer
(A) is pulled or pressed, the eject lever
of the drive unit (B) swivels forward and
opens the pull-out unit a short distance.
The electrical opening support function
is only triggered by a brief touch or pull.
Leaning on the pull-out unit, for example,
will not open it.
Lean protection feature
SERVO-DRIVE for LEGRABOX/TANDEMBOX/MOVENTO/
TANDEM
