Bms Bulut Makina HTP 1600 User manual

HTP 1600
PORTABLE HARDNESS TESTER
BMS Bulut Makina Sanayi ve Ticaret Ltd. Şti.
Kocaeli KOBİ Organize Sanayi Bölgesi
Köseler Mahallesi, 6.Cadde No:20/2 Dilovası / KOCAELİ
Phone: [phone]
Web: www.bulutmak.com e-mail: [e-mail]
OPERATION MANUAL

2
1Forewords -------------------------------------------------------------------------------------------------------------- 3
2Features and Applications-------------------------------------------------------------------------------------------- 4
2.1 Introduction ------------------------------------------------------------------------------------------------------ 4
2.2 Specifications ---------------------------------------------------------------------------------------------------- 4
2.3 Applications------------------------------------------------------------------------------------------------------ 4
3Layout of instrument-------------------------------------------------------------------------------------------------- 5
4Symbols and Illustrations -------------------------------------------------------------------------------------------- 5
4.1 Symbols and Illustrations -------------------------------------------------------------------------------------- 5
4.2 Measurement and Conversion Table ------------------------------------------------------------------------- 5
5Preparation before Measuring --------------------------------------------------------------------------------------- 6
5.1 Requirements for the sample ---------------------------------------------------------------------------------- 6
5.2 Requirements for the weight of the sample------------------------------------------------------------------ 6
5.3 Requirement for the surface hardened layer of the sample------------------------------------------------ 6
5.4 Samples with Curved Surfaces -------------------------------------------------------------------------------- 7
6Operation --------------------------------------------------------------------------------------------------------------- 7
6.1 Power on /off the instrument ---------------------------------------------------------------------------------- 7
6.2 Diagram of Operation------------------------------------------------------------------------------------------- 8
6.3 Button description----------------------------------------------------------------------------------------------10
6.4 Impact Direction------------------------------------------------------------------------------------------------10
6.5 Display mode ---------------------------------------------------------------------------------------------------10
6.6 Parameters setup------------------------------------------------------------------------------------------------10
6.7 Hardness scale conversion ------------------------------------------------------------------------------------10
6.8 Statistics ---------------------------------------------------------------------------------------------------------11
6.8.1 Mean times ------------------------------------------------------------------------------------------------------------------------------------- 11
6.8.2 Delete measured values --------------------------------------------------------------------------------------------------------------------- 11
6.8.3 Read statistics info ---------------------------------------------------------------------------------------------------------------------------- 11
6.9 Memory setup---------------------------------------------------------------------------------------------------11
6.9.1 View ----------------------------------------------------------------------------------------------------------------------------------------------- 12
6.9.2 Erase all ------------------------------------------------------------------------------------------------------------------------------------------ 12
6.10 Calibration (compensation) -----------------------------------------------------------------------------------12
6.10.1 Calibration off ------------------------------------------------------------------------------------------------------------------------------ 12
6.10.2 Calibration on ------------------------------------------------------------------------------------------------------------------------------ 12
6.10.3 Calibration procedure -------------------------------------------------------------------------------------------------------------------- 13
6.10.4 Backlight ------------------------------------------------------------------------------------------------------------------------------------- 13
6.10.5 Battery---------------------------------------------------------------------------------------------------------------------------------------- 13
6.10.6 Information --------------------------------------------------------------------------------------------------------------------------------- 13
7Take Measuring-------------------------------------------------------------------------------------------------------14
7.1 Loading Spring -------------------------------------------------------------------------------------------------14
7.2 Take measurement ---------------------------------------------------------------------------------------------14
8.1.1 Replacing Battery------------------------------------------------------------------------------------------------------------------------------ 15
9Optional Accessories-------------------------------------------------------------------------------------------------15
10 Introduction of PC software ----------------------------------------------------------------------------------------16

3
1 Forewords
History
The Leeb measuring method was first brought into measurement technology in 1978. It is defined as the
quotient of an impact body’s rebound velocity over its impact velocity, multiplied by 1000. Harder materials
produce a higher rebound velocity than softer materials. For a specific group of material (e.g. steel,
aluminum. etc.), Leeb hardness value represents a direct relationship to its hardness properties. For ordinary
metal, conversion curves of hardness HL versus other standard static hardness (HB, HV, HRC, etc.) are
available, enabling you to convert HL into other hardness values.
Leeb Hardness Test (definition)
An impact body with a spherical test tip made of tungsten carbide is propelled against the sample surface by
a spring force and then rebounds back. At a distance of 1mm from the sample surface, the impact and
rebound velocity of the impact body are measured by the following method: A permanent magnet embedded
in the impact body, when passing through the coil in its coil holder, induces in the coil an electric voltage
proportional to the velocities of the magnet. Leeb hardness is expressed by the following formula:
1000*
Vi
Vr
HL 
Where: HL is Leeb Hardness
Vr is the rebound velocity of the impact body
Vi is the impact velocity of the impact body
The voltage characteristic of output signal, when the impact body passes through the induction coil is
illustrated in the following figure:
Voltage characteristic of output signal
A Leeb’s Hardness Tester measures the hardness of sample material in terms of Hardness Leeb (HL), which
can be converted into other Hardness units (Rockwell B and C, Vickers, Brinell and Shore D).
Notation of Leeb’s Hardness
When measuring the hardness of a sample material using the traditional static hardness testing method, a
change of applied pressure will result in a change in the hardness reading. This will also happen during a
Leeb’s Hardness test when one changes the impact device. In hardness measurement of the same test sample
with different impact devices, the Leeb’s hardness values obtained will vary.
For example: 720HLD≠720HLC
Because different converting curves are obtained from different impact devices, when converting hardness
HL into another hardness values, the notation for the converted hardness value should include the impact
device used.
For example:
Hardness HRC converted from hardness L using impact device D should be written as 35, 9 HRCLD.
Where:35=Hardness value HL
9=Hardness value HRC
L=Leeb’s Method
D=Impact device

4
2 Features and Applications
2.1 Introduction
This instrument is an advanced state-of-the-art palm sized metal hardness tester with many new features
which are light weight, easy operation, integrated design, high contrast display, low operating temperature,
auto compensating for impact direction and etc. It can be widely used for measuring hardness of almost all
ferrous and non-ferrous metal materials for scale of Leeb hardness, Rockwell C, B &A, Brinell, Vickers,
Shore and Strength.
It has a memory 300 data which can be recalled and read on the tester easily.
It also has a very unique feature, which impact device can convert between D and DL simply by changing
impact body. You can take measurement at very narrow surface such as slot bottom, gear tooth that probe D
cannot match.
The 3.7V Li-ion rechargeable battery inside the tester can be charged via USB from PC or via individual
battery charger from mains wall power.
2.2 Specifications
Principle: Leeb hardness measurement
Accuracy: +/-2HL (or 0.3%@HL=800)
Display: 126 x 64 LCD
Hardness scale: HL / HRC / HRB / HB / HV / HS / HRA / σb
Measuring range: HL170-960 / HRC1-74 / HRB1.2-140 / HB18-1027 / HV42-1220 / HS3.9-112 /
HRA7-88.5 /σb (rm) 89-3300N/mm2
Impact device: D
Materials: 10 common metal materials
Memory: 999 data can be saved and re-readable
Statistics: Average/Max/Min value can be calculated automatically
Conversion table: 70
Interface: USB for charging or connect to PC
Recalibration: allowed by user
Indicator: Battery capacity
Power supply: 1.5V AAA battery *1
Operating environment: -20⁰C ~+45⁰C
Dimension (L x W x D): 148mm×45mm×21mm
Net weight: 105g
Standard: ASTM A956, DIN 50156, GB/T 17394-1998
2.3 Applications
Hardness tests on installed machines or steel structures: e.g. on heavy and large work-piece or on
permanently installed system parts.
Rapid testing of multiple measuring areas for examination of hardness variations over larger
regions.
Measuring hardness for produced parts at production line.
Identifying metallic material stored in a warehouse.
Ineffectiveness analysis of permanent parts, pressure -vessel, turbo generator.

5
3 Layout of Instrument
4 Symbols and Illustrations
4.1 Symbols and Illustrations
Symbols
Illustrations
HLD
HB
HRB
HRC
HS
HV
HRA
σb (N/mm2)
Leeb hardness value used with impact device D
Brinell hardness value
Rockwell B hardness value
Rockwell C hardness value
Shore hardness value
Vickers hardness value
Rockwell A hardness value
Strength value
4.2 Measurement and Conversion Table
Range for measurement and conversion:
IMPACT DEVICE D HL: 170-960
MATERIALS
H R C
H R B
H B
H V
H S
HRA
σb (N/mm2)
STEEL/CAST STEEL
0.1-74.7
1.2-140
28-1027
45-1230
4.0-112
7-88.5
118-3315
ALLOY TOOL STEEL
0.9-78.7
15-1878
32-1698
5.5-128
79-6599
STAINLESS STEEL
3.7-62.4
8.3-101.7
85-655
36-802
6-131
108-1725
LAMELLAR IRON
21-59
24-100
35-570
90-698
6-83
NODULAR IRON
21-60
24-100
62-857
96-724
8-90
CAST ALUMINUM
1-48
24-85
19-445
22-193
3-64
129-2618
BRASS
1-53
1.5-99.6
32-477
29-495
5-65
32-76
258-4146
BRONZE
1-56
14-100
15-505
11-535
2-68
29-76
190-1860
WROUGHT COPPER
1-54
14-100
35-569
38-590
6-73
FORGING STEEL
1-72
50-1060
48-1110
7-103
200-3750

6
5 Preparation before Measuring
5.1 Requirements for the Sample
The surface temperature of sample should be less than 120 C.
The samples must feature a metallic smooth, ground surface, in order to eliminate erroneous measurements
brought about by coarse grinding or lathe scoring. The roughness of the finished surface should not exceed
2μm.
5.2 Requirements for the Weight of the Sample
For samples weighing over 5 kg and of compact shape, no support is needed.
Samples weighing between 2-5 kg, and also for heavier samples with protruding parts or thin walls, should
be placed on a solid support in such a manner that they do not bend or move by the impact force.
Samples weighing less than 2 kg should be firmly coupled with a stable support weighing over 5 kg.
For coupling purposes,
The coupling surface between the sample and base plate should be flat, plane parallel and ground.
A thin proper layer of coupling paste is to be applied to the contact surface of the sample.
The sample should be firmly pressed against the surface of the base plate by moving it with a
circular motion.
The direction of impact should be perpendicular to the coupling surface.
For the coupling operation, the following prerequisites must be fulfilled:
The contact surface of the sample and the surface of the base plate must be flat, plane parallel and
ground.
The direction of the test impact must be perpendicular to the coupled surface.
Minimum thickness of the sample for coupling (5mm).
Proper Coupling:
Proper coupling requires a little experience. Insufficiently coupled samples produce large variations of
individual measurements, L-values which are too low and the operation is characterized by a rattling noise
upon impact of the test tip.

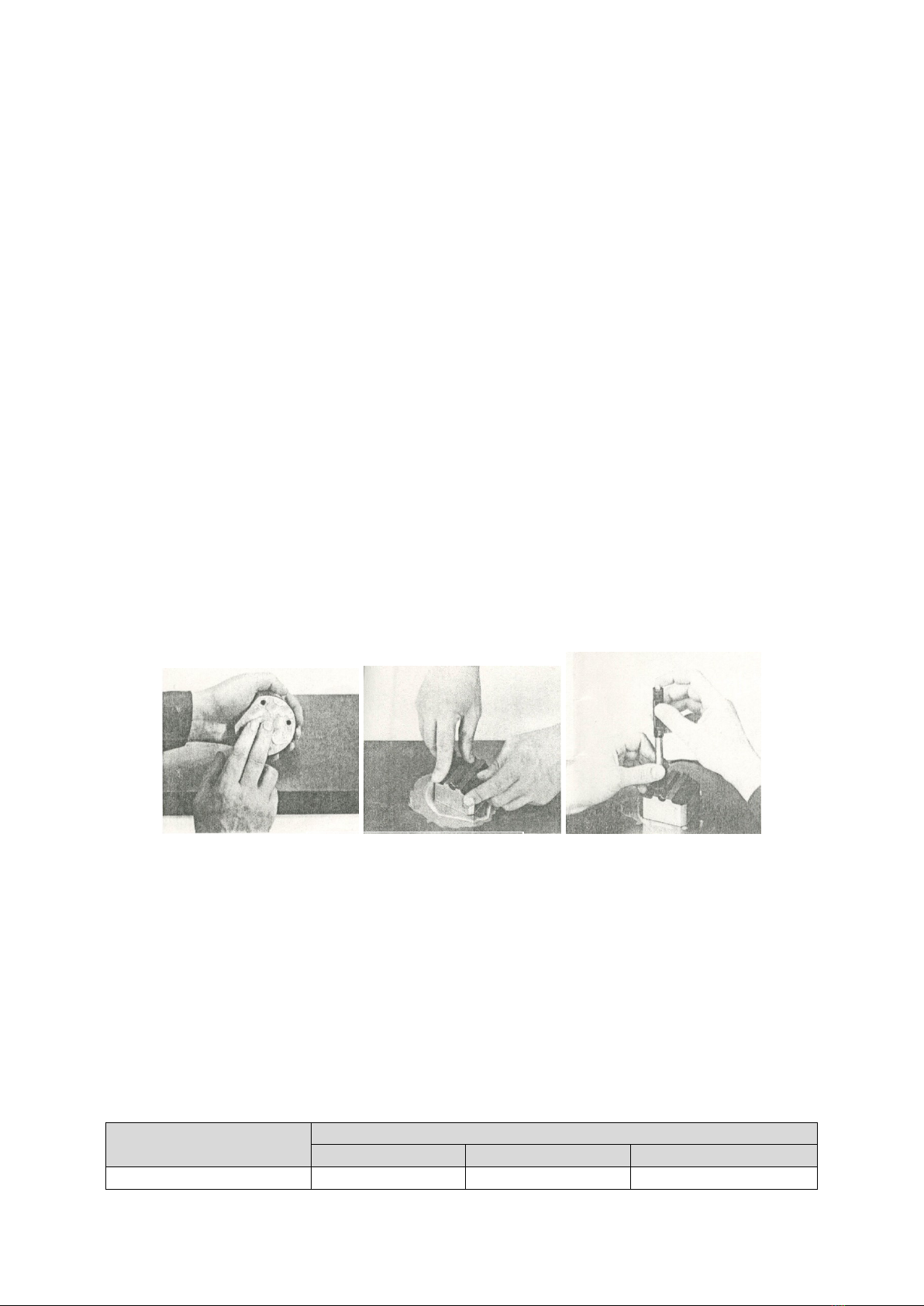

Example for coupling a test piece with a base plate:
5.3 Requirement for the Surface Hardened Layer of the Sample
Surface -hardened steels and especially case-hardened steels produce L-values which are too low when case-
hardening depth is small because of their soft core. When measuring with impact device D the depth of the
hardened layer should be no less than 0.8 mm.
Surface of the test sample should not be magnetic.

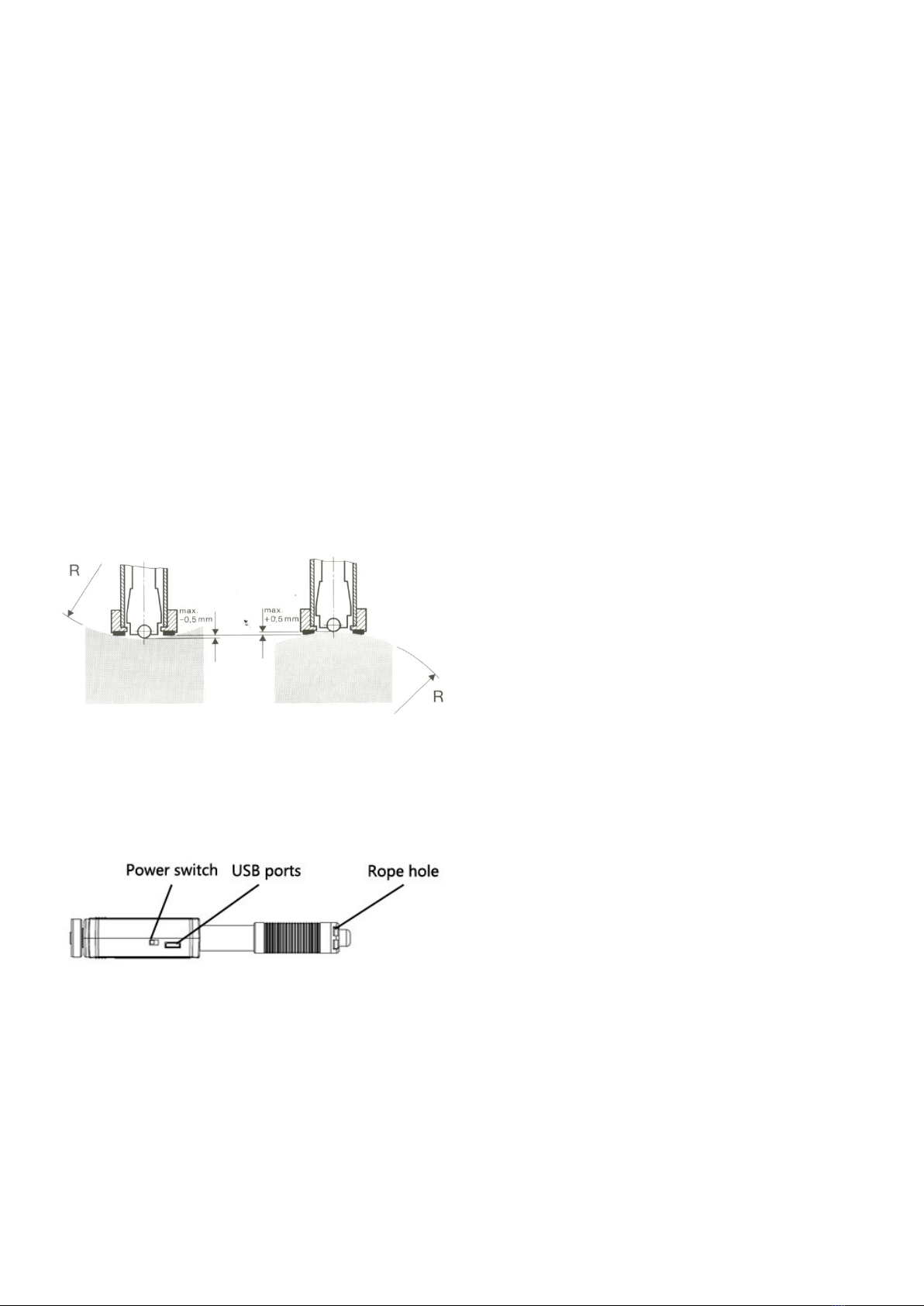

For test sample of curving surface with radius of curvature R less than 30mm, a small support ring
should be used.
Supporting the Samples during Testing
Type of impact device
Classification of samples
heavy
medium-weight
light-weight
D
more than 5 kg
2 - 5 kg
0.05 - 2 kg
Application of the coupling
paste (As thin as possible).
A particular advanced of coupling is the possibility
of obtaining a very uniform, rigid connection
between the sample and the support, totally
eliminating stresses at the sample surface. The
resulting variation in measured values is very low.
Mutual rubbing of both
parts while firmly press the
sample against the base
plate.

7
When measuring hardness with this tester, the following has to be noticed: Despite the low mass of the
impact body and low impact energy, a relatively large impact force of short duration is generated when the
impact body hits the measuring surface. The max. impact force of impact device D is 900N.
For heavy samples of compact shape, no particular precautions are necessary.
Smaller and lighter samples or work pieces yield or flex under this force, producing L-values which are too
small and of excessively large variation. Even with big or heavy work pieces it is possible for thin-wall
regions or thinner protruding parts to yield upon impact. Depending on the frequency of the resilient
yielding action, the measured L-value may be too small or too large. In many situations, potential problems
can be checked in the following manner:
a) Medium-weight samples and also heavier samples with protruding parts or thin walls should be placed on
a solid support in such a manner that they do not move or flex during the test impact.
b) Light-weight samples should be rigidly “coupled” with a non-yielding support such as a heavy base plate.
Clamping in a vice is of no value, since the samples become exposed to stress and because complete rigidity
is never attained. As a rule, the measured L-values would be too small and show excessive variations.
5.4 Samples with Curved Surfaces
Impact testers only work properly, if the impact body has a certain position in the guide tube at the moment
of impacting the test surface. In the normal position, automatically present when testing flat and convex-
cylindrical samples (such as round samples), the spherical test tip is located exactly at the end of the guide
tube.
However, when testing spherically or cylindrically shaped concave surfaces, the impact body remains
further within the guide tube or protrudes further therefore. Thus, with such types of curved surfaces, it is to
be observed that radii of curvature do not drop below the values indicated in the following Fig.
Curved surfaces should always be tested with the small support ring.
Impact device types D Rmin=30mm
For impact devices D, special support rings are available to accommodate smaller radii on convex or
concave surface.
6 Operation
6.1 Power on /off the Instrument
Push POWER SWITCH to switch on/off the tester,
after the tester is switched on, it will enter
measuring mode automatically.

8
6.2 Diagram of Operation

9

10
6.3 Button Description
In measuring mode, press it to
enable/disable impact direction
indicator
In menu mode, press it to change
parameters
In measuring mode, press it to switch among normal mode, big
font mode and statistics mode
In measuring mode, press and hold it to enter main menu
In menu mode, press it to change to next menu item
In menu mode, press and hold it to save the settings and exit to
measuring mode
6.4 Impact Direction
The instrument is designed to take measurement at any impact direction without individually setting up
impact direction on the instrument during measurement. In measuring mode, press and hold to enable
/ disable impact direction indicator.

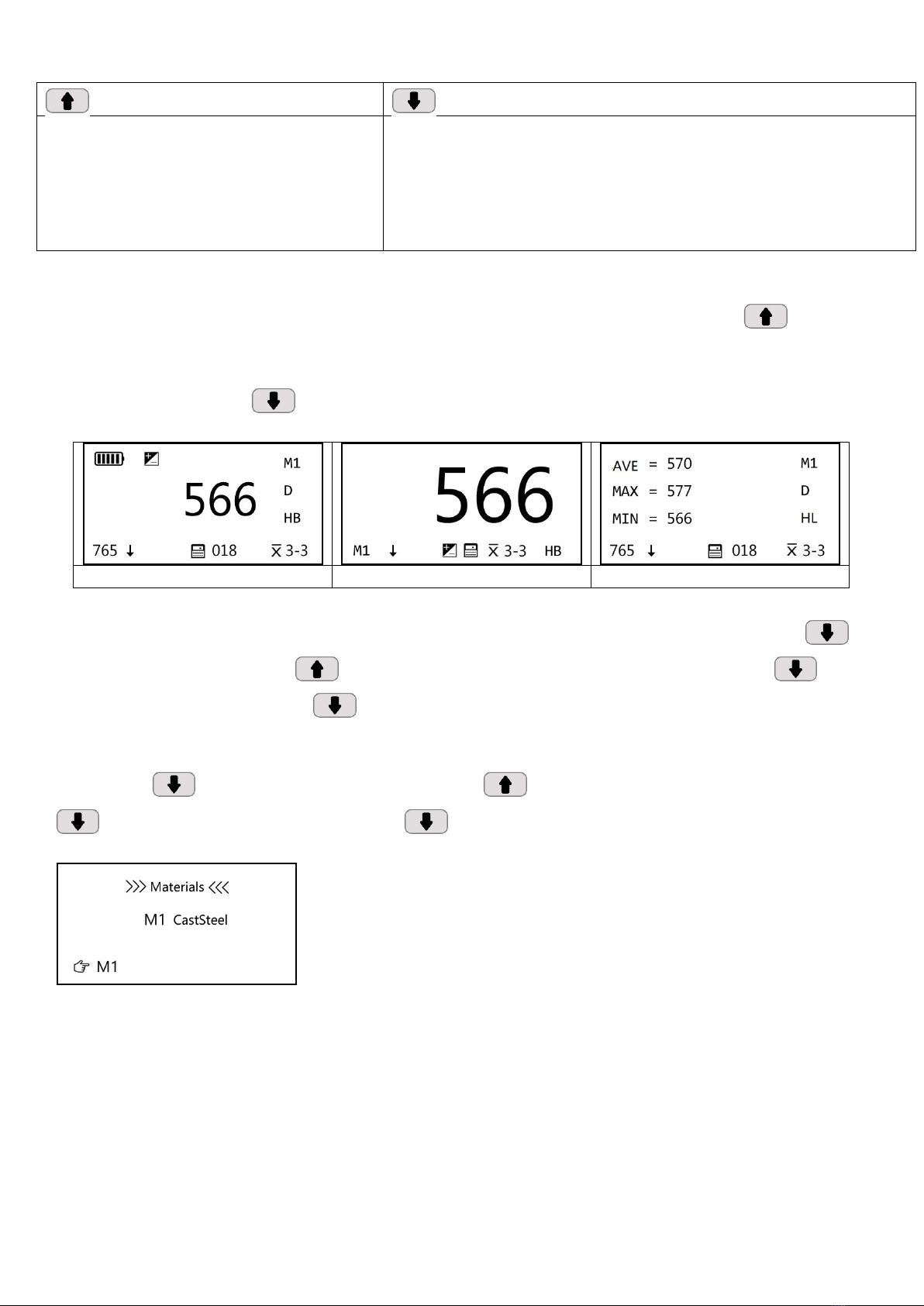

6.5 Display Mode
In measuring mode, press to switch among normal mode, big font mode and statistics mode.
Normal mode
Big font mode
Statistics mode
6.6 Parameters Setup
All parameters can be selected or changed from the menu system by operator. Press and hold button
to enter Menu mode, then press to select different parameters in current menu item. Press to go
to next menu item. Press and hold to save settings and exit menu mode.
Materials selection
The material must be selected properly when you want to have tests.
Press button to enter menu “Materials”, then press to change materials from M1 to M10. Press
to go to next menu item. Press and hold to save settings and exit menu mode.
6.7 Hardness scale conversion
Hardness scale is based on the material selected. Not every material has same conversion. For example, for
steel, it has conversions from HL to HRC / HRB / HB / HV / HS / HRA / σ; but for Grey Cast Iron (GG),
only has conversions to HRC / HRB / HB /HV. The default hardness scale is Leeb hardness value (HL).
M1:
Steel & Cast Steel
M6:
Cast Aluminum
M2:
Alloy Tool Steel
M7:
Copper-Zinc (Brass)
M3:
Stainless Steel
M8:
Copper-Aluminum (Bronze)
M4:
Grey Cast Iron (GG)
M9:
Wrought Copper
M5:
Nodular Cast Iron (GGG)
M10:
Forging Steel

11

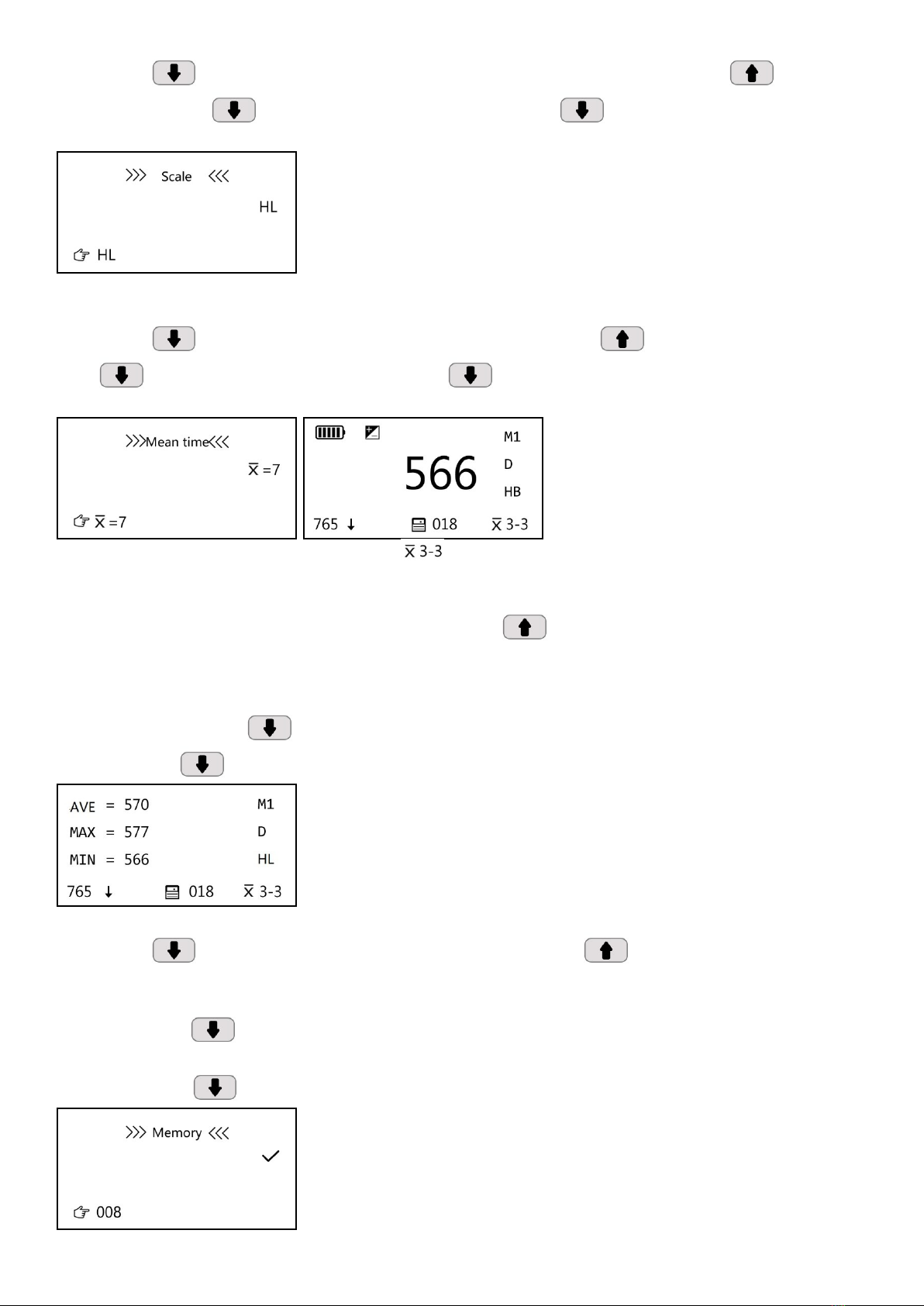

Press button consecutively to enter menu until “Scale” displays on LCD, then press to change
scales orderly. Press to go to next menu item. Press and hold to save settings and exit menu
mode.
6.8 Statistics
6.8.1 Mean Times
Press button consecutively to enter menu “Mean time”, then press to change value orderly.
Press to go to next menu item. Press and hold to save settings and exit menu mode. The default
mean time is 0 time.
If the mean time is set to 3 times, an indicator will be displayed on the lower-right corner.
6.8.2 Delete Measured Values
After mean time is set, in order to avoid the error caused by abnormal values involving in calculation, you
can delete the current values by pressing and holding button . If Memory is ON at this time,
corresponding measured values in memory will also be deleted.
6.8.3 Read Statistics Info
After setting the meantime, an indicator will be showed on the measuring mode. When measuring times
reach setting times, press button to switch to statistics mode, the average, min. and max. value will be
displayed. Press button again to switch to normal measuring mode.

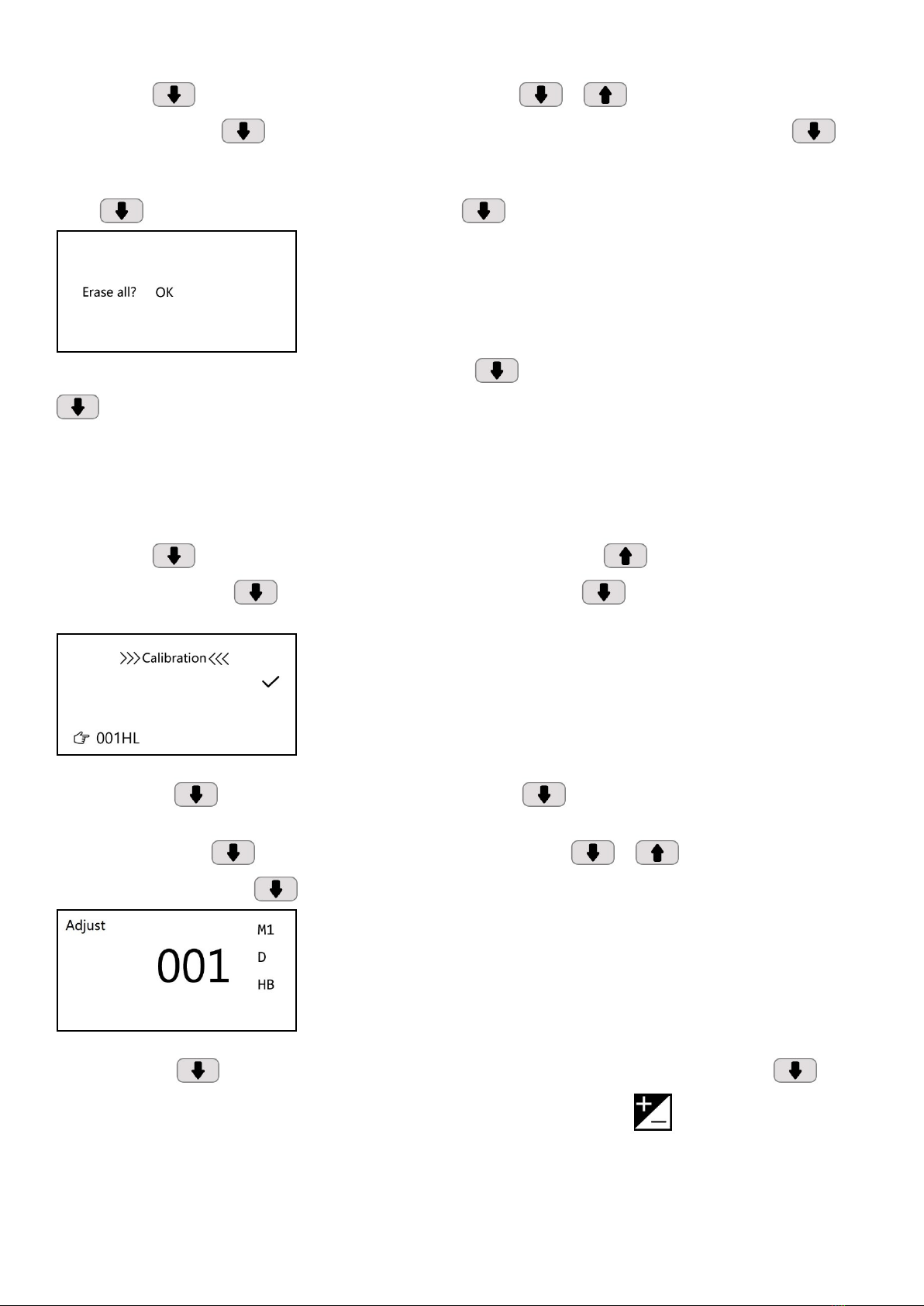

6.9 Memory Setup
Press button consecutively to enter menu “Memory”, then press to select “”, “View”, “and
Erase all “or“” orderly. The default setting is memory off.
Memory off
: Press and hold to save settings and exit menu mode.
Memory on
: Press and hold to save settings and exit menu mode.

12
6.9.1 View
Press button to enter “View” mode. In this mode, press or to turn the page forth or back.
Press and hold button to exit “View” mode and go back to “Memory” menu. Press and hold to
save settings and exit menu mode.
6.9.2 Erase All
Press then “Erase all?” displays, press and hold to delete all stored data.
It will return to Memory mode after deleting data, press to go to next menu item. Press and hold
to save settings and exit menu mode.
6.10 Calibration (compensation)
The measurement compensation is used for calibration of the instrument. After the instrument is used for
some time, the ball tip on impact body may be worn out or the instrument recognize wrong angle of probe
which would lead inaccuracy. In order to compensate such error, the tester is designed to re-calibrate by
user.
Press button consecutively to enter menu “Calibration”, then press to select “”, “” or
“Adjust” orderly. Press to go to next menu item. Press and hold to save settings and exit menu
mode. The calibration procedure is only valid for current hardness scale.
6.10.1 Calibration Off
: Press button to go to next menu item. Press and hold to save settings and exit menu mode.
Adjust
Adjust: Press button to enter Adjust mode. In this mode, press or to adjust compensation
value, then press and hold to save settings and exit menu mode.
6.10.2 Calibration On
: Press button to activate calibration indicator and go to next menu item. Press and hold to
save settings and exit menu mode. After calibration is activated, an indicator will be displayed on
LCD.

13
6.10.3 Calibration Procedure
Turn off the calibration function
Take measurements on the standard hardness block D and make sure the measuring direction is downward
vertically
If the hardness value of standard block is HL780, but the reading of tester is HL760, it means this tester
need to be calibrated
Enter the Adjust mode, Calibration Adjust (Refer to 6.8.2), set the adjust value to 20 (Standard value –
real testing value), then activate the calibration (Calibration On). An will be displayed in the
LCD.
In this mode, take measurements on the standard block again to check if the readings are acceptable.
Note: The user calibration procedure should be done every half year, if you don’t use the tester for long
time, before start to use it, you should also do a calibration.

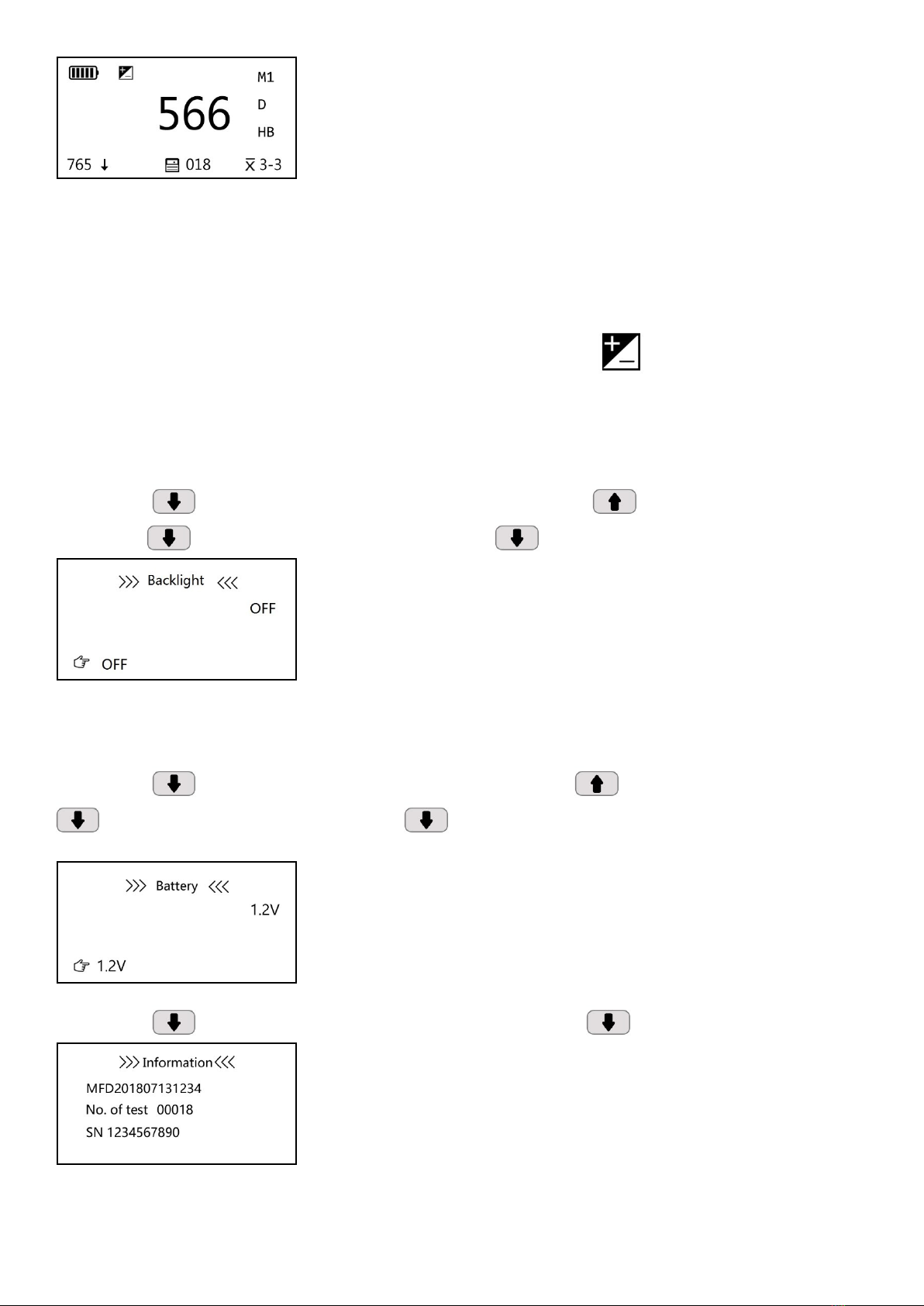

6.10.4 Backlight
Press button consecutively to enter menu “Backlight”, then press to select “Flash”, “Bright” or
“Off” Press to go to next menu item. Press and hold to save settings and exit menu mode.
Flash: Turn on the backlight for normal or low frequency measurements
Bright: Turn on the backlight for continuous or intensive measurements
Off: Turn off the backlight
6.10.5 Battery
Press button consecutively to enter menu “Battery”, then press to select “1.2V” or “1.5V” Press
to go to next menu item. Press and hold to save settings and exit menu mode.
6.10.6 Information
Press button consecutively to display System Information. Press to exit menu mode.

14
7 Take Measuring
7.1 Loading Spring
Hold the main body (the tester) with left hand while right hand is holding loading tube, then push the
loading tube with a little force against spring force toward tester until to lock the impact body.
Loose the force and let the loading tube returns to the original position.
7.2 Take Measurement
Place the tester against onto the surface of object to be measured by the support ring.
Please note: the proper way of holding is important for obtaining better readings.
Attention: the tester must be placed against object surface firmly and perpendicularly. A slight gap
between support ring of tester and surface of object will lead inaccurate reading.
Release the testing force
After firmly placing the tester onto the surface of object with left hand, hold the loading tube with thumb
and middle finger of right hand and press the release button with forefinger.
The impact body inside probe will impact the surface of object with spring force. Then the hardness reading
will be displayed on the screen.
Attention: when pressing the release button, please make sure not to press the release button only by
single forefinger which may affect the testing accuracy.
8 Maintenance and Repair
Do your best to avoid shock, heavy dust, damp, strong magnetic field, and oil stain.
Maintenance of the Impact Device

15
The devices do not require any particular care other than periodic cleaning of the impact body and the guide
tube after performing approximately 1000-2000 tests. During cleaning, the following procedures need to be
observed:
Unscrew support ring and remove impact body from guide tube.
Clean off any dirt and metallic dust from the impact body and the spherical test tip.
Clean guide tube with the special brush provided.
Do not apply oil to any parts for the impact device.
8.1.1 Replacing Battery
When a battery indicator displays that reminds you to replace the battery. However it is still possible to
measure for some time. Please make sure to obtain suitable batteries.

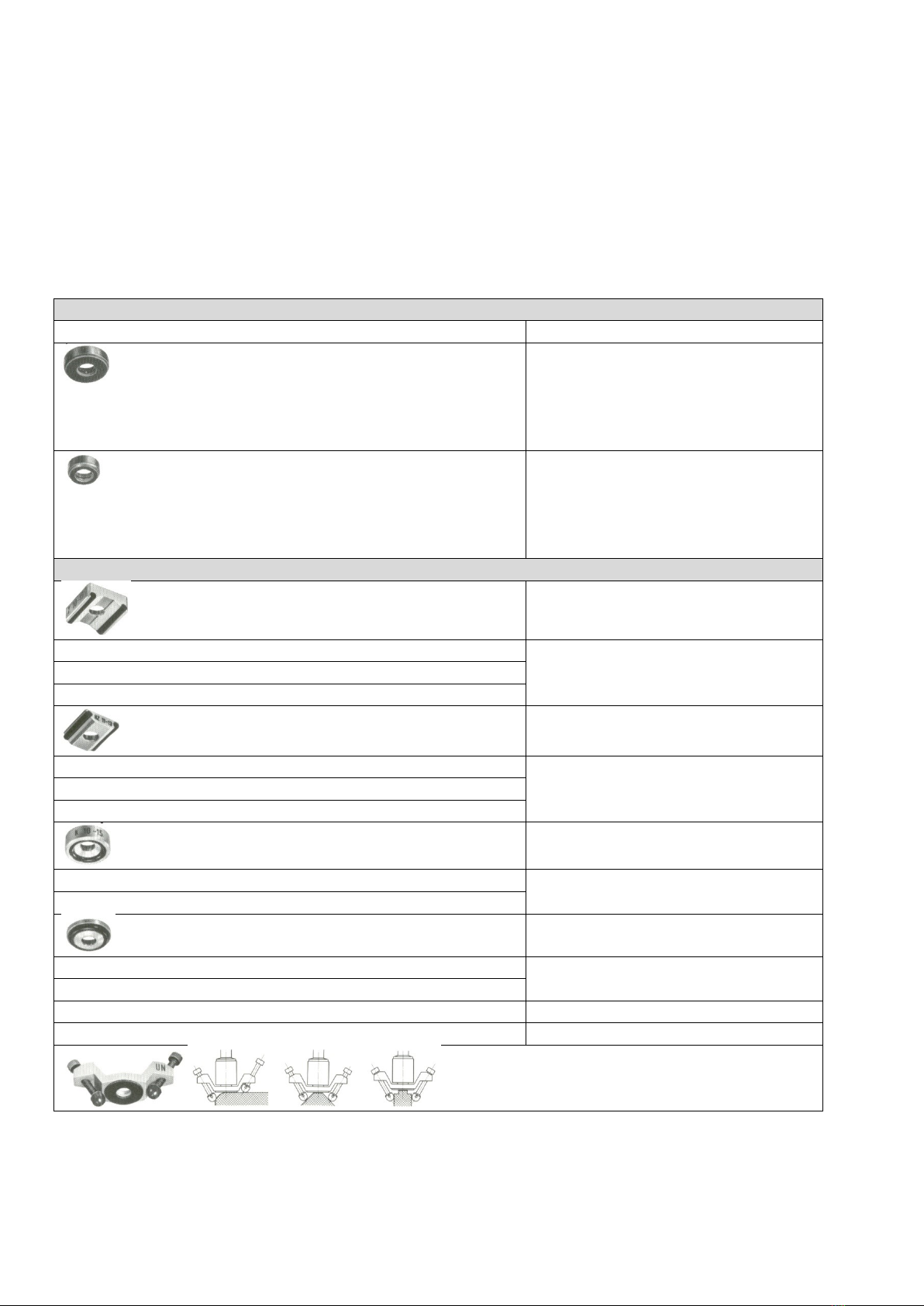

9 Optional Accessories
Support Rings for Impact Device D
Part designation and dimensions:
Suitable for the following surfaces
D6
Φ 19.5×5.5mm
R≥60mm
plane
cylindrical
hollow-cylindrical
spherical
hollow-spherical
D6a
Φ 13.5×5.5mm
R≥30mm
plane
cylindrical
hollow -cylindrical
spherical
hollow-spherical
Special Support Rings
Cylindrical
Z 10-15
20×20×7.5mm
R 10mm-15mm
R<10mm not possible
R≥30mm D6/D6a
Z 14.5-30
20×20×6.5mm
R 14.5mm-30mm
Z 25-50
20×20×6.5mm
R 25mm-50mm
hollow-cylindrical
HZ 11-13
20×18×5mm
R 11mm-13mm
R<11mm not possible
R≥30mm D6a
HZ 12.5-17
20×20×5mm
R 12.5mm-17mm
HZ 16.5-30
20×20×5mm
R 16.5mm-30mm
spherical
K 10-15
Φ 20×7.7mm
R 10mm-13mm
R<10mm not possible
R≥30mm D6/D6a
K 14.5-30
Φ 20×6.7mm
R 14.5mm-30mm
hollow-spherical
HK 11-13
Φ 17×5mm
R 11mm-13mm
R<11mm not possible
R≥30mm D6a
HK 12.5-17
Φ 18×5mm
R 12.5mm-17mm
HK 16.5-30
Φ 20×5mm
R 16.5mm-30mm
UN
Φ 52×20×16mm

16
10 Introduction of PC Software
Data communication software is designed for reading and processing the data of hardness tester. It can read
the data from the memory of hardness tester, export the data to the computer and print the data from the
computer printer.
System requirement: A PC with USB port
Windows 7 / Windows 8 / Windows 10
Connect PC and hardness tester by USB cable
Before using PC software, please make sure the tester is switched off and connect PC and hardness tester
using USB cable supplied with the instrument.
Driver installation
Computer will prompt "Found new hardware" while the hardness tester is connected to the computer first
time, please install the driver located in X:\Drivers folder. (X: means CDROM drive letter).
Software Installation
Double click “setup.exe" to install the PC software. Please follow the installation wizard to finish it.
Start PC software
After the data communication software is installed, a shortcut will be created on the desktop automatically.
Double click the shortcut to run the program.
The main interface of the software is a standard windows form, containing the title bar, menu bar and
toolbar.
