Body Craft Multi Gym GX User manual

SW950223.01.01
TF-
max. 130 kg
L 180 | B 163 | H 212
~ 210 Min.
CM
130 kg
Assembly and Operating Instructions
Art. No. SW-95.0223
Multi GymGX

2GX

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Setup Location 14
2.4 Assembly 15
3 STORAGE AND TRANSPORT 33
3.1 General Instructions 33
4 TROUBLESHOOTING, CARE AND MAINTENANCE 34
4.1 General Instructions 34
4.2 Faults and Fault Diagnosis 34
4.3 Maintenance and Inspection Calendar 35
5 DISPOSAL 35
6 RECOMMENDED ACCESSORIES 36
7 ORDERING SPARE PARTS 37
7.1 Serial Number and Model Name 37
7.2 Parts List 38
7.3 Exploded Drawing 42
8 WARRANTY 43
9 CONTACT 45

4GX

5
Dear customer,
Thank you for choosing Bodycraft training equipment. Bodycraft equipment inspires with its
multifunctionality and excellent workmanship and is one of the highest quality tness equipment
for home use in terms of innovation and technology. BodyCraft weight stations, for example, oer a
very wide range of exercise possibilities. This ranges from traditional strength training such as bench
presses to rehabilitation exercises and workouts for complex sports such as golf, tennis or badminton.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
BodyCraft® is a registered brand of the company Fitness Authority Industrial Co., LTD. All rights
reserved. Any use of this trademark without the explicit written permission of Fitness Authority
Industrial Co., LTD is prohibited.
Product and manual are subject to change. Technical data can be changed without advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-professional
(e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. tness
studios).

6GX
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If
you notice any discrepancies during assembly or use, please refer to the manual uploaded to the
webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow
the instructions and that all parts are securely in place. If required, read through the
instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here.
The contract partner cannot be held liable for damage to health, accidents or
damage to the equipment when it is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
Weight and Dimensions
Packaging dimensions (L x W x H) and article weight (gross, incl. packaging) approx.:
Box 1: 200.6 cm x 43.2 cm x 18.4 cm 47.2 kg
Box 2: 111.7 cm x 102.2 cm x 26 cm 85.9 kg
Box 3: 188 cm x 18.1 cm x 12 cm 11.3 kg
Article weight (net, without packaging) approx.: 129.5 kg
Set-up dimensions (L x W x H) approx.: 180 cm x 163 cm x 212 cm
Cables and Pulleys
Weight plates: 19 (4.5 kg)
Cable material: Steel
Cover material: Nylon
Pulley size: 90 mm/ 114 mm
Maximum user weight: 130 kg

8GX
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

10 GX

11
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

12 GX

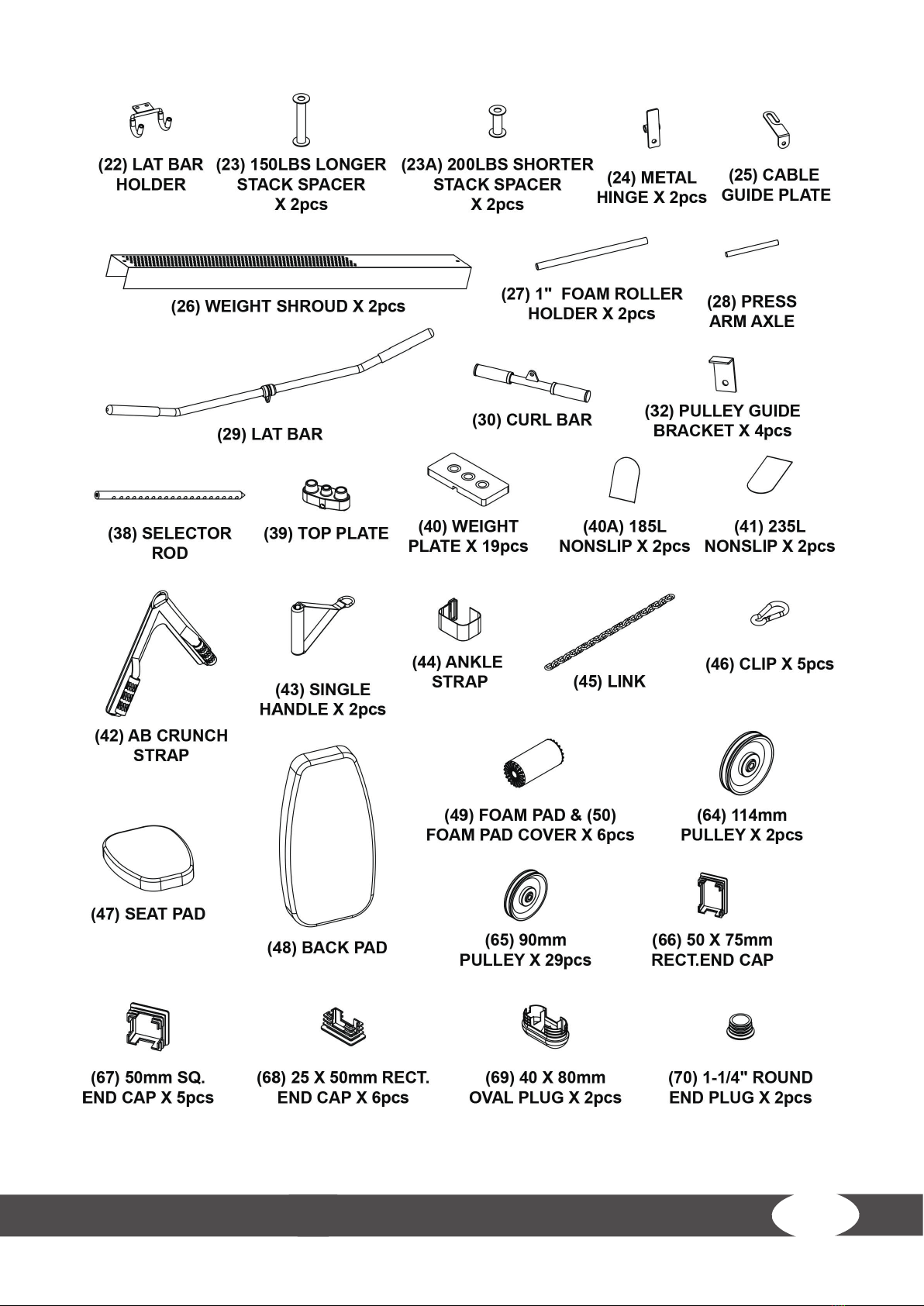

2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

13

14 GX

15
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.
Step 1: Assembly of Front and Rear Upright, Guide Rods and Weight Plates
1. Assemble the front upright (3) to the base frame (1) by using two bolts (99), four washers (116) and
two nuts (116).
2. Assemble the shorter pop pin (86) to the front upright (3).
3. Assemble the rear upright (4) to the base frame (1) by using three
screws (109) and three washers (116).
4. Insert two guide rod holders (73) into the holes on the
base frame (1).
5. Insert two guide rods (5) into the guide rod
holders (73).
࣑ATTENTION
+ If you have purchased the optional 200Lbs
pound weight stack, please use the 200Lbs
shorter stack spacers (23A) instead of the
150Lbs longer stack spacers (23).
6. Slide two 200Lbs stack spacers (23A) onto the
guide rods, followed by two rubber cushions
(79).
7. Slide the weight plates (40) onto
the guide rods (5), making sure the selector
holes point towards front and rear side.
8. Attach the top plate (39) to the selector rod
(38) by using the top plate bolt (105). Tighten
the top plate bolt (105) by using a hex key.
9. Slide the top plate (39) onto the guide rods and
guide the selector rod (94) through the center holes
of the weight plates (40).
10. Insert two end plugs (70) into the ends of the round foot
plate tube.
11. Insert one end cap (66) into the rear of the base frame
(1).
12. Insert one end cap (67) into the side of the base frame
(1).

16 GX
Step 2: Assembly of the Top Frame
1. Insert the guide rod mount (129) onto the guide rods (5).
2. Assemble the guide rod mount (129) to the top frame (2) by using two bolts (108).
3. Screw two set screws (112) into the guide rods (5).
4. Place the top frame (2) on top, making sure to
insert the guide rods (5) and rear upright (4).
5. Assemble the top frame (2) to the rear upright (4),
by using three screws (109) and three washers
(116).
6. Assemble the top frame (2) to the front upright
(3) by using two bolts (98), four washers (116)
and two nylon nuts (124).
7. Assemble the lat bar holder (22) to the top frame
(2) by using two bolts (104) and two washers
(117).
8. Insert three end caps (67) to each end of the top
frame (2).

17
Step 3: Assembly of the Cable Arm Assembly
1. Assemble the cable arm assembly (11) to cable arm connector (17) by using two bolts (103) and
two washers (116).
2. Assemble the cable arm connector (17) to front upright (3) by using two bolts (97), four washers
(116) and two nylon nuts (124).
3. Assemble the cable arm assembly (11) and stabilizing plate (20A) to base
frame (1) by using two bolts (98A), four washers (116) and two nylon nuts
(124).
LNOTICE
You may need to loosen the bolts at the top of the cable arm assembly bottom frame so that
the holes line up.
4. Slide the axle of each cable arm (14) through the holes on the selector plate in the cable arm
assembly (11) and fasten them by using two spacers (34) and two axle collars (35).
5. Tighten two set screws (112) on the axle collars (35) with an
allen wrench.
࣑ATTENTION
Make sure that each cable arm (14) pivots freely and
that cables are not twisted.

18 GX
Step 4: Assembly of the Press Station
1. Attach the press arm support (13) to the top frame (2) by aligning the holes and inserting one
bolt (95) with two washers (115) and one nylon nut (123).
2. Attach four end caps (68) to the press arm support (13).
3. Attach press arm (7) to the press arm support (13) by aligning the holes and inserting the press
arm axle (28).
4. Tighten the two pre-assembled set screws (112) on the press arm (7).
5. Make sure the longer pop pin (85) is seated in one of the adjustment holes on the press arm
support (13).
6. Attach two end caps (69) to the press arm (7).

19
Step 5: Assembly of Seat and Back Pad
1. Assemble the seat frame (9) to the front upright (3) by using three bolts (99), six washers (116)
and three nylon nuts (124).
2. Assemble the seat back adjuster (12) to the front upright (3) by using one bolt (99), two washers
(116) and one nylon nut (124).
LNOTICE
It may be necessary to tighten the bolt (99) and loosen it just enough to let the seat back
adjuster (12) pivot FREELY.
3. Make sure the longer red pop pin (85) ts into the adjustment holes in the seat back adjuster
(12).
4. Assemble the leg holder (16) to the seat back adjuster (12) by using two screws (104) and two
washers (117) and tighten the screws.
5. Slide the two metal hinges (24), with the holes at the bottom, onto the axle welded on top of
the seat back adjuster (12).
6. Assemble the back pad (48) to the metal hinges (24) by using two bolts (103) and two washers
(116).
7. Assemble the leg extension handle (6) to seat adj. frame (8) by using two bolts (99), four washers
(116) and two nylon nuts (124).
8. Assemble the seat pad (47) to the seat adj. frame (8) by using two bolts (102) and two washers
(116).
9. Insert one end plug (68) into each end of the seat adj. frame (8).
10. Slide the seat adj. frame (8) into the seat frame (9).
LNOTICE
The seat adj. frame (8) is held in place by a locking spring knob (84).
11. Assemble the leg extension arm (10) to the seat frame (9) by using two set screws (108), two
spring washers (119) and two washers (117).
12. Insert a foam roller holder (27) into the tube on the seat adj. frame (8).
13. Slide a plastic washer (71) and a foam pad (49) onto the foam roller holder (27) with the at side
pointing to the outside on each side.
14. Attach one aluminum cap (72) to each end of the foam roller holder (27) and secure with one
sunken head screw (106) each.
15. Repeat steps 12 to 14 for foam pads (49) on leg extension arm (10) and leg holder (16).

20 GX
