Body Craft LT100 spacewalker User manual

1
OWNER’S
MANUAL
BODYCRAFT
7699 Green Meadows Dr., Lewis Center, Ohio 43035
Tel: [phone] www.bodycraft.com

2
“SAFETY INSTRUCTION”
WARNING: Toreducetheriskofseriousinjury,readthefollowingsafetyinstructionsbeforeusingthe item.
Exercise can present a health risk. Consult a physician before beginning any exercise program with this equipment. This is
especially important if you are over the age of 35, have never exercised before, are pregnant, or suffer from any illness
If you feel faint or dizzy, immediately discontinue use of this equipment. Serious bodily injury can occur if this equipment is not
assembled and used correctly. Serious bodily injury can also occur if all instructions are not followed.
1. Readthismanualandfollowitcarefullybeforeusing theequipment.Makesurethatitisproperlytightenedbeforeuse.
2. Keepchildrenandpetsawayfromtheequipment.Donotallowchildrenandpetstouseorplayontheequipment. Alwayskeep
childrenandpetsawayfromtheequipment whenitisinuse.
3. It isrecommended that you placethis exerciseequipment on an equipment mat. Operate the equipment on asolid levelsurface.Do not
position the equipment on loose rugs or unevensurfaces.
4. Inspectthe equipment forworn or loose componentspriorto eachuse.Tighten /replace anyloose or worn components prior to using the
equipment.
5. Alwayschoosetheworkoutwhichbestfitsyourphysicalstrengthandflexibilitylevel.Knowyourlimitsandtrain withinthem.Alwaysuse
commonsensewhenexercising.
6. Holdontohandrailswhenadjustingspeed,orothercontrols.
7. Wearproperexerciseclothingandshoesforyourworkoutandavoidlooseclothing.Neverexerciseinbarefeetorsocks;alwayswear
correctfootwear,suchasrunning,walking, orcrosstrainingshoes.
8. Usecare whengettingonoroffthetreadmill.Whensteppingontherunningbelt,alwaysgraspthehandrail whensteppingandkeep the
initialspeedatorbelow1mileperhour(mph).Neverstepoffthetreadmillwhiletherunning beltismoving.
9. Becarefultomaintainyourbalancewhile using,mounting,dismounting,or assemblingtheequipmentlossofbalancemayresultina
falland seriousbodilyinjury.
10. Neverinsert anyobjectorbodypartsintoanyopening.
11. Alwaysunplugthetreadmill beforecleaningand/ormaintaining.
12. Theequipment shouldnotbeusedbypersonsweighingover300pounds/136kgs.
13. Theequipment should beused byonlyoneperson at atime.
14. Maintenance: Replacethe defective components immediatelyand / orkeep the equipment out of use until repair the equipment
completely.
15. Makesurethatadequatespaceisavailableforaccesstoandpassagearoundtheequipment;keepatleastadistanceof1meter(3
feet)fromanyobstructionobjectwhileusingthemachine.
READAND FOLLOW THE SAFETY PRECAUTIONS. FAILURE TO FOLLOWTHESE
INSTRUCTIONSCANRESULTIN SERIOUS BODILYINJURY

3

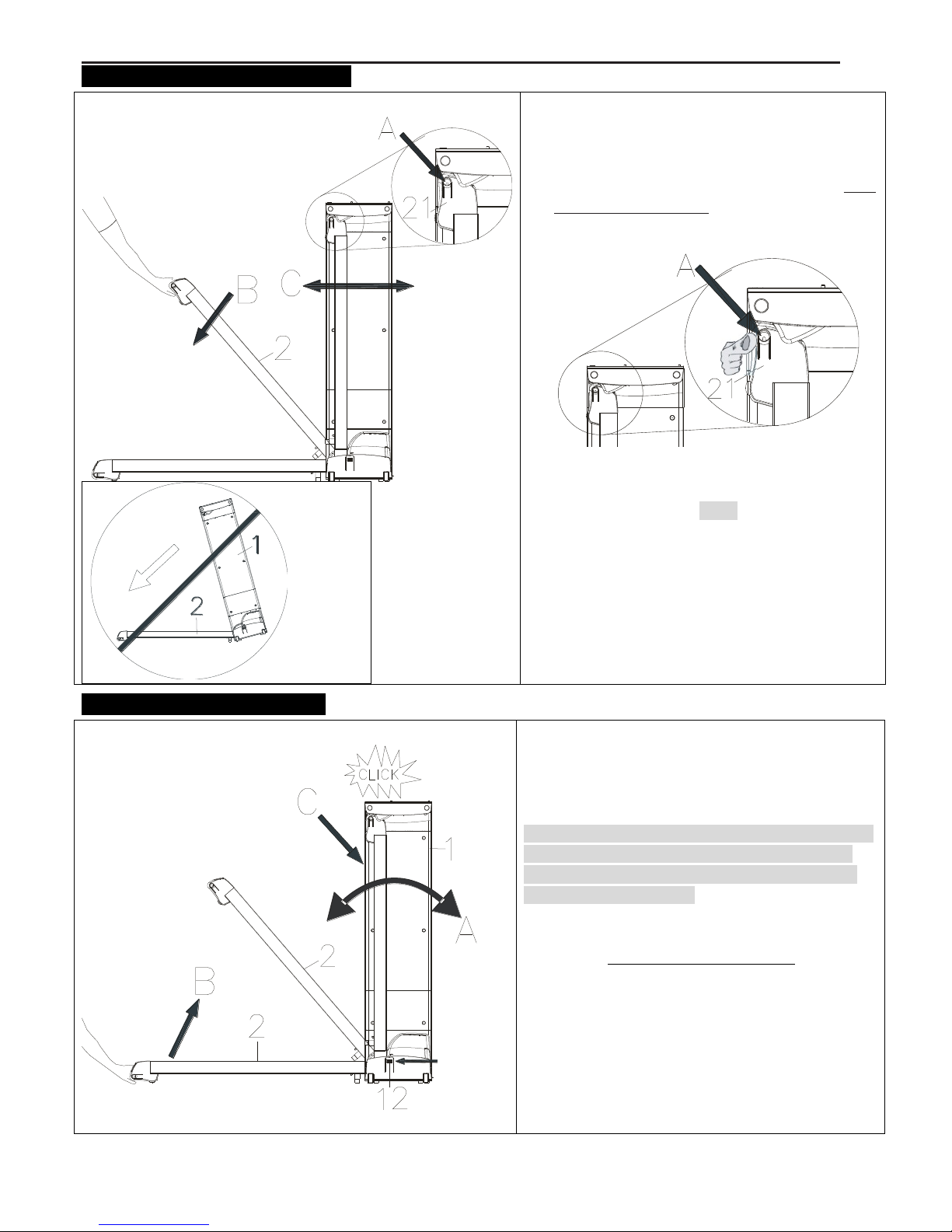

“UNFOLDING INSTRUCTIONS”
FIG. 1
A. Gently press the button (A) located on the right
upper side of Right Rear EndCap (21) as
shown. The Deck (2) will startto descend. Keep
holding the Deck (2) with two hands until
hearing a “click” sound to make sure the deck
has fully descended to the floor.
B. In order to prevent the danger of the Main
Frame (1) falling like FIG 1 shown, gently
move/shake the Main Frame (1) front and back
to double make sure the Deck (2) has totally
locked and fully descended to the floor.
“FOLDING INSTRUCTIONS”
A. Press STOP on the console andwait until the
belt has fully stopped.
B. Gently press the button (A) located on the right
bottom side of Upper Motor Cover (12).
NOTE: If the treadmill is on an uneven surface, the
button (A) might be hard to press. To make the
button (A) easy to press, gently shake the Main
Frame (1) front and back.
C. Keep pressing the button (A) while using the
other hand to fold up the Deck (2) from Bto C
position until hearing a “click” sound to make
sure the deck has fully locked to the Main
Frame (1).
Button A

4

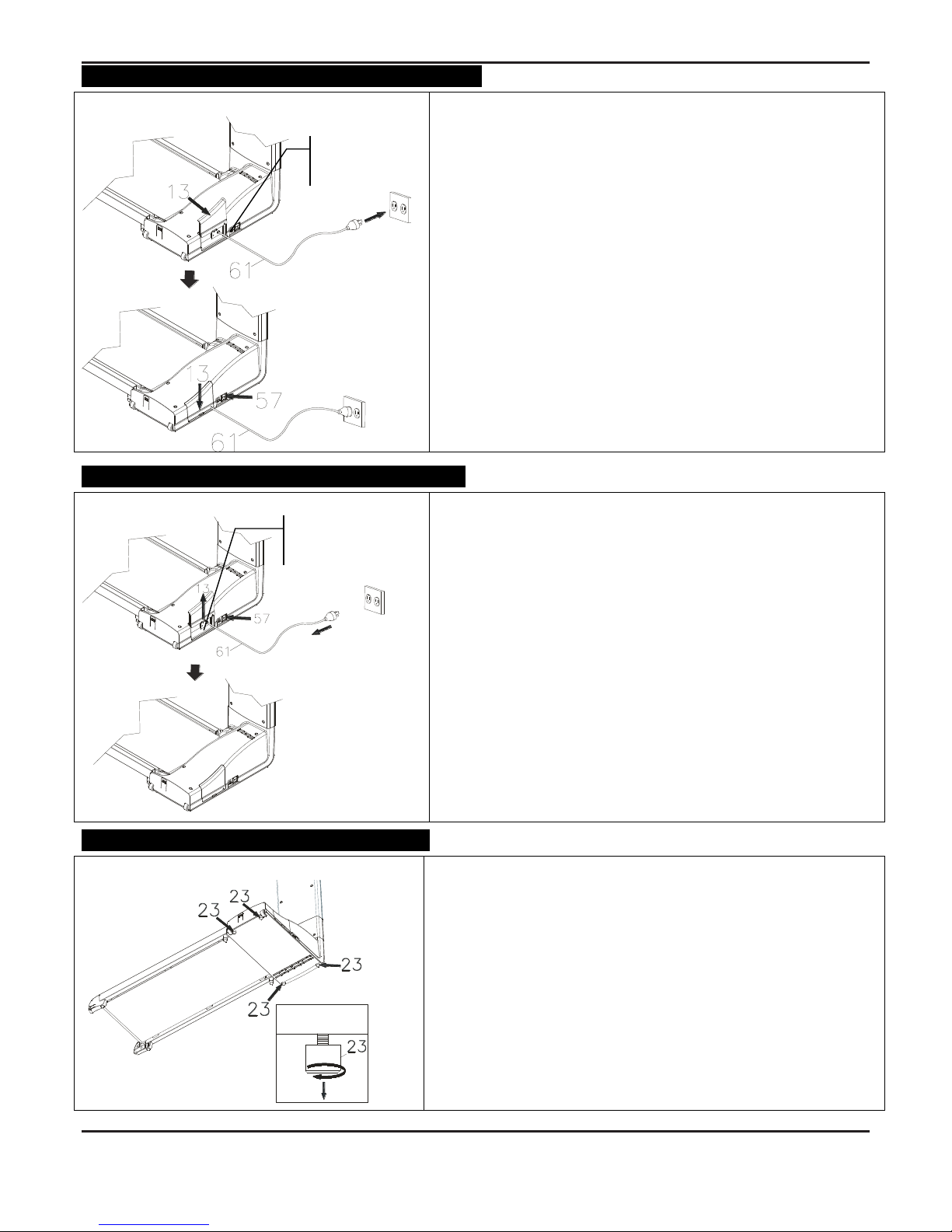

“POWER CORD OPERATION INSTRUCTIONS”
A. Open the Storage Door (13) by simply sliding it upward.
B. Unwrap the Power Cord (61) from the unit’s storage
compartment.
C. Before plugging the Power Cord (61) into the electrical outlet,
make sure that the supply voltage matches the voltage
information stated on the label (on front of the item).
D. Connect the Power Cord (61) to the electrical outlet, then
close the Storage Door (13). To light up the console, turn on
the Main Power Switch (57) located at the front of the unit,
near the power cord.
“POWER CORD STORAGE INSTRUCTIONS”
To store power cord in a safe storage compartment, please
follow the following steps.
A. Turn off the Main Power Switch (57) and unplug the Power
Cord (61) from the electrical outlet.
B. Neatly wrap the Power Cord (61) around the storage
compartment and gently close the Storage Door (13).
“LEVEL ADJUSTMENT INSTRUCTIONS”
A. After placing the equipment in the intended location for use,
make sure theitem rests firmly on the floor. To level the item,
please follow the following steps.
B. Tip the item to the left/right. You will then see the Levelers (23).
To make the Leveler (23) rests firmly on the floor, turn the
Leveler (23) clockwise until the Leveler (23) touches the floor
without rocking. Repeat the above process until the item is
level.
Storage
Compartment
Storage
Compartment

5
“MOVING THE TREADMILL INSTRUCTIONS”
A. Turn the power switch off.
B. Unplug the powercord.
C. Fold the treadmill and make sure the lock is secured.
D. Make sure themotor is on the bottom side.
E. Simply roll the treadmill with two transportation wheels to the
desired location.
“CHANGING TOTABLE/ BENCH INSTRUCTIONS”
FIG. 1
To change the treadmill into table or bench position,
follow the drawing on the left to gently lie the treadmill
on the floor.
NOTE: The purpose of the adjustable Stand (23) is to
level the item. Adjust the Stands (23) in four side until
the item sets on the floor without rocking.
“LUBRICATION INSTRUCTIONS”
Lubrication of the deck is very important to your treadmill.
A. Lubricate your running deck if it’s too dry or every 6 months to
maintain optimal performance. NOTE: Lubricant isoptional,
pleasecontact yoursupplier.
B. Wipe entire deck surface with a clean, lint free cloth.
C. While lifting the side of the running belt, gently position the
nozzle between the running belt and the running deck from the
front of the treadmill to the rear. NOTE: If you lubricate too
much, the running beltmay slip or liquid may flow out from
the machine.
D. Repeat the above procedure on the other side of the belt.
E. Then run the treadmill without anyone on it for at least 2~3
minutes to let the lubricant spread evenly across the running
deck and underside of the running belt.
F. Check the belt whether is offcenter or slips, if it does, go to page 7
to center the belt or adjust the belt tightness until the belt has
been tightened properly.
G. Plug in the power cord to start using the treadmill.
Make sure the
motor is on the
bottom side.

6
“WALKING BELT ADJUSTMENT INSTRUCTIONS”
A. Open the Storage Door (13).
B. Allen Wrench (35) is attached on back of the Storage Door
(13).
C. To adjust the belt, please take a look at the following steps.
CENTERING THE BELT: If the walking belt is
off center to the LEFT:
1. If the belt is slightly off center, first run the treadmill without
anyone on it at 4 mph for 12 minutes to see whether the
treadmill could automatically center the running belt. If not,
move to step 2. to start centering the belt.
2. Stand behind the treadmill, with the treadmill running at6kph
(4mph) observe the running belt. If the belt tracks off center to
the left, please take a look at the following process to center
the belt.
Caution: Be very careful to keep your fingers and any
object awayfrom the belt and rollers 3.
Use theAllen Wrench –
a. To turn the left rear roller adjustment bolt 1/4 turn in
clockwise direction, which moves the running belt to
the right.
b. Or turn the right rear roller adjustment bolt 1/4 turn in
counterclockwise direction, whichmoves the running
belt to the right.
Caution: Do not turn the adjustment bolt more than 1/4
turn at a time. Overtightening the belt can damage the
treadmill.
Repeat the above procedure until the walking belt is centered. It
may be necessary to test walking belt tension once you have
completed the above procedure if the belt feels like it’s slipping
while walking. Refer to below to the “Walking Belt Slipping”
instructions on Page 7.
Adjustment Bolt Location

7
“WALKING BELT ADJUSTMENT INSTRUCTIONS”
CENTERING THE BELT: If the walking belt is
off center to the RIGHT:
1. If the belt is slightly off center, first runs the treadmill without
anyone on it at 6 kph (4 mph) for 12 minutes to see whether
the treadmill could automatically center the running belt. If
not, move to step2. to start centering the belt.
2. Stand behind the treadmill, with the treadmill running at 6 kph
(4 mph) observe the running belt. If the belt tracks off center to
the right, please take a look at the following process to center
the belt.
CAUTION: Be very careful to keep your fingers and
any object away from the belt and rollers 3.
Use theAllen Wrench –
a. To turn the right rear roller adjustment bolt 1/4 turn in
clockwise direction, which moves the running belt to
the left.
b. Or turn the left rear roller adjustment bolt 1/4 turn in
counterclockwise direction, which moves the running
belt to the left.
Caution: Do not turn the adjustment bolt more than 1/4
turn at a time. Overtightening the belt can damage the
treadmill.
4. Repeat the above procedure until the walking belt is
centered. It may be necessary to test walking belt tension
once you have completed the above procedureif the belt
feels like it’s slipping while walking. Refer to below to the
“Walking Belt Slipping” instructions on Page 7.
WALKING BELT SLIPPING: If the walking
belt
slips when used.
1. First remove and unplug the power cord. Using theAllen
Wrench, turn both left andright rear roller adjustment bolt
clockwise, usually a 1/4 turn.
NOTE: NEVER TURN the
bolts more then 1/4 turn at a time and always keep the
running belt centered.
2. Test the tightness of the belt. NOTE: Overtightening the
belt can damage the treadmill.
3. Plug in the power cord, insert the key and walk on the
treadmill at low speed (around 2 kph/1mph) to determine if
the belt is still slipping. If the belt is still slipping, repeat the
above procedure until thewalking belt has been tightened
properly.
Adjustment Bolt Location

8
SAFETY KEY OPERATION INSTRUCTIONS”
The Safety Key (36) is designed to cut the power off for emergency. In
an emergency, disengage the Safety Key (36) from the console to
stop the treadmill.
a. This treadmill will not start unless the Safety Key (36) is inserted
into position A.
b. Always attach the Safety Key (36) securely to your clothing when
using the treadmill.
c. After workout, pull off the Safety Key (36) and keep it well when
you do not use the machine.
“CONSOLE OPERATION”
lTake a few minutes to review the console layout. Below is an overview of the console’s features and functions.
lWe recommend that you use the console to help vary your workout routine and keep you focused on your
process toward your fitness goals. The console can become an important source of motivation and interest
which will help keep you on track.
Power ON
a. Make sure to plug the power cord into an electrical outlet.
b. Turn on the Main Power Switch located at the front of the treadmill.
Power Off
The console would automatically go to SLEEP mode after 3minutes of inactivity.
Console Buttons
a. Press START/PAUSE to begin your exercise.
b. Press START/PAUSE again to stop and pause all functions.
c. Press START/PAUSE again to resume the program and all the data displayed will
continue until the program has finished.
a. Press MODE to review each following function TIME – SPEED – DISTANCE
CALORIE PULSE).
b. Continue press MODE for 3 seconds until having a short beep sound. The computer
will then automatically rotate display the following functions. Each function will
display for 5 seconds on TIMESPEEDDISTANCECALORIEPULSE.
a. Press SPEED (+) to increase the setting values of SPEED.
b. Press SPEED () to decrease the setting values of SPEED.
c. HOLD TO RESET function: Continue pressing SPEED (+) and SPEED () together,
all the data will return to 0 and the console will return to POWER ON status.

9

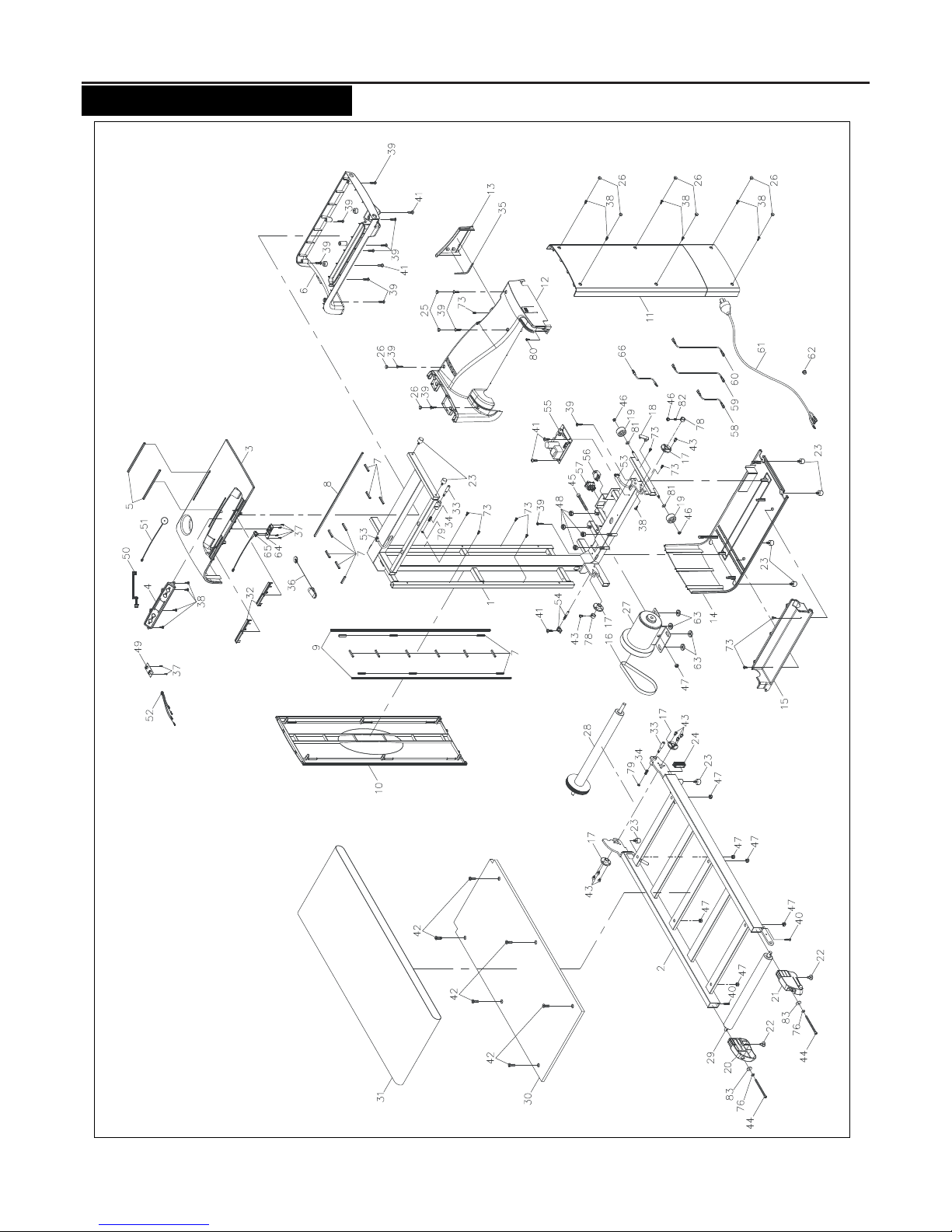

“PRODUCT PARTS DRAWING

10
“PART LIST”
NO. Item Name Q'ty
1 Main Frame 1
2 Running DeckFrame 1
3 Upper Console Table Cover 1
4 Console 1
5 NonSlip Strip 2
6 Bottom ConsoleTable Cover 1
7 Shock Absorption Strip (35mm) 20
8 Shock Absorption Strip (470mm) 1
9 Shock Absorption Strip (780mm) 2
10 Outer Upright Cover 1
11 Inner Upright Cover 1
12 Upper Motor Cover 1
13 Storage Door 1
14 Bottom Motor Cover 1
15 Bottom Side Cover 1
16 Belt 1
17 Roller Plug 2
18 Locking Button 1
19 Transportation Wheel 2
20 Left Rear EndCap 1
21 Right Rear EndCap 1
22 Stand 2
23 Leveler 8
24 Front Plug for Running Deck Frame 1
26 Round Plug 10
27 Motor 1
28 Front Roller 1
29 Rear Roller 1
30 Walking Deck 1
31 Walking Belt 1
32 Hand Pulse Sensor 4
33 Locking ButtonAxle 2
34 Locking ButtonSpring 2
35 Allen Wrench 1
NO. Item Name Q'ty
36 Safety Key 1
37 Screw (M2.6×8mm) 6
38 Screw (M4×12mm) 11
39 Screw, Pan Head (M4×20mm) 14
40 Screw, Flat Head (M4×20mm) 2
41 Screw (M5×18mm) 5
42 Bolt (M8×p1.25×25mm) 6
43 Bolt (M6×p1.0×10mm) 8
44 Bolt (M6×p1.0×80mm) 2
45 Bolt (M8×p1.25×55mm) 1
46 Nylon Nut (M6×p1.0) 3
47 Nylon Nut (M8×p1.25) 7
48 Thin Nylon Nut (M10×p1.5) 4
49 Heart RateBoard 1
50 Heart Rate Connection Wire 1
51 Speaker Wire 1
52 Hand PulseWire 1
53 Middle Connection Wire 1
54 Sensor Wire 1
55 Control Board 1
56 Breaker 1
57 Power Switch 1
58 Connection Wire A 1
59 Connection Wire B 1
60 Connection Wire C 1
61 Power Cord 1
62 Power Cord Stopper 1
63 Washer (10x23x2.0t) 4
64 Safety Key Socket 1
65 Miniature Switch 1
66 Grounding Wire 1
73 Screw (M4×10mm) 9
76 Washer (6×13×2.0t) 2
78 Retaining Ring 2
