Body Craft TR1140 User manual

TR1140, TR1160, TR1180
OWNER’S MANUAL
IMPORTANT：
For maximum effectiveness and safety, please read this owner’s manual
before using your BodyCraft treadmill. Retain this owner’s manual for
future reference.

1
1. It is the responsibility of the owner to be sure that all users of this
treadmill are informed of all warnings and precautions.
2. Keep the treadmill indoors, away from moisture and dust. Do not put the
treadmill in a garage or covered patio, outdoors or near water.
3. Keep pets and small children away from the treadmill at all times.
4. Never start the treadmill while you are standing on the walking belt.
5. Always hold the handrails while using the treadmill.
6. The treadmill is capable of high speeds. To avoid sudden jumps in speed,
adjust the speed in small increments.
7. Regularly inspect and tighten all parts of the treadmill. Keep hands away
from all moving parts.
8. When folding or moving the treadmill, make sure that the safety lock is fully
engaged. Please refer to the folding instructions pages of this manual for
safety lock operation.
9. Always unplug the power cord before performing the maintenance and
adjustment procedures described in this manual. Do not remove the motor
cover unless instructed to do so by an authorized service representative.
Servicing other than the procedures in this manual should be performed by an
authorized service representative only.
10. Keep all electrical components, such as the motor and power cord, away from
water or other liquids to prevent shock. Do not set anything on the handrail,
computer console or belt. Never place liquids on any part of the unit.
11. Always insert the safety key and attach the clip to your clothing at your waist
before beginning your workout. If you should encounter problems and need to
stop the motor quickly, simply pull on the cord to disengage the safety key from
the console. To continue operation, simply reinsert the safety key into the
console.

2
12. Remove the safety key and store it away in a safe place when the treadmill is
not in use. Keep the safety key away from children.
13. Wear the proper exercise clothing and shoes for your workout. Do not
wear loose clothing or shoes with leather soles or heels. Be sure to tie
long hair back.
14. Keep all loose clothing and towels away from running surface. The belt will
not stop immediately if an object becomes caught in the rollers or belt.
Should an object become caught, turn the unit off immediately.
15. Proceed with caution when getting on or off the treadmill. Use the handrails
whenever possible. Only step onto the running surface only when the treadmill
is running at a very low speed. Do not step off the treadmill while the belt is
moving.
16. To get on or off the running surface, straddle the running surface by standing
on the right and left plastic platforms on each side of the belt. Use this
procedure before starting the belt (to begin your workout) and after it has
stopped (at the end of your workout).
17. Never attempt to turn around while on the treadmill with the belt running.
Keep your head and body facing forward at all times.
18. Never turn on the treadmill while someone is standing on the running surface.
19. Do not rock the treadmill, stand on the handrails or computer console at any time.
20. Be careful not to over exert yourself during your workout. Stop your workout
immediately, if you feel any pain or discomfort. Consult your physician
immediately.
21. Do not modify or attempt any service on the treadmill yourself other than
assembly and maintenance described in this manual.

3
STEP 1
Do not move the treadmill out of the box until unit is assembled. Collapse box bottom
and lay sides down before assembly.

4

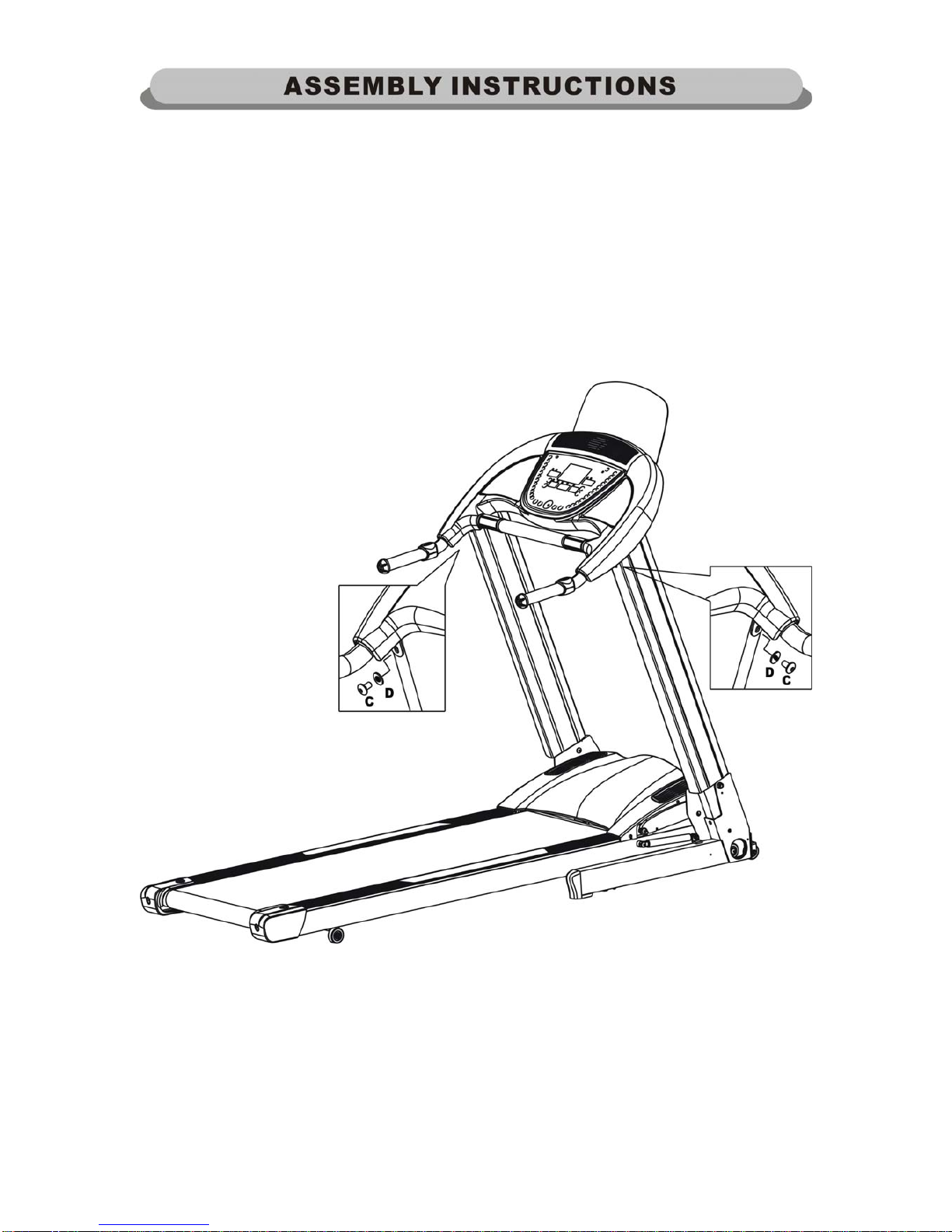

STEP 2
Lift up the upright handlebar, then fasten the screws (C) and washer (D) tightly at the
bottom of the upright handlebar. (Figure 2)

5
STEP 3
Attach the console to the upright by pressing both handlebars down.
Place the washers (D) and screws (C) on the handlebar as shown in Figure 3.

6

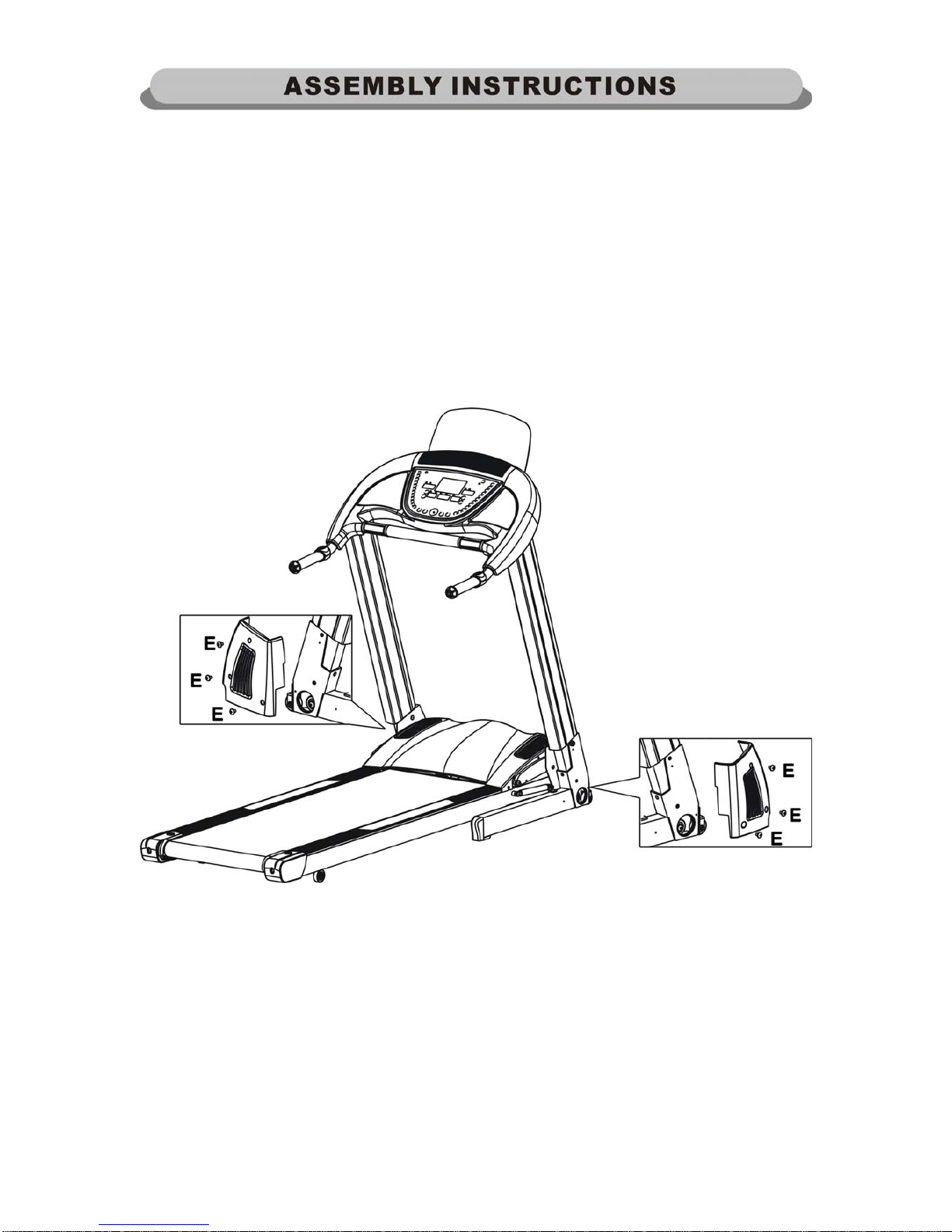

STEP 4
Attach upright side cap (B) with screws (E) at the bottom of the upright handlebar, and
tighten them well. (Figure 4)

7

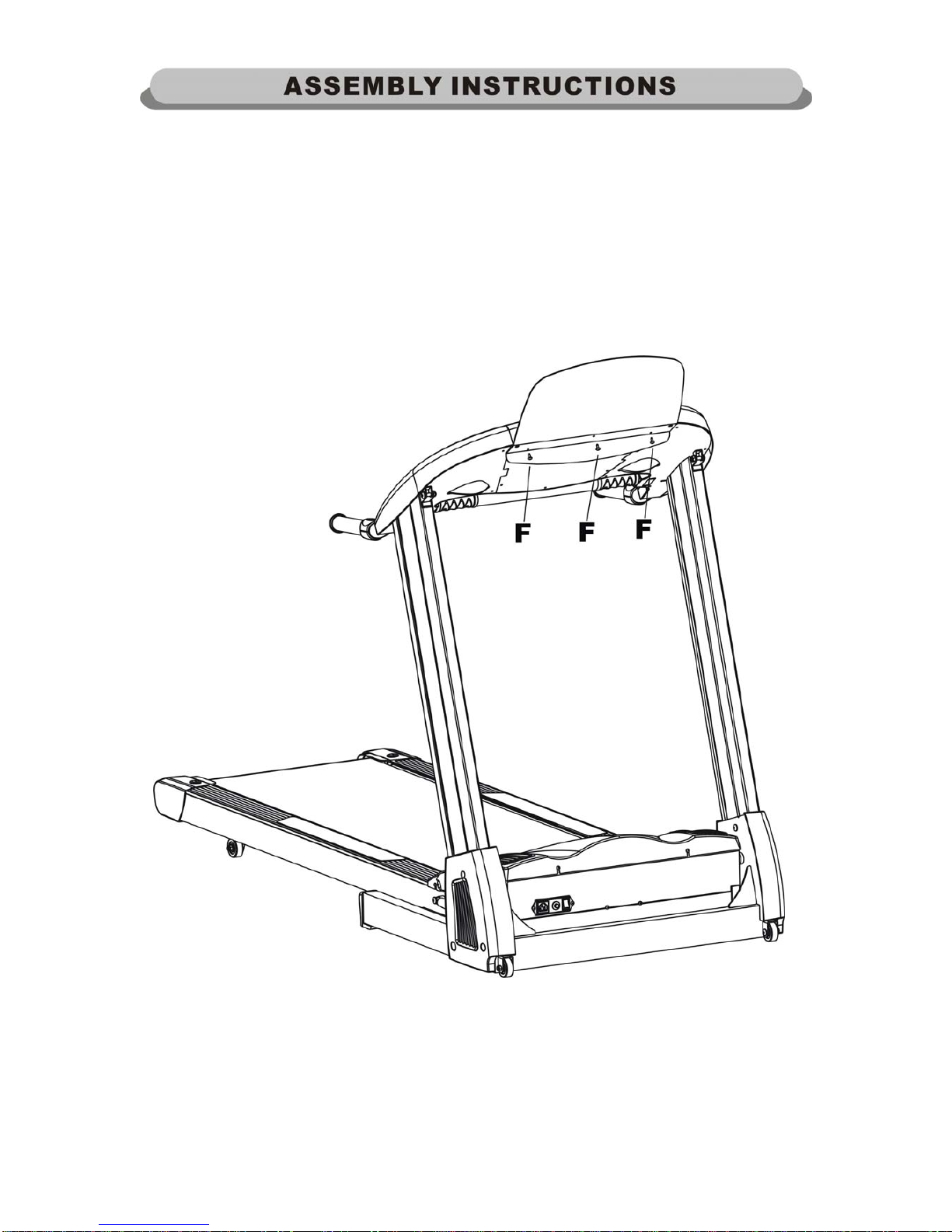

STEP 5
Attach book rack (J) with screws (F) at the bottom of the computer, and tighten them
well. (Figure 5)

8
FOLDING
After assembly is complete, you may fold the
machine into the upright position for storage.
To fold the machine, raise the deck until it locks
into position.
NOTE! Make sure you hear the click sound of the
deck locking into position. This is to ensure the
deck is locked in place and will not drop back
down.
NOTE! Make sure the treadmill’s elevation is at
lowest position before folding the deck. If the
elevation is not at lowest position, folding will
damage the mechanism.
TO RELEASE THE DECK
1. PUSH THE DECK UPAND FORWARD.
2. PUSH LOCKING LEVER DOWN WITH
YOUR FOOT.
NOTE! This machine has a built-in safety
unfolding feature to help the deck lower slowly.
Please make sure there are no children or other
things under the deck when you lower it.
TO MOVE THE TREADMILL
Before moving the treadmill, be sure the power
cord is unplugged from the wall and the treadmill.
Fold up the deck until it is locked and push the
treadmill on the transportation wheels. Hold the
handlebars to move the treadmill.
To prevent malfunction of the treadmill, store it in
a dry place with as little temperature variation as
possible, protected against dust. Always unplug
the treadmill from the electrical outlet when not in
use.

9

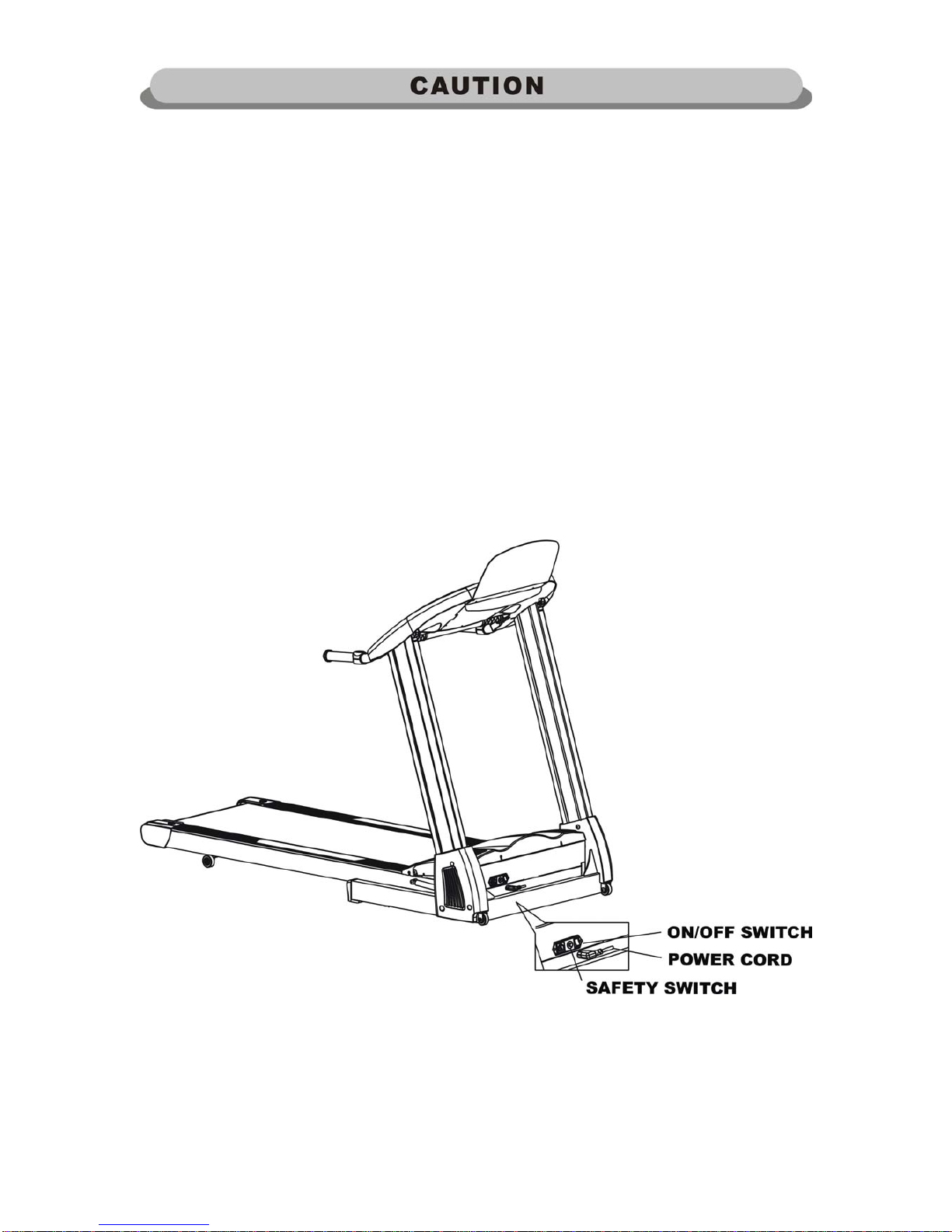

*** THE TREADMILL CIRCUIT BREAKER WILL SHUT OFF POWER
WHEN THE ELECTRIC CURRENT IS OVERLOADED.
A. Pull out the plug from the electrical socket on the front of the treadmill.
B. Push in the circuit breaker switch.
C. Insert the plug back into the electrical socket.
Note：Do not push in the circuit breaker switch before you pull out the plug from the
treadmill.

10
NOTICE :
The treadmill should be placed on a level surface. If the treadmill is not level, the
belt will continuously track to low side of the treadmill.

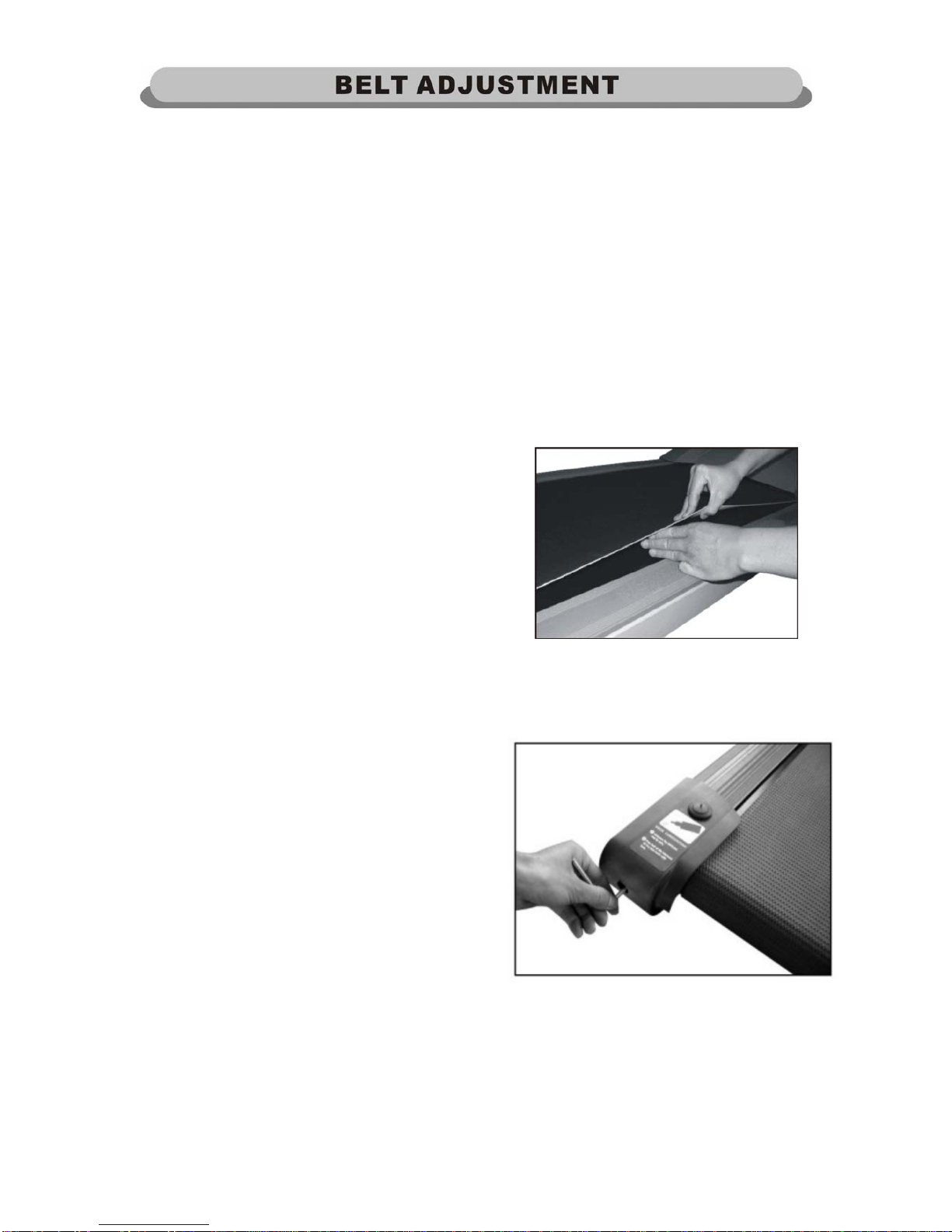

WALKING BELT TENSION
As walking belts tend to stretch slightly with use, the belt may occasionally need to be
tightened. If belt is too loose, you may find the belt stops while running or walking,
while the motor continues to run. DO NOT OVERTIGHTEN THE BELT. This will
cause reduced motor performance and roller damage.
When properly tensioned, you should be
able to lift the side of the belt about 2-3
inches (5-7.5 centimeters). A quick test for
belt tension: you should be able to fit three
fingers under the edge of the belt.
To tighten belt:
Using the hex key provided with the
treadmill, place it in the hole in the left rear
end cap and into the socket of the
adjustment screw. Turn one full turn
clockwise. Then place the hex key in the
hole in the right rear end cap and turn one
full turn clockwise. Check the tension of
the belt. Continue to do this until the belt is
at the correct tension. Make sure to adjust
both sides equally to ensure correct belt
alignment.

11
WALKING BELT CENTERING
The walking belt may occasionally need to be centered. First be certain that the
belt is tensioned properly. Start the treadmill and run it at about 4 mph. Place the
hex key through the hole in the left rear end cap and into the socket of the
adjustment screw. (See picture below)
1. If belt has moved too far to the right:
Turn the left adjustment screw ½ turn counter clockwise. Let the treadmill run for
30 seconds and the belt should move to the left. If it still is too far to the right, turn
the left adjustment screw an additional ½ turn. Repeat as needed.
2. If belt has moved too far to the left:
Turn the left adjustment screw ½ turn clockwise. Let the treadmill run for 30
seconds and the belt should move to the right. If it still is too far to the left, turn
the left adjustment screw an additional ½ turn. Repeat as needed.
Continue to run the treadmill 3 minutes to ensure the belt has been centered.
Make any adjustments as needed.

12
WARNING: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL
OUTLET BEFORE CLEANING, LUBRICATING OR SERVICING THE
UNIT.
CLEANING
General cleaning of the treadmill will prolong the life of the treadmill and improve
performance. Keep the unit clean by dusting regularly. Be sure to dust the exposed
part of the deck on either side of the walking belt and also the side rails.
For best performance, we recommend your treadmill be placed on a treadmill mat.
Along with reducing noise, a treadmill mat will help to keep dust and debris away from
your treadmill's critical components. Clean the top of the belt with a wet, soapy cloth.
Be careful to keep liquid away from inside the motorized treadmill frame or underneath
the belt.

13

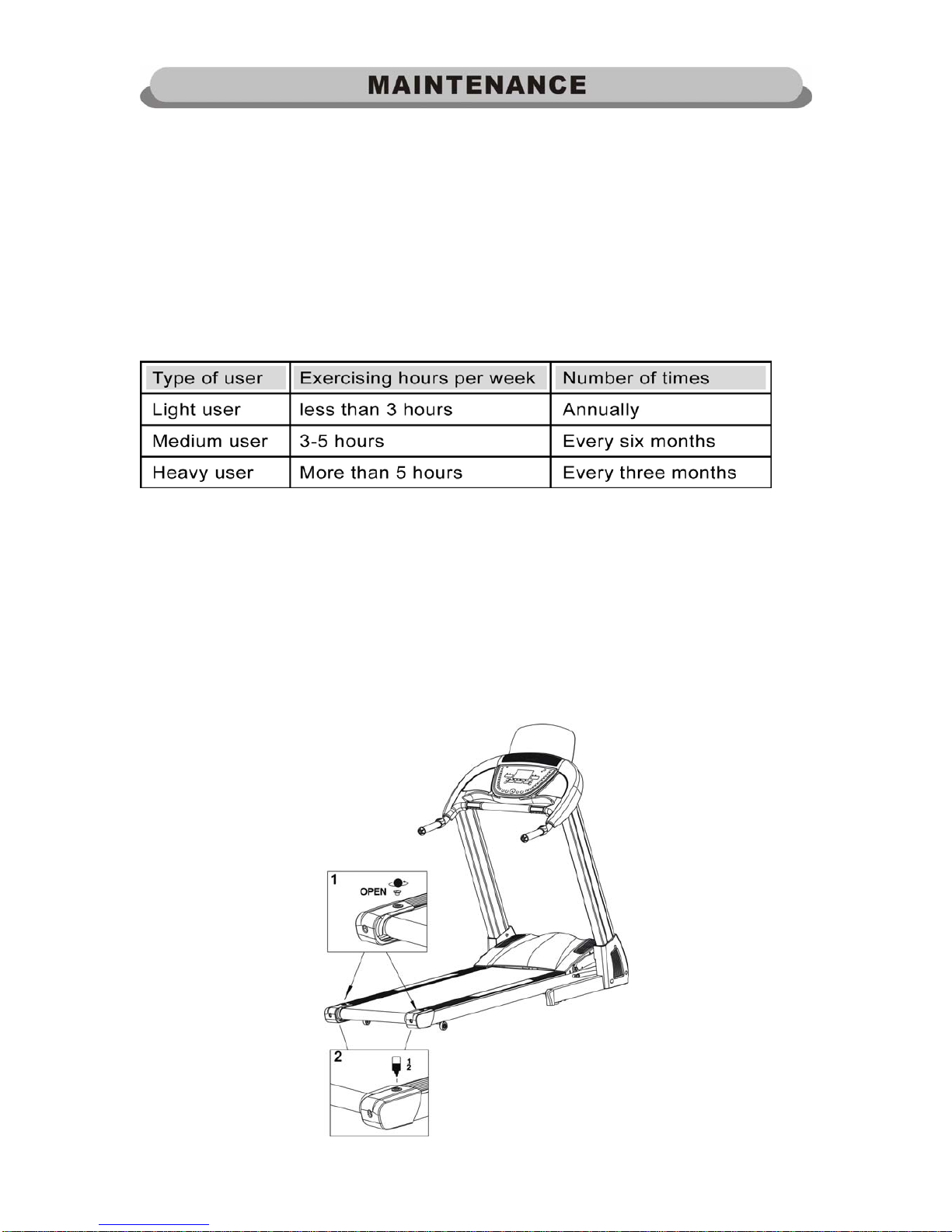

WALKING BELT AND DECK LUBRICATION
It’s important to take good care of your treadmill deck (the walking surface underneath
the belt), because the belt/deck friction may affect the function and life of your treadmill
and requires periodic lubrication.
Your treadmill belt has been lubricated at the factory, but periodic lubrication will extend
the life of your treadmill belt, board, and electrical components. We recommend the
following lubrication schedule based on weekly usage:
LUBRICATION APPLICATION
1. Use a coin to open the tank covers on the end caps. Put ½ the lubrication bottle
that is in the spare parts box into the left tank, and ½ the lubrication in the right tank.
Replace the tank covers.
2. Start the treadmill and set the speed at 2.5 mph. Let the belt run for about 15
minutes in order to spread the lubrication on the underneath side of the belt.

14

15

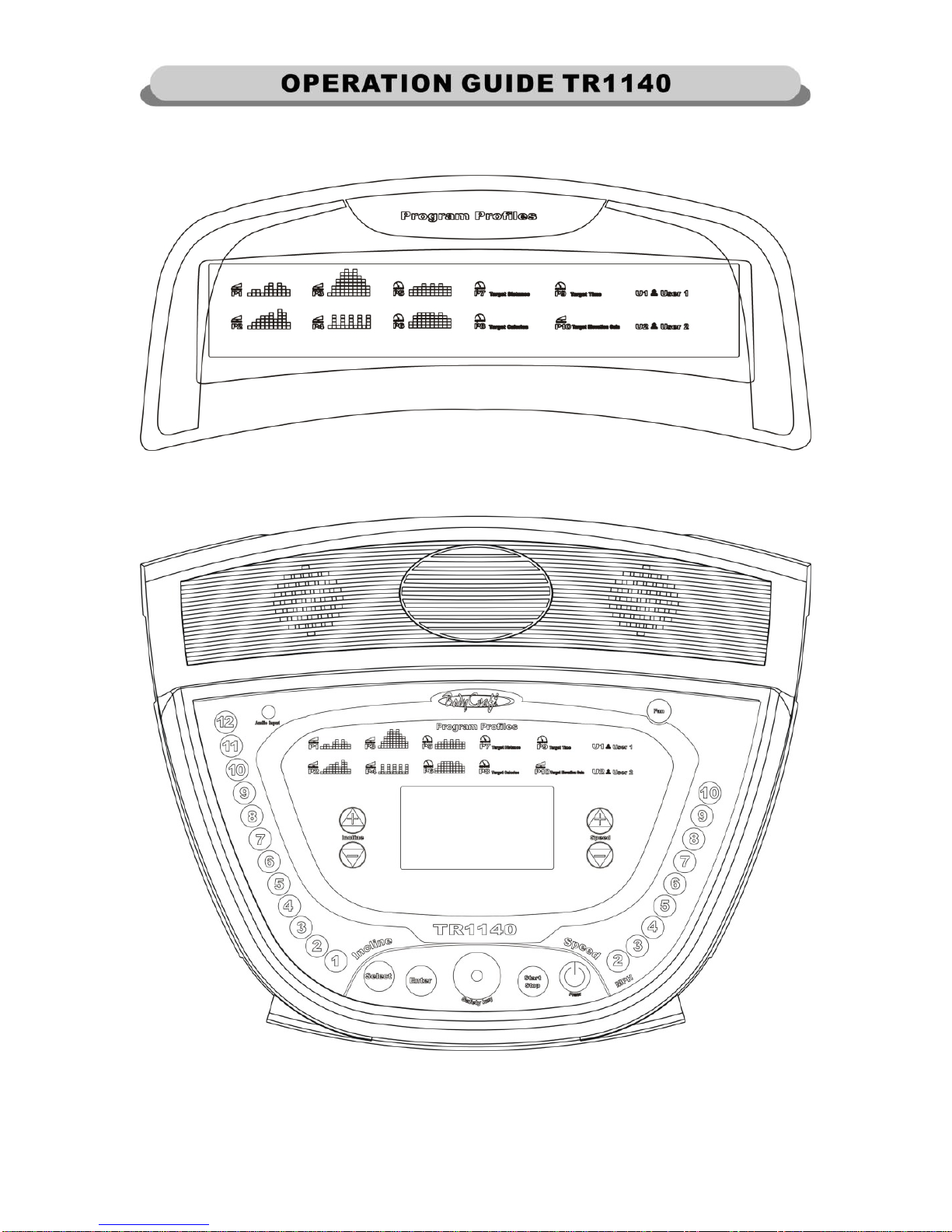

BEFORE STARTING
Straddle the belt and stand on the plastic side rails. Place the safety key onto the
circle on the overlay and attach the rope to your clothing. Do not stand on the walking
belt while starting or stopping the treadmill. If you are a new user, stay at a slow
speed and hold onto the handrails until you become comfortable.
KEY FUNCTIONS
Safety Key: The monitor can be operated only with the key attached to the
treadmill. The monitor shuts off and the treadmill stops when this key is removed.
Major Function Keys:
POWER:
This key brings power to the treadmill and must be pressed before any other
key.
START/STOP:
Starts or stops the treadmill belt.
ENTER:
This key confirms the selection of a program and also confirms the speed and
incline values during the setting of a user program.
SELECT:
Press this key to choose one of the preset or user programs. The program
that is chosen is indicated in the dot matrix.
SPEED +:
Increases the speed. Pressing once increases the speed 0.1 mph.
Pressing and holding for two seconds will increase the speed faster. This
button is also used to scroll the programs.
SPEED -:
Decreases the speed. Pressing once decreases the speed 0.1 mph.
Pressing and holding for two seconds will decrease the speed faster. This
button is also used to scroll the programs.

16
INCLINE +:
Increases the incline. This button is also used to scroll the programs.
INCLINE -:
Decreases the incline. This button is also used to scroll the programs.
SPEED QUICK KEYS 2 – 10 MPH:
Pressing these keys gradually changes the speed to that value.
INCLINE QUICK KEYS 1 – 12 %:
Pressing these keys slowly changes the incline to that value.
FAN:
Turns the fan on/off.

17
SPEAKER FUNCTION
The user can connect a MP3 or IPOD with the internal speakers using
the included speaker wire.
LCD DISPLAY

18
DISPLAYS
DOT MATRIX:
The 8 X10 dot matrix reflects incline on the elevation programs (Program 1-4) and
speed on the speed programs (Program 5-6) and the user programs. On
programs 7-10 and in the manual mode, the dot matrix displays a 400 meters
running track.
INCLINE/PULSE:
Displays pulse rate except when elevation is changed or SELECT key is pressed.
To get a pulse rate, place both of your hands on the pulse grip bars. It is
recommended to straddle the walking belt to get an accurate reading. If you are
walking or jogging, it is difficult for the monitor to accurately read your pulse rate.
Elevation range is from 0% to 12%.
TIME:
Shows Workout Time. Time begins at 00:00 and counts up. The maximum time
is 99:59. When the safety key is inserted, this display shows the accumulated
distance (odometer) for one second.
SPEED:
Displays the speed the treadmill belt is moving. Speed range is from 0.5 mph to
10 mph.
DISTANCE:
Displays the distance, in miles, the treadmill belt has gone on the current workout.
CALORIES/ELEVATION GAIN:
Displays calories consumed. The calorie calculation is based on a 150 pound
person. When SELECT key is pressed during workout, it will display Elevation in
meter, the user has climbed during the current workout.

19
OPERATION INSTRUCTION (Please read carefully before using the
treadmill):
Safety Tips:
To Start attach the safety key to the monitor. The treadmill will not operate without
the safety key. Please clip the other end of the safety key to your clothing before
exercising to ensure the machines will stop in case the user accidentally walks off the
treadmill. If the user falls off the treadmill, the safety key will come off the monitor
and the treadmill will stop at once to avoid further injury.
Press POWER:
This turns the electronic power on. The treadmill will not start unless POWER is
pressed first.
Manual Mode:
If you select to operate the treadmill in manual mode, press START. The treadmill
will start at 0.5 mph after a 3,2,1 countdown. You may then adjust the speed and
incline using the quick keys or the up/down arrow keys.
Program Mode:
After pressing POWER, choose the desired program by keep pressing SELECT key
or after press SELECT then using the speed + - or incline + - keys to choose one of
the 12 programs. Note the program layout appears in the dot matrix display.
Press ENTER to verify the selection. Press START to begin the program. All
programs have ten one-minute segments. The program repeats the ten-minute
segments until the user presses STOP.
Programs:
P-1 Rolling Hills: This is an elevation program that goes from 0% to 3%
grade. The speed is controlled by the user and the treadmill will start at 0.5
mph. Each minute, the elevation changes.
P-2 Mountain Pass: This is an elevation program that goes from 0% to 5%
grade. The speed is controlled by the user.
P-3 Mountain Peak: This is a challenging elevation program that goes from
0% to 7% grade. The speed is controlled by the user.
