BONAIRE Durango 3100 User manual
2
Disclaimer
Climate Technologies reserves the right to make alterations to specifications, quantities,
dimensions etc. for production or other reasons, subsequent to publication. While we believe
the information is accurate and complete, we make no warranty or representation for any
particular purposes. The information is offered in good faith and with the understanding that
any use of the units or accessories in breach of the directions and warnings in this document is
at the sole discretion and risk of the user.
IMPORTANT
READ AND SAVE THESE INSTRUCTIONS.
Please keep this important manual in a safe place.
It is the owner’s responsibility to ensure that regular maintenance is
carried out on this evaporative cooling product. Failure to do so will
void all guarantees beyond statutory and legal requirements.
3
1. General Safety Information
Thank you for purchasing a quality Bonaire Evaporative Portable Cooler. We care about your
safety and would ask you to spend a few minutes reading these simple instructions before
operating this product.
Safety!
Read carefully prior to attempting to assemble, install, operate or maintain the
unit.
- Read and save these instructions. Do not throw these instructions away
- Complete the unit assembly before attempting to operate.
- Interference with and operation of this cooler in any manner not prescribed by these
instructions could cause a safety issue and WILL void any warranty.
WARNING:
- Do not use cooler on uneven or unstable surfaces.
- Do not overfill. Use water only.
- Do not operate cooler with Rear Filter Panel removed.
- Do not insert any foreign objects or body parts into the air inlet or outlet, otherwise
bodily injury or property damage may occur.
- Do not use immediately adjacent to heat sources such as stoves or radiators.
- Do not use immediately adjacent to sources of water, such as swimming pools, hot tubs,
bathtubs, showers, sinks or other liquids.
- Do not operate this product near an open flame or the product may ignite and cause fire,
resulting in bodily injury or property damage.
- Do not operate in areas where gasoline, paint or other flammable liquids or vapours are
used or stored.
WARNING:
- All electrical connections must comply with local construction and safety regulations
and be performed by qualified personnel.
- The power cord should be connected directly to a 120VAC +/-10%, 60 Hz, 1 phase only
grounded GFCI protected electrical receptacle. Make sure that the power switches are in
the off position before connecting and operating your cooler.
- Do not use this product with any solid- state speed control device.
- Keep the cord away from heated surfaces.
- Do not operate cooler with a damaged cord, plug or other components.
- Do not step on or roll over the power cord with heavy or sharp objects.
- Do not run the power cord under carpet or other floor covering. Arrange cord away from
traffic area and where it will not be tripped over.
4
- Do not use the power cord with an adaptor plug that converts the 3-pin plug into a 2-
prong connector.
- If the power cord is damaged, it should be replaced by a service agent or qualified
personnel to avoid risk of bodily injury or property damage.
- Remove the plug from the electrical receptacle by pulling on the plug and not the cord.
- Use only qualified electricians for replacement or servicing of switches, or electrical
motors and components in this cooler.
- If damaged, discard cooler or return to an authorized service facility for examination
and/or repair.
WARNING:
- Always unplug the power cord from the wall outlet receptacle when the air cooler is not
in use, before adding water, before cleaning, before removing cooling pad, before
maintenance and replacing parts, or before moving to another location.
- Do not plug the cord into electric outlet with wet hands or an electric shock may result.
The same applies for unplugging.
- Never wash the unit cabinet with a garden hose. water may harm the motor and electrical
system.
- Never attempt to disassemble or alter the product in any way not instructed by this
manual. Shock, fire, or bodily injury may occur.
- Do not allow children to operate or service this cooler.
WARNING:
Stagnant water may cause bacterial growth and serious health problems. Do not allow
stagnant water to remain in the tank.
- Drain and clean the water tank before storage, after seasonal use and whenever the unit
is not in daily use.

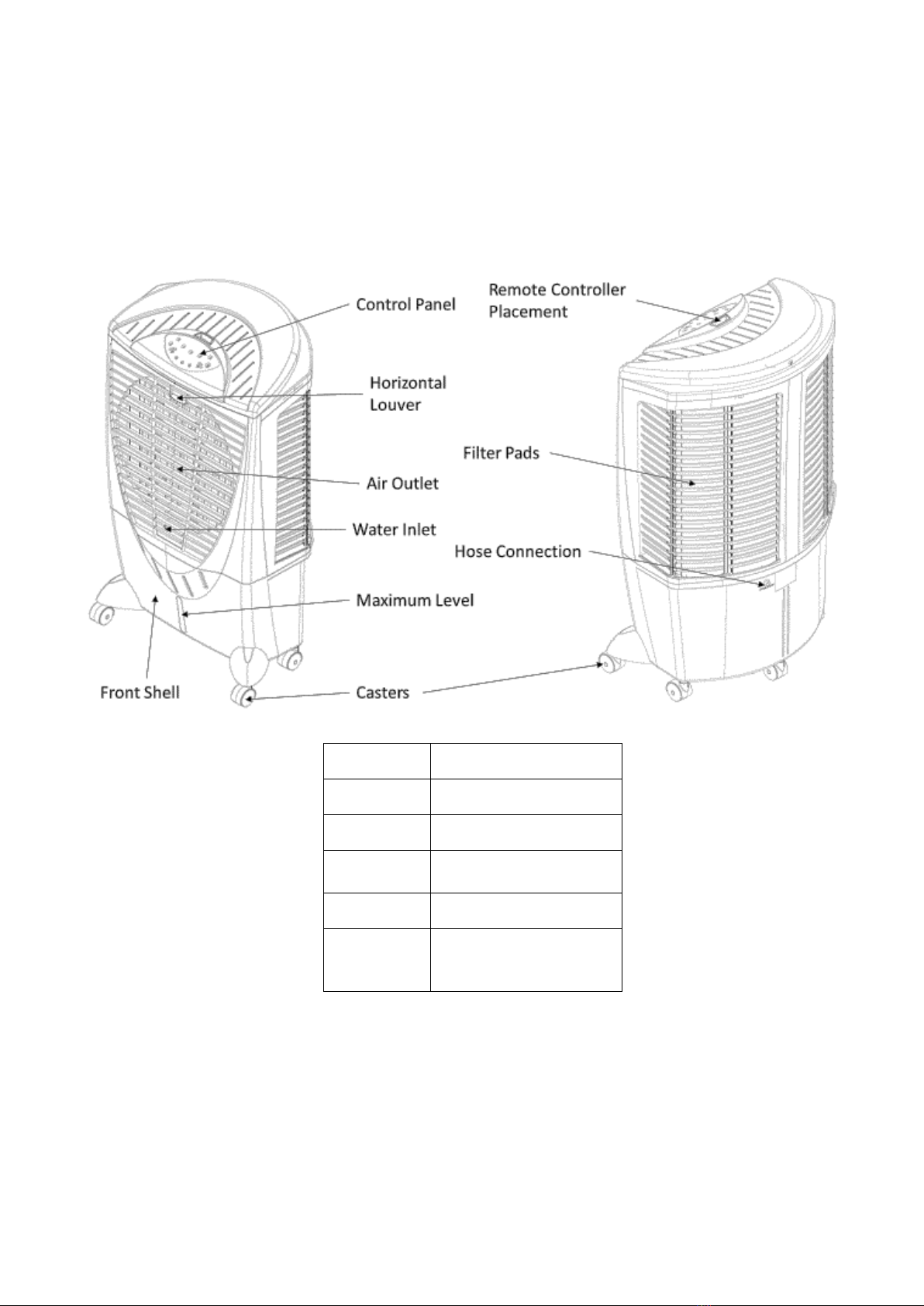

2. Product Description
The Evaporative Air Cooler is an efficient, energy-saving product. It cools by combining water
evaporation with air movement, through carefully designed and manufactured equipment,
providing maximum efficiency and safety.
The evaporative cooling technology is very economical and gives a number of additional
benefits compared to traditional air conditioning systems for homes and businesses. The
system does not use refrigerants or compressors; it cools by simply moving air through a surface
composed of specially designed evaporative cooling pads.
Heat from the inlet air is absorbed by the water. The resulting outlet air temperature drops
when the water transforms into gas. Humidity is not perceived, since the air in the room is
renewed approximately every two minutes, while a comfortable cooling effect is created.
Continuous air circulation is a vital aspect of the evaporative cooling process used in this
equipment and gives it a distinct advantage over air conditioning by refrigeration.
5
3. Unpacking
Handle the unit with care. Visually inspect for shipping damage. If any part is damaged,
immediately file a claim with the carrier.
4. Product Specifications
Model
Bonaire Durango 3100
Voltage
120 VAC, 60 Hz, 1 phase
Amperage
1.9A
Tank
Capacity
15 gal (57L)
N.W.
28.7 lbs (13kg)
Dimensions:
inches (cm)
H: 44” (111.7 cm) X W:
24.8” (63.0 cm) X D:
17.6” (44.7 cm)
6
Float valve facility is available in this model. This feature makes provision for automatic water
filling of the cooler. Ensure proper connection of water inlet pipe into the float valve to avoid
leakage.
Note: Maximum water inlet pressure 29 psi (200 kPa)
Drain plug is located under cooler
at the back.
Pull off drain plug to empty tank.
Ensure drain plug is fitted securely
before re-filling tank.
Float Valve
7
5. Electrical Connection and Installation
1. Wheel Installation:
Insert all the five small wheels into the
round holes at the bottom.
2. Install the cooler on a flat, level surface.
3. Adjustable Up and Down louvre: The Up and
Down Louvres can be adjusted using the
protruded tab shown on Page 5.
4. Add clean water into the water tank. Check the water level
window on the front of the cooler to see when the water tank is
full.
5. Plug the unit into a 120 VAC (± 10%) 60 Hz, 1 phase GFCI
protected grounded outlet.
6. Operation
Control Panel & Remote Control
1. POWER (ON/OFF) [ ]:Press this button to switch the cooler on/off. Icon will glow with blue
colour at ON position and RED colour at OFF position.
2. COOL [ ]: Press the button to switch the pump ON/OFF. Cool Icon will glow when switched
ON. The pump will start only when there is sufficient water in the tank, indicated by water icon
glowing in WHITE. Low water level will be indicated by a buzzer for 5 seconds and water icon will
start blinking in red colour.
3. FAN [ ]:When started, the fan icon will glow. Press the button for High, Medium and Low
speeds. The selected speed will be indicated by glowing LED.
4. SWING [ ]: Press button to switch the swing function on/off. Swing icon will glow when
switched ON.
5. TIMER [ ]:Press the button to set OFF timer to 1-7 hours in intervals of 1 hr. Timer icon will
glow when timer is switched ON and the glowing LEDs will indicate the total OFF time set.
6. WATER LEVEL: The LED light is white when the tank contains enough water to operate in cool
mode. When water is lacking in tank, the LED light is red, and the cooler sounds an alarm for a
Review and understand the warnings in the General Safety Information section, page 2
& 3.
Water Level
8
short period. During cooling mode, if water depletes and triggers the alarm, add water to tank
through “front water inlet”, and press COOL button to turn cooling function on again.
REMOTE CONTROL (Batteries not included): Open the battery compartment at the back of the
remote control and insert two new AAA dry cell batteries. Care must be taken to insert the
batteries into the correct polarity (+/-) markings shown inside the battery compartment.
Air Renewal Requirements:
When your cooler is working, it is important to leave a window or door open in order to keep a
constant air flow and to avoid any accumulation of humidity and heat. Your Evaporative Cooler
does not cool correctly when air flow is restricted from exiting a room. This causes a decrease in
the cooling efficiency due to an increase of humidity. Therefore, an opening of at least 1 square
foot for every 500 CFM of injected air is required.
7. Maintenance
WARNING
Stagnant water may cause bacterial growth and serious health problems. Do not allow
stagnant water to remain in the tank.
Drain and clean the water tank before storage, after seasonal use and whenever the unit is
not used for a long time period.
Changing the filter pads:

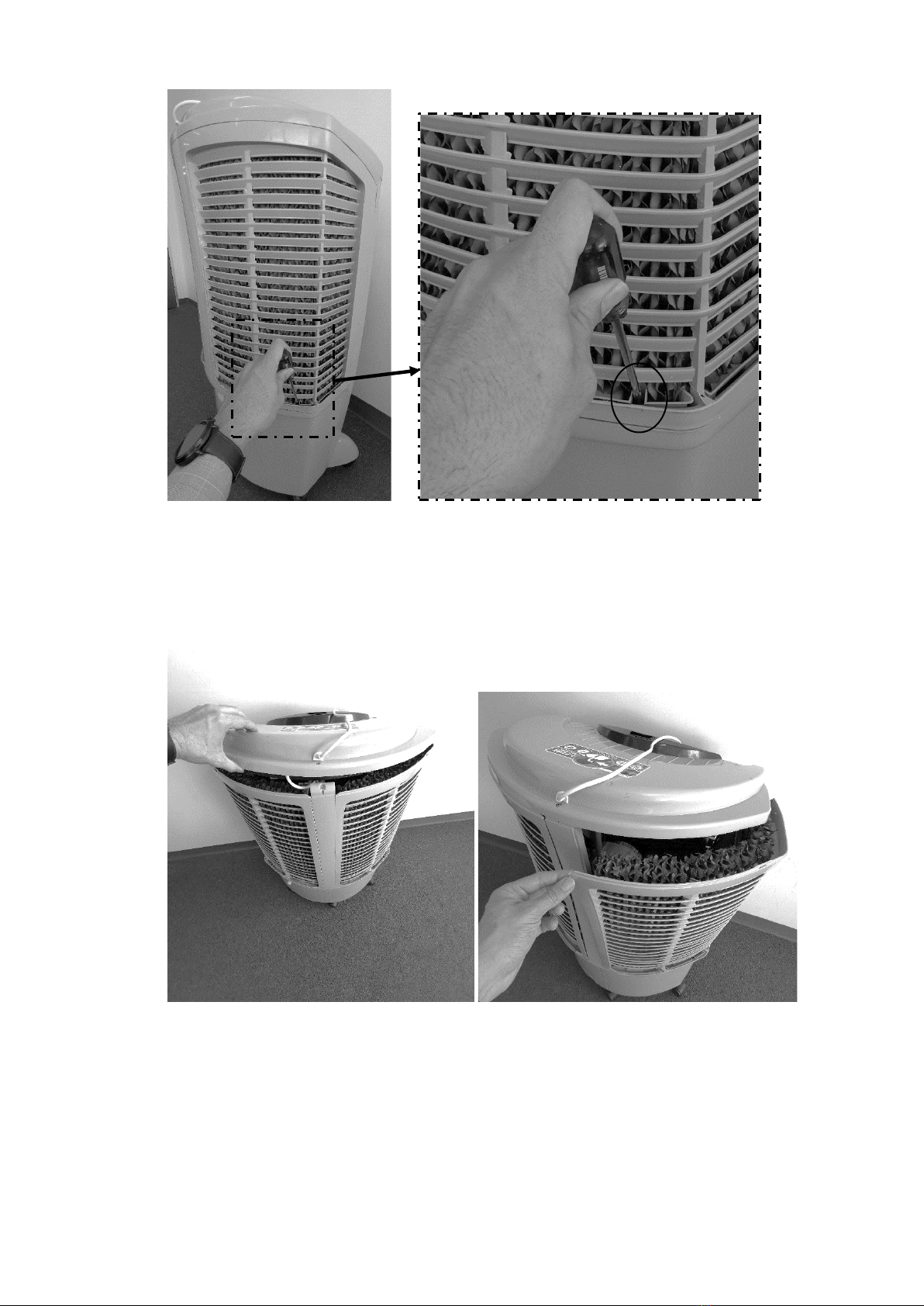

Please follow the instructions below in order to change the filter pads.
1- Remove the top screw (under the power cord). Remove the two screws on the bottom
of filter pad retainer.
9
2- Lift the top panel enough so that the filter pad retainers can move out.
10
3- The filter pads are secured in place with two brackets on top and bottom. Remove the four screws
to be able to remove the filter pads.
4- Remove and replace the filter pads.
5- Assemble in reverse order, ensuring the panels are fitted correctly with no gaps or tabs
left outside.
Remove Screws
Remove Screws
Remove Screws
Remove Screws
11
8. Wiring Diagram
9. How to change controller batteries
1. Press pad with thumb and slide battery cover off.
2. Remove old batteries and insert new batteries according to
orientation shown on controller.
3. Slide cover back into position, while pressing pad.
WARNING
A. Do not mix old and new batteries.
B. Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cad, NiMH, etc) batteries.
10.Troubleshooting
3
1 & 2
12
Problem
Reason
Solution
No air flow
1. Power is not connected.
2. Power is not turned ON.
3. Body damaged.
1.Plug in the power cable properly.
2.Press the Air Speed button to start.
3.Return to Service Center.
Abnormal Sound
1.Foreign article inside
body of unit.
2.Loose air fan.
3.Motor defect.
1.Remove rear cover and wet pad, remove
foreign articles.
2.Return to Service Center.
3.Return to Service Center.
No evaporation/Cooling
1.Water tank is clogged.
2.Other cause.
1.Clean the water tank.
2. Return to Service Center.
Air flow direction cannot be controlled
Swing motor is defective.
Return to Service Center
11.Supplier’s Declaration of Conformity
a. This device complies with part 15 of the FCC rules.
b. Responsible supplier listed as per SDoC:
Bonaire USA LLC.
Contact 800-939-2983 or www.bonaire-usa.com
12.Warranty
Statement on Product Warranty (U.S.A.)
1. Warranty
Subject to the Conditions and Exclusions, Climate Technologies Pty Ltd provides the
original purchaser with the following warranty:
Climate Technologies Pty Ltd warrants these appliances: Bonaire Durango 3100, for a
(2) two-year period (parts only) from the date of purchase. During this period, a defective
appliance or defective parts will be repaired or replaced free of charge at the election of
Climate Technologies Pty Ltd. In addition, Lifetime cabinet corrosion parts only warranty on
the unit cabinet applies.
Climate Technologies Pty Ltd, makes no warranties, representations, or promises as to
the quality or performance of its evaporative coolers other than those specifically stated in
this warranty.
2. Conditions and Exclusions
a) The warranty only covers portable coolers manufactured by Climate Technologies
Pty Ltd and purchased in the U.S.A.
b) The warranty does not cover installation components that may be attached to the
product manufactured by Climate Technologies Pty Ltd. These may include and is
not limited to items such as ducting, flues, grills, piping, etc. These items remain
solely the responsibility of the installer / owner.
c) This warranty is only valid if the appliance is installed and operated in accordance
with the manufacturer’s instructions and for its designed and intended purpose
at the nominated phase, voltage and frequency.
13
d) Product fitness for purpose and overall system design / sizing are solely the
responsibility of the installer / owner. This includes but is not limited to heat load
calculations, air flow, system balancing, humidity, water quality, etc.
e) Industrial or commercial use of this product will void the warranty. The appliance
is designed for domestic use only.
f) The product must be installed by a qualified person in the manner prescribed by
local and statutory regulations and to the manufacturer’s specifications.
g) Warranty will only be given where proof of purchase is provided by the original
purchaser and Climate Technologies Pty Ltd is satisfied that the appliance is within
the warranty period.
h) Warranty will not be provided where, in Climate Technologies Pty Ltd opinion:
i. There is nothing wrong with the appliance.
ii. The defective operation of the appliance is due to failure of electricity or
water supply.
iii. Defects are caused by neglect, incorrect application, abuse, normal wear
and tear or by accidental damage of the appliance.
iv. An unauthorized person has attempted to repair the appliance.
v. The appliance has been changed or modified in any way.
vi. A situation arises referenced in the trouble-shooting guide.
i) Damage caused by elements such as wind, rain, lighting, floods, etc. along with
power spiking and brownouts are not considered defective material or
workmanship and as such are not covered by our warranty.
j) If there is no certificate of compliance for plumbing or electrical work, Climate
Technologies Pty Ltd reserves the right to refuse warranty on non-compliant
installations.
k) No responsibility will be accepted for outside elements such as pests, animals,
pets and vermin that may cause damage to the unit.
l) Harsh environmental situations such as salt air that may cause damage are not
covered.
m) Responsibility or liability is not accepted for damage to contents, carpet, walls,
ceilings, foundations or any other consequential loss or damage of whatever
nature either direct or indirect resulting from installation, operation or misuse of
the appliance.
n) Parts replaced under warranty are warranted for the balance of the original
Warranty Period.
o) All warranties are non-transferable.
14
p) The benefits conferred by this warranty are in addition to warranties and other
rights in respect of the appliance, which the consumer has under State and
Federal laws. This warranty must be read subject to that legislation and nothing
in this warranty has the effect of excluding, restricting or modifying those rights.
3. How to obtain service
Subject to the aforementioned conditions and exclusions, Climate Technologies Pty Ltd
will repair or replace (at its discretion) any evaporative cooler which, after examination,
is determined to be defective for the duration of warranty delineated in “Warranty”
section. Bring the evaporative cooler in need for service to the nearest authorised retailer
special service desk. A copy of proof of previous replacement must also be included if
applicable. Maintain the original documents for future reference.
The authorised retailer and Climate Technologies Pty Ltd will assess your product and
provided paperwork to confirm the 1-year limited warranty is still valid. If any items in
the “Conditions and Exclusions” section are found, then the 1-year limited warranty is
null and void. A valid, legible product serial code must also be visible to obtain service
under the Climate Technologies Pty Ltd evaporative cooler 1-year limited warranty. If the
authorised retailer and Climate Technologies Pty Ltd deem that a product cannot be
serviced and a replacement is necessary, a similar product of equal or greater value will
be shipped to you free of charge by Climate Technologies Pty Ltd.
4. Climate Technologies Pty Ltd
Climate Technologies Pty Ltd is a company incorporated in Australia (A.C.N. number 001
418 042). Reference to Climate Technologies Pty Ltd includes its authorized distributors.
Warranty for Replacement Parts.
Parts replace under warranty are warranted for the balance of the Cooler’s original
warranty period.
Proof of Purchase
Please attach your proof of purchase here. Your receipt is your warranty and will be
required to validate any warranty.
Dealer / Product Information
Dealer/Retailer:
Address:
Phone Number:
Unit Model Number:
Serial No:
15
ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF
THE CONTRACT FOR THE PURCHASE OF EVERY CLIMATE TECHNOLOGIES PTY LTD EVAPORATIVE COOLER PRODUCT.
DETAILS OF THIS LIMITED WARRANTY ARE SUBJECT TO CHANGE WITHOUT NOTICE. IF YOU DO NOT AGREE TO
THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL CLIMATE TECHNOLOGIES PTY
LTD BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS,
ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO,
FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OR PROFITS.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU
OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, CLIMATE
TECHNOLOGIES PTY LTD DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH
DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE
APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MY NOT APPLY TO YOU. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
www.bonairedurango.com
17
Descargo de responsabilidad
Climate Technologies se reserva el derecho de realizar modificaciones en las especificaciones,
cantidades, dimensiones, etc. por motivos de producción u otros, con posterioridad a la
publicación. Si bien creemos que la información es precisa y completa, no ofrecemos garantía ni
representación para ningún propósito en particular. La información se ofrece de buena fe y con
el entendimiento de que cualquier uso de las unidades o accesorios que infrinja las instrucciones
y advertencias de este documento queda a la entera discreción y riesgo del usuario.
IMPORTANTE
LEA Y GUARDE ESTAS INSTRUCCIONES.
Guarde este importante manual en un lugar seguro.
Es responsabilidad del propietario asegurarse de que se lleve a cabo un
mantenimiento regular de este producto de enfriamiento evaporativo.
No hacerlo anulará todas las garantías más allá de los requisitos
legales y estatutarios.
18
1. Información general de seguridad
Gracias por adquirir un enfriador evaporativo portátil de calidad Bonaire. Nos preocupamos por
su seguridad y le pedimos que dedique unos minutos a leer estas sencillas instrucciones antes
de utilizar este producto.
La seguridad!
Lea atentamente antes de intentar ensamblar, instalar, operar o mantener la
unidad.
- Lea y guarde estas instrucciones. No deseche estas instrucciones
- Complete el montaje de la unidad antes de intentar operar.
- La interferencia con el funcionamiento de este enfriador de cualquier manera no
prescrita por estas instrucciones podría causar un problema de seguridad y anulará
cualquier garantía.
ADVERTENCIA:
- No utilice el enfriador en superficies irregulares o inestables.
- No llene demasiado. Utilice solo agua.
- No opere el enfriador sin el panel de filtro trasero.
- No inserte ningún objeto extraño o partes del cuerpo en la entrada o salida de aire, de lo
contrario pueden ocurrir lesiones corporales o daños a la propiedad.
- No lo utilice inmediatamente adyacente a fuentes de calor como estufas o radiadores.
- No lo use inmediatamente junto a fuentes de agua, como piscinas, jacuzzis, bañeras,
duchas, lavabos u otros líquidos.
- No opere este producto cerca de una llama abierta o el producto podría encenderse y
provocar un incendio, lo que provocaría lesiones corporales o daños a la propiedad.
- No opere en áreas donde se use o almacene gasolina, pintura u otros líquidos o vapores
inflamables.
ADVERTENCIA:
- Todas las conexiones eléctricas deben cumplir con las normas locales de construcción y
seguridad y deben ser realizadas por personal calificado.
- El cable de alimentación debe conectarse directamente a un receptáculo eléctrico
protegido por GFCI de 120 VCA +/- 10%, 60 Hz, monofásico únicamente con conexión a
tierra. Asegúrese de que los interruptores de encendido estén en la posición de
apagado antes de conectar y operar su enfriador.
- No utilice este producto con ningún dispositivo de control de velocidad de estado
sólido.Keep the cord away from heated surfaces.
- No opere el enfriador con un cable, enchufe u otros componentes dañados.
- No pise ni pase el cable de alimentación con objetos pesados o afilados.
- No coloque el cable de alimentación debajo de una alfombra u otro revestimiento del
piso. Coloque el cable lejos del área de tráfico y donde no se pueda tropezar.
- No utilice el cable de alimentación con un enchufe adaptador que convierta el enchufe
de 3 clavijas en un conector de 2 clavijas.
19
- Si el cable de alimentación está dañado, debe ser reemplazado por un agente de
servicio o personal calificado para evitar el riesgo de lesiones corporales o daños a la
propiedad.
- Retire el enchufe del tomacorriente tirando del enchufe y no del cable.
- Utilice únicamente electricistas calificados para reemplazar o reparar interruptores o
motores eléctricos y componentes de este enfriador.
- Si está dañado, deseche el enfriador o devuélvalo a un centro de servicio autorizado para
su examen y / o reparación.
WARNING:
- Desenchufe siempre el cable de alimentación del tomacorriente de la pared cuando el
enfriador de aire no esté en uso, antes de agregar agua, antes de limpiar, antes de quitar
la almohadilla de enfriamiento, antes del mantenimiento y reemplazo de piezas, o antes
de mudarse a otro lugar.
- No enchufe el cable a la toma de corriente con las manos mojadas o podría producirse
una descarga eléctrica. Lo mismo se aplica a la desconexión.
- Nunca lave el gabinete de la unidad con una manguera de jardín. el agua puede dañar el
motor y el sistema eléctrico.
- Nunca intente desmontar o alterar el producto de ninguna manera que no se indique en
este manual. Pueden producirse descargas, incendios o lesiones corporales.
- No permita que los niños operen o den servicio a este enfriador.
ADVERTENCIA:
El agua estancada puede provocar el crecimiento de bacterias y graves problemas de salud.
No permita que quede agua estancada en el tanque.
- Drene y limpie el tanque de agua antes del almacenamiento, después del uso estacional
y siempre que la unidad no se use a diario.
2. Descripción del producto
El enfriador de aire evaporativo es un producto eficiente que ahorra energía. Se enfría
combinando la evaporación del agua con el movimiento del aire, a través de equipos
cuidadosamente diseñados y fabricados, que brindan la máxima eficiencia y seguridad.
La tecnología de enfriamiento evaporativo es muy económica y ofrece una serie de beneficios
adicionales en comparación con los sistemas de aire acondicionado tradicionales para hogares
y empresas. El sistema no utiliza refrigerantes ni compresores; se enfría simplemente moviendo
el aire a través de una superficie compuesta de almohadillas de enfriamiento evaporativo
especialmente diseñadas.
El agua absorbe el calor del aire de entrada. La temperatura del aire de salida resultante
desciende cuando el agua se transforma en gas. No se percibe la humedad, ya que el aire de la
habitación se renueva aproximadamente cada dos minutos, mientras se crea un agradable
efecto de enfriamiento. La circulación continua de aire es un aspecto vital del proceso de
enfriamiento por evaporación utilizado en este equipo y le da una clara ventaja sobre el aire
acondicionado por refrigeración.
20
3. Desembalaje
Maneje la unidad con cuidado. Inspeccione visualmente por daños durante el envío. Si alguna
pieza está dañada, presente inmediatamente una reclamación al transportista.

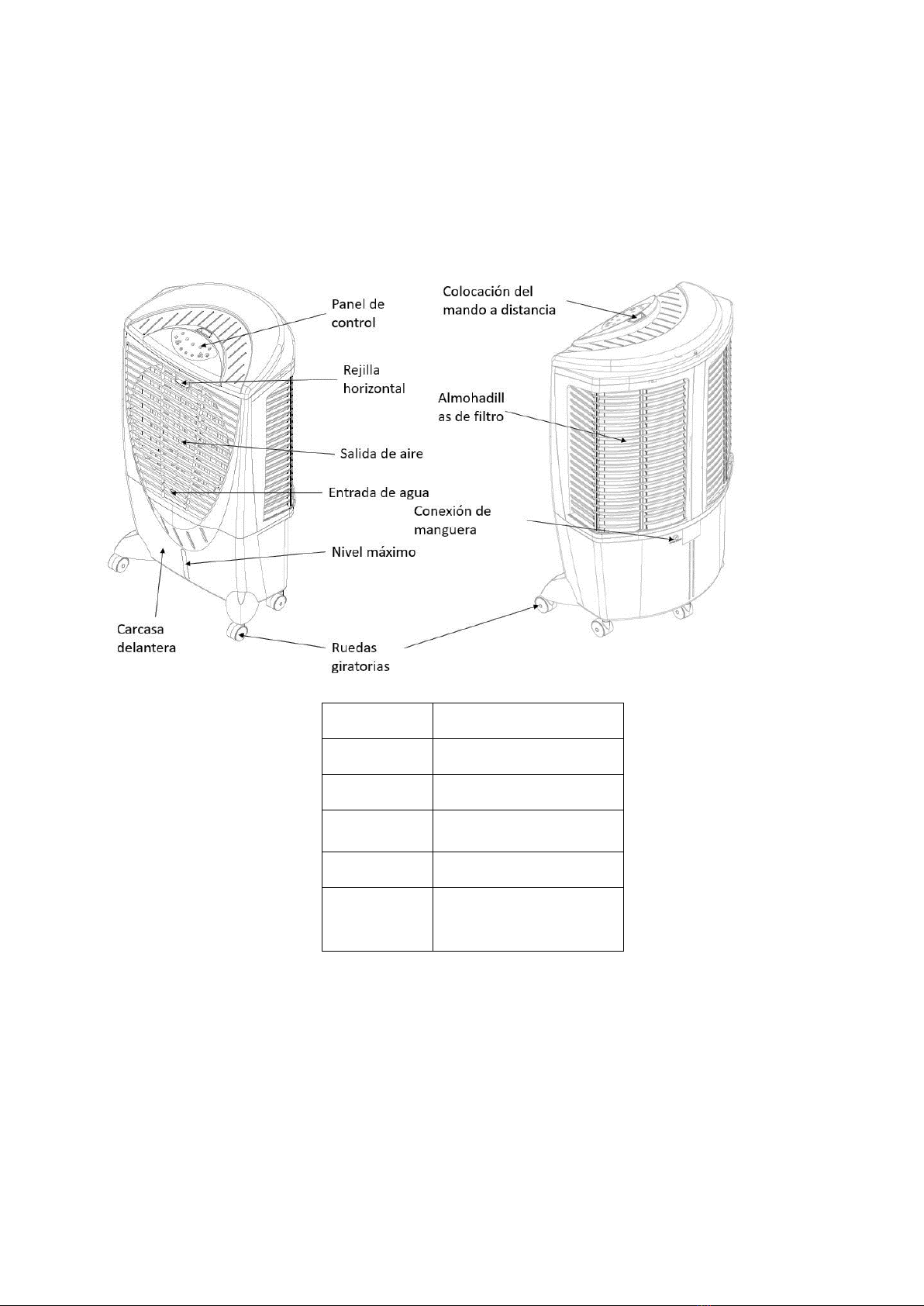

4. Especificaciones del producto
Modelo
Bonaire Durango 3100
voltaje
120 VAC, 60 Hz, 1 phase
Amperaje
1.9A
Capacidad
del tanque
15 gal (57L)
peso nominal
28.7 lbs (13kg)
Dimensiones:
pulgadas
(cm)
H: 44” (111.7 cm) X W:
24.8” (63.0 cm) X D:
17.6” (44.7 cm)
Table of contents
Languages:
Other BONAIRE Air Conditioner manuals
BONAIRE
BONAIRE PRC7000026 User manual
BONAIRE
BONAIRE B007RS User manual
BONAIRE
BONAIRE 7000CFM User manual
BONAIRE
BONAIRE Winter i AU User manual
BONAIRE
BONAIRE PNE2002 Series Control Installation and operation manual
BONAIRE
BONAIRE Durango 350 User manual
BONAIRE
BONAIRE VSS50 User manual
BONAIRE
BONAIRE Durango 5300 User manual
BONAIRE
BONAIRE 5000D User manual
BONAIRE
BONAIRE VSS50 User manual
