Bond DLJ-A1 User manual

Models# DLJ-A1,
DLJ-A2,DLJ-A3,
DLJ-A4,MH101,
MH102,MH103,
MH105.
Patio Heater
Intertek
5019004
WDERNI PROPANE PATIO HEATER

Page 2
WARNING
Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so
may result in a re, explosion, injury or death.
SAFETY INFORMATION
•
• THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a
ventilated space and shall not be used in any enclosed area.
• This unit is to be used with propane gas only! (sold separately)
• Do not attach a remote gas supply to this unit.
•Only use propane gas for this unit.
•This unit is not intended for natural gas.
• Converting this unit to natural gas is dangerous and not recommended. The conversion of this unit
will void the manufacturer warranty.
•Do not use any solid fuel or charcoal for this unit.
• If the propane gas tank is leaking gas, you may hear, see, or smell a hiss. Do the following:
1. Disconnect the propane gas tank. 2. Do not attempt to x the problem yourself. 3. Contact your gas
supplier or re department for help.
•Applying too much propane may result in gas pooling and will not burn. Allow fresh air into the unit
so that the remaining gas may escape.
•Do not use a ame to check for gas leaks.
• The max. inlet supply pressure: max. Gas supply 11 in w.c. (2.74kPa)
•Use LP propane tanks with the following dimensions: diameter 12 in, height 18 in - capacity 20 lbs.
• You must use a propane tank that has a collar to protect the gas valve.
• DO NOT ll tank over 80 percent full.
• The tank system must be set up for vapor withdrawal.
• Discontinue use if any part of the propane tank is damaged. Rust and dents may be hazardous and
should be inspected by a gas supplier.
• Do not burn anything other than the provided materials for this patio heater.
• Do not operate unit until all parts are fully assembled.
• Do not paint or color any part of this heating unit.
• Unit may be hot while in use, do not attempt to move it while in use.
• Never leave this heating unit unattended while in use.
• This unit is not intended for cooking.
• Keep any ammable items away.
• Keep a safe distance to avoid burning skin or clothing.
• Do not sit or rest hands or feet on this heating unit.
• Never place hands or ngers on upper portion of this unit while in use.
• Keep all electrical cords and fuel supply hose away from heated surfaces.
• Combustible material should not be within 48 inches of the top of the unit, or within 48 inches
around the entire unit.
• Keep the appliance area clear and free from combustible material, gasoline and other ammable
vapors and liquids.
•If the ame goes out while burning, turn the gas valve off. Wait 5 minutes before repeating the initial
lighting procedure. Once you have a ame started, hold down the control knob for 1 minute.
•Do not add water into the unit.
• Do not operate unit if any part has been under water. Call a service technician to replace any
The installation of this unit must adhere to local codes or Propane Storage and Handling Code,
CSA B149.2.
WDERNI PROPANE PATIO HEATER

Page 3
damaged parts should this occur.
• Do not disconnect any part while unit is in use.
• Do not store a spare propane tank on or near this unit.
• If the heating unit is indoors, detach the propane tank and leave outdoors.
• Do not operate on a boat or vehicle. This unit must be used on a at surface and outdoors ONLY.
• Always remove protective cover before operating (if applicable).
• Check for leaks after not using the unit for long periods of time.
• Children should never operate this unit. Children must be supervised while near this unit.
•Keep gas tank at least 5 feet away from unit when lit. (if external tank)
•The maximum gas supply pressure is 250psi.
•All installation and repair should be done by a qualied professional. This unit should be
inspected annually and cleaned regularly.
•Inspect all elements of this heating unit before each use. If there is damage, the burner must be
replaced.
•Be aware of the hazards of high temperatures and stay away from the unit to avoid any burns or
injury.
•The gas supply tank should be constructed and marked with the specications for the LP gas tanks
of the U.S. Department of Transportation or the National Standard of Canada CAN/CSA-B339, LP gas
tanks, spheres and tubes for Transportation of Dangerous Goods; and Commission.
•The LP gas tank must have a listed overflling prevention device and a QCCI or Type I, (CGA791) LP
gas tank connection.
• This heating appliance should not be used on plastic or articial wood decks.
• Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
•Young children should be carefully supervised when they are in the area of the appliance.
•Clothing or other ammable materials should not be hung from the appliance or placed on or
near the appliance.
• Any guard or other protective device removed for servicing the appliance shall be replaced
prior to operating the appliance.
•Installation and repair should be done by a qualied service person. The appliance should be
inspected before use and at least annually by a qualied service person. More frequent cleaning
may be required as necessary. It is imperative that the control compartment, burners and
circulating airways of the appliance are kept clean.
Only use the regulator and hose assembly provided with this unit. Replacement parts must be supplied
directly by Manufacturer.
Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate
the appliance. For assistance with repair or replacement of the burner or any other parts, calls
Manufacturer.
NOTE: You must follow all steps to properly assemble this heating item. Make sure the gas
valve is turned “OFF” before assembling. Do NOT attempt to assemble without proper tools.
Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from
the appliance. A cylinder must be stored outdoors in a well-ventilated area out of the reach of children.
A disconnected cylinder must have dust caps tightly installed and must not be stored in a building,
garage or any other enclosed area.
•
WDERNI PROPANE PATIO HEATER

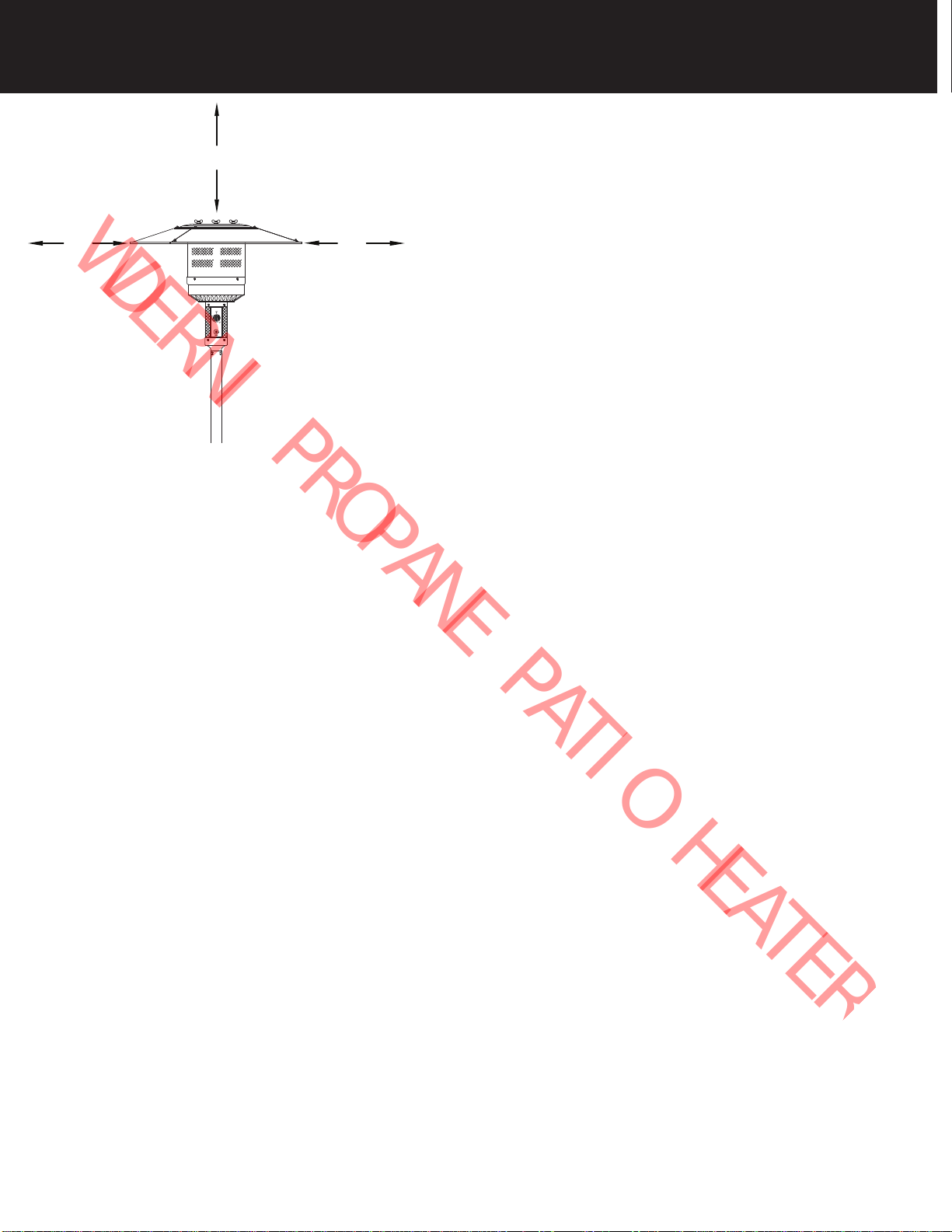

SAFETY INFORMATION
BE CAREFUL: WHEN CERTAIN MATERIALS OR
ITEMS ARE STORED ABOVE, BESIDE OR UNDER
THIS HEATER WHILE IN USE, THEY WILL BE
SUBJECT TO RADIANT HEAT AND COULD BE
SERIOUSLY DAMAGED.
Combustible materials should not be within
inches of the top of the unit, or within inches
around the entire unit.
48"
48" 48"
Page 4
48
48
WDERNI PROPANE PATIO HEATER

Page 5

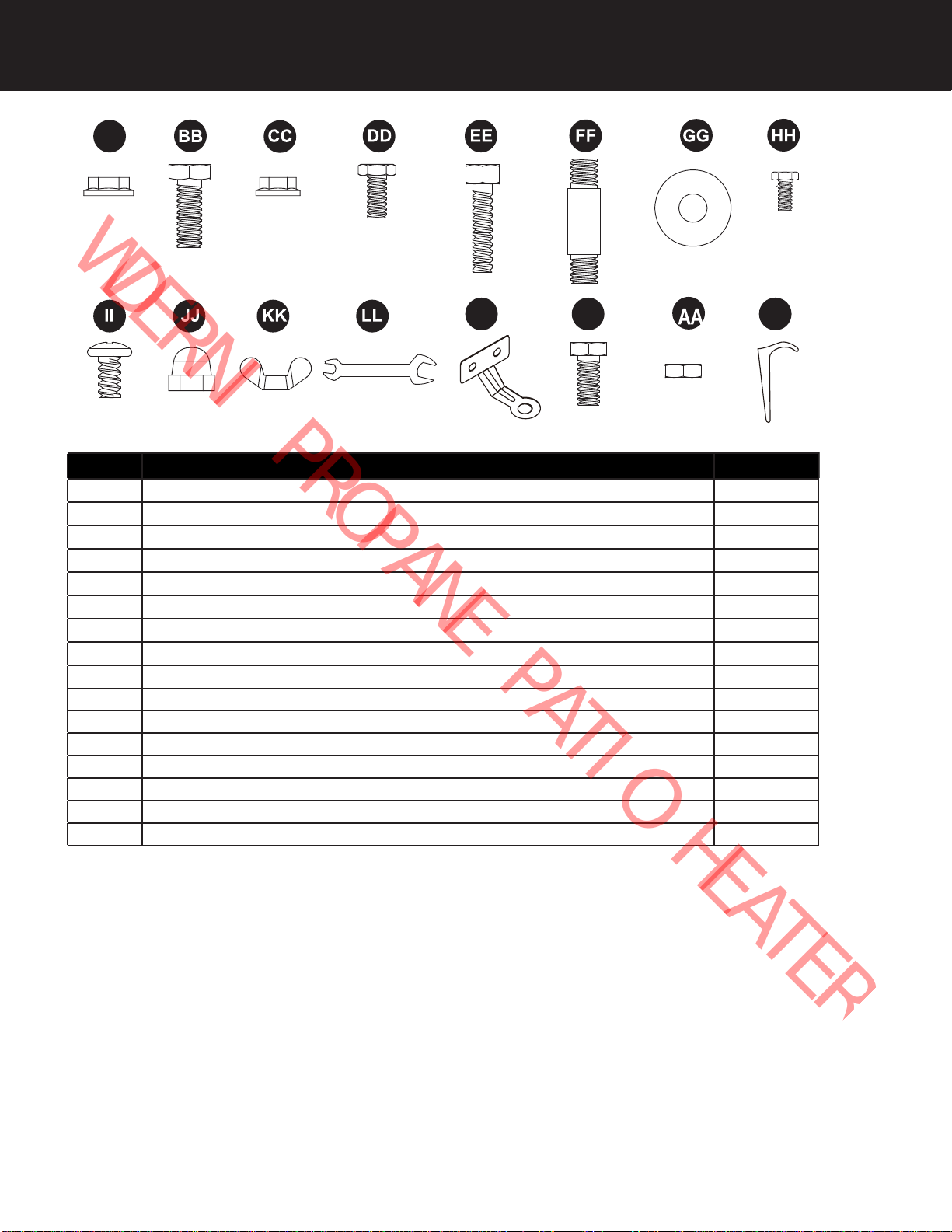

HARDWARE
Anchoring Arm
Bolt M6x10
M6 Nut
Anchor
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any parts are missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 30 minutes
Item Description Qty
2
6
6
3
9
2
9
9
3
1
Bolt M8x16
M6 Flange Nut
Bolt M6x30
Reflector Spacer
Washer
Screw M6x10
Cap Nut
Wing Nut
Wrench
5
4
AA
BB
CC
DD
EE
FF
GG
HH
I I
JJ
KK
LL
3
MM
6
NN
6
OO
3
PP
Post Bolt (pre-assembled on part F)
MM NN PP
(packed with part I)
(2 pcs packed with part I)
Bolt M6x10 (pre-assembled on part C)
OO
M8 Nut
WDERNI PROPANE PATIO HEATER

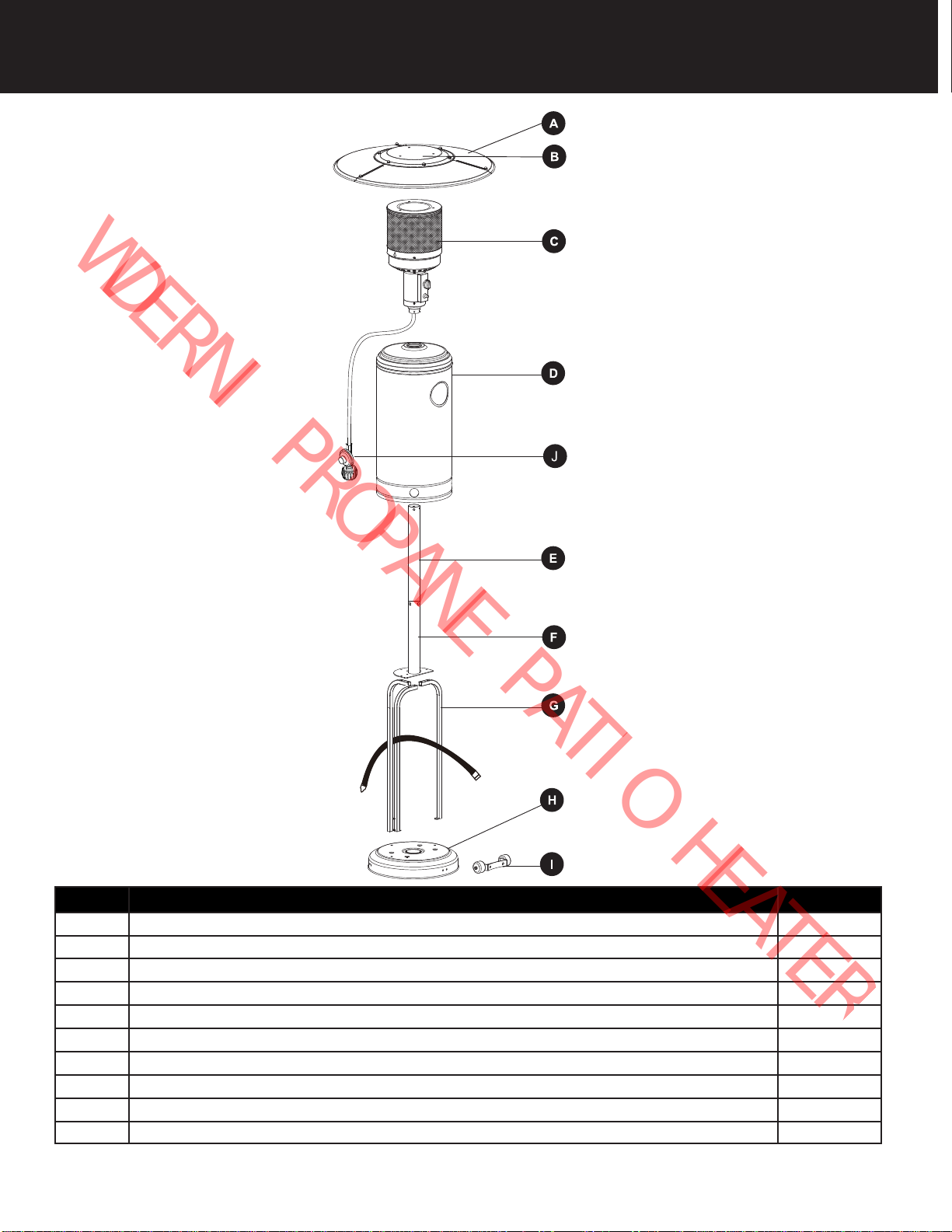

CONTENTS
Item Description Qty
A 3
B 1
C 1
D 1
E
Burner Assembly
1
F
Upper Post
1
G
Regulator
3
HBase 1
I 1
Tank Housing
Wheel Assembly
Support Bracket
Reflector Panel
Center Reflector
J
Lower Post
1
Page 6
WDERNI PROPANE PATIO HEATER

Page 7

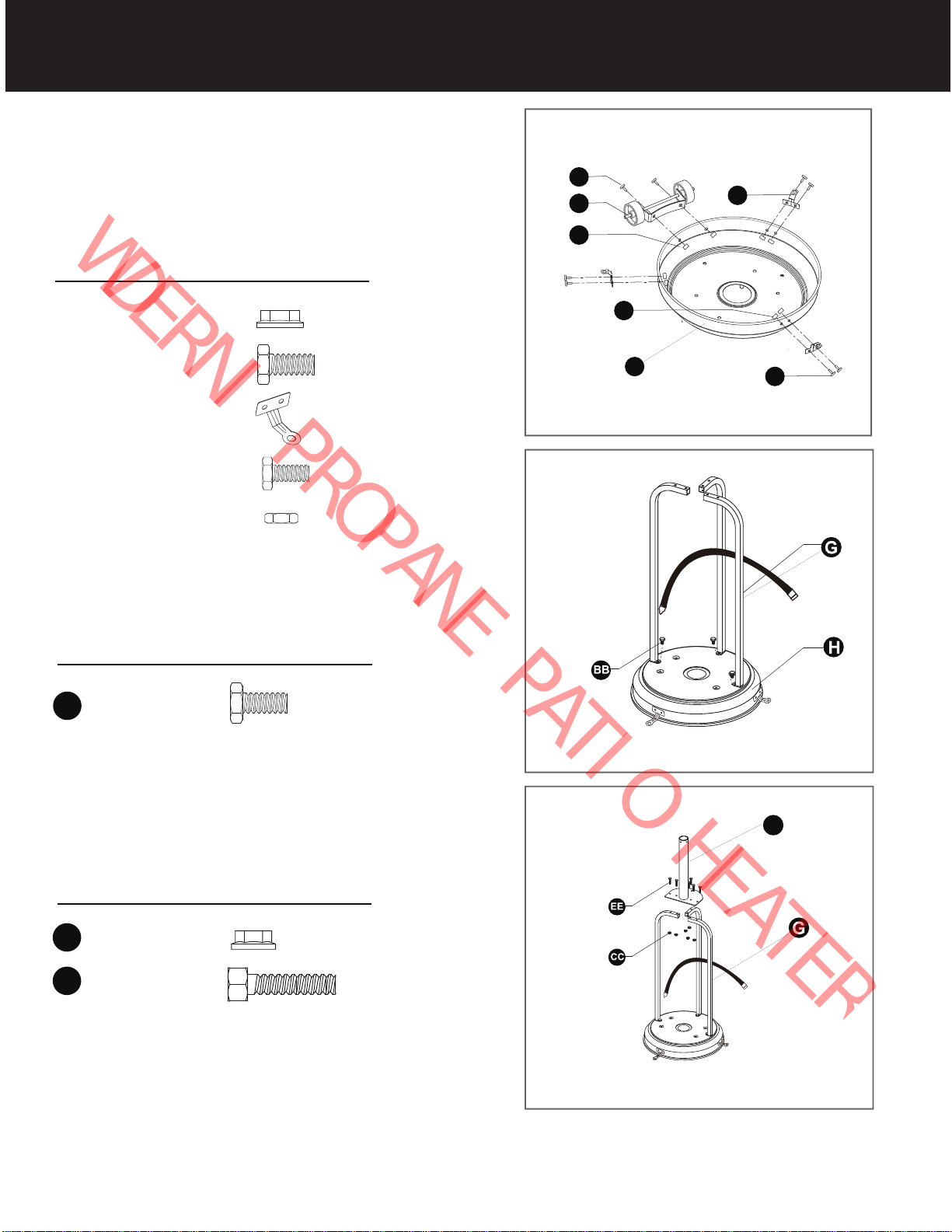

ASSEMBLY INSTRUCTIONS
x 2
x 3
x 6
Bolt M8x16
Anchoring Arm
Bolt M6x10
M6 Nut
BB x 3
Bolt M8x16
Step 1
Hardware Used
Be sure that the wheel assembly is parallel to the base.
step 2
Attach3 pcs support brackets G to base H
using 3 pcs bolts M8x16 (BB).
Note: Keep the support bracket with belt in the middle.
Hardware Used
Tighten bolts securely. AA
OO
NN
MM
BB
I
H
Turn the base upside down, then attach wheel assembly (I)
M8x16 (BB). Attach 3pcs anchoring arm (MM) to base (H)
using 6pcs M6 nuts (OO) and 6pcs bolt M6x10 (NN).
CC x 6
Hardware Used
EE x 6
Attach lower post (F) to support brackets (G) using 6pcs bolts
M6x30 (EE) and 6pcs M6 flange nuts (CC).
Tighten bolts securely.
Bolt M6x30
M6 Flange nut
Step 3
F
BB
MM
NN
to base (H) using 2pcs M8 nuts (AA) and 2pcs bolts
AA
OO
M8 nut X 2
X 6
WDERNI PROPANE PATIO HEATER

ASSEMBLY INSTRUCTIONS

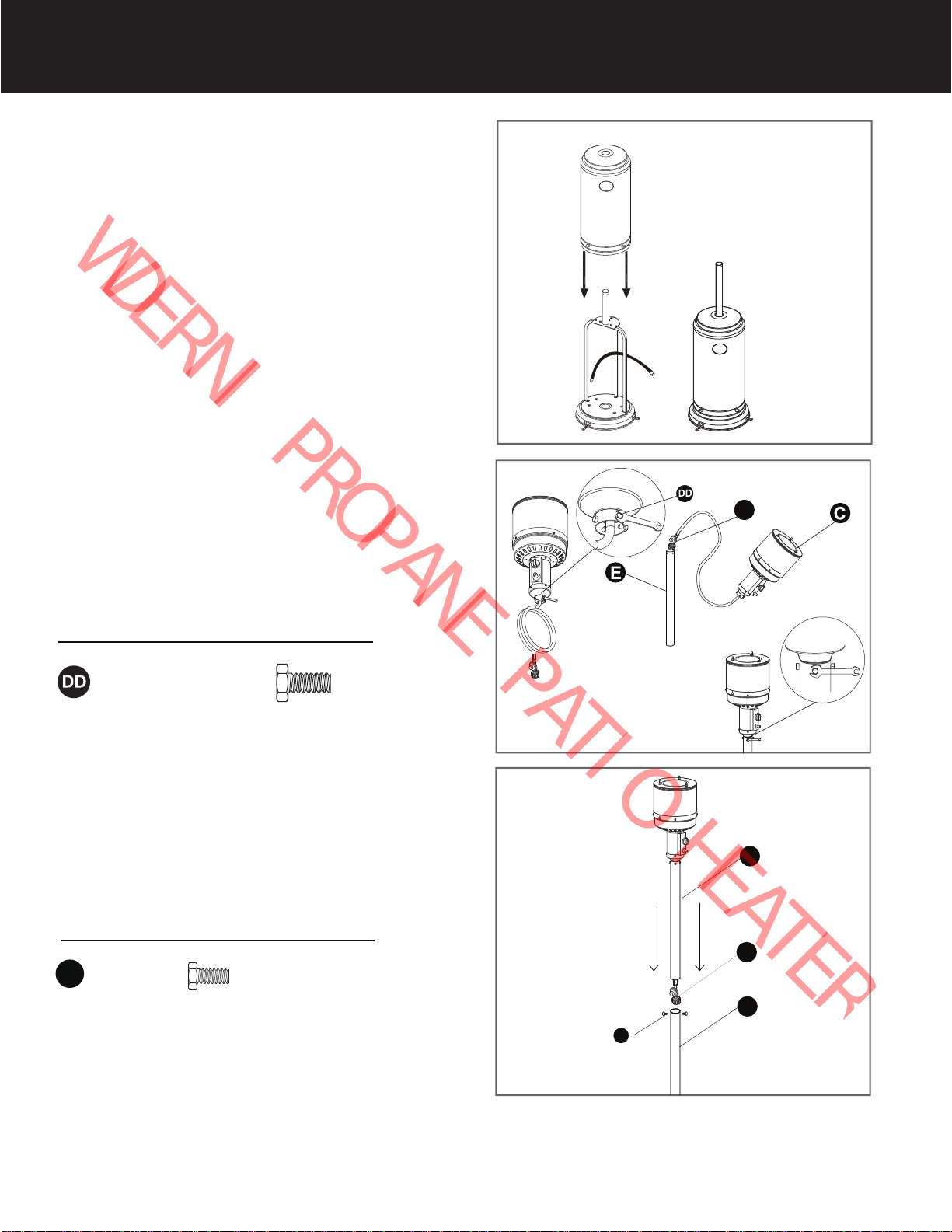

Load tank housing onto post, slide tank housing down.
Step 4
J
Page 8
HH
F
E
HH x 2
Post bolt
Step 6
Remove the 2 preassembled bolts (HH) from the lower post (F).
Insert the regulator (J) from the top end of the lower post (F).
Insert upper post (E) to lower post (F), then tighten two posts
using the 2 bolts (HH) removed at the beginning of this step.
Hardware Used
J
Remove the 4 pcs preassembled bolts M6x10 (DD)
from the burner assembly (C).
Insert the regulator (J) from the top end of the upper post (E),
then attach the burner assembly (C) to upper post (E) using
the four bolts removed at the beginning of this step.
Tighten bolts securely.
Step 5
Hardware Used
x 4
Bolt M6x10
Remark：Only for modelsMH101,MH102,
MH103,MH105 do not need this installation
step 6.
All other models need installation step 6.
WDERNI PROPANE PATIO HEATER

Page 9
B
A
7-1
II
JJ
II
WARNING: Remove protective cover before assembling.
Note: If necessary for proper alignment of reflector
sections.
Fully tighten all of the screws.
Step 7
Attach 3 pcs reflector panels (A) to center reflector (B) using
9 pcs Screws M6x10 (II) and 9 pcs cap nuts (JJ).
x 9
x 9
Hardware Used
Slide 3pcs washers (GG) over threaded end of spacer.
Step 8
to burner assembly (C) firstly.
Attach 3 pcs reflector spacers (FF) and 3 pcs washers (GG)
Tighten the reflector spacers.
Attach the reflector assembly to the top of reflector spacer
(FF) using 3 pcs washers (GG) and 3 pcs wing nuts (KK).
GG
KK
x 9
Washer
FF Reflector
spacer
x 3
Wing nut
Hardware Used
ASSEMBLY INSTRUCTIONS
x 3
WDERNI PROPANE PATIO HEATER

PP
PP
ASSEMBLY INSTRUCTIONS
Place the propane gas tank (not included) on the base.
Tighten the belt to ensure the propane gas tank is fully
secure.
Turn the cylinder valve on the tank clockwise
to close the propane tank. Attach the regulator
(J) to the cylinder valve by turning the
regulator coupling nut clockwise. Make
sure it is fastened securely and tighten
connections by hand only.
Step 10
Optional: Use the anchor (PP) to fasten the product into
the ground.
Step 9
Step 11
Anchor x 3
J
Hardware Used
Page 10
WDERNI PROPANE PATIO HEATER

OPERATION
Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor
area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off”
position. Brush a soap and water mixture on all connections. Turn the gas supply on; if bubbles
occur on any connection there may be a leak. If you smell gas or a leak is discovered turn the
gas valve off, disconnect propane gas tank and do not use the appliance until the leak is
repaired.
Do not use the heating unit without inspecting the gas hose. If there are signs of wear or abrasion
you must replace the hose (if applicable).
When lit for the rst time the heater may emit a slight odor and smoke. This is a normal and
temporary condition. Emitter screen will become a bright red due to the heat. The color is more
visible at night. Flame patterns should be a blue ame; these ames should not be yellow in color;
indicating an obstruction of airow through the burners.
To Extinguish
1. Turn control knob clockwise to the “off” position.
2. Close the cylinder valve on the propane gas tank if you don’t intend to use it for a long time.
Page 11
To Light
1. Turn on the valve on the gas supply cylinder.
2. Press and turn the variable control knob to the ‘HI’ position
3.
and hold for 3-5 seconds.
4.
While holding down the variable control knob, press the igniter button several times until the
burner head flame ignites. Release the variable control knob 30 seconds after the ignition.
5.
If a new tank has just been connected, allow at least
one minute or more for the air in the gas pipeline to
purge out.
6.
The ame can be watched and checked from the
viewing hole located on the base of the burner.
7.
Turn the variable control knob to the ‘LO’ position for
5 minutes or more before turning the knob to desired
temperature setting. If a small ame is needed, turn the
variable control knob to the ‘LO’ position.
If the burner ame goes out accidentally or it is blown
out by wind, turn off the heater and wait at least 5
minutes or more to let the gas dissipate before lighting
again to avoid possible gas explosion. Repeat steps 2
through 3.
Variable control
knob
Igniter
OFF
HI
LO
IGNITER
WDERNI PROPANE PATIO HEATER

MAINTENANCE
•Before performing any maintenance always disconnect propane gas tank.
•Keep the heating item free and clear from combustible materials.
•Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
•Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner is completely
cooled down. Wipe down with a soft cloth.
•Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
•Permanent damage may occur if powder or solvent comes in contact with painted or plastic
components on this heating unit.
•Keep the heating unit stored away from direct sunlight.
•If storing this unit inside, disconnect the propane gas tank from the gas valve.
•Not using manufacturer approved or supplied parts/accessories may result in a defective condition
and void the warranty of this heating unit.
•Always place lid (if applicable) or protective cover on heating item when not in use.
Page 12
WDERNI PROPANE PATIO HEATER

TROUBLESHOOTING
Problem Cause Solution
The burner will not light. The burner injector is clogged. Clean the burner injector.
There is low gas supply pressure. Call your gas supplier.
The burner flame goes off
immediately after ignition.
There is low gas pressure. Call your gas supplier.
The ignition is delayed. The main burner carryover ports are
clogged.
Clean the main burner ports.
There is low gas pressure. Call your gas supplier.
The combustion on the burner is
inadequate.
There is not enough air. Check the air passageways and burners
for dirt and debris, and clean with
compressed air.
The burner flame is low. The supply hose is bent or twisted. Straighten the hose and perform a leak
test.
There is blockage in the burner
injector.
Clean or replace the burner injector.
The emitter glows uneven. There is blockage in the burner
injector.
Clean or replace the burner injector.
The base is not on a level surface. Place the heater on a level surface.
The gas pressure is low. Replace the cylinder with a new
cylinder.
There is slight smoke and odor
during initial operation.
This is residue from the
manufacturing process.
This will stop after approximately 30
minutes of operation.
There is thick black smoke. There is blockage in the burner. Turn off the heater and let it cool.
Remove the blockage and clean the
inside and outside of the burner.
The heater produces a whistling
noise when the burner is lit.
Air passageways are blocked. Check the minimum installation
clearances and air passageways for
debris.
There is air in the gas line. Operate the burner until the air is
completely purged.
The heater produces a clicking
noise just after the burner is lit
or turned off.
The metal is expanding and
contracting.
This is common with heaters. If noise is
excessive, contact a qualified service
person.
There is a gas odor even when
the control knob is in the OFF
position.
There is a gas leak. Locate and correct the leak
immediately.
The gas control is defective. Replace the gas control.
There is a gas odor during
combustion.
There is foreign matter in the gas or
on the burner ports.
Check the gas passageway and burner.
The heater is burning vapors from
paint or impurities in the air.
Stop storing and using odor causing
products near the heater.
There is gas leaking from the
regulator and hose connection, the
valve and pipe connections, and the
pipes.
Locate and correct the leaks, or contact
your gas supplier.
There is carbon build-up. There is dirt or film on the reflector
and flame screen.
Clean the reflector and flame screen.
Page 13
WDERNI PROPANE PATIO HEATER

WARRANTY
The manufacturer warranty will be voided by, and manufacturer disclaims any responsibility for, the
following actions:
•Modication of the unit and/or components including the gas valve assembly.
•Use of any component part not manufactured or approved by Manufacturer.
•Use and installation other than what is listed in this manual.
Please contact the manufacturer for replacement parts.
Page 14
WDERNI PROPANE PATIO HEATER
