Bosch Conettix D6600 User manual

EN
Computer Interface Manual
Receiver/Gateway
Conettix D6600/D6100IPv6/D6100i

Conettix D6600/D6100IPv6/D6100i
| Computer Interface Manual |
2
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Contents
1.0 System Connection ........................................................................................................... 4
1.1 Conettix D6686/D6682/D6680 Ethernet Network Adapter Connection ..................................... 4
1.2 Direct Connection – RS-232 ........................................................................................................ 5
2.0 Making the Right Connection ............................................................................................ 6
2.1 COM3 DB9 Connector ................................................................................................................. 6
2.2 Selecting Program Options in the D6600/D6100IPv6/D6100i .................................................... 7
3.0 Computer Communication Protocols ................................................................................ 8
3.1 D6500 Mode Messages ................................................................................................................ 8
3.1.1 Acron Super Fast (Message Type 9) ............................................................................................ 8
3.1.2 Ademco 4-1 Express (Message Type b) ....................................................................................... 9
3.1.3 Ademco 4-2 Express (Message Type c) ..................................................................................... 10
3.1.4 Ademco Contact-ID (Message Type a) ...................................................................................... 11
3.1.5 Ademco 10-Digit Contact-ID (Message Type a) ......................................................................... 12
3.1.6 Ademco High Speed, 4-8-1 (Message Type f) ............................................................................ 13
3.1.7 ADT SIA (Message Type S) ........................................................................................................ 14
3.1.8 Caller ID (Message Type e) ........................................................................................................ 15
3.1.9 CFSK (Message Type i) .............................................................................................................. 15
3.1.10 Common Formats (Message Type 1) ......................................................................................... 16
3.1.11 DNIS/ANI (Message Type N) ...................................................................................................... 17
3.1.12 DSC 4-3 (Message Type d) ........................................................................................................ 18
3.1.13 FBI Super Fast (Message Type F) .............................................................................................. 19
3.1.14 ITI (Message Type I) .................................................................................................................. 20
3.1.15 Link Test (Message Type 1) ....................................................................................................... 21
3.1.16 Robofon (Message Type j) ......................................................................................................... 22
3.1.17 Sescoa Super Speed (Message Type 7) .................................................................................... 23
3.1.18 Scancom 4-16-1, 5-16-1, 6-16-1 - Available Upon Request (Message Type g) ........................... 24
3.1.19 Scancom 4-24-1, 5-24-1, 6-24-1 - Available Upon Request (Message Type h) ........................... 25
3.1.20 Seriee FSK (Message Type k) .................................................................................................... 26
3.1.21 Seriee DTMF (Message Type l) .................................................................................................. 27
3.1.22 SIA (Message Type S) ................................................................................................................ 28
3.1.23 Silent Knight FSK0 (Message Type 1)........................................................................................ 29
3.1.24 Silent Knight FSK1 (Message Type m) ....................................................................................... 32
3.1.25 Silent Knight FSK2 (Message Type m) ....................................................................................... 35
3.1.26 Silent Knight FSK80 D6500 mode (Message Type 1) ................................................................ 36
3.1.27 Telim (Message Type n) ............................................................................................................. 37
3.1.28 Text Message (Message Type 3) ................................................................................................ 38
3.1.29 Varitech FSK 4-1 (Message Type 1) ........................................................................................... 39
3.1.30 Varitech FSK 4-2 (Message Type 1) ........................................................................................... 40
3.1.31 VONK (Message Type V) ............................................................................................................ 41
3.1.32 X-SIA Text (Message Type S) ..................................................................................................... 42
3.1.33 SafeCom (Message Type p) ....................................................................................................... 43
3.2 SIA Mode Messages ................................................................................................................... 44
3.2.1 Acron Super Fast (Message Type 9) .......................................................................................... 44
3.2.2 Ademco Contact-ID (Message Type a) ...................................................................................... 45
3.2.3 Ademco 10-Digit (Message Type b) ........................................................................................... 46
3.2.4 Ademco 4-1 Express (Message Type b) ..................................................................................... 47
3.2.5 Ademco 4-2 Express (Message Type c) ..................................................................................... 48
3.2.6 Ademco High Speed 4-8-1, SCANCOM 4-8-1 (Message Type f) ................................................. 49

Conettix D6600/D6100IPv6/D6100i
| Computer Interface Manual |
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
3
3.2.7 ADT SIA (Message Type S) ........................................................................................................ 50
3.2.8 Caller ID (Message Type <TAB>) ............................................................................................... 51
3.2.9 CFSK (Message Type i) .............................................................................................................. 52
3.2.10 Common Formats (Message Type <TAB>) ................................................................................. 53
3.2.11 DNIS/ANI (Message Type N) ...................................................................................................... 55
3.2.12 DSC 4-3 (Message Type d) ........................................................................................................ 56
3.2.13 FBI Super Fast (Message Type F) .............................................................................................. 58
3.2.14 ITI (Message Type I) .................................................................................................................. 60
3.2.15 Link Test (Message Type <TAB>) ............................................................................................... 60
3.2.16 RB2000 (Message Type R) Description ..................................................................................... 61
3.2.17 Robofon (Message Type j) ......................................................................................................... 62
3.2.18 Scancom 4-16-1, 5-16-1, 6-16-1 - Available Upon Request (Message Type g) ........................... 63
3.2.19 Scancom 4-24-1, 5-24-1, 6-24-1 - Available Upon Request (Message Type h) ........................... 64
3.2.20 Seriee DTMF (Message Type l) .................................................................................................. 65
3.2.21 Seriee FSK (Message Type k) .................................................................................................... 66
3.2.22 Sescoa Super Speed (Message Type 7) .................................................................................... 67
3.2.23 Silent Knight FSK() (Message Type <TAB>) ............................................................................... 68
3.2.24 Silent Knight FSK1 (Message Type m) ....................................................................................... 69
3.2.25 Silent Knight FSK2 (Message Type m) ....................................................................................... 71
3.2.26 Silent Knight FSK80 (Message Type <TAB>) ............................................................................. 71
3.2.27 Telim (Message Type n) ............................................................................................................. 72
3.2.28 Varitech FSK 4-1 (Message Type <TAB>) .................................................................................. 73
3.2.29 Varitech FSK 4-2 (Message Type <TAB>) ................................................................................... 73
3.2.30 VONK (Message Type V) ............................................................................................................ 74
3.2.31 X-SIA text (Message Type <TAB>) .............................................................................................. 75
3.2.32 SafeCom (Message Type p) ....................................................................................................... 76
3.3 Input Command Processing ...................................................................................................... 77
Appendix A: Contact ID Event Code Classifications ................................................................... 78
Appendix B: Internal Messages .................................................................................................. 88
Appendix C: Modem4/ModemIIIa² Messages .............................................................................. 92
Appendix D: Network Messages ............................................................................................... 140
Appendix E: Pulse Output ........................................................................................................ 143
Appendix F: Format ID (by Message Type) – D6600 Only ......................................................... 152
Appendix G: ADT SIA Report Codes ......................................................................................... 156
Appendix H: RB2000 Messages (D6600 Only) .......................................................................... 161
Appendix I: SafeCom Messages (D6600 Only) ......................................................................... 169
Appendix J: Acknowledgement from Automation Software to D6600/D6100IPv6 Receiver ...... 180
Appendix K: Cyclic Redundancy Check (CRC) Calculation ....................................................... 181
Appendix L: Network Automation ............................................................................................. 184

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 1.0 System Connection
4
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Trademarks
Microsoft®, Windows®, Windows 2000®, Windows XP®, and Windows Vista are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
1.0 System Connection
1.1 Conettix D6686/D6682/D6680 Ethernet Network Adapter Connection
Use the Conettix D6686/D6682/D6680 Ethernet Network Adapter to connect a manufacturer’s
automation software package to the D6600/D6100IPv6/D6100i when the software cannot receive
network data (Figure 1). Refer to the Special Conettix D6600 Applications in the Conettix
D6600/D6100IPv6/D6100i Network System Guide (P/N: 4998122712).

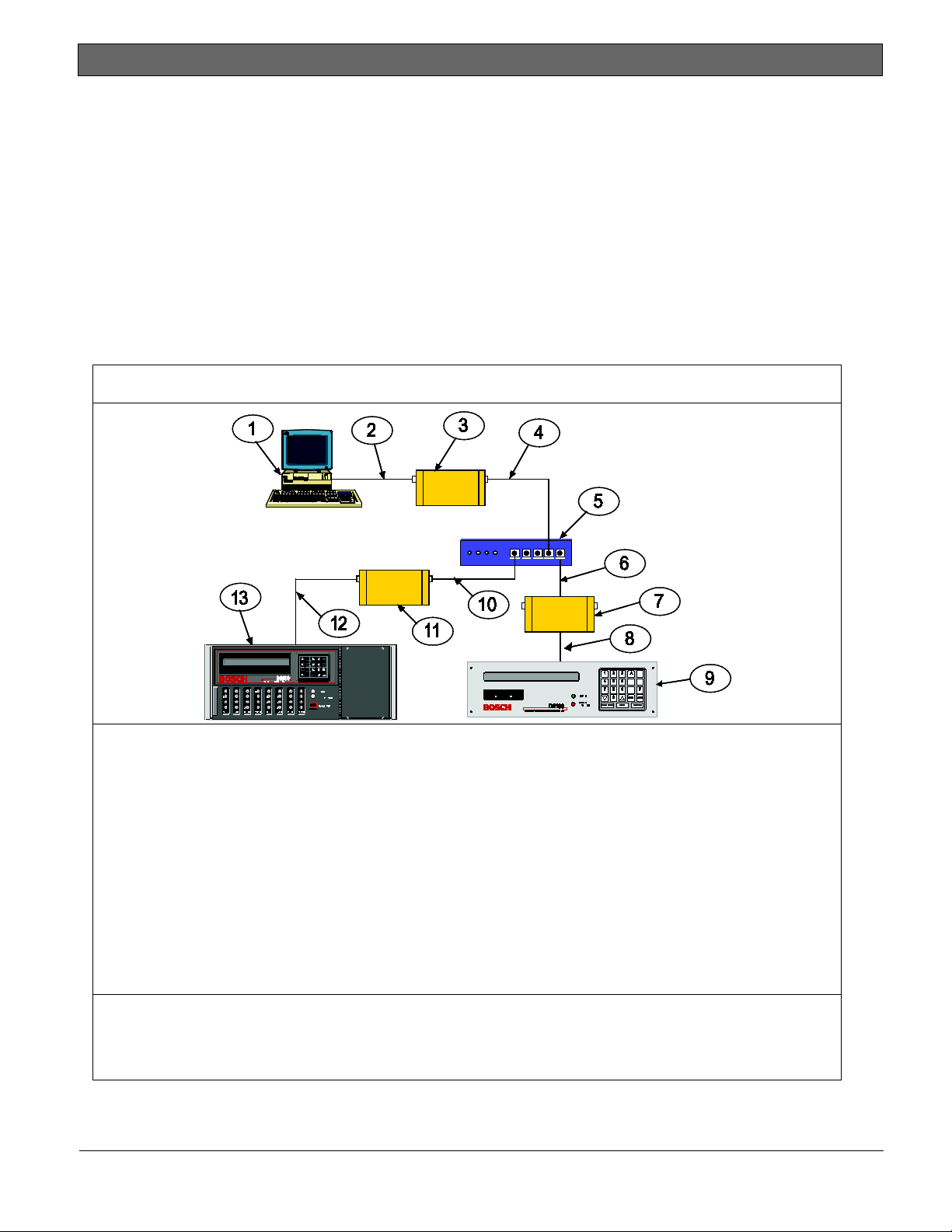

Figure 1: D6600/D6100IPv6/D6100i System – Standard/Network Automation
1 - Automation PC
2 - Connection - PC COM Port to D6686/D6682/D6680 RS-232
3 - D6686/D6682/D6680
4 - Connection - D6686/D6682/D6680 to Hub/Switch
5 - Hub/Switch
6 - Connection – D6686/D6682/D6680
to Hub/Switch
7 - D6686/D6682/D6680
8 - Connection – D6686/D6682/D6680 RS-232 to D6100IPv6/D6100i COM3
9 - D6100IPv6/D6100i
10 - Connection - D6686/D6682/D6680 to Hub/Switch
11 - D6686/D6682/D6680
12 - Connection – D6686/D6682/D6680 RS-232 to D6600 COM3
13 – D6600
* For automation packages with network capabilities: The packet format received from the D6600/D6100IPv6/D6100i is
the same as for RS-232 reporting, except an internet protocol (IP) and user datagram protocol (UDP) header is
stamped on the packet as the data transmitted by either standard IP or UDP structure over the network. Automation
software can support the network communication easily by calling Socket functions, both provided in Windows and
Unix by using the built-in IP connections (or sockets) available in Windows and Unix.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 1.0 System Connection
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
5
1.2 Direct Connection – RS-232
Figure 2 and Figure 3 show a D6600 System using any manufacturer’s automation software package
directly connected to a D6600/D6100IPv6/D6100i.
Figure 2: D6600 System – Direct Connect
1 - Automation PC
2 - Connection - Automation PC COM port to D6600 COM3
3 - D6600
Figure 3: D6100i System – Direct Connect
1 - Automation PC
2 - Connection - Automation PC COM port to D6100IPv6/D6100i COM3
3 - D6100IPv6/D6100i

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 2.0 Making the Right Connection
6
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
2.0 Making the Right Connection
2.1 COM3 DB9 Connector
The COM3 Port uses a standard DB9 female connector. The suggested connections to the computer
are shown in Figure 4 to Figure 6.
When connecting data terminal equipment (DTE) together (such as a COM1 port to PC serial port), a
null-modem cable must be used. One possible configuration for a null-modem cable is shown in
Figure 4.
Figure 4: Null Modem Cable Configuration
1
2
3
4
6
7
8
9
1
2
3
4
6
7
8
9
DTE
DB-9 Pin
DTE
DB-9 Pin
5
5
When connecting data terminal equipment to data communication equipment (DCE) (such as the
D6600/D6100IPv6/D6100i COM port to a modem), a modem cable should be used (such as a straight-
through cable shown in Figure 5).
Figure 5: Straight-through Modem Cable Configuration
Each pin of the modem cable is defined in Figure 6.
DTE
1
2
3
4
5
6
7
8
9
DCE
8
3
2
20
7
6
4
5
22

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 2.0 Making the Right Connection
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
7
Figure 6: Modem Cable Pin Definitions
(Male DB9 on receiver)
1 - Data carrier detect (DCD)
2 - Receive (RX)
3 - Transmit (TX)
4 - Data terminal ready (DTR)
5 - Signal-ground (SIG-GND)
6 - Data set ready (DSR)
7 - Ready to send (RTS)
8 - Clear to send (CTS)
9 - Ring indicator (RI)
2.2 Selecting Program Options in the D6600/D6100IPv6/D6100i
Use the D6600/D6100IPv6/D6100i keypad or the D6200 Programming Software to program the
receivers. Below are the recommended selections for programming when connecting the receivers to
an automation system. Additional selections can be found in the D6600/D6100IPv6/D6100i Program
Entry Guide (P/N: 4998122702).
Table 1: Recommended Programming Selections
Receiver
Gateway
Number
Selects a number (01 to 99) that is included in every message to the computer in
both D6500 and SIA modes
Output
Format
Enable computer output messages in the selected format:
SIA computer interface standard format, recommended (expanded
reporting capabilities)
D6500 21-character format output
Baud Rate Use maximum speed supported by PC
Link Test Tests if a supervision signal can be sent and received from the central station by
the receiver
12345
6789

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
8
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
3.0 Computer Communication Protocols
3.1 D6500 Mode Messages
In D6500 Mode, the line number/group number sent to the computer is only one digit. Refer to
Table 2.
Table 2: D6600 Line Number/Group Number Conversion Table
Line#
/Group #
Converted
to
Line#
/Group #
Converted
to
Line #
/Group #
Converted
to
Line #
/Group #
Converted
to
L01/G01 1 L09/G09 9 L17/G17 H L25/G25 P
L02/G02 2 L10/G10 A L18/G18 I L26/G26 Q
L03/G03 3 L11/G11 B L19/G19 J L27/G27 R
L04/G04 4 L12/G12 C L20/G20 K L28/G28 S
L05/G05 5 L13/G13 D L21/G21 L L29/G29 T
L06/G06 6 L14/G14 E L22/G22 M L30/G30 U
L07/G07 7 L15/G15 F L23/G23 N L31/G31 V
L08/G08 8 L16/G16 G L24/G24 O L32/G32 W
In D6500 mode, any group that equals 33 is converted to an “X.” Any group greater than or equal
to 34 is converted to a “Y.” For lines that are grouped, Gxx appears instead of Lxx. For
networked accounts, Nxx appears instead of Lxx and the line number is identified.
3.1.1 Acron Super Fast (Message Type 9)
Acron Super
Fast Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h 9 r r l s s s s a a a a C C C C C C C C t
Table 3: Message Type 9 (Acron Super Fast) Byte Description
# Title Description
1 Header Character (h) Optional. Check with the computer automation software for
compatibility.
2 Message Type 9
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group Number Line number in the receiver gateway that sent the message.
6-9 Spaces Six spaces.
10-13 Account Number Account number, four digits.
14-21 Channels Channels 1 to 8
22 Trailer Character Typically, this is HEX 14.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
9
3.1.2 Ademco 4-1 Express (Message Type b)
4-1 Express
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h b r r l s s s s s s a a a a s E s s s X t
Table 4: Message Type b (Ademco 4-1 Express) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type b
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account Number Account number, four digits.
16 Space One space.
17 E Event Code, “A” as the default.
18-20 Spaces Three spaces.
21 X Zone number.
22 Trailer Character Typically, this is HEX 14.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
10
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
3.1.3 Ademco 4-2 Express (Message Type c)
4-2 Express
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h c r r l s s s s s s a a a a s E s s X Y t
Table 5: Message Type c (Ademco 4-2 Express) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type c
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account Number Account number, four digits.
16 Space One space.
17 E Event Code, “A” as the default.
18-19 Spaces Two spaces.
20-21 XY Event code and zone number.
22 Trailer Character Typically, this is HEX 14.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
11
3.1.4 Ademco Contact-ID (Message Type a)
Contact ID
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h a r r l s a a a a 1 8 Q X Y Z G G C C C t
Table 6: Message Type a (Ademco Contact ID) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type a
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 Space One space.
7-10 Account Number Account number, four digits.
11-12 18 Ademco Contact-ID format number
13 Qualifier Qualifier, 1=New event or opening, 3=New restore or closing,
6=Previous event.
14-16 XYZ Class code and event code (see Appendix A: Contact ID Event Code
Classifications).
17-18 GG Group number.
19-21 CCC Zone codes or user ID.
22 Trailer Character Typically, this is HEX 14.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
12
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
3.1.5 Ademco 10-Digit Contact-ID (Message Type a)
Contact
ID
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14
h a r r l s a a a a a a a a
15 16 17 18 19 20 21 22 23 24 25 26 27 28
a a 5 8 Q X Y Z G G C C C t
Table 7: Message Type a (Ademco 10-Digit) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type ASCII a. Message Type a for Ademco Contact-ID format.
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line Card Number Line number in the receiver gateway that sent the message.
6 Space One space.
7-16 Account Number Account number, 10 digits.
17-18 58 Ademco Contact-ID format number for 10 digits account.
19 Qualifier Qualifier, 1=New event or opening, 3=New restore or closing,
6=Previous event.
20-22 XYZ Class code and event code (see Appendix A: Contact ID Event Code
Classifications).
23-24 GG Group number.
25-27 CCC Zone codes or user ID.
28 Trailer Character Typically, this is HEX 14.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
13
3.1.6 Ademco High Speed, 4-8-1 (Message Type f)
SCANCOM 4
-8-1, 5-8-1, 6-8-1 - Available Upon Request
High
Speed
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
h f r r l a a a a a a s C C C C s C C C C s C t
Table 8: Message Type f (Ademco High Speed, 4-8-1) Byte Description
# Title Description
1 Header Character
(h)
Optional. Check with the computer automation software for
compatibility.
2 Message Type f
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Account Number Account number, up to six digits.
Account number less than six characters is right aligned with leading
ASCII spaces.
12 Space One space.
13-16 CCCC Channels 1 to 4.
17 Space One space.
18-21 CCCC Channels 5 to 8.
22 Space One space.
23 C Supervisory channel.
24 Trailer Character Typically, this is HEX 14.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
14
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
3.1.7 ADT SIA (Message Type S)
ADT SIA
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
h S r r l [ # a a a a | d a m m - d d - y
22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
y t I h h : m m : s s E M M Z Z Z Z / *** t
Table 9: ADT SIA (Message Type S) Byte Description
# Title Description
1 Header Character
(h)
Optional. Check with the computer automation software for
compatibility.
2 Message Type S
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 space One space.
7 # #
8-11 Account Number Up to sixteen digits in the account number.
12 | Separator. Indicates more data positions after account number.
13-32 Date and Time Date and time.
33 E SIA block code.
34-35 Event Code SIA event code (refer to Appendix G: ADT SIA Report Codes).
36-39 Zone Zone number.
40 / Separator.
41 *** Next block of data.
42 Trailer Character Typically, this is HEX 14.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
15
3.1.8 Caller ID (Message Type e)
Caller ID
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h e r r 1 T T T T T T T T T T T T T T T T t
Table 10: Caller ID (Message Type e) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type e
3-4 Receiver Number Receiver gateway Number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-21 Caller ID Up to sixteen digits, Caller ID with less than sixteen characters is
right aligned with leading ASCII spaces.
22 Trailer Character Typically, this is HEX 14.
3.1.9 CFSK (Message Type i)
CFSK
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h i r r l s s s s a a a a a a T T E E s s t
Table 11: CFSK (Message Type i) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type i
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-9 Spaces Four spaces.
10-15 Account Number Six digit account number.
16-17 TT Event Code.
18-19 EE Zone/User ID.
20-21 Spaces Two spaces.
22 Trailer Character Typically, this is HEX 14.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
16
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
3.1.10 Common Formats (Message Type 1)
Type 1
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h l r r l a a a a a a a a a a E E y y y y t
Table 12: Common Formats (Message Type 1) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type 1
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line Number Line number in the receiver gateway that sent the message.
6-15 Account Number Account number, up to ten digits. Account numbers less than ten
characters are right aligned with leading ASCII spaces.
16-17 Event Code Event codes define the type of signal received and interpreted by the
D6500 receiver gateway.
18-21 Zone Number Zone or ID number sent by the communicator. Zone numbers less
than four digits are right aligned with leading ASCII spaces.
22 Trailer Character Typically, this is HEX 14.
The receiver gateway sends the 3-1, 4-1, 4-2, single round, double round, extended pulse formats,
BFSK, Modem II or Modem IId messages in either D6500 Mode or SIA Mode, depending on the
programmable option selected. The receiver gateway also sends internal and ModemIIIa² messages in
either D6500 mode or SIA mode, depending on the option selected. Refer to Appendix B: Internal
Messages and Appendix C:
Modem4/ModemIIIa² for a list of the messages and their descriptions.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
17
3.1.11 DNIS/ANI (Message Type N)
DNIS/ANI
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
H N r r l s D d d d d d d d d d
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
d d & a a a a a a a a a a a t
Table 13: DNIS/ANI (Message Type N) Byte Description
# Title Description
1 Header Character
(
H
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type N (Capital n).
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 Space One space.
7 DNIS Identifier DNIS identifier.
8-18 DNIS Number DNIS number, up to 11 digits.
19 ANI Identifier (&) ANI identifier.
20-30 ANI Number ANI number, up to 11 digits.
31 Trailer Character Typically, this is HEX 14.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
18
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
3.1.12 DSC 4-3 (Message Type d)
DSC 4-3
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h d r r l s s s s s s a a a a s E s X Y Y t
Table 14: DSC-4-3 (Message Type d) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type d
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account Number Account number, four digits.
16 Space One space.
17 E Event Code, “A” as the default.
18 Space One space.
19 X Event code number.
20-21 YY Zone number.
22 Trailer Character Typically, this is HEX 14.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
19
3.1.13 FBI Super Fast (Message Type F)
FBI Super
Fast Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h F r r l s s s s s s a a a a T Z Z E s s t
Table 15: FBI Super Fast (Message Type F) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type F (Capital f).
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account Number Account number, four digits.
16 T Zone type.
17-18 ZZ Zone number.
19 E Event type.
20-21 Spaces Two spaces.
22 Trailer Character Typically, this is HEX 14.

Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
20
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
3.1.14 ITI (Message Type I)
ITI Example D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h I r r l s s s a T a a a a G I Z Z E W N t
Table 16: ITI (Message Type I) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type I (Capital i).
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-8 Spaces Three spaces.
9 Account Number First digit account number.
10 Panel Type Control panel Type.
11-14 Account Number Next four digit account number.
15 G Group number.
16 I Open/close (O/C) User ID.
17-18 ZZ Zone number.
19 E Condition code.
20 W Protection level was.
21 N Protection level is.
22 Trailer Character Typically, this is HEX 14.
