6| English
1 609 92A 3MW | (21.11.16) Bosch Power Tools
English
Safety Notes
All instructions must be read and
observed in order to work safely
with the measuring tool. The inte-
grated protections in the measur-
ing tool may be compromised if the
measuring tool is not used in accordance with the
instructions provided. Never make warning signs
on the measuring tool unrecognisable. STORE
THESE INSTRUCTIONS IN A SAFE PLACE AND IN-
CLUDE THEM WITH THE MEASURING TOOL WHEN
GIVING IT TO A THIRD PARTY.
Caution – The use of other operating or adjust-
ing equipment or the application of other pro-
cessing methods than those mentioned here
can lead to dangerous radiation exposure.

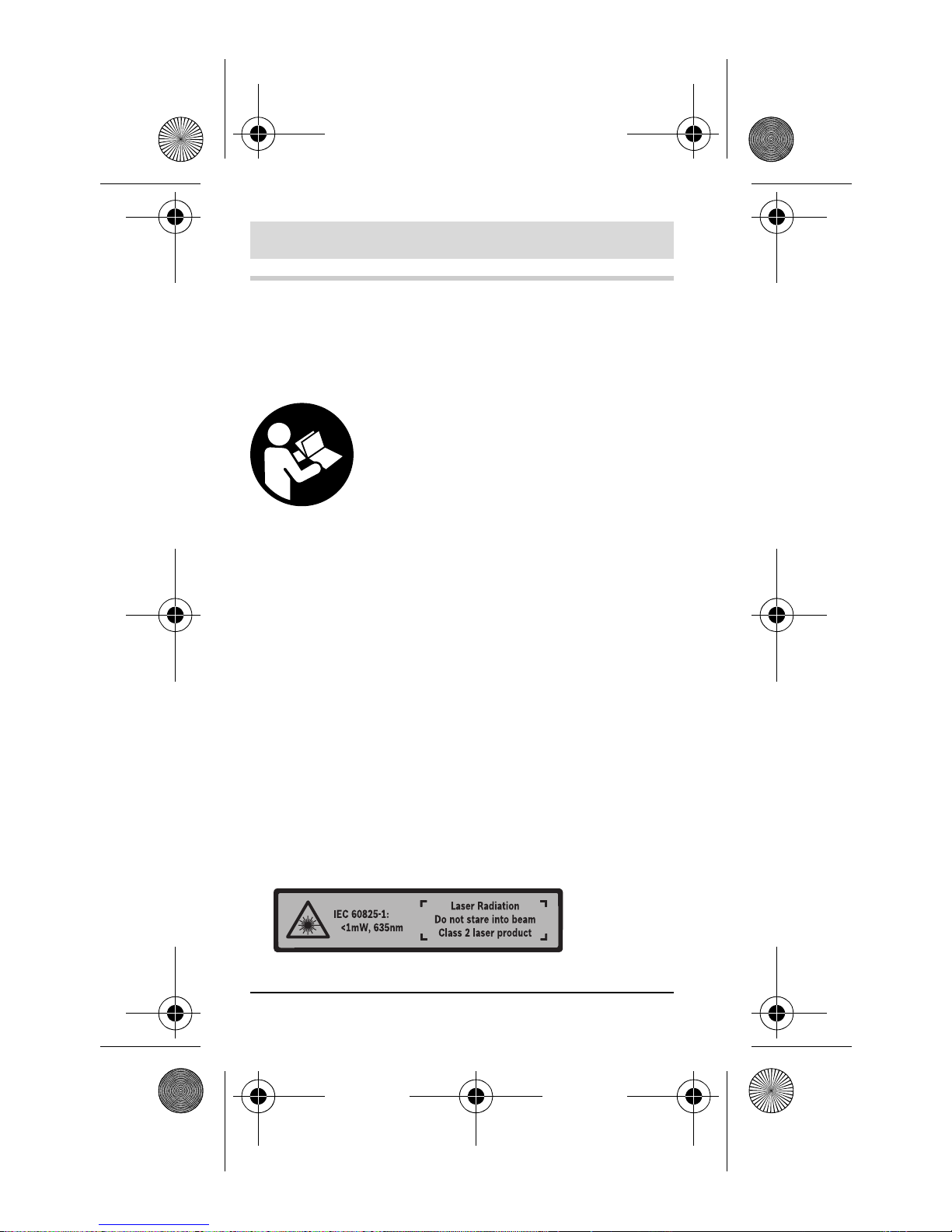

The measuring tool is provided with a warning
label (marked with number 6 in the representa-
tion of the measuring tool on the graphics
page).
2014
OBJ_BUCH-3062-001.book Page 6 Monday, November 21, 2016 4:09 PM

English | 7
Bosch Power Tools 1 609 92A 3MW | (21.11.16)
If the text of the warning label is not in your na-
tional language, stick the provided warning la-
bel in your national language over it before op-
erating for the first time.
Do not direct the laser beam at
persons or animals and do not
stare into the direct or reflected
laser beam yourself, not even
from a distance. You could blind
somebody, cause accidents or
damage your eyes.
If laser radiation strikes your eye, you must de-
liberately close your eyes and immediately turn
your head away from the beam.
Do not make any modifications to the laser
equipment.
Do not use the laser viewing glasses as safety
goggles. The laser viewing glasses are used for im-
proved visualisation of the laser beam, but they do
not protect against laser radiation.
Do not use the laser viewing glasses as sun
glasses or in traffic. The laser viewing glasses
do not afford complete UV protection and reduce
colour perception.
OBJ_BUCH-3062-001.book Page 7 Monday, November 21, 2016 4:09 PM

8| English
1 609 92A 3MW | (21.11.16) Bosch Power Tools
Have the measuring tool repaired only through
qualified specialists using original spare parts.
This ensures that the safety of the measuring tool
is maintained.
Do not allow children to use the laser measuring
tool without supervision. They could uninten-
tionally blind other persons or themselves.
Do not operate the measuring tool in explosive
environments, such as in the presence of flam-
mable liquids, gases or dusts. Sparks can be cre-
ated in the measuring tool which may ignite the
dust or fumes.
Product Description and
Specifications
Intended Use
The measuring tool is intended for measuring distanc-
es, lengths, heights, and clearances. The measuring
tool is suitable for measuring indoors.
Technical Data
Digital Laser Measure GLM 25
Article number 3 601 K72 J8.
Measuring range (typical) 0.15–25mA)
OBJ_BUCH-3062-001.book Page 8 Monday, November 21, 2016 4:09 PM

English | 9
Bosch Power Tools 1 609 92A 3MW | (21.11.16)
Measuring range (typical
under unfavourable condi-
tions) 20 mB)
Measuring accuracy
(typical) ±2.0mmA)
Measuring accuracy (typical
under unfavourable condi-
tions) ±3.0mmB)
Lowest indication unit 1mm
Operating temperature –10 °C...+45°C
Storage temperature –20 °C...+70 °C
Relative air humidity, max. 90 %
Laser class 2
Laser type 635 nm, <1 mW
Laser beam diameter
(at 25 °C) approx.
–at10mdistance
–at20mdistance
9mm
C)
18 mmC)
Automatic switch-off after
approx.
–Laser
– Measuring tool
(without measurement)
20 s
5min
Digital Laser Measure GLM 25
OBJ_BUCH-3062-001.book Page 9 Monday, November 21, 2016 4:09 PM

10 | English
1 609 92A 3MW | (21.11.16) Bosch Power Tools
Weight according to EPTA-
Procedure 01:2014 0,09 kg
Dimensions 105 x 41 x 24 mm
Degree of protection IP 54 (dust and splash
proof) D)
Batteries
Rechargeable batteries
2 x 1.5 V LR03 (AAA)
2 x 1.2 V HR03 (AAA)
Battery service life in meas-
uring operation, approx. 5h
Setting the unit of measure 
A) For measurements from the rear measuring tool edge,
weak backlighting and 25 °C operating temperature are ap-
plicable for high reflectivity of the target (e.g. a white-paint-
ed wall). In addition, a deviation influence of ± 0.05 mm/m
must be taken into account.
B) For measurements from the rear measuring tool edge,
strong backlighting and – 10 °C to +45 °C operating tem-
perature are applicable for low reflectivity of the target (e.g.
a black box). In addition, a deviation influence of
±0.15 mm/m must be taken into account.
C) The width of the laser line depends on the surface charac-
teristics and on the ambient conditions.
D) except battery compartment
The measuring tool can be clearly identified with the serial
number 5on the type plate.
Digital Laser Measure GLM 25
OBJ_BUCH-3062-001.book Page 10 Monday, November 21, 2016 4:09 PM

English | 11
Bosch Power Tools 1 609 92A 3MW | (21.11.16)
Product Features

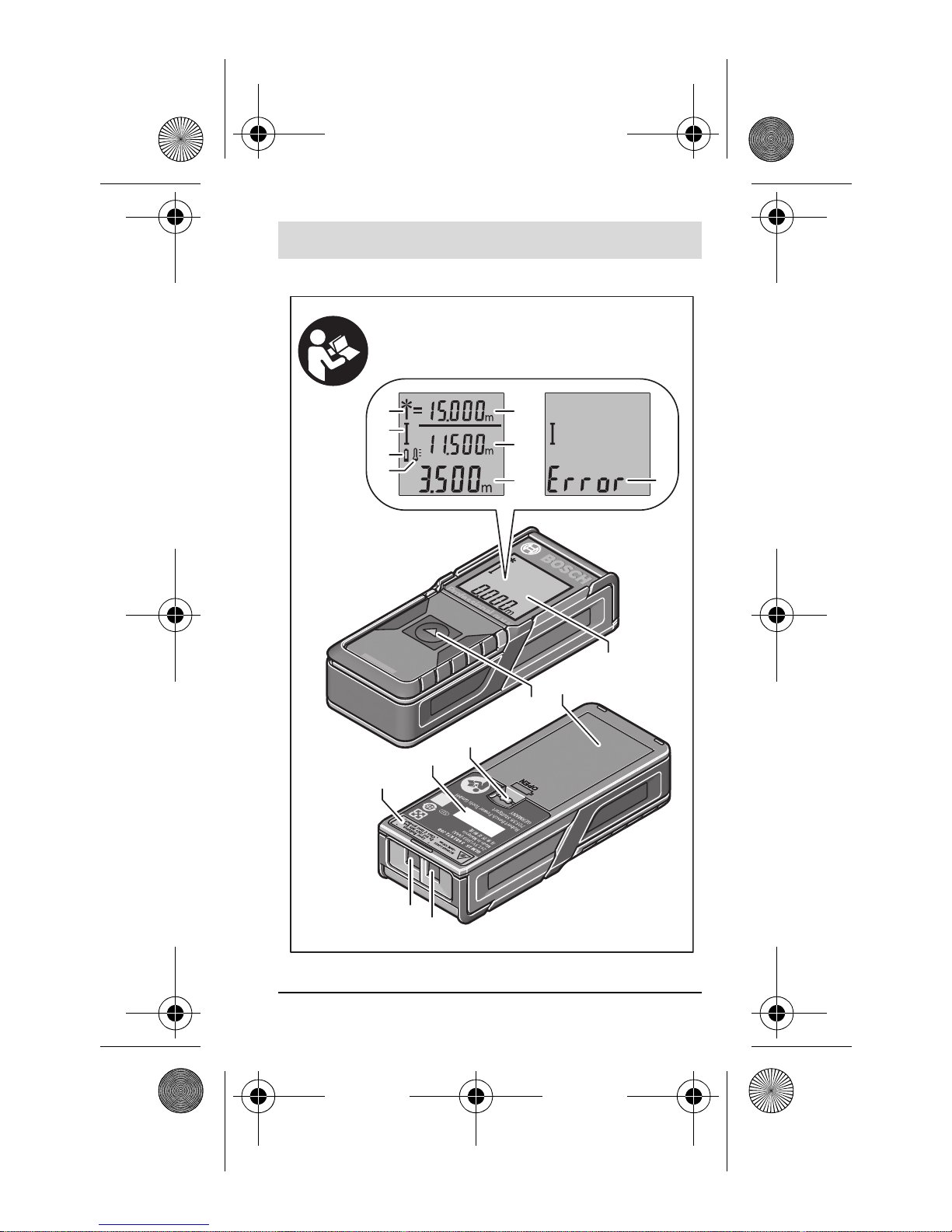

The numbering of the product features shown refers
to the illustration of the measuring tool on the graphic
page.
1Display
2Measuring button
3Battery lid
4Latch of battery lid
5Serial number
6Laser warning label
7Reception lens
8Laser beam outlet

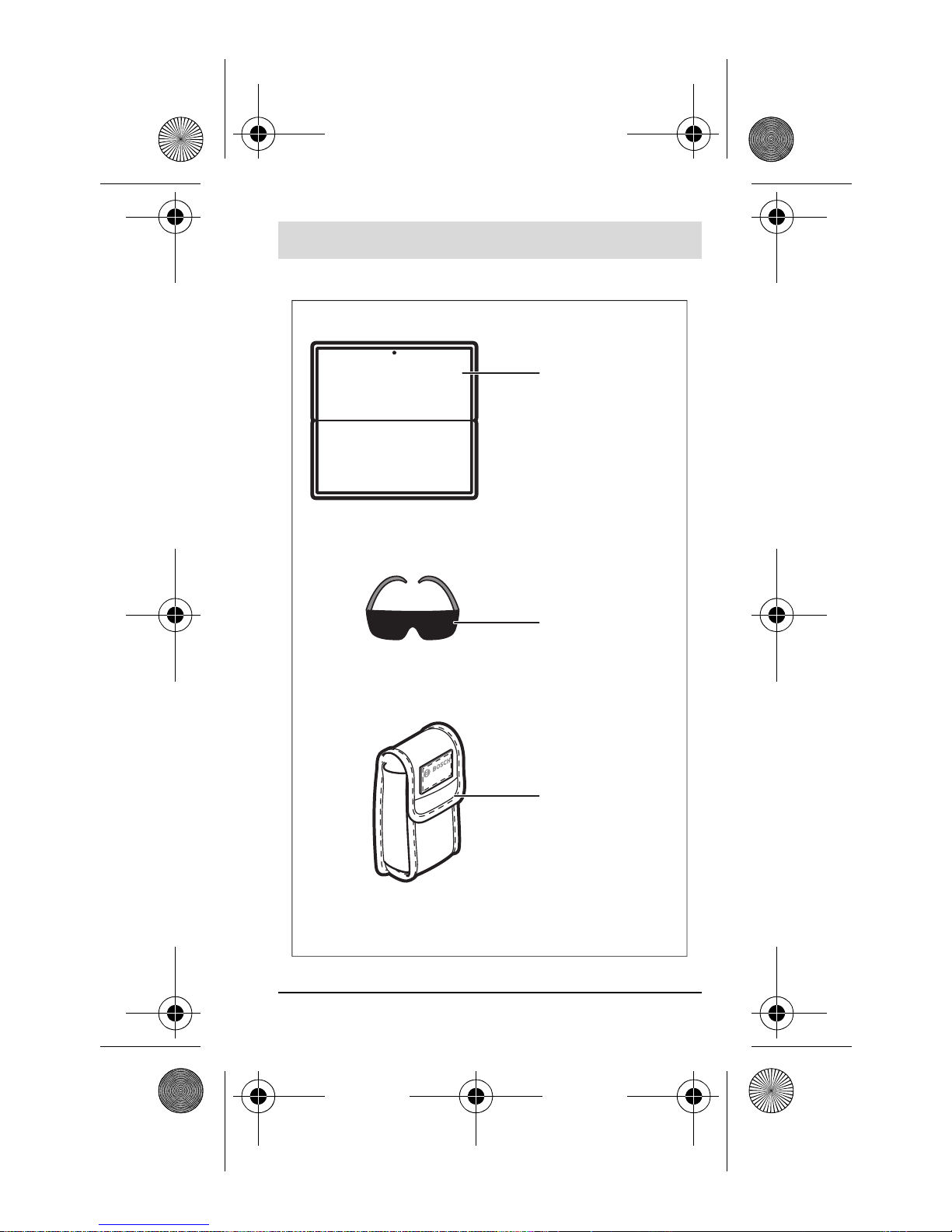

9Laser target plate*
10 Laser viewing glasses*
11 Protective pouch*
* The accessories illustrated or described are not included
as standard delivery.
Display Elements
aAuto-sum
bPrevious measuring value
cCurrent measuring value
dLaser, switched on
eLength measurement
OBJ_BUCH-3062-001.book Page 11 Monday, November 21, 2016 4:09 PM

12 | English
1 609 92A 3MW | (21.11.16) Bosch Power Tools
fBattery low indicator
gTemperature warning
hError message “Error”
Assembly
Inserting/Replacing the Batteries
Using alkali-manganese or rechargeable batteries is
recommended for operation of the measuring tool.
With 1.2-V-rechargeable batteries fewer measure-
ments could be possible than with 1.5-V-batteries.
To open the battery lid 3, press the latch 4and re-
move the battery lid. Insert the batteries/rechargea-
ble batteries. When inserting, pay attention to the
correct polarity according to the representation on
the inside of the battery compartment.
When the battery symbol appears for the first
time on the display, measurements are possible for
approx. another 15 minutes.
When the battery symbol flashes, the batteries/
rechargeable batteries must be replaced. Measure-
ments are no longer possible.
Always replace all batteries/rechargeable batteries at
the same time. Do not use different brands or types of
batteries/rechargeable batteries together.
OBJ_BUCH-3062-001.book Page 12 Monday, November 21, 2016 4:09 PM

English | 13
Bosch Power Tools 1 609 92A 3MW | (21.11.16)
Remove the batteries/rechargeable batteries
from the measuring tool when not using it for
longer periods. When storing for longer periods,
the batteries/rechargeable batteries can corrode
and self-discharge.
Operation
Initial Operation
Do not leave the switched-on measuring tool
unattended and switch the measuring tool off
after use. Other persons could be blinded by the
laser beam.
Protect the measuring tool against moisture
and direct sun light.
Do not subject the measuring tool to extreme
temperatures or variations in temperature. As
an example, do not leave it in vehicles for a long
time. In case of large variations in temperature,
allow the measuring tool to adjust to the ambient
temperature before putting it into operation. In
case of extreme temperatures or variations in tem-
perature, the accuracy of the measuring tool can
be impaired.
OBJ_BUCH-3062-001.book Page 13 Monday, November 21, 2016 4:09 PM

14 | English
1 609 92A 3MW | (21.11.16) Bosch Power Tools
Avoid heavy impact to or falling down of the
measuring tool. After severe exterior effects to
the measuring tool, it is recommended to carry out
an accuracy check (see “Accuracy Check of the
Distance Measurement”, page 18) each time be-
fore continuing to work.
Switching On and Off
To switch on the measuring tool, briefly press the
measuring button 2. Measuring tool and laser are
switched on.
Do not leave the switched-on measuring tool
unattended and switch the measuring tool off
after use. Other persons could be blinded by the
laser beam.
To switch off the measuring tool, press the measur-
ing button 2and hold it down.

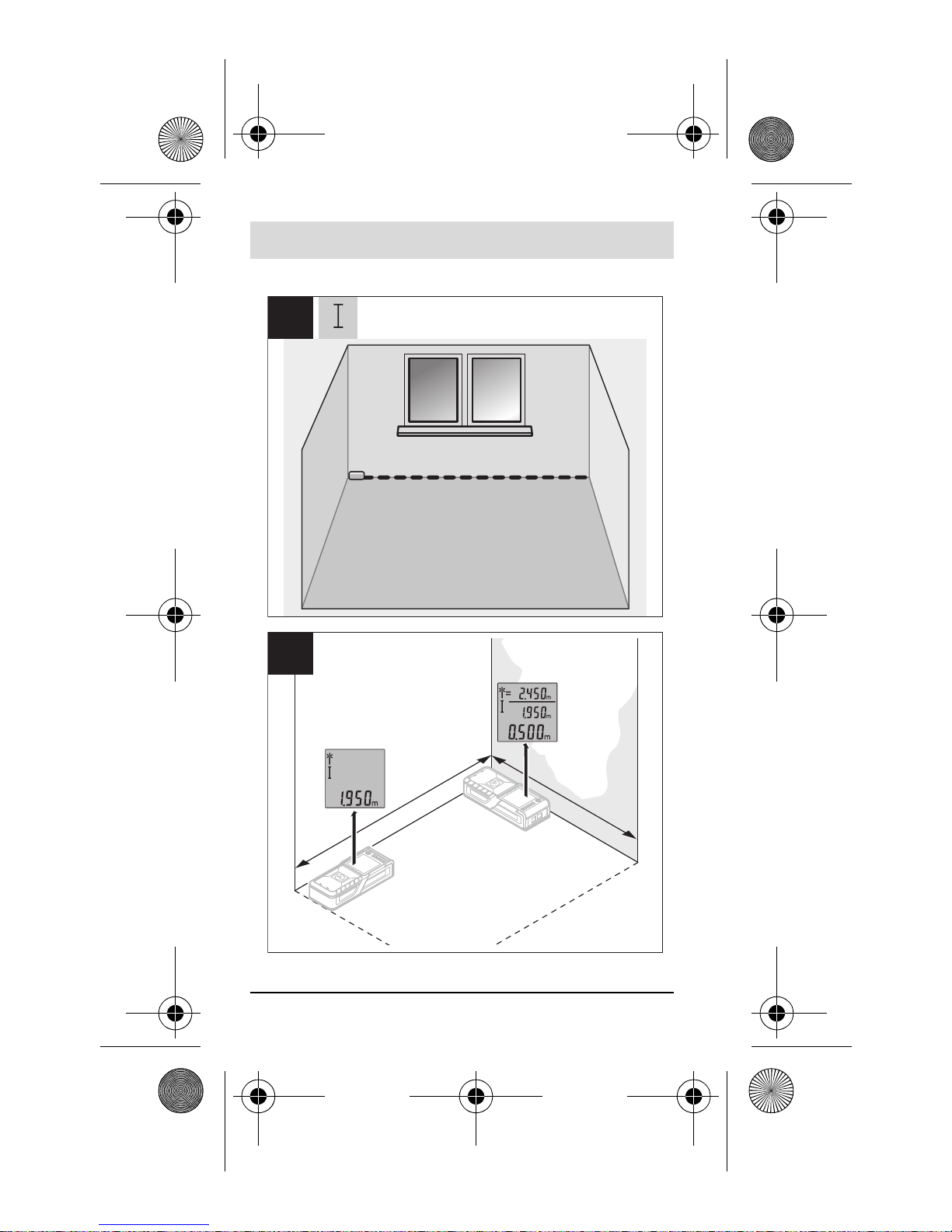

Measuring Procedure (see figure A)
Once switched on, the measuring tool is in the length
measurement mode.
The rear edge of the measuring tool is always the ref-
erence level for the measurement.
Place the measuring tool against the desired starting
point of the measurement (e.g. a wall).
OBJ_BUCH-3062-001.book Page 14 Monday, November 21, 2016 4:09 PM

English | 15
Bosch Power Tools 1 609 92A 3MW | (21.11.16)
Briefly press the measuring button 2to initiate the
measurement. Then the laser beam is switched off. To
switch the laser beam on again, briefly press the
measuring button 2. To initiate a further measure-
ment, briefly press the measuring button 2again.
Do not point the laser beam at persons or ani-
mals and do not look into the laser beam your-
self, not even from a large distance.
Note: The measured value typically appears within
0.5 seconds and no later than 4 seconds. The dura-
tion of the measurement depends on the distance,
the lighting conditions and the reflective properties of
the target surface. Upon completion of the measure-
ment the laser beam is automatically switched off.

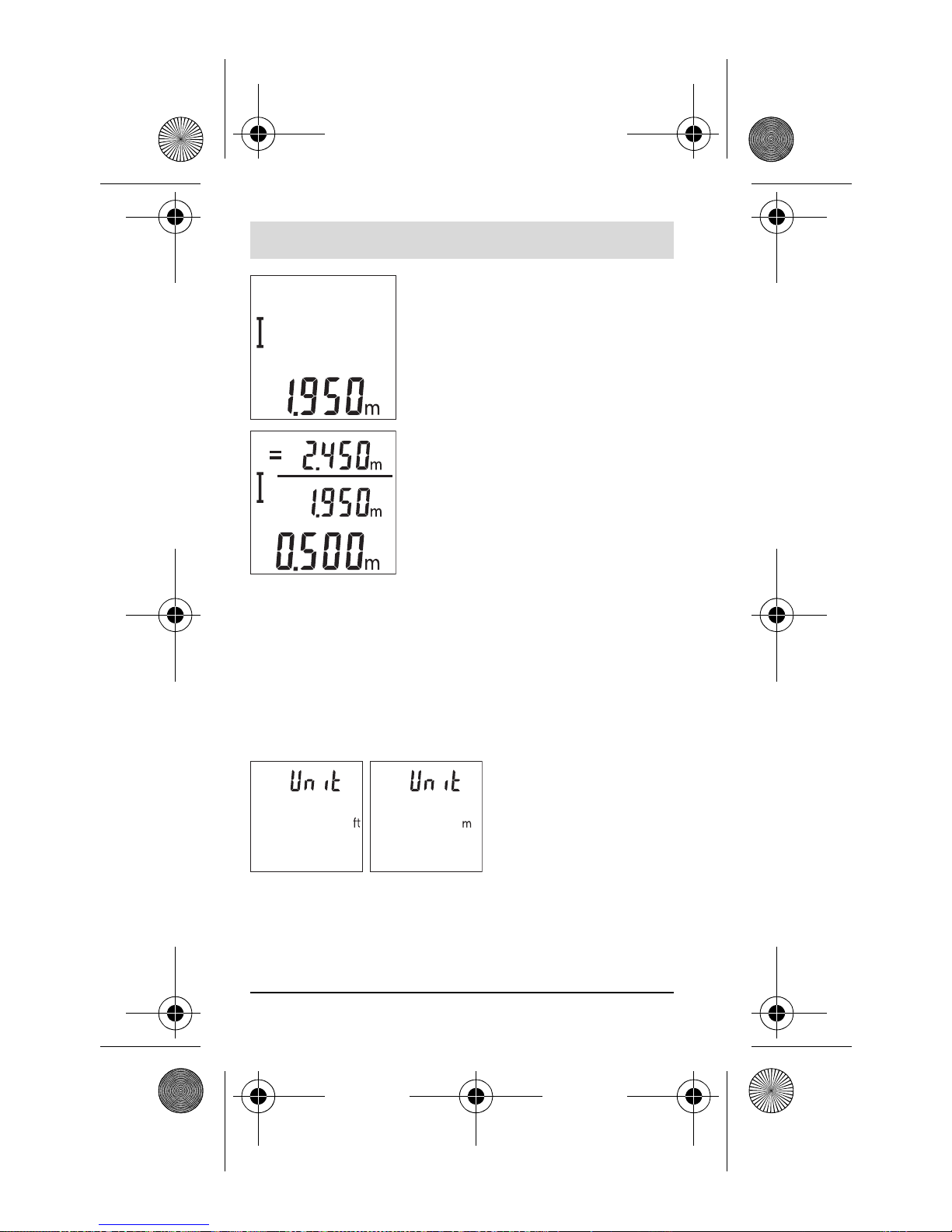

Auto-Sum (see figure B)
The auto-sum automatically shows the sum of all indi-
vidual measurements (e.g. useful for the material cal-
culation).
The auto-sum value is erased as soon as the device is
switched off or if it automatically switches off whenno
button is pressed after 5 minutes.
The auto-sum is not saved. A subsequent correction
of the auto-sum is not possible.
Aim the laser beam at the target surface.
OBJ_BUCH-3062-001.book Page 15 Monday, November 21, 2016 4:09 PM

16 | English
1 609 92A 3MW | (21.11.16) Bosch Power Tools
Briefly press the measuring but-
ton 2to initiate the measurement.
The current measured value cap-
pears in the bottom line of the dis-
play. The laser beam is switched
off.
To switch on the laser beam, brief-
ly press the measuring button 2.
To initiate another measurement,
briefly press the measuring but-
ton 2again. The current meas-
ured value cis displayed in the
bottom line. The previous meas-
ured value bis displayed in the middle line. In the top
line, the auto-sum a(the sum of the current and previ-
ous measured value) is displayed.
Changing the Unit of Measure
Switch the measuring tool off.
Press and hold the
measuring button 2.
When the cursor is on
the desired setting, re-
lease the measuring
button 2. After releasing, the measuring tool switches
itself on with the selected setting.
OBJ_BUCH-3062-001.book Page 16 Monday, November 21, 2016 4:09 PM

English | 17
Bosch Power Tools 1 609 92A 3MW | (21.11.16)
Display Illumination
The display illumination is continuously switched on.
When no button is pressed, the display illumination is
dimmed after approx. 10 seconds to preserve the
batteries/rechargeable batteries. When no button is
pressed for after approx. 30 seconds, the display illu-
mination goes out.
Working Advice
General Information
The reception lens 7and the laser beam outlet 8must
not be covered when taking a measurement.
The measuring tool must not be moved while taking a
measurement. Therefore, place the measuring tool,
as far as this is possible, against or on a firm stop or
supporting surface.
Influence Effects on the Measuring Range
The measuring range depends on the lighting condi-
tions and the reflective properties of the target sur-
face. For better visibility of the laser beam in extrane-
ous light, use the laser viewing glasses 10
(accessories) and the laser target plate 9(accesso-
ries) or shade the target area.
OBJ_BUCH-3062-001.book Page 17 Monday, November 21, 2016 4:09 PM

18 | English
1 609 92A 3MW | (21.11.16) Bosch Power Tools
Influence Effects on the Measuring Result
Due to physical effects, faulty measurements cannot
be excluded when measuring on different surfaces.
Included here are:
– Transparent surfaces (e.g., glass, water),
– Reflecting surfaces (e.g., polished metal, glass),
– Porous surfaces (e.g. insulation materials),
– Structured surfaces (e.g., roughcast, natural
stone).
If required, use the laser target plate 9(accessory) on
these surfaces.
Furthermore, faulty measurements are also possible
when sighting inclined target surfaces.
Also, air layers with varying temperatures or indirect-
ly received reflections can affect the measured value.
Accuracy Check of the Distance Measurement
The accuracy of the measuring tool can be checked as
follows:
– Select a permanently unchangeable measuring
section with a length of approx. 3 to 10 metres; its
length must be precisely known (e.g. the width of
a room or a door opening). The measurement
should be carried out under favourable conditions,
meaning, the measuring distance must be indoors
and the target surface for the measurement must
be smooth and reflect well.
OBJ_BUCH-3062-001.book Page 18 Monday, November 21, 2016 4:09 PM

English | 19
Bosch Power Tools 1 609 92A 3MW | (21.11.16)
– Measure the distance 10 times in succession.
The deviation of the individual measurements from
the average value must not exceed ±4 mm over the
entire measuring section in favourable conditions.
Record the measurements in order to be able to com-
pare the accuracy at a later date.
Troubleshooting – Causes and Corrective
Measures
Cause Corrective Measure
Temperature warning indicator (g) flashing;
measurement not possible
The measuring tool is out-
side the operating tem-
perature range of –10 °C
to +45 °C.
Wait until the measuring
tool has reached the op-
erating temperature
“Error” indication in the display
The target surface re-
flects too intensely (e.g.
a mirror) or insufficiently
(e.g. black fabric), or the
ambient light is too
bright.
Work with the laser target
plate 9(accessory)
OBJ_BUCH-3062-001.book Page 19 Monday, November 21, 2016 4:09 PM

20 | English
1 609 92A 3MW | (21.11.16) Bosch Power Tools
Thelaserbeamoutlet8or
the reception lens 7are
misted up (e.g. due to a
rapid temperature
change).
Wipe the laser beam out-
let 8and/or the reception
lens 7dry using a soft
cloth
The calculated auto-sum
is greater than 99999 m.
Divide calculation into in-
termediate steps
Measuring result not plausible
The target surface does
not reflect correctly (e.g.
water, glass).
Cover off the target sur-
face
Thelaserbeamoutlet8or
the reception lens 7are
covered.
Make sure that the laser
beam outlet 8or the re-
ception lens 7are unob-
structed
Obstruction in path of la-
ser beam
Laser point must be com-
pletely on target surface.
The indication remains unchanged or the measur-
ing tool reacts unexpectedly after pressing a but-
ton
Software error Remove the batteries and
start the measuring tool
again after reinserting
them.
Cause Corrective Measure
OBJ_BUCH-3062-001.book Page 20 Monday, November 21, 2016 4:09 PM
