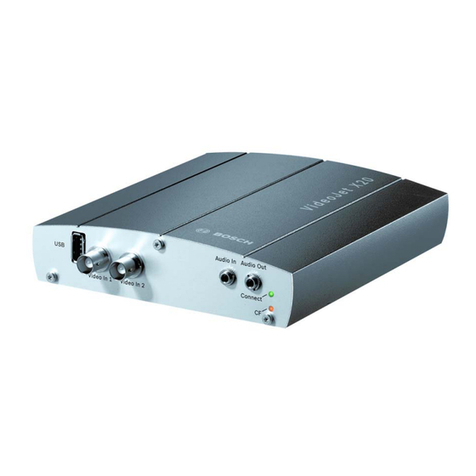

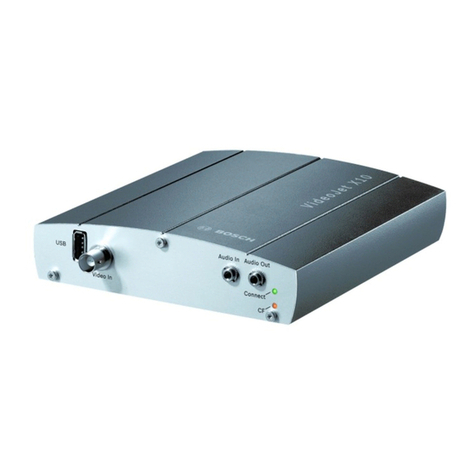

These instructions "Quick Installation Guide" refer to the units
VideoJet X10 SN, VideoJet X20 SN and VideoJet X40 SN. The

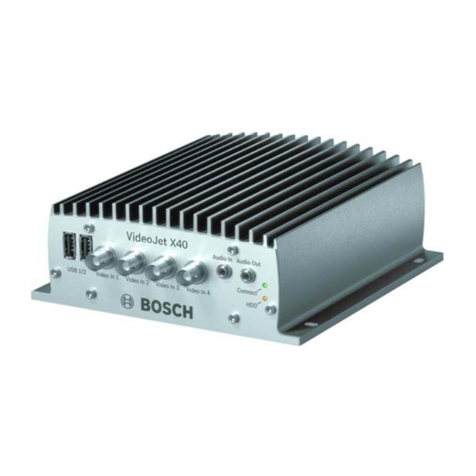

title shows a VideoJet X40 SN. In the drawings the
VideoJet X40 SN is displayed standing for all versions.
Contents of Delivery:
– VideoJet X10 SN, VideoJet X20 SN or VideoJet X40 SN
Network Video Server
– 4 spring clamps
– Product CD
– Quick Installation Guide
!
CAUTION!
You should always make yourself familiar with the required
safety measures in the corresponding chapter of the user's
manual (see CD-ROM supplied). You will find more important
details on the installation and on the operation of the unit in the
manual.
These instructions "Quick Installation Guide" only show the
basic installation of a VideoJet X10 SN, VideoJet X20 SN or
VideoJet X40 SN, but they are no substitute for the complete
user's manual.
All manuals and user guides at all-guides.com

VideoJet X SN Unpack the Box | en 3
Bosch Security Systems Quick Installation Guide F.01U.076.988 | V3.0 | 2007.11
1 Unpack the Box
– Please check the delivery for completeness and integrity.
– Have your unit checked by Bosch Security Systems if you
detect any damages!
All manuals and user guides at all-guides.com

4en | Connect the Camera(s) VideoJet X SN
F.01U.076.988 | V3.0 | 2007.11 Quick Installation Guide Bosch Security Systems
2 Connect the Camera(s)
– VideoJet X10 SN: Connect the camera with the Video In
socket.
– VideoJet X20 SN: Connect one camera to each, the
Video In 1 socket and the Video In 2 socket.
– VideoJet X40 SN: Connect one camera to each, the
Video In 1 socket to the Video In 4 socket.
All manuals and user guides at all-guides.com

VideoJet X SN Connect the Audio Components | en 5
Bosch Security Systems Quick Installation Guide F.01U.076.988 | V3.0 | 2007.11
3 Connect the Audio Components
– Use the Audio In and Audio Out jack sockets for audio line
connections.
All manuals and user guides at all-guides.com

6en | Alarm and Relay Connections VideoJet X SN
F.01U.076.988 | V3.0 | 2007.11 Quick Installation Guide Bosch Security Systems
4 Alarm and Relay Connections
– Connect the alarm switches to the corresponding
terminals.
– Connect the relay connections to the corresponding
terminals.
All manuals and user guides at all-guides.com
all-guides.com

VideoJet X SN Connect to the Network | en 7
Bosch Security Systems Quick Installation Guide F.01U.076.988 | V3.0 | 2007.11
5 Connect to the Network
– Connect the unit to the network via the ETH socket.
All manuals and user guides at all-guides.com

8en | Power Supply VideoJet X SN
F.01U.076.988 | V3.0 | 2007.11 Quick Installation Guide Bosch Security Systems
6 Power Supply
– Connect the power supply lines to the +and –terminals.
– Connect the power supply unit to the power outlet.
i
NOTICE!
Power supply units are not included in delivery. You can order
power supply units in different variations at Bosch Security
Systems.
All manuals and user guides at all-guides.com

VideoJet X SN Configure the IP Address | en 9
Bosch Security Systems Quick Installation Guide F.01U.076.988 | V3.0 | 2007.11
7 Configure the IP Address
– Install the program Configuration Manager from the CD-
ROM provided. If the CD-ROM does not start automatically
doubleclick the index.htm file.
– Start the Configuration Manager when installation is
completed. The network is scanned for compatible devices
automatically.
– When a VideoJet X is listed, click the entry and click the
tab Network, located in the right frame.
– Enter the desired IP address (e.g. 192.168.0.40) in the
Unit IP address field and click the button Set at the
bottom on the right. The new IP address will take effect
after you reboot the unit.
All manuals and user guides at all-guides.com

11 en | Test the Configuration VideoJet X SN
F.01U.076.988 | V3.0 | 2007.11 Quick Installation Guide Bosch Security Systems
8 Test the Configuration
– Launch the Web browser and enter the IP address of the
unit (e.g. http://192.168.0.40) to check that the unit is
properly connected to the network.
– Use the links at the top of the Web pages to navigate.
i
NOTICE!
Set the graphics card of the computer to 16-bit or 32-bit color
depth. Otherwise the computer cannot display the video
images.
