BLUETOOTH®HEADSET
Owner’s Guide | Guía de usuario | Notice d’utilisation
©2010 Bose Corporation, The Mountain,
Framingham, MA 01701-9168 USA
AM328784 Rev.00
BLUETOOTH®HEADSET
Bluetooth Headset cover_AIM.fm Page 1 Thursday, April 29, 2010 1:41 PM

ii
English
Tab 6, 12 Tab 5, 11 Tab 4, 10, 16 Tab 3, 9, 15 Tab 2, 8, 14
Safety Information
Please read this guide
Please take the time to follow the
instructions in this owner’s guide carefully.
It will help you set up and operate your
product properly and enjoy its advanced
features. Please save this owner’s guide
for future reference.
The lightning flash with arrowhead
symbol, within an equilateral
triangle, alerts the user to the
presence of uninsulated
dangerous voltage within the
system enclosure that may be
of sufficient magnitude of
constitute a risk of electric shock.
The exclamation point within an
equilateral triangle alerts the user
to the presence of important
operating and maintenance
instructions in this owner’s guide.
WARNINGS:
• Contains small parts, which may be
a choking hazard. Not suitable for
children under age 3.
• To reduce the risk of fire or electrical
shock, do not expose the product to
rain or moisture.
• Do not expose this apparatus to dripping
or splashing and do not place objects
filled with liquids on the apparatus. As with
any electronic product, use care not to
spill liquids into any part of the system.
Liquids can cause a failure and/or a fire
hazard.
• Do not place naked flame sources,
such as lighted candles, on or near
the apparatus.
• This product is intended to be used only
with the power supply provided.
• Where the mains plug is used as the
disconnect device, such disconnect
device shall remain readily operable.
• Do not disassemble, heat above 100º C
(212º F), or incinerate.
• Do not use your headset while it is con-
nected to the charger.
• Do not use the headset at high volume for
an extended period of time. Doing so can
cause hearing loss. Always listen at mod-
erate levels.
VincentOG.book Page ii Wednesday, June 9, 2010 12:05 PM

iii
English Tab 6, 12 Tab 2, 8, 14 Tab 3, 9, 15 Tab 4, 10, 16 Tab 5, 11
CAUTIONS:
• Make no modification to the system or
accessories. Unauthorized alterations may
compromise safety, regulatory
compliance, and system performance and
may void the warranty.
• Operate this product within the tempera-
ture range of -4°F to 140°F (-20°C to
60°C) only. Damage caused by use out-
side of that range may not be covered by
the warranty.
• Check and follow local laws regarding
use of a mobile phone and headset/
headphones while operating any vehicle
or using equipment that requires your full
attention. If you use the headset/
headphones while engaging in any such
activity, be sure to focus on safety.
This product conforms to all EU
Directive requirements as applicable
by law. The complete Declaration of
Conformity can be found at
www.Bose.com/compliance.
Important Safety
Information
1. Read these instructions – for all
components before using this
product.
2. Keep these instructions – for future
reference.
3. Heed all warnings – on the product
and in the owner’s guide.
4. Follow all instructions.
5. Do not use this apparatus near
water or moisture – Do not use this
product near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet
basement, near a swimming pool,
or anywhere else that water or
moisture are present.
6. Clean only as directed by Bose
Corporation. Unplug this product
from the wall outlet before cleaning.
7. Do not install near any heat
sources, such as radiators,
heat registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
VincentOG.book Page iii Wednesday, June 9, 2010 12:05 PM

iv
English
Tab 6, 12 Tab 5, 11 Tab 4, 10, 16 Tab 3, 9, 15 Tab 2, 8, 14
8. Protect the USB cord from being
walked on or pinched, particularly
at the power supply end and the
point where it exits from the
apparatus.
9. Only use attachments/accessories
specified by the manufacturer.
10. Unplug this apparatus during light-
ning storms or when unused for
long periods of time – to prevent
damage to this product.
11. Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way: such
as USB cord or power supply is
damaged; liquid has been spilled
or objects have fallen into the
apparatus; the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped – Do not attempt to service
this product yourself. Opening or
removing covers may expose you to
dangerous voltages or other hazards.
Please call Bose to be referred to an
authorized service center near you.
12. To prevent risk of fire or electric
shock, avoid overloading wall out-
lets, extension cords, or integral
convenience receptacles.
13. Do not let objects or liquids enter
the product – as they may touch
dangerous voltage points or short-out
parts that could result in a fire or
electric shock.
14. Use proper power sources –
Plug the product into a proper power
source, as described in the operating
instructions or as marked on the
product.
VincentOG.book Page iv Wednesday, June 9, 2010 12:05 PM

v
English Tab 6, 12 Tab 2, 8, 14 Tab 3, 9, 15 Tab 4, 10, 16 Tab 5, 11
In the United States:
This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, this is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, you
are encouraged to try to correct the
interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment to an outlet on a
different circuit than the one to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
Changes or modifications not expressly
approved by Bose Corporation could
void the user’s authority to operate
this equipment.
In Canada:
This product complies with the Canadian
ICES-003 Class B specification.
Operation is subject to the following two
conditions: (1) This device may not cause
interference and (2) this device must
accept any interference received,
including interference that may cause
undesired operation of the device.
VincentOG.book Page v Wednesday, June 9, 2010 12:05 PM

vi
English
Tab 6, 12 Tab 5, 11 Tab 4, 10, 16 Tab 3, 9, 15 Tab 2, 8, 14
Attribution
The Bluetooth word mark and logos are
registered trademarks of Bluetooth SIG,
Inc. and any use of such marks by Bose
Corporation is under license.
Other agency markings
FCC ID: A94BT1R
FCC ID: A94BT1L
IC: 3232A-BT1R
IC: 323A-BT1L
Engineered in the United States
Made in China
XX
VincentOG.book Page vi Wednesday, June 9, 2010 12:05 PM

English Tab 6, 12 Tab 2, 8, 14 Tab 3, 9, 15 Tab 4, 10, 16 Tab 5, 11
CONTENTS
Preparing your headset 2
Thank you . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Headset features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Charging the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pairing your headset and mobile phone . . . . . . . . . . . . . . . . 7
Using the headset 9
Fitting the headset to your ear . . . . . . . . . . . . . . . . . . . . . . . 9
Recognizing the lights and tones . . . . . . . . . . . . . . . . . . . . . 11
Using the headset for calls . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using the multi-point feature . . . . . . . . . . . . . . . . . . . . . . . . 14
Pairing another mobile phone . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting to multiple phones . . . . . . . . . . . . . . . . . . . . . . . 15
Connection priority for multiple phones . . . . . . . . . . . . . . . . 16
Multi-point call options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Reference 17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Technical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
VincentOG.book Page vii Wednesday, June 9, 2010 12:05 PM

2
English
Tab 6, 12 Tab 5, 11 Tab 4, 10, 16 Tab 3, 9, 15 Tab 2, 8, 14
Preparing your headset
Thank you
We appreciate your choice of the Bose®Bluetooth®headset, which
lets you hear and be heard, even as the noise levels around you
change.

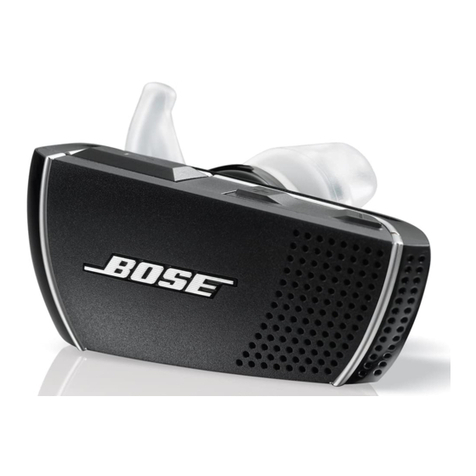

Headset features
Small size, advanced fit, and a few basic buttons and indicators
make the headset easy to wear and easy to use.
Volume
+ and – buttons
Call
button
Battery
indicator
Bluetooth
indicator
Power
on/off switch
StayHearTM tip
(medium) USB
connector
VincentOG.book Page 2 Wednesday, June 9, 2010 12:05 PM

3
English Tab 6, 12 Tab 2, 8, 14 Tab 3, 9, 15 Tab 4, 10, 16 Tab 5, 11
Included with the headset:
USB cable
Power supply
Power supply adapters
(included where needed only)
Additional StayHear™
tips (small and large)
Carry case
VincentOG.book Page 3 Wednesday, June 9, 2010 12:05 PM

4
English
Tab 6, 12 Tab 5, 11 Tab 4, 10, 16 Tab 3, 9, 15 Tab 2, 8, 14
Charging the headset
Before you use the headset, it is important to bring the power
up to full charge for maximum talk time. Be sure the room
temperature is between 40°F (5°C) and 95°F (35°C) and the
product is at room temperature.
Note: Do not attempt to pair or use the headset while it is charging.
1. Plug the small end of one USB cable into the headset. Match
the arrows on the plug and headset to insert the plug correctly.
2. Plug the large end of this cable into either the power supply or
a USB connector on your computer (if the USB connector is
powered).
Or
Arrows
VincentOG.book Page 4 Wednesday, June 9, 2010 12:05 PM

5
English Tab 6, 12 Tab 2, 8, 14 Tab 3, 9, 15 Tab 4, 10, 16 Tab 5, 11
To use the power pack:
1. Extend the power supply prongs.
2. If needed, attach the proper adapter for your region. It snaps
into place when properly seated.
3. To remove an adapter as needed, press back on the release (a)
and lift the adapter up and off (b).
Note: Bose recommends using a safety agency-approved surge
protector on all electronic equipment.Voltage variations and spikes
can damage electronic components in any system. A quality sup-
pressor can eliminate the vast majority of failures attributed to surges
and can be purchased at electronics stores.
Europe
UK
123
ab
VincentOG.book Page 5 Wednesday, June 9, 2010 12:05 PM

6
English
Tab 6, 12 Tab 5, 11 Tab 4, 10, 16 Tab 3, 9, 15 Tab 2, 8, 14
4. Plug the power supply into an AC (mains) wall outlet. Or, if you
are using a computer to charge the headset, you may need to
turn on the computer.
Allow up to 3 hours for this first
charge, although it may take less
time.
The battery indicator on the back of
the headset blinks yellow while the
headset charges, then turns solid
green when charging is completed.
Note: Although the headset battery
is partially charged by the manufacturer, charging before you use it
lengthens your talk time.
Or
Battery light
and symbol
VincentOG.book Page 6 Wednesday, June 9, 2010 12:05 PM

7
English Tab 6, 12 Tab 2, 8, 14 Tab 3, 9, 15 Tab 4, 10, 16 Tab 5, 11
Pairing your headset and mobile phone
The first time you turn on your Bose® Bluetooth®headset, it is
discoverable and ready for pairing. Your Bluetooth mobile phone
can pair and connect to discoverable devices like the headset.
On the phone, there is a list of these
devices under Tools, Bluetooth
Devices, or a similar menu title. Refer
to the instruction manual for your
phone if you are unfamiliar with this
feature or how to activate it.
To begin pairing:
1. Turn on the headset and the
mobile phone.
The Bluetooth indicator on the
back of the headset blinks blue
slowly to show that the headset is
discoverable.
2. Locate the Bluetooth device list on
your mobile phone.
3. Move down the list to the device
named Bose BT1 and make this
selection.
Bluetooth light
and symbol
Bose BT1
Bluetooth
device list
VincentOG.book Page 7 Wednesday, June 9, 2010 12:05 PM

8
English
Tab 6, 12 Tab 5, 11 Tab 4, 10, 16 Tab 3, 9, 15 Tab 2, 8, 14
Note: If the Bose headset does not appear in the list, press and hold
the Call button on the headset until the Bluetooth light blinks (in about
5 seconds). This makes the headset manually discoverable so it
shows up in the list for selection.
4. If your mobile phone asks for a passkey, enter digits 0000
and press OK. Some phones ask you to accept connection,
as well.
As the two devices connect, the Bluetooth indicator on the
headset flashes, then turns solid blue to indicate a successful
connection. This light turns off in 30 seconds when paring is done
for the first time.
To pair an additional phone (up to a total of 6):
With the mobile phone and your headset turned on, press and hold
the headset call button to make the headset discoverable again.
Then follow steps 2 – 4 beginning on page 7.
Deleting a no-longer-used phone
To make sure the headset no longer connects to an old mobile
phone, you can clear the headset memory and then re-pair it to
the phones you want.
To clear the headset pairing memory, simultaneously press the
Call and Volume – buttons for 10 seconds. The headset reverts to
discoverable mode, allowing you to re-pair the mobile phone you
want connected.
VincentOG.book Page 8 Wednesday, June 9, 2010 12:05 PM

9
English Tab 6, 12 Tab 2, 8, 14 Tab 3, 9, 15 Tab 4, 10, 16 Tab 5, 11
Using the headset
When you wear the headset properly, it provides the comfort you
expect from Bose.
Fitting the headset to your ear
The soft StayHear™ tip allows the headset to rest comfortably
along the bowl of your ear. The wing part of the tip fits just under
the ear ridge.
To determine if the tip is the right size:
1. Tilt the headset forward so the ear-
piece lines up with your ear canal.
Note: Which ear you use depends on
whether you own a left or right headset.
Ear canal
StayHear tip
1
Tip
wing
VincentOG.book Page 9 Wednesday, June 9, 2010 12:05 PM

10
English
Tab 6, 12 Tab 5, 11 Tab 4, 10, 16 Tab 3, 9, 15 Tab 2, 8, 14
2. Insert the tip into
your ear canal just
enough for the
headset to rest in
position.
3. Tilt the headset
back (a) and press
the tip wing (b)
under the ear
ridge until it is
secure.
If it feels uncomfortable
1. Choose the smaller or larger earpiece tip (to replace the
medium one you remove).
2. Gently peel the edges of the
attached tip away from the earpiece,
using care not to tear the tip. To
prevent damage, do not pull on the
tip wing.
3. Position the opening of the new tip
over the nozzle and the small slot
over the nozzle hook.
4. Ease the base of the tip down
around the base of the earpiece until
the tip feels secured.
Tip
wing
Ear ridge
a
b
23
Tip
wing
Slot
Nozzle
hook
VincentOG.book Page 10 Wednesday, June 9, 2010 12:05 PM

11
English Tab 6, 12 Tab 2, 8, 14 Tab 3, 9, 15 Tab 4, 10, 16 Tab 5, 11
Recognizing the lights and tones
When you first turn on the headset, both indicator lights glow.
• The battery indicator glows to show there is power.
•TheBluetooth®indicator glows blue to show the state of
connection.
In addition to these indicators, the headset emits tones in
response to actions.
Among these tones, you may notice:
Four notes (low to high) sound when the headset turns on.
Four notes (high to low) sound when the headset turns off.
Three quick notes sound when the headset connects to your
mobile phone.
Two notes (high to low) sound when you end a call.
Low beep (repeats in minutes) indicates when the battery is
low.
One note per press (low to high) indicates volume increase.
One note per press (high to low) indicates volume decrease.
VincentOG.book Page 11 Wednesday, June 9, 2010 12:05 PM

12
English
Tab 6, 12 Tab 5, 11 Tab 4, 10, 16 Tab 3, 9, 15 Tab 2, 8, 14
Most indicator lights turn off in 10 seconds to conserve battery
power. Only the red and yellow battery lights flash continuously.
Battery light
status
Bluetooth light
status
While using the headset:
Green, solid - Up to 4.5
hours of talk time or 150
hours in standby.
Yellow, solid - About 1 hour
of talk time or 45 hours in
standby.
Red, slow flashing - Less
than 30 minutes of talk time
or 22 hours in standby.
Blue light:
Slow flashing - The headset is
discoverable for pairing.
Quick flashing - The headset is
connecting to a mobile phone
or is receiving or making a call.
Solid - The headset is
connected.
While charging the headset:
Yellow, flashing - charging
is ongoing.
Green, solid - charging is
complete.
Red, solid - charging error
(the room temperature or
product may be too warm
or cold).
Red light:
Flashing slowly - The headset
and a mobile phone are not
connected.
One of them is not turned on,
or the two are more than 30 ft
(10 m) apart.
VincentOG.book Page 12 Wednesday, June 9, 2010 12:05 PM

13
English Tab 6, 12 Tab 2, 8, 14 Tab 3, 9, 15 Tab 4, 10, 16 Tab 5, 11
Using the headset for calls
You can respond to an incoming call or initiate a call with
one press of the Call button.
You may notice a brief tone when the headset reacts to each
new action.
Basic call actions:
Answer an incoming call by pressing the Call button.
Make a call by either:
• Pressing the Call button and using voice commands to select
and dial the mobile phone number (if your mobile phone
responds to voice commands).
• Or, using your phone directly to choose and dial the number you
want.
Then you can complete the call without using your phone again.
End a call by pressing the Call button.
Adjust the volume by pressing the Volume + or – button during a
call. Or change the volume on your phone.
Mute a call by pressing the Volume + and – buttons at the same
time. Press the two buttons again to unmute the call.
VincentOG.book Page 13 Wednesday, June 9, 2010 12:05 PM

14
English
Tab 6, 12 Tab 5, 11 Tab 4, 10, 16 Tab 3, 9, 15 Tab 2, 8, 14
Transfer the audio to your mobile phone by pressing and
holding the Call button (during a single phone call, only).
Redial a call by pressing the Call button two times.
Reject an incoming call by briefly pressing and holding the
Call button.
Put an active call on hold and answer the other phone by
pressing the Call button. This feature is known as call waiting.
Switch between two calls by pressing the Call button twice.
This is called 3-way calling. It also allows you to hold conference
calls, if your phone provides this feature.
Using the multi-point feature
Multi-point enables your Bose®Bluetooth®headset to maintain an
active connection with two mobile phones. So the headset is
ready when you make or take calls on both a personal and a work
phone, for example.
Using.fm Page 14 Friday, June 18, 2010 3:37 PM
