BOSKA Cheese-O-Matic User manual

PROFESSIONAL
Cheese-O-Matic
PROFESSIONAL

EN
INSTALLATION & USE
The Cheese-O-Matic® is a safe, hand-operated cutting device, that allows you to cut both young
and ripened cheese fast, perfect and straight. Even cutting very aged, crumbly cheese is no problem
with the Cheese-O-Matic®. Not only can it be used to halve large cheeses, but also for cutting
smaller pieces or thick slices, always with an impeccably clean and straight cutting edge.
The Cheese-O-Matic® can of course also be used as a cutting board!
1x
WHAT’S IN THE BOX:
2x
TECHNICAL INFORMATION
CHEESEOMATIC® PLASTIC
Art. no. 550500
EAN: 8713638005126
Dimensions 490x375x115 mm
Weight 4.00Kg
Material HMPE, aluminium, poly-
propyleen
CHEESEOMATIC® BEECH
Art. no. 550000
EAN: 8713638002484
Dimensions 490x375x115 mm
Weight 3.65 Kg
Material Beuken, aluminium, poly-
propyleen, HMPE

2. Place the clamp guide over the aluminium
profile and fasten it to the cutting board using the
supplied screws.
3. Repeat on the other side.
5. Place the Cheese-O-Matic® on the countertop.
Slide the clamp up, until it reaches the bottom of
the counter. Then rotate the knob until fastened.
4. Place the clamp in the clamp guide. Leave the
turning knob somewhat loose.

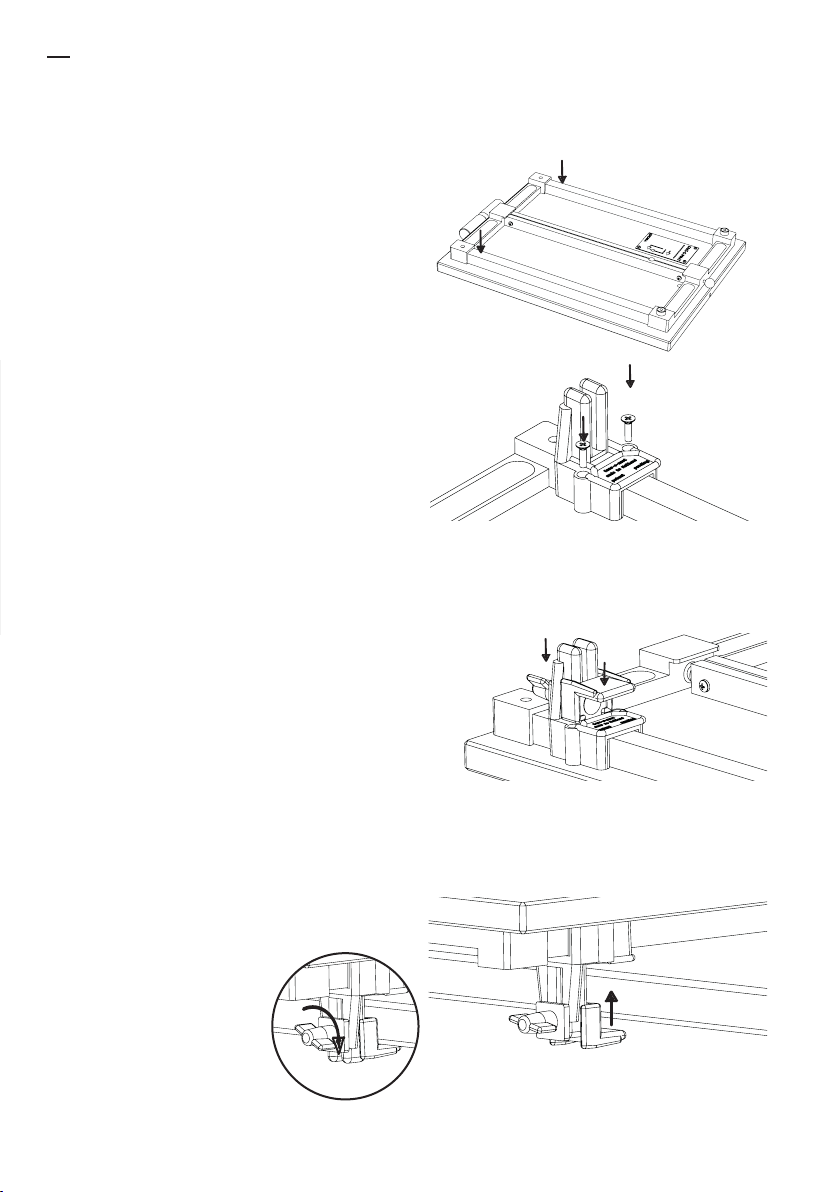

Use the counter hooks to fixate the Cheese-O-Matic® to your countertop. Follow these steps to
install the mounting hooks:
Attention! Place the counter hooks on the side
the handle is on.
1. Place the Cheese-O-Matic® upside down.
EN

EN

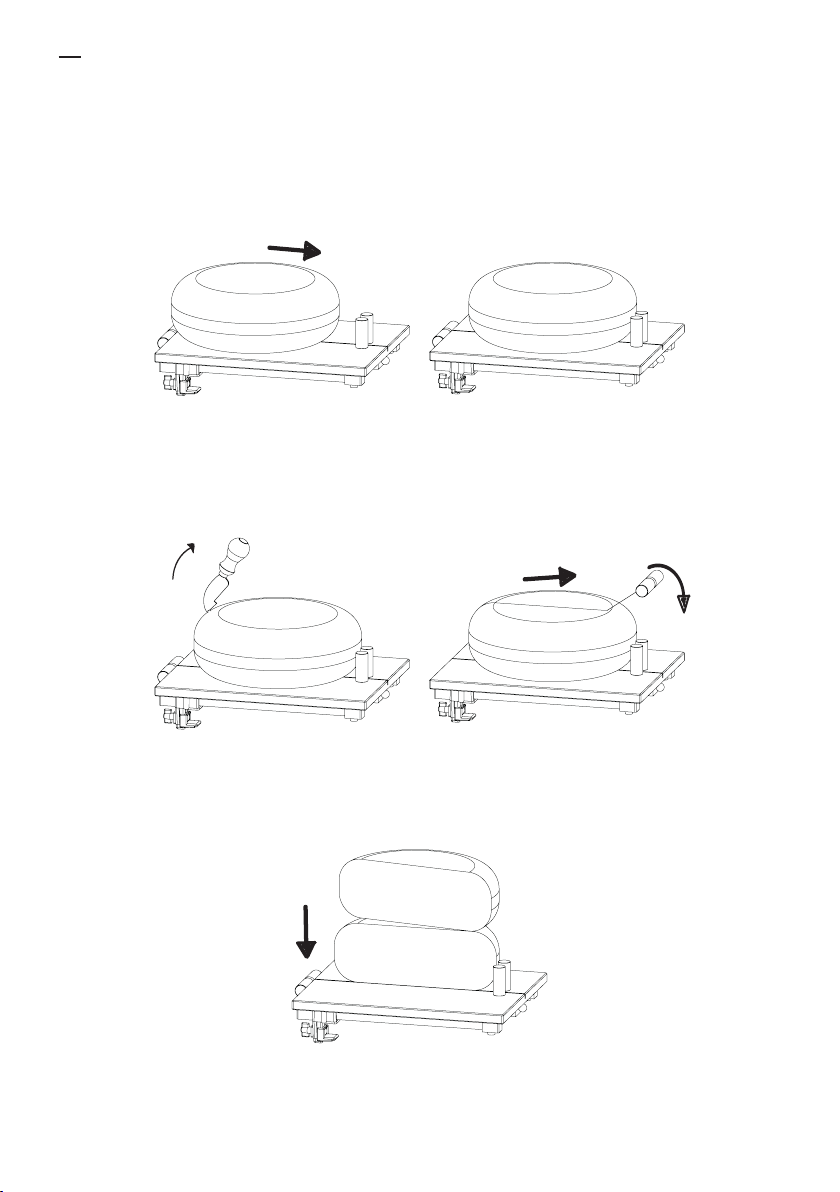

HOW TO CUT CHEESE
The device is suitable for dividing all young, semi-hard or crumbly cheeses into wedges. For an
extended instruction, please visit www.boska.com or our YouTube channel.
1. Position the cheese on the cutting board, against the positioning pins.
2. Always create an incision in the cheese rind using the scoring knife (available seperately). This
extends the lifespan of the wire significantly.
3. Take the handle and pull the wire against the cheese, in the incision. Keep the other hand on the
cheese, out of reach of the wire. Pull the wire through the cheese.
4. After cutting, place the handle back in the recess on the far end of the Cheese-O-Matic®.

CLEANING
• Clean the Cheese-O-Matic® daily after final use.
• The Cheese-O-Matic® needs to be cleaned between switching to a different type of cheese to
prevent cross-contamination.
• Use hot water, a soft brush and a neutral cleaning detergent, such as green soap or dish soap,
to clean the Cheese-O-Matic®. The Cheese-O-Matic® can also be cleaned in the dishwasher
(exclusively the white plastic edition, article 550500). For optimal lifespan, do not wash the
cutting wire in the dishwasher.
• Do not use water hotter than 70°C (160°F) to prevent damage to the plastic parts.
• Never use hard brushes, scratching materials, soda- chlorine- disinfectant or aggresive cleaning
detergents for cleaning.
• Flush the Cheese-O-Matic® with water after cleaning. Dry the machine thouroughly to prevent
deterioration of parts due to dust and moisture.
WARNINGS
• At all times create an incision in the cheese rind at the wire entry point. This greatly extends the
lifespan of the wire.
EN

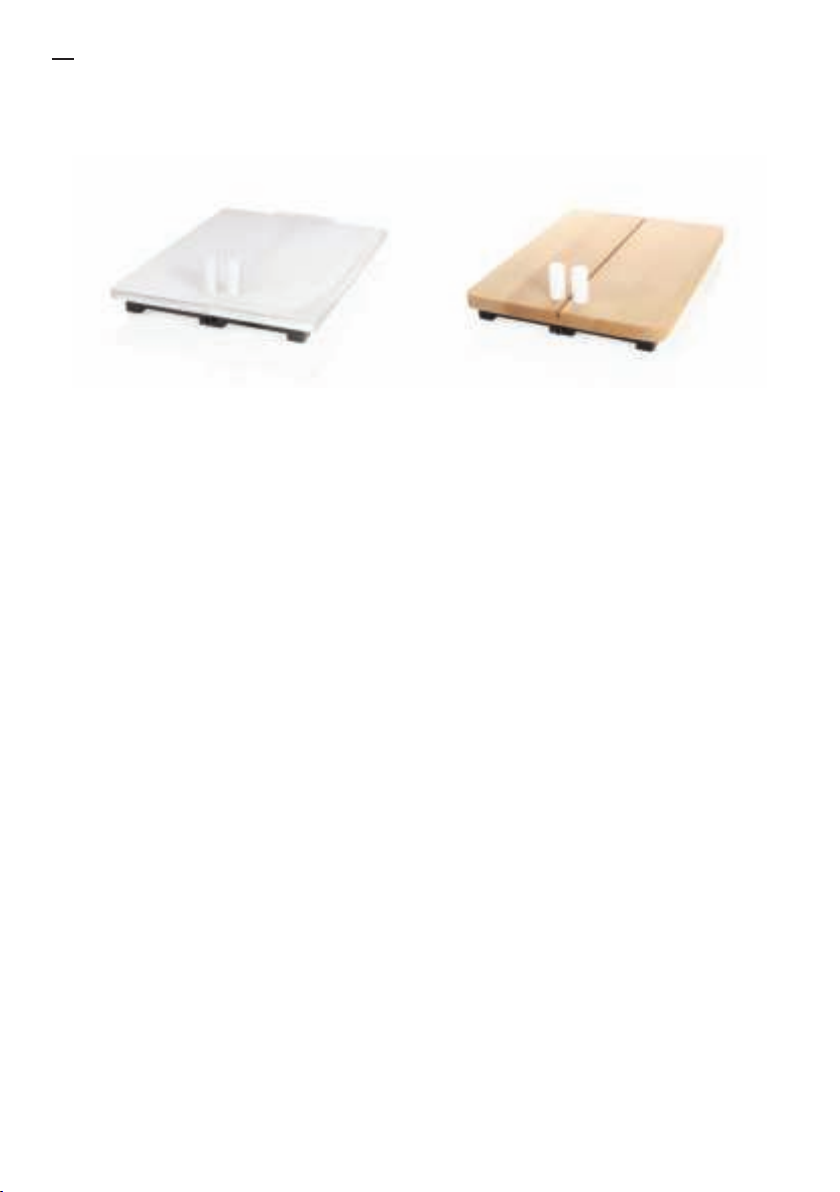

EDITIONS
The Cheese-O-Matic® is available with a white plastic (550500) or oiled beech (550000) cutting
board.

EN
REPLACING THE CUTTING WIRE
A A
B B
2
2
1
1
Material <not specified>
DO NOT SCALE DRAWING
2
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:10
WEIGHT: 25207.52
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
oppervlak behandeling
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
APPLICATION
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
SOLIDWORKS Educational Product. For Instructional Use Only.
SOLIDWORKS Educational Product. For Instructional Use Only.

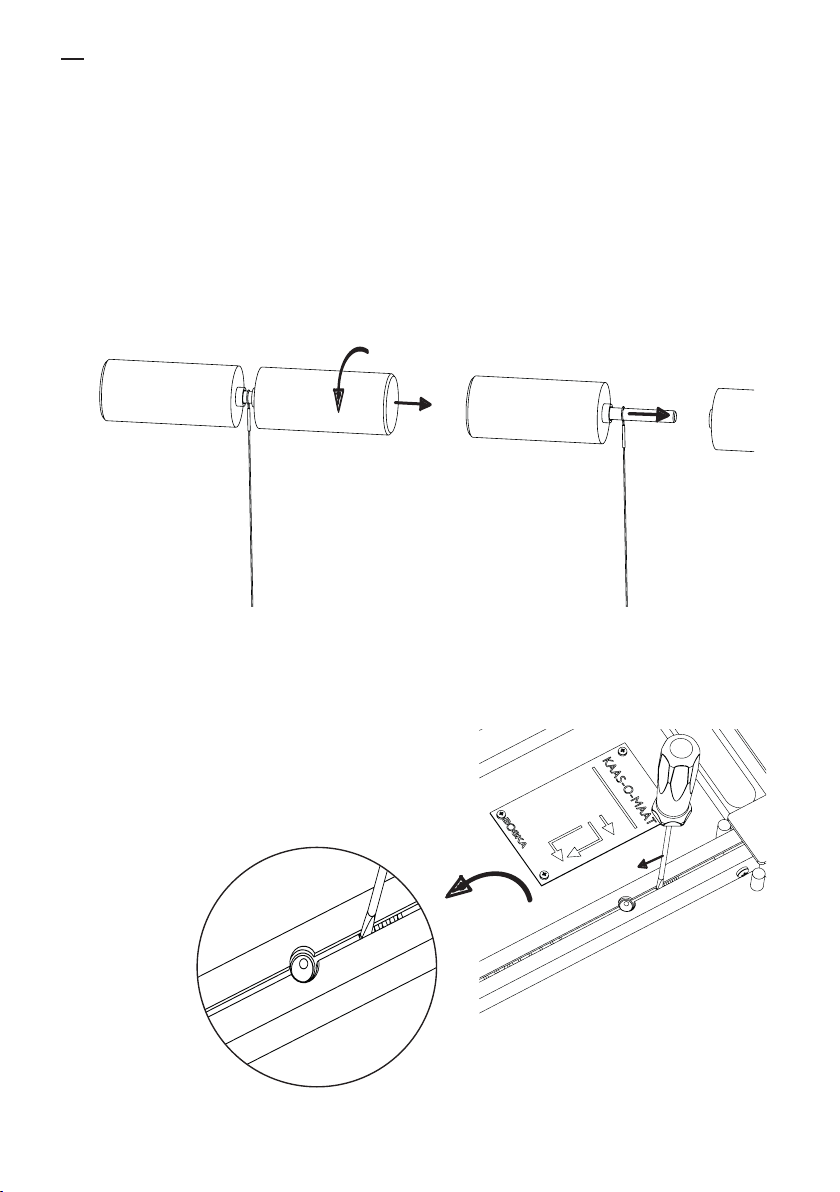

• Twist half the handle, so it comes loose from the thread.
• Slide the loop off the thread.
• Place the machine upside down.
• Place a small flat-head screwdriver behind
the block in the rail, like shown in the illus-
tration on the right. Then push the block
towards you, so the ball of the wire lines
up with the round opening in the rail.
A A
B B
2
2
1
1
Material <not specified>
DO NOT SCALE DRAWING
2
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:10
WEIGHT: 25207.52
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
oppervlak behandeling
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
APPLICATION
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
SOLIDWORKS Educational Product. For Instructional Use Only.
SOLIDWORKS Educational Product. For Instructional Use Only.
Cutting wires are available for re-order on www.boska.com, article no. 552010.

Warranty
The conditions for warranty on professional cheese tools can be found on
www.en.boska.com/garantee
SOLIDWORKS Educational Product. For Instructional Use Only.
EN

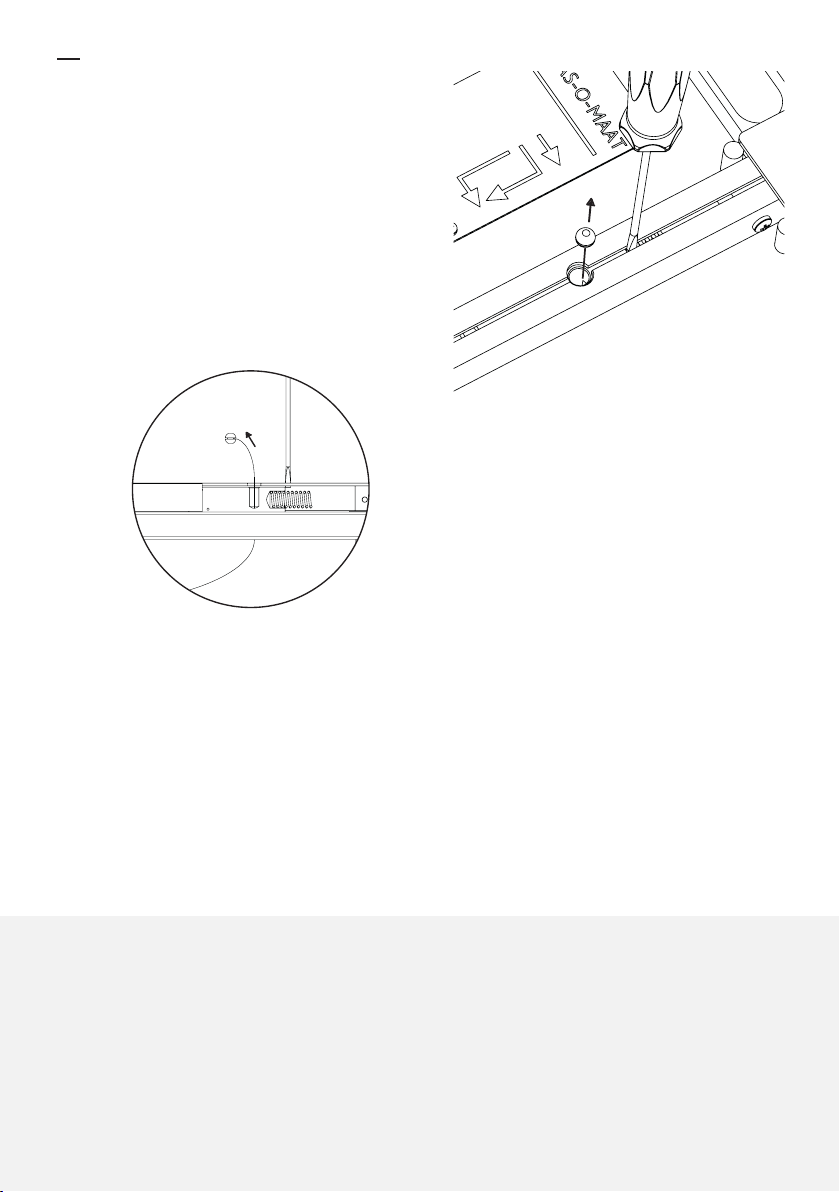

• Now that the ball is lined up with the
opening, the ball can be pushed out by
pushing the wire up from below. Then pull
the whole wire through the rails.
• The new wire can be placed by pulling the
wire through the round opening. One the
ball is in position, the screwdriver can be
released.
• Lastly, the wire can be attached to the
handle as shown in step 1.

NL
INSTALLATIE & GEBRUIK
De Kaas-O-Maat® is een veilig handbediend snijapparaat waarmee je snel, perfect en eenvoudig
zowel jonge als oude kaas recht kunt doorsnijden. Ook het snijden van brokkelige, zeer harde kaas is
geen enkel probleem met de Kaas-O-Maat®. U kunt er niet alleen grote kazen mee halveren, maar
deze ook verder opsnijden in kleine stukken of dikke plakken, altijd met een onberispelijk glad, gaaf
en recht snijvlak.
De Kaas-O-Maat® kan uiteraard ook als gewone snijplank worden gebruikt!
1x
INHOUD:
2x
TECHNISCHE INFORMATIE
KAASOMAAT® KUNSTSTOF
Art. nr. 550500
EAN: 8713638005126
Afmetingen 490x375x115 mm
Gewicht 4.00Kg
Materiaal HMPE, aluminium, poly-
propyleen
KAASOMAAT®BEUKEN
Art. nr. 550000
EAN: 8713638002484
Afmetingen 490x375x115 mm
Gewicht 3.65 Kg
Materiaal Beuken, aluminium, poly-
propyleen, HMPE

2. Plaats de klemgeleider over het aluminium pro-
fiel en bevestig deze aan de snijplank door middel
van de bijgeleverde schroeven.
3. Herhaal dit ook voor de andere zijde.
5. Plaats de Kaas-O-Maat® op de toonbank.
Schuif de klem omhoog totdat deze de onderzijde
van de toonbank grijpt. Draai dan de draaiknop
aan tot deze strak dicht zit.
4. Schuif de rest van de klem in de klemgeleider.
Laat de draaiknop nog wat los.
Gebruik de bevestigingshaken om de plank te fixeren aan het toonbankwerkblad. Deze haken kun je
alsvolgt monteren op je Kaas-O-Maat®:
Let op! Plaats de toonbankhaken aan de kant van
het handvat.
1. Leg eerst de Kaas-O-Maat® op zijn kop.
NL

NL
HOE SNIJD JE DE KAAS
Apparaat is geschikt voor het in stukken verdelen van alle jonge, half harde, of brokkelkazen. Voor
een uitgebreide video instructie ga je naar www.boska.com of ons YouTube kanaal.
1. Leg de kaas op de snijplank tegen de aanlegpennen.
2. Maak altijd eerst een beginsnede met een kerfmes (los verkrijgbaar) in de korst. Dit verlengd de
levensduur van de draad aanzienlijk.
3. Pak de handgreep en trek de draad strak tegen de kaas. Houd je andere hand op de kaas, maar
buiten bereik van de snijdraad. Trek de draad naar je toe door de kaas heen.
4. Plaats na gebruik de handgreep terug in de uitsparing op de kop van de snijplank.
