Bostitch 750S5 User manual

Stanley Fastening Systems L.P.
IP1105-1REVH 10/07

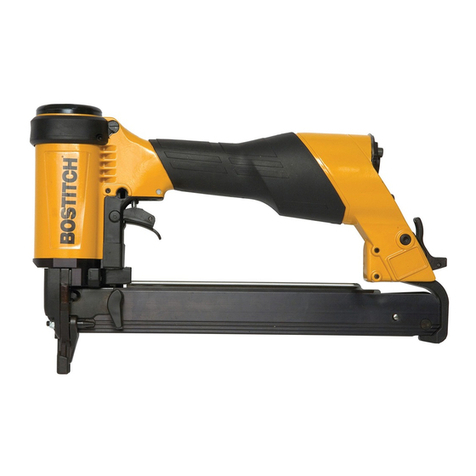

750S5
PNEUMATIC STAPLER
ENGRAPADORA NEUMÁTICA
AGRAFEUSE PNEUMATIQUE
TOOL PARTS ILLUSTRATION
ILUSTRACIÓN DE LAS PIEZAS DE LA HERRAMIENTA
ILLUSTRATION DES PIÈCES D'OUTILLAGE
BEFORE PERFORMING REPAIRS ON THIS TOOL, ALL OPERATORS SHOULD STUDY
THIS ILLUSTRATION, AS WELL AS THE PARTS LIST AND OPERATION AND MAIN-
TENANCE MANUAL. OPERATORS SHOULD UNDERSTAND AND FOLLOW ALL SAFE-
TY WARNINGS AND INSTRUCTIONS. KEEP THIS ILLUSTRATION WITH THE TOOL
FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT YOUR
BOSTITCH REPRESENTATIVE OR DISTRIBUTOR.
ANTES DE LLEVAR A CABO CUALQUIER REPARACIÓN EN LA HERRAMIENTA,
TODOS LOS OPERARIOS DEBERÁN ESTUDIAR ESTA ILUSTRACIÓN, ASÍ COMO
LA LISTA DE PIEZAS Y EL MANUAL DE OPERACIÓN Y MANTENIMIENTO. LOS
OPERARIOS DEBERÁN ENTENDER Y SEGUIR TODAS LAS ADVERTENCIAS E
INSTRUCCIONES DE SEGURIDAD. CONSERVE ESTAILUSTRACIÓN CON LA
HERRAMIENTA PARA PODER CONSULTARLA EN LO FUTURO. SI TUVIERA
ALGUNA PREGUNTA, PÓNGASE EN CONTACTO CON SU REPRESENTANTE O
DISTRIBUIDOR DE BOSTITCH.
AVANT DE PROCÉDER À LA RÉPARATION DE CET OUTIL, LES OPÉRATEURS
DOIVENT ÉTUDIER LA PRÉSENTE ILLUSTRATION AINSI QUE LA LISTE DE
PIÈCES ET LE MANUEL D’INSTRUCTIONS ET D'ENTRETIEN ; ILS DOIVENT
ÉGALEMENT COMPRENDRE ET OBSERVER LES CONSIGNES DE SÉCURITÉ ET
LES INSTRUCTIONS. CONSERVER CETTE ILLUSTRATION AVEC L'OUTIL POUR
RÉFÉRENCE FUTURE. SI VOUS AVEZ DES QUESTIONS, COMMUNIQUEZ AVEC
VOTRE REPRÉSENTANT OU VOTRE DISTRIBUTEUR DE BOSTITCH.
750S5
PNEUMATIC STAPLER
ENGRAPADORA NEUMÁTICA
AGRAFEUSE PNEUMATIQUE
96
95
94
OPTIONAL
WEIGHT ATTACHMENT KIT
OPTIONAL
WRAP AROUND
CONTACT ARM

IP1105-1REVH 10/07
TO BE USED WITH PARTS LIST IP1105-2 AND OPERATION AND MAINTENANCE MANUAL 105805.
750S5
PNEUMATIC STAPLER
ENGRAPADORA NEUMÁTICA
AGRAFEUSE PNEUMATIQUE
DRIVER PISTON
ASSEMBLY
Assemble both rollpins from
same side, flush with surface
and orient rollpin slots as
shown. (180°apart)
ALSO SEE REVERSE FOR:
1) OPTIONAL WEIGHT ATTACHMENT KIT
2) OPTIONAL WRAP AROUND CONTACT ARM
3) OPTIONAL LONG MAGAZINE KIT
160-180 IN/LBS
TORQUE
(184-207 CM/KG)
95-105 IN/LBS
TORQUE
(109-129 CM/KG)
95-105 IN/LBS
TORQUE
(109-129 CM/KG)
125-135 IN/LBS
TORQUE
(144-156 CM/KG)
60-70IN/LBS
TORQUE
(69-81 CM/KG)
60-70IN/LBS
TORQUE
(69-81 CM/KG)
*Not used for trigger operated tools.
85
97

BOSTITCH
750S5 Parts List: IP1105-2REVS
To be Used with tool parts illustration: IP1105-1REVH
and operation and maintenance manual: 105805
Serial Number on the Tool: 750S5 8113 000 and Higher
ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION
1 105749 SCREW,SFHCS,M8x1.25x20 56 103768 PIN,MAGAZINE COVER
2 103785 DEFLECTOR 57 105780 PIN,LATCH
3 MSC6100-30 SCREW,SHCS,M6X1.00X30 58 103851 BOLT,SQUARE(SPECIAL)
4 103816 CAP,FRAME 59 103776 MAGAZINE STOP
5 103859 NUT,HFN,M8X1.25 61 107310 SPRING,C.T.,INNER
6 103760 BUMPER,TOP 62 107221 NOSE,750S5
7 103767 SPRING,HEAD VALVE 63 103871 COVER,CONTACT ARM
8 103761 VALVE, HEAD 65 105776 SPRING,C.T.,OUTER
9 MRG041630 O-RING,1.638X.118 66 103865 NUT,ADJUSTING
10 103813 O-RING,2.217X.103 67 103864 ADAPTER
11 103818 RETAINER,CYL.SLEEVE 68 103792 ARM,LOWER CONTACT
12 103814 SEAL,CYLINDER 69 103838 PIN,NOSE
13 850006 O-RING,1.987X.103 70 103828 CORE TIP,750S5
14 104597 CYLINDER 71 105802 LABEL,MODEL 750S5
15 851753 O-RING,2.734X.139 72 104600 COVER,MAGAZINE
16 104605 RING,CYLINDER SLEEVE 73 103839 SPRING,TORSION
17 103862 GARTER BAND 74 103812 COVER,CORE,S5
18 103826 O-RING,PISTON,URETHANE 75 104613 SPRING,PUSHER ASSEMBLY
19 103759 PISTON,T55 76 103846 PUSHER,S5
20 UB2111.2 PIN,SPRING,.125X.69 77 105793 CORE ASSEMBLY
21 UB4809.1 PIN,SPRING,.219X.69 78 103791 HANDLE,PUSHER
22 106075 KIT,DRIVER REPLACEMENT-750S5 79 STV2 KIT,TRIGGER VALVE-SPEED
23 103802 SEAL,CAP 80 T55092 ROCKER,TRIGGER
24 107149 PROTECTOR,FRAME 81 MPD016012 PIN,DOWEL,.062X.459
25 105797 LABEL 82 100607 ASSEMBLY,TRIGGER
26 105811 SCREW,TRIGGER PIVOT 83 TVA6 KIT,TRIGGER VALVE
27 107180 FRAME OVERMOLD 85 SEQ6 KIT,SEQUENTIAL
28 103758 BUMPER,BOTTOM 86 MPP030020 PIN,SPIRAL M3X20MM
29 103803 GUIDE,DRIVER,50S5 87 105821 SLEEVE,FRAME GUARD
31 103782 FRAME,BOTTOM 88 851934 LABEL, TRIP ADJ.
32 MSC6100-35 SCREW,SHCS,M6X1.00X35 89 106869 KIT,TRIGGER VALVE
33 MSC6100-30 SCREW,SHCS,M6X1.00X30 90 107191 TRIGGER OPER TRIGGER ASSY
34 105773 ARM,UPPER CONTACT ASSY 92 106961 BEARING,COVER PIN
35 105808 COVER,CONTACT ARM ASSEMBLY 93 159927 LABEL,WARNING,T.O.
36 100298 PIN,SPIRAL M3X30 94 107205 KIT,WEIGHT ATTACHMENT
37 MHE3050-100 NUT,NYLON M3X.50 95 107596 ARM,WRAP AROUND CT-750
38 106953 UPPER TRIP GUIDE ASSY 96 108075 KIT,LONG MAG 750S5
40 RG198907-1 O-RING,1.989X0.070 97 MSC5080-20 SCREW,SOC HD. CAP M5 X 20
41 MHE6100-100 NUT,ESN M6X1 
42 105782 BRACE,LUG
43 103808 SEAL,END CAP
44 104602 CAP,FRAME END
45 103819 RETAINER,END CAP
46 MSC5080-25 SCREW,SHCS,M5X0.80X25
47 103786 CAP,MAGAZINE END
48 104612 WASHER
49 105786 SPRING,LATCH LEVER
50 103806 BUSHING,SPRING
51 103447 TOGGLE,MAGAZINE
52 MPG030012 PIN,SPRING,M3X12MM
53 103858 PIN,SPRING,4X20MM
54 159918 LABEL,WARNING,650/750/850
55 103795 DISC,LATCH STOP
