Boston Scientific precision spectra Manual

CAUTION: Federal law restricts this device to sale,
distribution and use by or on the order of a physician. 90970875-06 REV A
en tres rufr arde elit cznl sksv plhuno da pt ptBR
Directions for Use
Instrucciones de uso
Mode d’emploi
Gebrauchsanweisung
Istruzioni per l’uso
Gebruiksaanwijzing
Bruksanvisning
Käyttöohje
Bruksanvisning
Brugsanvisning
Instruções de Utilização
Instruções de uso
Kullanım Talimatları
Указания по использованию
 
Οδηγίες χρήσης
Návod k použití
Návod na použitie
Instrukcja obsługi
Használati utasítások
Precision Spectra™ System
Implantable Pulse Generator
Directions for Use
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 1 of 290

Implantable Pulse Generator
en
Implantable Pulse Generator
90970875-06 Rev A ii of iv
Guarantees
Boston Scientic Corporation reserves the right to modify, without prior notice, information relating to its
products in order to improve their reliability or operating capacity.
Drawings are for illustration purposes only.
Trademarks
All trademarks are the property of their respective holders.
Industry Canada Equipment Certication Number
IC: 9773A-SC1132
Additional Information
For Indications and related information, see the Indications DFU. For contraindications, warnings,
precautions, adverse events summary, physician instructions, sterilization, component disposal, and
contact information for Boston Scientic, refer to the Information for Prescribers DFU for your spinal cord
stimulator system. For other device-specic instructions not included in this manual, labeling symbols, and
warranty information, refer to the appropriate DFU as listed on your Reference Guide.
For information regarding the Patient Identication Card, FCC rules and for clinical studies
supporting the clinical use of the neurostimulation system, refer to the Information for Prescribers manual
for your SCS system.
Product Model Number
Model Number Description
SC-1132 Implantable Pulse Generator
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 2 of 290

en
Implantable Pulse Generator
90970875-06 Rev A iii of iv
Table of Contents
Description........................................................................................................................................................................ 1
Compatible Leads:....................................................................................................................................................... 1
Package Contents ............................................................................................................................................................ 1
IPG Kit.......................................................................................................................................................................... 1
Max Current Amplitude per Electrode Vs Impedance................................................................................................... 2
(for all leads other than the 4x8 Surgical Lead) ........................................................................................................... 2
Max Current Amplitude per Electrode Vs Impedance................................................................................................... 2
(for the 4x8 Surgical Lead)........................................................................................................................................... 2
Max Amplitude Based on Frequency and Pulse Width ................................................................................................ 3
(for all leads other than the 4x8 Surgical Lead) ........................................................................................................... 3
Max Amplitude Based on Frequency and Pulse Width ................................................................................................ 3
(for the 4x8 Surgical Lead)........................................................................................................................................... 3
Specications and Technical Data.................................................................................................................................. 4
Materials............................................................................................................................................................................ 4
Radiopaque Identication Tag ........................................................................................................................................ 5
Registration Information.................................................................................................................................................. 5
Instructions for Use.......................................................................................................................................................... 6
IPG Handling and Storage........................................................................................................................................... 6
Pre-Op Instructions...................................................................................................................................................... 6
IPG Implantation .......................................................................................................................................................... 6

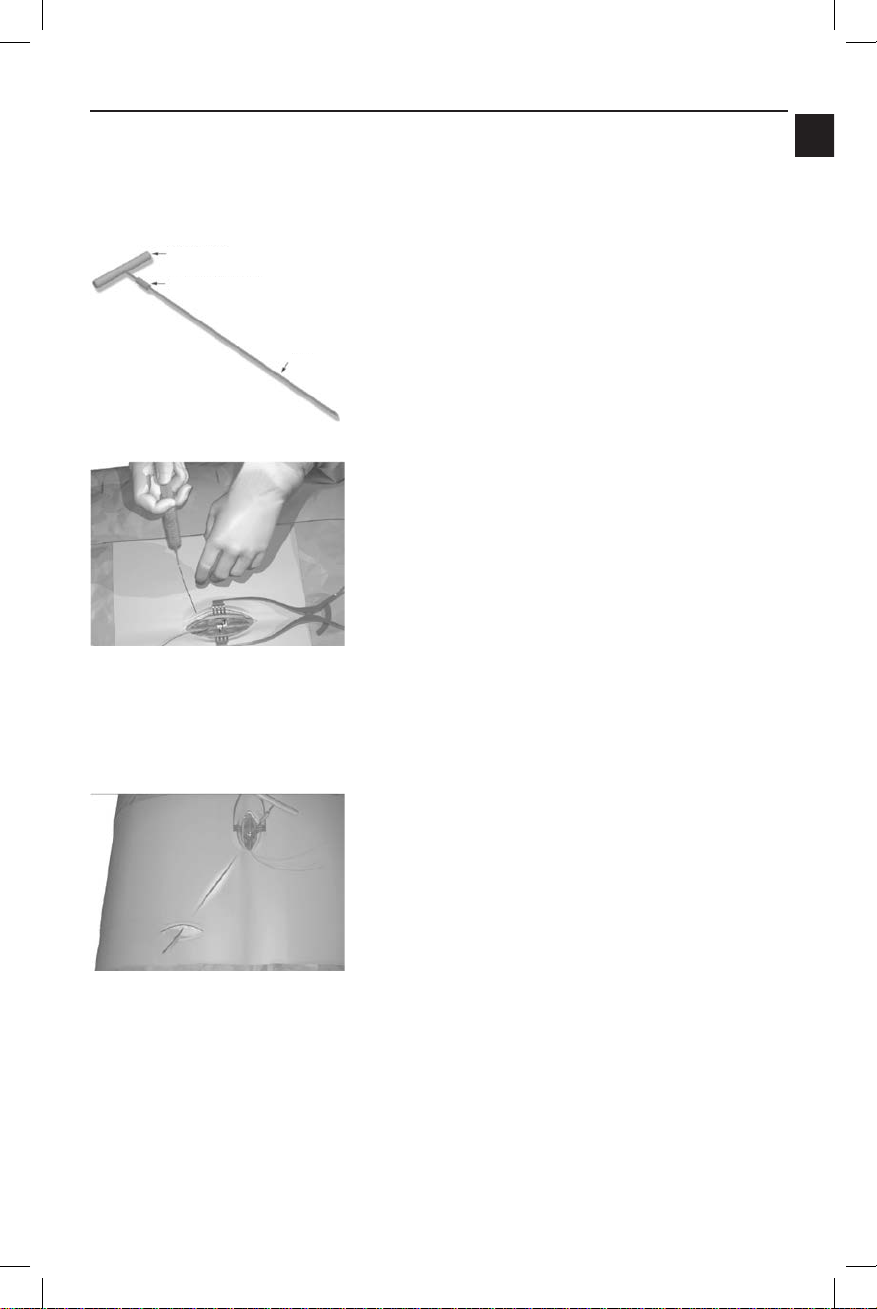

Tunneling the Lead or Lead Extension ........................................................................................................................ 7
Connecting the Lead, Extension, Splitter, or Connector to the IPG............................................................................. 9
IPG Explant or Replacement ......................................................................................................................................11
Rechargeable Stimulator System ..................................................................................................................................11
Charging Steps................................................................................................................................................................11
IPG Battery Status.......................................................................................................................................................... 12
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 3 of 290

Implantable Pulse Generator
en
Implantable Pulse Generator
90970875-06 Rev A iv of iv
This page intentionally left blank.
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 4 of 290

Description
Implantable Pulse Generator
90970875-06 Rev A 1 of 285
en
Description
The Precision Spectra™ Implantable Pulse Generator (IPG) system is intended to treat chronic pain
by electrically stimulating the spinal cord. The multi-channel, multi-electrode device capability provides
exibility in conjunction with ease of programming. A rechargeable battery increases IPG longevity
and output capability while reducing size and device replacement surgeries. The IPG is controlled by a
handheld Remote Control, and can be engaged by a clinician programmer using proprietary programming
software. Periodically, the IPG battery requires replenishing with an external RF charging device.
Compatible Leads:
• Innion™ 16 xx cm 16 contact lead
• Innion CX xxcm 16 Contact Lead
• Linear™ xx cm 8 Contact Leads
• Linear ST xx cm 8 Contact Leads
• Linear 3-4 xx cm 8 Contact Leads
• Linear 3-6 xx cm 8 Contact Leads
• Artisan™ 2x8 Surgical leads
• CoverEdge™ 32 xxcm 4x8 Surgical Lead
• CoverEdge X 32 xxcm 4x8 Surgical Lead
• 8 Contact Extensions
• 2x4 Splitters
• 2x8 Splitters
Note: xx denotes length (cm)
The Precision Spectra System supports any combination of 8 contact percutaneous, 16 contact
percutaneous and 16 contact surgical leads totaling up to 32 active contacts.
Package Contents
IPG Kit
(1) Precision Spectra Implantable Pulse Generator
(1) Hex Wrench
(1) Tunneling Tool Assembly
(1) IPG Pocket Template
(4) Port Plugs
(1) Device Registration Form and Temporary Patient Identication Card
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 5 of 290

Implantable Pulse Generator
Implantable Pulse Generator
90970875-06 Rev A 2 of 285
en

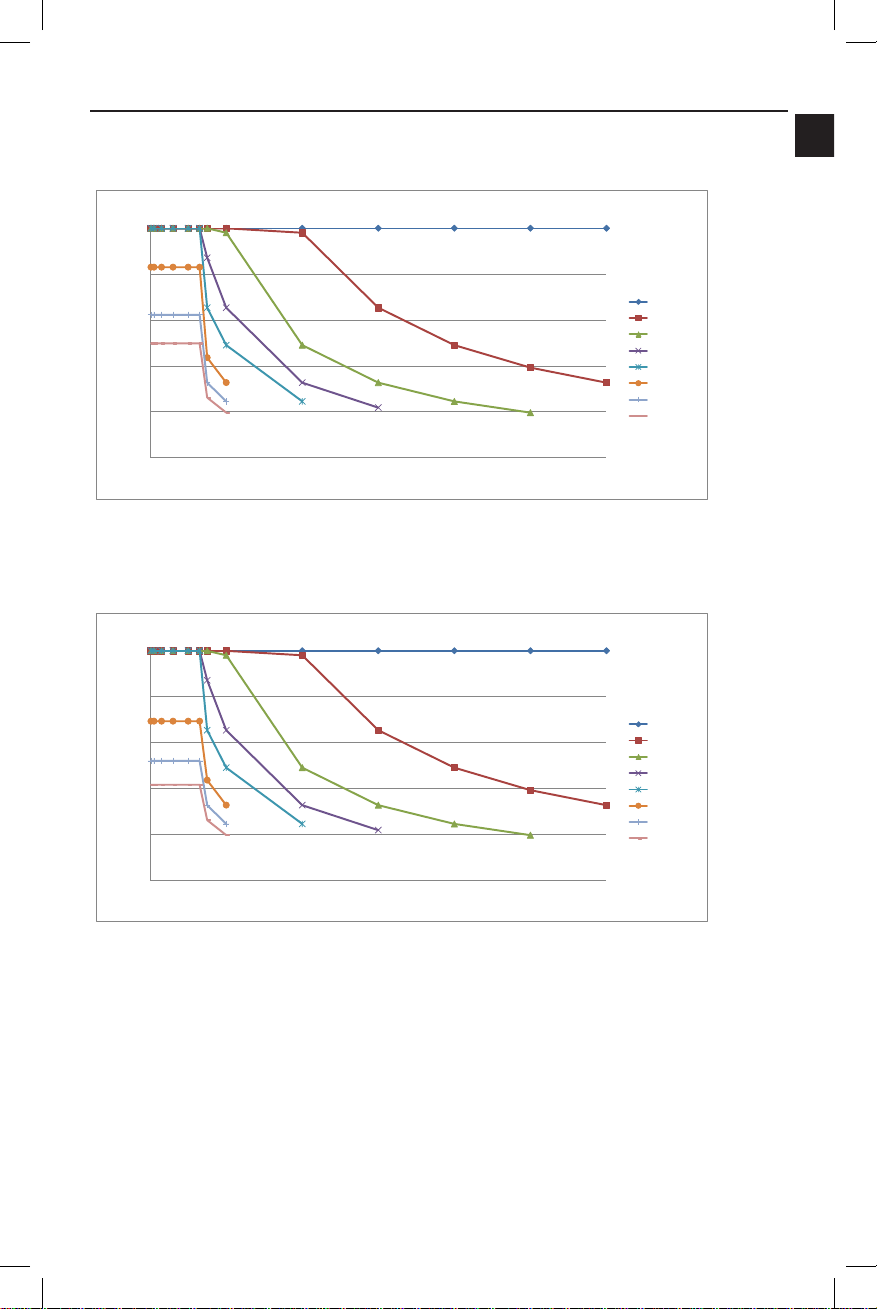

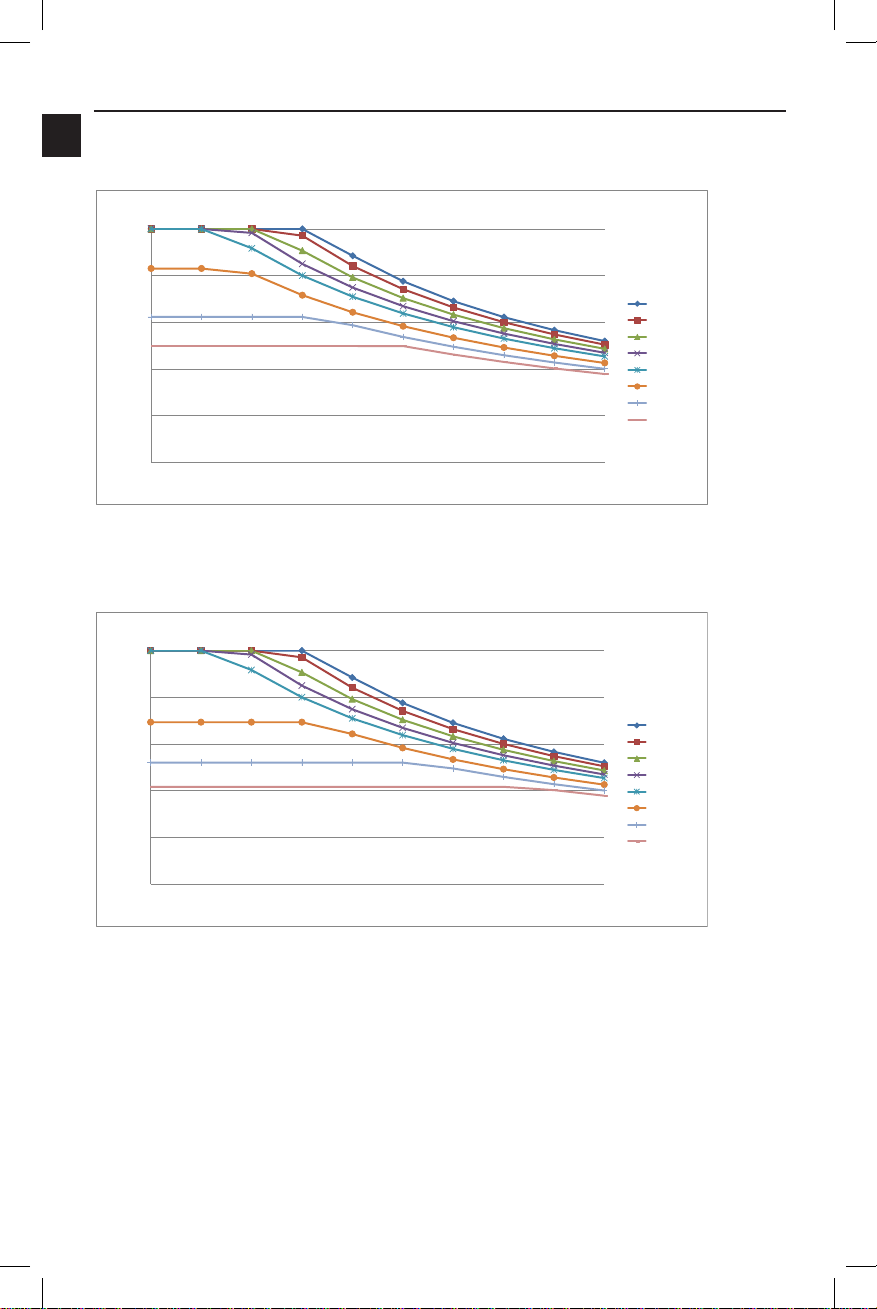

Max Current Amplitude per Electrode Vs Impedance
(for all leads other than the 4x8 Surgical Lead)
0.00
5.10
10.20
15.30
20.40
25.50
300 400 500 600 700 800 900 1000 1100 1200
Current (mA)
Impedance ()
Maximum Amplitude Based on Impedance and Pulse Width
PW = 20 us
PW = 100 us
PW = 200 us
PW = 300 us
PW = 400 us
PW = 600 us
PW = 800 us
PW = 1000 us
Programmable up to 25.5 mA
Programmable up to 21.1 mA
Programmable up to 15.8 mA
Programmable up to 12.7 mA
20 µsec
100 µsec
200 µsec
300 µsec
400 µsec
600 µsec
800 µsec
1000 µsec
Pulse Width:
Max Current Amplitude per Electrode Vs Impedance
(for the 4x8 Surgical Lead)
0.00
5.10
10.20
15.30
20.40
25.50
300 400 500 600 700 800 900 1000 1100 1200
Current (mA)
Impedance ()
Maximum Amplitude Based on Impedance and Pulse Width
PW = 20 us
PW = 100 us
PW = 200 us
PW = 300 us
PW = 400 us
PW = 600 us
PW = 800 us
PW = 1000 us
Programmable up to 25.5 mA
Programmable up to17.6 mA
Programmable up to 13.2 mA
Programmable up to 10.6 mA
Pulse Width:
20 µsec
100 µsec
200 µsec
300 µsec
400 µsec
600 µsec
800 µsec
1000 µsec
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 6 of 290

Max Amplitude Based on Frequency and Pulse Width
Implantable Pulse Generator
90970875-06 Rev A 3 of 285
en
Max Amplitude Based on Frequency and Pulse Width
(for all leads other than the 4x8 Surgical Lead)
0.00
5.10
10.20
15.30
20.40
25.50
0200 400 600 800 1000 1200
Current (mA)
Frequency (Hz)
Maximum Amplitude Based on Frequency and Pulse Width
PW = 20 us
PW = 100 us
PW = 200 us
PW = 300 us
PW = 400 us
PW = 600 us
PW = 800 us
PW = 1000 us
Pulse Width:
20 µsec
100 µsec
200 µsec
300 µsec
400 µsec
600 µsec
800 µsec
1000 µsec
Max Amplitude Based on Frequency and Pulse Width
(for the 4x8 Surgical Lead)
0.00
5.10
10.20
15.30
20.40
25.50
0200 400 600 800 1000 1200
Current (mA)
Frequency (Hz)
Maximum Amplitude Based on Frequency and Pulse Width
PW = 20 us
PW = 100 us
PW = 200 us
PW = 300 us
PW = 400 us
PW = 600 us
PW = 800 us
PW = 1000 us
Pulse Width:
20 µsec
100 µsec
200 µsec
300 µsec
400 µsec
600 µsec
800 µsec
1000 µsec
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 7 of 290

Implantable Pulse Generator
Implantable Pulse Generator
90970875-06 Rev A 4 of 285
en
Specications and Technical Data
Parameter Range Default
Areas (Channels) 4 —
Amplitude 0 – 25.5 mA 0 mA
Rate 2 – 1200 ppsa40 pps
Width 20 – 1000 μsecb210 μsec
Cycle 1 sec – 90 min, OFF OFF
Ramp ON 1 – 10 secs 3 secs
Contacts 1 – 32, case: +100% to -100%, OFF 1 – 32, case: OFF
a. Only one Area is available if the rate is >130 pps.
b. Amplitude × Width ≤ 12.7 µC for all leads other than the 4x8 Surgical Lead; Amplitude × Width
≤ 10.6 μC for the 4x8 Surgical Lead.
Materials
Case Titanium
Header Epoxy
Strain Relief Silicone
Size/Volume 55.0 mm x 46.0 mm x 10.8 mm / 21.2 cm3(including header)
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 8 of 290

Radiopaque Identication Tag
Implantable Pulse Generator
90970875-06 Rev A 5 of 285
en
Radiopaque Identication Tag
The IPG contains a radiopaque identication tag “BSC IPG”. The identication tag is visible using standard
x-ray procedures.
Registration Information
In accordance with international practice and regulatory legislation in some countries, a registration form
is packed with each Boston Scientic neurostimulator. The purpose of this form is to maintain traceability
of all products and to secure warranty rights. It also allows the institution involved in the evaluation or
replacement of a specic device to gain quick access to pertinent data from the manufacturer.
Fill out the registration form included in the package contents. Return one copy to Boston
Scientic, keep one copy for patient records, provide one copy to the patient, and one copy to the
physician.
Boston Scientic Neuromodulation Corporation
25155 Rye Canyon Loop
Valencia, California 91355, USA
Attention: Customer Service Department
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 9 of 290

Implantable Pulse Generator
Implantable Pulse Generator
90970875-06 Rev A 6 of 285
en
Instructions for Use
IPG Handling and Storage
• Handle the IPG and all components with care.
• Keep sharp instruments away from the components.
• Do not use the IPG if it has been dropped on a hard surface.
• Do not incinerate an IPG. Improper disposal of the device could result in an explosion. Devices
should be explanted in the case of cremation, and returned to Boston Scientic Neuromodulation
Corporation. An explant kit is available.
• Store the IPG between 0 °C and 45 °C ( 32 °F and 113 °F). Devices should always be kept in
temperature regulated areas within the acceptable temperature range. IPG damage can occur at
temperatures outside of this range.
Pre-Op Instructions
1. Ensure that the IPG is fully charged prior to the permanent implant procedure. The approximate
location of the IPG is marked on the IPG kit. Turn on the Charger and place it over the IPG to begin
charging. Refer to “Charging Steps” in this manual for additional instructions.
2. Check that the sterile package is intact. (See “Sterilization” in the Information for Prescribers manual.)
3. If intra-operative stimulation testing is desired, ensure that a Trial Stimulator is available for use. Refer
to the Clinician Trial Manual for additional instructions.
IPG Implantation
1. Ensure that the area surrounding the lead entry site is incised to a dimension that will accommodate
the tunneling tool.
2. Check that the lead is securely anchored.
3. Select and mark the intended IPG site, using the IPG template, and create an incision for the IPG
pocket.
4. Create a subcutaneous pocket no larger than the IPG outline at a depth of up to 2.0 cm from the
surface. Implant charging could become ineffective at depths shallower than 0.5 cm or greater than
2.0 cm.
5. Tunnel the lead(s) to the IPG site.
Note: Using the IPG template will help guide the correct pocket sizing. It is important to keep the pocket
small to reduce the chances of patient manipulation and IPG ipping. Select an IPG site several
inches away from the previously externalized trial lead site to reduce risk of infection.
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 10 of 290

Instructions for Use
Implantable Pulse Generator
90970875-06 Rev A 7 of 285
en
Tunneling the Lead or Lead Extension

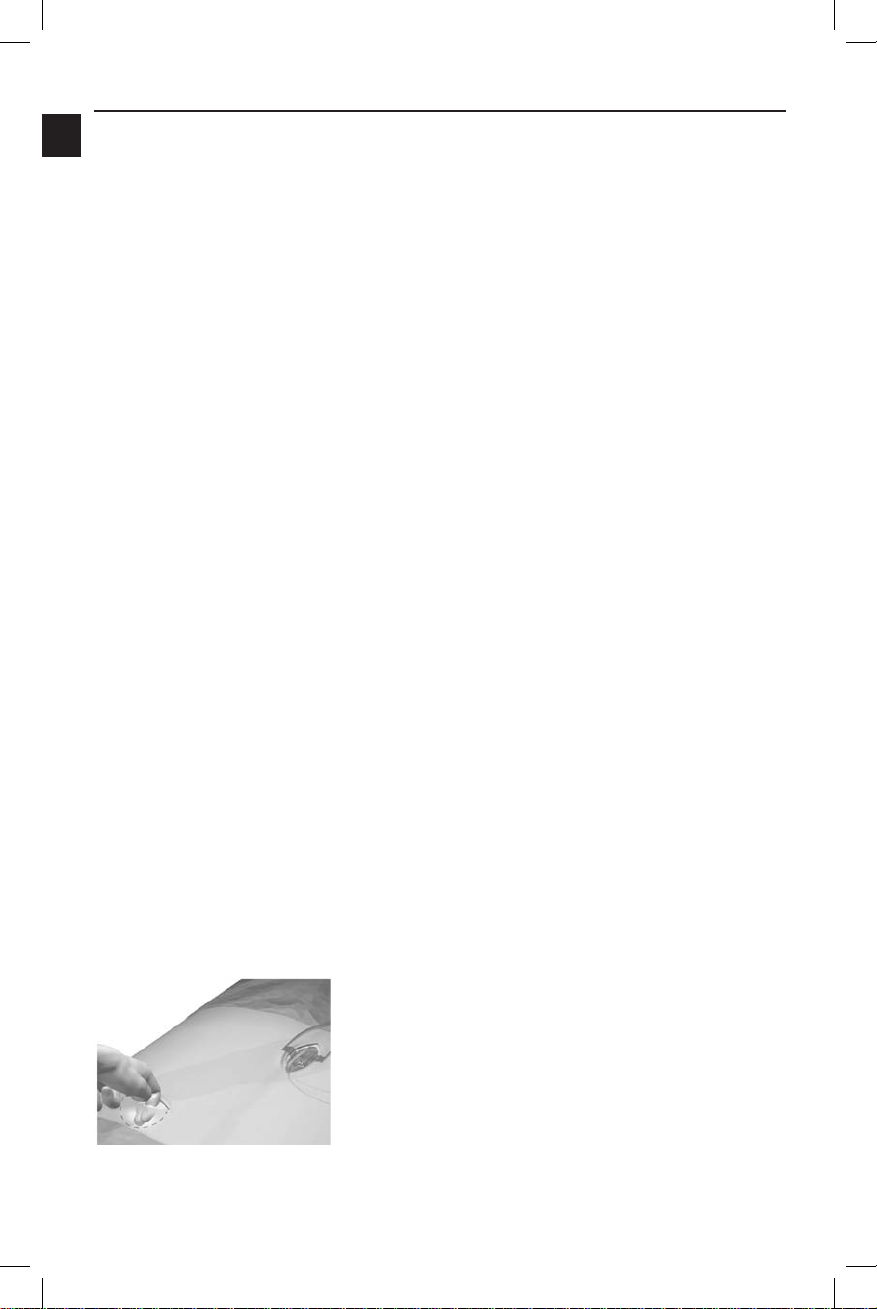

If using a 4x8 Surgical Lead or Innion CX Lead, it is recommended to use the Long Tunneling Tool
(35 cm).
1. If not already assembled, attach the tunneling tool handle to the shaft by turning the locking
mechanism clockwise.
Tool Handle
Locking Mechanism
Shaft
2. Mark the desired route of the tunnel.
3. Administer the appropriate local anesthetic along the tunneling path.
4. OPTIONAL. If necessary, bend the tool shaft to conform to the patient’s body.
5. Make a small incision at the desired exit site.
6. Create a subcutaneous tunnel between the lead(s) incision and the IPG pocket site until the straw is
visible and accessible at the exit point.
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 11 of 290

Implantable Pulse Generator
Implantable Pulse Generator
90970875-06 Rev A 8 of 285
en

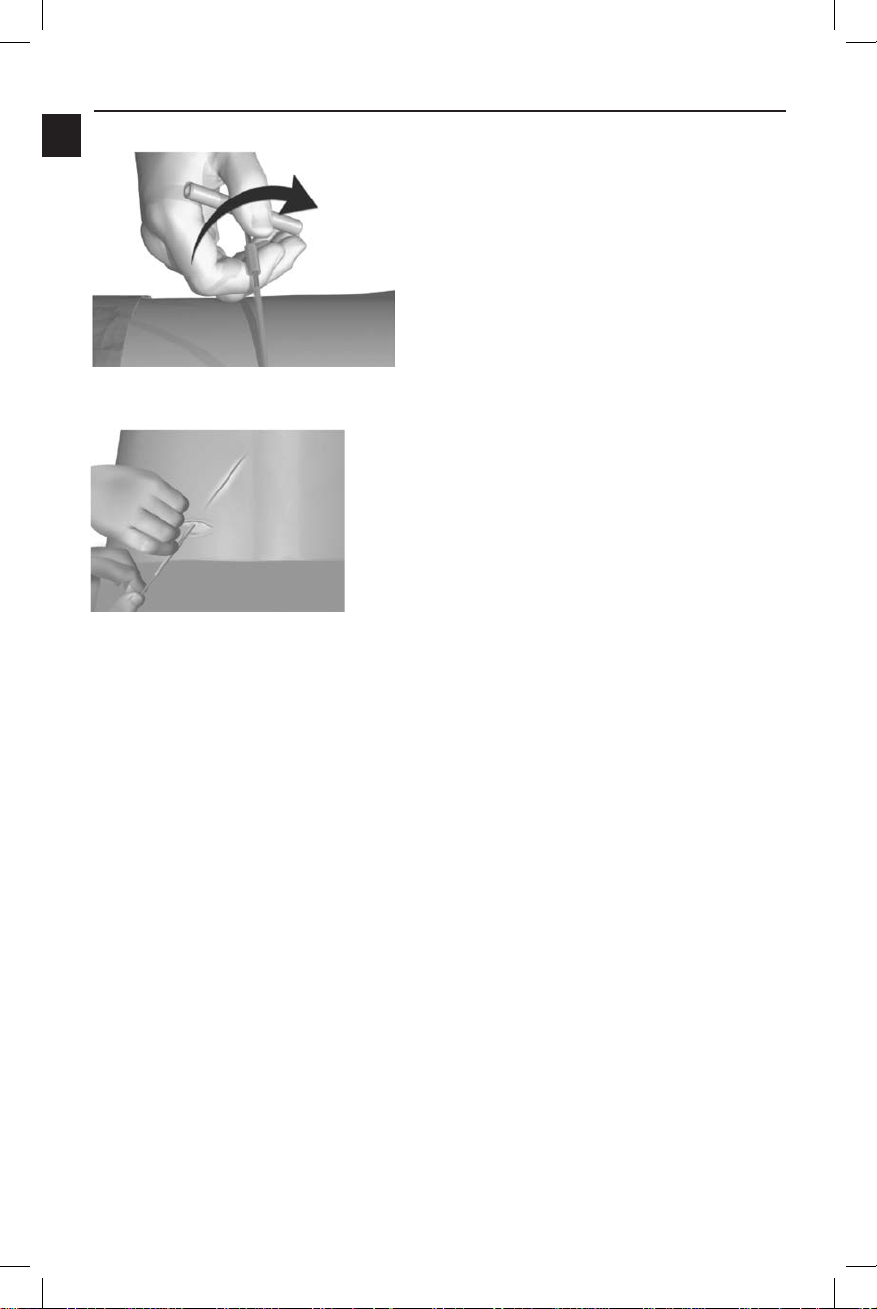

7. Unscrew and remove the tunneling tool handle.
8. Grasp the tip of the tool with one hand while holding the straw in place with the other hand. Pull the
tunneling tool shaft out through the straw.
9. Push the lead or extension through the straw, then withdraw the straw.
10. Pull the proximal end(s) out of the exit point.
11. Wipe the proximal end(s) clean.
CAUTION: Do not tunnel splitter.
Note: If using the 2x8 Splitter and performing a permanent trial, the splitter tails may be tunneled to the
exit site.
Note: The following Codman Disposable Catheter Passers may be used in place of the Boston Scientic
tunneling tool:
REF 82-1515 (36 cm); REF 82-1516 (55 cm); REF 82-1517 (65 cm)
Note: When using a Codman Disposable Catheter Passer, tunnel from the midline incision to the IPG
pocket using the standard technique.
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 12 of 290

Instructions for Use
Implantable Pulse Generator
90970875-06 Rev A 9 of 285
en
Connecting the Lead, Extension, Splitter, or Connector to the IPG

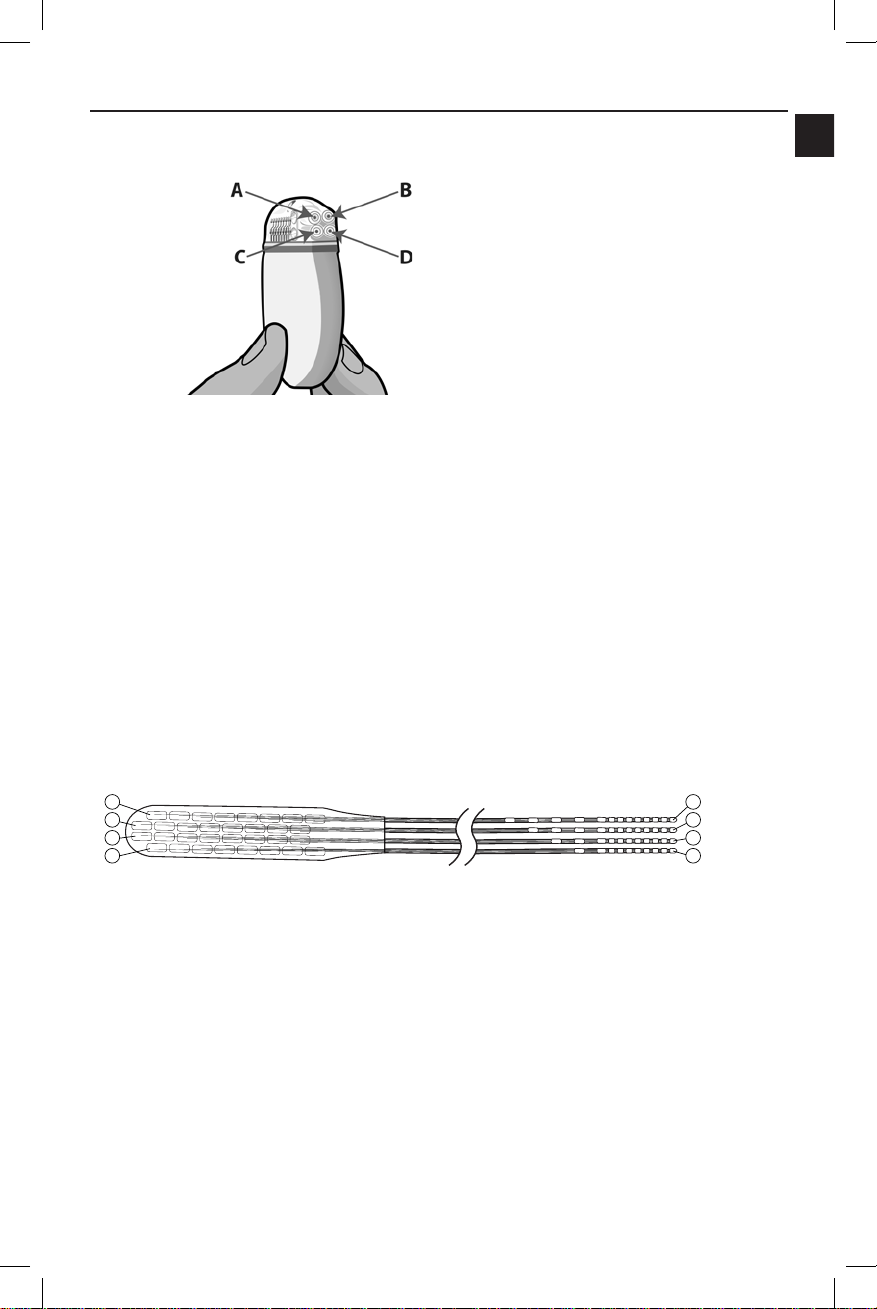

IPG ports are labeled as follows:
For convenience, connect leads or splitter tails to the IPG ports corresponding to their locations, superior
versus inferior or left versus right lead placements. For example:
• Superior leads to upper IPG ports A or B. Inferior leads to IPG ports C or D.
• For the Innion™ 16, connect the splitter tail with laser etched bands (contacts 1-8 of the Innion
16 lead) to the left ports A or C and the unmarked splitter tail (contacts 9-16 of the Innion 16 lead)
to the right ports B or D.
• For the Innion CX Lead, connect the tail with the single marker band (contacts 1-8 of the Innion
CX Lead) to the left ports A or C and the tail with two marker bands (contacts 9-16 of the Innion
CX Lead) to the right ports B or D.
• For the Artisan 2x8 surgical lead, connect the left side to the left ports A or C. Connect the right
side (the laser-etched tail), contacts 9-16, to the right ports B or D.
• For the 4x8 Surgical Lead, connect the lead tail as follows:
- Lead tail with one marker band (contacts 1-8) to port A.
- Lead tail with two marker bands (contacts 9-16) to port B.
- Lead tail with three marker bands (contacts 17-24) to port C.
- Lead tail with four marker bands (contacts 25-32) to port D.
Example: 4x8 Surgical Lead (electrodes faced down)
4
3
2
1
8
7
6
5
1 Contacts 1-8 5 Connects to port A
2 Contacts 9-16 6 Connects to port B
3 Contacts 17-24 7 Connects to port C
4 Contacts 25-32 8 Connects to port D
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 13 of 290

Implantable Pulse Generator
Implantable Pulse Generator
90970875-06 Rev A 10 of 285
en
1. Fully insert the lead(s), extension(s), splitter(s), and/or connector(s) into the IPG port(s), being careful
not to stress or bend the proximal end of the lead. When the lead is properly inserted, the lead will stop
and the retention ring will be located under the set screw.
2. Fully insert a port plug into unused IPG ports.
Note: If you experience difculty when inserting the lead, lead extension, splitter, connector, or port plug,
use the hex wrench to loosen (counterclockwise) the set screw and/or gently rotate the lead to help
advance the proximal end.
Note: To conrm good connections, check impedances before tightening the set screw. The IPG must be
in contact with the subcutaneous pocket in order to receive accurate impedance measurements.
3. Pass the hex wrench through the hole in the septum located on the front or back of the IPG header
and tighten each set screw until the hex wrench “clicks,” indicating lock.
CAUTION: Ensure that the lead is fully inserted before tightening the set screw to prevent lead
damage
Note: If a port plug is used, it is still necessary to tighten the set screw on the port plug as described
above.
Note: The hex wrench is torque-limited and cannot be over-tightened.
4. Place the IPG in the subcutaneous pocket with logo marking facing up towards the skin.
5. Coil excess lead, extension, splitter, or connector under the IPG.
6. If desired, secure the IPG in the pocket by suturing through the holes in the IPG header.
CAUTION: Do not suture through leads or splitter.
7. Close and dress the wound(s).
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 14 of 290

Rechargeable Stimulator System
Implantable Pulse Generator
90970875-06 Rev A 11 of 285
en
IPG Explant or Replacement
1. Turn off the IPG.
2. Surgically open the IPG pocket and withdraw the device. Please try to preserve the integrity of all
components so that complete device assessment can be performed.
3. Loosen the connector set screws to release and remove the leads, extensions, or splitters.
4. For replacement, connect the new IPG following the instructions for “Connecting the Lead, Extension,
Splitter, or Connector to the IPG” on page 9. Or, to terminate therapy, surgically remove the
implanted lead system.
5. Notify Boston Scientic to document the reason for explant or replacement and to arrange for return of
IPG and components.
Rechargeable Stimulator System
The Precision Spectra™ Stimulator is rechargeable. Boston Scientic recommends any recharge routine
that ts the patient’s schedule and lifestyle while maintaining sufcient charge to maintain stimulation.
Developing a patient’s recharge routine involves nding the right balance among the following:
• How much power is required for the patient to experience effective therapy.
• How often the patient wants to recharge.
• How long the patient wants to recharge.
• How the patient would like to manage their personal schedule.
The Precision Spectra Clinician Programmer will estimate charging time based on 24 hours per day of
stimulation at the programmed settings. To charge fully, wait until the Charger emits an end of charge
beep signal or the Remote Control display indicates that the battery is charged. Refer to the Patient’s
Charger Handbook and the Physician’s Remote Control Directions for Use for additional information. The
recharging process is simple, but important.
Charging Steps
WARNINGS:
• Patient should not charge while sleeping. This may result in a burn.
• While charging, the Charger may become warm. It should be handled with care.
• Failure to use the Charger with either the Charger Belt or an adhesive patch, as shown, may result
in a burn. If pain or discomfort is felt, cease charging and contact Boston Scientic.
The Charger Base Station should be plugged in and the Charger placed in the Base Station when not
in use. When the indicator light is green, the Charger is fully charged. When the indicator is amber, the
Charger is partially charged, but is still able to deliver a charge to the Stimulator.
1. When the indicator light is green, remove the Charger from the Base Station. The indicator light will
then turn off.
2. Press the power button. The indicator light will come on again, and the Charger will begin beeping as it
searches for the Stimulator.
3. Place the Charger over the Stimulator. When the Charger is aligned with the Stimulator, the beeping
will stop.
• Centering the Charger over the Stimulator will ensure the shortest charging time.
• Many patients are able to feel the implanted Stimulator and can place the Charger directly on
top of it.
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 15 of 290

Implantable Pulse Generator
Implantable Pulse Generator
90970875-06 Rev A 12 of 285
en
• Alternatively, centering the Charger within the alignment area (i.e., the area where the Charger
does not beep) will also ensure that the Charger is aligned.
4. Secure the Charger over the Stimulator by using either an adhesive patch or the Charger Belt.
• Adhesive Patch: Remove the clear liner from the patch. Apply the white side with the blue
stripe to the back of the Charger. Then remove the beige liner from the patch. Secure the
Charger over the Stimulator by pressing the adhesive to the skin over the Stimulator.

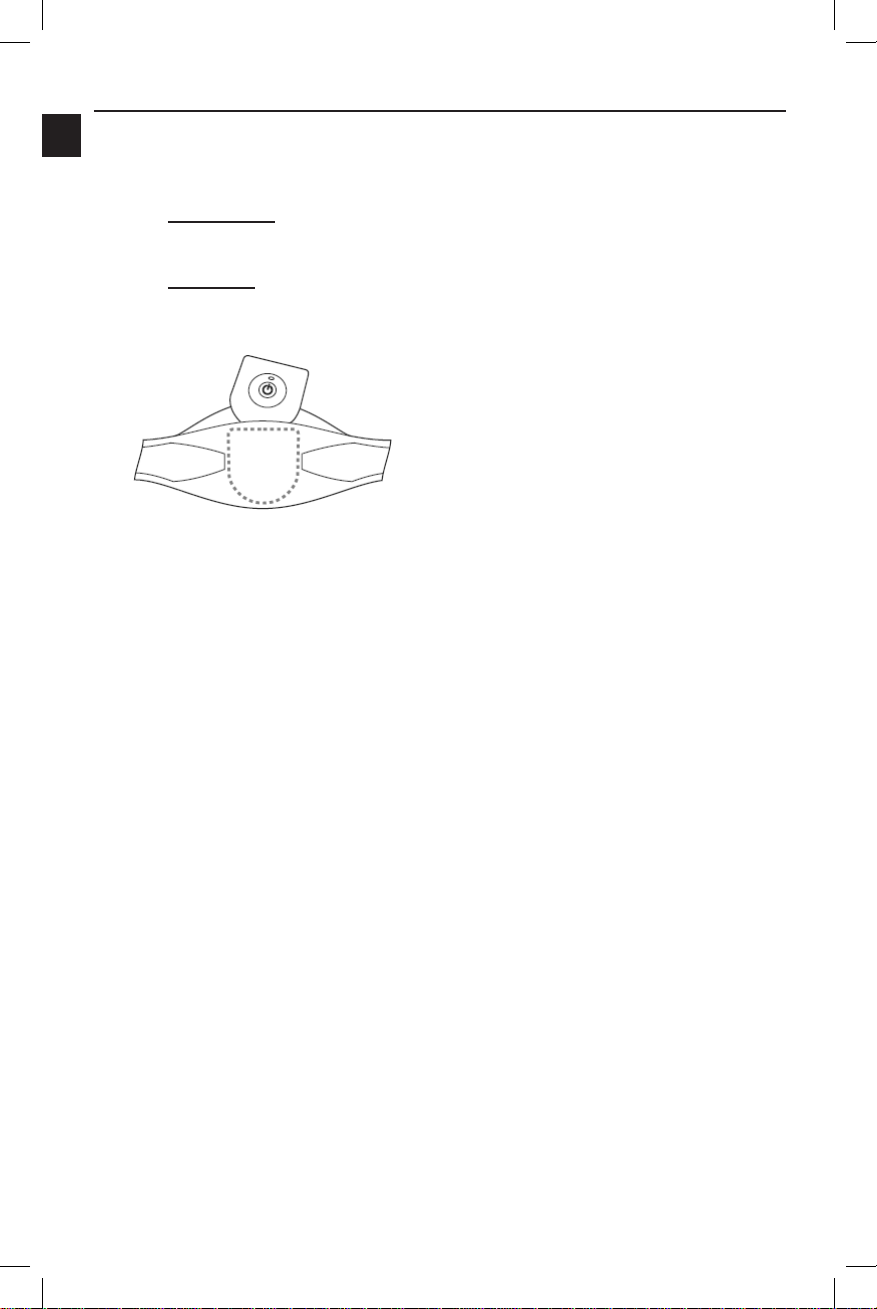

• Charger Belt: Place the Charger into the pocket on the Charger Belt so that the Power button
is visible through the mesh fabric. Secure the Charger over the Stimulator by adjusting the
Charger Belt.
Note: If you accidentally locate the patch in the wrong place, or if the Charger Belt moves out of
alignment, the Charger will start beeping again. Use a new adhesive patch or readjust the belt to
place the Charger back into position.
5. When the Charger emits a series of double beeps, the Stimulator is fully charged. Turn off the
Charger, remove the Charger Belt or adhesive patch, and return the Charger to the Base Station.
Do not confuse the end of charge signal (a series of double beeps) with the continuous beeps that
indicate that the Charger is searching for the Stimulator.
Note: • The end of a charge signal is a distinct double beep, and the alignment indicator is a steady
continuous signal.
• The Remote Control will not be able to communicate with the IPG when charging.
Refer to “IPG Battery Life” in your Information for Prescribers manual for information on Stimulator battery
life.
IPG Battery Status
The patient Remote Control displays the Stimulator battery status when communicating with the
Stimulator. Refer to the Clinician’s Remote Control Directions for Use for additional information. When the
Remote Control indicates a low battery the Stimulator should be recharged as soon as possible.
Failure to recharge may lead to loss of stimulation in less than 24 hours. After stimulation stops,
communication with the Stimulator will also cease. Until a sufcient level of charge has been attained, the
Stimulator may not communicate with the Remote Control.
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 16 of 290

Generador de impulsos implantable
90970875-06 Rev A 13 de 285
es
Garantías
Boston Scientic Corporation se reserva el derecho de modicar, sin aviso previo, la información relativa a
estos productos con el objetivo de mejorar su abilidad y capacidad operativa.
Las imágenes son meramente ilustrativas.
Marcas comerciales
Todas las marcas comerciales pertenecen a sus respectivos propietarios.
Número de certicación de equipos de Industry Canada
IC: 9773A-SC1132
Información adicional
Para obtener instrucciones e información relacionada, consulte las Instrucciones de uso. Para obtener
información acerca de las contraindicaciones, advertencias, resumen de efectos adversos, instrucciones
para médicos, esterilización, eliminación de componentes e información de contacto de Boston Scientic,
consulte las Instrucciones de uso, Información para médicos de su sistema de estimulación de la médula
espinal. Para obtener otra información especíca de los dispositivos que no se incluya en este manual, así
como los símbolos de etiquetado e información de garantía, consulte las instrucciones correspondientes,
tal como aparece en la Guía de referencia.
Para obtener información sobre la tarjeta de identicación del paciente, las normas FCC y los
estudios clínicos que respaldan el uso clínico del sistema de neuroestimulación, consulte el manual de
Información para médicos del sistema de EME.
Número de modelo del producto
Número del modelo Descripción
SC-1132 Generador de impulsos implantable
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 17 of 290

Generador de impulsos implantable
Generador de impulsos implantable
90970875-06 Rev A 14 de 285
es
Índice
Descripción..................................................................................................................................................................... 15
Electrodos compatibles:............................................................................................................................................. 15
Contenido del envase .................................................................................................................................................... 15
Kit del GII ................................................................................................................................................................... 15
Amplitud de corriente máx. por electrodo frente a impedancia ................................................................................ 16
(para todos los electrodos distintos del electrodo quirúrgico 4x8)............................................................................. 16
Amplitud de corriente máx. por electrodo frente a impedancia ................................................................................ 16
(para el electrodo quirúrgico 4x8) .............................................................................................................................. 16
Amplitud máx. basada en frecuencia y ancho de pulso ............................................................................................ 17
(para todos los electrodos distintos del electrodo quirúrgico 4x8)............................................................................. 17
Amplitud máx. basada en frecuencia y ancho de pulso ............................................................................................ 17
(para el electrodo quirúrgico quirúrgico 4x8) ............................................................................................................. 17
Especicaciones y datos técnicos ............................................................................................................................... 18
Materiales........................................................................................................................................................................ 18
Etiqueta de ide nticación radiopaca........................................................................................................................... 19
Información de registro ................................................................................................................................................. 19
Instrucciones de uso...................................................................................................................................................... 20
Manipulación y almacenamiento del GII.................................................................................................................... 20
Instrucciones preoperatorias...................................................................................................................................... 20
Implante del GII.......................................................................................................................................................... 20
Tunelización del electrodo o extensión del electrodo ................................................................................................ 21
Conexión del electrodo, la extensión, la extensión bifurcada o el conector al GII..................................................... 23
Explante o sustitución del GII .................................................................................................................................... 25
Sistema de estimulación recargable ............................................................................................................................ 25
Procedimiento de recarga ............................................................................................................................................. 25
Estado de la batería del GII............................................................................................................................................ 27
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 18 of 290

Descripción
Generador de impulsos implantable
90970875-06 Rev A 15 de 285
es
Descripción
El sistema generador de impulsos implantable (GII) Precision Spectra™ está diseñado para el tratamiento del
dolor crónico mediante la estimulación eléctrica de la médula espinal. La capacidad multicanal y multipolo del
dispositivo proporciona exibilidad combinada con una programación sencilla. La batería recargable prolonga
la duración y la capacidad de salida del GII, a la vez que reduce su tamaño y las intervenciones quirúrgicas de
sustitución del dispositivo. El GII se controla mediante un control remoto y puede ponerse en marcha desde el
programador médico a través del software de programación patentado. La batería del GII debe recargarse
periódicamente con un dispositivo de recarga de RF externo.
Electrodos compatibles:
• Electrodo de 16 contactos Innion™ 16 xx cm
• Electrodo de 16 contactos Innion CX xxcm
• Electrodos de 8 contactos Linear™ xx cm
• Electrodos de 8 contactos Linear ST xx cm
• Electrodos de 8 contactos Linear 3-4 xx cm
• Electrodos de 8 contactos Linear 3-6 xx cm
• Electrodos quirúrgicos Artisan™ 2x8
• Electrodo quirúrgico 4x8 CoverEdge™ 32 xxcm
• Electrodo quirúrgico 4x8 CoverEdge X 32 xxcm
• Extensiones de 8 contactos
• Extensiones bifurcadas 2x4
• Extensiones bifurcadas 2x8
Nota: xx indica la longitud (cm)
El sistema Precision Spectra admite cualquier combinación de electrodos de 8 contactos, electrodos
percutáneos de 16 contactos y electrodos quirúrgicos de 16 contactos, que suman un total de 32 contactos
activos.
Contenido del envase
Kit del GII
(1) Generador de impulsos implantable Precision Spectra
(1) Llave hexagonal
(1) Conjunto de herramientas de tunelización
(1) Plantilla para el bolsillo del GII
(4) Tapones de puerto
(1) Formulario de registro del dispositivo y tarjeta temporal de identicación del paciente
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 19 of 290

Generador de impulsos implantable
Generador de impulsos implantable
90970875-06 Rev A 16 de 285
es
Amplitud de corriente máx. por electrodo frente a impedancia
(para todos los electrodos distintos del electrodo quirúrgico 4x8)
0.00
5.10
10.20
15.30
20.40
25.50
300 400 500 600 700 800 900 1000 1100 1200
Current (mA)
Impedance ()
Maximum Amplitude Based on Impedance and Pulse Width
PW = 20 us
PW = 100 us
PW = 200 us
PW = 300 us
PW = 400 us
PW = 600 us
PW = 800 us
PW = 1000 us
Programable hasta 25,5 mA
Programable hasta 21,1 mA
Programable hasta 15,8 mA
Programable hasta 12,7 mA
20 µs
100 µs
200 µs
300 µs
400 µs
600 µs
800 µs
1000 µs
Ancho de pulso:
Amplitud de corriente máx. por electrodo frente a impedancia
(para el electrodo quirúrgico 4x8)
0.00
5.10
10.20
15.30
20.40
25.50
300 400 500 600 700 800 900 1000 1100 1200
Current (mA)
Impedance ()
Maximum Amplitude Based on Impedance and Pulse Width
PW = 20 us
PW = 100 us
PW = 200 us
PW = 300 us
PW = 400 us
PW = 600 us
PW = 800 us
PW = 1000 us
Programable hasta 25,5 mA
Programable hasta 17,6 mA
Programable hasta 13,2 mA
Programable hasta 10,6 mA
Ancho de pulso:
20 µs
100 µs
200 µs
300 µs
400 µs
600 µs
800 µs
1000 µs
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070451 A.1
Spectra IPG Entrada 2.0 19L
Page 20 of 290
