Boston Scientific Vercise PC Implantable Pulse Generator Manual

92104390-01
Content: 92116333 REV B
Vercise™ PC Implantable
Pulse Generator
Directions for Use
CAUTION: Federal law restricts this device to sale,
distribution and use by or on the order of a physician.

Vercise™ PC Implantable Pulse Generator DFU
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 ii of iv
Trademarks
All trademarks are the property of their respective holders.
Guarantees
Boston Scientic Corporation reserves the right to modify, without prior notice, information relating
to its products in order to improve their reliability or operating capacity.
Additional Information
For indications, contraindications, warnings, precautions, adverse events summary, physician
instructions, sterilization and component disposal, refer to the Information for Prescribers DFU.
For other device-specic information not included in this manual or labeling symbols, refer to the
appropriate DFU as listed on your DBS Reference Guide.
Product Model Numbers
Model Number Description
DB-1140-S Vercise™ PC Implantable Pulse Generator Kit
NM-3138-55 55 cm 8 Contact Extension Kit
DB-4252 and SC-4252 28 cm Straw Tunneling Tool
DB-4254 and SC-4254 35 cm Long Tunneling Tool
Technical Support
There are no user serviceable parts. If you have a specic question or issue, please contact your
sales representative or call (833) DBS-INFO or [phone]).
Radiopaque Identication Tag
The Stimulator contains a radiopaque identication tag that is visible using standard X-ray
procedures.

Vercise™ PC Implantable Pulse Generator DFU
92104390-01 iii of iv
Registration of the Vercise PC DBS System
In accordance with international practice and regulatory legislation in some countries, a registration
form is packed with each Boston Scientic Stimulator, DBS Lead, and DBS Extension. The purpose
of this form is to maintain traceability of all products and to secure warranty rights. It also allows the
institution involved in the evaluation or replacement of a specic implanted DBS Lead, accessory,
or device to gain quick access to pertinent data from the manufacturer.
Fill out the registration form included in the package contents. Return one copy to the Boston
Scientic Customer Service Department, keep one copy for patient records, provide one copy to
the patient, and save one copy for the physician.
Boston Scientic
Neuromodulation
Attention: Customer Service Department
25155 Rye Canyon Loop
Valencia, CA 91355, USA

Vercise™ PC Implantable Pulse Generator DFU
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 iv of iv
Table of Contents
Introduction...................................................................................................1
Device Description ............................................................................................... 1
Compatible Leads and Extensions....................................................................... 1
Package Contents................................................................................................ 1
Stimulator Implantation ...............................................................................2
Exposing the DBS Lead ....................................................................................... 2
Connecting the DBS Lead to the DBS Extension................................................. 2
Tunneling the DBS Lead and Extension ............................................................. 4
Connecting the Stimulator.................................................................................... 5
Vercise PC System Revisions, Replacement, and Explantation..............8
Explanting the DBS Lead ..................................................................................... 8
Explanting the DBS Extensions............................................................................ 9
Explanting or Replacing the Stimulator ................................................................ 10
Physical Characteristics of the Vercise PC Stimulator.............................11
Stimulator Programmable Characteristics ................................................11
DBS Extension .............................................................................................14
Tunneling Tool .............................................................................................14

Introduction
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 1 of 15
Introduction
This manual describes the implantation and usage of the non-rechargeable Vercise PC implantable
pulse generator, and DBS Extensions. The Stimulator may be implanted immediately following
DBS Lead implantation or during a separate surgery.
Device Description
The implantable portion of the Vercise PC System includes a Stimulator and two DBS Leads.
Other implantable components include the DBS Extensions that extend the DBS Leads to the
Stimulator, a DBS Lead Boot to protect the proximal end of the DBS Lead between surgeries, and
Sutures Sleeves to protect the DBS Lead and/or to anchor the DBS Leads and DBS Extensions.
The Tunneling Tool is a surgical instrument used to create a subcutaneous tunnel for the DBS
Leads and DBS Extensions. The patient will be provided with external devices, including a Remote
Control, to communicate with the Stimulator.
Compatible Leads and Extensions
For a list of leads and extensions compatible with the Vercise PC, please see your DBS Reference
Guide.
Package Contents
Vercise PC Implantable Pulse Generator Kit
• Stimulator
• Stimulator Template
• Stimulator Header Plugs (2)
• Torque Wrench
Note: All contents of the inner package (or tray) are sterile.
Extension Kit (55 cm)
• DBS Extension
• Torque Wrench
• Tunneling Tool Shaft (with Pre-Loaded Straw)
• Tunneling Tool Handle
Note: All contents of the inner package (or tray) are sterile.
Tunneling Tool Kit (28 cm, Straw and 35 cm, Long)
• Tunneling Tool Shaft (with Pre-Loaded Straw)
• Tunneling Tool Handle
Note: All contents of the inner package (or tray) are sterile.

Vercise™ PC Implantable Pulse Generator DFU
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 2 of 15
Stimulator Implantation
Exposing the DBS Lead
1. Palpate the DBS Lead Boot and DBS Lead under the scalp.
2. Mark and create an incision in the scalp to expose the Lead Boot. Be careful not to damage or
cut the DBS Lead.
3. Expose the DBS Lead and Lead Boot through the incision.
4. Using the Torque Wrench, remove and discard the Lead Boot.
Note: To loosen the setscrew, rotate the Torque Wrench counterclockwise. To tighten the
setscrew, rotate the Torque Wrench clockwise.
5. Dry the proximal end of the DBS Lead.
Connecting the DBS Lead to the DBS Extension
Setscrew
DBS Extension DBS Lead
1. Check to ensure that the Setscrew is not restricting the entry port on the DBS Extension
connector by unscrewing the Setscrew one to two turns with the Torque Wrench. Grip the DBS
Lead next to the Retention Sleeve.
Contacts Retention
Sleeve
Proximal End of the DBS Lead
DBS Lead
Note: The retention sleeve is easily distinguishable from the contacts by its extended
length.
2. Push the DBS Lead into the DBS Extension connector until the DBS Lead electrodes line up
with the DBS Extension contacts. Some resistance may be felt as each electrode enters into
the DBS Extension Connector. You should be able view the DBS Lead electrodes as they pass
through the DBS Extension Connector. Some additional resistance may be felt as the last
electrode aligns into place.

Stimulator Implantation
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 3 of 15
3. Visually check to ensure that the DBS Lead electrodes are aligned with the DBS Extension
contacts. If they are not aligned, continue to grip the DBS Lead next to the Retention Sleeve
and push to advance the electrodes into alignment with the DBS Extension contacts. If
necessary, back out the lead slightly and then advance the electrodes into alignment again,
until proper alignment can be conrmed.
Note: Be sure to fully insert the DBS Lead into the connector so that the retention sleeve
is located under the setscrew.
Correct Incorrect
4. Do not tighten the Setscrew at this time.
5. Repeat steps 1 through 3 to connect the second DBS Lead to the second DBS Extension.
6. Test the impedance of the connection to ensure that you have properly aligned the DBS Lead
within the DBS Extension connector. See “Intraoperative Testing” in the appropriate lead
implant DFU as listed on your DBS Reference Guide.
Assembling the Tunneling Tool
A Tunneling Tool and Straw are provided to facilitate tunneling of the DBS Extension.
Tool Handle
Shaft
1. Attach the Tunneling Tool Handle to the Shaft by turning the locking mechanism clockwise.
a. Push the locking mechanism at the base of the Tool Handle onto the Shaft.
b. Grasping the Tool Handle and the Tip of the Tunneling Tool, rotate the Shaft back and forth
until the handle seats onto the Shaft.
c. While rmly grasping the Tip of the Tunneling Tool to hold the Shaft stationery, turn the
locking mechanism clockwise until secure.

Vercise™ PC Implantable Pulse Generator DFU
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 4 of 15
Tunneling the DBS Lead and Extension
1. Create a pocket for the Stimulator under the skin in a location inferior to the clavicle on the
same side as the DBS Lead and Extensions.
Note: Boston Scientic recommends implanting the Stimulator subclavicularly.
a. Mark the location of the pocket.
b. Use the template to outline the intended pocket to guide the optimal pocket sizing.
Note: It is important to keep the pocket small to prevent the Stimulator from turning over.
2. Mark a tunneling route from the location of the subclavicular pocket to the incision superior to
the ear.
3. Administer appropriate local anesthetic along the tunneling route.
CAUTION: Be sure not to puncture or damage the Lead or other components when
administering local anesthetic.
4. Create a subcutaneous tunnel from the incision above the ear, along the tunneling path to the
Stimulator pocket.
WARNING: Be careful not to puncture or damage important structures along the tunneling
path, such as the brachial plexus and jugular, as this may cause patient harm.
5. If desired, bend the Tunneling Tool to an appropriate shape.
CAUTION: Do not bend locking joints.
6. Once the Tip of the Tunneling Tool is completely exposed, unscrew and remove the Tunneling
Tool Handle.
7. Grasp the Tip rmly with one hand and, while holding the Straw in place with the other hand,
pull the Shaft out of the Straw.
8. Push the proximal ends of the DBS Extensions through the Straw, and then withdraw the Straw.
9. Optionally secure the DBS Extension connector to the fascia using sutures and/or suture
sleeves.

Stimulator Implantation
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 5 of 15
CAUTION: Do not use polypropylene sutures as they may damage the suture sleeve. Do not
suture directly onto the DBS Extension or use a hemostat on the DBS Extension
body. This may damage the DBS Extension insulation.
Connecting the Stimulator

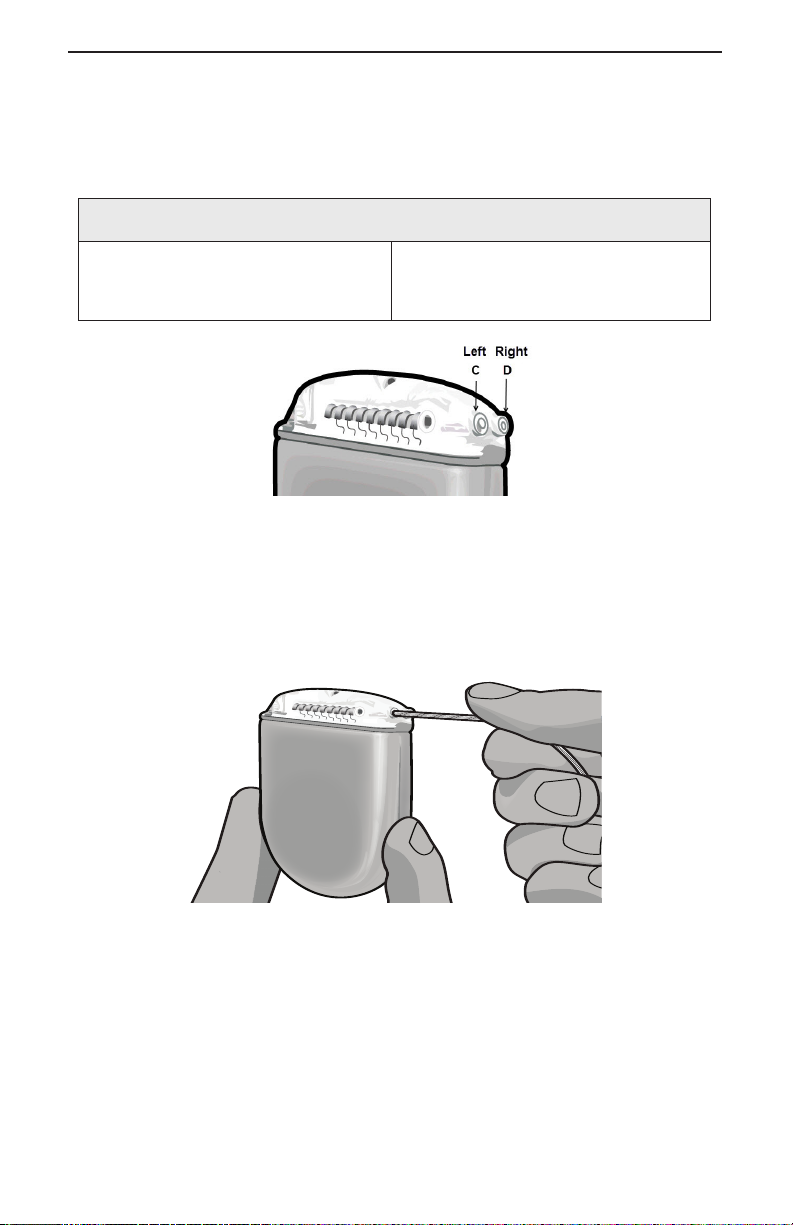

Dual Lead Connection
Connect Left DBS Extension to port C Connect Right DBS Extension to port D
1. Fully insert the male end of the DBS Extension into the Stimulator until it stops.
a. Insert the header plug to verify no Setscrews obstruct the socket.
b. Wipe the DBS Extension contacts before inserting.
c. Insert the DBS Extensions into the header. When fully inserted, the tip of the DBS
Extension will slide into the back of the port and the retention sleeve on the DBS Extension
will be located under the Setscrew.
CAUTION: Verify proper DBS Extension insertion by checking impedances before tightening
the Setscrew. Tightening the Setscrew down onto a contact can damage the
DBS Extension.

Vercise™ PC Implantable Pulse Generator DFU
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 6 of 15
2. Verify that the retention sleeve on the DBS Extension is located directly under the Setscrew in
the Stimulator header.
Note: The retention sleeve is easily distinguishable from the contacts by its length (see
below).
Contacts Retention
Sleeve
Proximal End of the DBS Extension
3. Check impedances to verify connections before tightening the Setscrew.
a. Place the Stimulator partially in the subcutaneous pocket.
b. Test impedances using the Remote Control or Clinician Programmer.
4. Pass the Torque Wrench through the slit in the septum located on the side of the Stimulator
header.
5. Tighten the Setscrew in the Stimulator until the Torque Wrench clicks, indicating the Setscrew
is fully secured.
Note: To tighten the Setscrew, rotate the Torque Wrench clockwise. To loosen the
Setscrew, rotate the Torque Wrench counterclockwise.

Stimulator Implantation
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 7 of 15
CAUTION: The wrench is torque limiting, such that the Setscrew cannot be over tightened.
Use only the wrench provided, as other tools may over-tighten the Setscrew and
damage the Lead.
6. Visually check to ensure that the Lead electrodes are aligned with the DBS Extension contacts.
If they are not aligned, continue to grip the Lead next to the Retention Sleeve and push to
advance the electrodes into alignment with the DBS Extension contacts. If necessary, back out
the lead slightly and then advance the electrodes into alignment again, until proper alignment
can be conrmed.
Correct Incorrect
7. Check impedances to verify connections before tightening the Setscrew.
CAUTION: Verify proper DBS Extension insertion by checking impedances before tightening
the Setscrew. Tightening the Setscrew down onto a contact can damage the DBS
Extension.
8. Pass the Torque Wrench through the slit in the septum located on the top of the DBS Extension
connector.
9. Tighten the Setscrew in the DBS Extension connector until the Torque Wrench clicks, indicating
the Setscrew is fully secured.
CAUTION: The wrench is torque limiting, such that the Setscrew cannot be over tightened.
Use only the wrench provided, as other tools may over-tighten the Setscrew and
damage the DBS Lead.
Note: To tighten the Setscrew, use one hand to grasp the Extension at the base and the
other to rotate the Torque Wrench clockwise. To loosen the Setscrew, rotate the
Torque Wrench counterclockwise.

Vercise™ PC Implantable Pulse Generator DFU
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 8 of 15
10. Repeat steps 1 – 9 to tighten second Stimulator Setscrew and the Setscrew on the second
DBS Extension.
11. Place the Stimulator in the subcutaneous pocket.
a. Coil the excess DBS Extension length around the Stimulator perimeter.
WARNING: Avoid placing the excess DBS Extension length on the supercial surface of
the Stimulator, as this may increase the potential for tissue erosion or damage
during Stimulator replacement surgery.
b. Optionally secure the Stimulator to the fascia by suturing through the holes in the
Stimulator header.
12. Close the incisions.
CAUTION: Be careful not to damage the DBS Lead, Stimulator, or other implanted
components when closing the incisions.
Note: When closing the incision over the extension connector, orient the extension
connector to minimize the prole under the skin.
Vercise PC System Revisions, Replacement, and
Explantation
If the entire Vercise PC System (Stimulator, DBS Extensions, and DBS Leads) is to be removed,
then the DBS Leads should be removed rst (as described below) followed by the DBS Extensions,
and lastly the Stimulator. This order should reduce the potential spread of infection toward the skull
opening.
Explanting the DBS Lead
WARNING: When explanting the Vercise PC DBS System, the DBS Lead should be pulled
from the site above the ear and not the site near the burr hole to avoid a
potential spread of infection toward the skull opening.
1. Turn off the Stimulator.
2. Palpate the scalp to locate the Burr Hole Cover (BHC).
3. Make an incision near the BHC to expose the BHC and DBS Lead. Be careful not to damage or
cut the DBS Lead or suture sleeve.
4. Cut the DBS Lead at a distance about 2-3 cm from the BHC, leaving enough length to grasp
the Lead.
5. Unscrew the screws anchoring the BHC.
6. Slowly and gently retract the DBS Lead from the neural tissue, pulling as close to perpendicular
to the skull as possible. The DBS Lead should experience minimal resistance when retracted.
7. Palpate the region under the scalp to locate the DBS Extension connector.
8. Create an incision to expose the DBS Lead and DBS Extension connector. Be careful not to
damage the implanted components to allow for proper analysis following explant.
9. Loosen the connector Setscrew on the DBS Extension using the Torque Wrench provided.

Vercise PC System Revisions, Replacement, and Explantation
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 9 of 15
Note: Be sure to fully insert the Torque Wrench before loosening the Setscrew. To tighten
the Setscrew, rotate the Torque Wrench clockwise. To loosen the Setscrew, rotate
the Torque Wrench counterclockwise.
10. Remove the DBS Lead from the DBS Extension.
11. Gently pull the remainder of the DBS Lead through the incision behind the ear.
WARNING: The DBS Lead should be pulled from the site behind the ear and not the site
near the burr hole to avoid a potential spread of infection toward the skull
opening.
12. If you are replacing the DBS Lead, follow the instructions in the appropriate lead manual as
listed on your DBS Reference Guide. If you are explanting the entire Vercise PC System,
continue on to the Explanting the DBS Extensions procedure. Otherwise, close the incisions.
13. Ship the explanted DBS Leads to Boston Scientic.
Explanting the DBS Extensions
1. Turn off the Stimulator.
2. Palpate the region under the scalp to locate the DBS Extension connector.
3. Create an incision to expose the DBS Lead and DBS Extension connector. Be careful not to
damage the implanted components to allow for proper analysis following explant.
4. Cut the DBS Extension(s) at the tapered (proximal) end of the connector.
5. Loosen the connector Setscrew using the Torque Wrench provided.
CAUTION: Loosen the Setscrew only as much as necessary to remove the DBS Lead.
Loosening the Setscrew too much will cause it to fall out.
Note: To tighten the Setscrew, rotate the Torque Wrench clockwise. To loosen the
Setscrew, rotate the Torque Wrench counterclockwise.
6. Disconnect the DBS Extension connector. Return the DBS Extension connector to Boston
Scientic.
7. Expose and disconnect the DBS Extensions from the Stimulator by following the procedure in
“Explanting or Replacing the Stimulator.”
8. Gently pull the DBS Extension through the tunnel from the Stimulator site.
WARNING: Avoid pulling towards the ear to reduce the potential for infection of the DBS
Leads.
9. Ship the explanted DBS Extensions to Boston Scientic.
Note: If the DBS Extension has broken, then it may be necessary to make additional
incisions or to pull one end of the DBS Extension out at the Stimulator site and the
other end from the DBS Extension connector site.

Vercise™ PC Implantable Pulse Generator DFU
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 10 of 15
Explanting or Replacing the Stimulator
1. Turn off the Stimulator.
2. Palpate the subclavicular area to locate the Stimulator.
3. Surgically open the pocket where the Stimulator is located. Be careful not to damage the
implanted components to allow for proper analysis following explant.
CAUTION: Do not use electrocautery as it will damage the Stimulator.
Note: The incision should be large enough to remove the Stimulator from the pocket.
4. Withdraw the Stimulator from the pocket.
5. Using the Torque Wrench, unscrew the header Setscrews to release the DBS Extensions.
CAUTION: Loosen the Setscrew only as much as necessary to remove the DBS Extension.
Loosening the Setscrew too much will cause it to fall out.
Note: To tighten the Setscrew, rotate the Torque Wrench clockwise. To loosen the
Setscrew, rotate the Torque Wrench counterclockwise.
6. Remove the DBS Extensions from the Stimulator.
7. If the Stimulator is to be replaced, reconnect the new Stimulator by following the procedures in
“Connecting the Stimulator”.
8. If the DBS Extensions will remain implanted, you may optionally clean the proximal ends of the
DBS Extensions, attach Lead Boots, and coil the excess DBS Extension material in the pocket.
9. Close the incision.
10. Ship the explanted Stimulator to Boston Scientic.
CAUTION: Be careful not to damage any remaining implanted components when closing the
incision.

Physical Characteristics of the Vercise PC Stimulator
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 11 of 15
Physical Characteristics of the Vercise PC
Stimulator
The physical characteristics of the Stimulator are outlined in Table 1. The Stimulator contains a
radiopaque identication tag. The identication tag is visible using standard x-ray procedures.
Table 1: Stimulator Physical Properties
Feature Description
Case Titanium
Header Epoxy
Dimensions 70.9 mm x 49.5 mm x 11.3 mm
Volume 33 cm3
Stimulator Programmable Characteristics
The stimulation parameters are independent for the two DBS Leads such that stimulation of
two different brain targets can have different amplitudes, pulse widths, stimulation rates, and
contact congurations. The two DBS Leads can also have differing monopolar and multipolar
congurations; however, a given DBS Lead contact cannot be programmed as both monopolar and
multipolar. The programmable parameter ranges for the Stimulator are shown in Table 2.
Note: Some frequency combination may not be used. See the Programming Manual for
specic frequency combinations.

Vercise™ PC Implantable Pulse Generator DFU
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 12 of 15
Table 2: Stimulator Function
Parameter Range
Waveform Charge balanced,
asymmetric biphasic
Pulse Shape Rectangular
Current or Voltage Regulated Current
Amplitude
1
0.1 – 20 mA
Rate
2
2 – 255 Hz
Pulse Width 20 – 450 µs
Cycle (On/Off) 1 s – 90 min
Stim Ramp On 1 – 10 s
Contact Connections 16
Independent Areas of Stim (4
Programs with 4 Areas per Program) 16
Current Path Options Unipolar, Bipolar, or
Multipolar
1 The programmable coverage for each individual contact is limited to 12.7 mA.
A programming interlock is enforced to limit the total output current to 20 mA
or less per coverage area. For example, a maximum current output of 12.7 mA
on one contact would limit the total summed current output on the remaining
contacts to 7.3 mA within one coverage area.
2 The rate is limited to a sum of 255 Hz for a given port. The global rate limit for
each lead is also 255 Hz

Stimulator Programmable Characteristics
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 13 of 15
Stimulation Output at Maximum Parameters vs. Impedance. The above graphs
show the maximum output current when stimulation settings are set to the maximum values on
a Ring or Directional electrode (Amplitude Max = 12.7 mA, PW = Various shown (450, 240, 120,
30 µs), Rate Max = 255 Hz). Please note that for typical parameters (PW=60 µs, Rate=130 Hz,
Amplitude=3 mA), these limits are not expected to be reached.

Vercise™ PC Implantable Pulse Generator DFU
Vercise™ PC Implantable Pulse Generator DFU
92104390-01 14 of 15
DBS Extension
The DBS Extension consists of a connector at the distal end and 8 cylindrical contacts at the
proximal end. The DBS Lead may be inserted and secured into the connector, which also contains
8 contacts that align with the contacts on the DBS Lead to form electrical connections. The
DBS Extension can be implanted and attached to the Stimulator and the DBS Lead for bilateral
stimulation.
Table 3: DBS Extension
Feature Description
Overall Length 55 cm
Outer Diameter 1.35 mm
Number of Contacts 8
Contact Material Platinum/Iridium
Insulation Material Polyurethane, Silicone
Tunneling Tool
The Tunneling Tool is used to create a path for the DBS Lead and DBS Extension in the
subcutaneous tissue.
Table 4: Tunneling Tool
Feature Description
Length 28 cm (Straw), 35 cm (Long)
Shaft Material Stainless Steel
Straw Material PTFE
Handle Material Stainless Steel, Ultem

Vercise™ PC Implantable Pulse Generator DFU
92104390-01 15 of 15
This page intentionally left blank.

Legal Manufacturer AUS Australian Sponsor
Address EC REP EU Authorized
Representative
Boston Scientic Neuromodulation
Corporation
25155 Rye Canyon Loop
Valencia, CA 91355 USA
[phone] in US and Canada
[phone], [phone] Fax
[phone] TTY
www.bostonscientic.com
Email: [email protected]
Boston Scientic (Australia) Pty Ltd
PO Box 332
BOTANY
NSW 1455
Australia
Free Phone [phone]
Free Fax [phone]
Boston Scientic Limited
Ballybrit Business Park
Galway, Ireland
T: [phone]
F: [phone]
© 2018 Boston Scientic Corporation
or its afliates. All rights reserved.
92104390-01 2018-07
