Bowflex Ultimate 2 Accessory Pack User manual

Accessory Rack
Assembly Instructions
P/N 001-6930 RevB (07/2006)

2
Product Specifications ......................................................2
Safety Requirements ..........................................................3
Complete Rack Component Diagram ..............................4
Parts List ...............................................................................4
Assembly Steps ...................................................................5
Storing Your Accessories ..................................................9
Warranty Information .......................................................10
Contact Information .........................................................11
Table of Contents
Product Specifications
Dimensions: 41" L x 26" W x 37" H (104cm x 66cm x 94cm)
Assembled Unit Weight: 52 lbs. (23.6 kg)
Shippng Package Weight: 61.6 lbs. (28 kg)

3
Label 1
Safety Requirements





Used to call attention to POTENTIAL hazards that could result
in personal injury or damage to equipment.
IMPORTANT SAFETY INSTRUCTIONS
The following definition applies to the word “Caution” found throughout this manual:
• Always read and follow the Safety labels attached to
your Bowflex Ultimate® 2 Accessory Rack . Do not
remove these labels. If you need replacement labels,
please call a Nautilus Representative at 1-800-
NAUTILUS (628-8458).
• Read the manual and follow it carefully before using
the rack.
• Never allow children to use the Bowflex Ultimate® 2
Accessory Rack unsupervised. To do so could result
in injury. This equipment is under no circumstances
suitable as a children’s toy.
• Inspect your rack for any worn or loose components
prior to use. Tighten or replace any worn or loose
components prior to use.
• Set up and use your Bowflex Ultimate® 2 Accessory
Rack on a hard, level surface.
• Use your Bowflex Ultimate® 2 Accessory Rack
ONLY to store accessory equipment for your Bowflex
Ultimate® 2 home gym. Store each accessory only
in its designated holder on the rack.
READ ALL INSTRUCTIONS BEFORE USING THE EQUIPMENT.
Safety Warning Labels
The following safety warnings are located in site specific areas on the Bowflex Ultimate® 2 Accessory Rack. Please
read all safety precautions and warning information prior to using your product. Be sure to replace any warning label if
damaged, illegible, or missing. If you need replacement labels, please call a Nautilus Representative at 1-800-NAUTILUS
(628-8458)

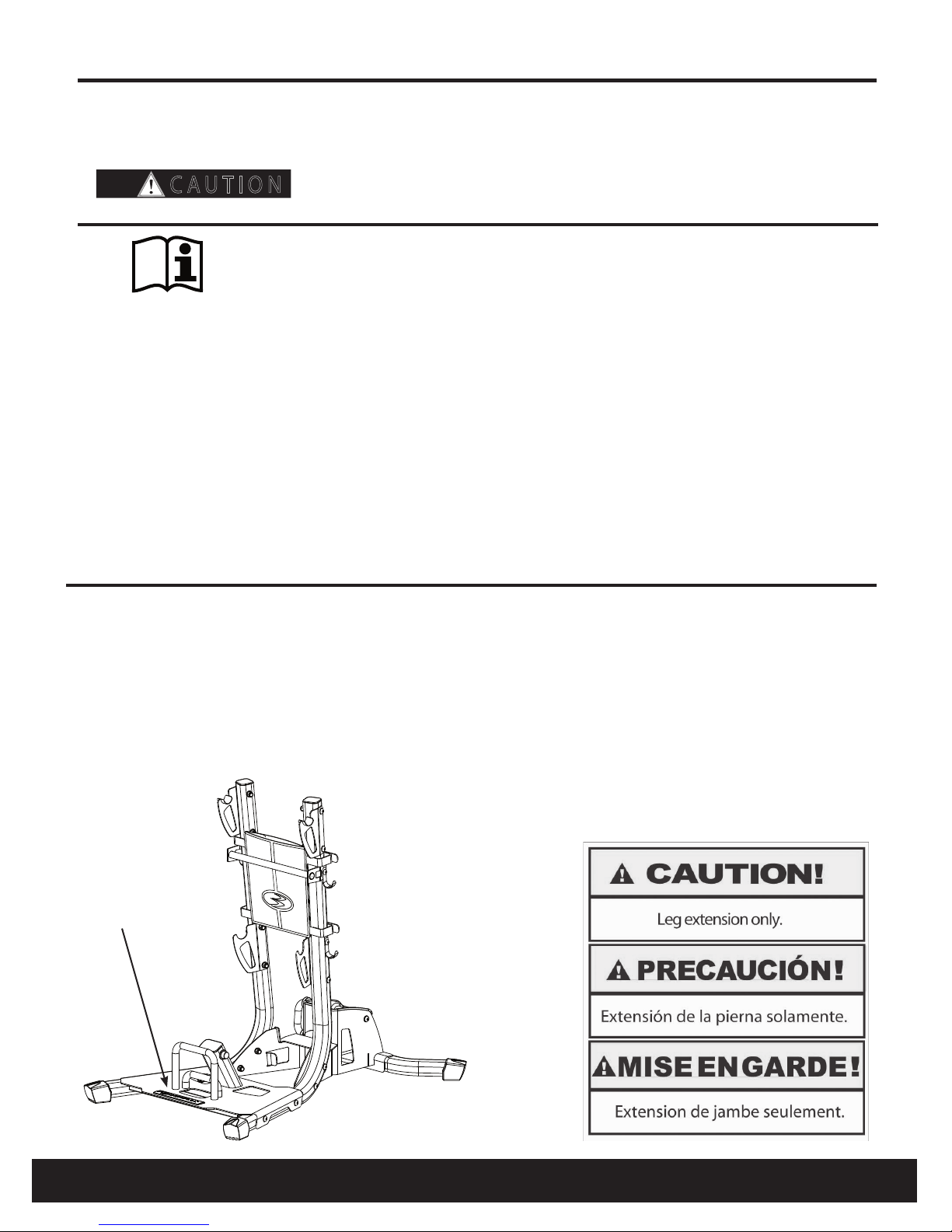

Label 1: Please make sure all users read, understand, and follow the warning labels on the rack. See Figure A.
Location: The warning label in Figure B is located on the
Base Plate under the U-bar. Store only the Leg
Extension on this holder.
Figure A
Figure B

4
Tools Required
7/32" Allen Wrench (included)
You will also need:
9/16" Socket Wrench
9/16" Wrench or Adjustable Wrench
Utility knife or scissors to cut nylon ties
Parts
# Qty. Description
1 1 BASE SUPPORT
2 1 CURL BAR HOOK, RIGHT
3 1 CURL BAR HOOK, LEFT
4 2 BRACKET, BAR HOOK
5 1 TOWEL RACK
6 1 MOUNT, PREACHER CURL ASSEMBLY
7 4 WASHER HOOK
8 1 FLEX BAG
9 2 SIDE TUBE ASSEMBLY
10 1 BOTTOM BRACKET ASSEMBLY
11 1 BASE PLATE ASSEMBLY
12 2 3/8" X 7/8" ALLEN BOLT
13 20 3/8" X 2 3/4" ALLEN BOLT
14 20 3/8" NYLOCK NUT
15 38 M10 or 3/8" WASHER
Hardware

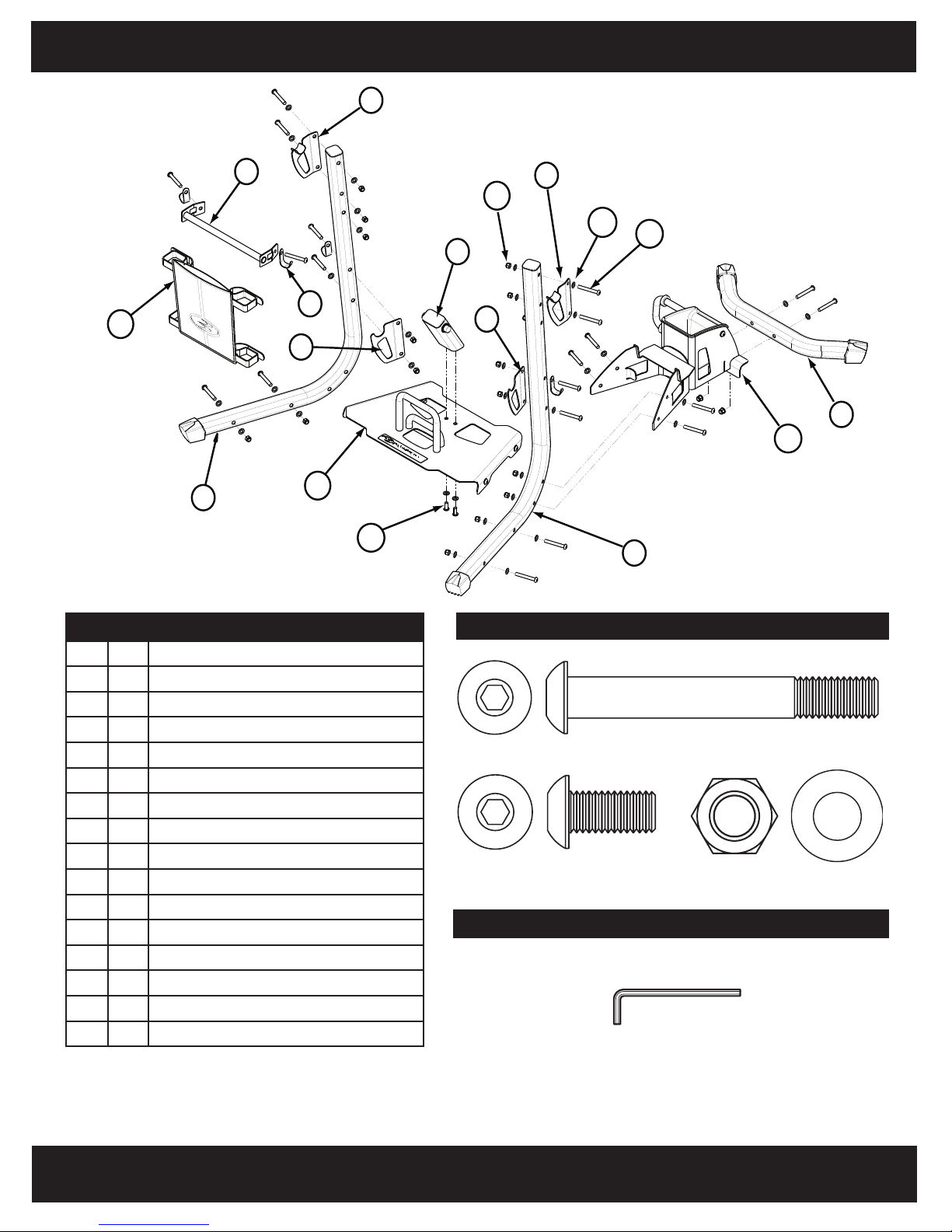

Complete Rack Component Diagram
2 3/4" Allen Bolt
Washer
Lock Nut
7/8" Allen Bolt

 















5
step
1
Figure 1
Figure 2
Parts:
• Side Tubes (#9)
• Bottom Bracket (#10)
Hardware Qty
• 2 3/4" Bolts (#13) 4
• Washers (#15) 8
• Nuts (#14) 4
Tools:
• Allen wrench (7/32”)
• Wrench/Socket (9/16”) or Open End Wrench

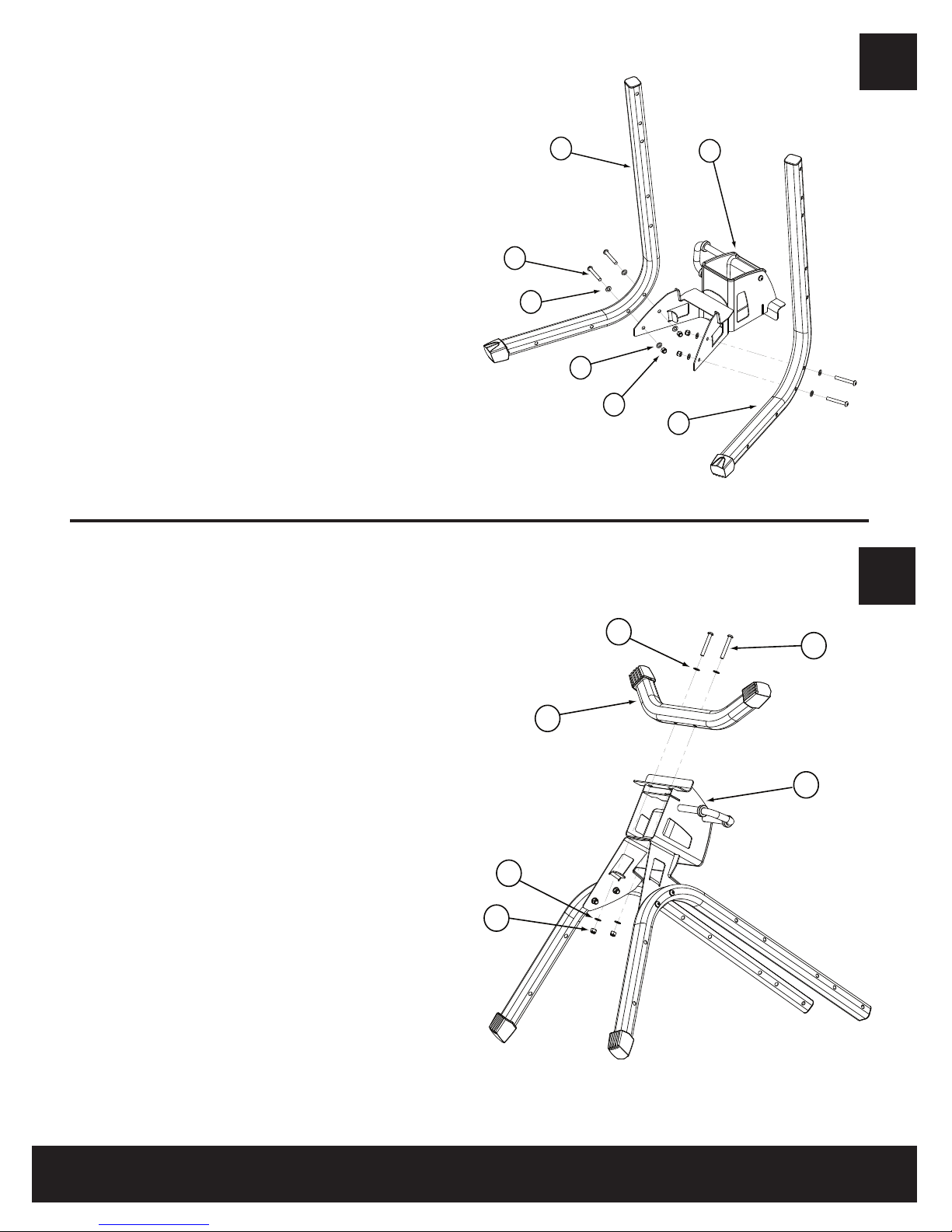

1-1 Attach the Bottom Bracket (#10) to the Side
Tubes (#9) using the hardware shown in Figure 1.
Note: Do not tighten hardware at this time.













step
2
Parts:
• Base assembly from Step 2
• Base Support (#1)
Hardware Qty
• 2 3/4" Bolts (#13) 2
• Washers (#15) 4
• Nuts (#14) 2
Tools:
• Allen wrench (7/32”)
• Wrench/Socket (9/16”) or Open End Wrench
2-1 Carefully tilt the base assembly forward to rest
on the four Side Tube ends. Attach the Base
Support (#1) to the Bottom Bracket (#12) using
the hardware as shown in Figure 2. Make sure
that the Base Support feet are pointing away
from the base assembly.
Note: Do not tighten hardware at this time.
2-2 Turn the base assembly upright to rest on all
four feet.

step
3
6




Parts:
• Base Plate assembly from Step 3
• Base assembly from Step 2
Hardware Qty
• 2 3/4" Bolts (#13) 4
• Washers (#15) 8
• Nuts (#14) 4
Tools:
• Allen wrench (7/32”)
• Wrench/Socket (9/16”) or Open End Wrench
4-1 Place the Base Plate (#11) on the lower
Side Tubes (#9), narrow edge toward the
Tube uprights and the curved edges outside
the Side Tubes. Align bolt holes in the Base
Plate and Side Tubes. Install the hardware
in the two bolt holes closer to the uprights.
See Figure 4.
4-2 At the bolt holes farther from the Side Tube uprights, insert a 2 3/4" Bolt (#13) through a Washer (#15) into
each bolt hole.
4-3 Carefully tilt the base assembly forward to rest on the four Side Tube ends. Install a Washer (#19) and
Nut (#18) onto each of the Bolts from Step 3-2.
Note: Do not tighten hardware at this time.
4-4 Turn the base assembly upright to rest on all four feet.
Figure 3
Parts:
• Base Plate (#11)
• Curl Mount (#6)
Hardware Qty
• 7/8" Bolts (#12) 2
• Washers (#15) 2
Tools:
• Allen wrench (7/32”)
3-1 Attach the Preacher Curl Mount (#6) to the Base
Plate (#11) using the hardware as shown in Figure
3. The Curl Mount should lean toward the U-shaped
bars on the Base Plate.
Tighten hardware completely.



 

Figure 4
step
4

7
step
5
Parts:
• Rack base assembly from Step 4
• Right Curl Bar Hook (#2)
• Left Curl Bar Hook (#3)
• Bar Hook Brackets (#4)
• Washer Hooks (#7)
Hardware Qty
• 2 3/4" Bolts (#13) 8
• Washers (#15) 14
• Nuts (#14) 8
Tools:
• Allen wrench (7/32”)
• Wrench/Socket (9/16”) or
Open End Wrench

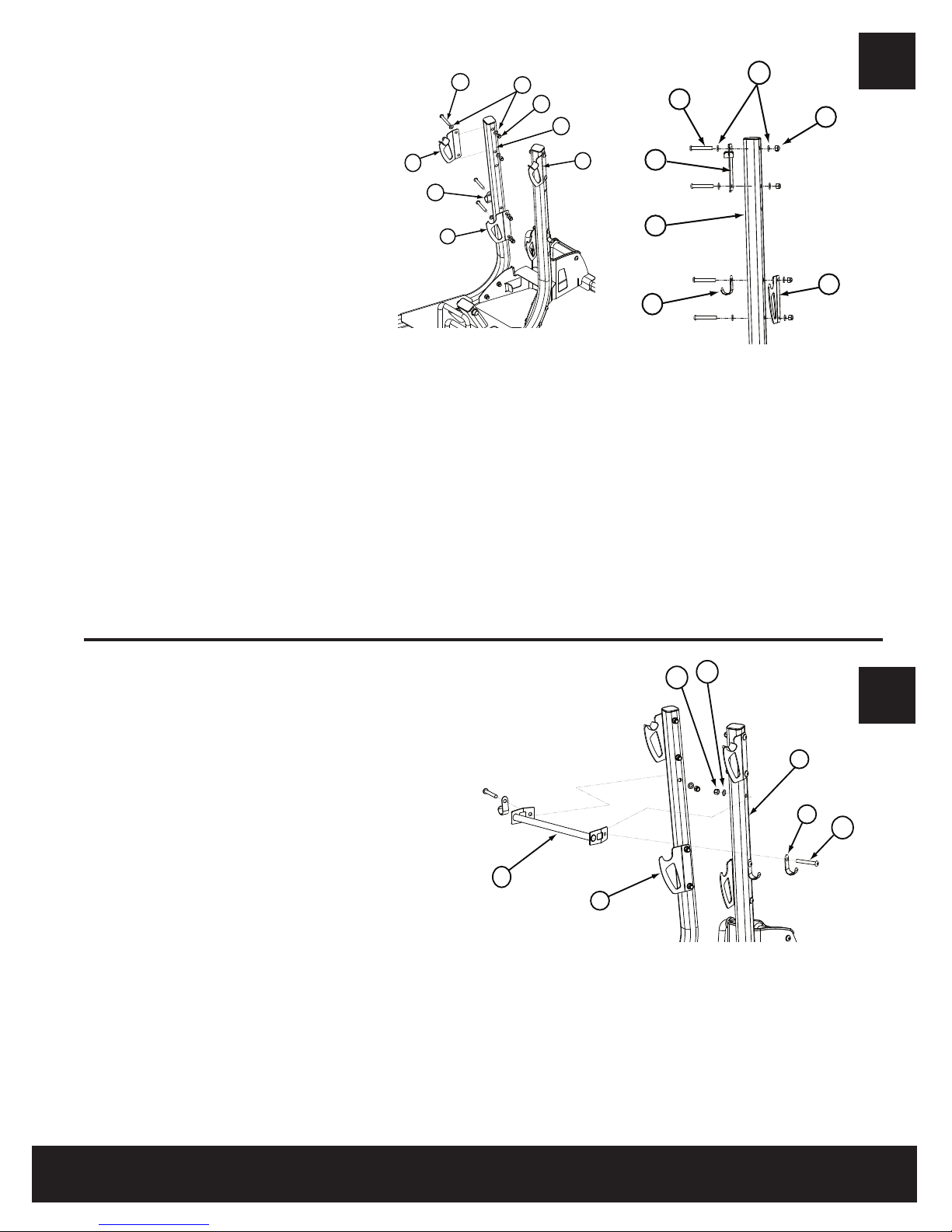

5-1 Install the Left Curl Bar Hook (#3) at the two top, outside bolt holes on the left Side Tube (#9) using the hard-
ware shown in Figure 5. Make sure that the Curl Bar Hook curves inward, around the Side Tube, and the
hook points toward the Base Plate. Tighten hardware completely.
5-2 Install the Right Curl Bar Hook (#2) to the right Side Tube as described above.
5-3 At the two lowest bolt holes on each Side Tube upright, install a Bar Hook Bracket (#4) and Washer Hook
(#7) using the hardware shown in Figure 5. Make sure the Bar Hook Brackets are pointing the same direc-
tion as the Curl Bar Hooks. Tighten hardware completely.
Note: There is no washer where the Bolt (#13) is inserted through the Washer Hook.
step
6
Parts:
• Rack assembly from Step 5
• Towel Rack (#5)
• Washer Hooks (#7)
Hardware Qty
• 2 3/4" Bolts (#13) 2
• Washers (#15) 2
• Nuts (#14) 2
Tools:
• Allen wrench (7/32”)
• Wrench/Socket (9/16”) or Open End Wrench
6-1 Attach the Towel Rack (#5) and one Washer
Hook (#7) to the outside of each Side Tube (#9) above the Bar Hook Brackets (#4) using as the hardware
shown in Figure 6. Make sure that the Towel Rack rod is toward the Base Plate.
Note: There is no washer where the Bolt (#13) is inserted through the Washer Hook.
6-2 Completely tighten all hardware from Steps 1, 2, 4 and 6. (Hint: use the open end wrench to tighten the Nuts
from Step 2 and 4-3.) Make sure the rack sits evenly on all four feet. You may need to loosen and retighten
the hardware to adjust the unit.




 


Figure 5 (Left Tube – Front View)










 

Figure 6

8
step
8
Parts:
• Rack assembly from Step 6
• Flex Bag (#8)
• Color-coded Dots (6 pairs)

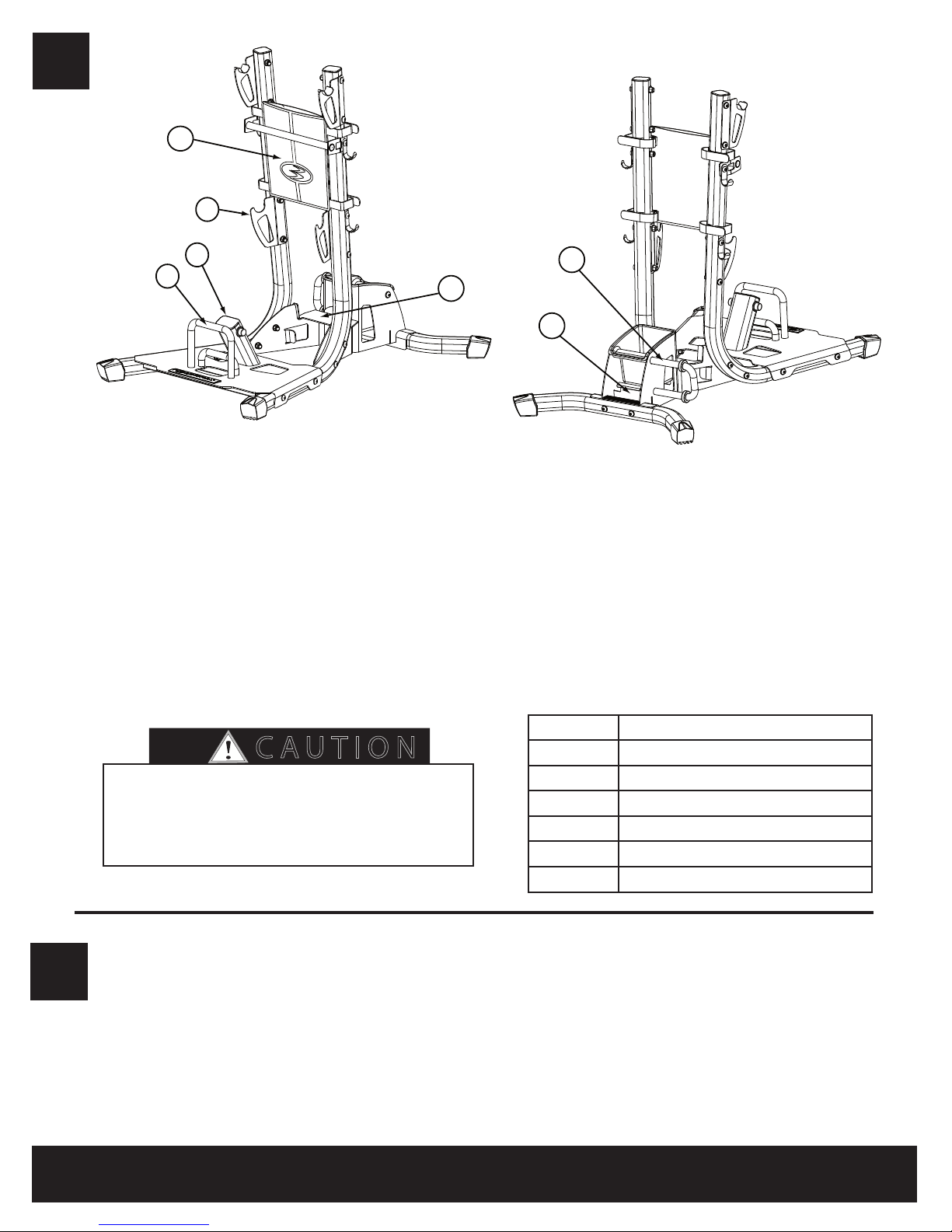

7-1 Fasten the Flex Bag (#8) to the Side Tube uprights below the Curl Bars, using the hook-and-loop straps.
See Figure 7.
7-2 The pairs of colored dots will identify the storage locations for the Bowflex Ultimate® 2 accessory equip-
ment listed in the guide chart below. As you peel each pair of dots from the paper backing, place one dot
on the accessory and the other on its holder on the rack. See Figure 7.
Location Accessory
A Ab Crunch (optional attachment)
B Leg Extension
C Leg Extension Seat
D Preacher Curl Assembly
E Squat Attachment
F Tall Seat Back
Figure 7







Parts:
• Rack assembly from Step 7
Tools:
• Allen wrench (7/32”)
• Wrench/Socket (9/16”) or Open End Wrench
8-1 Now that you have assembled your Bowflex Ultimate® 2 Accessory Rack, it is very important to tighten
all hardware and visually inspect the rack. Make sure that your Bowflex Ultimate® 2 Accessory Rack
has been assembled correctly and securely.





To avoid damage to equipment or
injury, store Bowflex Ultimate® 2
accessories only in their designated
holders on the rack.
step
7

9













Your Bowflex Ultimate® 2 Accessory Rack is now complete. You are ready to store your equipment.


 
  

10
WARRANTY
LIMITED WARRANTY FOR EXERCISE PRODUCTS
All Bowflex® branded exercise products manufactured by Nautilus, Inc. are warranted to the retail purchaser to be free from defects in materials
and workmanship. Warranty coverage valid to the original purchaser only and proof of purchase will be required. Any product sold or placed in an appli-
cation not recommended by Nautilus will void any warranty coverage set forth by Bowflex® warranty policies and procedures.
TIME PERIOD
This product was designed, warranted, and intended for residential use only.
Residential Environment:
Frame Parts: 90 days
THIS WARRANTY DOES NOT COVER
1. Use in a commercial setting such as health clubs, schools, hotels and hospitals.
2. Damage due to normal wear and tear.
3. Any damage, failure or loss caused by accident, misuse, neglect, abuse, improper assembly, improper maintenance, Acts of God (such as floods or
power surges), or failure to follow instructions or warnings in Owner’s Manual.
4. Use of products in an application not recommended by Nautilus, Inc., or in a manner or environment for which they were not designed.
5. Extended warranties: Nautlus will not be responsible for any extended coverage terms offered by a distributor or service provider.
LIMITATIONS
The foregoing warranties are in lieu of and exclude all other warranties not expressly set forth herein, whether express or implied by operation of law or
otherwise, including, but not limited to, WARRANTY OF MERCHANTABILITY or WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. Nautilus,
Inc. shall in no event be liable for incidental or consequential losses, damages or expenses in connection with its exercise products. Nautilus liability
hereunder is expressly limited to the replacement of goods not complying with this warranty or, at Nautilus, Inc.'s sole election, to the repayment of
an amount of the purchase price of the exercise product in question. Some states do not permit the exclusion or limitation of implied warranties
or incidental or consequential damages, so the preceding limitations and exclusions may not apply to you.
PROCEDURES
Warranty service will be performed by the original retailer (seller) or an authorized Bowflex® service provider. The original purchaser must provide
proof of purchase. Service calls, assembly, transportation, and/or delivery expenses are the responsibility of the purchaser: 1-800-NAUTILUS (628-
8458).
1. Nautilus will have the option in its discretion to repair or replace any exercise product(s), which require warranty service, or to apply a limited
credit reimbursement toward another Bowflex® exercise product of equal or greater value.
2. Nautilus is not responsible for dealer labor charges for component changeovers completed after the labor-related warranty period(s) stated
herein.
3. See an authorized Bowflex® distributor for more information or write to us at:
Nautilus, Inc.
16400 SE Nautilus Dr.
Vancouver, Washington, USA 98683

11
If you need assistance, please have both the serial number of your rack and the date of purchase available when you
contact the appropriate Nautilus, Inc. office listed below.
WORLDWIDE CUSTOMER SERVICE
• NORTH AMERICA OFFICE
Nautilus, Inc.
World Headquarters
16400 S.E. Nautilus Drive
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS (628-8458)
Fax: [phone]
e-mail: [e-mail]
INTERNATIONAL CUSTOMER SERVICE
• SWITZERLAND OFFICE
Nautilus International S.A.
Rue Jean Prouve 6
1762 Givisiez / Switzerland
Tel: [phone]
Fax: [phone]
INTERNATIONAL OFFICES:
• SWITZERLAND OFFICE
Nautilus Switzerland S.A.
Rue Jean Prouve 6
1762 Givisiez / Switzerland
Tel: [phone]
Fax: [phone]
Web: www.nhfg-intl.com
• GERMANY and AUSTRIA OFFICE
Nautilus GmbH
Tel: [phone]
Fax: [phone]
• ITALY OFFICE
Nautilus Italy s.r.l.
Tel: [phone]
Fax: [phone]
• UNITED KINGDOM OFFICE
Nautilus UK Ltd.
Tel: [phone]
Fax: [phone]
IMPORTANT CONTACT NUMBERS

16400 SE Nautilus Dr.
Vancouver, Washington, USA 98683
1-800-NAUTILUS (800-628-8458) www.nautilus.com
© 2006 Nautilus, Inc. All Rights Reserved.
Bowflex, the Bowflex logo and Bowflex Ultimate are either registered
trademarks or trademarks of Nautilus, Inc.
Specifications subject to change.
Printed in China
