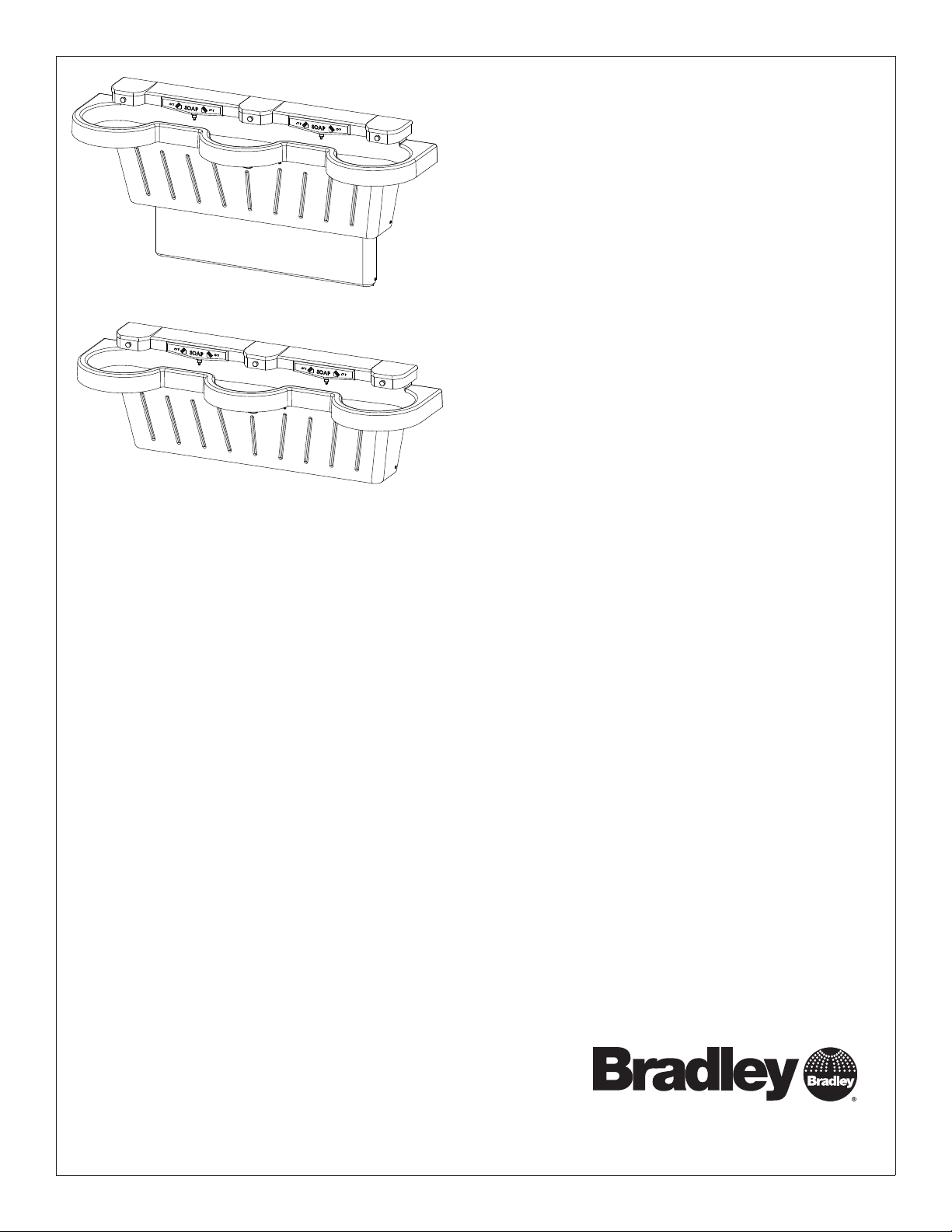

Bradley Express SS-3N/TT/STD User manual

P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX [phone]
bradleycorp.com
Installation
215-1495 Rev. H; ECM 11-08-011
© 2011 Bradley Corporation
Page 1 of 15 10/24/11
SS-3N/TT/STD
SS-3N/TT-WH
Express®Lavatory System SS-Series
Table of Contents
Pre-Installation Information ........................... 2
Components......................................... 3
Supplies Required ................................... 4
Dimensions........................................4–5
Rough-Ins ........................................... 6
Installation ...................................... 7–10
TouchTime Assembly and Solenoid Valve Access ......11
Solenoid Valve Troubleshooting.......................12
Navigator®Mixing Valve Troubleshooting ..............13
Stop Valve Troubleshooting ..........................14
Cleaning and Maintenance for Terreon®...............14
Soap Dispenser Maintenance ........................15
Express Lavatory Systems are ADA and TAS compliant
U.S. Pat. Nos. 5,611,093, 5,369,818, D398,969
Other Patents Pending
SS-3N/TT/STD/LSD-3
SS-3N/TT-WH/LSD-3

SS-3N/TT/STD, SS-3N/TT/WH Installation
210/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011
IMPORTANT!
Read this entire installation manual to ensure proper installation. When finished with the
installation, file this manual with the owner or maintenance department. Compliance and
conformity to local codes and ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding any
packaging material. If any parts are missing, do not begin installation until you obtain the missing
parts.
Make sure that all water supply lines have been flushed and then completely turned off before
beginning installation. Debris in supply lines can cause valves to malfunction.
Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to
installation. Electrical power MUST remain off until unit and optional water heater have been
plumbed. After installation is complete, turn on the water supply first, then turn on the electrical
power.
Hardware supplied by installer must be appropriate for wall construction. Wall anchors must have
a minimum pull-out rating of 1,000 lbs. Follow appropriate dimensions for standard or juvenile
height based on configuration and required rim height. Overtightening fasteners can damage the
Terreon®material. Use caution when tightening bowl and sprayhead fasteners.
Product warranties may be found in the “Products” section on our Web site at bradleycorp.com.
Installation
THIS
SIDE
UP
Packing List
•
•
•
•
Special Note for Sprayhead/Bowl retrofit
to retrofit new SS-3N sprayhead onto existing SS-3 bowl
1½" (38mm)
Drill hole Ø 1" (25mm)
to 1½" (38mm).
Existing Hole
2¼" (57mm)

Installation SS-3N/TT/STD, SS-3N/TT/WH
Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011 10/24/11 3
WASHER
142-002BJ
LOCKWASHER
142-002BK
NUT, 5/16-18
161-036
BOLT 5/16-18
160-371
SCREW 10-24
160-386
MAIN FRAME
(S17-323)
SCUFF BASE
(17-324)
(USED WITH STANDARD
HEIGHT FRAME ONLY)
SCUFF PANEL FASTENERS (160-450)
WASHERS (142-002CA)
(4) PLACES
SCUFF BASE PANEL
(185-033) - GRAY
(185-033A) - PUTTY
(185-033B) - COAL
PEDESTAL PANEL
(186-1454) - GRAY
(186-1454A) - PUTTY
(186-1454B) - COAL
PANEL FASTENERS (160-450)
WASHERS (142-002CA)
(8) PLACES
SPRAYHEAD COVER
(PART NUMBER VARIES WITH
COLOR OF UNIT. CONTACT
YOUR LOCAL BRADLEY REP.
FOR ASSISTANCE).
SPRAYHEAD BODY
(PART NUMBER VARIES WITH
COLOR OF UNIT. CONTACT
YOUR LOCAL BRADLEY REP.
FOR ASSISTANCE).
BOWL
(PART NUMBER VARIES WITH
COLOR OF UNIT. CONTACT
YOUR LOCAL BRADLEY REP.
FOR ASSISTANCE).
#8-32 SCREW
(160-319)
STRAINER
(P16-075)
DRAIN PLUG
(P16-072)
1/8" RUBBER WASHER
(125-001DP)
WASTE SHOE
(111-062)
P-TRAP (POLYPROPYLENE)
(269-1697)
OPTIONAL P-TRAP
(CHROME-PLATED BRASS)
(S29-094)
DRAIN ASSEMBLY
WASTE TEE
(111-063)
Components
1/4"-20 x 1/2"
PAN HEAD
SCREW (qty. 4)
(160-389)
1/4"-20
WASHER
(qty. 4)
(142-002DB)
BOWL MOUNTING
HARDWARE
#8-32 x 3/4"
ROUND HEAD
MACHINE SCREW
(160-276)
BRACKET
(140-950)
#8 WASHER
OPTIONAL WATER HEATER
EX95TMLB, 240/208 volts
(269-1767)
EX100TMLB, 277 volts
(269-1768)
#8 NUT
110/24 VAC
CLASS II PLUG-IN
TRANSFORMER
S83-134

SS-3N/TT/STD, SS-3N/TT/WH Installation
410/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011
Supplies Required:
• (8) ³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount main frame and bowl to wall (minimum pull-out rating of 1,000 lbs.)
• STD. HEIGHT ONLY: (2) ³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount scuff base to wall
• ½" nominal copper tubing for hot and cold supplies and 1½" NPT drain piping
• 110 volt GFCI protected electrical outlet for 1110/24 VAC plug-in transformer (supplied)
• OPTIONAL: 240/208-volt or 277-volt electrical box for electric tankless water heater
Dimensions - Front and Top Views
SOAP
SOAP SOAP
SOAP
Top View
80" (2032mm)
Front View
Standard Frame
Front View
Wall-Hung Frame
85⁄8" (219mm)
30" (762mm)
8" (203mm)
51¼" (1302mm)
58" (1473mm)
64" (1626mm)
68¼" (1734mm)
8" (203mm)
68¼" (1734mm)
58" (1473mm)
64" (1626mm)
8" (203mm) Radius 10" (254mm) Radius
30" (762mm)

Installation SS-3N/TT/STD, SS-3N/TT/WH
Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011 10/24/11 5
Dimensions - Side Views
TAS
TAS
Wall Hung Mounted
at Standard Height
Standard
Height
Wall Hung Mounted
at Juvenile Height
Ages: 6 through 12
Wall Hung Mounted
at TAS Height
Grades: 6
through
8 or 9
Wall Hung Mounted
at TAS Height
Grades: Pre-K
through 5 or 6
211⁄8" (537mm)
38½"
(978mm)
34"
(864mm)
30"
(762mm)
13¼"
(311mm)
11½"
(292mm)
Scuff Base on
Standard Height Only
3" (76mm)
85⁄8"
(219mm)
38½"
(978mm)
34"
(864mm)
30"
(762mm)
85⁄8"
(219mm)
211⁄8" (537mm)
11½"
(292mm)
13¼"
(311mm)
85⁄8"
(219mm)
211⁄8" (537mm)
11½"
(292mm)
85⁄8"
(219mm)
211⁄8" (537mm)
11½"
(292mm)
85⁄8"
(219mm)
211⁄8" (537mm)
11½"
(292mm)
36½"
(927mm)
32"
(813mm)
28"
(711mm)
11¼"
(286mm)
35½"
(902mm)
31"
(787mm)
27"
(686mm)
10¼"
(260mm)
34½"
(876mm) 30"
(762mm)
26"
(660mm)
9¼"
(235mm)

SS-3N/TT/STD, SS-3N/TT/WH Installation
610/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011

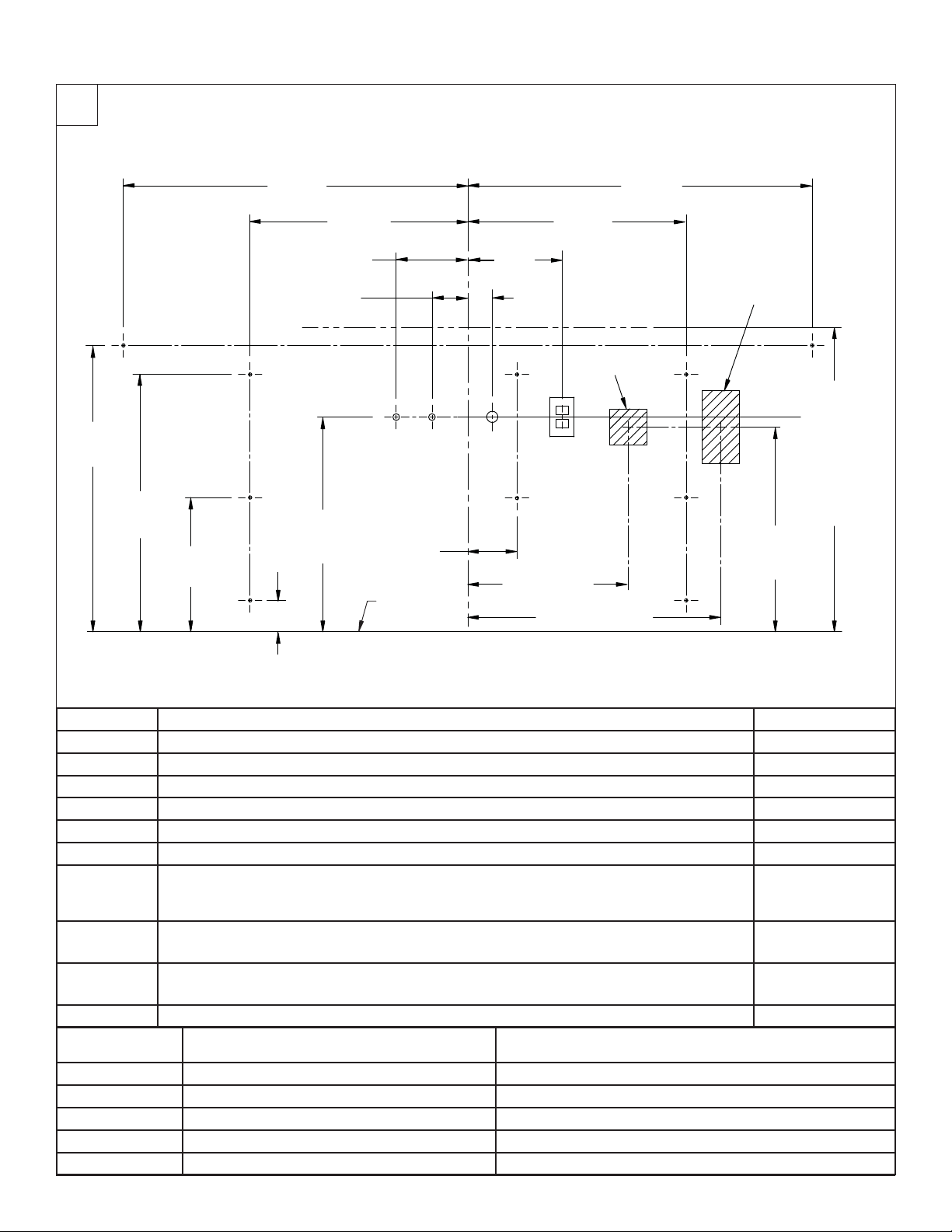

1Rough-Ins
FLOOR
A, F A, F
B
B
B
B
B
B
CC
D1 D2 E
38-1/2"
(978mm)
24-3/8"
(619mm)
8"
(203mm)
13"
(330mm)
C
L
2-3/4"
70mm)
4"
(102mm)
24-3/8"
(619mm)
38-1/2"
(978mm)
32"
(
813mm)
28-3/4"
(720mm)
15"
(381mm)
5-5/8"
(143mm)
27-1/2" (699mm)
18" (457mm)
24"
(610mm) 23"
(584mm)
34"
(864mm)
RIM
HEIGHT
SEE
CHART
BELOW
3-1/2
(89mm)
G
H
J
CODE DESCRIPTION QTY.
A³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Bowl 2
B³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Mainframe 6
C³⁄₈" Wall Anchors for Base Frame, Standard Frame option only, minimum pull-out force not required 2
D1 ½" nominal copper tubing for Cold Supply, stub-out 2" from wall 1
D2 ½" nominal copper tubing for Hot or Tempered Supply, stub-out 2" from wall 1
E 1½" NPT Drain, stub-out 2" from wall 2
F
On the bowl back, measure the distance between the ¾" bowl mounting holes. Divide this measurement
in half. Measure and mark this dimension on the wall to the left and the right of the centerline. Install two
³⁄₈" wall anchors with a minimum pull-out rating of 1,000 lbs (supplied by installer) at locations marked.
2
GWater Heater Option #1: Rough-in appropriate electrical supply per local code (recommended location for
240/208v or 277v electrical box [4" long x 4" wide x 8" high] shown) 1
HWater Heater Option #2: Rough-in appropriate electrical supply per local code (recommended location for
240/208v or 277v electrical box [4" long x 4" wide x 4" high] shown) 1
J 110v GFI Protected Electrical Outlet 1
RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FOR CODES
A–E, H, C and W FIXTURE STYLE
34" None Standard Height
34" None Wall-Hung
32" Subtract 2" TAS, Grades 6 through 8 or 9
31" Subtract 3" Juvenile Height
30" Subtract 4" TAS, Pre-K through Grades 5 or 6

Installation SS-3N/TT/STD, SS-3N/TT/WH
Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011 10/24/11 7

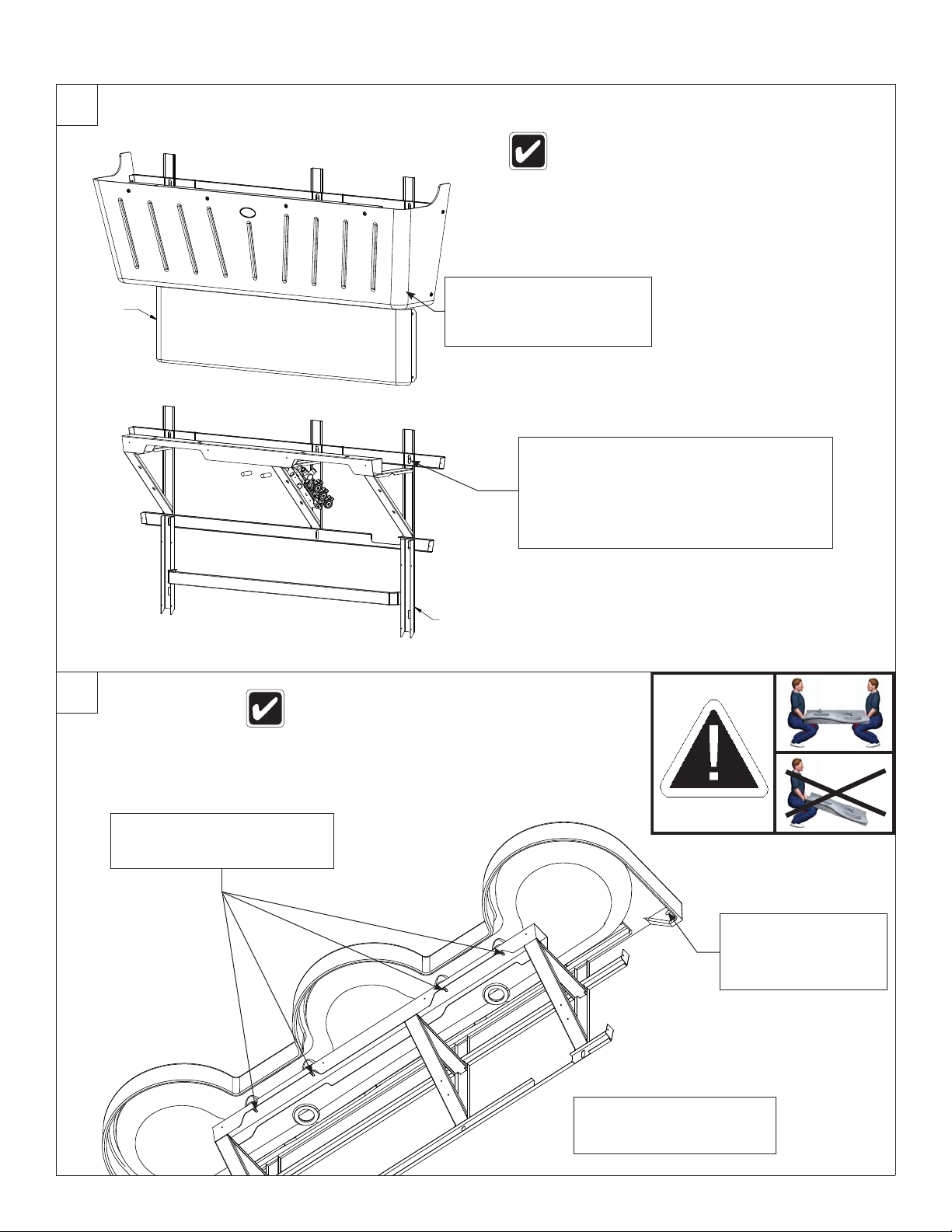

3Install Bowl The sprayhead body has slotted holes for adjusting
the fit-up with the bowl and wall.
For clarity, the scuff base frame and drain are not
shown. Turn the tailpiece down to its proper position
before installing the bowl.
Secure the bowl to the
wall anchors with ³⁄₈"
bolts and 1" min. O.D.
washers, two places.
Do not overtighten.
B
Attach the bowl to the frame with
¼"-20 x ½" pan-head screws and
washers. Do not tighten.
A
Tighten the pan-head screws
Do not overtighten.
C
SCUFF BASE FRAME
STANDARD HEIGHT
FRAME ONLY
SCUFF PANEL
STANDARD HEIGHT
FRAME ONLY
2Mount Frame to Wall
Anchoring the frame to a wall that is not
flat may cause the frame to bend, making
it difficult to reinstall the access panels. If
necessary, use shims to compensate for
wall distortion.
AUsing a T20 torx key, remove
the fasteners securing the
access panel to the main
frame, and remove the panel.
Once you have positioned the frame such that it is
level and flat against the wall or shimmed, mount
the frame to the wall at six places using 3/8” bolts
and 1” min. O.D. washers.
NOTE: When mounting the standard height frame,
mount the scuff base to the wall at the same time
using two additional 3/8” bolts and washers.
B

SS-3N/TT/STD, SS-3N/TT/WH Installation
810/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011
45
45
45
45

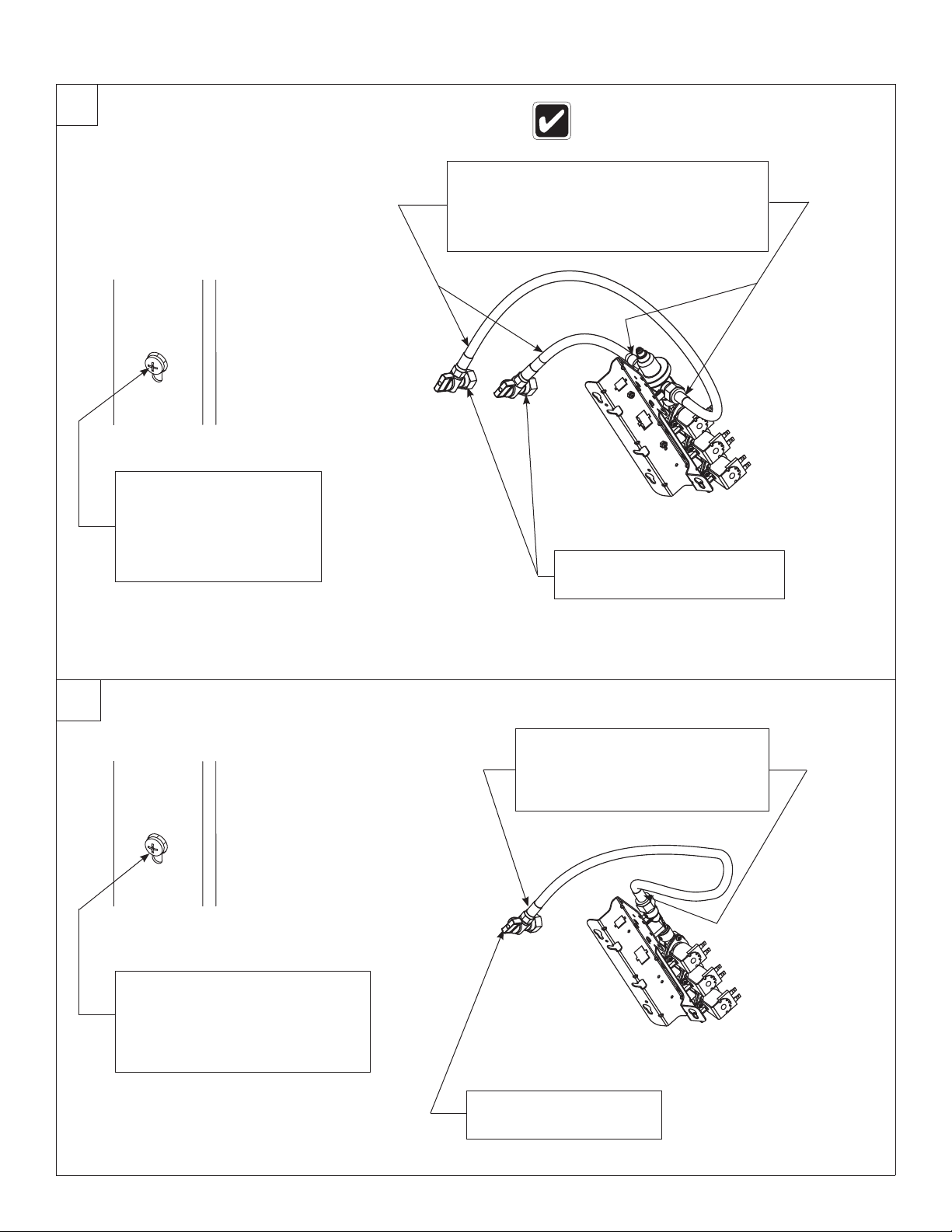

4a Connect the Supply — Hot and Cold Supply
4b Connect the Supply — Single Tempered Supply
The letter “H” on the Navigator Mixing
Valve indicates hot water supply inlet.
Loosen but do not remove
the two mounting screws
holding the valve bracket
to the frame.
Slide the valve bracket up
and lift it from the frame.
A
Connect one end of each hose to the
Navigator valve (one on the hot side, one on
the cold side).
Connect the other swivel end to the stop
valves.
C
Attach the stops to the hot
and cold water wall stub-outs.
B
Loosen but do not remove the two
mounting screws holding the valve
bracket to the frame.
Slide the valve bracket up and lift
it from the frame.
A
Connect one end of flexible hose
to the tempered line adapter.
Connect the other swivel end to
the stop valve.
C
Attach the stop to the
tempered wall stub-out.
B

Installation SS-3N/TT/STD, SS-3N/TT/WH
Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011 10/24/11 9
6Optional Electric Tankless Water Heater

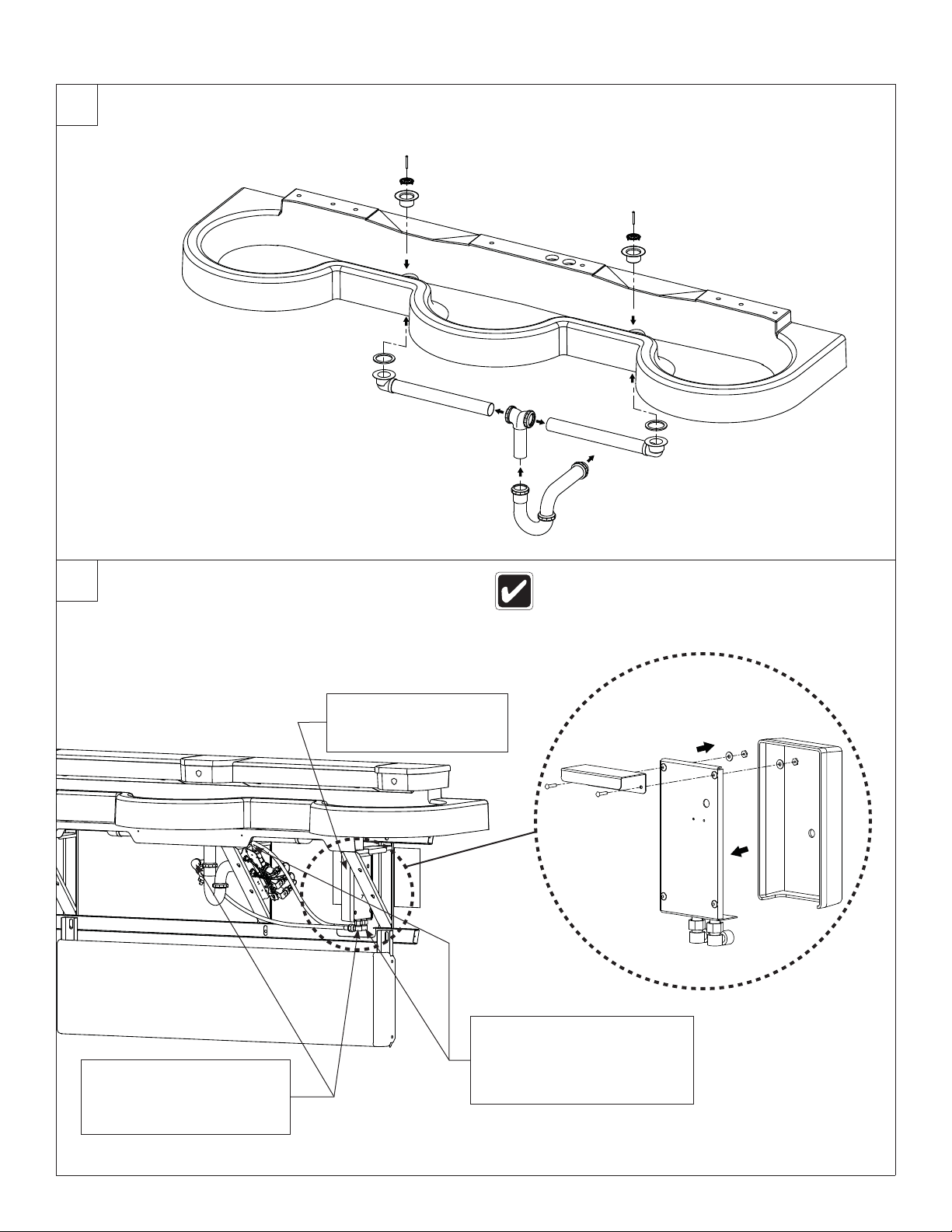

5Install the Drains
To Drain
Stub-Out
240/208 or 277 voltage is required for hot water heater.
Refer to the installation manual provided with the hot
water heater for further installation information.
Connect the ½" flexible
hose from the cold water
supply stub-out to the hot
water heater inlet.
B
Connect the ½" flexible hose
from the hot water heater
outlet to the supply inlet on
the solenoid valve assembly.
C
Hang the water heater
on the right side frame
member.
A

SS-3N/TT/STD, SS-3N/TT/WH Installation
10 10/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011
7Connect Electrical and Sprayhead Supplies
Reinstall the valve bracket. Turn on the water supply and check for leaks. Turn on the electrical power, trigger the TouchTime®
push button of each station until all air is purged from the lines and water is flowing smoothly. Reinstall the access panel.
C
B Black
Black
Supply
Tube
Navigator
Thermostatic
Mixing Valve
Transformer
S83-134
C Black H Brown
G Brown
F Brown
A Black
A Black
C Black
D Black
E Brown
F Brown
G Brown
H Brown
Left Button
Right Gray
Right Green
Center Gray
Left Gray
Center Green
Left Green
B Black
Center
Green
Right Green
Right Gray
Center
Gray
Left Gray
Center Button
Right Button
Green Supply
Tube
Red Supply
Tube
Left Green
Connect the wires as shown.
Attach the terminal block to the
frame near the solenoid rack
using the hook-and-loop fastener
provided.
B
WARNING: The Express® control must be connected with the 24 VAC Class II transformer provided. Connections
to 110 VAC can cause personal injury and will result in damage to the electronics. Connection of leads other than
shown may cause permanent damage to the sensor.
Activation of the push button takes place only when it
is released, thereby preventing “hold open” activation.
Loosen the compression nuts.
Push the sprayhead supply tubes
firmly into the tube connectors until
they are fully seated.
Tighten the compression nuts by
hand.
A
H
C
ALoosen the cap screw
about ¼" (4–6 turns)
and lift up the cover
(do not remove).
B
Using the cover, turn the
cartridge gently until
desired water temperature
is reached. Do not turn past
stops as this may damage
the unit. Push the cover
down and tighten the screw.
This valve is NOT factory preset. Upon installation, the temperature of this
valve must be checked and adjusted to ensure delivery of a safe water
temperature. Water in excess of 110°F (43°C) may cause scalding.
8Adjust the Temperature

Installation SS-3N/TT/STD, SS-3N/TT/WH
Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011 10/24/11 11
Aerator Assembly
(S05-180)
Nut, ½"-14 NSPM
(110-115)
Bracket, SSN
Push Button
(140-956)
TouchTime®
15-sec. Switch
(S83-139B)
Sprayhead Components
TouchTime assembly and solenoid valve access
• To access TouchTime switch: Remove the Phillips-head screws located in the bottom of the sprayhead body and lift the
Terreon cover/shelf off.
• To reinstall sprayhead cover/shelf: Position the cover/shelf on the sprayhead body and secure it to the sprayhead body
using the screws provided.

SS-3N/TT/STD, SS-3N/TT/WH Installation
12 10/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011
Turn off water supplies to the unit before troubleshooting.
Troubleshooting – Solenoid Valve: Part nos. S07-067 (closed body) & S07-067A (thru body)
Problem Cause Solution
An individual
operating
station fails to
shut off and
drips.
Debris is
trapped
between the
diaphragm
and the
valve seat.
Remove debris between diaphragm and the valve seat.
1. Remove the three #8 Phillips-head screws that hold the solenoid valve assembly together. Be careful not
to lose the armature or spring.
2. Remove the diaphragm. Remove any particles that have been trapped between the diaphragm and the
valve seat. Rinse off the diaphragm and inspect for damage. Make sure the center orifice and both small
side orifices are open.
3. Reassemble in reverse order (do not overtighten the Phillips-head screws or the plastic valve body may
crack). Tighten until the armature plate makes contact with the plastic body.
4. Reconnect the wiring.
An individual
operating
station fails to
turn on.
A failed coil for
the valve or
loose electrical
connection to
the terminal.
Test the station to determine the cause.
1. Disconnect the wires from the coil of an adjacent valve. Disconnect the wires from the problem valve and
reconnect to the adjacent valve.
2. Turn on electrical and water supplies to the unit. Pass your hand in front of the sensor of the problem
station, and the adjacent station should turn on.
If the adjacent station turns on and cycles normally, replace the coil on the problem valve.
If the adjacent valve fails to turn on, inspect the wires from the sensor cable and do the following:
• make sure there are no breaks and that the fully insulated disconnect terminals are firmly crimped in place;
• turn off the electrical and water supplies;
• reconnect to the adjacent valve and turn on the water supplies to the unit;
• pass your hand in front of the sensor. If the station still fails to turn on, replace the sensor.
Item Qty. Description
2 1 Diaphram
3 1 Armature
4 1 Spring
Repair Kit S65-113
1
2
3
4
5
6
7
8
8
9
Item Qty. Part No. Description
1 1 118-307 Valve Body, ¼" Closed
1 1 118-307A Valve Body, ¼" Thru
2 1 269-983 Diaphram
3 1 269-577 Armature
4 1 269-578 Spring
5 1 269-1729 Armature Housing
6 1 269-1730 Clamp, Armature Housing
7 1 269-579 Coil, Solenoid Valve
8 3 160-447 Screw, #8 x 5/8
9 1 125-165 O-Ring, #2-013

Installation SS-3N/TT/STD, SS-3N/TT/WH
Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011 10/24/11 13
Tempered Line Adapter Option
Part no. S39-804
(replaces S59-4000 if tempered line
is used)
Strainer
(173-028)
Problem Cause Solution
External
leaks.
Damaged cartridge or O-rings. Replace cartridge with part number 269-1927
Improper water
temperature or
temperature
fluctuation.
Hot water supply is not 10° above desired set point. Increase hot water supply temperature
Valve temperature is not properly set. Adjust the temperature as shown on page 10, step 8.
Limited water
flow.
Dirt and debris have built up in the valve or strainer. 1. Check to make sure both hot and cold supplies are
connected to the Navigator mixing valve and that they
have water flow.
2. Remove cover and U-clip. Remove the cartridge and
clean the strainer. It is not required to grease cartridge,
however if desired, use silicone grease only. Do not use
grease on check valves.

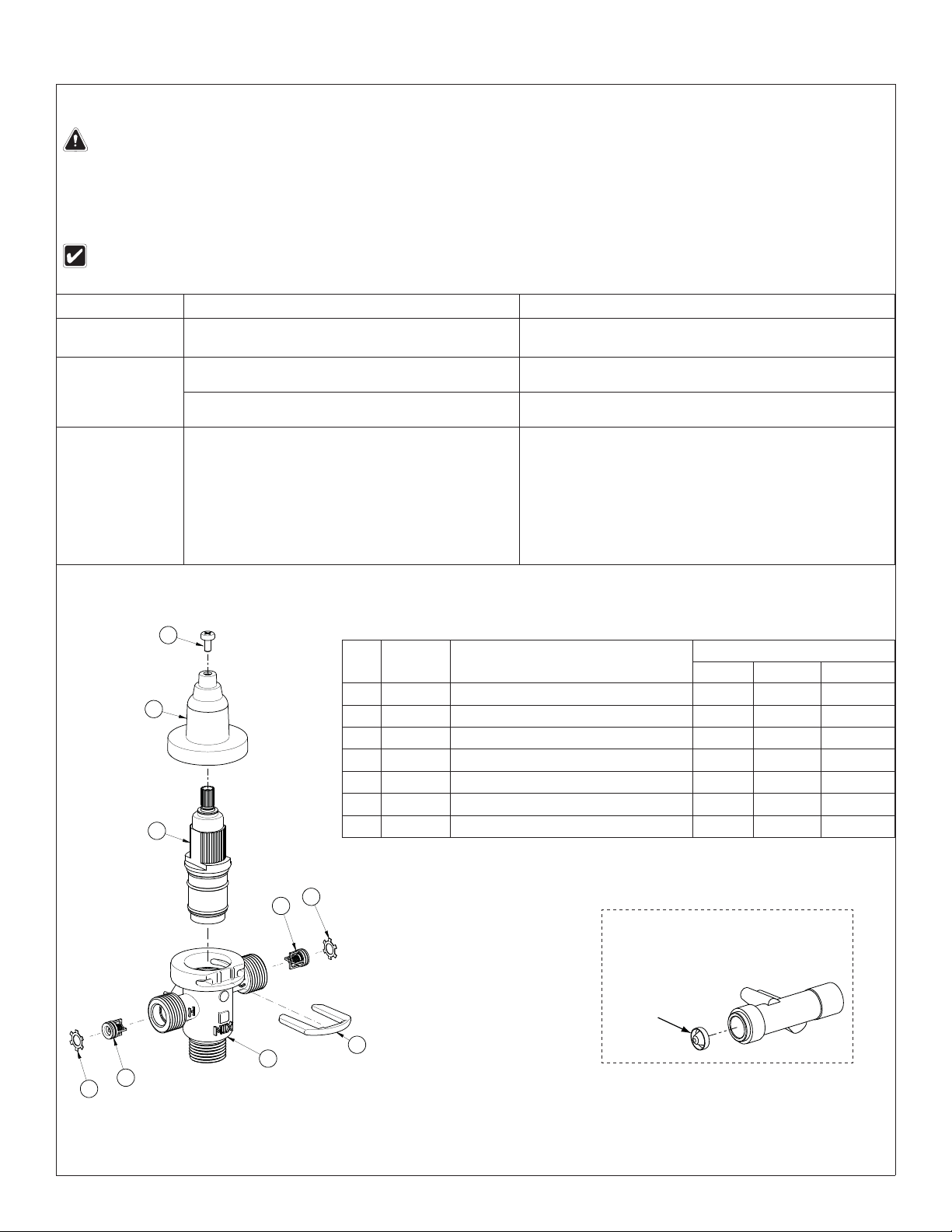

Parts List
Item Part No. Description Quantity
S59-4000 S59-4000A S59-4000BY
1 160-463 Cap Screw 1 1 1
2 107-582 Cover 1 1 1
3 269-1927 Thermostatic Cartridge 1 1 1
4 198-014 Check Valve* 2 2 2
5 132-051 Retaining Ring* 2 2 2
6 118-319 Valve Body 1 1 1
7 146-079 U-Clip 1 1 1
* Included with Prepack S65-326
1
2
3
4
5
4
5
7
6
Thermostatic Mixing Valve Troubleshooting
Before attempting to troubleshoot the valve or disassemble the components, check for the following conditions:
• If stop valves are used, make sure that they are fully open.
• Make sure that the hot and cold inlet pipes are connected properly, and that there are no cross-connections or
leaking stop valves.
• Check the hot water heater output to make sure that it is at least 10° F above the set temperature.
Be sure to close the appropriate shut-off valves prior to disassembly of the valve and reopen the valves after inspection and
repair is complete.

SS-3N/TT/STD, SS-3N/TT/WH Installation
14 10/24/11 Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011
Cleaning and Maintenance for Terreon®
Material Description: Terreon is an NAHB-certified densified solid surface material composed of polyester resin and is resistant to
chemicals, stains, burns and impact. Surface damage can be easily repaired with everyday cleansers or fine grit abrasives.
Routine Cleaning: Clean daily or as often as conditions require using a standard commercial or household cleaner such as
Formula 409®or Windex®.
Stubborn Stains: Remove tough stains with Ajax®, Comet®, or Soft-Scrub®and a green Scotch-Brite®pad or lightly sand in a
circular motion with 240 grit wet/dry sandpaper. The finish can be renewed with a maroon Scotch-Brite pad.
Special Situations for Terreon Material
Scratches: Remove scratches with a green Scotch-Brite pad. The finish can then be renewed with a maroon Scotch-Brite
pad, followed by a white Scotch-Brite pad or 30-micron sandpaper.
Hard Water Deposits: Remove hard water deposits with a mild solution of vinegar and water. Always rinse the unit thoroughly
after cleaning.
Restoring the surface: Use Hope’s®Solid Surface cleaner and polish to refresh and protect the Terreon Solid Surface
material. Bradley recommends additional care and maintenance for the darker colored Terreon. For complete instructions on
this additional maintenance, visit bradleycorp.com.
Do not use strong acid or alkaline chemicals and cleansers to clean Terreon. If these chemicals come in contact
with the surface, wipe them off immediately and rinse with soapy water. Avoid contact with harsh chemicals such
as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects.
Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing.
Repair kits are made to order and have a shelf life of 30 days.
Terreon®is a unique, cast solid surface material. Aggregate flow and distribution as well as shades of color can vary from
product to product creating natural characteristics.
Brand Names
Use of brand names is intended only to indicate a type of cleaner. This does not constitute an endorsement, nor does the omission
of any brand name cleaner imply inadequacy. Many products named are regional in distribution, and can be found in local
supermarkets, department and hardware stores, or through your cleaning service. It is emphasized that all products should be used
in strict accordance with package instructions.
Stop Valve Troubleshooting
Problem Cause Solution
Water dribbles or
does not flow from the
sprayhead.
Stop Valves may
not be functioning
properly.
1. Close the stops and inspect the valves that supply water to the lavatory
system.
2. Inspect the stop valves to see that they have been properly installed.
Sprayhead delivers
ONLY hot OR cold water.
Stop Valves may
not be functioning
properly.
1. Close the stops and inspect the valves that supply water to the lavatory
system.
2. Inspect the stop valves to see that they have been properly installed.
3. Inspect the thermostatic mixing valve for proper installation and
connection to hot and cold supplies.

Installation SS-3N/TT/STD, SS-3N/TT/WH
Bradley Corporation • 215-1495 Rev. H; ECM 11-08-011 10/24/11 15
Fill Soap Dispenser
The soap valve will dispense vegetable/coconut oil liquid soaps, synthetic detergents, viscous lotion soaps, and antiseptic solutions.
A 10-15% concentration is recommended for vegetable or coconut oil liquid soaps. Before filling, rinse out each soap tank with
hot water to remove packing dust. Shake water out thoroughly and allow to dry. DO NOT OVERFILL!
Clean Soap Dispenser
Do not use abrasive cleansers to clean the soap tank. Abrasive cleaners can damage the surface.
Regular cleaning of the soap dispenser is recommended to ensure optimum performance and maximum service life. Cleaning the
soap dispenser monthly to remove soap residue, dirt, and other accumulations should become a regular part of your washroom
cleaning routine and general maintenance program.
Clean exterior: Use warm water and soap to clean the exterior of the soap dispenser. Dry with a soft cloth.
Clean interior: Inspect the interior of the tank for residue or coagulation of soap. If necessary, clean the tank according to the
following procedure:
1. Pour out any remaining soap in the tank.
2. Full the tank half-full of hot water and shake the tank to dislodge the soap residue.
3. Empty the water from the container and repeat steps 1 and 2 until the soap container is clean.
If rinsing alone does not remove the soap residue, place a small chain (24 inches long) into the tank with hot water and
shake the container until the chain dislodges the residue. Then remove the chain and rinse out the tank.
Clean internal components: Pump hot water through the soap dispenser until a clean flow of water comes out of the valve.
To change soap, pour out all of the soap from the dispenser ans rinse with hot water several times until all residue is
removed. Pump the valve until clean water appears. Rinse the dispenser with ethyl alcohol; air dry before refilling.
Filler
Hole
#10 Screw
Leaf Spring will engage when
soap tank is pushed into place.
S65-291 (Gray)
includes:
S65-291A (Putty)
includes:
S65-291B (Coal)
includes:
Gray Tank w/Valve
(S11-220)
Putty Tank w/Valve
(S11-220A)
Coal Tank w/Valve
(S11-220B)
Leaf Spring
(S39-350)
Leaf Spring
(S39-350)
Leaf Spring
(S39-350)
Screw
(160-385)
Screw
(160-385)
Screw
(160-385)
Soap Tank Kits
Soap Valve Repair Kit (S65-258)
(includes Nut, Spring, Washer and Plunger)
Soap Blank
Gray (133-143)
Putty (133-143A)
Coal (133-143B)
