LVRD1
Verge®Lavatory System – LVRD-Series
with Evero®Natural Quartz Material
Table of Contents
Components................................2–3
Supplies Required .............................4
Dimensions ................................4–5
Rough-Ins ...................................6
Frame Mounting...............................7
Faucet Box Mounting ...........................8
Drain Assembly ...............................9
Faucets and Optional Soap Valve .................9
Bowl Mounting ...............................10
Strainer and P-trap............................11
Adjust the Temperature ........................11
Trap Cover ..................................12
Cleaning and Maintenance .....................13
U.S. Pat. No. D629,877
WARNING
Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to installation.
Electrical power MUST remain off until installation is complete.
Installer’s hardware must be appropriate for wall construction. Wall anchors must have a minimum pull-out
rating of 1,000 lbs.
NOTICE
Make sure that all water supply lines have been flushed and then completely turned off before beginning
installation. Debris in supply lines can cause valves to malfunction.
IMPORTANT
Read this entire installation manual to ensure proper installation. When finished with the installation, file
this manual with the owner or maintenance department. Compliance and conformity to local codes and
ordinances is the responsibility of the installer. Product warranties may be found under “Products” on our
Web site at bradleycorp.com.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
For standard height mounting, do not exceed the recommended 34" distance from the top of the lav deck
to the finished floor. To meet ADA requirements, the lav deck cannot exceed the 34" maximum height
dimension.

LVRD1 Installation
26/2/2016 Bradley • 215-1708 Rev. J; ECN 16-08-008

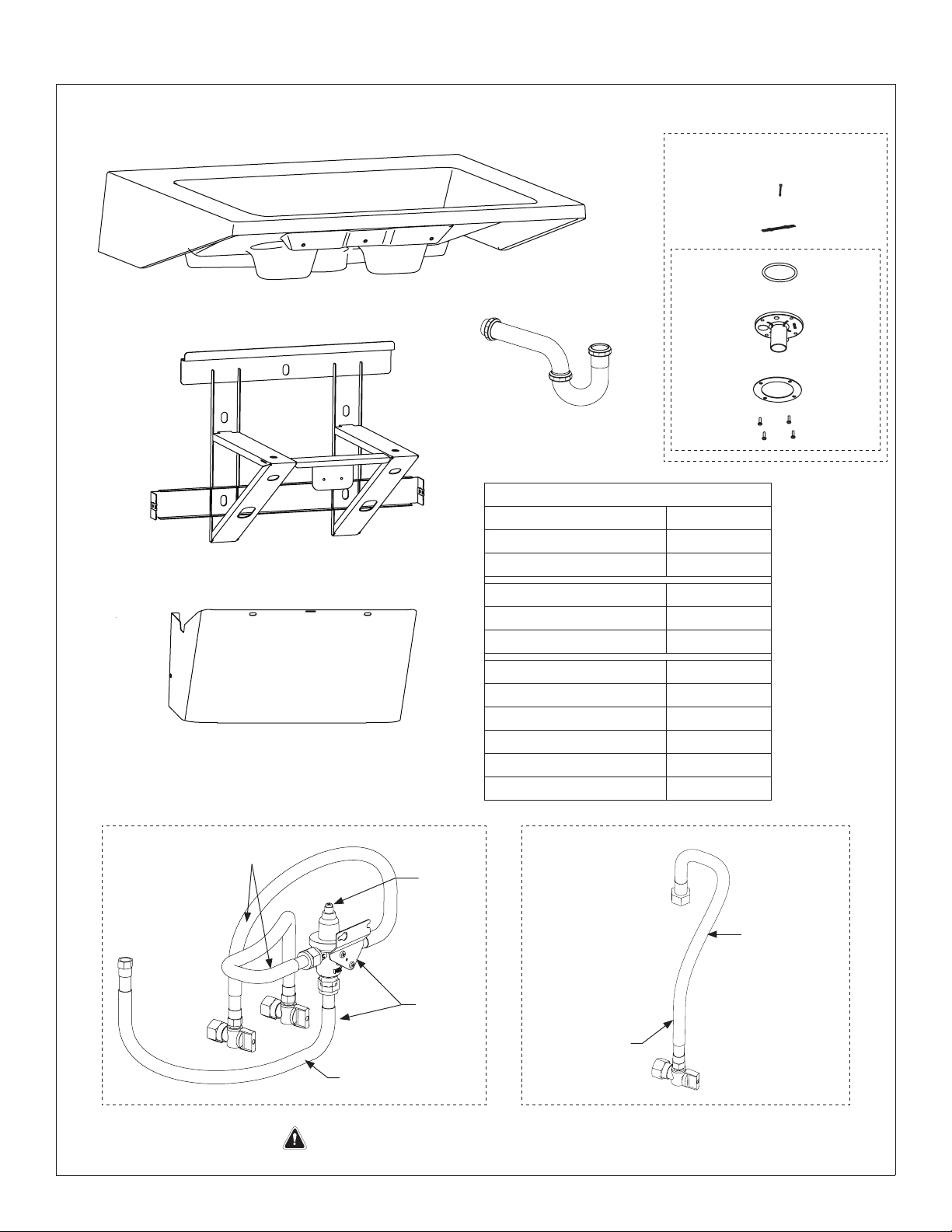

Components
TMV Valve
(½" NPTM
Outlet)
(S45-2701)
Frame
(S17-364)
Access Panel
(186-1857)
Hose Prepack
(S45-2730)
Supply
Fittings
(S45-2712)
Hose Prepack
(S45-2702)
TMV Supply
Connections
Tempered Supply
Connections
Complete Hardware Prepack (S45-2473)
Frame Mounting Qty.
Washer, Square 9 (4 extra)
Washer, Flat 1" O.D. 2
Bowl-To-Frame (S45-2481) Qty.
Screw, ¼-20 x ½" 3 (1 extra)
Washer, Flat ⁵⁄₈" O.D. 3 (1 extra)
Trap Cover (S45-2482) Qty.
Screw, 10-24 x ½" 6 (2 extra)
#10 Finishing Washer 6 (2 extra)
Trap Hook Bracket 1
Screw, 10-24 x 3⁄8" 1
Washer, Flat 35⁄64" O.D. 1
Bowl
Contact your Bradley Representative for color options
Complete Drain Prepack
(S45-2471)
Strainer and
Screw
(S45-2479)
O-Ring
(125-111)
Drain
Adapter
Packing
Washer
#10-24
Screw
Drain Adapter
Prepack
(S45-2480)
Chrome P-trap (S29-094)
Plastic P-trap (269-1697)
Plastic Hose
Plastic
Hose
Water supply to Battery Box Solenoid MUST be supplied
using a plastic hose (provided by Bradley).

Installation LVRD1
Bradley • 215-1708 Rev. J; ECN 16-08-008 6/2/2016 3
Components
IR-DCD Faucet*
(S53-336)
CAP-DCA Faucet**
(S53-334)
Battery Box Prepack
(S45-2508)
(includes bracket and
mounting hardware)
Battery Box for
CAP-DCA Faucets
6315-KT0000 Soap Dispenser 6324-68 Soap Dispenser 6334 Soap Dispenser
Optional
Transformer
Plug-In Transformer
Option (PT) for
IR-DCD Faucet
(S53-337)
Plug-in transformer option (PT)
includes Transformer (S53-338),
Adapter (S53-339), and Grounding
Kit (S53-349) for CAP-DCA Faucets
IR-DCG Faucet*
(S53-350)
Plug-In Transformer
Option (PT) for
IR-DCG Faucet
(153-486)
*Adapter included with faucet (TMV: S45-2872, TL: S45-2871) *Adapter included with faucet (TMV: S45-2872, TL: S45-2871)
**Adapter S45-2873 included with faucet

LVRD1 Installation
46/2/2016 Bradley • 215-1708 Rev. J; ECN 16-08-008
30"
(762mm)
20"
(508mm)
15⁄8" (41mm)
¼"
(6mm)
5⁄64"
(2mm)
13⁄16"
(30mm)
3⁄32" (2mm)
Drain inside dia.
15⁄16" (8mm)
LVRD Drain and Strainer —Close-up View
Dimensions
Top View
Front View
Supplies Required:
• (7)
3⁄8" lag screws, wall anchors, bolts (minimum pull-out rating of 1,000 lbs.)
• ½" hot/cold or tempered supply piping
• 1½" NPT drain piping
• OPTIONAL: 110 volt GFCI protected electrical outlet for 100–120 VAC plug-in transformer (for Bradley Faucets)
• Screen filter(s) as needed, if not included with faucet(s)
15"
(381mm)
7¾"
(197mm)
22½"
(572mm)
29"
(737mm)

Installation LVRD1
Bradley • 215-1708 Rev. J; ECN 16-08-008 6/2/2016 5

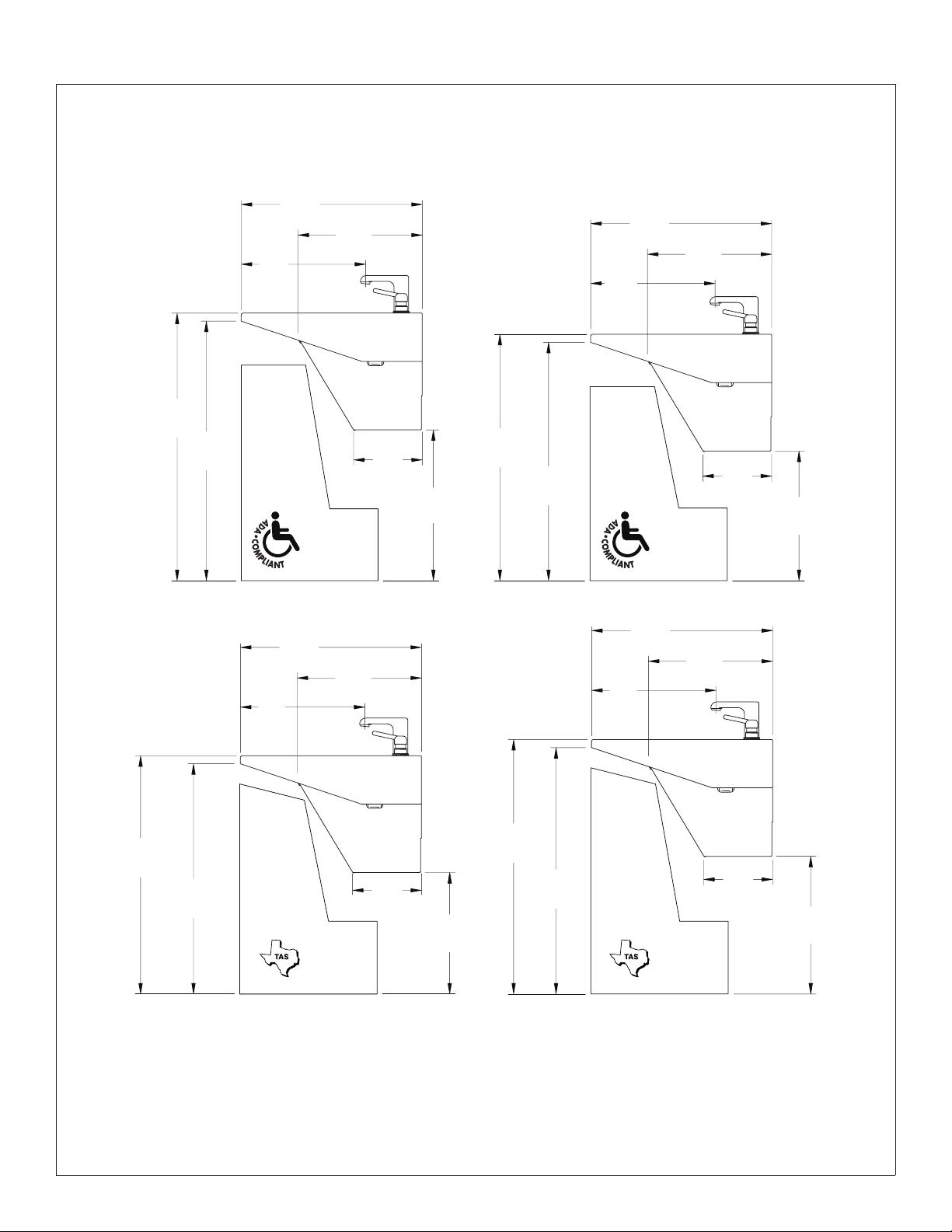

Dimensions – Side View
33½"
(851mm)
32½"
(826mm)
22½"
(572mm)
157⁄16"
(392mm)
159⁄16"
(395mm)
8½"
(216mm)
19"
(483mm)
30½"
(775mm)
29½"
(749mm)
22½"
(572mm)
157⁄16"
(392mm)
8½"
(216mm)
16"
(406mm)
28½"
(724mm)
29½"
(749mm)
22½"
(572mm)
157⁄16"
(392mm)
8½"
(216mm)
15"
(381mm)
30½"
(775mm)
22½"
(572mm)
157⁄16"
(392mm)
8½"
(216mm)
17"
(432mm)
31½"
(800mm)
Standard
Height
Juvenile
Height
TAS, Grades 6
through 8 or 9
TAS, Pre-K
through Grades
5 or 6 159⁄16"
(395mm)
159⁄16"
(395mm)
159⁄16"
(395mm)

LVRD1 Installation
66/2/2016 Bradley • 215-1708 Rev. J; ECN 16-08-008

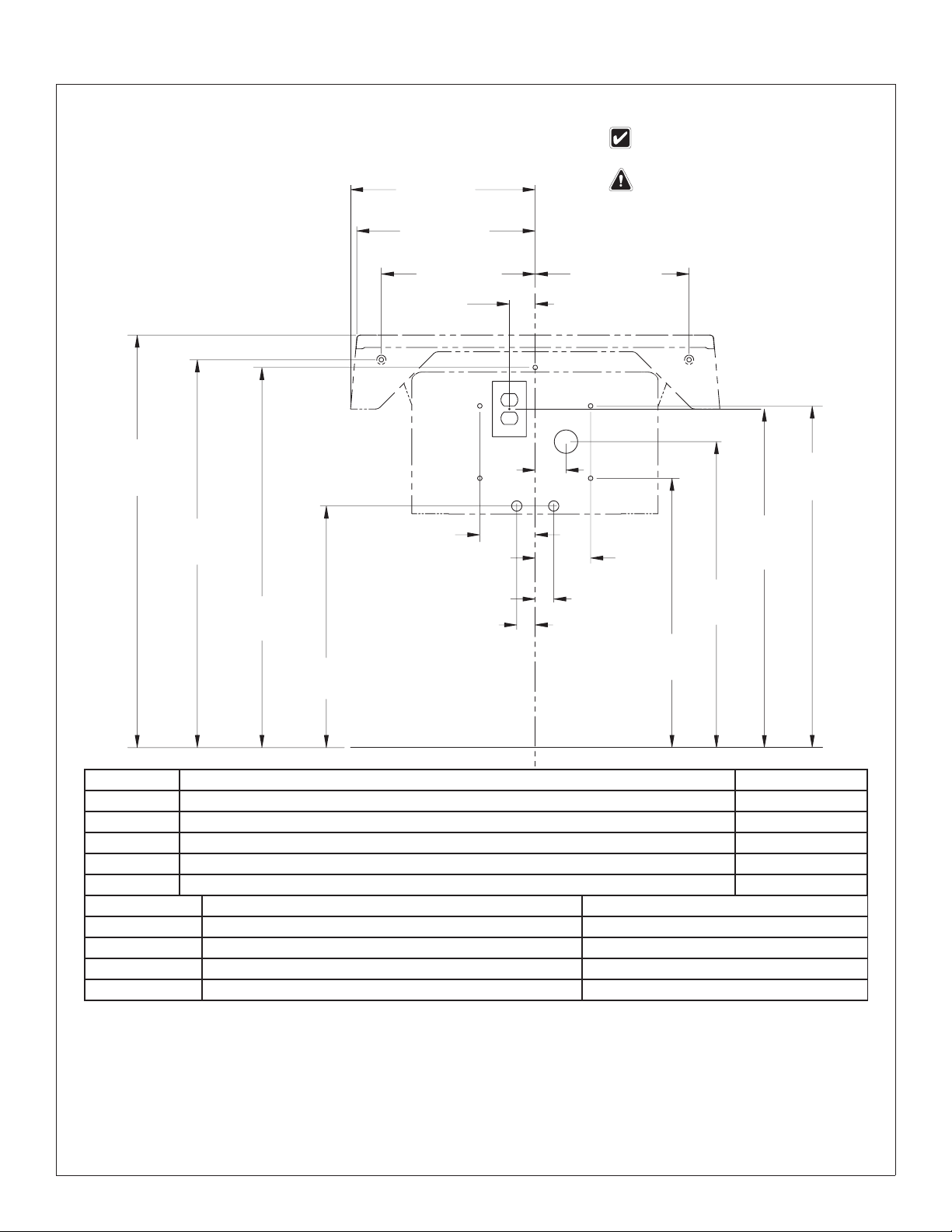

Rough-Ins
C
33½"
(851mm)
Ref. B
A
D
E
31½"
(791mm)
H
217⁄8"
(556mm)
27¾"
(705mm)
307⁄8"
(784mm)
A
B
B
B
195⁄8"
(498mm)
B
Reinforce wall at points A and B.
Standard rough-in shown.
14½" (368mm)
to outside corner of bowl
RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FOR CODES A–E and H FIXTURE STYLE
33½" None Standard Height
31½" Subtract 2" TAS, Grades 6 through 8 or 9
29½" Subtract 4" TAS, Pre-K through Grades 5 or 6
30½" Subtract 3" Juvenile Height
CODE DESCRIPTION QTY.
A
3⁄8
" Lav Deck Bowl Anchors with a Minimum Pull-Out Force of 1,000 lbs. (reinforce walls at anchor points) 2
B
3⁄8
" Lav Deck Frame Anchors with a Minimum Pull-Out Force of 1,000 lbs. (reinforce walls at anchor points) 5
H, C ½" Hot/Cold Supplies, Stub-Out 2" From Wall 1
D110v GFI Protected Electrical Outlet (AC version only) 1
E1½" NPT Drain, Stub-Out 2" from Wall 1
12½" (318mm) 12½" (318mm)
1½" (38mm)
4½"
(114mm)
1½" (38mm)
4½" (114mm) 27½"
(699mm)
247⁄8"
(632mm)
21⁄8"
(54mm)
2½"
(64mm)
15" (381mm)
to outside bottom corner of bowl

Installation LVRD1
Bradley • 215-1708 Rev. J; ECN 16-08-008 6/2/2016 7
1Frame Mounting
16"
(406mm)
centers
13"
(330mm)
A
Finished Floor
Drywall Drain, supplies and electrical box are
shown in their approximate locations.
Cut clearance holes in the backing as
required.
NOTE: Backing should equal the
thickness of the drywall (½" minimum).
B
The frame and
the bowl must
be adequately
supported.
A
Use 3⁄8" lag screws and square washers provided to secure the
frame to the backing (5) places. Shim frame as necessary.
NOTE: Other fasteners may be used based on wall material.
D
Support Backing Mounting Height "A" Dimension
Standard Height 19" (483mm)
TAS, Grades 6 through 8 or 9 17" (432mm)
TAS, Pre-K through Grades 5 or 6 15" (381mm)
Juvenile Height 16" (406mm)
If needed, shim the frame
at anchor points to ensure
the offset bracket is straight.
Leave the top screw loose.
C
11"
(279mm)
Typical installation is shown. It may be necessary to repair the wall
after mounting. The fixture may not cover all of the wall modifications.

LVRD1 Installation
86/2/2016 Bradley • 215-1708 Rev. J; ECN 16-08-008

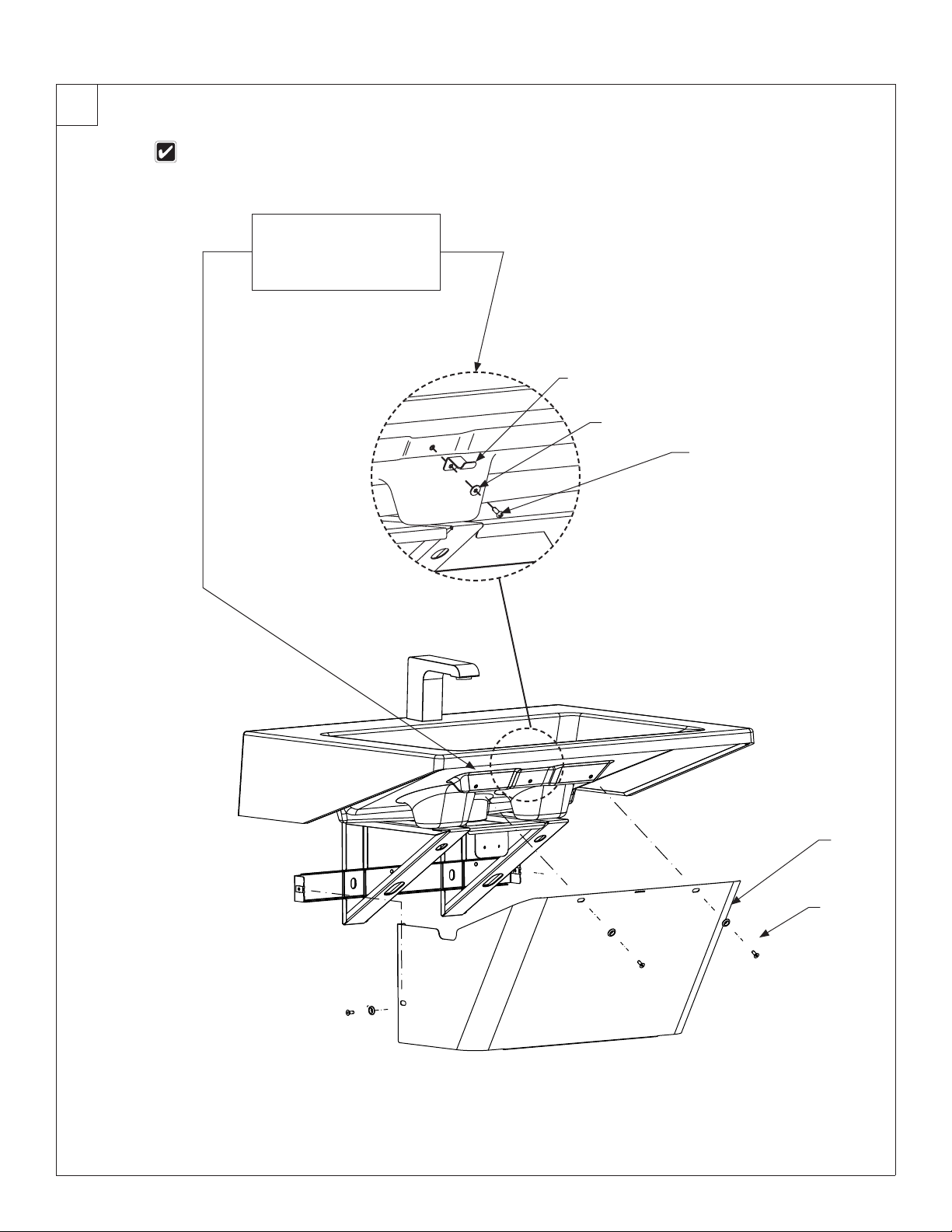

Mount the faucet box
onto the bracket with
valve positioned toward
the wall (if applicable).
A
Hang the faucet box bracket onto
the frame in the orientation shown.
Piping connection of box should
point toward the back of the unit.
B

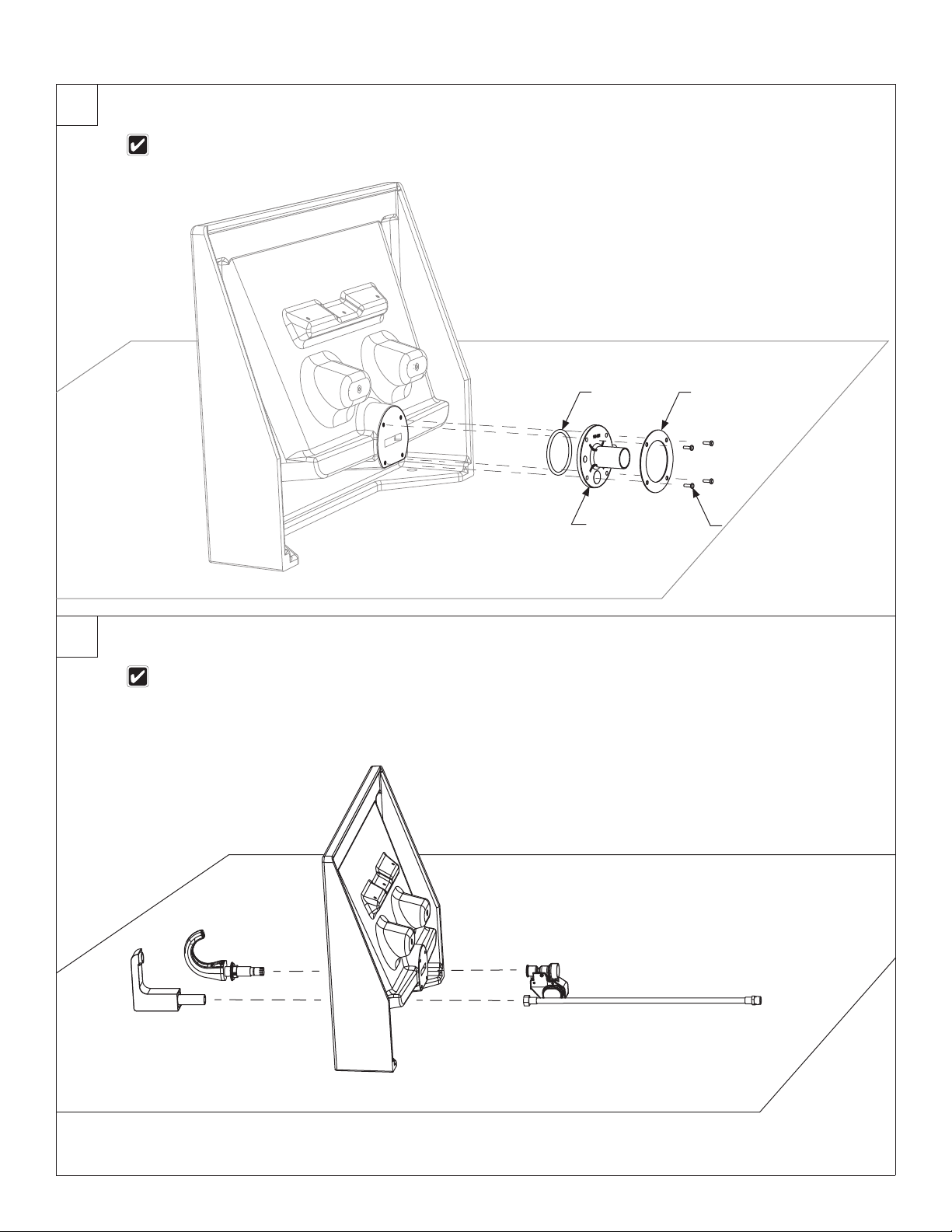

2a Mounting Faucet Box to Frame
2b Mounting Valve to Frame
Cold
Hot
Optional TMA Valve
(½" NPTM Outlet)
Connect the faucet hoses. Attach the valve to
the back side of the frame member with the
(2) #10-24 self tapping screws provided.
TMA Option
NONE Option
A portion of the frame has been removed
from the view for clarity of valve installation.
Plastic Hose
Plastic
Hose
Water supply to Battery Box Solenoid MUST be supplied
using a plastic hose (provided by Bradley).

Installation LVRD1
Bradley • 215-1708 Rev. J; ECN 16-08-008 6/2/2016 9
4Faucets and Optional Soap Valve
3Drain Assembly
O-Ring
Drain Adapter
Packing Washer
#10-24
Screw
For ease of drain installation, lay the bowl on its back.
For ease of installation, leave the bowl laying on its back. Install the faucets and optional soap
valves according to manufacturer's instructions. Bradley Model 6315 Soap Dispenser is shown.

LVRD1 Installation
10 6/2/2016 Bradley • 215-1708 Rev. J; ECN 16-08-008

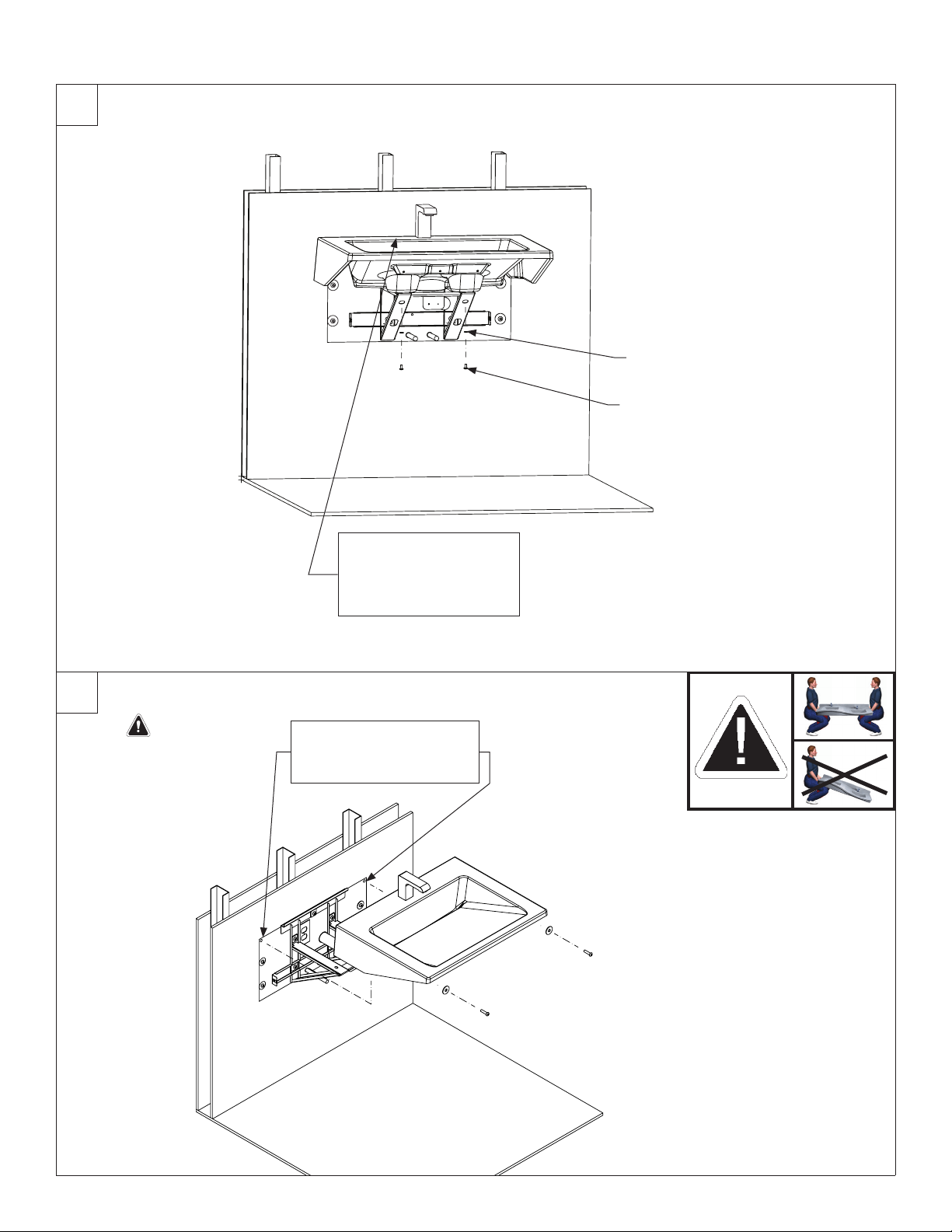

5a Bowl Mounting (to Frame)
Washer
¼"-20
Screw
5b Bowl Mounting (to Wall)
Reinforce behind the wall
at the two bowl mounting
locations, then secure the
bowl to the wall.
A
Press firmly on the back
of the bowl to seat the
bowl into the frame.
Tighten the top screw on
the frame.
A
Bowl is heavy!

Installation LVRD1
Bradley • 215-1708 Rev. J; ECN 16-08-008 6/2/2016 11
Strainer
6Strainer and P-trap
Thread the strainer screw
through the boss on the
drain adapter and secure
the strainer to the bowl.
B
Attach the strainer
screw to the strainer.
Do not overtighten.
A
7Adjust Temperature with Water Running
H
C
ALoosen Cap Screw about 1/4" (4-6 turns)
and lift up cover (do not remove).
BUsing cover, turn cartridge gently until
desired water temperature is reached. Do
not turn past stops as this may damage
unit. Push cover down and tighten screw.
This valve is NOT factory preset.
Upon installation, the temperature
of this valve must be checked and
adjusted to ensure delivery of a
safe water temperature. Water
in excess of 110°F (43°C) may
cause scalding.

LVRD1 Installation
12 6/2/2016 Bradley • 215-1708 Rev. J; ECN 16-08-008
8Trap Cover
Hang the trap cover onto
the hook, then secure
the trap cover with the
screws provided, starting
with the side screws.
A
Hook
#10-24
Screw
Washer
#10-24
Flat Head
Screw
Finishing
Washer
Make all connections before installing trap cover.

Installation LVRD1
Bradley • 215-1708 Rev. J; ECN 16-08-008 6/2/2016 13
Cleaning and Maintenance for Evero
Material Description: Evero Natural Quartz Material is made from a blend of acrylic modified bio-based polyester resin, natural
quartz and other materials and is resistant to chemicals, stains, burns and impact. Surface damage can be easily repaired with
everyday cleansers or fine grit abrasives.
Routine Cleaning: For regular cleaning, use standard commercial or household products such as Simple Green®, Creamy
Cleanser brand, Formula 409® or Windex®.
Stubborn Stains: Remove tough stains, with non abrasive cleaners and pads such as a white Scotch Brite®pad and Lysol®.
Special Situations for Evero Material
Hard Water Deposits: Remove hard water deposits with a mild solution of vinegar and water. Always rinse the unit
thoroughly after cleaning.
Restoring the surface: Refresh and restore the rich surface with one of the following:
Geo Series: Color enhancer such as Tenax®Ager
Pearl Series: Impregnating sealer such as DryTreat Stain - Proof Original™or Miracle Sealants 511 Impregnator
Do not use strong acid or alkaline chemicals and cleansers to clean Evero. If these chemicals come in contact
with the surface, wipe them off immediately and rinse with soapy water. Avoid contact with harsh chemicals
such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects.
Repair Kits: Evero repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing.
Repair kits are made to order and have a shelf life of 30 days.
Evero is a unique cast material. Aggregate flow and distribution as well as shades of color can vary from product to
product creating natural characteristics.
Cleaning and Maintenance for Stainless Steel
Material Description: Stainless steel is extremely durable, and maintenance is simple and inexpensive. Proper care, particularly
under corrosive conditions, is essential. Always start with the simplest solution and work your way toward the more complicated.
Routine cleaning: Daily or as often as needed use a solution of warm water and soap, detergent, or ammonia. Apply the cleaning
solution per the manufacturer's instructions and always use a soft cloth or sponge to avoid damaging the finish.
Stubborn Stains: To remove stains from stainless steel use a stainless steel cleaner and polish such as Ball®stainless steel
cleaner or a soft abrasive. Always follow the manufacturer's instructions and apply in the same direction as the polish lines.
Never use ordinary steel wool or steel brushes on stainless steel. Always use stainless steel wool or stainless
steel brushes.
Fingerprints and Smears: To remove fingerprints or smears use a high quality stainless steel cleaner and polish in accordance
with the manufacturer's instructions. Many of these products leave a protective coating that helps prevent future smears and
fingerprints.
Grease and Oil: To remove grease and oil use a quality commercial detergent or caustic cleaner. Apply in accordance to the
manufacturer's instructions and in the direction of the polish lines.
Precautions: Avoid prolonged contact with chlorides (bleaches, salts), bromides (sanitizing agents), thiocyanates (pesticides,
photography chemicals, and some foods), and iodides on stainless steel equipment, especially if acid conditions exist.
Do not permit salty solutions to evaporate and dry on stainless steel.
The appearance of rust streaks on stainless steel leads to the belief that the stainless steel is rusting. Look for the actual source of
the rust in some iron or steel particles which may be touching, but not actually a part of the stainless steel structure.
Strongly acidic or caustic cleaners may attack the steel causing a reddish film to appear. The use of these cleaners
should be avoided.
Brand Names
Use of brand names is intended only to indicate a type of cleaner. This does not constitute an endorsement, nor does the omission
of any brand name cleaner imply inadequacy. Many products named are regional in distribution, and can be found in local
supermarkets, department and hardware stores, or through your cleaning service. It is emphasized that all products should be used
in strict accordance with package instructions.
