Brighter Eye 900 Pro User manual

User manual
Please read the instructions carefully before use
This product manual contains important information about the safe
installation and use of this projector. Please read and follow these instructions
carefully and keep this manual in a safe place for future reference.
19x15W RGBW LED Beam Zoom Moving Head
Eye900 Pro

Before Using
What is include
●Equipment x 1
●Power cable with Plug x 1
●User manual x 1
●Iron holder x 2
Open Instruction
Please open the equipment carefully ,and check all the spare parts are included or not.If any
part of the cause of the failure due to improper transportation or carton,please keep the
packing materials and immediately inform the shipper to check.If the equipment must be
returned to the factory,the equipment should be use the original carton and packaging.
AC Power Supply
The equipment power supply is able to adapt to the wide input voltage.Please confirm the input
voltage is in the scale of rated voltage。The equipment can adapt to100V-240V AC voltage,
Frequency 50-60HZ. It can not run a rheostat(variable resistor) or dimmer circuits.
Safety Instruction
This product is I level protection equipment,so it is must be connected well and connected by
the professional people.
●Make sure the volatage don’t be above or below which the user manual rated values.
●Confirm the power cord is not a sword cut or damaged.
●Must be cut off the power supply in the condition of no using or cleaning.
●Only allowed with the power cord plug connection.Please do not force when unplug the
power cord to pull the plug.
●Be careful in the process of installation of equipment.Avoid touching the bare
wire,otherwise it will suffer fatal shocks.。
●Don’t look the light source directly,otherwise it will hurts the eyes.

●When choosing installation position of equipment and the equipment must be more than
0.5m distance between objects.
●Please use the equipment wires appropriate.
●Without the manufacturer’s authorization or laypeople don’t remove,repair and modification
of equipment.
●The maximum operating temperture is 40℃，don’t operate the equipment when it is over
40℃
●Do not connect the equipment to the dimmer equipment。
●Under 120V voltage,output power don’t series more than 10 pcs equipment,voltage
230V.Output power don’t series more than 15 pcs
Introduction
Specification
●Rated Voltage：AC100V～240V 50-60HZ
●Rated Power: 450W
●LED Qty: 19x15W high power 4 in 1 Osram LEDs
●LED Drive Current: 1000mA
●Beam Angle：4-60°Zoom
●IP ：IP20
●DMX Mode：21CH（Standard)/35CH(Shapes)/78CH(Extend) /97CH(Extend RGBW)
/92CH(Full)
●Net weight：15 Kg
●Gross weight：18.2Kg
Product feature
●XLR sockets input/output 3Pin
●Power input/output
●3 kinds of control model: DMX512, Sound active,Master/slave
●LCD display screen
●Display screen can be turned upside down with 180°to fit the installation in different
place
●Indoor operation temperature：-20°C～+40°C
●5 DMX modes：21/35 /78/97/92CH
●dimmer:0-100% linear dimmer
●Pan/tilt：
16bit fine pan/tilt control
Smooth and accurate locating
Pan：540°Tilt:210°
Motor rotation in forward and reverse can be setting up
Each LED can be controlled individually，rich colour

Smooth and accurate positioning
Tilt,Pan high-speed infinite rotation,speed can be adjusted.
The scanning position can be memory,it will be automatically reset without expected
movement after rotation.
●0-20HZ Strobe、pulse strobe、Asynchronous stroboscopic effect.
●Super mixed color and rainbow effect.
●7 programmable program is invoked by controller.
●Fan cooling(fan will be change the speed with the temperature variation.
Temperature detecting system(If the temperature detection error,the light doesn’t work).
Installation
Installation Requirements
●This equipment can be used in many places, it can hang and put on the
ground。
●Choosing a suitable place to put or hang the equipment when
installation.Must be use the special screws and hook to make sure the lamp’s
weight is in the weight range。
●When installing the equipment,ensure no inflammable and explosive goods
at 0.5 meter distance.
●Please ask the professionals to install the equipment,any improper
installation will cause personal injury or material damage.
●To prevent others entering the working ares below,the installation or
maintenance of equipment with suitable and stable platform
●The equipment must be placed in ventilated place, at least 50 cm from the
ground,please ensure that the vent without clogging.

Power supply connection
The equipment can be used in the wide voltage input。Please make sure the
voltage is the scale of rated voltage when connecting the power.The equipment
can adapt to 100V to 240 V AC voltage and 50-60 Hz.
The front lens may be infinited rotation in foward and reverse
0-20HZ strobe
Zoom range :4°-60°

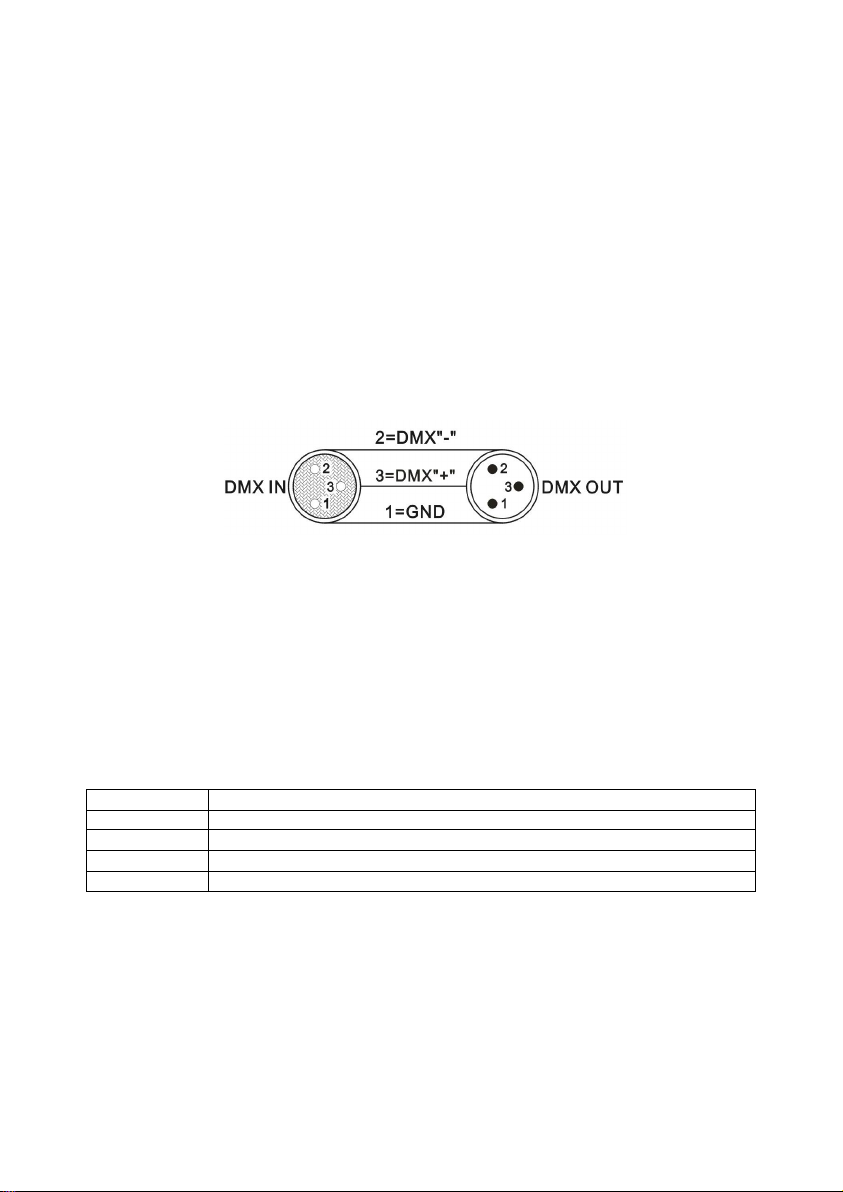

DMX Signal Connection
1. Use DMX512 controller, use the DMX signal（male ）to plug into the first lamp(female）3 pin。
2. Put out of the equipment of the first signal wire(head),connected to the equipment of the next
3 pin plug(female),so on.See belowed pictures.
Operating Instruction
Control board function
Button
Function
MENU
Choose Menu or function exit
ENTER
Current show menu or enter into the current selected function
UP
Increase the value
DOWN
Decrease the value

DMX Channel Table
EXTENDED RGBW FULL
CHAN-NEL
CHANNEL MODE
1
Red
2
Red fine
3
Green
4
Green fine
5
Blue
6
Blue fine
7
White
8
White fine
9
Linear CTO
10
Macro colour
11
Strobe
12
Dimmer
13
Dimmer Fine
14
PanPan
15
PanPan Fine
16
Tilt
17
Tilt Fine
18
Function
19
Reset
20
Zoom
21
Zoom Rotation
22
Red LED 1
23
Green LED 1
24
Blue LED 1
25
White LED 1
….
Red LED …
….
Green LED …
….
Blue LED …
….
White LED …
90
Red LED 18
91
Green LED 18
92
Blue LED 18
93
White LED 18
94
Red LED 19
95
Green LED 19
96
Blue LED 19
97
White LED 19
CHAN-NEL
CHANNEL MODE
1
Red
2
Red fine
3
Green
4
Green fine
5
Blue
6
Blue fine
7
White
8
White fine
9
Linear CTO
10
Macro colour
11
Strobe
12
Dimmer
13
Dimmer Fine
14
PanPan
15
PanPan Fine
16
Tilt
17
Tilt Fine
18
Function
19
Reset
20
Zoom
21
Zoom Rotation
22
Shape Selection
23
Shape Speed
24
Shape Fade
25
Shape R
26
Shape G
27
Shape B
28
Shape W
29
Shape Dimmer
30
Background Dimmer
31
Shape Transition
32
Shape Offset
33
Foreground Strobe （reserved）
34
Background Strobe（reserved）
35
Background Select（reserved）
36
Red LED 1
37
Green LED 1
38
Blue LED 1
….
Red LED …
….
Green LED …
….
Blue LED …
90
Red LED 19
91
Green LED 19
92
Blue LED 19

STANDARD SHAPES EXTENDED
CHAN-NEL
CHANNEL MODE
1
Red
2
Red fine
3
Green
4
Green fine
5
Blue
6
Blue fine
7
White
8
White fine
9
Linear CTO
10
Macro colour
11
Strobe
12
Dimmer
13
Dimmer Fine
14
PanPan
15
PanPan Fine
16
Tilt
17
Tilt Fine
18
Function
19
Reset
20
Zoom
21
Zoom Rotation
22
Shape Selection
23
Shape Speed
24
Shape Fade
25
Shape R
26
Shape G
27
Shape B
28
Shape W
29
Shape Dimmer
30
Background Dimmer
31
Shape Transition
32
Shape Offset
33
Foreground Strobe （reserved）
34
Background Strobe（reserved）
35
Background Select（reserved）
CHAN-NEL
CHANNEL MODE
1
Red
2
Red fine
3
Green
4
Green fine
5
Blue
6
Blue fine
7
White
8
White fine
9
Linear CTO
10
Macro colour
11
Strobe
12
Dimmer
13
Dimmer Fine
14
PanPan
15
PanPan Fine
16
Tilt
17
Tilt Fine
18
Function
19
Reset
20
Zoom
21
Zoom Rotation
CHAN-NEL
CHANNEL
MODE
1
Red
2
Red fine
3
Green
4
Green fine
5
Blue
6
Blue fine
7
White
8
White fine
9
Linear CTO
10
Macro colour
11
Strobe
12
Dimmer
13
Dimmer Fine
14
PanPan
15
PanPan Fine
16
Tilt
17
Tilt Fine
18
Function
19
Reset
20
Zoom
21
Zoom Rotation
22
Red LED 1
23
Green LED 1
24
Blue LED 1
….
Red LED …
….
Green LED …
….
Blue LED …
76
Red LED 19
77
Green LED 19
78
Blue LED 19

MACRO COLOUR
BIT
LEE
REFERENCE
COLOUR
BIT VALUE
R
G
B
W
209-255
208
207
191-206
184-190
180-183
179
175-178
174
172-173
168-171
162-167
157-161
151-156
149-150
147-148
146
145
142-144
138-141
136-137
134-135
131-133
129-130
128
127
126
125
123-124
121-122
120
119
118
117
115-116
114
113
112
110-111
100-109
89-99
78-88
68-77
62-67
49-61
46-48
45
35-44
--
--
197
181
174
170
169
165
164
162
158
152
147
141
139
137
136
135
132
128
126
124
121
119
118
117
116
115
113
111
110
109
108
107
105
104
103
102
100
90
79
68
58
52
39
36
35
25
White
Dirty White
Alice Blue
Congo Blue
Dark Steel Blue
Deep lavender
Lilac Tint
Daylight Blue
Flame Red
Bastard Amber
Deep Orange
Pale Gold
Apricot
Bright Blue
Primary Green
Special lavender
Pale Lavender
Deep Golden Amber
Medium Blue
Bright Pink
Mauve
Dark Green
Leaf Green
Dark Blue
Light Blue
Steel Blue
Med Blu Green
Peacock Blue
Magenta
Dark Pink
Middle Rose
Light Salmon
English Rose
Light Rose
Orange
Deep Amber
Straw
Light Amber
Spring Yellow
Dark yellow green
Just Blue
Sky Blue
Lavender
Light Lavender
Pink Carnation
Medium Pink
Light Pink
Sunrise Red
255
255
128
77
181
255
255
82
255
255
222
253
255
0
77
219
255
255
0
255
227
84
206
0
74
206
206
51
255
255
217
255
255
255
255
255
230
237
245
41
0
0
243
243
255
255
255
255
235
255
255
0
255
168
199
214
46
181
84
171
143
255
255
197
197
58
255
53
41
255
255
186
255
255
255
255
20
109
130
138
148
141
122
166
160
163
202
219
194
255
117
117
107
87
112
83
66
122
143
255
95
64
49
90
2
28
0
26
13
87
0
79
61
0
143
36
56
13
0
255
82
56
56
51
15
33
28
31
23
31
0
0
0
0
0
0
130
135
133
39
0
0
0
2
255
255
0
0、
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
69
0
0
0
0
0
199
197
130
107
141
0

32-34
31
30
29
27-28
23-26
20-22
19
18
17
16
15
14
13
12
11
10
0-9
22
21
20
19
17
13
10
-
-
-
-
-
-
-
-
-
-
-
Dark Amber
Gold Amber
Medium Amber
Fire
Surprise Peach
Straw Tint
Medium Yellow
Black
White 5000 K
White 3700 K
White 7000 K
Magenta
Yellow
Cyan
Blue
Green
Red
Macro color OFF
255
255
255
255
198
152
156
0
255
255
216
255
255
0
0
0
255
-
65
100
135
56
114
115
126
0
137
201
237
0
255
255
0
255
0
-
0
0
0
0
9
9
0
0
0
25
61
255
0
255
255
0
0
-
0
0
0
0
0
0
0
0
193
255
255
0
0
0
0
0
0
-
•FUNCTION
BIT
EFFECT
103 – 255
52 – 57
48 – 52
43 – 47
38 – 42
24 – 37
12 – 24
0 – 11
Reserved
Dimmer Curve 4
Dimmer Curve 3
Dimmer Curve 2
Dimmer Curve 1
Pan Tilt Normal xy
Pan Tilt Fast (Default)
Function off – rearmed
SHAPE SELECTION-SHAPE SPED-SHAPE OFFSET
BIT
SHAPE-SELEC
TION
Description
PANDOM
COLORS 1
SHAPE SPEED
SHAPE
OFFSE
T
SHAPE FADE
BACKGROUN
D SELECT(*3)
0-7
Macro OFF
N.a
N.a
N.a
N.a
N.a
8
Ring 1
Static effects.
The ring or
rings used by
the macro are
turned-on with
the foreground
colour.
N.a
N.a
N.a
0-15=Snap effect
16-255=Fade effect
and gamma
selection
For K10:
0-7=wash
8-15=Bkgnd
rings selection
16-255=wash
9
Ring 2
10
Ring 3
11
No function
12
Ring 1+2
13
Ring 1+3
14
No function
15
Ring Opening
(Closing)
Yes
0-63 = Radius size, static.
64-158 = max to min
speed, Closing effect
159-160 = STOP
161-255 = min to max
speed, Opening effect
0-9 →continuous
10-255→random distribution of
flash from 2 to 20 fixtures 从
2-20
For K10:
0-7=wash
8-15=Bkgnd
rings selection
16-255=wash
16
Ring Opening
(Closing) Filled
Yes
17
Ring Opening
(Close/open)
Yes
0-63 = Radius size, static.
64-158 = max to min
speed, Closing effect

0-15=Snap effect
16-255=Fade effect
and gamma selection
159-160 = STOP.
161-255 = min to max
speed, Opening effect
18
Ring Opening
(Close/open)
Filled
Yes
19
Random pixels
distributed on
many fixtures
Yes
0-63 = STOP
64-158 = max to min
speed, Instant-on
+fadeout.
159-160 = STOP.
161-255 = min to max
speed, FadeIn + Fade Out
Fade or snap depending
on fade channel
0-255 →
select
random
distribution
from 2 up to
20 fixtures
0-255 →
select pixel
density
0-15=Snap
effect
16-255=Fade
effect and
gamma
selection
For K10:
0-7=wash
8-15=Bkgnd
rings selection
16-255=wash
All Fixture:
255=Mirror
Effect
20
Random pixels
with variable
density and
speed
Yes
21
Rainbow 1
Variable speed
N.a
0-63 = Angle 0-360°,
static.
64-158 = max to min
speed, c.cw rotation
159-160 = STOP
161-255 = min to max
speed, cw
rotation
0-255 →
angle offset
from 0 to
360°
0-15=Snap
effect
16-255=Fade
effect and
gamma
selection
For K10:
0-7=wash
8-15=Bkgnd
rings selection
16-255=wash
22
Rainbow 2
Fixed speed
with variable
color offset
N.a
0-63 = STOP
64-158 = c.cw rotationc.cw
159-160 = STOP
161-255 = cw rotation
The value64-158 or
161-255 change the
rainbow angle offset (the
orange starting angle).
N.a
0-15=Snap
effect
16-255=Fade
effect and
gamma
selection
For K10:
0-7=wash
8-15=Bkgnd
rings selection
16-255=wash
23
Fan（3 ams）
N.a
0-63 = angle offset, 0-360°
64-158 = max to min
speed, c.cw rotation
159-160 = STOP1
61-255 = min to max
speed, cw
rotation
0-255 →
angle offset
from 0 to
360°
0-15=Snap
effect
16-255=Fade
effect and
gamma
selection
For K10:
0-7=wash
8-15=Bkgnd
rings selection
16-255=wash
For all fixtures:
-Marco 25,26,
255=Mirror
Effect with
bkgnd color
-Macro27,28,
29,255=Show
Alternative
Color
24
Bar (2 ams)
25
Half moon
26
Triangle
27
Two rotating
bars of different
colors
28
Two rotating
arcs of different
colors
29
Two rotating
arcs of different
colors and
direction
*3:See Aleda k10 Background Rings Selection table

BIT
Shape Selection
Description
PANDOM
COLORS 1
SHAPE SPEED
SHAPE
OFFSET
SHAPE FADE
BACKGROUND
SELECT(*3)(*4)
30
Bar 2 (Variable size)
N.a.
0-63=STOP,
indexed speed
64-158=max to min
speed,c.cw rotation,
159-160=STOP
161-255=min to
max speed cc
rotation
0-255 →select
shape width
Linear fade
For K10:
0-7=wash
8-15=Bkgnd
rings selection
16-254=wash
255=Mirror effect
with bkgnd color
Note:
Mirror effect
unavailable for
macro 31.
Macro
67,68,69:the
mirror effect is
available only for
options 1,3,9
31
Random explosion
Yes
0-255 →select
random
distribution
0-255 →select
shape width
Linear fade
and
wake length
32
Segment 2
N.a.
33
No Function
0-255 →select
macro offset
Linear fade
34
No Function
35
Bumping section
36
Ramp by 6
0-255 →select
shape width
Linear fade
and
wake length
37
Ramp by 4
38
Left/Right scrolling
bar
39
Up/down scrolling
bar
40
Bar 3
0-255 →select
macro offset
Linear fade
41
No Function
42
Vertical arc 2
43
No Function
44
Horizontal arc 2
45
Mirrored pixel
0-255 →select
shape width
Linear fade
and
wake length
46
Pixel animation 1
47
Pixel animation 2
48
Pixel animation 3
49
Pixel animation 4
50
Pixel animation 5
51
Semi arc(Ramp/+)
52
Bumping arc section
0-255 →select
macro offset
Linear fade
53
Pixel animation 6
54
Vertical ramp by 2
0-255 →select
shape width
Linear fade
and
wake length
55
Following pixel by 2
56
Syncopation
0-255 →select
macro offset
Linear fade
57
Bumping 1
58
Bumping 2
59
Bumping 3
60
Vertical pixel
scrolling
0-255→select
Macro width
Linear fade
and
wake length
61
Random vertical
section
0-255→select
random
distribution
Linear fade
62
Random central
section
Yes
63
Random ring 2
Yes
64
No Function
Yes
65
Random ring 1+3
Yes
66
Random ring 2+3
Yes
67
Single pixel ring 1
N.a.
0-255→select
the number of
rotating
Linear fade
and
wake length
68
Single pixel ring 2
69
Single pixel ring 3
70
Spiral
0-255→select
macro width
Linear fade
and
wake length
71-25
5
N.a.
N.a.
N.a
N.a.
1:Random colors activation with foreground R,G B,W=0

•ZOOM ROTATION
•ZOOM ROTATION(available on zoom
channel from 0 bit to 42 bit)
•RED LED 1 to…
GREEN LED 1 to…
BLUE LED 1 to…
WHITE LED 1 to…
BIT
EFFECT
255
.
.
.
.
.
193
191-192
190
.
.
.
.
.
128
127
.
.
.
.
.
.
.
0
FAST ROTATION
SLOW ROTATION
STOP
SLOW ROTATION
FAST ROTATION
LINEAR ROTATION
BIT
MACRO EFFECT
193-255
191-192.
128-190.
127.
126
…..
3
2
1
0
CCW Rotation, speed from 3 RPH to 10 RPM
Stop rotation
CW Rotation, speed from 10 RPM to 3 RPH
Indexed zone. Lens angle = 60.00
Indexed zone. Lens angle = 59.52
Indexed zone. Lens angle = 1.42
Indexed zone. Lens angle = 0.94
Indexed zone. Lens angle = 0.47
Indexed zone. Lens angle = 0
• ZOOM ROTATION(available on
zoom channel at 255 bit only)
BIT
MACRO EFFECT
128-255
127.
126
125
…..
1
0
Lens offset angle: 0.00 degree
Lens offset angle: +4.00 degree
Lens offset angle: +3.94 degree
Lens offset angle: +3.87 degree
Lens offset angle: +0.06 degree
Lens offset angle: 0.00 degree
BIT
EFFECT
255
0
LED ON
LED OFF

Rainbows
DMX channel value:23-24 .
t simulates a rainbow effect.
The Shape Speed channel increases the speed and defines the rotation: from 126 (min speed)
to 0 (max speed) counter clock wise rotation and from 129 (min speed) to 255 (max speed)
clock wise rotation. With DMX value 127 or 128 the macro stays still.
For the macro 24 (Rainbow with fixed) the Shape Speed channel also defines angle offset (the
orange sector starting angle)
Rotating shapes
DMX channel value: from 25 to 31.
Shapes available: Fan(3 arms). Bar (2 arms), Half Moon, Triangle, Two rotating bars of
different colors, Two rotating arcs of different colors, Two rotating arcs of different colors and
direction.
The Shape Speed channel increases the speed and defines the rotation: from 126 (min speed)
to 0 (max speed) counter clock wise rotation and from 129 (min speed) to 255 (max speed)
clock wise rotation With DMX value 127 or 128 the macro stays still.
The Shape Offset channel defines the angle offset from 0 (0 degree) to 255 (360 degree).
•SHAPE FADE
• SHAPE TRANSITION
BIT
EFFECT
246-255
245
243
244
.
.
.
.
.
.
.
18
17
16
0-15
Smooth, fading curve with automatic gamma*
Smooth, fading curve gamma 2
Smooth, fading curve gamma 1,986
Smooth, fading curve gamma 1,993
Smooth, fading curve gamma 0,513
Smooth, fading curve gamma 0,506
Smooth, fading curve gamma 0,5
Snap
BIT
EFFECT
255
0
LED ON
LED OFF
• SHAPE RGBW SHAPE
DIMMER BACKGROUND
DIMMER
BIT
EFFECT
255
.
.
216
.
.
171
.
.
113
.
.
73
.
.
5
0-4
4 sec
3 sec
2 sec
1 sec
0,5 sec
100 ms
No fade

Macro Off
DMX channel value: from 0 to 7.
No shape effects activated Turns off any previously selected shape
Static Rings
DMX channel value: from 8 to 14 .
The ring or ring used by the macro are turned on with the foreground colour (Shape
Red+Shape Green+Shape blue+Shape White)
Avaliable combinations: Ring 1 On, Ring 2 On,Ring 3
Dynamic Rings
DMX channel DMX
Dynamic Ring
DMX channel value: From 15 to 18.
The ring used by the macro are turned on sequentially, simulating an opening, closing or both.
The Shape Speed channel increases the speed from 126 (min speed ) to 0 (max speed) for the
Closing and closing/opening effects and from 129 (min speed ) to 255 (max speed) for the
opening and opening/closing effects, With DMX value=127 or 128the macro stays still
The Shape Offset channel defines the macro effect diction over a number of fixtures
(affects also the behavior of a single fixture)
Dmx values from 0 to 9:continous distribution;
Dmx values from 10 to 255 random distribution of flash from 2 to 20 fixtures.
lf foreground colors are all set to 0, the Random-Colors mode is activated
The color used by the macro changes at every restart.
Rings with variable radius
DMX channel value:19-20.
The Shape Speed channel defines the ring radius: 0=min, 255=max
Random pixels
DMX
Random pixels
DMX DMX channel value:21-22.
Leds are turned and off randomly .
The Shape Speed channel increases the speed and defines the fade fade effect for the leds:
from 126(min speed) to 0(max speed) with a lnstant-on/fade-out led effect and from 129 (min
speed) to 255 (max speed)with a fade-in+fade-out led effect, At a DMX value of 127 and 128
the macro stays still.
For macro 21 the Shape Offset channel defines leds random distribution from 0 (2 fixtures) to
255 over a set of fixtures (20 fixtures)
For macro 22 the Shape Offset channel defines defines pixels density from 0 (min density) to
255 (max density)
lf foreground colors are all set to 0 the Random-Colors mode is activated.
The Shape Smoothing channel adjusts the fading effect applied to the macro movement
The color used by the macro changes at every restart.
