Brighter MINI EYE P40 User manual

7X40W LED Wash with zoom, lens rotation, and independent LED Control
User manual
Please read the instructions carefully before use
This
product
manual
contains
important
information
about
the
safe
installation
and
use
of
this
projector.
Please
read
and
follow
these
instructio
ns
carefully
and
keep
this
manual
in
a
safe
place
for
future
reference.
MINI EYE P40

2
Content
1. Introduction ………………………..………………………………………4
2. Cleaning and Maintenance ….……………………………………………4
3. S t a t e m e n t ………………………………………………………………5
4. Technical Parameters…………………..…………………………………..6
5. Fixture Size…………………………………………………………………………7
6. Photometrics…………………………………………………………………………7
7. Electrical parameters ………………………………………………………………7
8. Menu Function ………………………..…………………………………...8
9. Functions of Buttons…………………………………………………………..9
10. DMX Channels………………………………………………………………..11
11. Shape Details…………………………………………………………………12
Thank you for your patronage!
We are confident that our excellent products and service can satisfy you.
For your own safety, please read this user manual carefully before installing the device.
In order to install, operate, and maintain the lighting safety correctly.

3
We suggest that the installation and operation should be done by the verified technician and
follow the instruction strictly.
CAUTION!
Keep this device away from rain and moisture!
CAUTION!
Unplug mains lead before opening the housing!
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow carefully the instructions of this manual
INTRODUCTION:
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the carton box you should find:
1. One power in cable&power out connector
2. One 3Pin DMX cable
3. Two C omega clamps
4. One safety rope
5. One English user manual
（Flight case, Clamps are optional, please contact your dealer）
Please check carefully that there is no damage caused by transportation. Should there be any
questions, please consult your dealer and don’t install this device.
CLEANING AND MAINTENANCE
1. To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
2. Do not spill water or other liquids into or on to your unit.
3. During long periods of non-use, disconnect the unit’s main power.
4. It should be installed in a well-ventilated place, at a distance of 50 centimeters or more with the
walls. At the same time, please check if the fan and ventilation holes are unobstructed.
The following points have to be considered during the inspection
1) All screws for installing the devices or parts of the device have to be tightly connected and
must not be corroded.
2) There must not be any deformations on the housing. Fixations and installations spots(ceiling,
suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not rotate with
unbalances.
4) The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a
skilled installer and any safety problems have to be removed.

4
CAUTION!
Disconnect from mains before starting maintenance operation!
In order to make the lights in good condition and extend the life time, we suggest a regular
cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights due to
accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make sure that
the circuit contacts are in good condition, prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use
alcohol or solvents.
Statement
When the product is shipped from the factory, its performance is intact and the
packaging is complete. All users should strictly abide by the warnings and operating
instructions stated above. Any damage caused by misuse is not covered by the
company's warranty. Failures and problems caused by ignoring the operation manual
are not within the responsibility of the dealer.
TECHNICAL PARAMETERS
Power supply
Note: Based on our company's policy of continuous product improvement,
the data contained in this manual may change in the future, and will no
longer notify the changes. The company reserves the right to change the
relevant specification data when the product is improved.
The publisher of this manual will not assume any responsibility for the
consequences of such information.

5
AC90 - 240V,50/60Hz
Power consumption: 350W@220V
Light source
7*40W RGBW 4 in1 Osram LEDs
Individual LED control
Average life: 50,000 hrs
Color temperature：2500K-9000K
Color RGBW (red, green, blue and white) linear color mixing adjustment
Effect
Zoom angle: 4-60°; 16800lux@5m@Min angle
Wash/Beam/Graphic/Effects function
Front lens can rotated infinity
With“vortex”and “kaleidoscope”effects
Variable built-in dynamic effects
4 Liner dimming curves
2 color mode（RGBW / CMY)
Strobe: 1-25 hz, random and pulse flash
Control
Pan/Tilt: 540/230°
Control mode: DMX512
DMX channels: 21/35/42/49/63
XLR in & out: 3-pin
Net weight: 12kg
Carton box(1-in-1):
Size: 59×51×42cm
Packed weight: 19kg
Flight case(4-in-1):
Size: 87×83×70cm
Packed weight: 78kg
Fixture Size

6
Photometrics
Electrical parameters
MENU FUNCTION
U（V）
I（A）
P（W）
cosΦ（PF）
Hz（HZ）
240
1.311
299.3
0.952
50.0
220
1.419
300
0.963
50.0
120
2.600
308
0.991
60.0

7

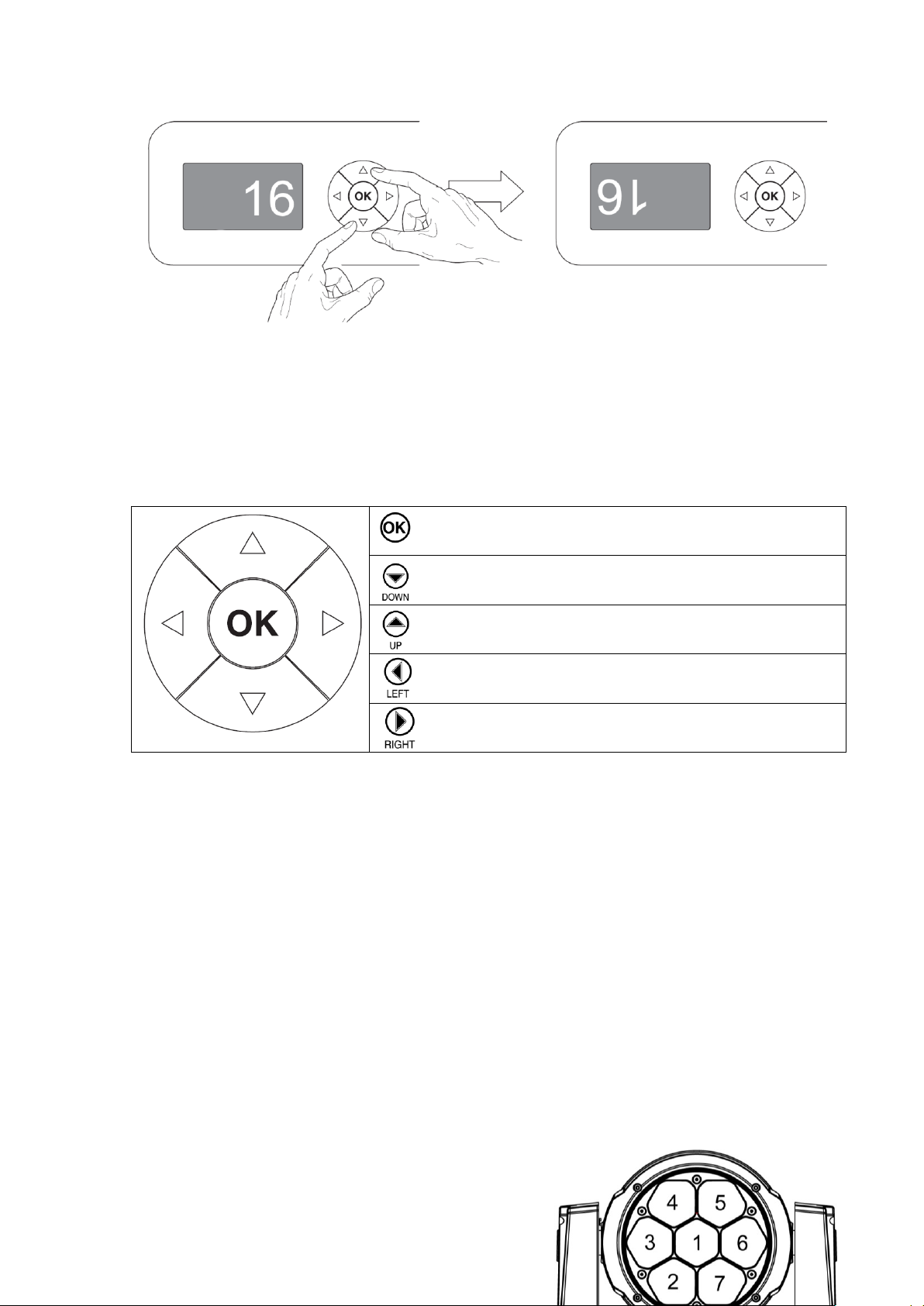

FUNCTIONS OF BUTTONS

8
Reversal of the display
To activate this function, press UP and DOWN keys simultaneously while the display is in the rest
mode.This status will be memorised and maintained even for the next time it will be switched on.
To return to the initial state, repeat the operation all over again.
Confirms the displayed value, or activates the displayed function,
or enters the successive menu.
Decreases the value displayed (with auto-repetitions) or passes to
the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to
the previous item in a menu.
Return to the top level.
Commute from units, tens, hundreds, in the "Address", "Fixture ID"
and "Calibration" menu.
USING THE MENU:
1 ) Press “OK”once –“Main Menu”appears on the display.
2) Use the UP and DOWN keys to select the menu to be used:
•Setup (Setup Menu): To set the setting options.
•Option (Option Menu): To set the operating options
•Informations (Informations Menu): To read the counters, software version and other
information.
•Manual Control (Manual control Menu): To trigger the test and manual control functions.
•Test (Test Menu): To check the proper functionning of effects
•Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained
technical personnel.
"Advanced" password:988
3) Press “OK”to display the first item in the selected menu.
4) Use the UP and DOWN keys to select the MENU items.

9
LED reference number for pixel mapping

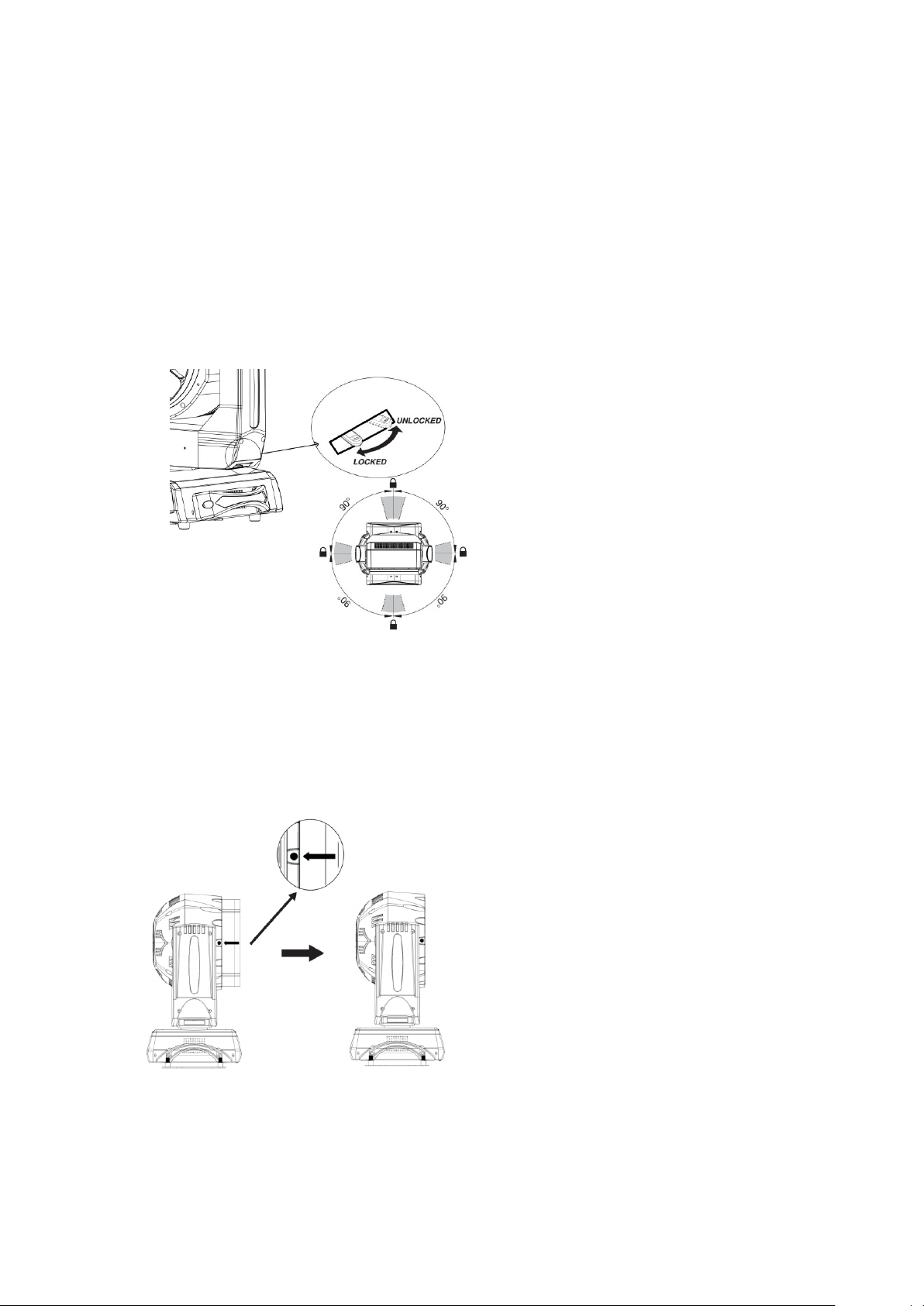

Packaging considerations
The X-axis rapid lock forward is LOCKED,and backward (UNLOCKED) to open.
CAUTION!
Before packing, please get the zoom lens back inside.(Please match the ARROWS with the DOT)
Without this operation, there will be damage of the fixture!

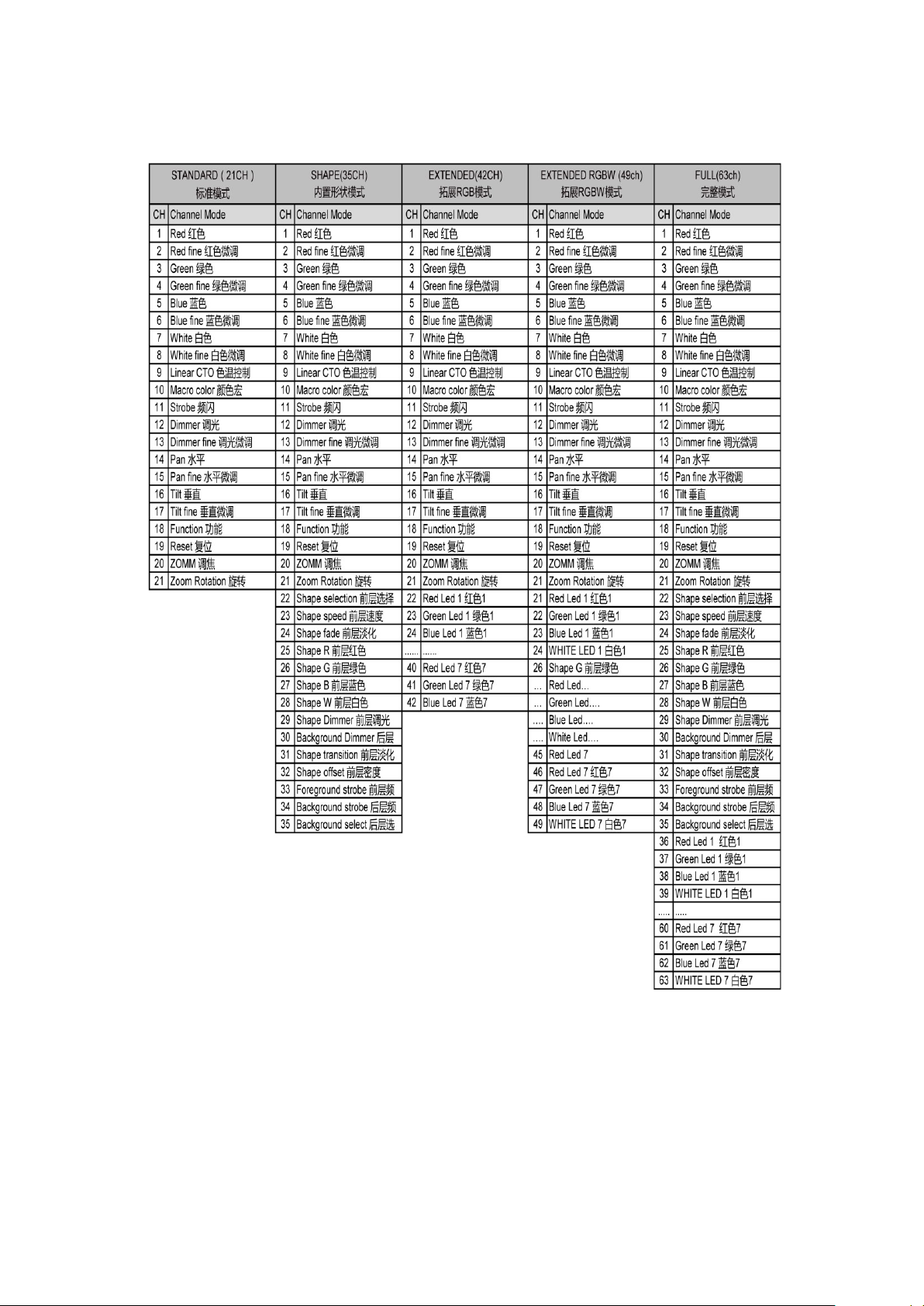

DMX Channels

10
SHAPE MODE DESCRIPTION
LiteLEES Big-EYE L10 EASY CHANNEL LIST

11
CONCEPTS: FOREGROUND AND BACKGROUND
The powerful shapes engine embedded in the LiteLEES Big-EYE L10 ROTATION and L10 EASY allows the user to
set all the possible parameters relating to the pixels of the light in an organic way, with a distinction between the
pixels affected by a selected "image" and the ones that are not affected by that specific image (more properly called
SHAPE from now on).
SHAPE PARAMETERS DESCRIPTION
Note:
Foreground Shape Effect:
Shapes will be available while (Dimmer CH12),(Strobe CH11), (Shape dimmer CH29), (Foreground strobe CH33),
(Shape color CH25/26/27/28) turned on then selecting the Shapes on (Shape Selection CH22) with different speed
on (Shape Speed CH23).
Background Effect: Meanwhile the (BG dimmer CH30), (BG strobe CH34), (Color RGBW CH1/3/5/7) turned on.
(CH value mentioned above is based on SHAPE MODE L10Rotation)
Vortex effect: With Shape slot 3(Ring 2 on Shape Selection Value 10) and Zoom rotation turned on.
SHAPE SELECTION*SHAPE SPEED*SHAPE OFFSET*SHAPE FADE*BACKGROUND SELECT
SELECTION*SHAPE SPEED*SHAPE OFFSET*SHAPE FADE*BACKGROUND SELECT
SHAPE
SELECTION
Each shape can be composed of a multitude of frames or be a single, static image.
SHAPE SPEED
Allows to set the speed at which the different frames of the selected shape are played by the unit.
SHAPE FADE
In case of shapes with multiple frames, it allows to select a snap or faded variation from frame to
frame of the same shape.
SHAPE RGBW
Allows to select the colour of the pixels composing the selected shape, if all are left at 000 no
shape will be visualized (unless the background dimmer and normal RGBW attributes of the unit
are given a value, in which case a "negative" of the macro will be shown)
SHAPE
DIMMER
Allows to select the overall brightness of the pixels involved in the selected shape.
BACKGROUND
DIMMER
Allows to select the overall brightness of the pixels NOT involved by the selected shape.
The relevant colour is set using the normal RGBW channels of the wash light.
SHAPE
TRANSITION
Internal fade time between a shape and another one set via DMX. Using this "channel" when you
change from a shape to a different one as if it was the console fade time will avoid the scrolling
effect normally visible when having fades between eg. gobo changes is traditional lights. Fade
time on the console should be set to 0.
SHAPE OFFSET
Depending on the selected shape the channel sets the "density" of the involved pixels (few
random pixel, many random pixels) or enables an internal algorithm that will distribute the macro
between a multitude of lights on a specific DMX line basing on their DMX starting address.
FOREGROUND
STROBE
Allows to set a strobe rate for the pixels involved in a macro.
BACKGROUND
STROBE
Allows to set a strobe rate for the pixels NOT involved in a macro.
BACKGROUND
SELECT
Allows to reduce, if needed, the background to a lower amount of "rings".

12
Shape
Selection
Shape
Slot
Shape Name
Rando
m
Colors
*1
Shape Speed
Shape Offset
Shape Fade
Background
Select(*3)(*4)
0-7
Macro OFF
No
No
No
No
8
1
Pixel 1
No
0-63 = STOP, indexed speed
64-158 = max to min speed,
c.cw rotation.
159-160 = STOP.
161-255 = min to max speed
cc
rotation.
0=snap
effect
1-255=Fade
effect
0-7 = wash
8-15 = Bkgnd rings
selection
16-254 = wash
255 = Mirror effet
with bkgnd color
Note: Mirror effect
unavailable for
macro 31.
Macro 67,68,69:the
mirror effect is
available only for
options 1,3,9
9
2
Ring 2
10
3
Reserved
11
4
Reserved
12
5
Pixel 1+ring2
13
6
Pixel 1
14
7
Reserved
15
8
Size change
Yes
16
9
One outer loop
Yes
17
10
Two outer loop
Yes
18
11
Double abreast
Yes
19
12
Single scan
Yes
20
13
Slices scan
Yes
21
14
Rainbow1
N0
22
15
Rainbow2
N0
23
16
Outer ring
segmentation
Yes
24
17
Two segment
jump
Yes
25
18
Clock
No
26
19
Arc
27
20
Fan1
28
21
Fan2
29
22
Single random
scan
Yes

13
Shape
Selection
Shape
Slot
Shape Name
Random
Colors *1
Shape Speed
Shape Offset
Shape Fade
Background
Select
(*3)(*4)
30
23
Lap
Yes
0-63 = STOP, indexed
speed
64-158 = max to min
speed,
c.cw rotation.
159-160 = STOP.
161-255 = min to max
speed cc
rotation.
0=snap effect
1-255=Fade
effect
0-7 = wash
8-15 = Bkgnd
rings
selection
16-254 =
wash
255 = Mirror
effet with
bkgnd color
Note: Mirror
effect
unavailable
for macro 31.
Macro
67,68,69:the
mirror effect
is available
only for
options 1,3,9
31
24
Lefy/Right
scrolling bar
No
32
25
Mirror pixel
N0
33
26
34
27
35
28
Fpllowing pixel
Yes
36
29
Wing
N0
37
30
Wertical pixel
scrolliong
Yes
38
31
Vertical double
switching
Yes
39
32
Fan3
N0
40
33
bnner and outer
ring swithing
Yes
41
34
42
35
Single positiive
and negative
scanning
Yes
43
36
44
37
Double star
inclined to junp
Yes
45
38
Pixel animation 1
N0
46
39
Random pixel
Yes
47
40
Pixel animation 2
N0
48
41
Pixel animation 3
49
42
Concavw and
convex Arc
50
43
51
44
