Brighter Pixel Strobe User manual

Brighter Pixel Strobe IP
1 |
Powerful, pixel-mapping strobe based on LED technology
User manual
Please read the instructions carefully before use
is
prouct
manual
contains
important
information
about
the
safe
installation
and
use
of
this
projector.
Please
read
and
follow
these
instructio
ns
carefully
and
keep
this
manual
in
a
safe
place
for
This Product Manual contains Important Information about the safe installation and use of this
product. Please read and follow these instructions carefully and keep this manual in a safe
place for the future reference.

Brighter Pixel Strobe IP
2 |
SAFETY PRECAUTIONS
This fixture is a sophisticated piece of electronic equipment.
To guarantee a smooth operation, it is important to follow all instructions
and guidelines in this manual. Manufacturer is not responsible for
injuries and/or damages resulting from the misuse of this fixture due to
the disregard of the information printed in this manual. Only qualified
and/or certified personnel should perform installation of this fixture and
only the original rigging parts included with this fixture should be used
for installation. Any modifications to the fixture and/ or the included
mounting hardware will void the original manufacturer’s warranty and
increase the risk of damage and/or personal injury.
PROTECTION CLASS 1-FIXTURE MUST BE PROPERLY
GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS
UNIT.DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO
WILL VOID YOUR MANUFACTURER’SWARRANTY. DAMAGES
RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/ OR
THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES
IN THIS MANUAL VOID THE MANUFACTURER’SWARRANTY AND
ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR
REPAIRS.
DO NOT PLUG FIXTURE INTO A DIMMER PACK!
NEVER OPEN THIS FIXTURE WHILE IN USE!
UNPLUG POWER BEFORE SERVICING FIXTURE!
NEVER TOUCH FIXTURE DURING OPERATION,AS IT MAY BE HOT!
KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK -MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY
SEALED WITH ADIELECTRIC GREASE (AVAILABLE AT MOST
ELECTRICAL SUPPLIERS)TO PREVENT WATER CORROSION
AND/OR ELECTRICAL SHORT CIRCUIT.
MINIMUM DISTANCE TO OBJECTS/SURFACES
MUST BE 3.3FEET (1METER)
MAXIMUM TEMP OF EXTERNAL SURFACE 185° F( 8 5 ° C)
MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE
SURFACE IS 1.6 FEET (0 .5 METER)

Brighter Pixel Strobe IP
3 |
SAFETY PRECAUTIONS
• DO NOT TOUCH the fixture housing during operation. Turn OFF the
power and allow approximately 15 minutes for the fixture to cool down
before servicing.
• DO NOT shake fixture, and avoid brute force when installing and/or
operating fixture.
• DO NOT operate fixture if the power cord is frayed, crimped,
damaged and/or if any of the power cord connectors are damaged and
do not insert into the fixture securely with ease.
• NEVER force a power cord connector into the fixture. If the power
cord or any of its connectors are damaged, replace it immediately with a
new one of the same power rating.
• DO NOT block any air ventilation slots.
• All fan and air inlets must remain clean and never blocked.
• Allow approx.6” (15cm) between fixture and other devices or a wall
for proper cooling.
• Always disconnect fixture from main power source before performing
any type of service and/or cleaning procedure.
• Only handle the power cord by the plug end. Never pull out the plug
by tugging the wire portion of the cord.
• During the initial operation of this fixture, a light smoke or smell may
emit from the interior of the fixture. This is a normal process and is
caused by excess paint in the interior of the casing burning off from the
heat associated with the lamp and will decrease gradually over time.
• Consistent operational breaks will ensure fixture will function properly
for many years .
• use the original packaging and materials to transport the fixture in for
service.

Brighter Pixel Strobe IP
4 |
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function,optimized
light output, and an extended life.The frequency of cleaning depends on
the environment in which the fixture operates: damp, smoky or
particularly dirty environments can cause greater accumulation of dirt on
the fixture’s optics. Periodically clean the external lens surface with a soft
cloth to avoid dirt/debris accumulation. NEVER use alcohol, solvents, or
ammonia-based cleaners .
MAINTENANCE
Regular inspections are recommended to ensure proper function and extended
life.
There are no user serviceable parts inside this fixture. Please refer all other
service issues to an authorized our service technician. If you need any spare parts,
please order genuine parts from your local dealer.
Please refer to the following points during routine inspections:
• A detailed electric check by an approved electrical engineer every three
months, to make sure the circuit contacts are in good condition and prevent
overheating.
• Be sure all screws and fasteners are securely tightened at all times. Loose
screws may fall out during normal operation, resulting in damage or injury as larger
parts could fall.
• Check for any deformations on the housing, rigging hardware, and rigging
points (ceiling, suspension, trussing).Deformations in the housing could allow for dust
to enter into the fixture. Damaged rigging points or unsecured rigging could cause the
fixture to fall and seriously injure a person(s).
• Electric power supply cables must not show any damage, material fatigue or
sediments. NEVER remove the ground prong from the power cable.

Brighter Pixel Strobe IP
5 |
OVERVIEW

Brighter Pixel Strobe IP
6 |
INSTALLATION GUIDELINES
FLAMMABLE MATERIAL WARNING
Keep fixture minimum 5.0 feet (1 .5m) away from flammable materials and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or installations.
MINIMUM DISTANCE TO SURFACES/OBJECTS IS 3.3 FEET (1 METER).
MINIMUM DISTANCE TO FLAMMABLE MATERIALS IS 1.6 FEET(0 .5 METER).
EXTERNAL SURFACE CAN REACH TEMPERATURES OF 185° F (85° C).
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local,national, and country commercial electrical
and construction codes and regulations.
Before rigging/mounting a single fixture or multiple fixtures to any metal truss/structure or
placing the fixture( s) on any surface,a professional equipment installer MUST be
consulted to determine if the metal truss/ structure or surface is properly certified to safely
hold the combined weight of the fixture( s) , clamps, cables, and accessories.
Overhead rigging requires extensive experience, including calculating working load limits,
installation material being used, and periodic safety inspection of all installation material and
the fixture, among other skills. If you lack these qualifications, do not attempt the installation
yourself. Improper installation can result in bodily injury.
Fixture ambient operating temperature range is -4° to 113°F (-20° to 45°C). Do not operate
the fixture when the ambient temperature falls outside of this range.
Fixture(s) should be installed away from walking paths, seating areas, or areas were
unauthorized personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing, or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment,
such as an appropriately rated safety cable.
Allow approximately 15 minutes for the fixture to cool down before serving.

Brighter Pixel Strobe IP
7 |
INSTALLATION GUIDELINES
OMEGA BRACKET INSTALLATION
Insert the Omega Brackets into the matching holes on the
bottom of the fixture. Secure the Omega Brackets to the fixture
by turning each quick-lock fastener ¼ turn clockwise . Always
check to make sure that each fastener is completely
locked. Omega brackets can be installed as illustrated below:

Brighter Pixel Strobe IP
8 |

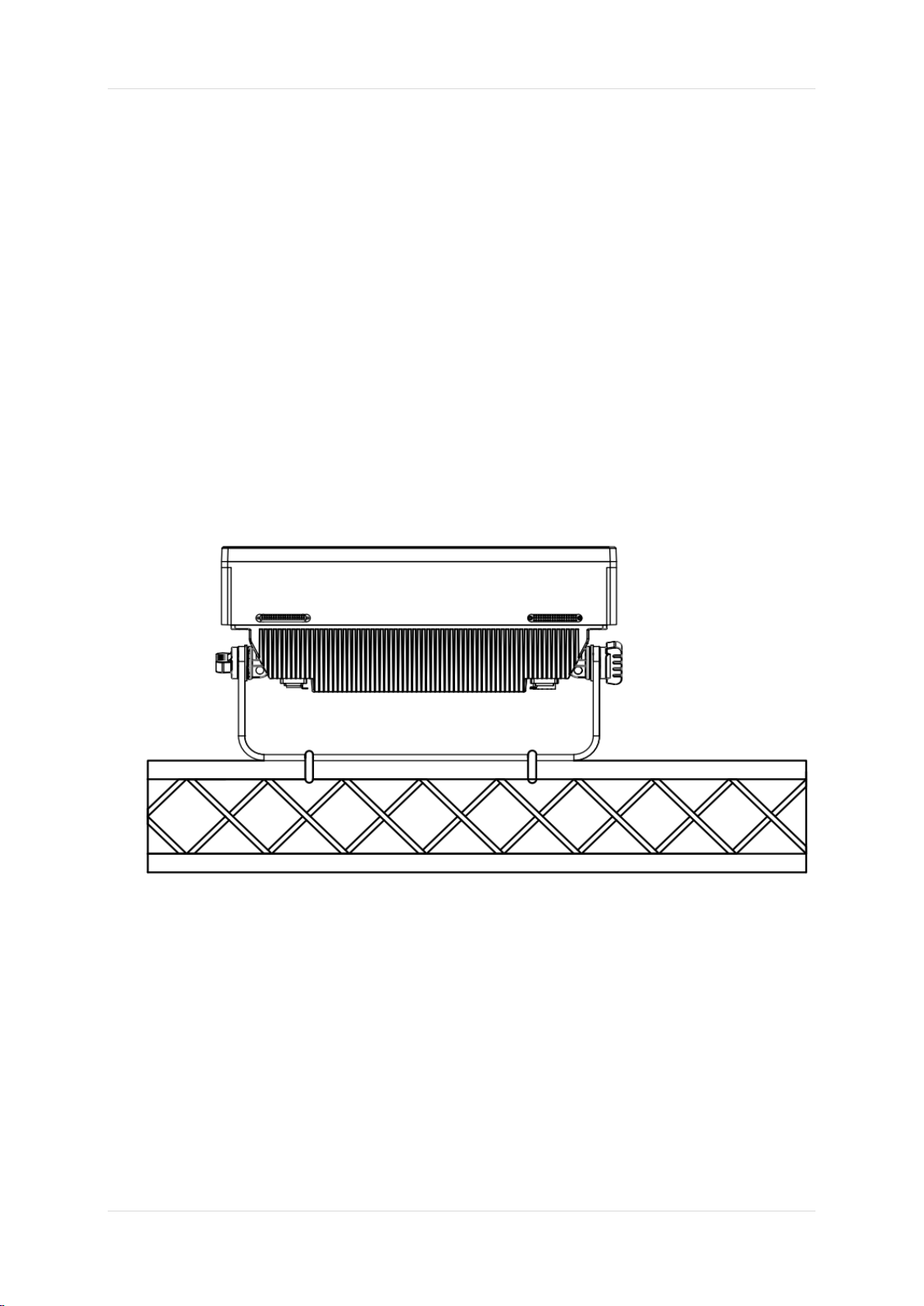

CLAMP INSTALLATION
When mounting the fixture to a truss, be sure to secure appropriately rated
professional grade rigging clamps to the included Omega Brackets using an M10
screw fitted through the center hole of the Omega Brackets. This fixture requires the
installation of two Omega brackets and two clamps for secure truss mounting. The fixture also
provides built- in rigging points for a SAFETY CABLE. Be sure to only use the designated rigging point
for the safety cable and never secure a safety cable to a carrying handle.
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER
INSTALLING THIS FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE THAT THE
FIXTURE WILL NOT FALL IF THE CLAMP FAILS.
INSTALLATION GUIDELINES
POWER AND DATA CABLES
TO MAINTAIN THE IP65 RATING INTEGRITY OF THE FIXTURE, ALL
CABLES MUST BE RUN TOWARDS THE GROUND IN ORDER TO
PREVENT WATER ACCUMULATION AROUNDTHE CONNECTIONS.
RJ45DATA CABLES
THE INCLUDED RJ45 DATA CABLE IS FOR FIXTURE TO FIXTURE
INTERCONNECTIONS ONLY!THE RJ45 CABLE CONNECTORS
MAY NOT BE COMPATIBLE WITH OTHER RJ45 OR ETHERNET
TYPE CONNECTORS.
INSTALLATION GUIDELINES
POWER AND DATA CONNECTIONS
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY
SEALED WITH ADIELECTRIC GREASE (AVAILABLE AT MOST
ELECTRICAL SUPPLIERS) IN ORDER TO PREVENT WATER
CORROSION AND/OR ELECTRICAL SHORT CIRCUIT.
TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT
WATER FROM ENTERING THE FIXTURE, SEAL ALL UNUSED
CONNECTION RUBBER CAPS.

Brighter Pixel Strobe IP
9 |
SYSTEM MENU
UP
DOWN
ENTER
MENU
Increase the displayed
value or pass it to the
previous item in the
menu
Reduce the displayed
value or pass it to the
next item in the menu
Confirms the displayed
values, activate the
displayed functions, or
enters a continuous
menu
Scroll through the
main menu or return
to the options in the
previous menu
Main Menu
Sub Menu
Option/Value
CONNECT
DMX Address
001-512
DMX Mode
4CH-A,4CH-B,12CH,15CH,44CH,244CH
Ethernet
IP configuration
Universe
Changes Art-Net universe
SETUP
White Balance
R,G,B,W
0-255
Dimmer mode
Off, Dimmer 1, Dimmer 2, Dimmer 3
Signal Hold
BLACKOUT
HOLD
Clr Working time
Working time cleaning
STAND ALONE
Normal
Stand alone off
Sequence
SHOW 01-05
Static
Fixed/Manual Color
Lock Screen
No
Locks screen
Yes
Working time
Show Working Time

Brighter Pixel Strobe IP
10 |
LIGHTING CONSOLE PATCHING GUIDELINES
The product is a versatile luminaire allowing it to produce
multiple unique lighting effects typically not found in a single
lighting fixture. The DMX layout is designed to offer a variety of
options for controlling fixture.
The fixture contains 150x 1,5W RGB pixel cells, and 150x5W
White cells. For ease of use the DMX layout is arranged to
allow lighting consoles to separate the fixture into multiple
segments or parts. It is especially important to arrange the
fixture in such segments or parts when using the fixture in the
full extended 244 channel DMX mode. For simple programming,
reduced DMX channel modes can be used. However, for easy
recall of interesting pixel animations, fixture contain FX
systems.
DMX CHART
4CH Mode(RGBW)
Channel
Value
Function
Description
1CH
0-255
RED
Dark to light
2CH
0-255
GREEN
Dark to light
3CH
0-255
BLUE
Dark to light
4CH
0-255
WHITE
Dark to light
4CH Mode(STROBE)
Channel
Value
Function
Description
1CH
0-255
FLASH INTENSITY
2CH
0-255
FLASH DURATION
3CH
0-255
FLASH RATE
4CH
0-255
EFFECTS

Brighter Pixel Strobe IP
11 |
12CH Mode
Channel
Value
Function
Description
1CH
0-255
MASTER DIMMER
Dark to light
2CH
0-255
FLASH TIME
15-990ms
3CH
0-10
STROBE FREQ
No Function
11-255
Strobe S>F
4CH
0-10
STROBE TYPE
Static
11-45
No effect
46-80
Ramp up
81-115
Ramp down
116-150
Ramp up-down
151-185
Random
186-220
Lighting
221-255
Spikes
5CH
0-255
RED
Dark to light
6CH
0-255
GREEN
Dark to light
7CH
0-255
BLUE
Dark to light
8CH
0-255
WHITE
Dark to light
9CH
0-255
MACRO EFF1
10 build-in effects,the last one is AUTO
running
10CH
0-255
MACRO EFF2
10 build-in effects,the last one is AUTO
running
11CH
0-255
MACRO COLOR
Red, green, blue, white, cyan, yellow, purple,
pink
12CH
0-255
MACRO SPEED
Speed S>F
15CH Mode
Channel
Value
Function
Description
1CH
0-255
FG DIMMER
Dark to light
2CH
0-30
FG STROBE
Closed
31-100
Strobe S>F
101-130
Open
131-200
Rnd strobe S>F
201-255
Open
3CH
0-255
FG RED
Dark to light
4CH
0-255
FG GREEN
Dark to light
5CH
0-255
FG BLUE
Dark to light
6CH
0-255
FG WHITE
Dark to light
7CH
0-255
BG DIMMER
Dark to light
8CH
0-30
BG STROBE
Closed
31-100
Strobe S>F

Brighter Pixel Strobe IP
12 |
101-130
Open
131-200
Rnd Strobe S>F
201-255
Open
9CH
0-255
BG RED
Dark to light
10CH
0-255
BG GREEN
Dark to light
11CH
0-255
BG BLUE
Dark to light
12CH
0-255
BG WHITE
Dark to light
13CH
0-10
AUTO FX
No FX
11-15
FX1
16-20
FX2
21-25
FX3
26-30
FX4
31-35
FX5
36-40
FX6
41-45
FX7
46-50
FX8
51-55
FX9
56-60
FX10
61-65
FX11
66-70
FX12
71-75
FX13
76-80
FX14
81-85
FX15
86-90
FX16
91-95
FX17
96-100
FX18
101-105
FX19
106-110
FX20
111-115
FX21
116-120
FX22
121-125
FX23
126-205
Reserved
206-255
Random Pixel
14CH
0-50
FX SPEED
Index
51-255
Speed S>F
15CH
0-51
DIMMER MODE
Menu Set
52-101
Mode Off
102-152
Mode 1
153-203
Mode 2
204-255
Mode 3
44CH Mode
Channel
Value
Function
Description
1CH
0-255
DIMMER
Dark to light
2CH
0-255
STROBE TIME
15-990ms
3CH
0-10
STROBE FREQ
No Function

Brighter Pixel Strobe IP
13 |
11-255
Strobe S>F
4CH
0-10
STROBE TYPE
Static
11-45
No effect
46-80
Ramp up
81-115
Ramp down
116-150
Ramp up-down
151-185
Random
186-220
Lighting
221-255
Spikes
5-44CH
0-255
All LEDS divided into
10 Pixels Segments
R/G/B/W IN ORDER
The pixels are arranged in a grid pattern as illustrated below:
1
2
3
4
5
6
7
8
9
10
244CH Mode
1CH
0-255
DIMMER
Dark to light
2CH
0-255
STROBE TIME
15-990ms
3CH
0-10
STROBE FREQ
No Function
11-255
Strobe S>F
4CH
0-10
STROBE TYPE
Static
11-45
No effect
46-80
Ramp up
81-115
Ramp down
116-150
Ramp up-down
151-185
Random
186-220
Lighting
221-255
Spikes
5-244CH
0-255
All LEDS divided into
60 Pixels Segments
R/G/B/W IN ORDER

Brighter Pixel Strobe IP
14 |
The pixels are arranged in a grid pattern as illustrated below:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
SPECIFICATIONS
LIGHT SOURCE
• Source: 480Pcs*1.5W RGB SMD5050 +480PCS 0.5W White Color SMD5050 LED
• CT: Full ON 6300K
• CRI: up to 85Ra
• Luminous Flux: (Strobe) 230k lm, (Static ON) 50’638lm
• Lux: (Strobe) 6335 lux @3m (Static ON) 3200lux @3m
• Source Life Expectancy: >30.000 h
OPTICS
• Beam Angle: 60° (with optional lenses mounted)
• Field Angle: 120°
DYNAMIC EFFECTS
• Rotating Gobos: Dynamic Patterns with speed and rotation control
• Pixel Patterns: Pre-programmed dynamic and static patterns
• FX Generator: Adjustable foreground/background color, index, speed, direction
• Static Color Mode: Selection of static color
• Manual Color Mode: Manual adjustment of dimmer and strobe
• Auto Mode: Built-in programs with execution speed adjustment
BODY
• Body: Sturdy die-cast aluminium body conceived for long-time durability
• Body Color: Black
CONTROL
• Protocols: DMX512, RDM, Art-Net

Brighter Pixel Strobe IP
15 |
• Pixel Control: 60 controllable sections
• RDM: RDM ready for fixture remote monitor and settings
• Display: Black TFT touch display
• Firmware Upgrade: Yes, via RJ45 Cable.
• DMX Channel:4CH-A/4CH-B/12CH/15CH/44CH/244CH
ELECTRONICS
• Dimmer: Linear 0~100% electronic dimmer
• Dimmer Curves: 4 Different dimming curves available
• Strobe/Shutter: 1-30 Hz, electronic
• Operating Temperature: -10° ~+45°
ELECTRICAL
• Power Supply: 100-240V –50/60Hz
• Power Consumption (at 230V): Strobe 1850W (peak) - Static 633W
• Output (at 230V): 2 units on a single power line 5
PHYSICAL
• Cooling: Forced air with low noise fan
• Suspension And Fixing: Hanging bracket for floor positioning with “Quick-Lock” system
• Signal Connection: 5p in/out, RJ45 in/out
• Power Connection: Seetronic Powerkon True IP65 in/out
• IP: 65 for outdoor events
• Dimensions (WxHxD): 510x287x198mm
• Weight: 14k
DIMENSIONAL DRAWINGS:

Brighter Pixel Strobe IP
16 |
WARNING!
Manufacturer reserves the right to introduce modifications in
products without prior notice submitted to the User.
