Brightlink BL-VWMW-H265-EXT-4K User manual

1
120M H.265 AV over IP Extender work
with CMP System
Max resolution 4K@30HZ,4:4:4
Support Video Wall, Multi Viewer, Matrix
Encoder
Decoder

2
Operating Instruction
Catalogue
Dear Customer .................................................................................................................................... 3
1. Features ........................................................................................................................................... 3
2. Specifications .................................................................................................................................. 3
3. Package Contents ............................................................................................................................ 3
4. Panel Descriptions ........................................................................................................................... 4
4.1. Encoder: ............................................................................................................................... 4
4.2. Decoder: ............................................................................................................................... 4
5. Application: ..................................................................................................................................... 5
6. CMP System: .................................................................................................................................. 5
6.1. Installation process description: ........................................................................................... 5
6.2. Registration and login platform ........................................................................................... 8
6.2.1. Registration ............................................................................................................... 8
6.2.2. Login ......................................................................................................................... 8
6.2.3. Retrieve the Password ............................................................................................... 9
6.2.4. Enter CMP System .................................................................................................... 9
6.3. Add Device Instruction ...................................................................................................... 10
6.3.1. Specific steps ........................................................................................................... 11
6.4. User Management Instruction: ........................................................................................... 21
6.4.1. Create Account: ....................................................................................................... 21
6.5. Live Preview Instruction: ................................................................................................... 23
6.6. Basic Instruction: ............................................................................................................... 25
6.6.1. Select Language: ..................................................................................................... 25
6.6.2. OSD Switch: ........................................................................................................... 25
6.7. Video Scheme Instruction: ................................................................................................. 26
6.7.1. Matrix Configuration .............................................................................................. 26
6.7.2. Screen Divide: ......................................................................................................... 27
6.7.3. Screen Splice: .......................................................................................................... 28
6.7.4. KVM/IR/RS232 configuration: ............................................................................... 31
MAINTENANCE ............................................................................................................................. 33
PRODUCT SERVICE ....................................................................................................................... 33
WARRANTY .................................................................................................................................... 33

3
Operating Instruction
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this
manual for future reference.
1. Features
Ø Compression Technology: H.265
Ø Max resolution 4K@30HZ YUV 4:4:4
Ø Latency Time (from TX to RX) 30-80 millisecond
Ø Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
Ø Request for (many to many mode) IGMP Switch
Ø Support IP/ICMP/IGMP/TCP/UDP Control (PC Tool)
Ø Support KVM RS232, IR, Local HDMI output on TX
Ø Additional Features VLC / Looping HDMI output
Ø Support RTSP/RTMP protocol
Ø Support Video Wall, Multi Viewer, Matrix work with CMP system supports real-time switch
OSD; Displaying firmware version, IP address, MAC address, etc
Ø Support Multicast(one to many, many to many), Unicast (one to one)
Ø DC12V Power supply
2. Specifications
Performance
Protocol
H.265 Encoder over TCP/IP
Video format
480P/720P/1080P/4K2K/800*600/1280*1024@60hz etc
Audio format
Analog Embedded and Analog Extractor
Streaming Bit Rate
0-100Mbps Default: 20Mbps
IR frequency
38-56Khz
RS232 Baud Rate
115200
IP SETTING
Request for Switch/Router
Support IGMP, support DHCP
Environmental & Power Requirements
Operating temperature
-5 to +35 ℃ （+23 to +95℉）
Operating Humidity Range
5 to 90%RH (No Condensation)
Power supply
12V1A
Power consumption
TX: 4.68W; RX: 3.36W
Dimension
TX&RX: 184*95*24mm
Net Weight
3. Package Contents
1). Main Unit Encoder and Decoder x1
2). Power Adapter DC12V1A x2
3). IR TX cable; IR RX cable
4). Disk (PC TOOL; User manual; Update software; CMP system) x1

4
Operating Instruction
4. Panel Descriptions
4.1. Encoder:
① USB Type B input ② Analog Input
③ Indicator of HDMI; LAN; Power ④ Reset button
⑤ DC/12V input ⑥ Cat5/6 output
⑦ RS232 pass through ⑧ HDMI Loop output
⑨ HDMI Input ⑩ IR out
4.2. Decoder:
① USB Type A output ② Analog Output
③ Indicator of HDMI; Link; Act; Power ④ Reset button
⑤ DC/12V input ⑥ Cat5e/6 input
⑦ RS232 pass through ⑧ HDMI output
⑨ IR input

5
Operating Instruction
5. Application:
6. CMP System:
6.1. Installation process description:
Before connecting the product, copy "CMP plate-setup" from the CD, double-click the software in
the installation package to run, and install the platform on the computer.
Take Win7 operating system as an example, the installation process is as follows
CMP (P1)

6
Operating Instruction
CMP (P2)
CMP (P3)

7
Operating Instruction
CMP (P4)
CMP (P5)

8
Operating Instruction
6.2. Registration and login platform

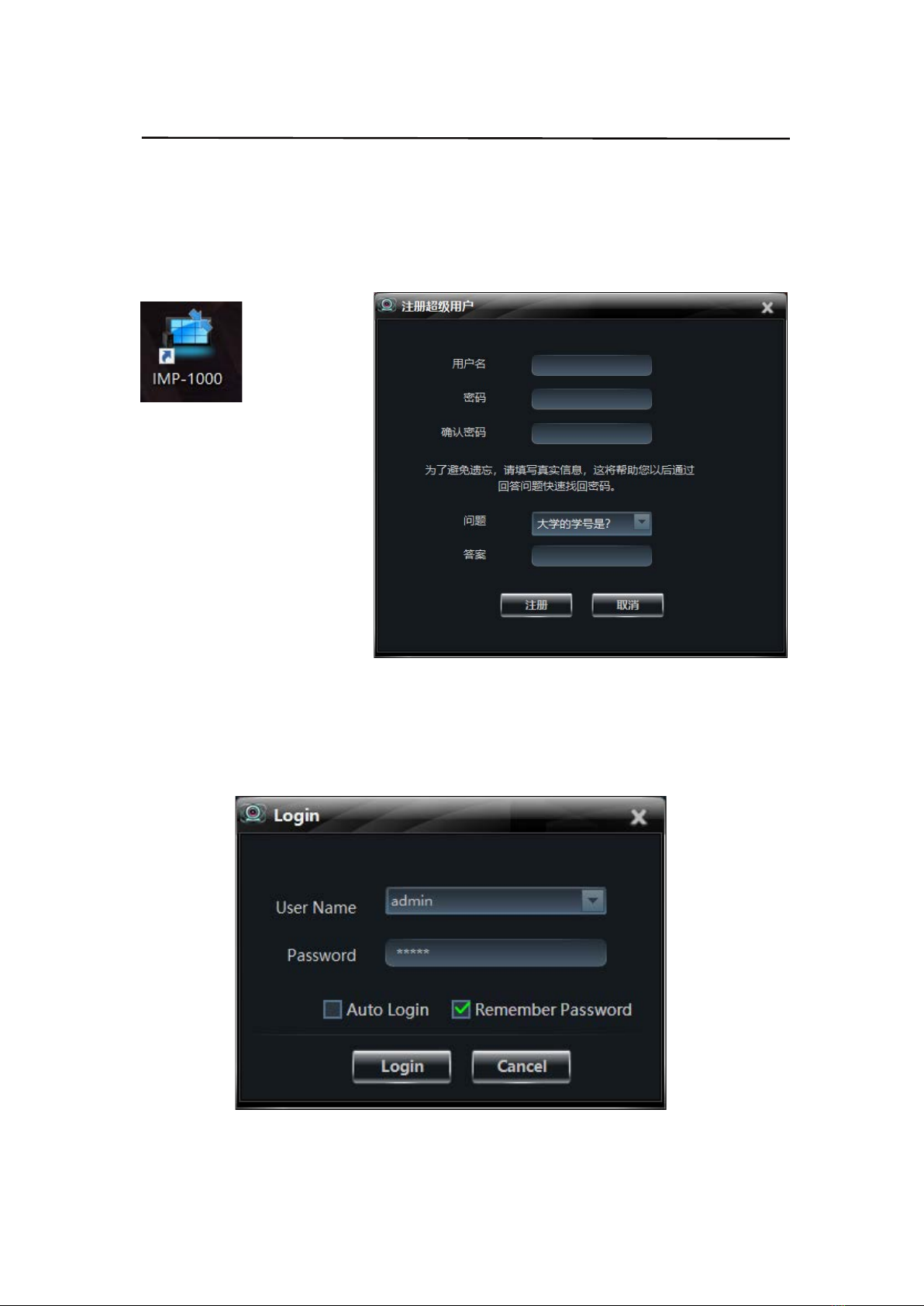

6.2.1. Registration
Double-click the mouse to open imp-1000 integrated management platform, and the registration
window will pop up when it is opened for the first time.Enter username, password, confirmation
password, and any questions and answers.To retrieve the password if you forget.
6.2.2. Login
After registration, the login interface will pop up, enter the registered user name and password, and
you can choose to log in automatically or remember the password.Click login to log in to the main
interface of the platform.

9
Operating Instruction
6.2.3. Retrieve the Password
If you enter a wrong password or forget your password in the login interface, the system will
automatically pop up a prompt to retrieve your password. You can enter the password retrieval
interface, enter the answer to the question you filled in during registration, and reset your password.

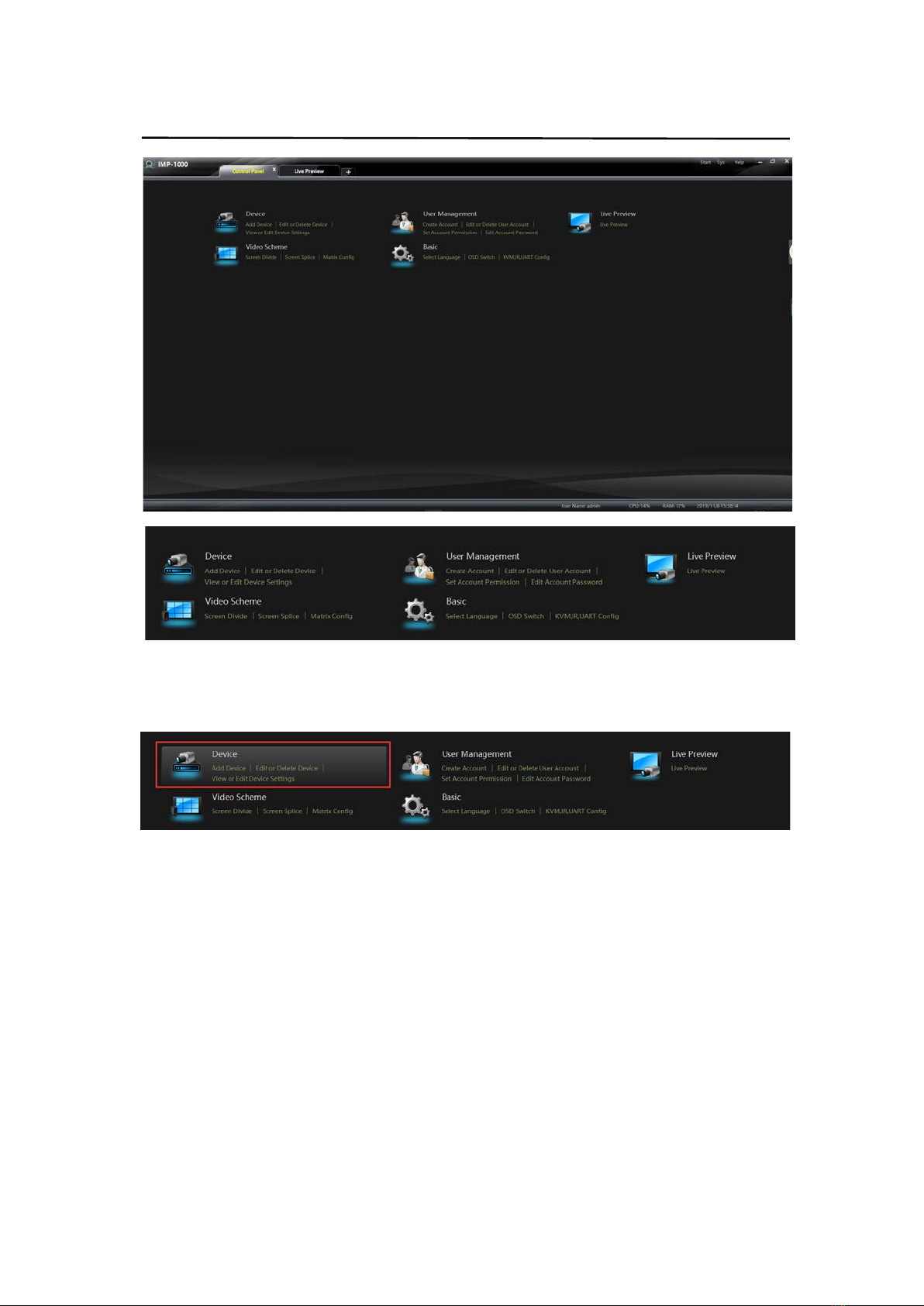

6.2.4. Enter CMP System
Enter the user name and password correctly and enter the main function interface.

10
Operating Instruction
6.3. Add Device Instruction
According to the above diagram, connect the products to the switch. And the router LAN port is
connected to the switch through the network cable. And the network property IPV4 is set as
automatic acquisition. Because the product default DHCP is ON, the router DHCP address pool can
automatically assign IP addresses to the product and computer. Then the computer can open the
software platform to manage and operate.
To login to the platform for the first time, click add device in device management, and you can
choose to add device quickly (automatically scan all devices in the regional network) or manually.
Quick add only need to check add, manually add need to input network parameters and other
settings can be successfully added.

11
Operating Instruction
6.3.1. Specific steps

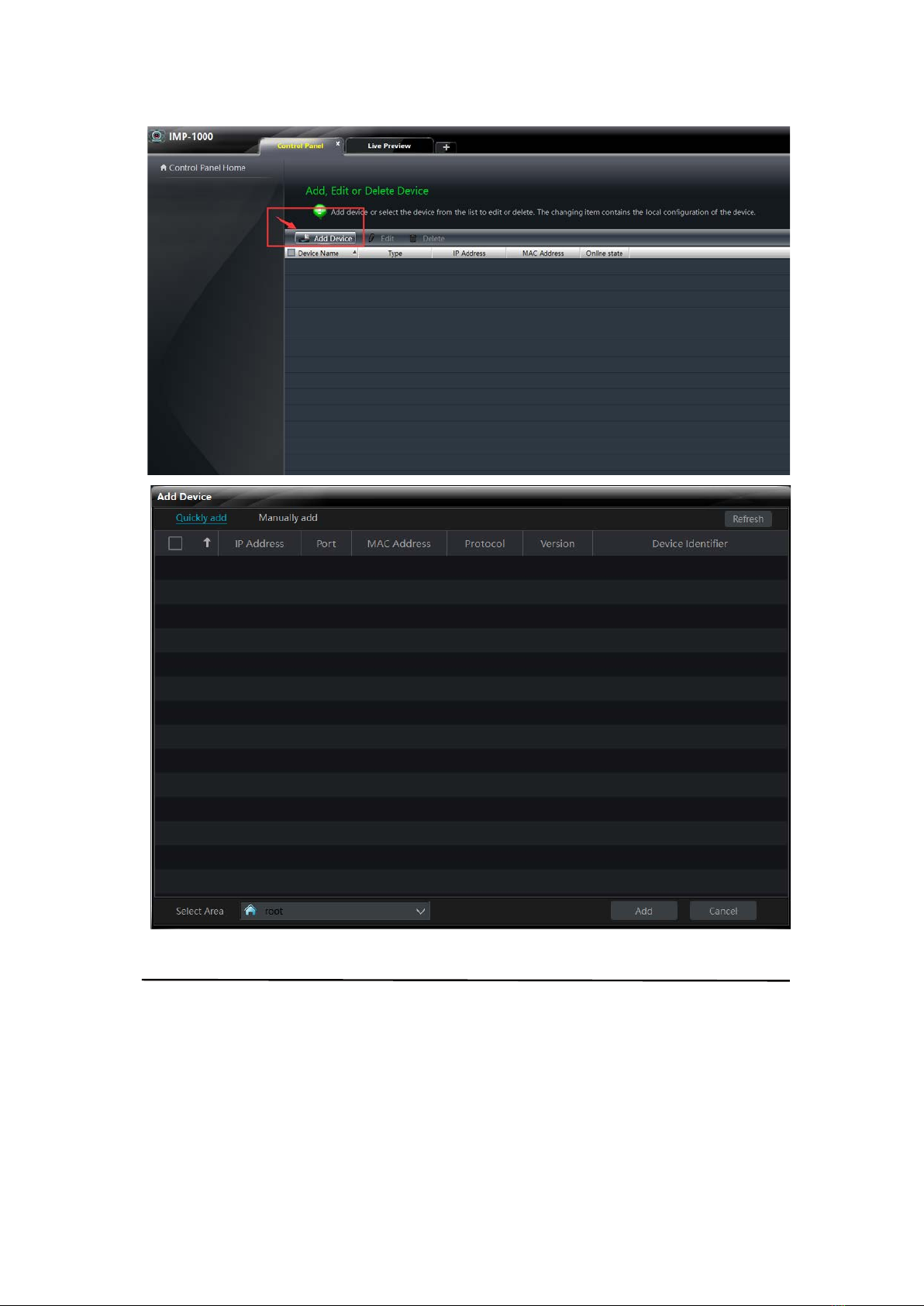

3.1 Open the software of the control platform, enter the account and password, enter the
verification into the main interface, and click "Add Device" with the mouse.
Quick add: Click refresh key will automatically search all product IP address in LAN

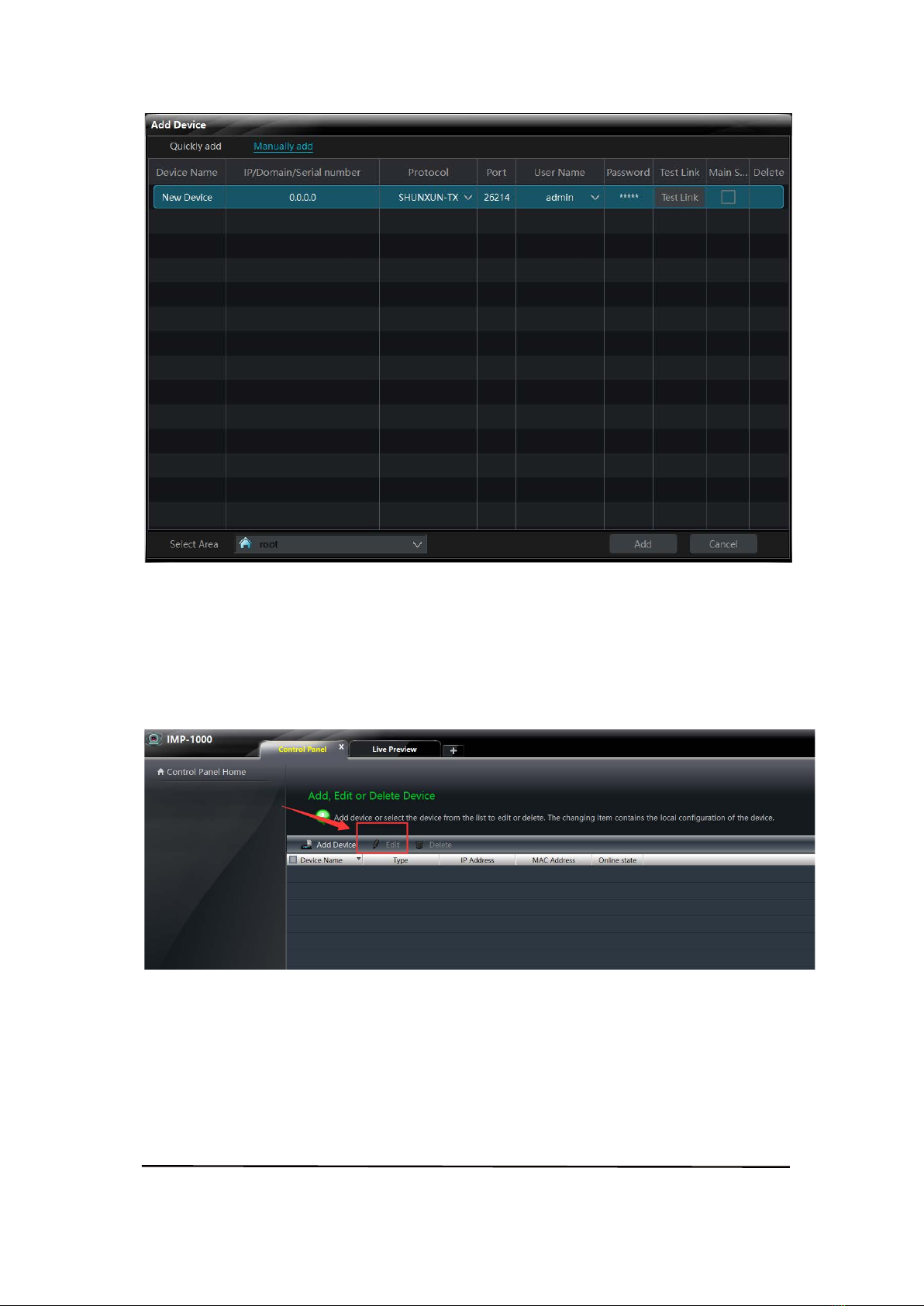

Manually add: Enter known IP address, protocol (TX/RX), port, default username/password admin.
Enter the correct IP address and other parameters by clicking "test connection" to ensure that the
device added is correct.

12
Operating Instruction

13
When the device is restarted or reassigned to a new IP address, the original IP address will be
temporarily invalid (reassigned to a new IP address requires the device to be added), and the
platform will indicate that the device is not online with a dialog box and online status, gray means
not online, and green means online
3.2 Edit:
Operating Instruction

14

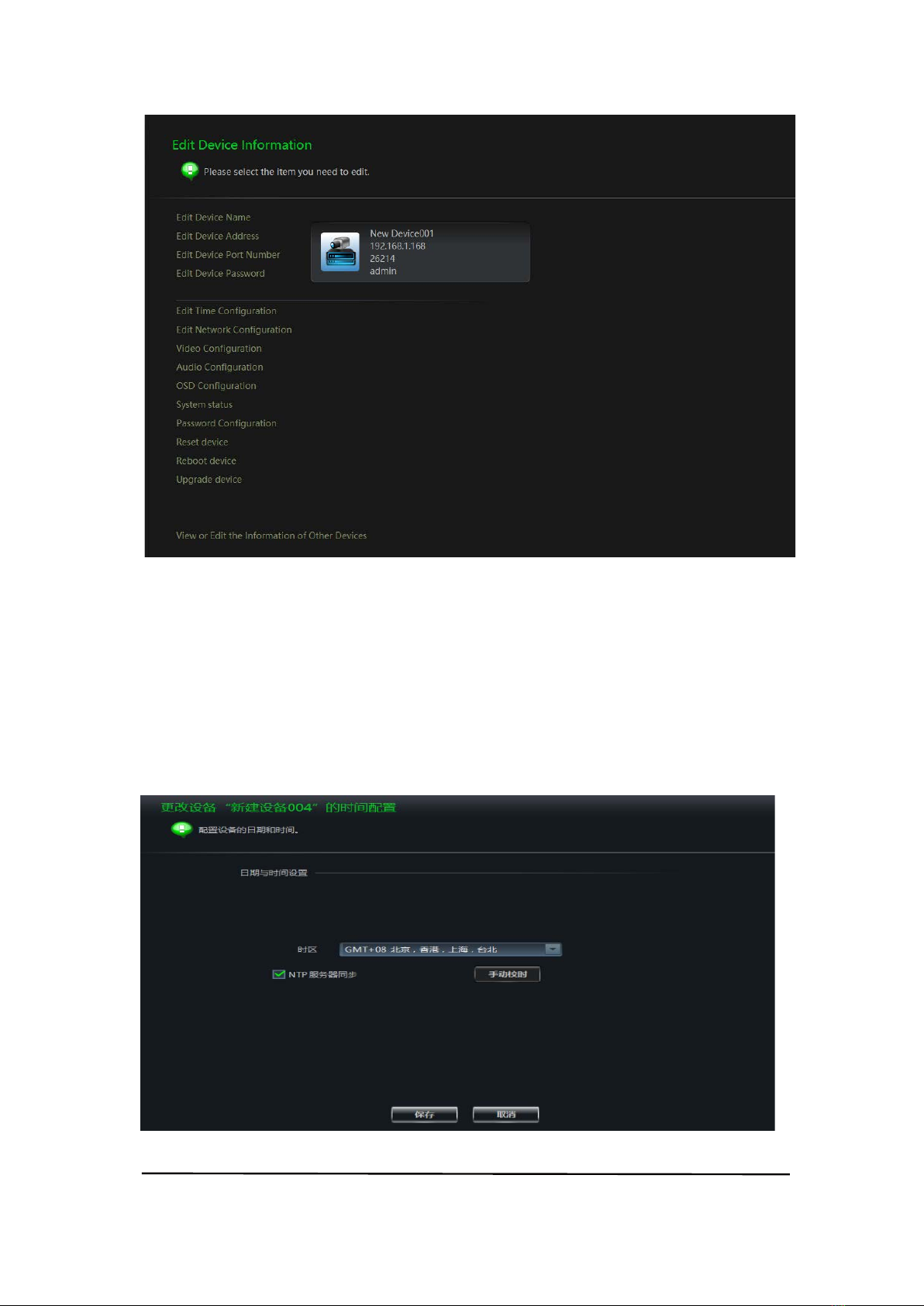

In Edit page, device parameters can be configured.
3.2.1 After each device was set, click “View or Edit the Information of Other Devices” to return,
and select other devices for parameter setting.
3.2.2 Edit device Name, Edit Device Address, Edit Device Port Number, Edit Device Password (the
default user name/password of all devices is admin), change the password of the login device, and
it will take effect immediately after it is confirmed.The above change function is only used for the
platform when the device is manually added, the parameter error can be quickly modified here, and
the parameter of the device itself cannot be changed.
3.2.3 Edit Time Configuration
Default check the NTP server synchronization. You can check the NTP server synchronization to
select time zone or un-check the NTP server synchronization for manual calibration.
Operating Instruction

15
3.2.4 Edit Network Configuration
1. UDP port, RTSP port, Auto get IP address, IP address, Sub-net mask, Gateway and Domain name
server can be implemented in the network configuration. Once the network configuration is
modified, need manually restart of the device to take effect.
2. Provide two video streaming protocols: RTSP primary and secondary bit streams and RTMP live
streaming protocols
3.RTSP anonymous access: check means that there is no need to enter account and password when
receiving video stream; otherwise, you need to enter account and password when you do not check
4. Default account and password: admin
Note: the modified IP address cannot be the same as the IP address of all connected devices in the
network
5. RTSP usage instructions:
Pre-install and open the VLC player (download address: http://www.videolan.org/) in the computer,
then select media → open the network streaming as shown in the figure below, enter the device
RTSP code stream address, click play as shown in the figure below, you can successfully play the
video stream encoded by the device.The device stream address is composed of IP address and
RTSP port number.
Specific steps are as follows:
Operating Instruction

16
3.2.5 Video Configuration
In video configuration, the parameters of the main and sub streams can be set as shown in the
figure.Once the parameter modification is confirmed, it can take effect immediately
Note: these Settings are valid only if the encoding type is set to h.264.
Operating Instruction

17
3.2.6 Audio Configuration
3.2.7 OSD Configuration
Operating Instruction

18
3.2.8 System Status
3.2.9 Password Configuration
Operating Instruction

19
1. The default password for communication between platform and device is admin
2. After the device password is changed, the connection between the platform and the device will
go offline
3. Return to the device function panel, select the login device password input, enter the newly
modified password to enter confirmation
4. After the device and platform verify the password successfully, it will automatically restore to
the online state
3.3.0 Reset Device
Once the reset device is determined, the device will restore factory Settings and all parameters will
be restored to the initial state.
Note: if factory Settings are restored, the router will reassign the IP address of the product. If the
original address fails, the device should be added again
3.3.1 Reboot Device
The parameters previously set will be saved on restart.The device can also be restarted through the
restart button on the product.
The platform will be offline for a short time with the device, and the online state of the device will
be automatically restored after the restart
Operating Instruction

20
3.3.2 Upgrade Device
Select the path to find the upgrade file (bin format) and complete the software upgrade after
confirmation.The platform upgrade device will not change the previous parameter configuration.
Successful upgrade will be prompted and restart.
