BriskHeat DHCSR Series User manual

Read and understand this material before
installing this heater. Failure to understand how
to safely install the heater could result in an
accident causing serious injury or death. This
heater should only be installed by qualified
personnel.
Instruction Manual
DHCSR Series
Drum / Pail Heaters

BriskHeat® Corporation. All rights reserved
2
Silicone Rubber Band Drum / Pail Heaters
TABLE OF CONTENTS
Introduction .........................................2
Safety Alert Symbol ............................2
Important Safety Instructions ............3
Summary of Operation .......................4
Prior to Installation .............................4
Installation of Heater ..........................5
Mounting of Temperature Sensor......6
Adjustment of Temperature
Set-Point ..............................................6
Connecting Heater to AC Power........7
Troubleshooting Guide.............. BACK
Warranty ..................................... BACK
SAFETY ALERT SYMBOL
The symbol above is used to call your
attention to instructions concerning your
personal safety. It points out important
safety precautions. It means
“ATTENTION! Become Alert! Your
Personal Safety is involved!” Read
the message that follows and be alert to
the possibility of personal injury or
death.
Immediate hazards which WILL result
in severe personal injury or death
Hazards or unsafe practices which
COULD result in severe personal
injury or death
Hazards or unsafe practices which
COULD result in minor personal
injury or property damage.
SAVE THESE
INSTRUCTIONS!
Additional copies
of this manual are
available upon
request.
Thank you for purchasing a Brisk-
Heat® DHCSR Silicone Rubber
Drum / Pail Heater. Your heater is
designed to provide a long and effi-
cient service life with function, relia-
bility, and safety in mind. For addi-
tional information concerning this, or
other BriskHeat® products, please
contact contact BriskHeat® directly at
1-800-848-7673 (toll free, U.S. /
Canada) or 614-294-3376.
INTRODUCTION

BriskHeat® Corporation. All rights reserved
3
Silicone Rubber Band Drum / Pail Heaters
A person who has not read
and understood all operating
instructions is not qualified to
operate this product.
 Do not immerse heater in liquid.
 Keep enclosure cover tight while circuits are
alive.
 Use heater only in approved locations
 Keep sharp metal objects away from heater.
Failure to observe these warnings may result in
electric shock, risk of fire, and personal injury.
End-User Must Comply to the Following:
 Only qualified personnel are allowed to
connect electrical wiring.
 Disconnect all supply power at the source
before making any power connections.
 All electrical wiring must follow local elec-
trical codes, it is highly recommended
that NEC Article 427 is followed.
 Final installation / wiring is to be inspect-
ed by the authority who has jurisdiction in
the area where the heater is installed.
 The end-user is responsible for providing
a suitable disconnecting device.
 The end-user is responsible for providing
suitable electrical protection device. It is
highly recommended that a ground fault
circuit breaker is used.
Failure to observe these warnings may result in
personal injury or damage to the heater.
IMPORTANT SAFETY INSTRUCTIONS
 Never handle the heater while
it is in operation; Always dis-
connect the heater from the
power source and allow to cool
prior to handling.
 Inspect heater before use.
 Do not wrap the heater over
itself.
 If spillage of foreign matter
onto heater occurs, disconnect
from power source and clean
after heater is allowed to cool.
 Never operate a heater without
an appropriate heat sink
(device being heated is consid-
ered a heat sink).
 Fasten heater to device using
approved methods only.
 Do not repair damaged or
faulty heaters.
 Do not crush or apply severe
physical stress on heater or
cord assembly.
 Disconnect heater when not in
use.
 Use specified sized heater with
same sized drum. Do not use
for other applications.
Failure to observe these warnings
may result in personal injury or
damage to the heater.

BriskHeat® Corporation. All rights reserved
4
Silicone Rubber Band Drum / Pail Heaters
Read and understand this entire manual before operating this electric heater.
SUMMARY OF OPERATION
BriskHeat® DHCSR Silicone Rubber Drum Heaters are designed to
heat the contents inside either metal or poly drums / pails. “DH..” and
“ECONO” are designed for metal drums / pails. “DP..” is designed for
poly drums / pails.
DHCSR series drum heaters are integrated with built-in
PRIOR TO INSTALLATION
1. Check for suspected damage to the heater like rips, punctures, etc.
2. Verify surface to be heated is free from all sharp edges, weld
splatter, rust, oil, etc.
3. Check that the desired placement of the heater will not cause
damage to the heater through impact shock, vibration, ambient
temperature, or by neighboring moving parts.
4. Confirm voltage / wattage rating of heater is appropriate for power
supply device or temperature controller. The heater is designed to
work at a specific voltage to heat properly. For additional information,
contact your local distributor or BriskHeat®.
5. Confirm heater maximum exposure temperature rating is suitable for
environment. The temperature of the internal heating element may run
up to 25% higher than the external surface of the heater. Use extreme
caution for applications that require a process temperature near the
maximum exposure temperature ratings of the drum heater.
- All Silicone rubber drum heaters except DHCX and DHNX
exposure temperature range: -60ºF to 450ºF (-51ºC to 232ºC)
- DHCX and DHNX exposure temperature range: -60ºF to 400ºF
(-51ºC to 204ºC)
T3: 292ºF (145ºC) high limit thermostat
T4A: 158ºF (70ºC) high limit thermostat
5. Do NOT connect to AC power until all installation steps are
completed.

BriskHeat® Corporation. All rights reserved
5
Silicone Rubber Band Drum / Pail Heaters
INSTALLATION OF HEATER
1. Verify drum surface is clean, free of weld splatter, and not damaged
in anyway.
2. Select a suitable location on the drum, below the lowest expected
content level. For almost all applications, the heater should be mounted
on the bottom 1/3 of the drum.

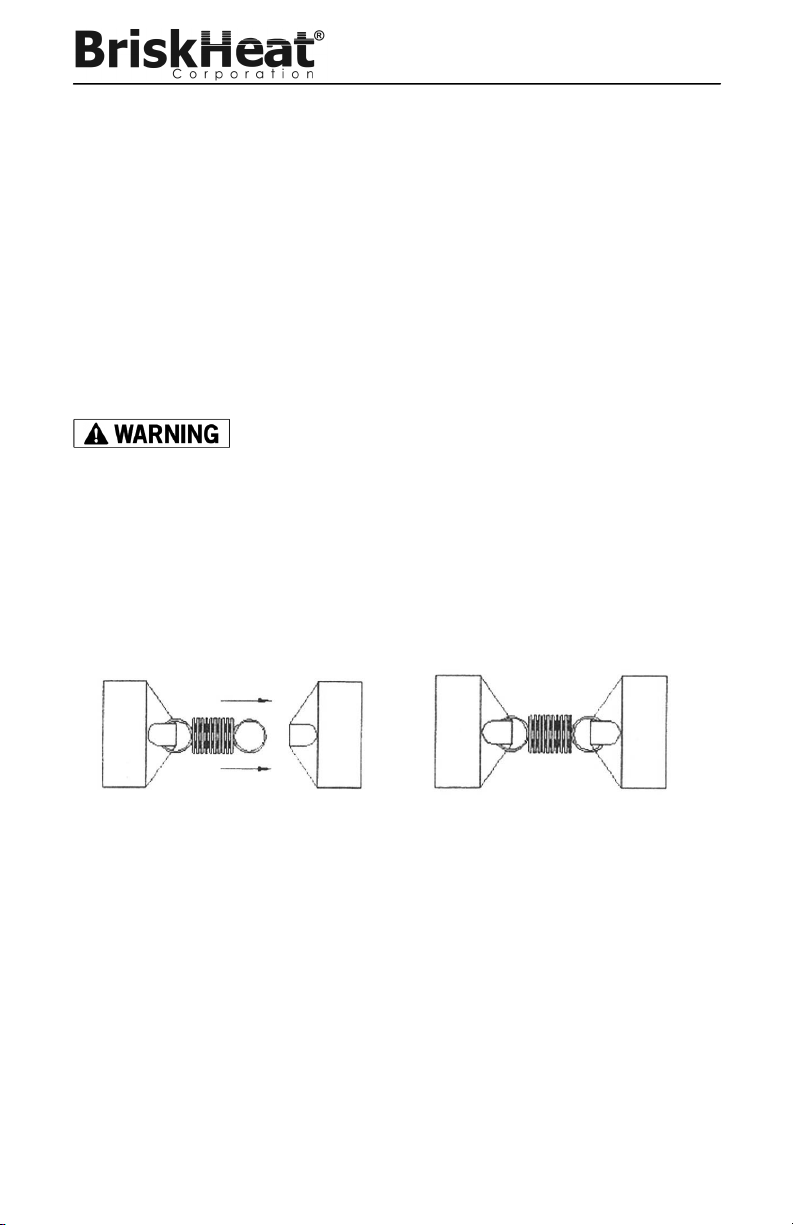

3. Wrap the heater around the drum. Extend the spring attached to the
metal tab; latch the spring loop onto the hook on the opposite side as
shown in Figure 1.
4. Verify there are no air gaps between the heater and the drum.
Do not use metal tab as a handhold when extending the
spring.
The heater MUST make continuous contact with the drum.
Do not overlap the drum heater onto itself or another heater.
Figure 1

BriskHeat® Corporation. All rights reserved
6
Silicone Rubber Band Drum / Pail Heaters
MOUNTING OF TEMPERATURE SENSOR (DHCX series)
1. Mount the temperature sensor as close as possible to the heater, on
the outside of the drum. It is best to mount the sensor vertically. Avoid
bending or coiling the capillary tube tighter than a 1/2” (13mm) radius.
NOTE: The sensing point is the entire length of the sheath (10.5” /
267mm). It is important that as much of the bulb’s surface is in contact
with the drum.
Do not immerse the sensing bulb into the contents of the drum.
2. Once an appropriate location has been determined, secure the
sensor to the drum using aluminum or fiberglass adhesive tape.
ADJUSTMENT OF TEMPERATURE SET-POINT
Do not operate the heater without a temperature controlling device (if
not installed). Failure to use such a device may result in in-process
damage or heater failure.
If the operating temperature is within 50ºF (10ºC) of the maximum
exposure temperature of the heater or if the temperature sensor/
controller or thermostat is controlling a process remote to the heater,
an integral high-limit temperature cut-out sensor/controller or
thermostat is required to protect the heater.
DHCH, DHCS, DPCH, DPCS, ECONO series
Adjust dial to desired setting. Drum heaters designed for metal drums
(DHCH, DHCS, and ECONO series) can be adjusted 50-425ºF (10-
218ºC). Drum heaters designed for poly drums (DPCH and DPCS se-
ries) can be adjusted 50-160ºF (10-71ºC).
DHCX series
1. Remove the two screws securing the metal plate opposite the
temperature sensor.
2. Remove the metal plate to expose the low and high limit set-point
controls.
3. Adjust the high and low temperature set-points to an appropriate
level for the environment. The low temperature set-point is the process
control. The high limit set point is connected to the high temperature
limit indicator light.
NOTE: These heaters have a built-in, high limit thermostat that will prevent it
from overheating.
T-3 rated heaters: 292°F [145°C] high limit thermostat
T-4A rated heaters: 158°F [70°C] high limit thermostat

BriskHeat® Corporation. All rights reserved
7
Silicone Rubber Band Drum / Pail Heaters
Do not adjust the low set-point higher than the high limit thermostat.
Do not adjust the low set-point higher than the high temperature set-
point connected to the indicator light.
4. Replace the metal plate and secure with two screws.
CONNECTING HEATER TO AC POWER
1. The drum heater is designed to work at a specific voltage. Refer to
the lead wire label or stamp located on the heater for rated voltage and
wattage.
Failure to operate the drum heater at its rated voltage could cause
damage to the heater, surface being heated, or contents of drum.
All electrical connections must be made by qualified personnel and in
accordance with all local codes and regulations.
Properly sized circuit breakers must be used.
The end-user is responsible for providing suitable electrical protection
device. It is highly recommended that a ground fault circuit breaker
be used.
DHCH, DHCS, DPCH, DPCS, ECONO series
2. The power cable consists of three color-coded conductors, black,
white, and green. The black wire should be connected to Line 1. The
white wire should be connected to Line 2. The green wire should be
connected to earth ground. The power connections must be adequately
rated to electrically support the voltage and amperage of the heater.
The identification label located on the power cord displays voltage and
amperage requirements. Follow all local electrical codes for proper
electrical connections.
DHCX series
2. Connect the hazardous location approved plug to power source only
after all steps listed above are complete.
DHNH, DHNS, and DHNX series
2. Refer to external temperature controller instructions for power
installation instructions.

BriskHeat® Corporation. All rights reserved
8
Silicone Rubber Band Drum / Pail Heaters
WARRANTY INFORMATION
1055 Gibbard Ave, Columbus, OH 43201
Toll Free: 800-848-7673
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web site: www.briskheat.com
PN: 11663 Rev B
TROUBLESHOOTING GUIDE
Please read this guide prior to contacting BriskHeat®. This guide is de-
signed to answer the most commonly asked questions. If you are una-
ble to identify the problem or need additional assistance, please contact
your local BriskHeat® distributor or contact us toll free (U.S. / Canada
only) at 1-800-848-7673 or 614-294-3376 or
[email protected].
PROBLEM SOLUTION(S)
Does not heat Verify heater is connected to proper voltage. The identification
label located on the power cord displays the heater’s voltage
requirement.
Check to see if there is a resistance reading (not an open cir-
cuit) in heater using an ohm meter.
Circuit breaker is
tripping
Validate that the circuit breaker is capable of handling the amp
requirement of heater. The identification label located on the
power cord displays the heater’s amperage requirement.
Does not fit Confirm that the heater provided was designed to fit around your
specified drum.
If the heater was designed for the specified drum, please call
1-800-848-7673 or 614-294-3376 for further assistance.
Something has lightly
spilled on exterior or
interior
Apply any general household cleaner, that does not contain any
silicone rubber dissolving type ingredients, with a clean cloth
fabric.
BriskHeat® warrants to the original purchaser for the period of eighteen
(18) months from date of shipment or twelve (12) months from date of
installation, whichever comes first. Contact factory at 1-800-848-7673
(toll free, U.S. / Canada) or 614-294-3376 for complete details.
