BriskHeat Metal Clad Hopper Heater User manual

BriskHeat® Corporation. All rights reserved
8
Metal Clad Hopper Heater
1055 Gibbard Ave, Columbus, OH 43201
Toll Free: 800-848-7673
Phone: [phone]
Fax: [phone]
Email: [e-mail]
PN: 41301 Rev. A
WARRANTY INFORMATION
BriskHeat® warrants to the original purchaser for the period of 5 years
from date of shipment. Contact factory at 1-800-848-7673 (toll free,
U.S. / Canada) or 614-294-3376 for complete details.
Read and understand this manual before operating or
servicing this heater. Failure to understand how to
safely operate these heaters could result in an
accident causing serious injury or death. Only
qualified personnel should operate or service heater.
Metal Clad Hopper Heater
Instruction Manual

BriskHeat® Corporation. All rights reserved
2
Metal Clad Hopper Heater
Table of Contents
Introduction.....................................................................................2
Safety Alert Symbol ........................................................................2
Important Safety Instructions..........................................................3
Prior to Installation..........................................................................4
Mounting.........................................................................................5
Connecting Heating Blanket to a Power Source ............................6
Troubleshooting Guide ...................................................................7
Warranty Information ......................................................................8
SAFETY ALERT SYMBOL
The symbol above is used to call your
attention to instructions concerning your
personal safety. It points out important
safety precautions. It means
“ATTENTION! Become Alert! Your
Personal Safety is involved!” Read the
message that follows and be alert to the
possibility of personal injury or death.
INTRODUCTION
Thank you for purchasing a BriskHeat® Metal Clad Hopper Heating
System. Your heaters are designed to provide a long and efficient
service life with function, reliability, and safety in mind. For additional
information concerning this, or other BriskHeat® products, please
contact your local BriskHeat® distributor or contact us toll free (U.S. /
Canada only) at 1-800-848-7673 or 614-294-3376.
Immediate hazards which WILL result in severe
personal injury or death
Hazards or unsafe practices that COULD result in
severe personal injury or death
Hazards or unsafe practices that COULD result in
minor personal injury or property damage
SAVE THESE INSTRUCTIONS!
Additional copies of this manual are available upon request.
BriskHeat® Corporation. All rights reserved
7
Metal Clad Hopper Heater
TROUBLESHOOTING GUIDE
Please read this guide prior to contacting BriskHeat®. This guide is designed to
answer the most commonly asked questions. If you are unable to identify the
problem or need additional assistance, please contact us at 1-800-848-7673
(U.S. / Canada), 1-614-294-3376 (worldwide), or [email protected].
PROBLEM SOLUTION(S)
Heater does not warm up Verify heater is connected to proper voltage.
Check to see if there is a resistance reading (not an
open circuit) in heater using an ohm meter.
Circuit breaker is tripping Validate that the circuit breaker is capable of
handling the amp requirement of heater. The
identification label located on the power cord displays
the heater’s amperage requirement.
Examine heater and cord for any damage.
Check to see if there is a resistance reading between
power leads and the ground lead.

BriskHeat® Corporation. All rights reserved
6
Metal Clad Hopper Heater
CONNECTING YOUR HEATING BLANKET TO A POWER
SOURCE
1. The heater must be connected to an external control device. The heater must
not be operated without some form of temperature control.
 Your heater is designed to operate at a specific voltage ±10%. Refer to the label on
the heater for proper operating voltage and wattage information. Failure to operate
the heater at the specified rating could result in overheating of the heating blanket,
the surface being heated, or personal injury. Also note lower-than-rated voltage will
result in under-heating.
 All electrical connections must be made by qualified personnel and in accordance
with all applicable codes and regulations.
2. Ensure heater is protected by a properly rated circuit breaker or fuse.
3. Use of a ground fault circuit interrupter (GFCI) is highly recommended and may
be required according to local electric code.
4. Two wires (same color) should be connected to the power source (or
temperature control device) directly, through a junction box, or to a connector
that is mated to a receptacle connected to the power source. BriskHeat® Metal
Clad Hopper Heaters are non-polarized, allowing either wire to be connected to
the neutral or hot. The third wire (if applicable), designated by the color green
(or a green stripe), should be connected to ground. For three-phase
installation, contact factory.
BriskHeat® Corporation. All rights reserved
3
Metal Clad Hopper Heater
 Never handle the heater while it is in
operation; always disconnect the
heater from the power source and
allow to cool prior to handling.
 Inspect heater before use.
 Never operate heater without a
temperature control device.
 Do not wrap the heater over itself.
 If spillage of foreign matter onto
heater occurs, disconnect from
power source and clean after heater
is allowed to cool.
 Never operate a heater without an
appropriate heat sink. (Device being
heated is considered a heat sink).
 Do not operate heater above rated
temperature value.
 Fasten heater to device using
approved methods only.
 Do not repair damaged or faulty
heaters.
 Do not crush or apply severe
physical stress on heater or cord
assembly.
 Disconnect heater when not in use.
Failure to observe these warnings may
result in personal injury or damage to the
heater.
IMPORTANT SAFETY INSTRUCTIONS
 Do not immerse heater in liquid.
 Keep volatile or combustible material
away from heater when in use.
 Use heater only in approved locations.
 Keep sharp metal objects away from
heater.
Failure to observe these warnings may result
in electric shock, risk of fire, and personal
injury.
End User Must Comply to the Following:
 Only qualified personnel are allowed to
connect electrical wiring.
 Disconnect all supply power at the
source before making any power
connections.
 All electrical wiring must follow local
electrical codes and highly recommend
following NEC Article 427.
 Final installation / wiring is to be
inspected by the authority who has
jurisdiction in the area that the heater is
installed.
 The end-user is responsible for
providing a suitable disconnecting
device.
 The end-user is responsible for
providing a suitable electrical protection
device. It is highly recommended that a
ground fault circuit breaker is used.
Failure to observe these warnings may result
in personal injury or damage to the heater.
A person who has not read and understood all
operating instructions is not qualified to operate
this product.
Agency Approvals
Approvals valid only when installed in
accordance with all applicable
instructions, codes, and regulations.
MCH Series
Ordinary Locations

BriskHeat® Corporation. All rights reserved
4
Metal Clad Hopper Heater
Read and understand this enre manual before operang this electric heater.
PRIOR TO INSTALLATION
1. Check for suspected damage to the MCH blanket such as rips, punctures, etc.
2. Verify surface to be heated is free from all sharp edges, weld splatter, rust, oil,
etc. Surface must be clean prior to installing heater.
3. Check that the desired placement of the blanket will not cause damage to the
blanket through impact shock, vibration, ambient temperature, or by
neighboring moving parts.
4. Confirm voltage / wattage rating of heater is appropriate for power supply
device or temperature controller. The heater is designed to work at a specific
voltage to heat properly. For additional information, contact your local
distributor or BriskHeat®.
5. Confirm blanket maximum exposure temperature rating is suitable for
environment. The temperature of the internal heating element may run up to
25% higher than the external surface of the blanket. Use extreme caution for
applications that require a process temperature near the maximum exposure
temperature ratings of the blanket.
 MCH exposure temperature range: -60ºF to 800ºF (-51ºC to 427ºC)
6. Confirm all necessary installation hardware and tools are readily available.
Depending on the application, this may include...
Tools:
Wire strippers
Cleaning / prep supplies (varies based on what is being cleaned)
Hardware:
 Junction Box
 Wire Ties
 Mounting Hardware
 Temperature controller and sensor
 Silicone RTV
 Insulating material
 High-temperature adhesive tape
(part # AA2180)
 Plug if connecting heater to a
receptacle rather than hard wiring to
a temperature controller or junction
box
BriskHeat® Corporation. All rights reserved
5
Metal Clad Hopper Heater

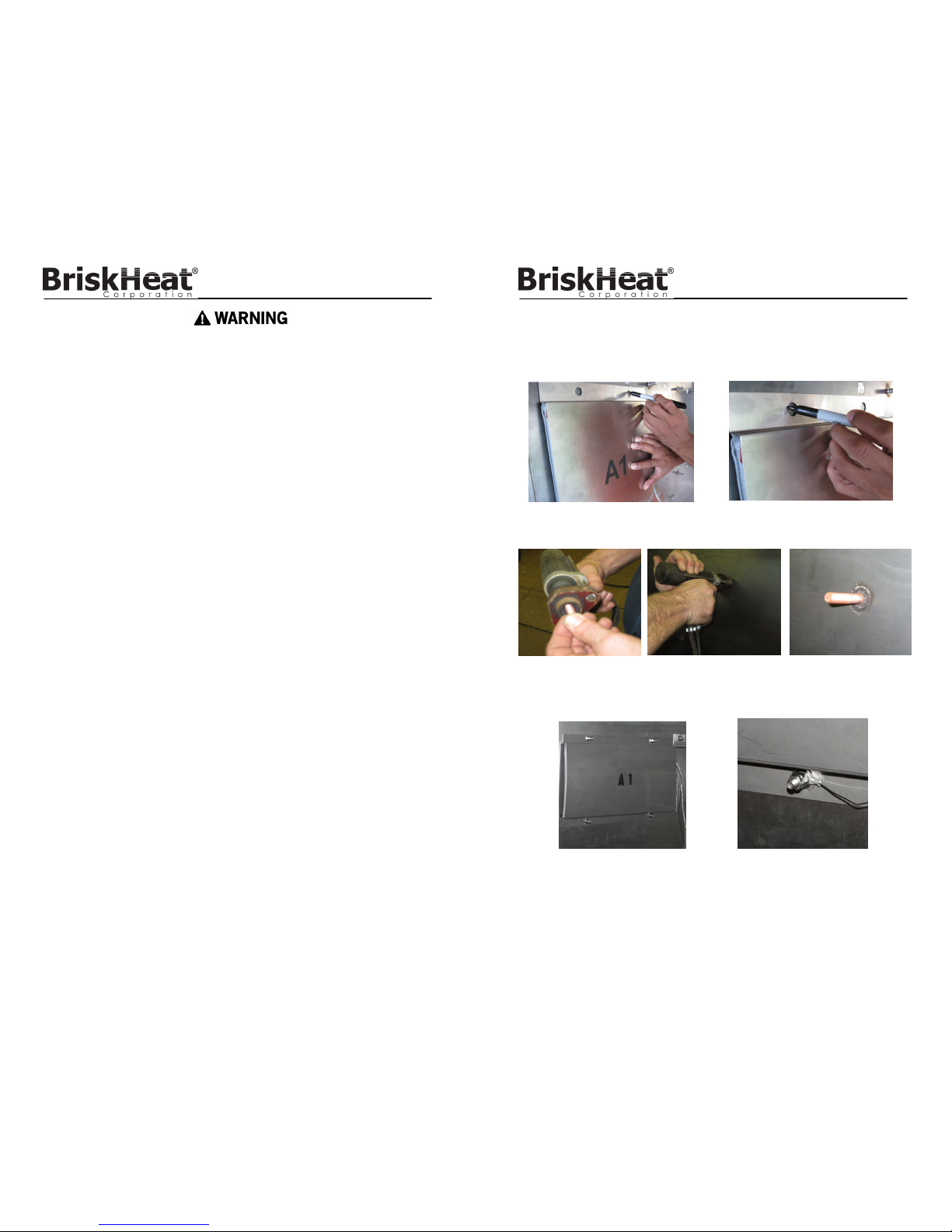

MOUNTING
(Example shown is for Capacitive Discharge stud welding. If Acr-welding then ferrule is included along
with stud.)
NOTE: The Metal Clad Hopper Heating System must be connected to an external control device. DO NOT
turn on unless temperature controller is applied.
1.) Mark Locations of Mounting Holes to surface. Use “System Drawing” to see how
to place metal clad heaters on the hopper. The “System Drawing” should be used
when wiring and placing heaters on unit.
c.) Completed Stud
b.) Weld Stud to Hopper Wall
2.) a.) Insert Stud in Welder
3.) Ensure surface is clean before placing heater. Place heater in metal cover slot then attach to
studs. Install flat washer, ground wire, lock washer, nut, and then install 2nd jam nut to secure heater
in place.
