Bristan BL3105 Mounting instructions

Please keep this booklet for future reference.
Installer, when you have read these instructions
please ensure you leave them with the user.
Installation Instructions
and User Guide
Bliss Electric Showers

2
Contents
Important Safety Information............................................3
General Information ..........................................................4
Product Features...............................................................5
Specifications ....................................................................6
Electrical Requirements ...................................................7-8
Water Requirements .........................................................9
Fixing Your Shower to the Wall .........................................10
Plumbing Connections......................................................11-13
Electrical Connections ......................................................14-16
Fitting Your Riser Rail to the Wall.....................................17
Commissioning - Testing the System...............................18
Operating the Shower .......................................................19-20
Maintenance ......................................................................20-21
Troubleshooting................................................................. 21
Guarantee ..........................................................................22
Service Policy..................................................................... 22
Spare Parts........................................................................23-25
Notes..................................................................................26-27
Welcome to your new Bristan electric shower.
Featuring a contemporary design with lots of fun features,
Bristan’s electric shower collection has been designed to be
enjoyable to fit and to use.
It has also been designed and tested in the UK to all of the
relevant British Standards.
These instructions contain all of the necessary installation
and operating information, so please read them thoroughly
and keep for future reference.
These instructions are for your guidance to a safe and
successful installation which we recommend is carried out
by a suitably qualified person and must conform with current
I.E.E Wiring Regulations (BS7671) and Building Regulations
(Part P and Part G).
Note: An Installation Template and Quick-Start Guide are
provided separately with this shower.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

2 3
Important Safety Information
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
•Please read these instructions
thoroughly and retain for future use.
•All products manufactured and
supplied by Bristan are safe provided
they are installed, used correctly
and receive regular maintenance in
accordance with these instructions.
• If you are in any doubt about your
ability to install this product safely
you must employ the services of
an experienced qualified plumber/
electrically qualified person.
•Warning: Do not operate the
shower unit if you suspect it is frozen.
Do not site the shower unit where
it might be subjected to freezing
conditions.
• Do not install this shower unit in a
room/environment without adequate
ventilation or an extractor fitted. This
is required to prevent condensation
forming within the unit.
•Do not operate the shower unit if the
showerhead or spray hose has been
damaged or is blocked.
•Do not block the flow of water
from the showerhead, by placing it
(smothering it) on your hand or any
other part of your body or foreign
object.
•Do not operate the shower if the
water stops flowing during use or if
the water is leaking from the shower
unit itself. Turn off at the mains BEAB (British Electrotechnical
Approvals Board) approval of safety.
electrical supply and refer to the
Troubleshooting section (see page 21)
or contact Bristan Customer Services.
•Do not crush or kink the shower
hose, this could damage the hose,
cause leaks and activate the pressure
relief device (PRD).
•Installations subject to regular and
rapid changes in the water supply
pressures should be avoided.
•This appliance must be permanently
connected to the water mains and not
connected by a hose-set.
•Warning: This appliance can
be used by children aged from 8
years and above and persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning
use of appliance in a safe way and
understand the hazzards involved.
•Children shall not play with the
appliance.
•Cleaning and maintenance shall
not be made by children without
supervision.
Important: The shower unit must be
switched off at the isolating switch
(pull cord) when not in use

4
General Safety Information
•Always switch off the power at
the consumer unit and isolate the
electrical supply before making any
electrical connections or if you have to
remove the cover of an installed unit.
•The unit must be mounted on the
finished wall surface (usually tiled).
Under no circumstances must you
tile up to or seal around the unit as
this may prevent air circulating and
condensation escaping.
•This shower unit must not be
modified* in any way as this will
invalidate the guarantee.
* Except for top left pipe entry (see
page 12) where the product has
been designed to be modified by the
installer.
•You must not fit a “water saving”
handset (whereby the flow of water
can be restricted or turned off) to the
shower, otherwise this can result in
scalding and/or unit failure.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

4 5

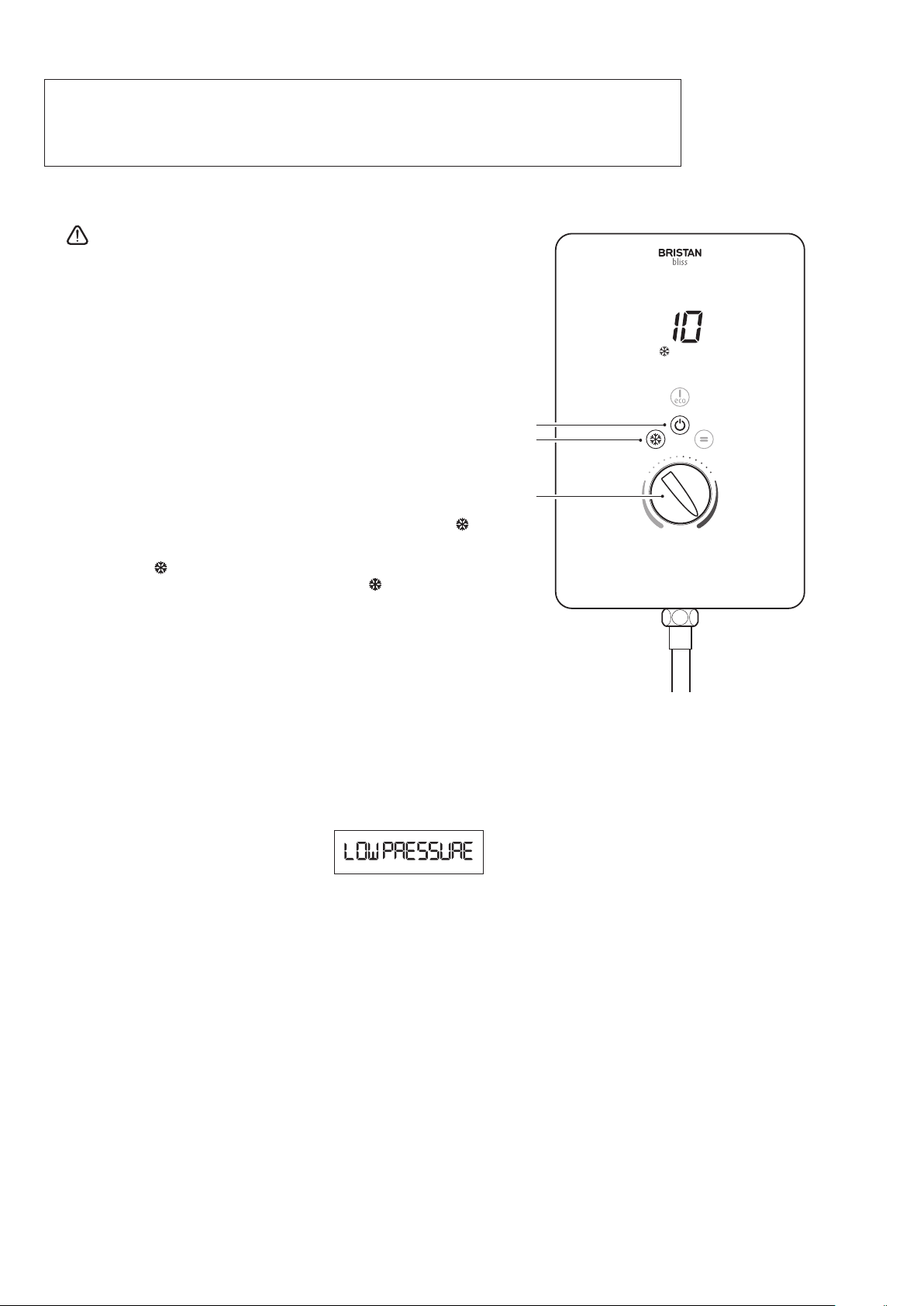

Product Features
1
4
3
1. Temperature Indication
Water temperature indication Digital Display.
The Digital Display will only light up once the
STOP/START touch button is pressed, then
the temperature display will start to count up,
depending on the position of control 6.
Note: The Digital Display is an indication of
the water temperature inside the unit, not the
outlet water temperature. Any slight up or down
fluctuations on the display during use are normal.
Stand-By mode indicated by the Digital Display
showing “_ _”, denoting the shower is powered
and ready to use.
2. Medium (eco ) Power Touch Button
3. STOP/START Touch Button
4. Cold ( ) Power Touch Button
5. High ( ) Power Touch Button
6. Temperature Control
Adjustable temperature control.
Note: When Power Touch Buttons 2, 4 and 5 are
selected the appropriate icon will illuminate below
the temperature indication.
Temperature Control Device
The Temperature Control Device will activate
when the temperature is set too high and the
water inside the water heater gets too hot. The
Temperature Control Device will switch off the
power to the heating elements. Once the unit
cools down to a safe temperature the elements
will come on again and reheat the water within
the water heater and the whole cycle will repeat
itself until the temperature is manually reduced.
Warm Up Mode
The light around the Touch Buttons 2, 3 and 4 will
flash as the water heats up. Once the light stops
flashing and stays on, the shower has reached
your selected temperature and is ready to use.
Phased Shut Down & Indication
When the shower is turned off, water will continue
to flow and the light around the Touch Buttons 2,
3 and 4 will flash for a short period of time while
the heater cools down to approximately 30 on the
display before automatically turning off.
This helps reduce limescale build up.
Performance Maintenance Indication
The Digital Display (1) will indicate CL for a short
period when routine service cleaning is advised to
ensure continued showering performance.
2
5
6
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

6
Specifications
Specifications
Plumbing Connections
Inlet connection: 15mm Push fit
Outlet connection: 1/2” BSP male threaded
Water inlet entry points
Left hand side: Top, Bottom, Rear (bottom)
Right hand side: Bottom, Rear (bottom)
Operating Pressures
Minimum working pressure: 0.7 Bar
Maximum working pressure: 10.0 Bar
Static pressure range: 0 - 10.0 Bar
Supply Requirements
Minimum inlet water temperature: 5ºC
Maximum inlet water temperature: 20ºC
System Requirements
Suitable for mains cold water pressure only
Electrical cable entry points
Left hand side: Top, Bottom, Rear (bottom)
Right hand side: Bottom, Rear (bottom)
Product Fiche
Model BL385 W BL395 W BL3105 W BL385 B BL395 B BL3105 B
Declared Load Profile XS XS XS XS XS XS
Water Heating Energy Efficiency
Class A A A A A A
Water Heating Energy Efficiency
(%) 38.5 38.6 38.6 38.5 38.6 38.6
Anual Electricity Consumption
(kWh) 480 478 479 480 478 479
Sound Power Level (dB) 15 15 15 15 15 15
Recommended Usage
Domestic Heavy Commercial
Light Commercial Health Care
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

6 7

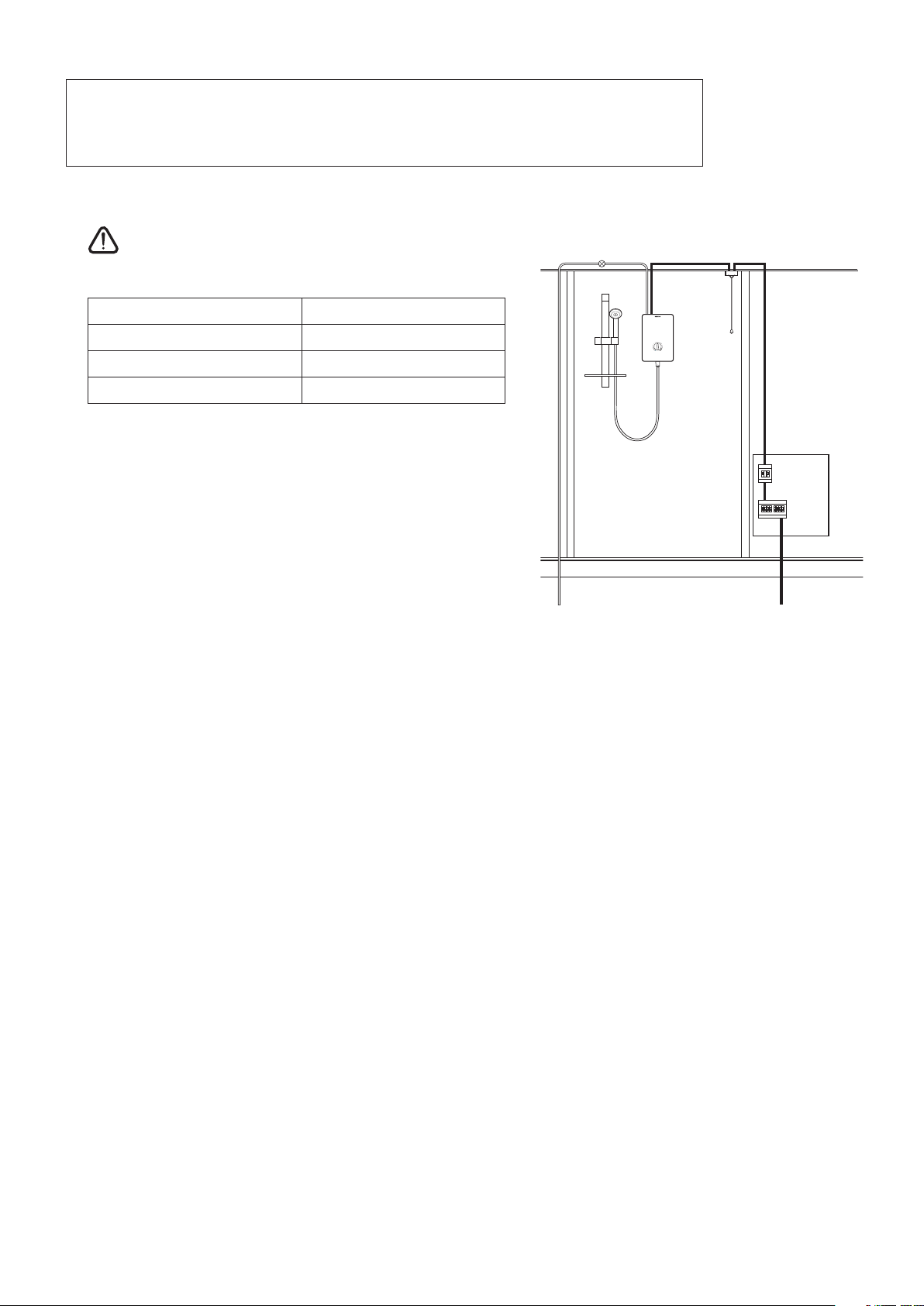

Mains electrical
supply
Consumer
unit
Double pole
switch
Shower unit
Mains water
supply
Isolating
valve
30mA RCD
For ampage of
MCB/Fuse see
Circuit Protection
Table on Page 8
For Cable Capacit
y
see Cable Current
Carrying Capacity
Table on page 8
Electrical Requirements
Warning: This appliance MUST
be earthed!
The Electrical Installation and Circuit Protection of this shower
must comply with current I.E.E Wiring Regulations (BS 7671) and
Building Regulations (Part P). We recommend that this product is
installed by a qualified electrician prior to use. The following notes
are for guidance only.
Important: You must switch off the power at the consumer unit,
isolate the electrical circuit and verify the earth before making any
electrical connections.
The shower must only be connected to a 230-240V AC supply. The
electrical rating of your shower is on the pack or on the rating plate
label.
The shower must be connected to its own independent electrical
supply. It must not be connected to a ring main, spur, power socket,
or lighting circuit.
If you don’t have a spare fuse way or the rating at the main fuse box
is below 80A, you should seek advice from an electrician and may
need a new consumer unit - specifically for the shower.
A separate and permanently connected cable must be taken from
the consumer unit directly to the shower via a 45 Amp double pole
switch with a minimum contact separation gap of 3mm in live (L)
and neutral (N) poles.
The isolating switch can be a ceiling mounted pull cord switch
within the bathroom or wall mounted in an adjacent room. The
power switch must be easily accessible and identifiable as the
supply to the shower.
Note: Voltage drop in the supply to the premises, due to heavy
local demand, will affect the performance of your shower. To gain
the optimum power possible from this shower unit try to find the
shortest possible route from the consumer unit to the shower to run
your cable.
Rating at 240V Rating at 230V
8.5kW 7.8kW
9.5kW 8.7kW
10.5kW 9.5kW
continued on next page
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

8
It is a requirement that a residual current device (RCD) formerly
known as an earth leakage circuit breaker (ELCB) with a tripping
current of 30mA, is incorporated in the circuit. This may be part of
the existing consumer unit or a separate unit.
For close circuit protection DO NOT use a rewireable fuse.
Instead use a suitably rated Miniature Circuit Breaker (MCB) or
Cartridge Fuse.
Please refer to the Circuit Protection Table.
Cable Current Carrying Capacity Table
(for Twin and Earth PVC Insulated Cable)
Current Carrying Capacity
In an insulated wall In conduit or
trunking
Clipped direct or
buried in a non
insulated wall
6mm²
32A
6mm²
38A
6mm²
46A
10mm²
43A
10mm²
52A
10mm²
63A
Note: Cable selection is dependant on derating factors
Electrical Requirements cont.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
On installation of the appliance the impedance measurement of the
Neutral and Earth back to the supply source is to be less than 1.0
Ohms. This is in line with the general installation requirements of
the UK Network and will generally present no problem within the
UK Network.
In domestic installations you must ensure that the electrical supply
and existing fuse board are adequately rated.
Do not turn on the electrical supply until the plumbing has been
completed and the shower cover re-fitted.
Circuit Protection Table
Circuit Protection Device
Unit Rating (@ 240V) MCB Cartridge Fuse
8.5kW 40A 45A
9.5kW 40/45A 45A
10.5kW 45A 45A
The current carrying capacity of the cable must be at least that of
the shower Circuit Protection Device.
Please refer to the Cable Current Carrying Capacity Table.

8 9
If the shower is to be installed in a hard water area, we recommend
that an in-line scale inhibitor is fitted which will prolong the life of
the shower. Please refer to your supplier for advice.
Warning: The shower must not be installed in an area subject
to freezing conditions. Do not use if you suspect the shower is
frozen, this will damage the shower unit.
The shower must be connected to a mains water supply only
with a minimum working inlet pressure of 0.07MPa (0.7bar) at a
minimum flow rate of 8 litres per minute. The maximum static
inlet pressure must not exceed 1.0MPa (10bar).
If it is intended to operate the shower at pressures above the
maximum stated, a suitable pressure reducing valve (PRV) should
be used.
Water regulations stipulate that the showerhead be ‘constrained
by a fixed or sliding attachment (hose retainer) so that it can only
discharge water at a point not less than 20mm above the spill over
level of the bath or shower tray or other fixed appliance’.
If a showerhead can sit within a bath, basin or shower tray, you must
fit a double check valve in the supply pipe work to prevent back
siphonage. If the showerhead can sit within a WC then the air gap
should be a type AUK3 not less than 20mm or twice the diameter of
the inlet pipe to the fitting, whichever is the greater.

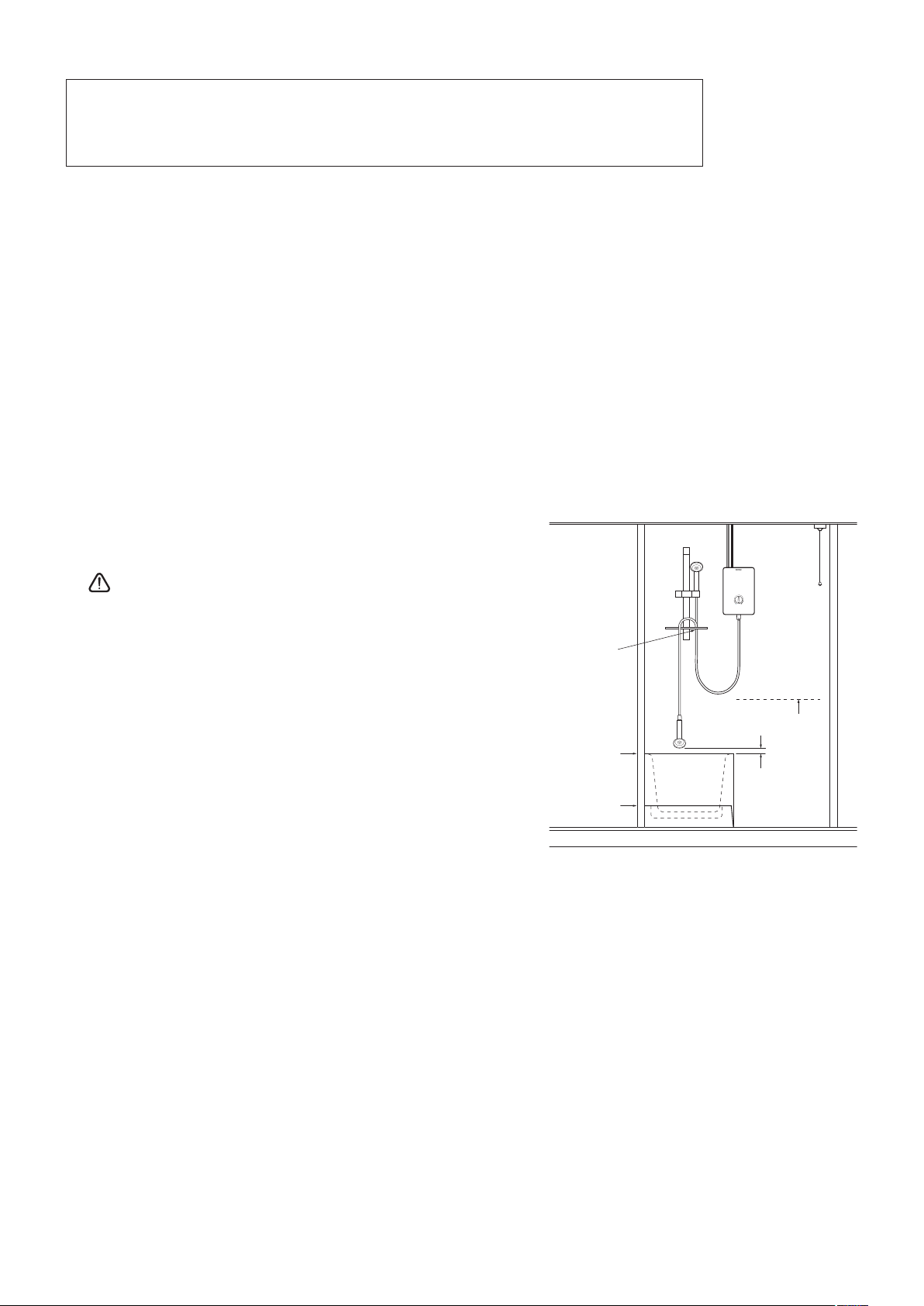

Water Requirements
Double pole
switch
Shower
unit
Shower tray
spillover level
Bath spillover
level
Hose
retainer
Minimum 20mm
between
showerhead
and spillover
1m minimum
height from
shower unit
to floor
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
This fitting needs to be installed in accordance with the following
Installation Requirements and Notes (IRN) to ensure they meet
the requirements of the Water Supply (Water Fittings) Regulations
1999 and the Scottish Byelaws 2004.
The fitting shall be installed so that its outlet discharges above the
spill-over level of any fixed appliance as indicted on the illustration
below.
For backflow protection in premises or installations up to, and
including Fluid Category 3 and 5.
The vertical distance of the outlet above the spill-over level shall
be not less than 20mm or twice the diameter of the inlet pipe
to the fitting, which ever is the greater. If the fitting cannot be
installed as indicated it shall be installed with a backflow prevention
arrangement suitable for the Fluid Category.

10
Warning: Please check for any hidden pipes and cables before
drilling holes in the wall.

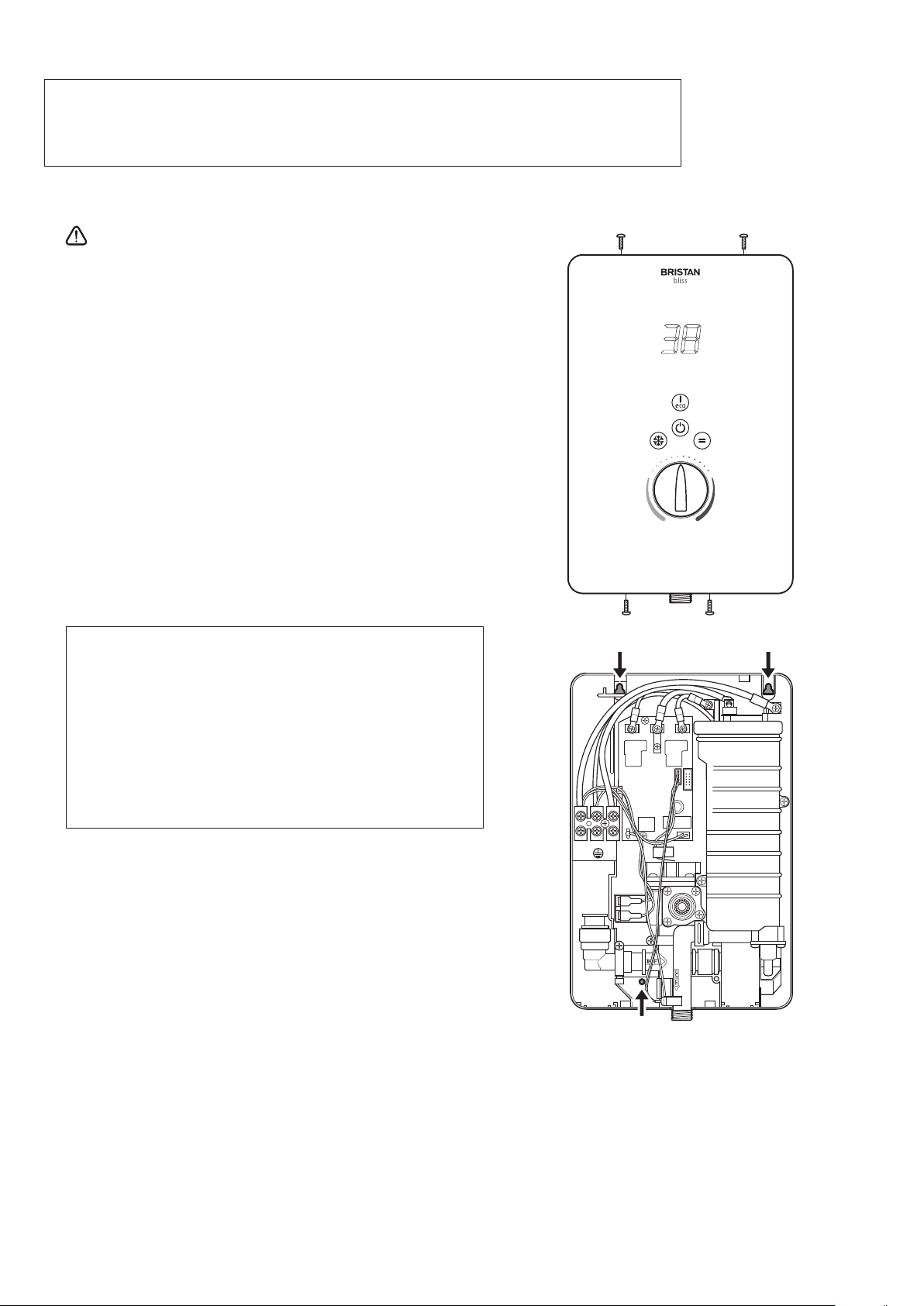

Remove the 4 cover retaining screws and lift off the cover.
Do not try to remove the control knob from the cover. It is an
integral part of the cover and must not be removed.
If you are fitting the unit to a partition wall or a wall of particularly
friable (crumbly) substrate, you will need appropriate fixings for the
wall type.
Select the position for the shower unit over a bath or shower tray
using the installation template provided.
Important: The shower unit must be fitted to a flat, waterproof
surface. Under no circumstances should the shower unit be
attached to a wall and then tiled up to the edges. The unit must be
fixed on top of the wall surface.
Important: Use a spirit level to ensure the template is level.
Mark the 3 fixing points with a suitable pencil through the paper.
Remove the template from the wall and drill the wall to suit the wall
fixings to be used.
LN
Fixing Your Shower to the Wall
Tips:
A piece of insulation or masking tape positioned where holes
are to be drilled and before marking out the exact position
for the fixing holes will help stop the drill bit from wandering,
particularly on a tiled surface.
When working near a basin, bath or shower insert plug or cover
waste to prevent losing small parts.
Take care not to drop tools/equipment into basin, bath or
shower during shower installation.
Note: The unit can be hung temporarily on the top screws to help
with the positioning of the pipe work etc.
* The bottom screw should only be fitted during final installation.
Important: Under no circumstances should this shower unit be
recessed (it must be fitted onto the finished wall surface) or tiled up
to or sealed around the unit as this may prevent air circulating and
any condensation escaping.
*
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
Remove
cover screws
Wall fixing points

10 11
Plumbing Connections
Inlet Entry Options
Select the inlet option most suited to your situation.
LN LN LN
LN
LN LN
Bottom left inlet entry Bottom right inlet entry Top left inlet entry
Rear left inlet entry -
using a 15mm compression elbow
(not supplied), where NO rear
access is available
Rear left inlet entry -
requiring rear access
Rear right inlet entry -
requiring rear access
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

12
Plumbing Connections cont.
Inlet connector elbow (right side down or rear)
9
8
7
Inlet connector elbow (left side, up, down or rear)
Outlet connection 9
7
8
Warning: The outlet of the shower acts as a vent and must not
be blocked, restricted or connected to any tap/closure device other
than the handset supplied.
Do not solder within 300mm of the shower unit or allow solder or
flux to fall onto the casings.
Important: An additional independent stop valve complying with the
current water regulations must be fitted in the mains water supply
as a means of isolating the supply to the unit for servicing and/or
maintenance work.
It is essential that all pipe work is flushed through to remove debris
and swarf that could otherwise damage the unit. Once the pipe
work has been flushed through, turn off the water supply at the stop
valve.
Connect the mains water supply to the inlet port of the shower using
15mm copper pipe (BS EN1057) or 15mm plastic pipe (with insert).
Do not use stainless steel pipe work. If using chrome plated pipe
ensure that the first 25mm of plating is carefully removed to allow
push-fit fitting to grip the inlet pipe.

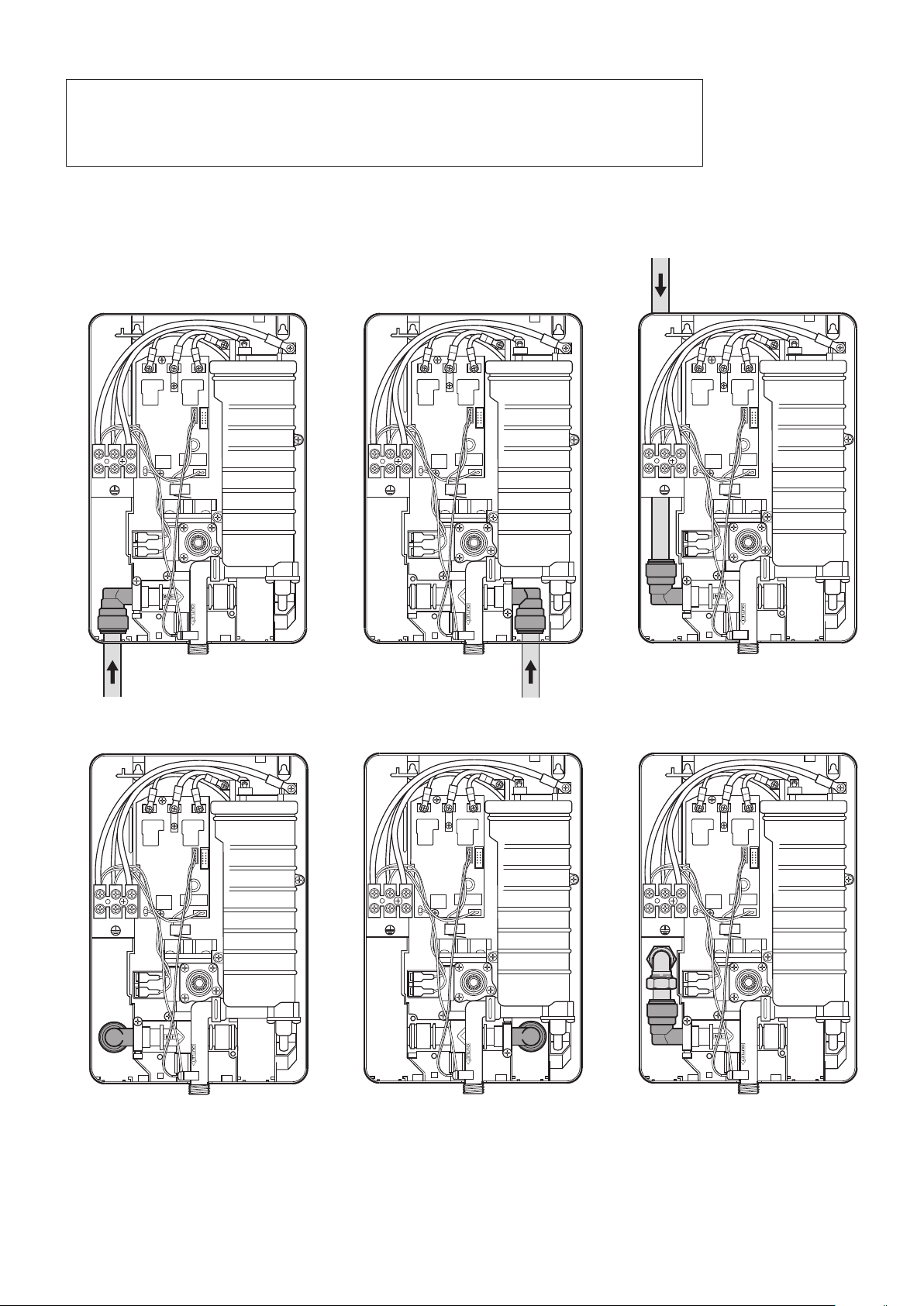

Inlet Entry Options
The pipe work can enter the shower unit from 6 different positions.
Bottom left, Bottom right, Top left, Rear left, Rear right or Rear left -
using an elbow (as shown on page 11).
To top or bottom left positions
The shower unit should come supplied with the inlet connection set
for a bottom left position. To change it to a top left position: swivel
the inlet connector elbow from facing downward to facing upward.
To bottom right position
Unfasten the screw (7) securing the inlet connector elbow clamp
(8), remove the tab from the slot and keep until the inlet pipe is
repositioned. Lift the outlet connection (9) up out of the way from
its position at the bottom of the unit. Pull the inlet connector elbow
towards you and over to the right hand side with the inlet entry
point facing down. Refit the clamp tab (8) into the slot on the right,
refasten the screw (7) and replace the outlet connection (9).
To rear entry positions
Swivel the inlet connector elbow to face a rear entry pipe
connection.
If the pipe work entry is from the rear, ensure that there is space
left around the push-fit elbow for future servicing or alternatively
access is possible from the rear. Bring the cold water pipe to the
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

12 13
Hole Cover Fitting
Top left entry: Depending on your choice of cold-water entry
direction, you may need to remove thin areas of plastic cover to
facilitate pipe work entry down through the top left of the unit.
Bottom entry: Depending on your choice of cold-water entry
direction, fit ‘hole covers’ to the pipe work slots at the bottom of
the unit.
Note: The grey areas shown are tabs that can be removed to allow
6mm cable entry only.
Water Connection
The inlet pipe connection into the elbow is a self-seal push-fit type.
All burrs and rough edges must be removed from the end of the
pipe before connecting.
To release the pipe work from the push-fit type fitting, press and
hold the collet against the elbow and pull the pipe out of the elbow.
Turn on the water supply and inspect for water leaks at the shower
inlet. Once inspected-turn off the water supply.
Pressure Relief Device (PRD)
A pressure relief device is designed into this shower. The pressure
relief device provides protection should an excessive build up of
pressure occur within the shower unit. It is advisable to position
the shower unit over a bath or shower tray in the unlikely event the
device should discharge.
Do not use the shower with a damaged or kinked shower hose or
blocked handset. This may trigger the PRD which will discharge
through the vent in the bottom right hand corner (shown).
In the event of the PRD activating, water will be discharged from the
vent. If this happens, switch off the electricity and water supplies to
the shower and contact Customer Services.
Plumbing Connections cont.
Pipe
cover
Blanking
cover
Pull collet
back towards
elbow
Pull pipe
from elbow
Collet
Back of unit
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
PRD Vent

14

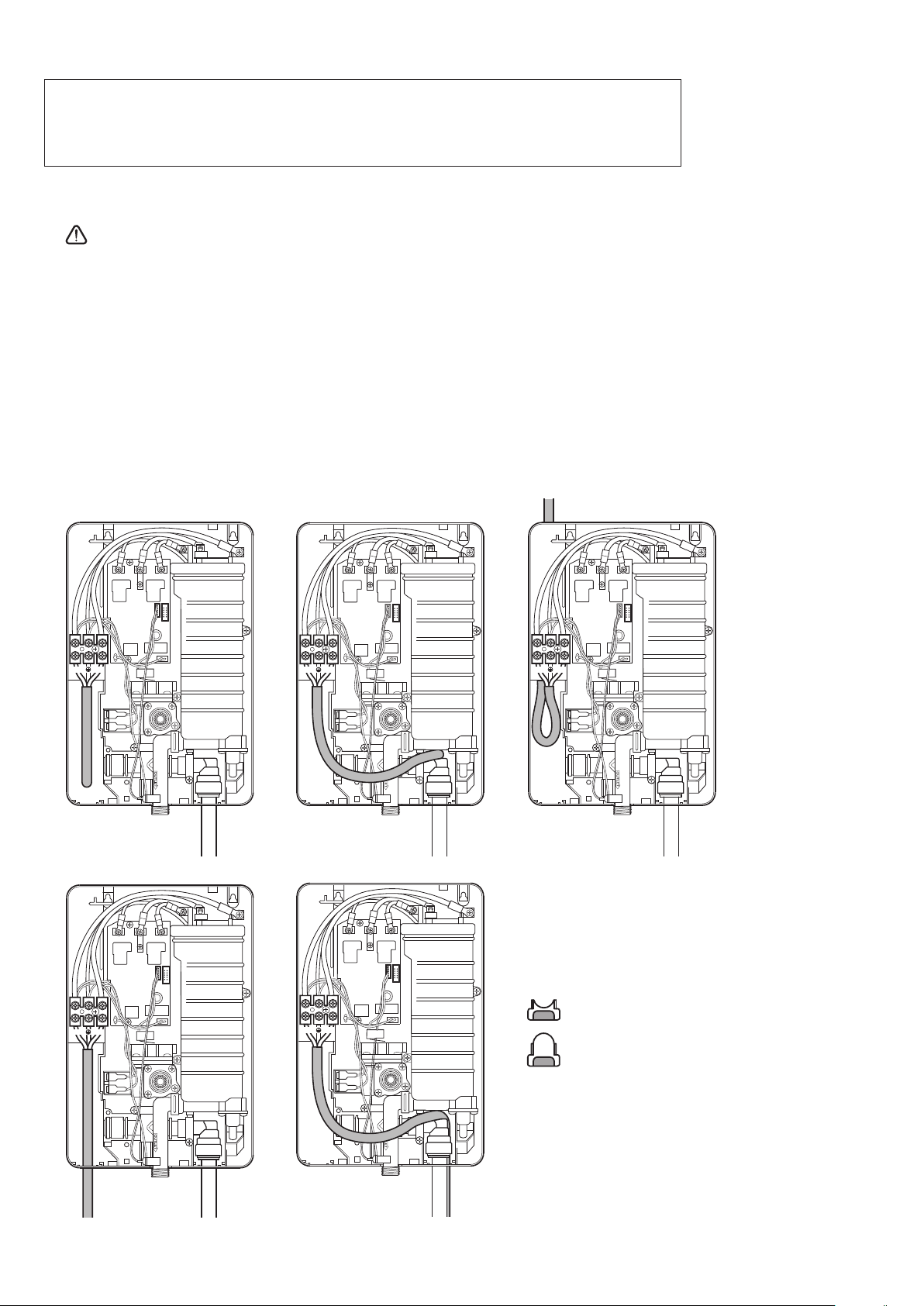

Electrical Connections
Warning: This appliance and all connecting metal pipe work
must be earthed.
•Ensure that an earth continuity conductor is securely and
permanently connected to all exposed metal parts of other
services and appliances within the room where the shower is
installed.
•All cables must conform to the relevant tables within the current
I.E.E Wiring Regulations (BS 7671). The electrical supply cable
must be either recessed or in a conduit/trunking as detailed in the
current I.E.E Wiring Regulations (BS 7671). Refer to pages 7 and 8.
Electrical Connection Entry Point Options
Select the cable inlet option most suited to your situation.
L
NL
N
Rear bottom left
cable entry
Top left cable entryRear bottom right
cable entry
Note: Depending on cable size and entry point
used it may be necessary to strip back outer cable
sheath sufficiently to allow cables to be directed
to the terminal connection block within the unit.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
L
N
Bottom left
cable entry *Bottom right cable entry *
*Note: When feeding cable
through bottom entry points
remove highlighted grey tab
on pipe/blanking cover if using
6mm cable.
For 10mm cable remove the
pipe/blanking cover entirely.
L
N
L
N
Pipe
cover
Blanking
cover

14 15
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
Electrical Connections cont.
Electrical Connection Entry Point Options
- continued
Alternatively, if preferred, it is possible to route the cable from the
rear bottom right or bottom right positions as shown below by
stripping the sheath back further.
Select the cable inlet option most suited to your situation.
Note: Depending on cable size and entry point used it may be
necessary to strip back outer cable sheath sufficiently to allow cables
to be directed to the terminal connection block within the unit.
*Note: When feeding cable through bottom entry
points remove highlighted grey tab on pipe/
blanking cover if using 6mm cable.
For 10mm cable remove the pipe/blanking cover
entirely.
Pipe
cover
Blanking
cover
Note: We
recommend that
the blue (neutral)
and brown (live)
cables are fed
under the filter
housing. Position
the earth cable
under the outlet
on top of the
filter housing.
Bottom right
cable entry *
Rear bottom right
cable entry
L
N
L
N


Filter housing
Outlet

16
Electrical Connections cont.
Switch OFF the electricity supply at the consumer unit.
The power cable entry point is shown on the diagram.
Electrical connection to be made at the terminal block as follows:
Earth cable to the terminal marked with the Earth symbol
Neutral cable to the terminal marked N
Live cable to the terminal marked L
Important: Terminals must be fully tightened onto the cables
ensuring that no cable insulation is trapped under the screws.
It must be metal to metal. Loose connections can result in the
cables overheating, ensure all terminal screws are fully tightened.
The supply cable earth conductor must be sleeved. The supply
cable must be secured by routing through conduit or in trunking
or by being embedded in the wall in accordance with current I.E.E
Regulations.
Warning: Do not switch on power to the shower unit until the
cover and the cable to connection (10) have been fully fitted.
•Plug in the cable from the cover to the connection (10) inside the
unit.
•Rotate the temperature control knob (6) fully anti-clockwise
(full cold).
•Rotate the splined temperature control spindle (6a) fully
anti-clockwise.
•Locate cover in position ensuring wiring is not trapped.
Note: slight adjustment of the knob may be required to locate
cover correctly.
•Secure using the 4 cover fixing screws supplied and fit screw
covers.
LL
N
L
N
L
N
10
66a
10
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

16 17

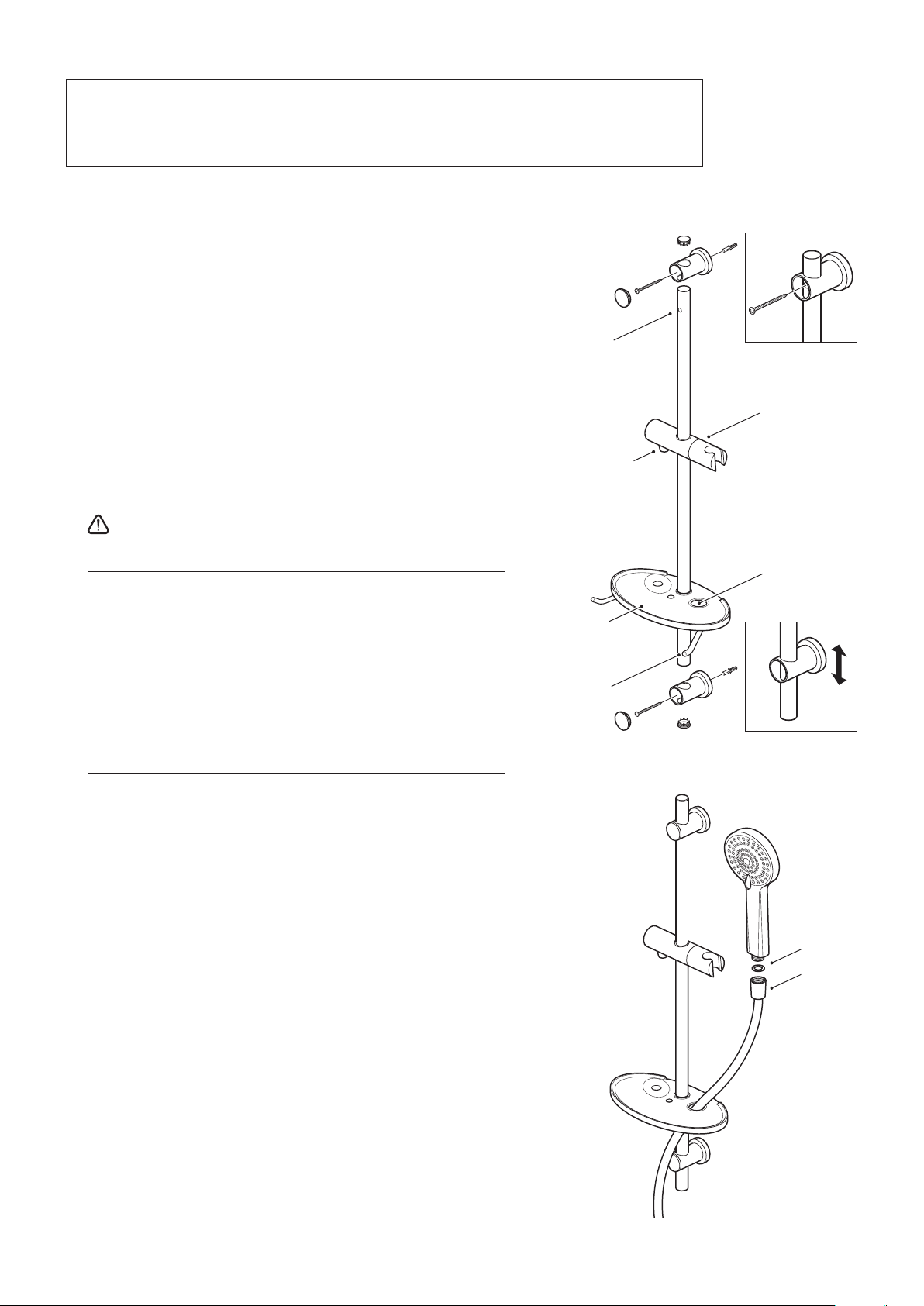

Fixing Your Riser Rail to the Wall
Fitting the Riser Rail
Before proceeding with fitting the rail, identify each of the items
supplied using the illustration on the right.
The Slider should not be removed from the rail during fitting. The
underside of the slider has a button to release the slider and allows
the height to be adjusted.
Slide the soap dish onto the bottom end of the rail. Position a wall
bracket onto each end of the rail, ensuring the hole through the top
of the rail lines up with the hole in a wall bracket.
Position the rail on the wall, bearing in mind the different heights
of people likely to use the shower and the length of the hose when
connected to the shower and passed through the retaining hole
in the soap dish. Mark the wall to indicate the upper fixing screw
position.
Warning: Please check for any hidden pipes and cables before
drilling holes in the wall.
Tips:
A piece of insulation or masking tape positioned where holes
are to be drilled and before marking out the exact position
for the fixing holes will help stop the drill bit from wandering,
particularly on a tiled surface.
When working near a basin, bath or shower insert plug or cover
waste to prevent losing small parts.
Take care not to drop tools/equipment into basin, bath or
shower during shower installation.
Drill the wall at the marked fixing position to suit the wall fixings to
be used, loosely fix the rail (with the large hole on the side shown)
and wall bracket. Check that the rail is hanging vertically using a
spirit level.
Slide the lower wall bracket onto the rail and mark its required
position onto the wall.
Note: The lower wall bracket does not fix to the riser tube and can
be positioned along the riser tube so as to cover either an existing
riser hole in the wall or over a tile joint.
Remove the lower bracket from the rail and unscrew the upper
bracket from the wall. Mark and drill the lower wall bracket fixing
position and fix the bracket to the wall. Slide the rail down through
the lower wall bracket and reattach the upper bracket.
Check that the rail is perfectly vertical and tighten the upper fixing
screw. Insert end caps into the wall brackets at both ends of the rail.
When fitting the hose, it should pass through the larger hole of the
soap dish.
Note: The conical hose end and not the handset handle, fits into the
slider. Ensure the washer is fitted between the hose and the handset
handle. The slider moves more freely on the rail if gripped next to
the rail, rather than at the handset.
Accessory
hooks
Conical
hose end
Washer
Large hole
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
Slider
Slider release
button
Hose
retaining hole
Soap dish

18
Commissioning - Testing the System
Warning: Before using the shower for the first time, it
should receive a final flush through and filter clean to remove
any remaining debris that may be in the pipe work or hose and
to ensure the heater unit contains water before the electrical
elements are switched on.
Remove the showerhead from the hose and if not already attached,
attach the hose to the outlet port and ensure that the outlet hose
mesh filter is fitted.
The temperature control knob (6) must be set fully clockwise to
minimum flow. (This is to prevent the PRD activating when water is
first turned on).
Turn on the water supply and inspect for water tightness.
Turn on the mains electrical supply to the shower.
Press the STOP/START touch button (3).
Note: The unit has been factory set to first come on in the Cold ( )
Power position.
Only the Cold ( ) power touch button (4) should be illuminated
when first turned on. If not please press the cold ( ) power touch
button to obtain cold water only.
Wait approximately 30 seconds for the water to flow correctly.
Once the water has flowed for a further 10 seconds, rotate the
temperature control knob (6) from the fully clockwise position to the
fully anti-clockwise position. Repeat this procedure several times
until a continuous flow of water (with no air bubbles) is obtained
from the shower hose.
Once you are satisfied that the system has been flushed through
thoroughly, press the STOP/START touch button (3) to stop the flow.
Important: Isolate the electrical and water supply to the unit. Clean
the Inlet Filter and Outlet Hose Mesh Filter to remove any debris
from the flush - see Maintenance Section.
Note: If the words ‘LOW PRESSURE’
appear below the large numerical display
this indicates too low a water supply
pressure to the unit. Please switch off unit until water pressure
increases before continuing to use the shower.
Re-fit the showerhead to the hose, insert hose rubber washer to
seal the joint; please ensure that the hose passes through the
larger hole in the soap dish. The showerhead is attached to the riser
rail by inserting the conical hose end into the movable slider.
Your shower is ready for use.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
4
6
3

18 19
Operating the Shower
Please ensure the commissioning procedure has been carried out.
If you did not fit this shower yourself and you are about to use it for
the first time, check with the installer to ensure he or she has run
the commissioning procedure as described on page 18.
To Start the Shower
Press the STOP/START touch button (3).
Note: The display will only light up once the STOP/START touch button
is pressed, then the temperature indicator display will start to count up.
During periods of high ambient temperatures (e.g. hot summer
days), it may be necessary to select a lower power setting in order to
achieve your ideal shower temperature.
When adjusting the temperature, including during first start up, do
not rapidly turn the dial to Max Temp to increase the temperature.
Instead, use small changes and wait for the new temperature to
settle before changing again.
To Stop the Shower
Press the STOP/START touch button (3).
Phased Shut Down: When the shower is turned off, water will
continue to flow for a short period of time while the heater cools
down. This ensures that the shower is ready for the next user. Do
not use the isolation switch (pull cord) to stop the shower, use the
STOP/START touch button (3).
It is always advisable to test the water temperature with your hand
before stepping under the shower. Please note that there is always a
delay of a few seconds between you selecting a temperature setting
and the selected water temperature starting to flow.
3
OFF
COLD Water
Medium
Temperature Water
NO Heater
Elements ON
1 Heater
Element ON
2 Heater
Elements ON
NO Heater
Elements ON
HOT Water
HOT (reduced flow)
COLD (increased flow)
Power Control
Temperature Control
OFF
COLD Water
Medium
Temperature Water
NO Heater
Elements ON
1 Heater
Element ON
2 Heater
Elements ON
NO Heater
Elements ON
HOT Water
HOT (reduced flow)
COLD (increased flow)
Power Control
Temperature Control
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

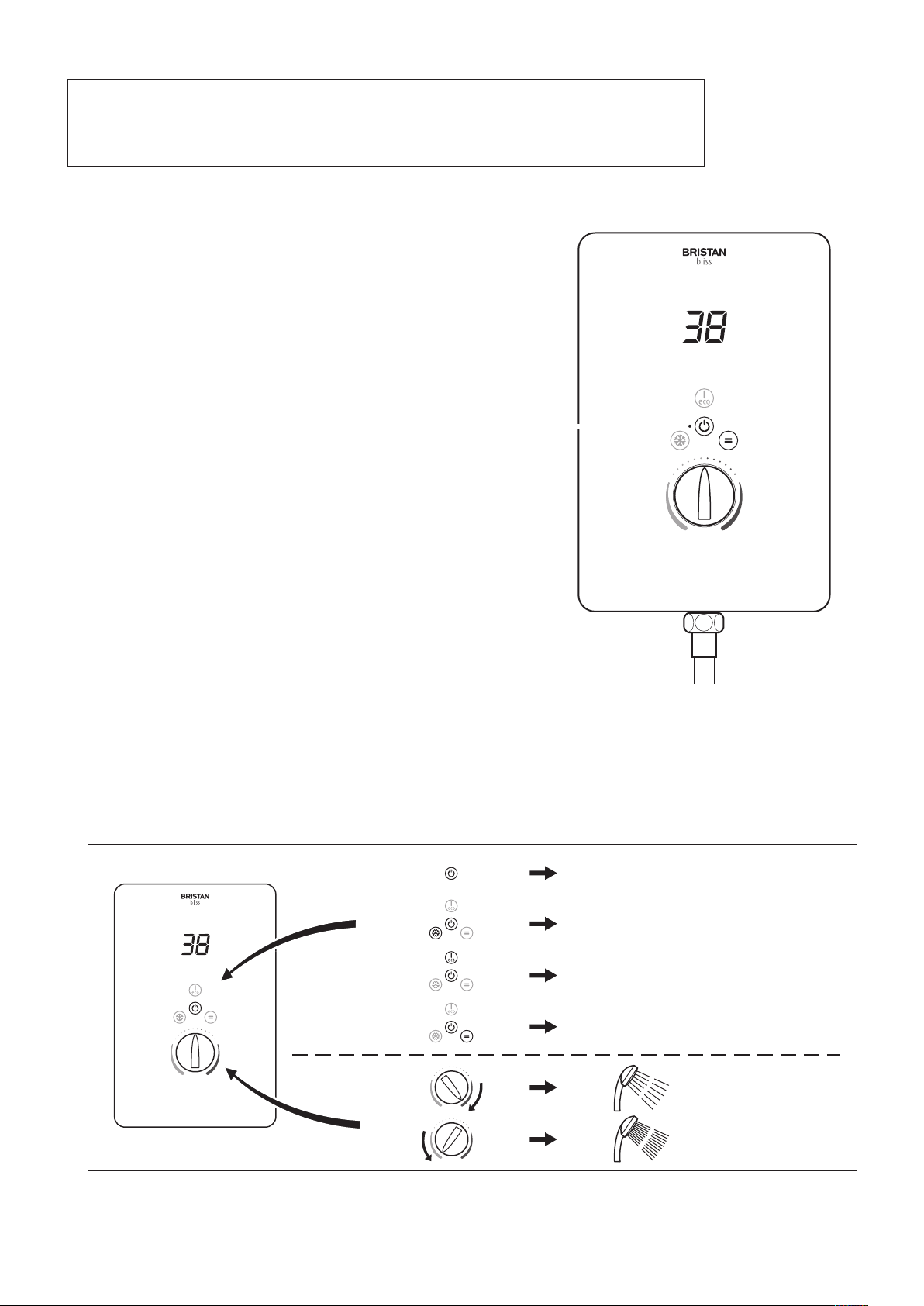

Operating the Controls

20 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
Operating the Shower cont.

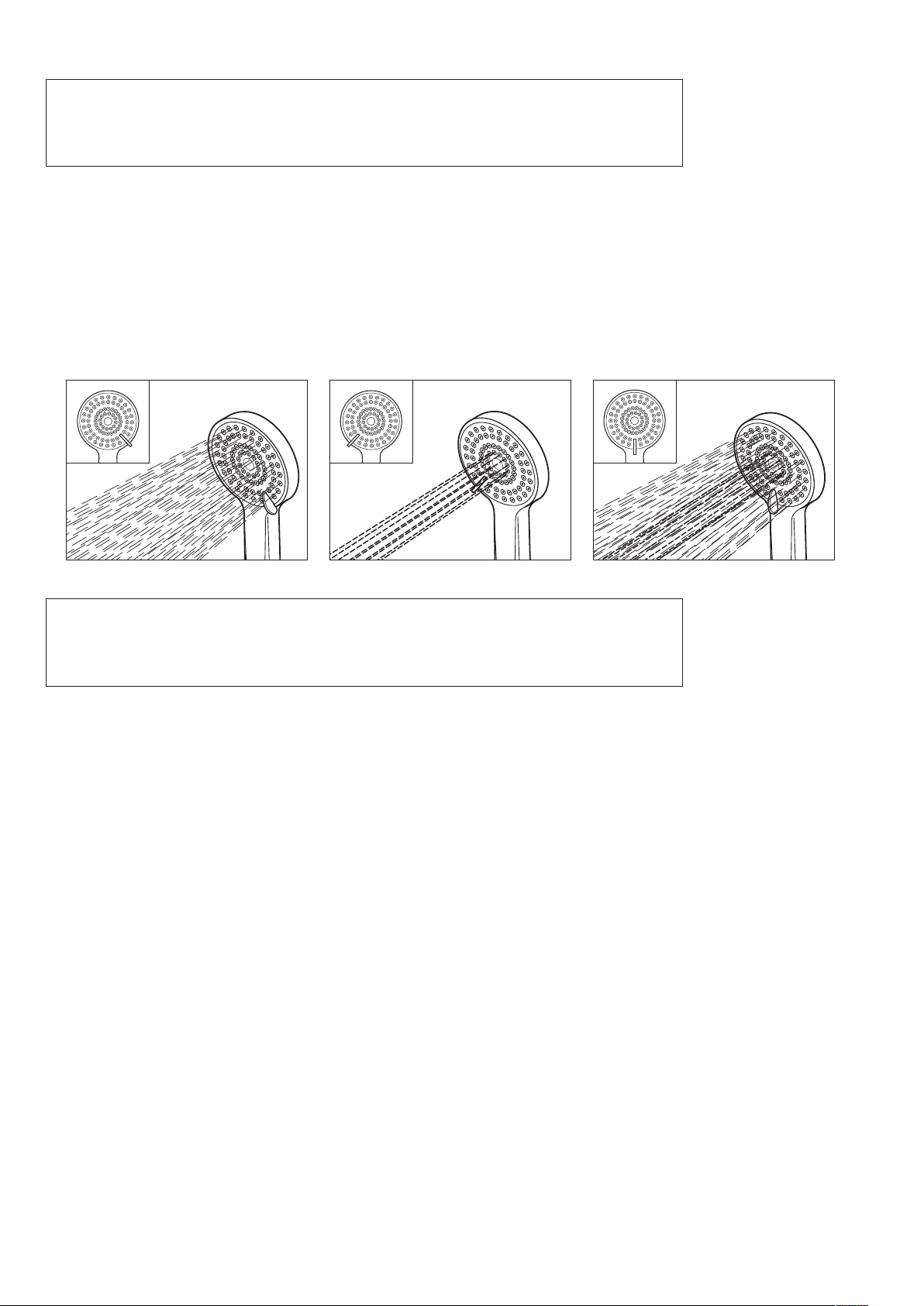

Adjusting the Showerhead
Your Bliss showerhead has 3 spray modes - spray, jet spray and
combination. Simply rotate the spray head one way or the other until
it ‘clicks’ into the desired spray pattern.
Note: The spray head mode may need to be altered during winter
conditions (low flow conditions) to achieve a satisfactory spray.
Maintenance
continued on next page
General Cleaning
Before attempting to clean your shower unit you must switch off
the power at the isolating switch. Do not remove the cover.
Do not use abrasive cleaners or solvents to clean this unit. The
shower unit and accessories should be cleaned with a soft, clean,
damp cloth.
Performance Maintenance Indication
Display shows “CL”. This is a performance Maintenance Indication
that routine service cleaning is advisable to maintain showering
performance. Follow the instructions to Clean the Showerhead,
Clean the Inlet Filter and Clean the Outlet Hose Mesh Filter.
Cleaning the Showerhead
Your Bristan showerhead has a rub-clean pad for easy cleaning.
Simply rub your fingers across the rubber spray jets regularly and
before you turn the shower on to remove any scale or debris.
The hardness of the water in your area will determine how often
you should clean your showerhead. Build up of scale in particularly
hard water areas combined with constant use means you may
need to clean your showerhead once a week. To ensure continued
performance of your electric shower the showerhead needs to be
regularly descaled.
Spray Jet spray Combination
spray
